Global American Inc. 3301040 User manual

User’s Manual
3301040

Wa rning
Single Board Computers and their components contain very delicate Integrated Circuits (IC). To protect the Single Board Computer and its components against
damage from static electricity, you should always follow the following precau- tions when handling it :
1. Disconnect your Single Board Computer from the power source when you want to work on the inside
2. Hold the board by the edges and try not to touch the IC chips, leads or circuitry
3. Use a grounded wrist strap when handling computer components.
4. Place components on a grounded antistatic pad or on the bag that came with the
Single Board Computer, whenever components are separated from the system
Replacing the lithium battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type recom- mended by the manufacturer (BR2335).
Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with local regulations concerning special waste.
3301040 User's Manual 2

Table of Contents
Replacing the lithium battery....................................................... 2
Technical Support......................................................................... 2
Specifications ................................................................................ 5
Packing list .................................................................................... 6
Board Image (boxheader version)............................................... 8
Board Layout (Front) .................................................................... 8
Board Layout (Back) ..................................................................... 9
Board Dimension .......................................................................... 9
Connector Quick Reference ...................................................... 10
Jumper Quick Reference ........................................................... 10
CMOS Jumper Settings.............................................................. 11
Watchdog Output........................................................................ 11
Wake On LAN .............................................................................. 11
Serial Port Selection (RS232C/422/485).................................... 12
COM1~COM4 Power Source Special Support ......................... 12
LVDS Voltage Selection .............................................................. 14
Audio Interface ............................................................................ 14
CDIN Connector .......................................................................... 14
VGA Connector............................................................................ 15
LAN LED ...................................................................................... 15
CFD Master/Slave Selection ....................................................... 15
CPU Fan Connector .................................................................... 16
System Fan Connector ............................................................... 16
TV-out Connector........................................................................ 16
18bit/24bit TTL Flat Panel Connector........................................ 17
INV Connector ............................................................................. 17
36bit Panel Connector ................................................................ 18
18/24bit LVDS LCD Connector................................................... 18
USB1 Connector (box header version only)............................. 19
USB2 Connector (connector version only) .............................. 19
Interface Connectors FDD .......................................................... 20
Fast Ethernet Connectors .......................................................... 21
LPT1 ............................................................................................. 21
Keyboard & PS/2 Mouse ............................................................ 22
4P Power Connector................................................................... 22
IrDA Connector ........................................................................... 22
3301040 User's Manual 3

Switches and Indicators............................................................. 23
LED Indicator............................................................................... 24
ATX Feature Connector .............................................................. 24
Reset Connector ......................................................................... 24
COM2/COM3/COM4 Connector.................................................. 25
16 Bit General purpose I/O......................................................... 25
System Resources ...................................................................... 26
AWARD BIOS Setup.................................................................... 28
SetupItems.....................................................................................................28
Standard CMOS Setup.................................................................................... 29
IDEHDDAUTODETECTION..........................................................................30
Advanced BIOS Features ................................................................................ 31
IntegratedPeripherals .....................................................................................33
Power Management Setup .............................................................................. 34
PnP/PCIConfiguration ....................................................................................36
Advanced Chipset Features ............................................................................37
DMA Resources ..............................................................................................40
Frequency/Voltage Control .............................................................................. 40
PC Health Status ............................................................................................41
IRQsActivity Monitoring ..................................................................................41
IRQ Resources ...............................................................................................42
WakeUpEvents .............................................................................................42
Howto : Flash the BIOS .............................................................. 43
What if things go wrong ...................................................................................43
Warranty....................................................................................... 44
3301040 User's Manual 4

Specifications
System
• CPU Type: Low Voltage (LV) Mobile Pentium III or Ultra Low Voltage (ULV)
Celeron (Fanless)
3301040xx/C400: Intel ULV Celeron CPU 400MHz with 100MHz FSB and 256KB L2
cache
• System Memory: 128MB On-Board (Optional 256MB On-Board) One 144-pin
SODIMM supports up to 512MB SDRAM
• Chipset: VIA VT8606 TwisterTM NorthBridge & VIA VT82C686B Super South-
Bridge
Multi I/O
• Serial: 3 high speed RS-232C ports (COM1, 3, 4); 1 high speed RS-232C/422/485
port (COM2)
• Parallel: Supports SPP, EPP and ECP mode
• USB: 4 USB ver1.1 ports
LAN
• Chipset: Triple Intel 82551 or Realtek 8100BL for 10/100Mbps or Intel 82540 for
Gigabit LAN
• Supports boot ROM Function (upon customer's request)
• Connector: RJ-45 Connector (Available with Box header by OEM Case)
Audio
• Chipset: Integrated in VIA VT82C686B
• Audio Controller: AC97 v2.2
Display (Flat Panel / CRT)
• Chipset: S3 Savage 4 (VT8606T) AGP Video Controller with TTL, LVDS and CRT
support
• Display Memory: Up to 32MB share memory Video RAM
• CRT: Up to UXGA 1600 x 1200 @ 32bpp
• TTL: Direct connection to TFT/DSTN panels (36-bit)
• LVDS: Supports dual channel 110MHz (36-bit )
• TV-out: Support NTSC, PAL, NTSC-EIA (Japan) format, 800 x 600 resolutions
Flash Disk
• CompactFlash Type I/II supported
• DiskOnChip 2000
Environmental and Power
• Power Requirements (typical) : 5.79 walt (3301040 VL3/N, Celeron 400 with
128MB RAM)
• Board Dimensions : 145mm x 102mm
• Board Weight : 0.176kg
• Operating Temperature : 0 to 60
°
C(32
°
to 140
°
F)
• Operating Humidity : 0%~90%
3301040 User's Manual 5

Packing list
Before you begin installing your single board computer, please make sure that the
following materials have been shipped:
> 1 x 3301040 5.25" Embedded Celeron 400 (Celeron 650, PIII 800, PIII 933) SBC
> 1 x Quick Installation Guide
> 1 x CD-ROM ( for driver used)
Cable Kit (optional)
3301040 Cable Kit (6910706250000) contains the followings:
Content Part No.
. 1 x Audio Cable 3431011000000
. 1 x USB 2 Port Cable 3431122000050
. 1 x Ultra DMA 100 IDE Flat 3432061000030
. 1 x IDE cable w/SR 3432061000370
. 1 x FDD Flat Cable 3432031000010
. 1 x Parallele Port Cable 3432091000000
. 1 x COM Cable 3432021000120
3301040 Cable Kit (6911106250000) contains the followings:
Content Part No.
. 1 x VGA Cable 3432131000000
. 1 x Serial Port Cable (COM1) 3432021000010
. 1 x Serial Port 3 in 1 Cable (COM2~COM4) 3432021000120
. 1 x Audio Cable 3431011000000
. 3 x RJ-45 Ethernet Wire Cable 3432112000090
. 2 x USB 2 Port Cable 3431122000050
. 1 x PS2 Cable 3432102000000
. 1 x Ultra DMA 100 IDE Flat 3432061000030
. 1 x IDE cable 3432061000370
. 1 x FDD Flat Cable 3432031000010
. 1 x Parallele Port Cable 3432091000000
3301040 User's Manual 6

Ordering Codes
• 3301040VL3/N/C400-C
EBX Embedded Intel Ultra Low Voltage Celeron 400 Mini-
board with 4xAGP CRT SVGA, triple Intel 82551 Fast Ether-
net, Audio, DOC and CompactFlash Socket
• 3301040VL3/R/C400-C
Same as above with triple Realtek 8100BL Fast Ethernet
• 3301040VL3/G/C400-C
Same as above with triple Intel 82540 Gigabyte Ethernet Box
header version and all other specifications are available upon
OEM request.
• CPU options
ULV Celeron 650MHz with 100MHz FSB and 256K L2 Cache
LV PIII 800MHz with 133MHz FSB and 512K L2 Cache
LV PIII 933MHz with 133MHz FSB and 512K L2 Cache
• Ethernet options
Intel 82551 10/100 Mbps
Intel 82540 10/100/1000 Mbps
Realtek 8100BL 10/100 Mbps
• Connector options
I/O connector type: 3301040-C(standard) Box
header type: 3301040-B(optional)
• Cable Kit (6910706250000) for 3301040
• Cable Kit (6911106250000) for 3301040
3301040 User's Manual 7

Board Image (boxheader version) Board Layout (Front)
PWR1 JFRT1
JVLCD1 LCD1 RES2
LVDS1
VGA1
INV1 VGA1
TV1 LCD2 CPUF1
AUDIO1 COM1
SODIM1
JV1
JV2
CDIN1 LAN3
PC104
LAN2
LAN1
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
SIR1
USB1
KBM1
IDE1 KBM1 LED1
PWR2 PCI1 LLED1
3301040 User's Manual 8

Board Layout (Back) Board Dimension
MPCI1
CFD1
3301040 User's Manual
Unit:
mm
9

Jumper Quick Reference
Jumpers
Label Function
JBAT1 Clear CMOS
JWT1 Watchdog Output
IDE2 Secondary IDE Connector ( AT A 33)
KBM1 PS/2 Keyboard and Mouse
DOC1 DiskOnChip Connector
LAN1 10/100/1000 M LAN1 Connector
LAN2 10/100/1000 M LAN2 Connector
LAN3 10/100/1000 M LAN3 Connector
LPT1 Parallel Port
JRS2 COM2 RS-232C / 422 / 485 Selection
PWR1 4P Power Connector (180D)
JV1-2 COM1 Power Source Special Support
PWR2 4P Power Connector (90D)
JV3-4 COM2 Power Source Special Support
RES2 Reset Push Button
JV5-6 COM3 Power Source Special Support IR1 Infrared (IR) Connector
JV7-8 COM4 Power Source Special Support
SYSF1 System Fan1 connector
JVLCD1 LVDS LCD Voltage selection USB1
USB Port 0,1
JCF1 CFD Master/Slave Selection USB2
USB Port 3,4
JPWR1 AT/ATX Power Type Selection VGA1 CRT SVGA Connector
WOL1 Wake On LAN
Connector Quick Reference
Connectors
Lable Function
EATX1 ATX feature connector
AUDIO1 Audio Interface Port
CDIN1 CD-ROM Audio Input
COM1 RS232 Serial Port: COM1
COM2-4 Serial Port: COM2~COM4
PC104 PC104 for ISA Interface Connector
CPUF1 CPU Fan1 connector
DIO1 Digital I/O Connector
FDD1 Floppy Disk Drive Connector
IDE1 Primary IDE Connector (ATA 33/66)
JFRT1 Switches & Indicators
SODIMM1 144-pin SODIMM Slot
CFD1 Compact Flash Disk
LLED1 LAN LED connector
LED1 Power / HDD LED
LCD1 18bit/24bit TTL Flat Panel Connector (DF13 40 pin)
LCD2 36bit TTL Flat Panel Connector (DF13 20 pin)
LVDS1 18/24bit LVDS Panel Connector (DF13 30 pin)
MPCI1 Mini PCI TYPE III Connector
INV1 LCD Inverter connector
TV1 TV-OUT Connector
PCI1 PCI Slot / Expansion PCI Slot
3301040 User's Manual 10

CMOS Jumper Settings
CMOS Operation (JBAT1)
Type : JBAT1: onboard 3-pin header
If the 3301040 refuses to boot due to inappropriate CMOS settings here is how to proceed
to clear (reset) the CMOS to its default values.
CMOS Setup (JBAT1) J1 Status
Normal Operation 1-2 ON
Clear CMOS 2-3 ON
JVLCD1
LVDS1
INV1
LCD1
PWR1
VGA1
JFRT1
RES2
VGA1
default setting 1-2 ON
Watchdog Output
Mode Setting
Type : JWT1: onboard 3-pin (1*3) header
1
2
3
JW T1
TV1
PC104
LCD2
SODIM1
CPUF1
AUDIO1
JV1
JV2
CDIN1
COM1
LAN3
LAN2
Watchdog mode JWT1
Enabled for Active NMI(I/O Channel Check) 1-2
Enabled for System Reset 2-3
Disable Watchdog Timer None
default setting Enabled for System Reset
Wake On LAN
1
2
3
JBAT1
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
SIR1
LAN1
USB1
KBM1
Connector: WOL1
Type : onboard 3-pin wafer connector
Pin Description
1 5V_SB
PWR2 PCI1
IDE1
KBM1
LLED1
3
2
LED1
2 GND
1WOL1
3 WOL_CTL
3301040 User's Manual 11

Serial Port Selection (RS232C/422/485)
RS-232C/422/485 Mode select (JRS2)
Type : JRS2: onboard 6-pin(2*3) header
PWR1 JFRT1
RS-422/485 Mode on COM2
The onboard COM2 port can be configured to operate in RS-422 or RS-485 modes.
RS-422 modes differ in the way RX/TX is being handled. Jumper JRS2 switches
between RS-232C or RS-422/485 mode. All of the RS-232C/422/485 modes are available
on COM2.
COM2
Pin Defined: RS-232C RS-422 RS-485
Pin1 : DCD Tx+ RTx+
JVLCD1
LVDS1
INV1
TV1
LCD1
LCD2
CPUF1
VGA1
AUDIO1 COM1
RES2
VGA1
Pin2 : RXD Tx- RTx-
JV1
3 2 1 JV1
Pin8 : CTS Rx+ x
Pin9 : RI Rx- x
JRS2 Selection 1-2 3-4 5-6
RS-232C ON OFF OFF
RS-422 OFF ON OFF
RS-485 OFF OFF ON
1
PC104
2
SODIM1 JV2
CDIN1 LAN3
LAN2
LAN1
3 2 1 JV2
default setting RS-232C
34
COM1~COM4 Power Source Special Support 56
JCF1 USB2
USB1
Jumper : JV1 & JV2
JRS2
LPT1
EATX1
Type : Onboard 2*3 pin 2.0mm header
The voltage of COM 1 could be selected by JV1 & JV2.
COM1 Power Source JV1 JV2
DIO1
DOC1
COM2-4
IDE2
FDD1
WOL1
IDE1
KBM1
SIR1
KBM1
LED1
Standard 1-2 1-2
POS:12V on pin 9 2-3 1-2
POS:5V on pin 1 1-2 2-3
POS:5V on pin 1 and 12V on pin 9 2-3 2-3
default setting Standard
3301040 User's Manual
PWR2 PCI1 LLED1
12

Jumper : JV3 & JV4
Type : Onboard 2*3 pin 2.0mm header
The voltage of COM 2 could be selected by JV3 & JV4.
COM2 Power Source JV3 JV4
Standard 1-2 1-2
POS:12V on pin 9 2-3 1-2
POS:5V on pin 1 1-2 2-3
POS:5V on pin 1 and 12V on pin 9 2-3 2-3
default setting Standard
JVLCD1
LVDS1
INV1
LCD1
PWR1
VGA1
JFRT1
RES2
VGA1
Jumper : JV5 & JV6
Type : Onboard 2*3 pin 2.0mm header
The voltage of COM 3 could be selected by JV5 & JV6.
TV1 LCD2
SODIM1
CPUF1
AUDIO1
JV1
JV2
CDIN1
COM1
LAN3
COM1 Power Source JV5 JV6
Standard 1-2 1-2
POS:12V on pin 9 2-3 1-2
POS:5V on pin 1 1-2 2-3
POS:5V on pin 1 and 12V on pin 9 2-3 2-3
default setting Standard
Jumper : JV7 & JV8
Type : Onboard 2*3 pin 2.0mm header
The voltage of COM 4 could be selected by JV7 & JV8.
COM1 Power Source JV7 JV8
Standard 1-2 1-2
PC104
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
KBM1
IDE1
SIR1
LAN2
LAN1
USB1
KBM1
LED1
POS:12V on pin 9 2-3 1-2
POS:5V on pin 1 1-2 2-3
POS:5V on pin 1 and 12V on pin 9 2-3 2-3
default setting Standard
PWR2
332211
PCI1
3 3
3 3
2 2 2 2
1 1 1 1
LLED1
JV8 JV7
JV6 JV5
JV4 JV3
3301040 User's Manual 13

LVDS Voltage Selection
1 2 3
Type : JVLCD1: onboard 3-pin header
The voltage of LVDS panel could be selected by JVLCD1 in 5V or 3.3V .
Mode JVLCD1
3.3V 2-3
5V 1-2
default setting 3.3V
JVLCD1
LVDS1
INV1
JVLCD1
LCD1
PWR1
VGA1
JFRT1
RES2
VGA1
1 2
Audio Interface
Connector : AUDIO1
Type : Onboard 10-pin box header
Pin Description Pin Descriptio n
1 LINE IN LEFT 2 LINE IN RIGHT
3 GND 4 GND
5MIC 6 NC
TV1
PC104
LCD2
SODIM1
CPUF1
AUDIO1
JV1
JV2
CDIN1
COM1
LAN3
LAN2
9 10
AUDIO1
4 3 2 1
7 GND 8 GND
LAN1
9 SPEAKER LEFT 10 SPEAKER RIGHT
CDIN Connector
Connector : CDIN1
Type : onboard 4-pin header
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
SIR1
USB1
KBM1
Pin Description Pin Description
1 CD Left 2 GND
PWR2 PCI1
IDE1
KBM1
LLED1
LED1
3 GND 4CD Right
3301040 User's Manual 14

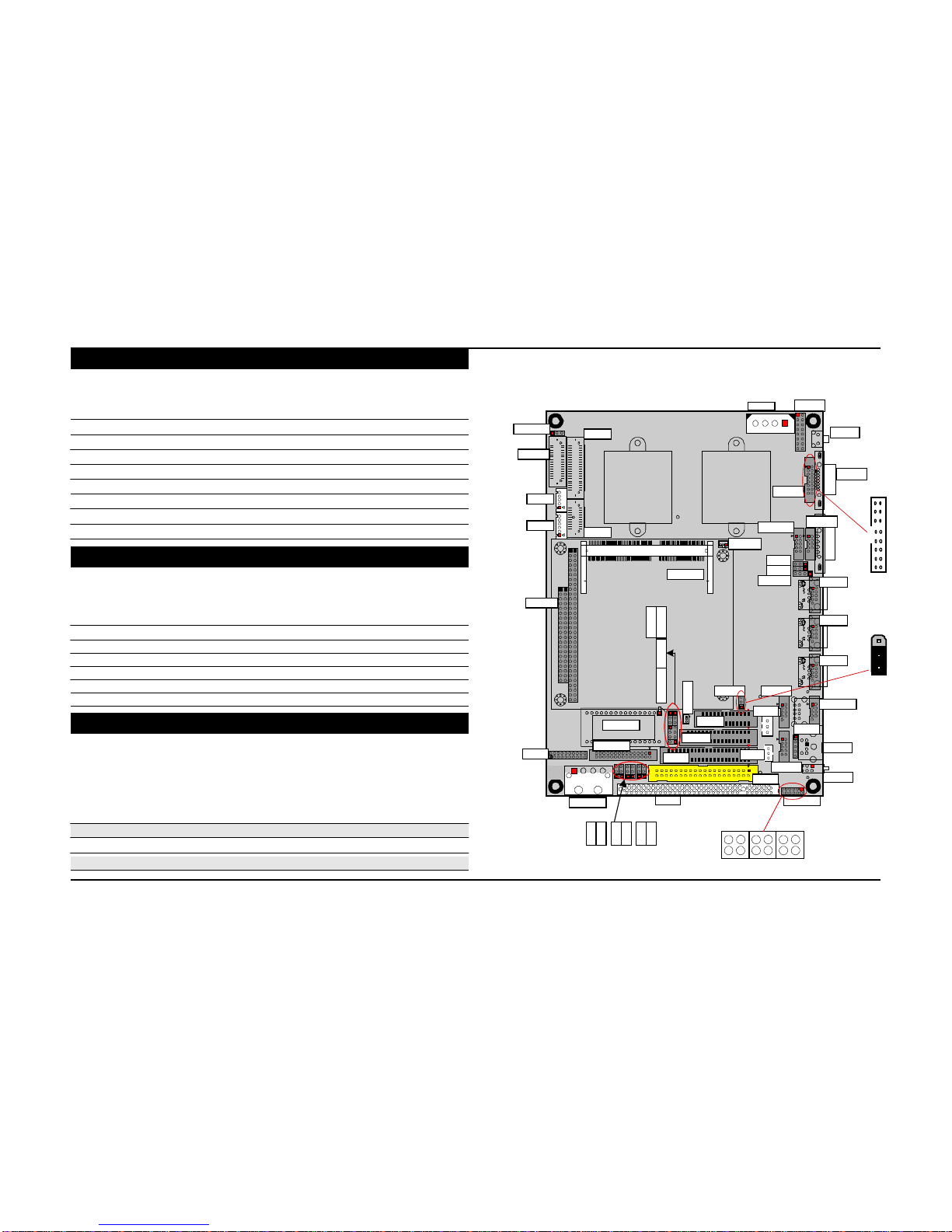

VGA Connector
Connector : VGA1
Type: Onboard 16-pin mini boxheader
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
JVLCD1
LVDS1
LCD1
PWR1 JFRT1
RES2
VGA1
9 NC 10 GND
VGA1
11 NC 12 VDDAT
13 HSYNC 14 VSYNC
15 VDCLK 16 NC
LAN LED
INV1
TV1 LCD2
CPUF1
AUDIO1
JV1
COM1
1 2
Connector : LLED1
Type : Onboard 12-pin box header
Pin Description Pin Descriptio n
1#LINK1 2 3VSB
3#Active1 4 3VSB
5#LINK2 6 3VSB
7#Active2 8 3VSB
PC104
SODIM1 JV2
CDIN1 LAN3
LAN2
LAN1
15 16
VGA1
3
2
1
9#Link3 10 3VSB
JCF1 USB2
JCF1
11 #Active3 12 3VSB
USB1
EATX1
CFD Master/Slave Selection
Connector : JCF1
Type : onboard 3-pin header
The CFD could be selected by JCF1 in master or slave.
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
WOL1
IDE1
KBM1
SIR1
KBM1
LED1
Mode JCF1
Master 1-2 (ON)
Slave 2-3 (OFF)
default setting Master
PWR2 PCI1
11
12
LLED1
1
2
3301040 User's Manual 15

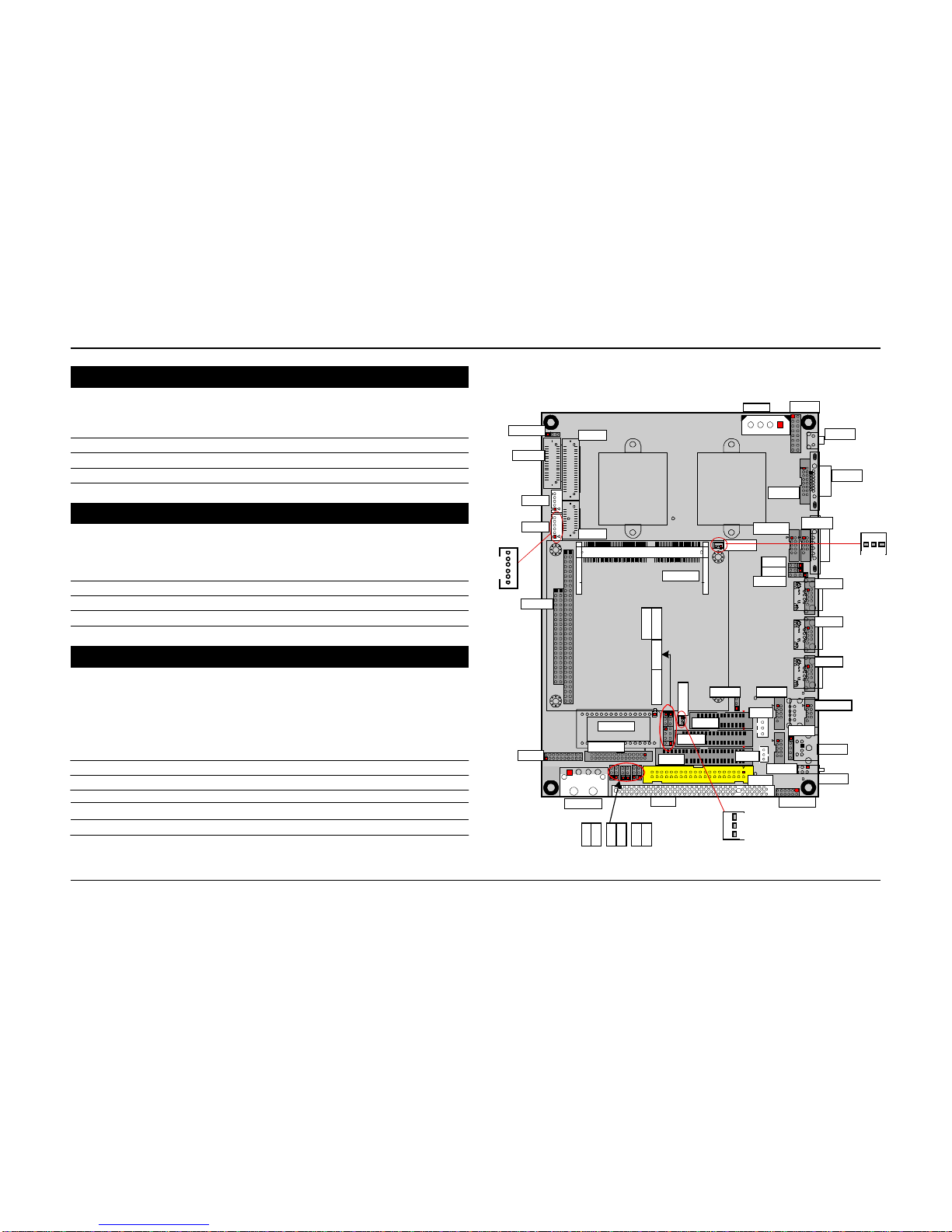

CPU Fan Connector
Connector : CPUF1
Type : onboard 3-pin wafer connector
Pin Description
JVLCD1 LCD1
1FAN Dectect
PWR1 JFRT1
RES2
2+5V
3GND
LVDS1
VGA1
System Fan Connector
Connector : SYSF1
Type : onboard 3-pin wafer connector
Pin Description
1GND
2+12V
3FAN Detect
INV1
TV1
6
1
PC104
LCD2
SODIM1
CPUF1
VGA1
AUDIO1
JV1
JV2
CDIN1
COM1
LAN3
LAN2
3 2 1
TV-out Connector
LAN1
Connector : TV1 Connector
Type: Onboard 6-pin wafer
PIN Description
1Composite Video
2 GND
3S-Video Y
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
KBM1
IDE1
SIR1
USB1
KBM1
LED1
4 GND
PWR2 PCI1 LLED1
5S-Video C
1
6 GND
2
3
3301040 User's Manual 16

18bit/24bit TTL Flat Panel Connector
Connector : LCD1
Type : Onboard DF13 40-pin
LCD1 pin Assignment
Pin Description Pin Description
1 5V 2 5V
3Ground 4Ground
5 3V 6 3V
2 1
JVLCD1
LVDS1
LCD1
PWR1
VGA1
JFRT1
RES2
VGA1
7 VEEP 8Ground
40 39 INV1
9 FP0 10 FP1
COM1
11 FP2 12 FP3
LCD1
13 FP4 14 FP5
15 FP6 16 FP7
17 FP8 18 FP9
5
19 FP10 20 FP11
4
21 FP12 22 FP13
3
TV1
PC104
LCD2
SODIM1
CPUF1
AUDIO1
JV1
JV2
CDIN1 LAN3
23 FP14 24 FP15
LAN2
25 FP16 26 FP17
2
1
27 FP18 28 FP19
29 FP20 30 FP21
31 FP22 32 FP23
33 Ground 34 Ground
35 FPSCLK 36 FP
JCF1 USB2
EATX1
LAN1
USB1
37 M38 LP
LPT1
DOC1
39 FPVDDEN 40 VBIASEN
FDD1
COM2-4
SIR1
KBM1
INV Connector
Connector : INV1
Type : Onboard 5-pin wafer
Pin Description Pin Descriptio n
1+12 V 2 GND
3on/off 4brightness control
5 GND
DIO1
PWR2
IDE2
PCI1
WOL1
IDE1
KBM1
LLED1
LED1
3301040 User's Manual 17

36bit Panel Connector
Connector: LCD2
Type: Onboard 20-pin DF-13 Connector
Pin Description Pin Description
1 GND 2 GND
3 FD24 4 FD25
5 FD26 6 FD27
7 FD28 8 FD29
9 FD30 10 FD31
2 1
JVLCD1 LCD1
LVDS1
PWR1
VGA1
JFRT1
RES2
VGA1
11 FD32 12 FD33
30 29
INV1
13 FD34 14 FD35
LVDS1
15 GND 16 GND
17 DOTCLK(NC) 18 NC
19 NC 20 NC
LCD2
TV1 LCD2
SODIM1
CPUF1
AUDIO1
JV1
JV2
CDIN1
COM1
LAN3
18/24bit LVDS LCD Connector
12
PC104
Connector : LVDS1 (Note : VDD could be selected by JVLCD1 in +5V or +3.3V.)
LAN2
Type : onboard 30-pin DF-13 Connector
Pin Signal Pin Signal
1 VDD 2 VDD
3 TX1CLK+ 4 TX2CLK+
5 TX1CLK- 6 TX2CLK-
7 GND 8 GND
9 TX1D0+ 10 TX2D0+
11 TX1D0- 12 TX2D0-
13 GND 14 GND
15 TX1D1+ 16 TX2D1+
17 TX1D1- 18 TX2D1-
20 19
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
KBM1
IDE1
SIR1
LAN1
USB1
KBM1
LED1
19 GND 20 GND
PWR2
21 TX1D2+ 22 TX2D2+
23 TX1D2- 24 TX2D2-
25 GND 26 GND
27 N/A 28 N/A
29 N/A 30 N/A
3301040 User's Manual
PCI1 LLED1
18

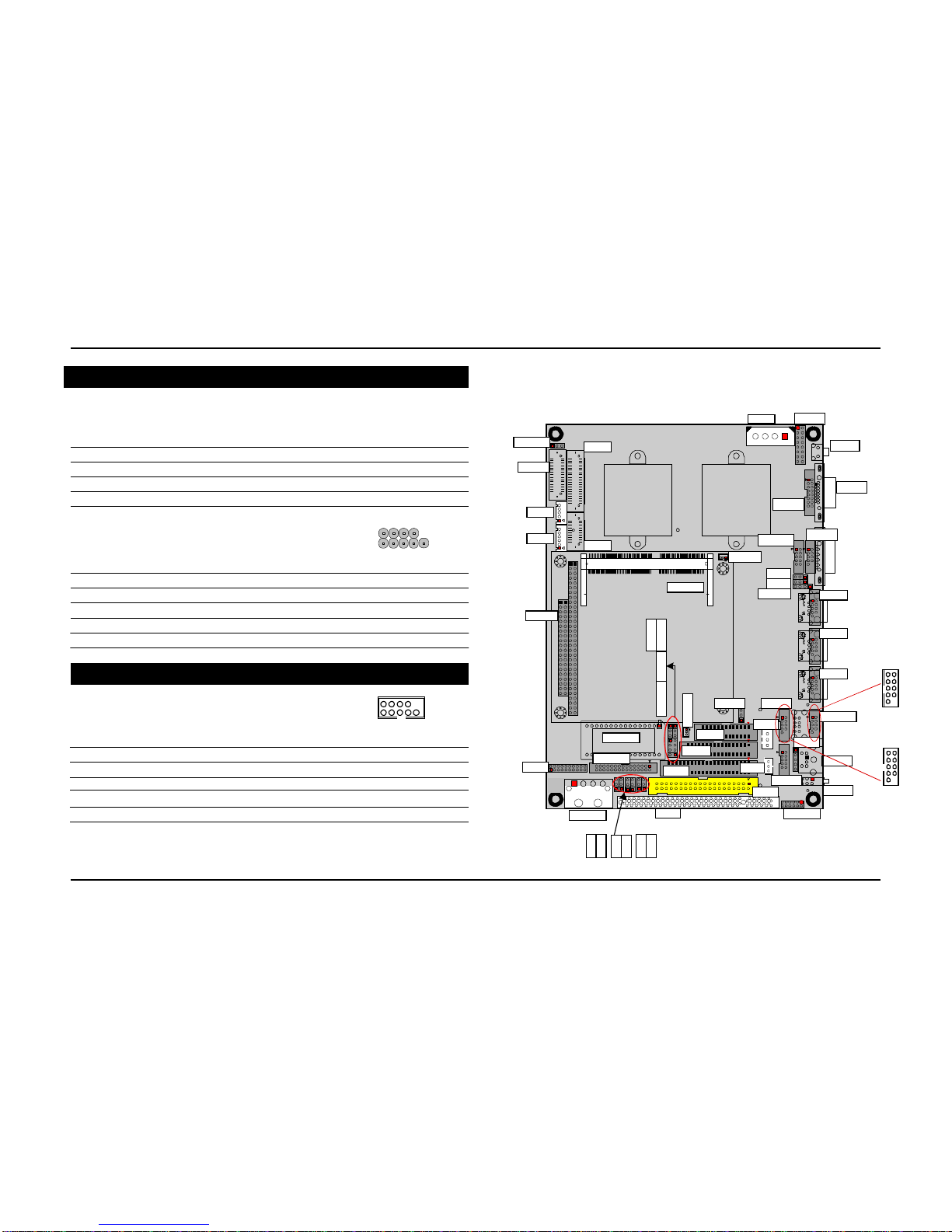

USB1 Connector (box header version only)
Connector : USB1
Type:onboard 10-pin box header
PWR1 JFRT1
Pin Description Pin Description
1 +5V 2 +5V
3 USBD0- 4 USBD1-
5 USBD0+ 6 USBD1+
JVLCD1
LVDS1
LCD1 RES2
VGA1
7 GND 8 GND
VGA1
INV1
Connector : USB1
210
COM1
Type:onboard Two 10-pin pin headers
Pin Description Pin Description
1 +5V 2 +5V
3 USBD0- 4 USBD1-
19
USB1
TV1 LCD2
SODIM1
CPUF1
AUDIO1
JV1
JV2
CDIN1 LAN3
5 USBD0+ 6 USBD1+
PC104
7 GND 8 GND
9 GND 10 NC
LAN2
USB2 Connector (connector version only)
LAN1
1 2
Connector : USB connector
Type:onboard 10-pin box header
Pin Description Pin Description
210
1 9
USB2
DOC1 LPT1
FDD1
JCF1 USB2
EATX1
SIR1
USB1
9 10
USB1
1 2
1 +5V 2 +5V
COM2-4 KBM1
3 USBD0- 4 USBD1-
DIO1 IDE2
WOL1
KBM1
5 USBD0+ 6 USBD1+
IDE1
7 GND 8 GND
LED1
9 10
USB2
9 GND 10 N/C
PWR2 PCI1 LLED1
3301040 User's Manual 19

Interface Connectors FDD
Connector : FDD1
Type : onboard 34-pin box header
JVLCD1 LCD1
PWR1 JFRT1
RES2
Pin Description Pin Description
1 GND 2 DRIVE DENSITY SELECT 0
3 GND 4 NC
5 GND 6 DRIVE DENSITY SELECT 1
LVDS1
INV1 VGA1
COM1
VGA1
7 GND 8 #INDEX
TV1
9 GND 10 #MOTOR ENABLE A
LCD2
CPUF1
AUDIO1
11 GND 12 #DRIVER SELECT B
JV1
13 GND 14 #DRIVER SELECT A
15 GND 16 #MOTOR ENABLE B
17 GND 18 #DIRECTION
PC104
SODIM1 JV2
CDIN1 LAN3
19 GND 20 #STEP
LAN2
21 GND 22 #WRITE DATA
23 GND 24 #WRITE GATE
25 GND 26 #TRACK 0
27 GND 28 #WRITE PROTECT
29 GND 30 #READ DATA
31 GND 32 #HEAD SELECT
33 GND 34 #DISK CHANGE
DIO1
DOC1
COM2-4
IDE2
LPT1
FDD1
JCF1 USB2
EATX1
WOL1
SIR1
LAN1
USB1
KBM1
IDE1
KBM1 LED1
PWR2 PCI1 LLED1
33 1
34 2
3301040 User's Manual 20
