Global energy innovations Ec1000 User manual

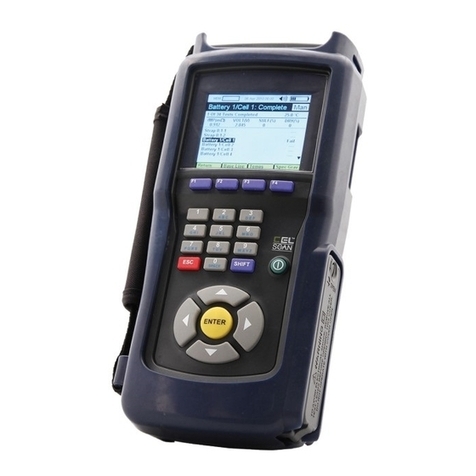

Global Energy Innovations EC1000™& EC2000™

Handheld Battery Analyzers

Firmware Version 2.0.0 Onward

Users Manual

October, 2011 Revision 1.0.2

Printed in the USA.

All product names are trademarks of the respective companies.

Document: EN-1005-1001

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Limited Warranty & Limitation of Liability

1. LIMITED WARRANTY & LIMITATION OF LIABILITY

Subject to the exclusions contained below, Global Energy Innovations warrants its EC1000™and EC2000™ Analyzers (“Products”), Global Energy Innovations-

branded or certified accessories sold for use with these Products (“Accessories”) and Global Energy Innovations software contained on CD-Roms or other tangible

media and sold for use with these Products (“Software”) to be free from defects in materials and workmanship under normal consumer usage for the period(s)

outlined below. This limited warranty is a consumer’s exclusive remedy, and applies as follows to new Products, Accessories and Software purchased by

consumers, which are accompanied by this written warranty:

PRODUCTS COVERED LENGTH OF COVERAGE

Products as defined above. One (1) year from the date of purchase by the

first consumer purchaser of the product.

Accessories as defined above. One (1) year from the date of purchase by the

first consumer purchaser of the product.

Products or Accessories that are Repaired

or Replaced.

The balance of the original warranty or for

ninety (90) Days from the date returned to the

consumer, whichever is longer.

Software as defined above. Applies only to

physical defects in the media that embodies

the copy of the software (e.g. CD-ROM).

Ninety (90) days from the date of purchase.

What is not covered? (Exclusions)

Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.

Ornamental Decorations. Ornamental decorations such as emblems and graphics, and other decorative elements, are excluded from coverage.

Batteries. Only batteries whose fully charged capacity falls below 60% of their rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage

(cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand,

dirt or the like, extreme heat, or food; (c) Subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of

Global Energy Innovations, are excluded from coverage.

Use of Non-Global Energy Innovations Products and Accessories. Defects or damage that result from the use of Non-Global Energy Innovations branded

or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, including

without limitation, software changes, or modification in any way by someone other than Global Energy Innovations, or its authorized service centers, are

excluded from coverage.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Limited Warranty & Limitation of Liability

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show

evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non- Global Energy Innovations housings, cases, or parts, are excluded

from coverage.

Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or

software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software

products will be corrected.

Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the internet), is

provided “as is” and without warranty.

Who is covered? This warranty extends only to the first consumer purchaser, and is not transferable.

What will Global Energy Innovations Do? Global Energy Innovations, at its option, will at no charge repair, replace or refund the purchase price of any

Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned / refurbished / pre-owned or new

Products, Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, site

data, configurations, will be reinstalled. To avoid losing such data, software and applications please create a back up prior to requesting service.

How to Obtain Warranty Service or Other Information? To obtain service or information, please contact:

Your Local Representative or Distributor

http://www.globalei.com/distributorsAndReps.html

Global Energy Innovations Customer Services

Main Phone Number: +1.415.354.5688

Facsimile: +1.415.354.5738

Email: [email protected]

Or visit us online at http://www.globalei.com

You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Global Energy Innovations Authorized Repair Center. To

obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name

of your distributor or representative, if applicable; and, most importantly; (d) your address and telephone number.

What Other Limitations Are There?

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR

REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU

OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL GLOBAL ENERGY INNOVATIONS BE LIABLE, WHETHER IN CONTRACT

OR NOT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR

FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF

BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION

WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE

DISCLAIMED BY LAW.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Limited Warranty & Limitation of Liability

iii

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied

warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other

rights that vary from state to state or from one jurisdiction to another.

Laws in the United States and other countries preserve for Global Energy Innovations certain exclusive rights for copyrighted Global Energy Innovations software

such as the exclusive rights to reproduce and distribute copies of the Global Energy Innovations software. Global Energy Innovations software may only be copied

into, used in, and redistributed with, the Products associated with such Global Energy Innovations software. No other use, including without limitation disassembly

of such Global Energy Innovations software or exercise of the exclusive rights reserved for Global Energy Innovations, is permitted.

Global Energy Innovations – EC1000™& EC2000™Analyzers

User Manual Table of Contents

Page 1

2. TABLE OF CONTENTS

1. LIMITED WARRANTY & LIMITATION OF LIABILITY ................................................................................................................................................................. i

2. TABLE OF CONTENTS .............................................................................................................................................................................................................. 1

3. DECLARATION OF CONFORMITY ........................................................................................................................................................................................... 4

4. COPYRIGHT NOTICE ................................................................................................................................................................................................................ 5

5. SAFETY INSTRUCTIONS – INTRODUCTION .......................................................................................................................................................................... 6

6. SAFETY PRECAUTIONS ........................................................................................................................................................................................................... 7

7. CAUTION & WARNING STATEMENT ....................................................................................................................................................................................... 8

8. WARNINGS & OTHER SYMBOLS............................................................................................................................................................................................. 9

9. IMPAIRED SAFETY.................................................................................................................................................................................................................. 10

10. LIST OF WARNINGS & SAFETY PRECAUTIONS – GENERAL SAFETY INFORMATION ................................................................................................... 11

11. UNPACKING THE ANALYZER KIT.......................................................................................................................................................................................... 13

12. INTRODUCTION....................................................................................................................................................................................................................... 17

CHAPTER 1 – INITIAL ANALYZER SETUP.......................................................................................................................................................................................... 18

About this Chapter ............................................................................................................................................................................................................................. 18

Background........................................................................................................................................................................................................................................ 18

Setup Methods................................................................................................................................................................................................................................... 19

Setup Method 1 – Using IBMS ...................................................................................................................................................................................................... 19

Setup Method 2 – Using The Analyzer.......................................................................................................................................................................................... 19

Setting up the Analyzer – Getting Started ......................................................................................................................................................................................... 20

Powering ON ................................................................................................................................................................................................................................. 20

Powering OFF ............................................................................................................................................................................................................................... 21

The Analyzer Display Screen ........................................................................................................................................................................................................ 22

Global Energy Innovations – EC1000™& EC2000™Analyzers

User Manual Table of Contents

Page 2

The MAIN MENU........................................................................................................................................................................................................................... 22

The UTILITIES MENU ................................................................................................................................................................................................................... 23

CHAPTER 2 – ANALYZER TEST CONFIGURATION & TESTING ...................................................................................................................................................... 25

TEST CONFIGURATIONS ................................................................................................................................................................................................................ 25

QUICK TEST SETTINGS (TEMPLATES) ..................................................................................................................................................................................... 26

COMPANY / REGION ................................................................................................................................................................................................................... 32

STRING CONFIGURATIONS ....................................................................................................................................................................................................... 32

BATTERY TYPE TEMPLATES ..................................................................................................................................................................................................... 38

TEST SETTING TEMPLATES ...................................................................................................................................................................................................... 39

ALARM SETTING TEMPLATES ................................................................................................................................................................................................... 39

TESTING ........................................................................................................................................................................................................................................... 41

TESTING USING THE ANLAYZER .............................................................................................................................................................................................. 41

CHAPTER 3 – REVIEWING THE TEST RESULTS .............................................................................................................................................................................. 44

CHAPTER 4 – CONNECTING THE ANALYZER TO IBSM™ SOFTWARE ......................................................................................................................................... 46

CHAPTER 5 – ADVANCED ANALYZER FEATURES & FUNTIONS.................................................................................................................................................... 47

TOOLS............................................................................................................................................................................................................................................... 47

BASELINING – ANALYZER (BASELINE UTILITY)........................................................................................................................................................................... 47

REPEATIBILITY UTILITY .................................................................................................................................................................................................................. 51

BATTERY REPLACEMENT UTILITY................................................................................................................................................................................................ 52

Global Energy Innovations – EC1000™& EC2000™Analyzers

User Manual Table of Contents

Page 3

AUTO CALIBRATION........................................................................................................................................................................................................................ 54

MASTER RESET ............................................................................................................................................................................................................................... 55

EJECT SD CARD .............................................................................................................................................................................................................................. 55

SYSTEM DIAGNOSTICS .................................................................................................................................................................................................................. 55

TEMPERATURE MEASUREMENTS & CORRECTION ................................................................................................................................................................... 55

ANALYZER / IBMS INTERACTION................................................................................................................................................................................................... 55

CHAPTER 6 – TROUBLESHOOTING................................................................................................................................................................................................... 57

FIRMWARE UPGRADES .................................................................................................................................................................................................................. 57

CRASH RECOVERY ......................................................................................................................................................................................................................... 57

ANALYZER SPECIFICATIONS ............................................................................................................................................................................................................. 58

INDEX .................................................................................................................................................................................................................................................. 64

APPENDICES ........................................................................................................................................................................................................................................ 67

Global Energy Innovations – EC1000™& EC2000™Analyzers

User Manual Declaration of Conformity

Page 4

3. DECLARATION OF CONFORMITY

Based on the test results using appropriate standards, the EC1000™ and EC2000™ Handheld Battery Analyzers are in conformity with the following:

Electromagnetic Compatibility Directive 2004/108/EC

Low Voltage Directive 2006/95/EC

Conformity is indicated by the CE symbol (“Conformité Européenne).

Subpart B of Part 15 of the FCC Rules (CFR Title 47)

ICES-003, Issue 4

Global Energy Innovations – EC1000™& EC2000™Analyzers

User Manual Copyright Notice

Page 5

4. COPYRIGHT NOTICE

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Global Energy Innovations is strictly forbidden.

No Warranty. This user manual is being delivered to you “as is” and Global Energy Innovations makes no warranty as to its accuracy or use. Any use of this

documentation or the information contained therein is at the risk of the user. This documentation may include technical or other inaccuracies or typographical

errors. Global Energy Innovations reserves the right to make changes without prior notice. Although every effort has been made to assure the accuracy of the

representations of the EC1000™and EC2000™Analyzer screen displays within this manual, last minute changes and alterations may lead to slight differences in

the information held within this manual and the actual display.

Trademarks

Global Energy Innovations, The GEI logo, Dynapulse™, IBMS™, CELScan™ are trademarks of Global Energy Innovations.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Safety Instructions – Introduction

Page 6

5. SAFETY INSTRUCTIONS – INTRODUCTION

Read these pages carefully before beginning to unpack or use the EC1000™and EC2000™Analyzer.

The following paragraphs contain information, cautions and warning which must be followed to ensure safe operation and to keep the EC1000™and EC2000™

Analyzer in safe condition.

WARNING

Servicing described in this manual is to be done ONLY by

qualified service personnel. To avoid electrical shock, DO NOT

service the EC1000™ or EC2000™ Analyzers unless you are

qualified to do so.

WARNING

DO NOT use the EC1000™ or EC2000™ Analyzers unless you

have been formally trained at servicing electrical power

systems including battery and other energy storage devices.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Safety Precautions

Page 7

6. SAFETY PRECAUTIONS

For the correct and safe use of the EC1000™and EC2000™Analyzer, it is essential that both operating and service personnel follow generally accepted safety

procedures in addition to the safety precautions specified in this manual. Specific warning and caution statements, where they apply, will be found throughout the

manual.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Caution and Warning Statement

Page 8

7. CAUTION & WARNING STATEMENT

WARNING

Used to alert the user to the possibility of performing an

incorrect maneuver which could lead to damage or destruction

of the equipment or other property.

CAUTION

Used to call attention to a potential danger that requires correct

procedures or practices to prevent property damage, personal

injury, or death.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Warnings and Other Symbols

Page 9

8. WARNINGS & OTHER SYMBOLS

Nomenclature and Formatting in this Manual

The following safety symbols are used in the Users Manual.

Notes, Warnings and Caution Symbols

NOTE: A note indicates important information that helps you make better use of

your equipment.

WARNING: A WARNING used to alert the user to the possibility of performing an

incorrect maneuver which could lead to damage or destruction of the equipment or

other property.

CAUTION: A CAUTION calls attention to a potential danger that requires correct

procedures or practices to prevent property damage, personal injury, or death.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Impaired Safety

Page 10

9. IMPAIRED SAFETY

Whenever it is likely that safety has been impaired or compromised, the Analyzer must be turned off. The matter should be referred to a qualified technician.

Safety is likely to be impaired if, for example, the EC1000™and EC2000™Analyzer fails to perform the intended procedure or shows visible damage.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual List of Warnings & Safety Precautions – General Safety Information

Page 11

10. LIST OF WARNINGS & SAFETY PRECAUTIONS – GENERAL SAFETY INFORMATION

Please read all of the following Warnings before operating your Analyzer.

GENERAL SAFETY INFORMATION

CAUTION

Disassembling the Analyzer or removing parts, is likely to expose

live parts which can be dangerous to life.

WARNING / AND SAFETY PRECAUTIONS

GENERAL

1. Do not use or operate the Analyzer unless you have been formally trained at servicing electrical power systems including battery and other energy storage

devices.

2. Before using the Analyzer, be sure to read all instructions and CAUTIONS in this manual, printed on the unit, and on the battery.

3. Before using the Analyzer, read all instructions and cautionary markings on 1) the Analyzer, 2) the battery and 3) the product that uses the battery.

4. The Analyzer must only be serviced by Global Energy Innovations' approved service center. DO NOT attempt to open the Analyzer.

5. Avoid contact with the metal surfaces of the Kelvin clips when testing batteries or cells. The Analyzer emits current at various frequencies and current

levels during a test sequence. Although the impedance of the human body is very high with little risk of large currents passing through the human body,

the user should exercise caution when using the Analyzer as with all other AC emitting devices

6. While testing, NEVER connect the Analyzer to a PC or laptop via the USB port. When the PC is using an AC power supply, the USB port connection can

cause a ground-loop with dangerous potentials that can disrupt the operation of the Analyzer and potentially harm the operator. Even if the PC is a laptop

that is not connected to the AC mains and is using only its own internal battery, it is possible for high voltages to appear between the laptop's GROUND

(e.g. any exposed metal parts) and the actual earth ground potential at the test site.

7. While testing, NEVER disconnect the Analyzer from the battery or cell that is being tested and reconnect the Analyzer to a voltage source that is greater

than 20V. When the Analyzer starts a test cycle the high voltage protection is disabled. Connecting to voltage sources greater than 20V in this state may

damage the unit.

8. Hydrogen gas can be present near batteries that are charging and operating with the Analyzer. Always operate your System in a well-ventilated area.

NEVER smoke or allow a spark or flame in the vicinity of the battery.

9. It is recommended that you have baking soda (NaHCO3) and water available to absorb (neutralize) any battery electrolyte that may leak or bubble from the

battery.

10. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual List of Warnings & Safety Precautions – General Safety Information

Page 12

11. Wear complete eye protection and clothing protection and always avoid touching your eyes while working near lead acid batteries.

12. If battery acid contacts your skin or clothing, wash immediately with soap and water. If acid enters your eyes, immediately flood eyes with running cold

water for at least 10 minutes and get medical attention immediately.

13. DO NOT expose the Analyzer to rain, snow or other harsh environmental conditions.

14. Remove all personal metal items (i.e. necklaces, rings, watches, bracelets, etc.) when working with lead-acid batteries and the Analyzer. Batteries can

produce a short circuit current high enough to vaporize or melt a ring (or similar).

15. Take precautions to NOT drop any metal tools onto the battery or battery terminals. Metal can cause sparking or short circuit battery or other electrical

devices. All tools used in or around a battery should be properly insulated.

16. Before using the Analyzer, ensure that someone is within range of your voice or close enough to come to your aid when you work near a lead-acid battery.

17. Before cleaning the Analyzer, disconnect the unit from all cables (computer connection cable, Kelvin clips, charger cable). Clean your unit using a soft

cloth that has been dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances.

18. Avoid subjecting your Analyzer to hard knocks or mechanical shocks such as dropping it on hard surfaces.

19. When travelling, store the Analyzer in the supplied carrying case to avoid damage.

20. When moving your Analyzer between environments of differing temperature and humidity levels, condensation may form on and inside the casing. Allow

the Analyzer sufficient time to acclimatize, and all condensation to evaporate before powering it on.

WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL

BATTERY OPERATION. FOR THIS REASON, IT IS OF THE UTMOST IMPORTANCE THAT EACH TIME BEFORE USING YOUR ANALYZER, YOU

READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

INTERNAL LITHIUM-ION ANALYZER BATTERY

The handling of the Lithium-Ion Battery pack inside the Analyzer requires caution

and misuse or mishandling of the battery pack may cause harm to the user.

Failure to follow the instructions below may result in high temperatures, fire or

explosion.

1. Do not expose the battery to temperatures above 60°C (140°F). Do not disassemble or mistreat the battery.

2. Use only Global Energy Innovations supplied chargers and cables.

3. Use only replacement battery packs supplied by Global Energy Innovations.

4. Please contact Global Energy Innovations, or your local dealer if you wish to replace the battery pack in your Analyzer.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Unpacking the Analyzer Kit

Page 13

11. UNPACKING THE ANALYZER KIT

The following items are included in the EC1000™and EC2000™test tool kit. Table 1 is a complete list of standard and options accessories as well as replacement

parts, product upgrade and warranty extension options. Figure 1 shows all standard EC1000™and EC2000™Analyzer Kit parts. For images of optional

accessories and replacement parts please refer to the Global Energy Innovations Online Store or contact your local distributor.

Figure 1.0. EC1000™and EC2000™ Analyzer Kit.

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Unpacking the Analyzer Kit

Page 14

Item Part # Description Quantity

EQUIPMENT – EC1000™ KIT (Impedance / Voltage): 8656-1000

1 8656-1000 EC1000™ Handheld ElectroChemical Battery Analyzer 1

2 8600-0004 Kelvin Clips – Standard 1

3 8600-1000 IBMS™ Companion Software – Free Download 1

4 1010-1001 AC Wall Adapter, Battery Charger 1

5 8520-0000 Standard Lithium-Ion Battery Pack 1

6 1010-0002 Infrared Thermometer 1

7 1010-1004 Soft Carrying Case 1

8 1010-1005 Hand Strap 1

9 1010-1006 Shoulder Strap 1

10 1015-1001 USB Cable 1

11 1010-1002 2 GB Mini SD Memory Card 1

EQUIPMENT – EC2000™ KIT (Impedance / Voltage / CELScan: Sulfation / Dryout): 8656-2000

1 8656-2000 EC2000™ Handheld ElectroChemical Battery Analyzer 1

2 8740-0001 Sulfation / Dryout - CELScan™ Package 1

3 8600-0004 Kelvin Clips – Standard 1

4 8600-1000 IBMS™ Companion Software – Compact Disc 1

5 1010-1001 AC Wall Adapter, Battery Charger 1

6 8520-0000 Standard Lithium-Ion Battery Pack 1

7 1010-0002 Infrared Thermometer 1

8 1010-1004 Soft Carrying Case 1

9 1010-1005 Hand Strap 1

10 1010-1006 Shoulder Strap 1

11 1015-1001 USB Cable 1

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Unpacking the Analyzer Kit

Page 15

12 1010-1002 2 GB Mini SD Memory Card 1

EQUIPMENT – OPTIONAL ACCESSORIES

1 8600-1002 Hard Carrying Case 1

2 8600-0011 Kelvin Probes - Double Point 1

3 8600-0018 Kelvin Probes – Single Point 1

4 8600-0016 Kelvin Probes – Mini 1

5 8600-0010 Accessory Cable Set 1

6 1010-0005 175 Automobile Inverter 1

7 1010-0006 SD Card Reader 1

8 8520-0001 High Capacity Lithium-Ion Battery Pack 1

REPLACEMENT PARTS

1 8600-0004 Kelvin Clips – Standard 1

2 4242-2009 Kelvin Clips - Replacement Teeth – 4 1

3 4242-0001 Kelvin Probes (Double Point) - Pointed Replacement Tips – 4 1

4 4242-0002 Kelvin Probes (Double Point) - Waffle Replacement Tips – 4 1

5 4242-0008 Kelvin Probes (Single Point) - Replacement Tips – 2 1

6 8600-1000 IBMS™ Companion Software – Compact Disc 1

7 1010-1001 AC Wall Adapter, Battery Charger 1

8 8520-0000 Standard Lithium-Ion Battery Pack 1

9 1010-0002 Infrared Thermometer 1

10 1010-1004 Soft Carrying Case 1

11 1010-1005 Hand Strap 1

12 1010-1006 Shoulder Strap 1

13 1015-1001 USB Cable 1

14 1010-1002 2 GB Mini SD Memory Card 1

HARDWARE & FIRMWARE UPGRADES

Global Energy Innovations – EC1000™& EC2000™Analyzers

Users Manual Unpacking the Analyzer Kit

Page 16

1 8740-0001 CELScan™ – Sulfation / Dryout: EC1000™ Upgrade 1

2 8740-1001 Oscilloscope (EC1000™ & EC2000™ Compatible) 1

3 8740-1002 Advanced Voltmeter 1

4 8740-1003 AC / DC Current Clamp 1

5 8740-1004 AC / DC Current Shunt 1

7 8740-1005 Thermocouple Probe Module 1

PRODUCT WARRANTY & OTHER

1 8740-2001 Calibration / Certification - Yearly with Certificate 1

2 8740-3001 Extended Warranty – 1 Year Extension 1

3 8740-3002 Extended Warranty – 2 Year Extension 1

Table 1. The complete list of standard and options accessories as well as replacement parts, product upgrade and warranty extension options for the EC1000™and EC2000™

Analyzers.
