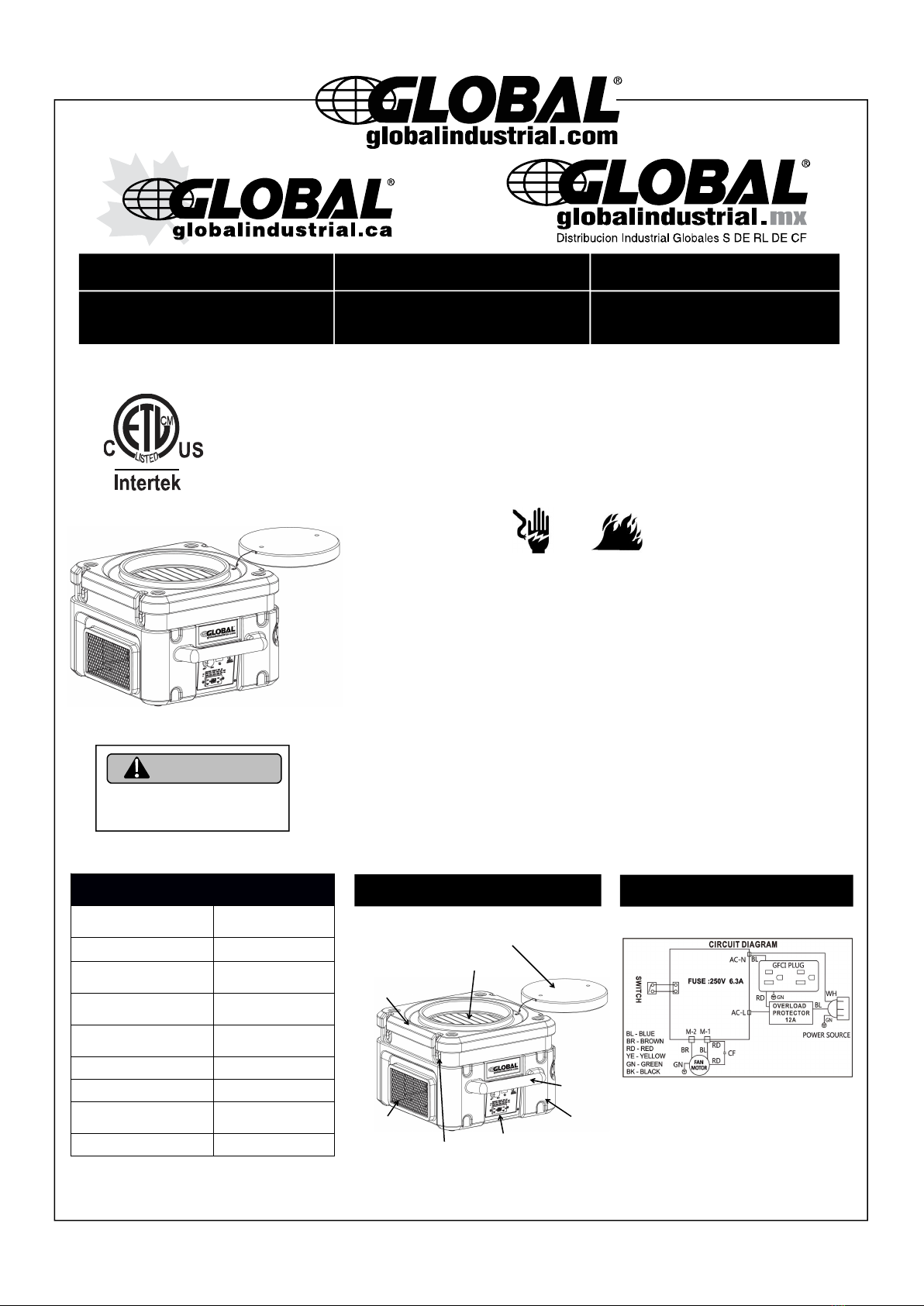

Global Industrial 292938 User manual

- 1 -
IMPORTANT INSTRUCTIONS
Note: When using electrical appliances, please follow these basic precautions to reduce the
risk of fire, electric shock, and /or injury/damage to persons or property.
1 Always operate the product from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
2 Close supervision is necessary when any product is used by or near children the
elderly or the infirm. Do not allow children to use the appliance as a toy.
3 Do not operate any product with a damaged power cord or plug, after the product
malfunctions, dropped or damaged in any way. Return the complete product to the
place of purchase for inspection, repair or replacement.
4 Switch off and unplug from the power socket when not in use, before assembling or
before cleaning.
5 Do not operate in standing water.
6 Keep wiring and motor dry. If electrical components become wet, allow them to dry
completely before using.
7 Unit must be electrically grounded. Insert 3-prong plug on power cord directly into
matching grounded receptacle.
8 Never use a water hose or pressure washer to clean electrical components;
water could enter the electrical compartment causing a shock hazard.
Removable foam cap
(WARNING: Must be remove when unit running )
Commercial Air Scrubber
Model: 292938
SAVE FOR FUTURE REFERENCE
Technical Specification
Power Supply:
115V/60Hz
210W/1.8A
Process Air
MAX 500CFM
MERV-9 Pre
Filter(inch):
16x16x1
Activated Carbon
Filter (inch):
16x16x1
MERV-16 HEPA
Filter(inch):
16x16x2
Unit Size(inch ):
25.5x16.5x22.6
Packing Size(inch):
26x17x22.9
Net/Gross
Weight( Ibs):
46/51
Stackable
Yes
Please read all instructions
before using unit
WARNING
PRODUCT IDENTIFICATION
Circuit Diagram
Assembly Instructions
Customer Service
US:1-800-645-2986
Instruccions de Ensamblaje
Servicio de atención al Cliente
México: 01.800.681.6940
Directives d’assemblage
Service à la clientèle
Canada: 888-645-2986
First stage pre-filter(Air inlet )
Front housing
Latches
(total 4pcs)
Air outlet
Control panel
Handle
Back housing

- 2 -

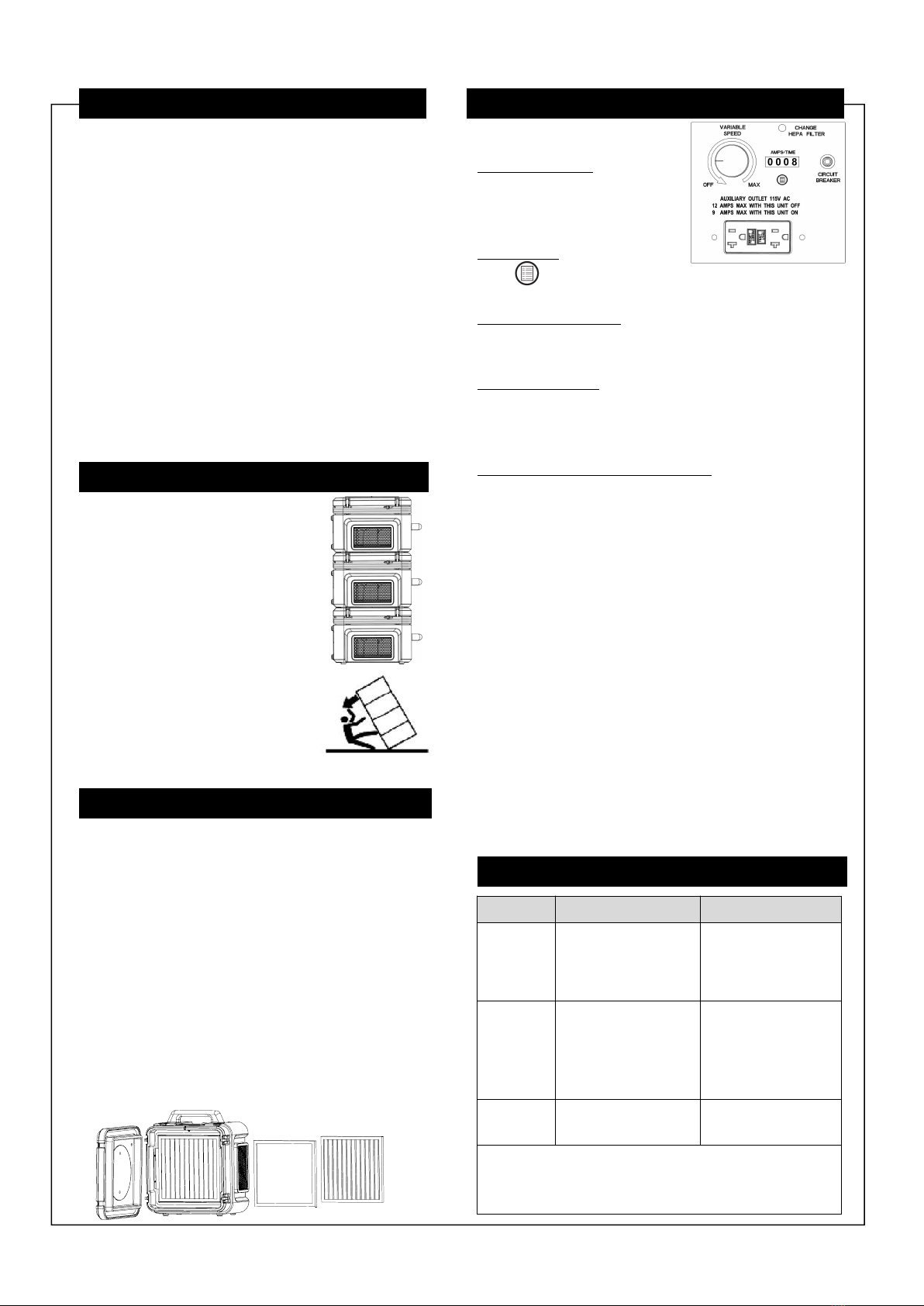

GENERAL INFORMATION OPERATION
The air scrubber is a portable filtration system that draws
air in from the surrounding environment and passes it
through an advanced filtration system. The unit
removes airborne particles like dust, mold spores, pollen,
pet dander and miscellaneous debris.
It uses an efficient mix of airflow and filtration to create
“cleaner” air. The unit’s maximum 500 CFM motor draws
air into three types of filters--a pre-filter and a activated
carbon filter and a HEPA filter. The first stage of
filtration captures larger particles,the second stage of
effectively wipe off the toxicant and the third stage of
filtration captures much smaller particles down to 0.3
microns and larger, such as mold spores and fungi.
You can use the air scrubber for mold remediation or
water damage restoration
STORING THE UNIT
The handle of one unit fits into
bottom of another unit.
You can also stack them
horizontally for spacesaving
storage, or operate a unit with
its outlet facing upward.
NOTE:
When stacking units,beware of tipping.
Do not stack more than 3 units on top
of each other.Falling equipment
could cause bodily harm.
Filter Maintenance
The air scrubber utilizes a 3-stage filtration system designed
with the most advanced HEPA filtration technology available.
Please replace HEPA filter when the change filter indicator
light comes on.
Inspect pre-filter before each use. Look for accumulated
dust and dirt that could restrict airflow through the filter
into the unit. If any is visible,replace out the pre-filter.
For environments with a high volume of aerosolized
particles, you can often replace dirt prefilter to extend the
life of the HEPA filter.
Replace filter procedures should be performed as follows:
1. loosen the 4 latches to take apart front housing
2. Remove used dirty filters and replace.
CONTROL PANEL
VARIABLE SPEED:
It control fan motor speed and
unit ON/OFF.
Maximum seting to 500CFM
AMPS/TIME:
Press keys, The PCB can switched display motor
actual running current and total running time.
CHANGE HEPA FILTER:
The change light illuminates when you need to change the
HEPA filter.
CIRCUIT BREAKER:
The primary purpose of the circuit breaker is to protect the
machine. It turns the unit off when more than 12 amps run
through the on-unit circuit.
Ground Fault Circuit Interrupter (GFCI):
The GFCI helps protect the user should it detect a sudden
“ground fault”, the GFCI will interrupt the electric current. The
GFCI will also trip when a short circuit or an overload occurs.
When the GFCI “trips”, unplug the unit, and look for potential
hazards standing water, frayed cords, etc.
anything that would cause a surge of electrical current.
Relocate the unit and plug it into a different outlet.
Then push the “reset” button, andcheck to see if it’s
operating; if so, continue use, if not contact your local
distributor.
Daisy-chain Capability
Our designed the air scrubber for optimal versatility.
You can interconnect up to three units to create a
maximum of 500, 1000, or 1500 CFM using the auxiliary
outlet on the unit’s control panel.
Link up to 3 units on 1 power outlet.
TROUBLE SHOOTING
FAULT
CAUSE
SOLUTION
Unit does
not
operate
• No power to machine
• Switch not turned on
• No power to outlet
• GFCI Tripped
• Plug in the unit;
check power at outlet
• Turn on the switch
• Reset circuit
breaker/GFCI
Change
light
illuminated
• Primary filter is full
• Air intake restricted
• Replace the filters;
Refer to Maintenance
section
• Eliminate
bends/kinks in
ducting, or remove
ducting
Blower
wheel not
turning
• Obstructed blower
• Loosen blower wheel
set screw
• Remove obstruction
• Tighten set screw
WARNING:
DO NOT attempt to rectify faults using unqualified personnel.If
the problem you are experiencing is not listed here, contact
Global Industrial customer service.
