Global Sat ET-332 User manual

ET-332
Specifications are subject to be changed without notice.
Page 1 of 15
Version 1.3.1
GPS Engine Board
ET-332
Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235,
Ta i wa n
Tel: [phone]/ Fax: [phone]
[e-mail]
www.globalsat.com.tw
USGlobalSat, Inc.
1308 John Reed Court, City of Industry, CA 91745
Tel: [phone] / Fax: [phone]
[e-mail]
www.usglobalsat.com

ET-332
Specifications are subject to be changed without notice.
Page 2 of 15
Version 1.3.1
1. Product Information
Product Part I.D. ET-332
Product Description:
The ET-332 GPS engine board is low cost but maintains high reliability and accuracy making it an
ideal choice for integration with OEM/ODM systems.
Product Features:
9SiRF Star III/ LP Single
9Very high sensitivity (Tracking Sensitivity: -159dBm)
9Compact PCB allows for easier integration into space limited environments.
9Supports the NMEA 0183 data protocol
9Foliage Lock for weak signal tracking
9All-in-view 20-channel parallel processing
9Snap Lock 100mc re-acquisition time
9Enhanced algorithm for navigation stability
9Superior urban canyon performance
9WAAS / EGNOS MSAS support
9Built-in SuperCap to maintain system data for rapid satellite acquisition
9RoHS compliant
Product Specifications
GPS Receiver
Chipset SiRF Star III/LP Single
Frequency L1, 1575.42 MHz
Code 1.023 Mhz chip rate
Protocol Electrical Level: TTL level,
Output Voltage Level: 0V~2.85V
Baud Rate: 4800 bps
Output Message: NMEA 0183 GGA, GSA,
GSV, RMC (VTG, GLL optional)
Channels 20
Sensitivity -159dBm
Cold Start 42 seconds average

ET-332
Specifications are subject to be changed without notice.
Page 3 of 15
Version 1.3.1
Warm Start 38 seconds average
Hot Start 1 second average
Reacquisition 0.1 second average
Accuracy Position: 10 meters, 2D RMS
5 meters, 2D RMS, WAAS
enabled
Velocity: 0.1 m/s
Time: 1us synchronized to GPS time
Maximum Altitude 18,000 meter (60,000 feet) max
Maximum Velocity 515 meter/second (1000 knots) max
Maximum Acceleration 4G
Jerk 20m/sec **3
Interface
I/O Connector Type
External Antenna Port
Physical Characteristics
Dimensions 1.6” x 1.4” x 0.4” (40.5 x 35 x 10 mm)
DC Characteristics
Power Supply 3.8V ~ 6.5V DC Input
Backup Voltage 2.5 ~ 3.6V 10uA backup current
Power Consumption 42mA (Continuous Mode)
25mA (Trickle Power Mode)
Environmental Range
Humidity Range 5% to 95% non-condensing
Operation Temperature -40F to +176F (-40C to +85C)

ET-332
Specifications are subject to be changed without notice.
Page 4 of 15
Version 1.3.1
2. Technical Information

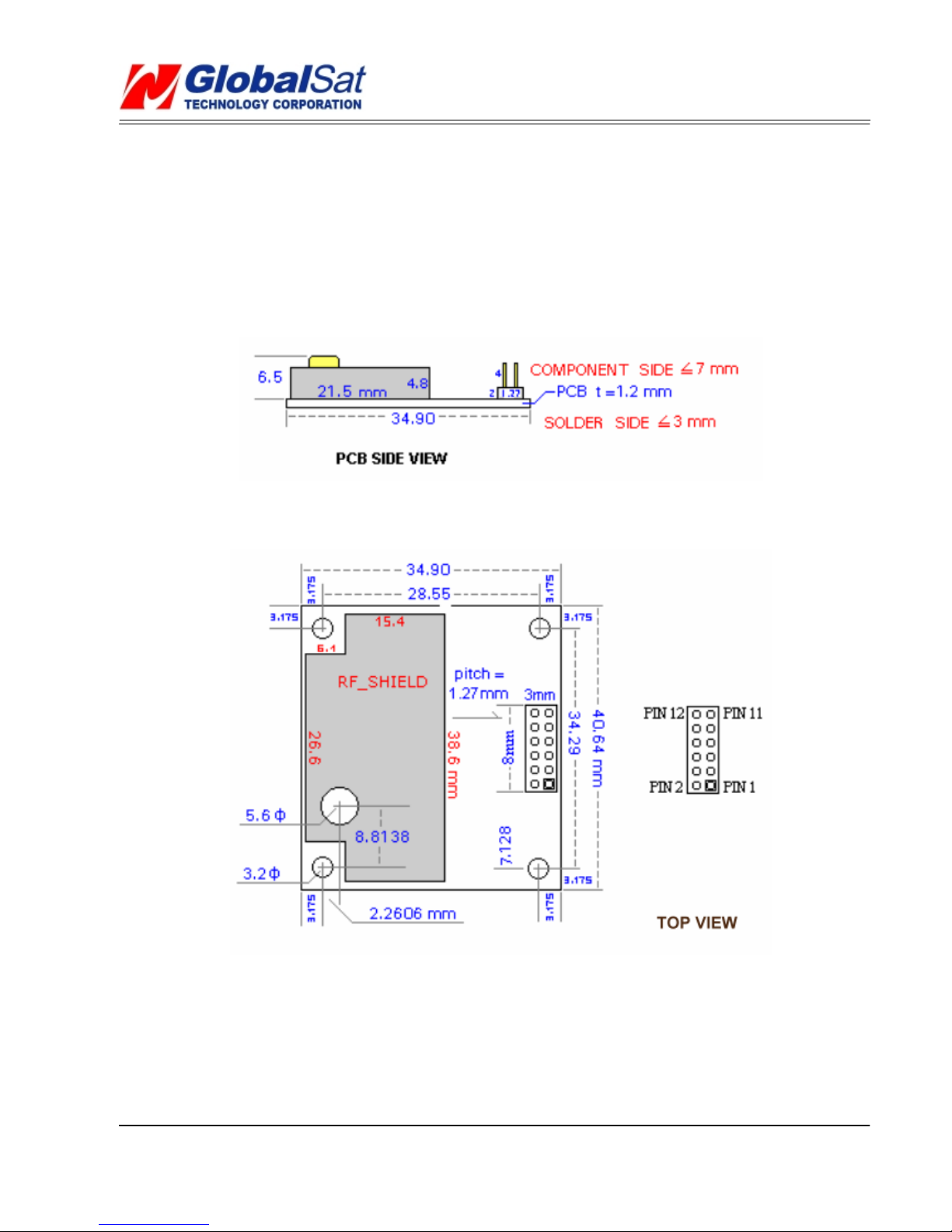

Physical Characteristics

ET-332
Specifications are subject to be changed without notice.
Page 5 of 15
Version 1.3.1
Pin Assignment
Pin Name Description Type
1 GND Ground
2 VBAT Backup Battery Input
3 VDC 3.8V~6.5V DC Power Input Input
4 PBRES Push Button Reset Input (Active Low) Input
5 GPIO1 (Reserved)
6 TXA Serial Data Output A (GPS Data) Output
7 RXA Serial Data Input A (Command) Input
8 GND Ground
9 GND Ground
10 SELECT (Reserved)
11 TIMEMARK 1PPS Time Mark Output Output
12 GND Ground

ET-332
Specifications are subject to be changed without notice.
Page 6 of 15
Version 1.3.1
Pin Explanation
VCC: (DC power input) This is the main DC supply for a 3.8V ~ 6.5V power module board.
VBAT: This is the battery backup input that powers the SRAM and RTC when main power is removed.
Typical current draw is 10uA. Without an external backup battery, the module/engine board will execute a
cold star after every turn on. To achieve the faster start-up offered by a hot or warm start, a battery
backup must be connected. To maximize battery lifetime, the battery voltage should be between 2.5v and
3.6v.
PBRES: (Push Button Reset) This pin provides an active-low reset input to the engine board. It causes
the engine board to reset and start searching for satellites.
SELECT: Do not connect (do not use)
TX: This is the main transmit channel for outputting navigation and measurement data to user’s
navigation software or user-written software. Output TTL level, 0V ~ 2.85V
RX: This is the main receive channel for receiving software commands to the engine board from
SiRfdemo software or from user-written software. (NOTE:When not in use this pin must be kept “HIGH”
for operation. From Vcc connect a 470 Ohm resistor in series with a 3.2v Zener diode to Ground. Then,
connect the Rx input to Zener’s cathode to pull the input “HIGH”.)
TIME MARK (1PPS): This pin provides one pulse-per-second output from the engine board that is
synchronized to GPS time
GND: GND provides the ground for the engine boards. Be sure to connect all grounds
Mounting
Recommended mounting methods:
a. Use industrial grade double-sided foam tape. Place it on the bottom side of the engine board.
b. A recessed cavity in your housing design with a foam pad to eliminate shifting or movement.
c. Use provided mounting holes on the GPS engine board PCB.
3. Software Commands
NMEA Output Command
GGA-Global Positioning System Fixed Data
Table B-2 contains the values for the following example:
$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M,,,,0000*18

ET-332
Specifications are subject to be changed without notice.
Page 7 of 15
Version 1.3.1
Table B-2 GGA Data Format
Name Example Units Description
Message ID $GPGGA GGA protocol header
UTC Time 161229.487 hhmmss.sss
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Position Fix Indicator 1 See Table B-3
Satellites Used 07 Range 0 to 12
HDOP 1.0 Horizontal Dilution of Precision
MSL Altitude19.0 meters
Units M meters
Geoid Separation1meters
Units M meters
Age of Diff. Corr. second Null fields when DGPS is not used
Diff. Ref. Station ID 0000
Checksum *18
<CR><LF> End of message termination
SiRF Technology Inc. does not support geoid corrections. Values are WGS84 ellipsoid heights.
Table B-3 Position Fix Indicator
Value Description
0 Fix not available or invalid
1 GPS SPS Mode, fix valid
2 Differential GPS, SPS Mode , fix valid
3 GPS PPS Mode, fix valid
GLL-Geographic Position-Latitude/Longitude
Table B-4 contains the values for the following example:
$GPGLL,3723.2475,N,12158.3416,W,161229.487,A*2C
Table B-4 GLL Data Format
Name Example Units Description
Message ID $GPGLL GLL protocol header
Latitude 3723.2475 ddmm.mmmm
N/S Indicator n N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west

ET-332
Specifications are subject to be changed without notice.
Page 8 of 15
Version 1.3.1
UTC Position 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Checksum *2C
<CR><LF> End of message termination
GSA-GNSS DOP and Active Satellites
Table B-5 contains the values for the following example:
$GPGSA,A,3,07,02,26,27,09,04,15,,,,,,1.8,1.0,1.5*33
TableB-5GSADataFormat
Name Example Units Description
Message ID $GPGSA GSA protocol header
Mode1 A See Table B-6
Mode2 3 See Table B-7
Satellite Used107 Sv on Channel 1
Satellite Used102 Sv on Channel 2
.
Satellite Used1Sv on Channel 12
PDOP 1.8 Position dilution of Precision
HDOP 1.0 Horizontal dilution of Precision
VDOP 1.5 Vertical dilution of Precision
Checksum *33
<CR><LF> End of message termination
1. Satellite used in solution.
TableB-6Mode1
Value Description
M Manual-forced to operate in 2D or 3D mode
A 2D automatic-allowed to automatically switch 2D/3D
TableB-7Mode2
Value Description
1 Fix Not Available
2 2D
3 3D
GSV-GNSS Satellites in View
Table B-8 contains the values for the following example:
$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71

ET-332
Specifications are subject to be changed without notice.
Page 9 of 15
Version 1.3.1
$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41
TableB-8GSVDataFormat
Name Example Units Description
Message ID $GPGSV GSV protocol header
Number of Messages12 Range 1 to 3
Message Number11 Range 1 to 3
Satellites in View 07
Satellite ID 07 Channel 1(Range 1 to 32)
Elevation 79 degrees Channel 1(Maximum90)
Azimuth 048 degrees Channel 1(True, Range 0 to 3
5
SNR(C/No) 42 dBHz Range 0 to 99,null when not tr
a
……. …….
Satellite ID 27 Channel 4 (Range 1 to 32)
Elevation 27 Degrees Channel 4(Maximum90)
Azimuth 138 Degrees Channel 4(True, Range 0 to 3
5
SNR(C/No) 42 dBHz Range 0 to 99,null when not tr
a
Checksum *71
<CR><LF> End of message termination
Depending on the number of satellites tracked multiple messages of GSV data may be required.

ET-332
Specifications are subject to be changed without notice.
Page 10 of 15
Version 1.3.1
RMC-Recommended Minimum Specific GNSS Data
Table B-9 contains the values for the following example:
$GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598,,*10
Table B-9 RMC Data Format
Name Example Units Description
Message ID $GPRMC RMC protocol header
UTC Time 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Speed Over Ground 0.13 knots
Course Over Ground 309.62 degrees True
Date 120598 ddmmyy
Magnetic Variation2degrees E=east or W=west
Checksum *10
<CR><LF> End of message termination
SiRF Technology Inc. does not support magnetic declination. All “course over ground” data are
Geodetic WGS48 directions.
VTG-Course Over Ground and Ground Speed
$GPVTG,309.62,T,,M,0.13,N,0.2,K*6E
Table B-9 VTG Data Format
Name Example Units Description
Message ID $GPVTG VTG protocol header
Course 309.62 degrees Measured heading
Reference T True
Course degrees Measured heading
Reference M Magnetic
Speed 0.13 knots Measured horizontal speed
Units N Knots
Speed 0.2 Km/hr Measured horizontal speed
Units K Kilometers per hour
Checksum *6E
<CR><LF> End of message termination

ET-332
Specifications are subject to be changed without notice.
Page 11 of 15
Version 1.3.1
■NMEA Input Command
A.) Set Serial Port ID:100 Set PORTA parameters and protocol
This command message is used to set the protocol (SiRF Binary, NMEA, or USER1) and/or the
communication parameters (baud, data bits, stop bits, parity). Generally, this command is utilize to
switch the GPS module back to SiRF Binary protocol mode, where an extensive message
commands are readily available. In example, whenever users are interested in altering navigation
parameters, a valid message sent and is receive by the recipient module, the new parameters will be
stored in battery backed SRAM and then the receiver will restart using the saved parameters.
Format:
$PSRF100,<protocol>,<baud>,<DataBits>,<StopBits>,<Parity>*CKSUM
<CR><LF>
<protocol> 0=SiRF Binary, 1=NMEA, 4=USER1
<baud> 1200, 2400, 4800, 9600, 19200, 38400
<DataBits> 8,7. Note that SiRF protocol is only valid f8 Data bits
<StopBits> 0,1
<Parity> 0=None, 1=Odd, 2=Even
Example 1: Switch to SiRF Binary protocol at 9600,8,N,1
$PSRF100,0,9600,8,1,0*0C<CR><LF>
Example 2: Switch to User1 protocol at 38400,8,N,1
$PSRF100,4,38400,8,1,0*38<CR><LF>
**Checksum Field: The absolute value calculated by exclusive-OR the 8 data bits of each
character in the Sentence, between, but, excluding “$” and “*”. The hexadecimal value of the most
significant and least significant 4 bits of the result are converted to two ASCII characters (0-9,A-F)
for transmission. First, the most significant character is transmitted.
**<CR><LF> : Hex 0D 0A
B.) Navigation initialization ID:101 Parameters required for start
This command is used to initialize the GPS module for a “Warm” start, by providing real-time position
（in X, Y, Z coordinates), clock offset, and time. This action enables the GPS receiver to search for
the necessary satellite signals at the correct signal parameters. The newly acquired and stored
satellite data will enable the receiver to acquire signals more quickly, and thus, generate a rapid
navigational solution.
When a valid Navigation Initialization command is receive, the receiver will restart using the input
parameters as a basis for satellite selection and acquisition.
Format
$PSRF101,<X>,<Y>,<Z>,<ClkOffset>,<TimeOfWeek>,<WeekNo>,<chnlCount>,<ResetCfg>
*CKSUM<CR><LF>
<X> X coordinate position
INT32

ET-332
Specifications are subject to be changed without notice.
Page 12 of 15
Version 1.3.1
<Y> Y coordinate position
INT32
<Z> Z coordinate position
INT32
<ClkOffset> Clock offset of the receiver in Hz, Use 0 for last saved value if available.
If this is unavailable, a default value of 75000 for GSP1, 95000 for GSP
1/LX is used.
INT32
<TimeOf Week> GPS Time Of Week
UINT32
<WeekNo> GPSWeekNumber
UINT16
Week No and Time Of Week calculation from UTC time
<chnlCount> Number of channels to use.1-12. If your CPU throughput is not high
enough, you could decrease needed throughput by reducing the number
of active channels
UBYTE
<ResetCfg> bitmask
0×01=Data Valid warm/hotstarts=1
0×02=clear ephemeris warm start=1
0×04=clearmemory.Coldstart=1
UBYTE
Example: Start using known position and time.
$PSRF101,-2686700,-4304200,3851624,96000,497260,921,12,3*7F
C.) Set DGPS Port ID:102 Set PORT B parameters for DGPS input
This command is used to control Serial Port B, an input serial only port used to receive RTCM
differential corrections. Differential receivers may output corrections using different communication
parameters. The default communication parameters for PORT B are set for 9600 Baud, 8data bits, 0
stop bits, and no parity. If a DGPS receiver is used which has different communication parameters,
use this command to allow the receiver decode data correctly. When a valid message is received,
the parameters are stored in a battery backed SRAM. Resulting, GPS receiver using the saved
Parameters for restart.
Format:
$PSRF102,<Baud>,<DataBits>,<StopBits>,<Parity>*CKSUM<CR><LF>
<baud> 1200,2400,4800,9600,19200,38400
<DataBits> 8
<StopBits> 0,1
<Parity> 0=None,Odd=1,Even=2
Example: Set DGPS Port to be 9600,8,N,1
$PSRF102,9600,8,1.0*12
D.) Query/Rate Control ID:103 Query standard NMEA message and/or set output rate

ET-332
Specifications are subject to be changed without notice.
Page 13 of 15
Version 1.3.1
This command is used to control standard NMEA data output messages: GGA, GLL, GSA, GSV,
RMC, and VTG. Using this command message, standard NMEA message is polled once, or setup
for periodic output. In addition, checksums may also be enable or disable contingent on receiving
program requirements. NMEA message settings are stored in a battery-backed memory for each
entry when the message is accepted.
Format:
$PSRF103,<msg>,<mode>,<rate>,<cksumEnable>*CKSUM<CR><LF>
<msg> 0=GGA,1=GLL,2=GSA,3=GSV,4=RMC,5=VTG
<mode> 0=SetRate,1=Query
<rate> Output every <rate>seconds, off=0,max=255
<cksumEnable> 0=disable Checksum,1=Enable checksum for specified message
Example 1: Query the GGA message with checksum enabled
$PSRF103,00,01,00,01*25
Example 2: Enable VTG message for a 1Hz constant output with checksum enabled
$PSRF103,05,00,01,01*20
Example 3: Disable VTG message
$PSRF103,05,00,00,01*21
E.) LLA Navigation initialization ID:104 Parameters required to start using Lat/Lon/Alt
This command is used to initialize the GPS module for a “Warm” start, providing real-time position
(Latitude, Longitude, Altitude coordinates), clock offset, and time. This action enables the GPS
receiver to search for the necessary satellite signals at the correct signal parameters. The newly
acquired and stored satellite data will enable the receiver to acquire signals more quickly, and thus,
generate a rapid navigational solution.
When a valid LLA Navigation Initialization command is receive, then the receiver will restart using
the input parameters as a basis for satellite selection and acquisition.
Format:
$PSRF104,<Lat>,<Lon>,<Alt>,<ClkOffset>,<TimeOfWeek>,<WeekNo>,
<ChannelCount>, <ResetCfg>*CKSUM<CR><LF>
<Lat> Latitude position, assumed positive north of equator and negative
south of equator float, possibly signed
<Lon> Longitude position, it is assumed positive east of Greenwich
and negative west of Greenwich Float, possibly signed
<Alt> Altitude position float, possibly signed
<ClkOffset> Clock Offset of the receiver in Hz, use 0 for last saved value if
available.

ET-332
Specifications are subject to be changed without notice.
Page 14 of 15
Version 1.3.1
If this is unavailable, a default value of 75000 for GSP1, 95000 for
GSP1/LX is used.
INT32
<TimeOfWeek> GPS Time Of Week
UINT32
<WeekNo> GPSWeekNumber
UINT16
<ChannelCount> Number of channels to use. 1-12
UBYTE
<ResetCfg> bit mask
0×01=Data Valid warm/hot starts=1
0×02=clear ephemeris warm start=1
0×04=clearmemory.Coldstart=1
UBYTE
Example: Start using known position and time.
$PSRF104,37.3875111,-121.97232,0,96000,237759,922,12,3*37
F.) Development Data On/Off ID:105 Switch Development Data Messages On/Off
Use this command to enable development debug information if you are having trouble in attaining
commands accepted. Invalid commands will generate debug information that should enable the
user to determine the source of the command rejection. Common input rejection problems are
associated to invalid checksum or parameter out of specified range. Note, this setting is not
preserved across a module reset.
Format: $PSRF105,<debug>*CKSUM<CR><LF>
<debug> 0=Off,1=On
Example: Debug On $PSRF105,1*3E
Example: Debug Off $PSRF105,0*3F
G). Select Datum ID:106 Selection of datum to be used for coordinate transformations
GPS receivers perform initial position and velocity calculations using an earth-centered earth-fixed
(ECEF) coordinate system. Results may be converted to an earth model (geoid) defined by the
selected datum. The default datum is WGS 84 (World Geodetic System 1984) which provides a
worldwide common grid system that may be translated into local coordinate systems or map Datum.
(Local map Datum are a best fit to the local shape of the earth and not valid worldwide.)
Examples:
Datum select TOKYO_MEAN
$PSRF106,178*32

ET-332
Specifications are subject to be changed without notice.
Page 15 of 15
Version 1.3.1
Name Example Units Description
Message ID $PSRF106 PSRF106 protocol header
Datum 178 21= WGS84
178= Tokyo_Mean
179= Tokyo_Japan
180= Tokyo_Korea
181= Tpkyo_Okinawa
Checksum *32
<CR><LF> End of message termination
* * *
