CHAPTER
1WallDoc Beta Installation
1.1 Overview
This document provides installation instructions for installing the WallDoc
Beta version with and without the Cisco® SX20 codec and network switch.
Please check the supplied hardware list and make sure you have all the
items:
• Six HD wall anchors
• Six 1/4-20 x 2” flat head Phillips screws
• Two 5/16-18 x 1” hex head bolts
• Four 5/16” flat washers
• Two 5/16” nuts
• Two Allen wrenches, one large, one small, in a blue plastic bag,
used for the arm adjustment
You will need the following tools to install the WallDoc Beta:
•Drill
• Stud finder
• 1/2” spade bit
• Phillips screwdriver
• Two 1/2” wrench or combination socket wrench with socket
• 5/32” Allen wrench, for attaching the camera to the WallDoc Beta

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 2 |
Confidential
The equipment is packed and shipped in foam inserts, as seen in Figure 1 .
1.2 Mounting WallDoc Beta
1. Place the mounting bracket on the wall where WallDoc Beta will be
installed.
2. Measure 36 1/2 inches with a tape measure from the floor to the
bottom edge of the mounting plate and make a reference mark. The
bottom edge of the mounting plate will rest at this point (see
Figure 2 ).
Figure 1Packed WallDoc Beta equipment

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 3 |
Confidential
3. Trace out all eight screw points as seen in Figure 3 .
4. To drill the holes and place the anchors:
Caution: Use a stud finder to locate the studs and cable channels.
Figure 2Measure the mounting plate bottom edge
Figure 3 Trace the screw points

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 4 |
Confidential
a. Use a 1/2” drill bit to drill through all eight screw points traced on
the wall.
b. Insert plastic toggle anchors (see Figure 4 ) into six of the eight
drilled holes, the left three and right three holes.
c. Grip the plastic toggle and push the center portion towards the
drilled hole to secure anchors in place.
Figure 4 A plastic toggle anchor

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 5 |
Confidential
d. Cut off the remaining plastic from the anchor (see Figure 5 ).
5. To secure the armature bracket to the mounting plate:
Caution: Make sure to insert three of the 1/4 20 FH bolts into the
left three screw points before securing the armature
bracket to the mounting plate.
Figure 5 Cut the remaining plastic from the anchor

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 6 |
Confidential
a. Place the armature bracket on to the left two screw holes of the
mounting plate as seen in Figure 6 . Bolts are provided in the
same box with the armature bracket.
b. Use a ratchet with socket size ½” and a ½” wrench to tighten the
bolts and nuts (see Figure 6 ).
Figure 6 Attach the armature bracket

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 7 |
Confidential
6. To mount the flat panel plate, line up mounting plate on to the plastic
toggle anchors and use ¼ 20 FH bolts to screw the plate in place
(see Figure 7 ).
7. To attach the WallDoc Beta armature and the network switch
bracket:
Note: Not everyone has the Cisco®SX20 codec, network switch, and
the accompanying installation accessories. If this is not part of your
WallDoc Beta package, only insert the armature.
Figure 7 Mount the flat panel plate on the wall

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 8 |
Confidential
a. Insert the WallDoc armature into the armature bracket of the
mounting plate (see Figure 8 ).
b. Mount the network switch bracket to the upper right corner with
two 8-32 x 3/8 Phillip head screws (see Figure 8 and Figure 9 ).
Figure 8 Insert the armature bracket
Figure 9 Network switch bracket

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 9 |
Confidential
8. To mount the Cisco SX20 codec:
Note: Not everyone has the Cisco SX20 codec as part of their WallDoc
Beta package. If you do not have the Cisco SX20 codec, proceed to
Step 10.
a. Use four of the provided screws that come in the box with the
network switch (see Figure 10 ).
Figure 10 Cisco®SX20 codec package

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 10 |
Confidential
b. Attach the network switch to the mounting plate using the network
switch bracket attached in Step 7b (see Figure 11 ).
9. To secure the Cisco SX20 codec and Steth IP to the mounting plate:
a. Remove two of the screws located behind the Cisco SX20 codec
with a T10 hex bit.
Note: You’ll reuse the top screw.
Figure 11 Network switch attachment

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 11 |
Confidential
b. Place the codec bracket on top of the SX20 codec screw holes
and reinsert the top screw from Step 9a (see Figure 12 ).
c. Use one M3x8 pan head Philip screw for the bottom screw hole
(see Figure 12 ).
d. Once the bracket is attached to the Cisco SX20 codec, place it all
on to the mounting plate and use two 8-32 x 3/8 Phillip head
screws to secure it in place (see Figure 13 ).
e. Use two 8-32 x 3/8 Phillip head screws to secure the Steth IP to
the bottom right corner of the mounting plate (see Figure 13 ).
Figure 12 Screw the codec bracket on the SX20 codec
Figure 13 The mounted SX20 codec and Steth IP

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 12 |
Confidential
10.For codec versions only: Use two 8-32 x 3/8 Phillip head screws to
secure the power strip on the mounting plate (see Figure 14 ).
11. To attach the WallDoc to the armature:
Caution: Use a two-man lift to lift the WallDoc Beta out of the box.
a. Lift the WallDoc out of the box and place it onto the armature.
Figure 14 The mounted power strip

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 13 |
Confidential
a. Locate the blue bag that is packaged with the armature bracket.
b. Remove the blue tape from the WallDoc (see Figure 16 ).
c. Use the larger Allen key within the blue bag to tighten down the
armature. Rotate clockwise to tighten.
d. Use the smaller Allen key within the blue bag if the WallDoc has
too much play and doesn’t rest well freely. Rotate counter
clockwise to tighten.
12.Plug the cable from the power strip located on the back of the
WallDoc Beta into a wall power socket (see Figure 17 ).
Figure 15 Find the blue bag attached to the armature
Figure 16 Remove the blue tape

WallDoc Beta Installation
3/22/17 Doc. No. MAN-600402 Rev. B | 14 |
Confidential
Note: Non-codec versions are shipped with the power strip on the back
of the WallDoc Beta.
13.To mount the main camera:
a. Place the main camera at the top of the WallDoc Beta (see
Figure 18 ).

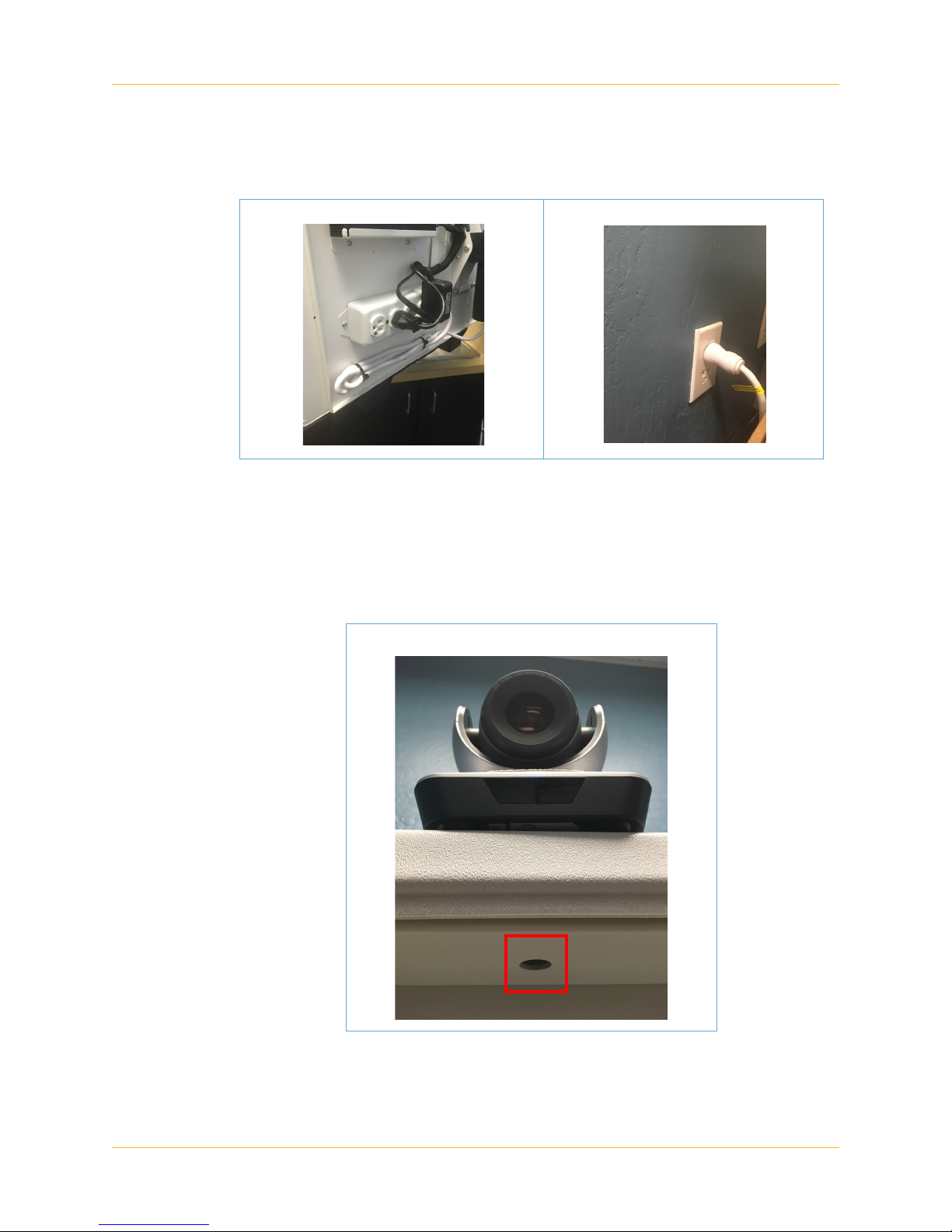

Figure 17 Plug in the WallDoc Beta cable
Figure 18 Place the main camera on top of the WallDoc
Beta
