Globo FT15p User manual

User manual
Contents
1. Safety precautions ........................................................................................................................1
2. Environment protection................................................................................................................3
3. Features ........................................................................................................................................4
4. Accessories ...................................................................................................................................4
5. Front panel ...................................................................................................................................4
6. Rear panel.....................................................................................................................................5
7. Remote controller.........................................................................................................................6
8. Basic connection ...........................................................................................................................7
8.1. Connecting to TV set and aerial .............................................................................................7
8.2. Connecting to decoder or amplifier .......................................................................................8
8.3. Battery installation.................................................................................................................9
8.4. Operation range of remote control........................................................................................9
9. Easy installation ..........................................................................................................................10
10. Main menu............................................................................................................................10
10.1. Menu “Edit channel”............................................................................................................10
10.2. Menu „Installation”..............................................................................................................11
10.3. Menu „System setup” ..........................................................................................................13
10.4. Menu „Tools” .......................................................................................................................15
10.5. Menu “Game” ......................................................................................................................16
10.6. Menu „REC” .........................................................................................................................17
11. Troubleshooting ....................................................................................................................18
12. Technical specification...........................................................................................................19

User manual
1
1. Safety precautions
CAUTION:
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
"dangerous voltage" and to
prevent from a risk of electric
shock.
Warning:
To reduce the risk of electric
shock, don't open the cabinet.
Refer servicing to qualified
personnel only.
The exclamation point within an
equilateral triangle is intended to
alert the user to important
operating and maintenance
(servicing).
WARNING: Do not use this STB where contact with or immersion in water is a pos
sibility. Do not use
near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc.
WARNING: Do not put the candle or lamp stand on the cabinet; otherwise, there is the danger of fire.
WARNING: The unit should be connected to a powe
r supply only of the type described in the
operating instructions or as marked on the unit. If you are not sure of the type of power supply (for
example, 120 or 230 V) to your home, consult your local dealer or local power company.
WARNING: This product
install diodes. Do not open the cabinet or touch any parts in the inner
mechanism. Consult your local dealer for technical service if the opening is required.
Note: To ensure proper use of this product, please read this User manual carefully and retain for
further reference.
Note:
This product install diodes. Do not open the cabinet to avoid the unit direct exposure to
radiation.
Unit Cleaning: After the unit power is turned off, you can clean the cabinet, panel and remote control
with a soft cloth lightly moistened with a mild detergent solution.
Attachments: Never add any attachments
and/or equipment without the manufacturer consent; as
such additions may result in the risk of fire, electric shock, or other personal injury.

User manual
2
Locating: Slots
and openings in the cabinet are provided for ventilation to protect it from overheating.
Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa, or other
similar surface, nor should it be placed over a radiator or heat reg i s te r.
Power-Cord Protection: Place the power-
supply cord out of the way, where it will not be walked on.
Please take special attentions to cords at plugs, convenience receptacles, and the point
where they
exit from the unit.
Object and Liquid Entry:
Never put objects of any kind into this STB through openings, as they may
touch dangerous voltage points or short-
out parts that could result in a fire or electric shock. Never
spill any liquid on the STB.
Note: Moisture may be formed on the lens In the following conditions:
when the unit is suddenly moved from a cold environment or an air-condition room to a warm place.
immediately after a heater has been turned on.
in a steamy or very humid room.
If the moisture forms inside the unit, it may not opera
te properly. To correct this problem, turn on the
power and wait about two hours for the moisture to evaporate.
Parts Replacement:
When the unit parts need to be replaced, user should make sure the service
technician use the replacement parts specified by the manufacturer or having the same characteristics
as the original part. Unauthorized replacement may put the unit In the risk of fire, electric shock or
other hazards.
Safety Check: After all the maintenances and repairs are done, user is required
to request the service
technician to conduct the overall safety check to ensure the machine is In the proper condition.

User manual
3
2. Environment protection
Attention!
Your product Is marked with this symbol. It means that used electrical and electronic products should
not be mixed with general household waste. There is a separate collection system for these products.
Information on Disposal for Users (private households) in the European Union
Used electrical and electronic equipment must be treated separately and In accordance with
legislation that requires proper treatment, recovery and recycling of used electrical and electronic
equipment.
Following the implementation by member states, private households within the EU states may return
their used electrical and electronic equipment to designated collection facilities free of charge*. In
some countries* your local retailer may also take back your old product free of charge if you purchase
a similar new one. *) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of these
separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent potential negative effects on the environment and
human health which could otherwise arise due to inappropriate waste handling.
Information on Disposal for Business Users
In the European Union
If the product is used for business purposes and you want to discard It:
Please contact your dealer who will inform you about the take-back of the product. You might be
charged for the costs arising from take-back and recycling Small products (and small amounts) might
be taken back by your local collection facilities,
In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the correct
method of disposal.

User manual
4
3. Features
•MPEG-2 and MPEG-4 / DVB-T compatible
•Bandwidth 6 MHz, 7MHz or 8MHz optional
•Support USB 2.0 port
•Software upgrade via USB device
•Electronic Program Guide（EPG）
•Active antenna with 5V DC output
•TV SCART jack
•Auto scan/ Channel Scan
•Multiple subtitles
4. Accessories
Please make sure the following accessories:
•1 x Remote control
•1 x User manual
•2 x Batteries (1,5V AAA)
5. Front panel
a) Power button
b) CH- button (previous channel)
c) CH+ button (next channel)
d) LED display (optional)
e) Power/Standby LED
f) Signal LED
g) Remote control sensor
h) USB 2.0 port

User manual
5
6. Rear panel
a) Aerial input jack (75Ω)
b) Loop Out jack
c) Digital Audio Coaxial output jack
d) TV SCART jack
e) Power cord cable
Warning!
Please unplug the power cord and keep it orderly when the unit shall not be used for a long time in
case that the power cord may get scratched and thus leads to electric leak and shock.

User manual
6
7. Remote controller
Nr Function
1 Standby
2 Audio
3 TV / Radio
4 Subtitles
5 Numeric button 1
6 Numeric button 2
7 Numeric button 4
8 Numeric button 5
9 Numeric button 7
10 Numeric button 8
11
Menu
12 Numeric button 0
13 Electronic Program Guide
14
▲
UP button / next channel
15
◄
LEFT button / decr. volume
16 OK button
17
INFO button
18 PVR button
19 USB button
20 RED / Skip -
21 YELLOW / Skip +
22 GREEN / F.Rwd
23 BLUE / F.Fwd
24 RECORD
25 STOP
26 PLAY / PAUSE
27 PAUSE / STEP
28 ▼DOWN button / prev. channel
29
►
RIGHT button /incr. volume
30 EXIT button
31
LAST button
32 Numeric button 9
33 Numeric button 6
34
Numeric button 3
35 FAVOR button
36 TELETEXT button
37 MUTE button

User manual
7
8. Basic connection
Warning!
•Ensure that the power switches of this unit and other equipment to be connected, are
turned off before commencing connection
•Read the instructions attentively before connecting other equipments
•Ensure that you observe the color-coding when connecting audio and video cords
•Please connect the unit with TV by only one kind of video output format, and setup a
suitable output mode, otherwise there might be image distortion.
8.1. Connecting to TV set and aerial
1. Aerial
2. TV set
3. DVB-T receiver
4. SCART cable connected to TV set
5. AC Power cord cable

User manual
8
8.2. Connecting to decoder or amplifier

User manual
9
8.3. Battery installation

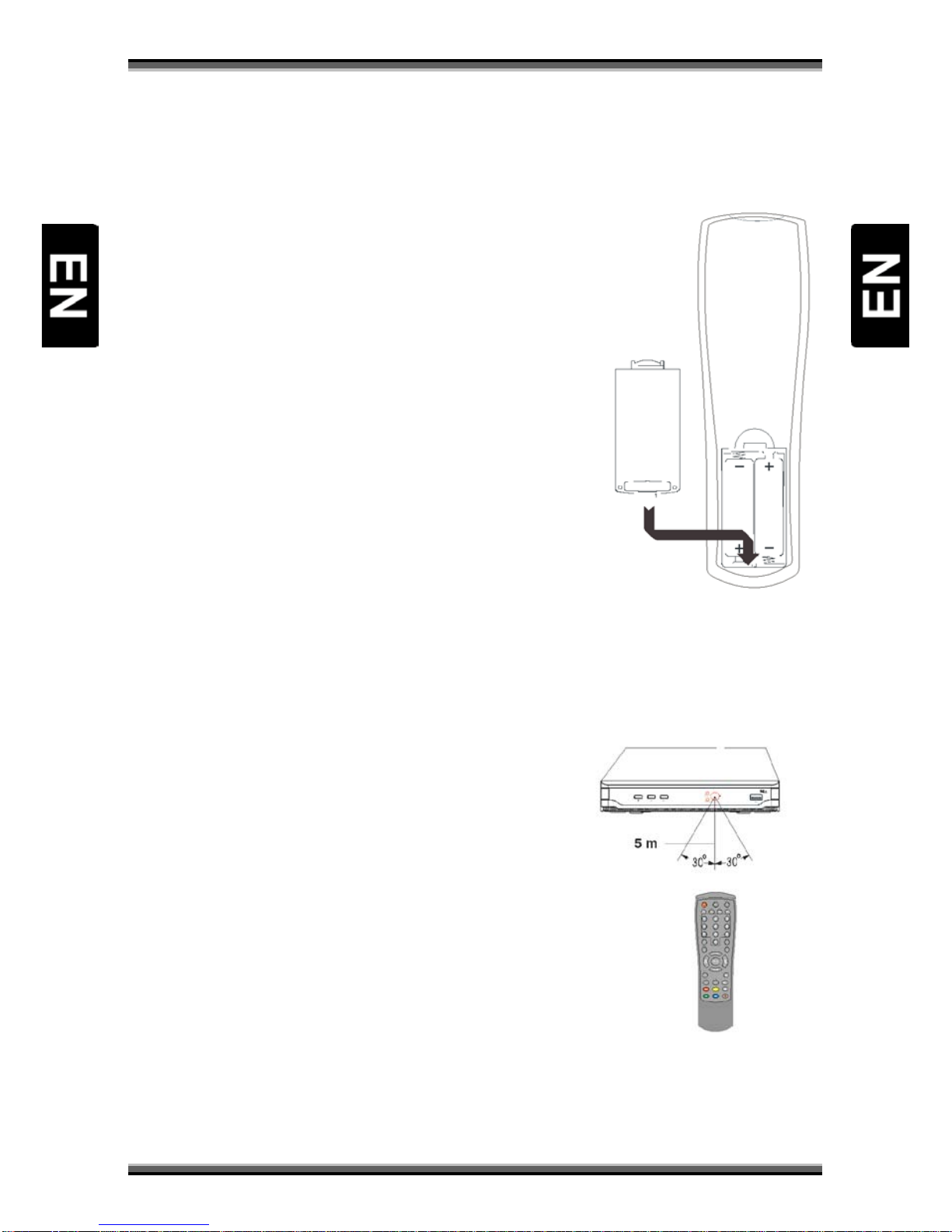

Insert the batteries observing the positive (+) and negative (-) polarities as per figure below .
Service life of batteries
•The batteries normally last for about one year despite
that it depends on how often and in what way the
remote control is operated.
•If the remote control fails to work even when operated
near the DVB receiver, replace the batteries.
•Use size 7 (AAA) batteries (2 pieces).
Warning!
•Do not use rechargeable (Ni-Cd) batteries.
•Do not attempt to recharge, short circuit, disassemble,
heat the batteries or throw them into the fire.
•Do not drop, tramp or impact the remote control. This
may damage the parts and lead to malfunction.
•Do not mix used battery with new one ever when using.
•If the remote control shall be spared for a long time,
remove the batteries. Otherwise, electrolyte may leak,
which may lead to malfunction, even fire accident when
some substance contacts with the electrolyte.
•Wipe away the electrolyte having leaked inside the remote control, and replace with new
batteries.
•If any electrolyte happens to touch some parts of your skin, wash it off thoroughly with
clean water immediately.
8.4. Operation range of remote control
Pointing the remote control to the signal sensor, it shall be
effective to operate the remote control within a distance of
about 5 meters and an angle of about 60 degrees.
The effective range may vary slightly with the brightness of
the room.
Warning!
•Do not point bright light to the remote control
sensor.
•Make sure that there is not any shield between
the remote control unit and the sensor when use
it.
•Do not use this remote control while the remote
control of other equipment is being used.
