Gloview LP1O User manual

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
1
USER MANUAL
For Gloview 3D Touch Interactive Whiteboard LP1O/SP1O
(June, 2011, Version 2.1.2)
Shanghai Easi Computer Technology Co.,Ltd
www.easitech.com.cn

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
2
Contents
Introduction…………………………………….3
Hardware Installation………………………….5
Calibration Software…………………………..6
Application Software Installation……………11
tBoard Software Manual…………..….……..12
Tips…………………………………………….16

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
3
Introduction
Gloview 3D Touch Interactive Whiteboard is attached with Projector/LCD and turns any flat surfaces into
interactive and collaborative workspace. It is an inexpensive Interactive Solution.
Key Features
1, Remote Writing with Laser Pen;
2, Automatic Calibration within 4 seconds;
3, Screen Size is not limited, Support up to 150’’;
4, Turns LCD Screen into Interactive Whiteboard;
5, Portable, Reliable, Simple installation;
6, Multi Touch (specific model supports). Two or more users can write on it at the same time
Specifications
Active screen area 40- 150''diagonal
Shipping size 32 cm × 24 cm × 7.5 cm
Shipping weight 1.3 kg
Technology Optical + Laser technology
Mouse Function Double click function. Right-click function can be
achieved by maintaining the pressure on the board for
2 seconds.
Power Energy is taken from a computer via a USB cable.
Power Consumption ≤1w.
Delay Time <0.1s
Calibration Automatic Calibrating/ Manual Calibration
Indicators Includes 2 IR pens and 1 laser pen;
Installation The possibility of ceiling mounted (bracket included)
Active Screen 40- 150’’ diagonal
Computer Connection Included is a 8-meter USB cable
Software Calibration Software, Whiteboard Software
Package 1 x Calibration Device, 1 x 8m USB Cable, 1 x Laser
Pen, 2 x Infrared Pen(Short Style),1xPointer(Optional),
1 x Ceiling mount, 2 x CD,1x Hardkey
Product Certificates CE, FCC
Approvals ISO9001
Warranty The calibration device has a 3-year limited equipment
warranty. Pens have a 1-year limited equipment
warranty.
System requirements Windows XP / Vista / Windows 7
CPU 1 GHz
RAM 512 MB

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
4
Package Includes
Calibration Device 8m USB Cable CD Hardkey
Infrared Pen (short style) Laser Pen Extra Power Ceiling Mount
Battery size for infrared pen: 2 pieces, AAA (non included)
Battery size for laser pen: 1 pieces, CR2032, 3V (non included)
Accessory
Pointer (Optional)

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
5
Hardware Installation
Install Calibration Device
Install the Calibration Device to the ceiling with the mount and the distance to the front of the projection screen /
surface (based on 80’’ Projection Screen) should be approximately 2.5- 3m (for Long Throw Model LP1O) or 1.2m
(for Short Throw Model SP1O).
Turn LCD TV screen into interactive: Connect the computer with the LCD TV through VGA cable and then
follow the following steps.
Connect Calibration Device
Connect the Calibration Device to the Computer (Laptop) with USB Cable as like Picture 1 and Picture 2. (Plug
USB Cable into one of back ports of computer. For Laptop, extra power may be needed
Picture 1 Picture 2
Then plug the key to the Calibration Device (as like Picture 3) or the computer (as like Picture 4).
Picture 3 Picture 4
Please note: If there is already a Video Camera/Webcam in the computer/Laptop, please disable it
first.

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
6
Calibration Software
Calibration
Step 1: Place the small software CD-ROM into the CD drive and copy the “Gloview Calibration Software’’ and
“Gloview Application software’’ folder in the CD-ROM onto your PC’s hard disk drive.
Please Note: do not RUN the software from the CD.
Step 2: Open the file “Gloview Calibration Software” and double click gloview_3D_IWB. exe.
Then viewing window appears.
Step 3: If the mouse becomes mad and is out of control. Please use the hand to shade the device (or pull out
USB cable from the computer). And then choose “disable Optical Pen Control”.

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
7
Next, please connect USB with computer again and keep adjusting the location or angel of calibration
device or move any strong light until there is no green dot or box in the viewing window. Please note: If
there is any green box in this red screen, calibration will not work.
If the image in the viewing window is from other camera (this problem happens when other camera device is
working), please follow this guide:

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
8
Step 4: Make sure the whole projection image/LCD image should be able to be involved in the viewing window
(see Picture 7)
Picture 7
Step 5: Manual Calibration
Open “Operation”—Choose “Manual Calibration”, and complete the total 9/36 calibration points to finish
the calibration (see Picture 10, 11)

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
9
Picture 10
Picture 11
Automatic Calibration
“Operation”—Choose “Automatic Calibration” and it will automatic complete the calibration within 4
seconds (see Picture 12)
Picture 12

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
10
Step 6: After Automatic Calibration finished, Viewing Window will be Minimized in the right corner of the
computer.
Step 7: To make the device run with system start. Please right click the Icon . And select “Auto Run At
System Startup”
l .
Tip: No need to calibration again when the projector and signal device are not moved.
Now you could control the computer from the projection screen.
Picture 13

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
11
Application Software Installation
Step 1: When system is Windows Vista or XP, please place the big software CD-ROM into the CD drive and copy
the “dotNetFX35’’ folder in the CD-ROM onto your PC’s hard disk drive. (Please skip this step with
Windows 7)
Please Note: do not RUN the software from the CD.
Step 2: Open the “dotNetFX35’’ and then run .
Step 3: Open the folder “Gloview IWB Application Software’’ and run , There will be a icon
of tBoard on the desktop. .
Now the Application software of “tBoard” is installed.
Step 4: Open the “Gloview IWB Application software’’ and install “Handwriting Recognition’’.

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
12
tBoard Software Manual
Double click the icon of tBoard from the desktop.
Start Menu Introduction
Click the menu , then the tool list will pop up, click the option according to the different needs.
The File menu: including the
‘’New, Open, Save, Save As’’ Support
open ‘’ PTS, PDF, Word, Excel,
PowerPoint and other file formats.
Insert Hyperlink: including the ‘’
Web Page, Disk File and
Documentation Page’’
Export: the current page could be
exported as the format of PNG, JPG,
BMP, ISF and XPS.
Change Background: used to
change the background of current page.
Tool Group Includes : Protractor,
Triangle, Ruler, Timer, Media Player,
Vide Capture, Mask, Magnifying glass,
Spotlight, Keyboard, Calculator,
Handwriting Recognition, Screen
Recording, External tool Management.
Slide page navigation : users will
be required to open the slide and enter
the ‘’View Show’’ status under the
desktop status, click on the function keys
then the Annotation, page up and down
could be achieved.

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
13
Minimize the Toolbar Introduction
Click to switch to the desktop Mode, then the right side of the desktop will appear Minimize toolbar, the
following is a description of each button:
Handwriting Recognition
Step 1: Start the handwriting Recognition from “Tool” list of tBoard.
It will appear toolbar.
Back to Desktop
Pen
White Page
Previous Page
Erase
Undo
Note Page
Previous Note Page
Black Page
Next Page
Insert Picture
Exit
Pen Size
Start
Menu Tools
New File
Previous
Page & Next
Hard Pen、
Brush Pen
Insert
Shape
Insert
Text
Option
Fill
Tools
Select
Move
Screen
Zoom
In/Out
Pen and
fill color
Pen
Width
Eraser
Option
Undo、
Redo
Expansion
Desktop
Mask、Magnifying glass、Spotlight、
Screenshot

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
14
.
Step 2: Using the Handwriting Recognition in Word file, Excel file and tBoard.
In Word and Excel file

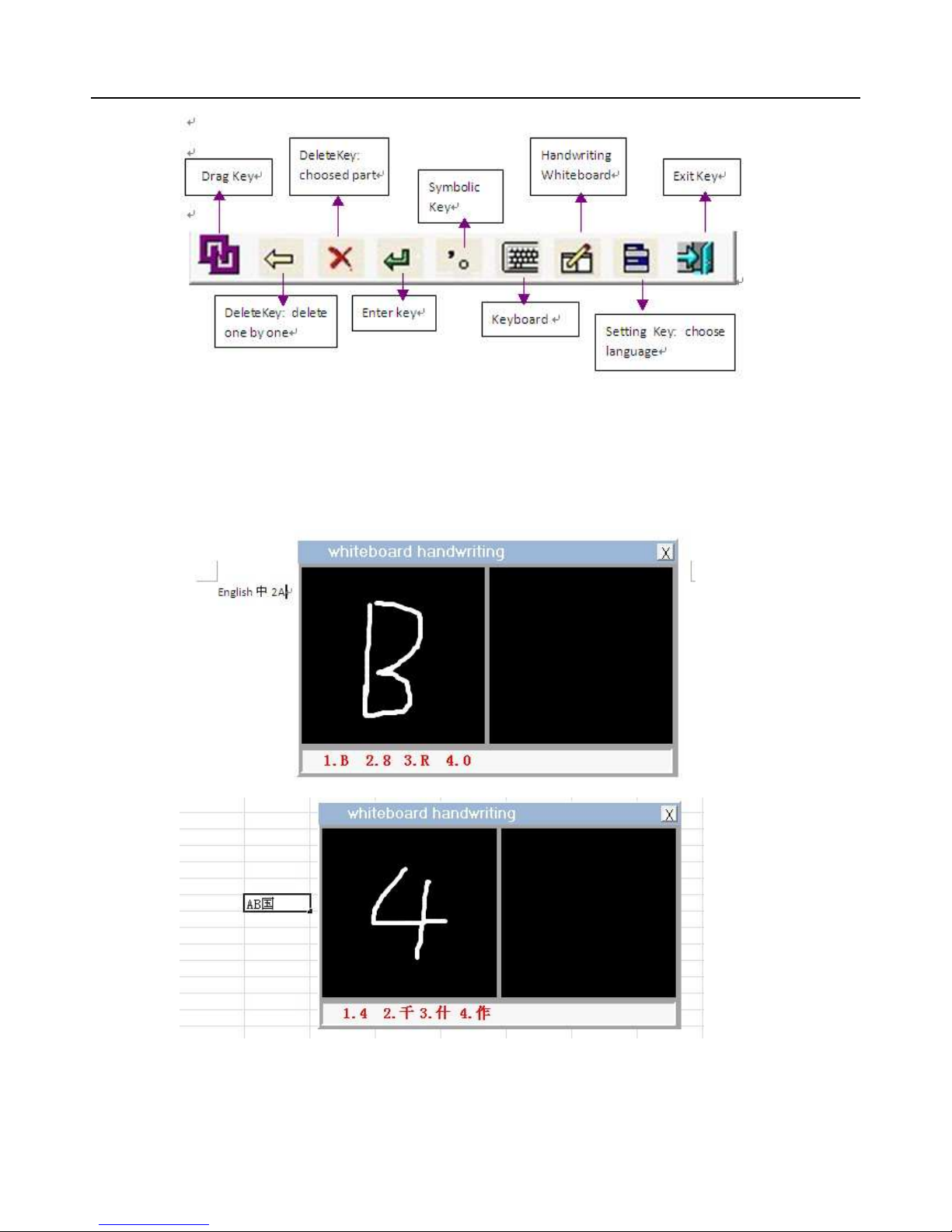

Open the Word and Excel file from computer procedure and you will use it as like the Picture 1 and 2.
Picture 1
Picture 2

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
15
In tBoard
Click in the tBoard and make a text input window like picture 3
Picture 3
Virtual Keyboard
Step 1: Open the “Handwriting Recognition’’, then click the virtual keyboard in the toolbar.
Step 2: The soft keyboard could be used in the Word file, Excel file and IE, etc
Multi-writing Trial Version
Before making multi writing demo, please Find the folder “Gloview Calibration Software’’ and run
.

GLOVIEW 3D TOUCH INTERACTIVE WHITEBOARD MANUAL
16
Tips
1, The range of light Sensitivity should be 5-8. If too high, the mouse will be out of control. If too low, the pen may
not response well with operation.
2, The distance between Calibration Device to the screen (based on 80’’ screen):
Around 2.5-3m (for Model LP1O)
Around 1.2m (for Model SP1O). The whole projection screen should be involved in the red screen. Set
the sensitivity (Please check No 1) according to the environment and make sure there is no any
spot/Green dot in the red screen.
3, Best Installation way: Install the Calibration Device on the ceiling and there is no block between the tip of pen
and receiver. If the Calibration Device cannot be installed on the ceiling, please make sure there is no block
between the tip of pen and the Calibration Device when operation, like user’s body or hand. If there is block,
interrupted lines would happen during writing.
(Remark: if battery is not available, interrupted lines would happen during writing too.)
4, Hold the infrared pen at an angle of 30 – 45°to the projection surface. (No requirements for Model SP1O)
5, Use Infrared Pen to process the calibration. Place the pen tip at the center of the cross, and then press.
6, Operate right click function: pressure the infrared pen for 2 seconds.
7, USB cable has to be plugged into the port in the back of Computer Box. And extra power may be necessary
when signal device is connected with Laptop,.
8, If the software screen is not red, click “stop” and set another camera in the list of device, then choose “start”
again.
9, If it is failed to open the software, please check hardware key and sometimes you need restart it or try other
port.
10, If the green dot doesn’t move with the operation, please check the frame data of calibration software. When
the frame per second is below 25, it means the computer doesn’t meet the system requirement. A new computer
is needed in this situation.
