ABOUT THIS DOCUMENT
This document is a brief introduction to Glyph’s GT 205, a
double-space rack, five-bay FireWire hot-swap enclosure for GT Key™
cartridges, and other storage devices.

GT 205
Proprietary Notice and Disclaimer Quick Guide #610019-1.02
2www.glyphtech.com – © Glyph Technologies
DOCUMENT CONVENTIONS
Notes
Notes alert you to important information. They are indented and
preceded by the word Note in bold type.
Cautions
Cautions alert the user to actions or situations that can result in
damage to users or data. Cautions are accompanied by a triangle icon,
as in the example below.
CAUTION:
If the container is damaged, file a report with the carrier or dealer
immediately.

GT 205
Quick Guide #610019-1.02 Proprietary Notice and Disclaimer
© Glyph Technologies – www.glyphtech.com 3
CONTACTING GLYPH
Please use the following contact information to contact Glyph and its
distributors.
Glyph USA offers phone support Monday through Friday, 9:00 am to
6:00 pm Eastern Time.
Note: DO NOT ship any return goods to the mailing addresses below
unless you have a valid RMA number. All goods will be refused
delivery unless a valid RMA number is displayed on the outside of the
package.
UNITED STATES OF AMERICA
Europe
Mailing Address Phone/Fax Email and Web Site
Glyph Technologies
227 Cherry St.
Ithaca, NY 14850
USA
Phone:
[phone]
Fax:
[phone]
General information:
[e-mail]
Sales enquiries:
[e-mail]
Technical support:
[e-mail]
www.glyphtech.com
Mailing Address Phone/Fax Email and Web Site
Steyler Str. 121
D - 41334 Nettetal
Germany
Phone: [phone]
/ 12 76 23
Fax : [phone] /
12 83 12
Sales enquires:
[e-mail]
Technical support:
[e-mail]
www.glyphtech.com

GT 205
Contents of This Guide QuickGuide #610019-1.02
4www.glyphtech.com – © Glyph Technologies
Contents of This Guide
Glyph’s GT Series, p. 4
About the GT 205, p. 7
Unpacking Your GT 205, p. 12
Installing and Connecting the Hardware, p. 13
Preparing Your Drive for Use: Mac OS 9 Users, p. 14
Preparing Your Drive for Use: Mac OS X Users, p. 15
Preparing Your Drive for Use: Windows Users, p. 16
Care and Maintenance of the GT 205, p. 20
Troubleshooting, p. 22
GT 205 Specifications, p. 23
Audio Storage Guide, p. 24
Glyph’s GT Series
The GT Series is a cross-functional line of FireWire-based storage
subsystems designed for mobility and easy expansion:
GT Key - A hot-swappable FireWire Drive
GT 050 - A Fixed-Mount FireWire Tabletop Drive
GT 051 - A Tabletop One-bay enclosure for GT Key drives
GT 103 - A One-space Thee-bay enclosure for GT Key drives
GT 060BR - A FireWire 800 Hardware RAID 0 Tabletop Drive
GT 205- A Two-space Five-bay enclosure
GT 050Q - A Tabletop Drive with FireWire 400, 800, USB and eSATA

GT 205
Quick Guide #610019-1.02 Glyph’s GT Series
© Glyph Technologies – www.glyphtech.com 5
The GT Series incorporates Glyph’s own advanced FireWire
technology called Integrity™. Inspired by the limitations of existing
hybrid ATA-to-FireWire hot-swap products, Glyph engineers resolved
the data integrity problems that arise from breaking at the ATA
interface by incorporating unique enhancements to existing FireWire
standards. As a result, the GT Key drive cartridge contains the
ATA-to-FireWire bridging technology in the cartridge itself. When
removing a hard drive from the receiver, the drive and its bridge
remain together to support hard drive hot-swapping in the proper
way—using circuits and protocols that are intended for hot-swap
applications. The GT Series sets new standards as Glyph’s Integrity™
technology surpasses today’s other hot-swappable storage.
FireWire is an implementation of the IEEE 1394 serial bus standard. It
not only supports automatic configuration ("plug and play") and
hot-swapping of devices, it’s fast, and best of all it’s reliable for
audio/video as well as for computer peripherals.
FireWire supports peripherals in a tree-like structure, as opposed to
SCSI's linear structure. It allows peer-to-peer device communication—
e.g. between a scanner and a printer—to take place, without using
system memory or the CPU.
With FireWire you don’t have to worry about IDs or device
termination; you can hook up to 63 devices to the same bus, with cable
lengths of up to 4.5 meters (14 feet) including internal cabling, allowed
between devices.
Its cable is not only more convenient than SCSI’s but can also carry
power. This allows low-consumption devices to operate without a
separate power cord, by using power supplied by other devices on the
bus.

GT 205
Glyph’s GT Series QuickGuide #610019-1.02
6www.glyphtech.com – © Glyph Technologies
Noise Control
Elimination of Signal noise
Components in GT Series enclosures are of the highest quality
possible. These include:
• Heavy-gauge internal power cabling to carry current with minimal loss
• Bridge circuit boards designed to provide extra functions and top
performance
• High-quality data cables to maintain signal integrity at high data
rates
We use Teflon ribbon cables in our GT Series FireWire solutions
because Teflon is the best insulator for minimizing cross-talk and
maintaining high-frequency signal integrity. Good insulation
maintains signal quality. Maintaining signal quality ensures maximum
data transfer rates.
Elimination of Acoustic Noise
GT Series enclosures and the GT Key incorporate sound-damping
metal to support quiet recording by virtually eliminating noise caused
by the vibrations of hard drives and fans.
This material is a constrained-layer composite—a laminate formed of
two layers of metal sandwiching a viscoelastic polymer core. Vibration
felt by the metal layers is dampened by the softer center layer: the
deformation of the core facilitates the absorption of vibrational
energy. The combination of quiet metal and secure fastening with
sturdy steel mounting hardware helps to ensure a still, quiet
environment for your recording sessions.

GT 205
Quick Guide #610019-1.02 About the GT 205
© Glyph Technologies – www.glyphtech.com 7
Power
Glyph uses efficient, high-quality power supplies, selected specifically
for the demands of production environments.
Our power supplies have a large amount of headroom, so your Glyph
system will function, for brief periods of time, with AC lines
significantly below specified limits.
Glyph FireWire devices, even when they’re not turned on, will pass
signal and bus power through to downstream FireWire devices.
Glyph’s FireWire solutions are 100% compliant with FireWire
specifications for reliable operation using FireWire’s repeater
functionality.
About the GT 205
The GT 205 is a double-space five-bay FireWire enclosure. It can be
configured with four GT Key hot-swappable FireWire drives in any
available capacities, and its SCSI/FireWire expansion bay offers the
option of AIT backup, SCSI or FireWire hot-swap receiving bay,
DVD-R/RW or CD-R/RW. The four standard GT Key FireWire
hot-swap drive bays on the GT 205 are connected together using an
internal FireWire hub, and have two out-facing FireWire ports, which
are the lower connectors on the rear of the chassis. If the device in the
expansion bay is SCSI, it uses two SCSI connectors on the rear of the
chassis. If the expansion bay device is FireWire, it uses two additional
FireWire ports on the rear of the chassis. The expansion bay ports are
always the upper ports on the back of the chassis.

GT 205
About the GT Key Quick Guide #610019-1.02
8www.glyphtech.com – © Glyph Technologies

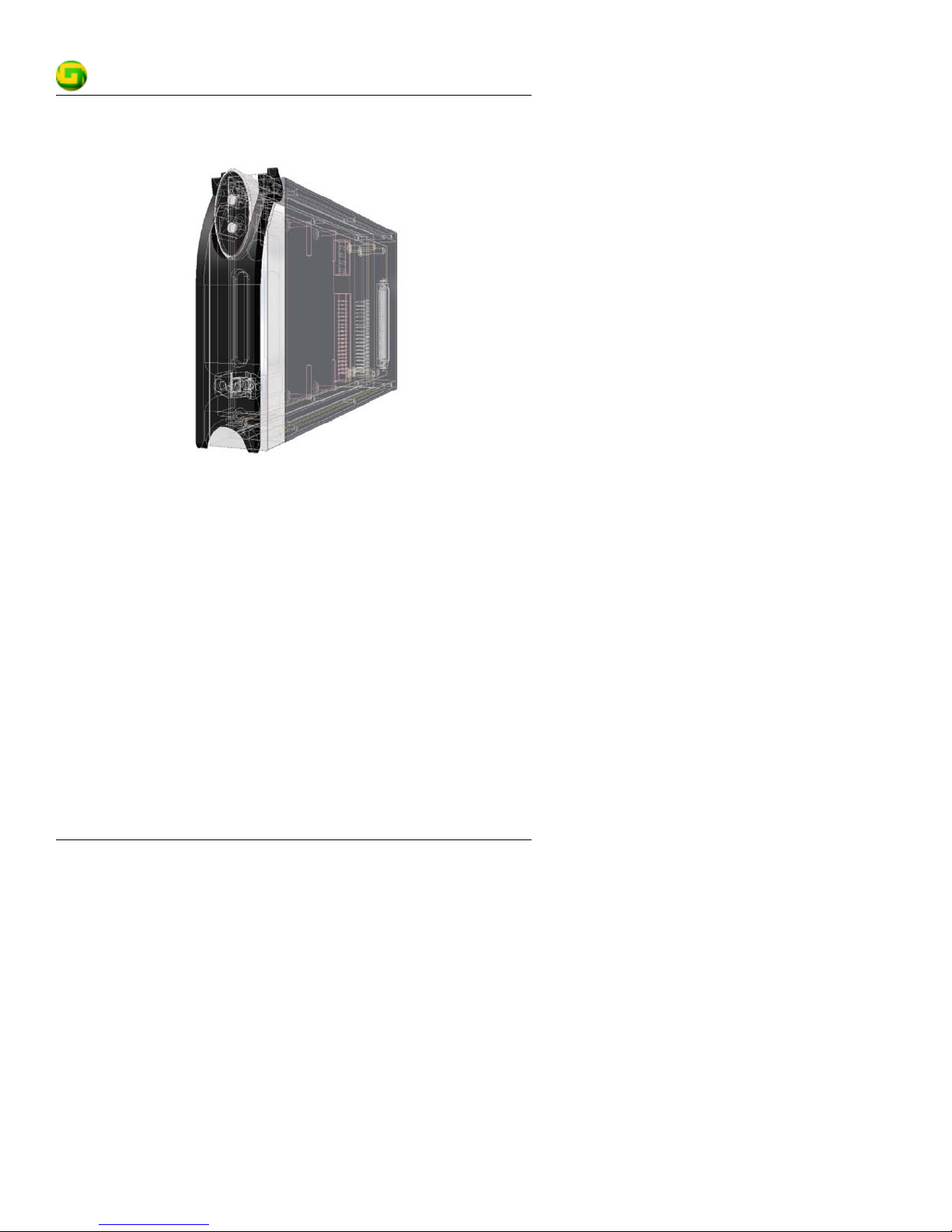

About the GT Key
The GT Key is at the heart of the GT Series. Fully hot-swappable using
Glyph's proprietary Integrity™ FireWire interface, you can easily
shuttle content to other GT Series enclosures with the 7,200 RPM GT
Key. Utilizing a high-performance hard drive and Glyph's tri-laminate
sound-damping technology, a GT Key is not only fast, but it's quiet
too.
Integrity™ is an advanced FireWire hot-swap interface that provides
greater reliability than existing hybrid to ATA-to-FireWire products.
This offers true hard drive hot-swap technology, ensuring data
integrity and consistency: removing a hot-swap drive from a Glyph
FireWire system interrupts the data signal at the FireWire bus, not on
the ATA bus as with other hot-swap systems.

GT 205
Quick Guide #610019-1.02 About the GT Key
© Glyph Technologies – www.glyphtech.com 9
CAUTION:
When transporting an individual GT Key cartridge, place it in plastic
carrying case that it came in. This will help ensure the safety of the
sensitive electronics exposed at the back of the cartridge.

GT 205
About the GT Key Quick Guide #610019-1.02
10 www.glyphtech.com – © Glyph Technologies

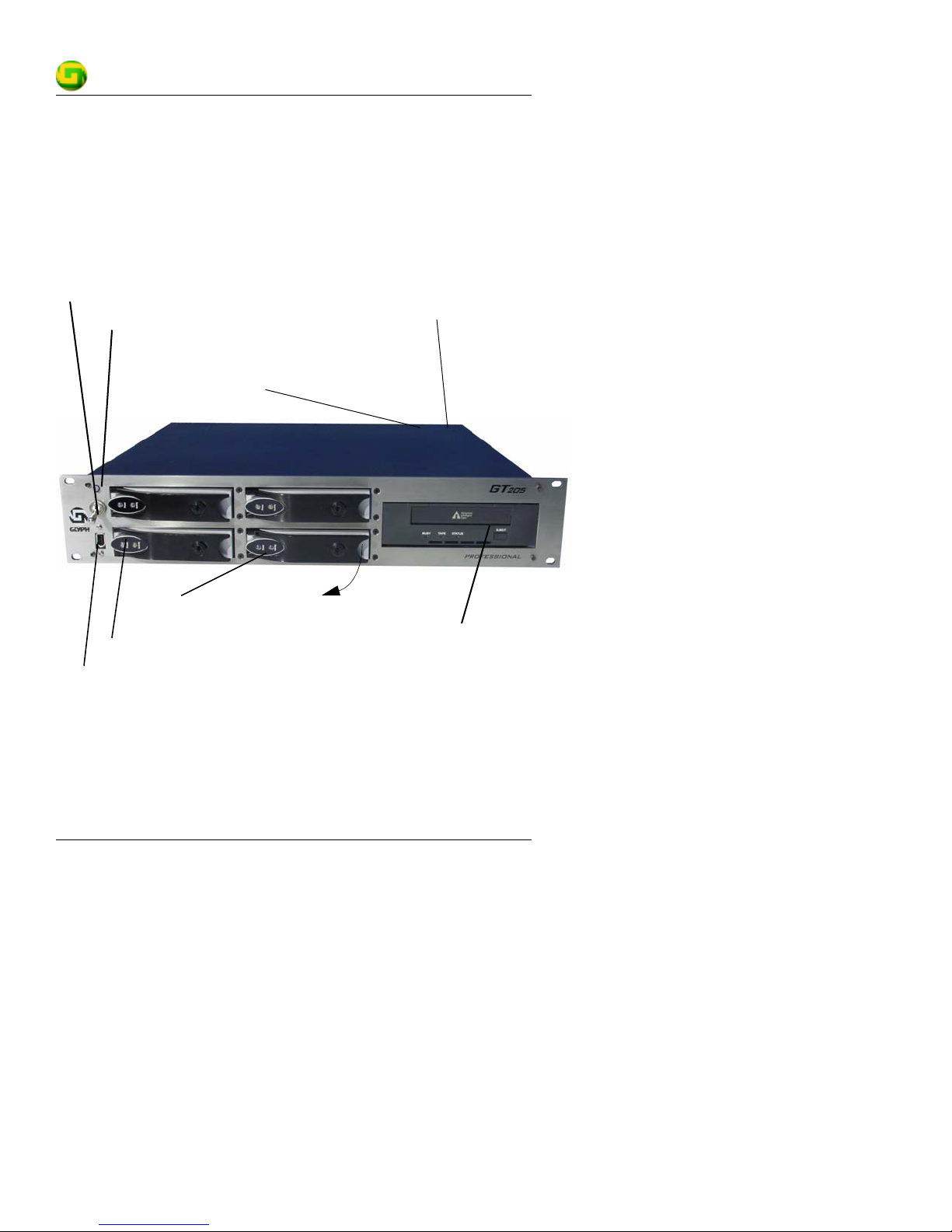

Details
GT Keys load conveniently into the GT 205 chassis by means of a
flip-out handle at the front of the drive. The Key lock can be used to
prevent the removal of GT Key drives. The illustration below shows
four GT Keys in a GT 205 chassis.
Indicator Light on Chassis
• The power switch LED glows green to indicate that AC power is
applied: the GT 205 is plugged in and switched on.
Front Panel FireWire Port
LED: power to cartridge
LED: drive activity Drive latch flips out
for drive removal
FireWire/SCSI
Expansion port
Rear panel expansion
bay ports, SCSI or FireWire
Power switch
LED: power to chassis
GT Key drive
FireWire bay ports
(shown with AIT)
(bottom connectors)
(upper connectors)
Power switch with LED: AC power to chassis

GT 205
Quick Guide #610019-1.02 About the GT Key
© Glyph Technologies – www.glyphtech.com 11
GT Key Indicator Lights
• The LED labeled “Power” glows green to indicate that power is
applied to the cartridge.
• The LED labeled “Activity” glows yellow to indicate drive activity.
Features
• Sound-absorbing metal with noise-damping construction
• AC power input filter
• Three internal power supplies: (1) 51w for the expansion bay and
(2) 70w for the four GT Key bays
•Durable2Urackenclosure
• 80mm quiet ventilator fan
• Indicator lights to monitor drive activity, and to indicate power
supplied to GT 205 and GT Keys
• Front panel FireWire port
Requirements
Macintosh Computer
• Computer with FireWire port(s) or FireWire host bus adapter
• MacOS 8.5 or greater, including Mac OS X
Windows Computer
• Computer with FireWire port(s) or FireWire host bus adapter
• Windows 98 SE, 2000, ME or XP

GT 205
Unpacking Your GT 205 QuickGuide #610019-1.02
12 www.glyphtech.com – © Glyph Technologies
Unpacking Your GT 205
Your Glyph GT 205 and accessories are packaged in a sturdy shipping
container. Please inspect the container for evidence of shipping
damage and mishandling.
CAUTION:
If the container is damaged, file a report with the carrier or dealer
immediately. Do not attempt to unpack and operate your GT 205
until the carrier or dealer confirms the damage.
If the container is in good condition, proceed with unpacking the GT
205. Verify that all of the items described in the next section are
present and in good condition.
Inspection
CAUTION:
If any of the items you expect to find in your container is missing or
damaged, contact the dealer before proceeding any further.
In any case, do keep the shipping container and all packing materials
in a safe place.
The GT 205 package includes:
• GT 205 Enclosure
• FireWire cable(s): If the expansion bay holds a FireWire device,
you will receive two cables, (1) 2-meter and (1) .5-meter. If the
expansion bay holds a SCSI device you will receive a SCSI
teminator. SCSI cables are sold separately.
•Powercable
•rackscrews
• Documentation CD with warranty card and this guide

GT 205
Quick Guide #610019-1.02 Installing and Connecting the Hardware
© Glyph Technologies – www.glyphtech.com 13
Installing and Connecting the Hardware
1. Position the GT 205.
Place the unit on a flat, level surface, or install the unit into a rack
with the four supplied rack screws.
CAUTION:
Speakers are magnetic devices; they can harm your data if they’re
too close to your hard drives or tape cartridges.
2. Connect the power cable (power off):
Make sure that the power is off on all of your computer equipment
and the GT 205.
Connect the power cable to the back of the GT 205. Plug the
three-prong plug into an appropriate power receptacle, preferably
with surge and spike protection.
3. Connect the 2-meter FireWire cable.
Plug one end of the FireWire cable into your computer’s FireWire
port, and the other into one of the two lower FireWire ports on
the GT 205 (it doesn’t matter which one). If the expansion bay in
the GT 205 holds a FireWire device, there will be two additional
FireWire ports above the lower connectors. Daisy-chain the lower
and upper ports together with the supplied .5-meter FireWire
cable.
4. If the device in the expansion bay is SCSI, connect a SCSI cable
from one of the ports on the GT 205 to a SCSI card in your
computer. (SCSI cable and card sold separately) Connect the
supplied terminator to the other open SCSI port on the GT 205.
5. Insert any GT Key cartridges into the unit.
Pull the handle on the cartridge out, then slide the cartridge into
the slot on the GT 205 and press the handle in well to secure the
cartridge firmly into place.

GT 205
Preparing Your Drive for Use: Mac OS 9 Users QuickGuide #610019-1.02
14 www.glyphtech.com – © Glyph Technologies
6. Power up the GT 205.
7. Power up your computer.
If you are using a Macintosh computer the drive should mount
automatically on your desktop.
Preparing Your Drive for Use: Mac OS 9 Users
Since your hard disk drive comes pre-formatted for Macintosh you
don’t need to format it on installation. If you should need to
re-initialize the disk, you can use the Erase Disk command in the Mac
operating system. This command will erase all the data on a volume
and create a new file system. Erase disk will not allow you to
re-partition a FireWire drive or create a different volume structure
than what was previously there.
If you need more functionality than what is supplied by Mac OS 9, get
a formatting and partitioning utility. Glyph recommends FWB’s Hard
Disk Toolkit or Charismac’s Anubis utility. These will allow you to
re-partition a disk and create multiple volumes, as well as format those
volumes. Directions for using these utilities will be included with
them.
Mac OS X users should use Disk Utility (supplied with the Mac OS X
operating system) to format and partition drives.
Re-initializing your drive using Erase Disk (Mac OS 9
Users)
Your new drive should have automatically mounted on the desktop as
a Glyph volume. We advise that you give it a recognizable name or
number on your desktop.

GT 205
Quick Guide #610019-1.02 Preparing Your Drive for Use: Mac OS X Users
© Glyph Technologies – www.glyphtech.com 15
Your drive is a single volume by default. To re-initialize your drive, use
the following procedure.
CAUTION:
This procedure will destroy any data currently on the drive. Before
formatting a drive, save any important data it contains.
1. Select the volume by clicking on it once in the Finder
2. Go to the Special menu and select Erase Disk...
The Erase Disk dialog box opens to verify your decision to erase
the disk.
3. In the Name field, enter the new name for the disk or leave the
name as it is.
4. In the Format drop-down menu, choose an Extended volume.
All GT Key drives are formatted at the factory as Extended
volumes.
5. Click Erase.
The disk is now erased and should mount on your desktop with
the new volume information.
Preparing Your Drive for Use: Mac OS X Users
Since your Glyph hard disk drive comes pre-formatted for Macintosh
you don’t need to format it on installation. If your computer is
running Mac OS X and you decide to reformat or partition your drive,
use Disk Utility (supplied with the Mac OS X operating system).

GT 205
Preparing Your Drive for Use: Windows Users QuickGuide #610019-1.02
16 www.glyphtech.com – © Glyph Technologies
Preparing Your Drive for Use: Windows Users
Because Glyph hard disk drives are formatted for Macintosh, Windows
users must reformat their drives in order to use them.
Windows 98 SE
1. From your computer’s task bar, go to Start > Programs > MS-DOS
Prompt.
2. At the prompt, type fdisk and press Enter.
You’ll see a long message about disk support.
3. Enter Y (type Yand press Enter).

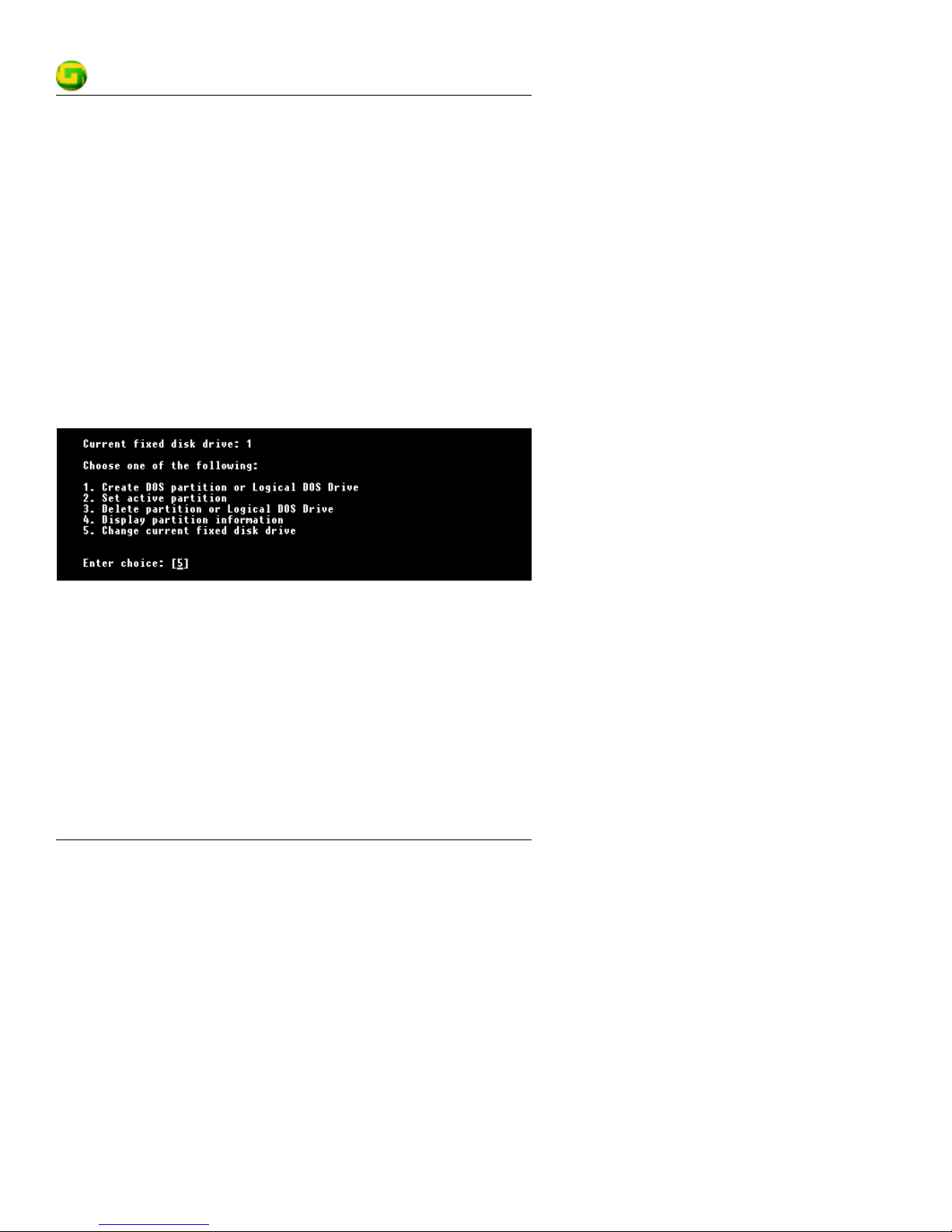

You are invited to make a choice.
4. Enter 5to change the current fixed disk drive.
MS-DOS displays the connected disk drives.

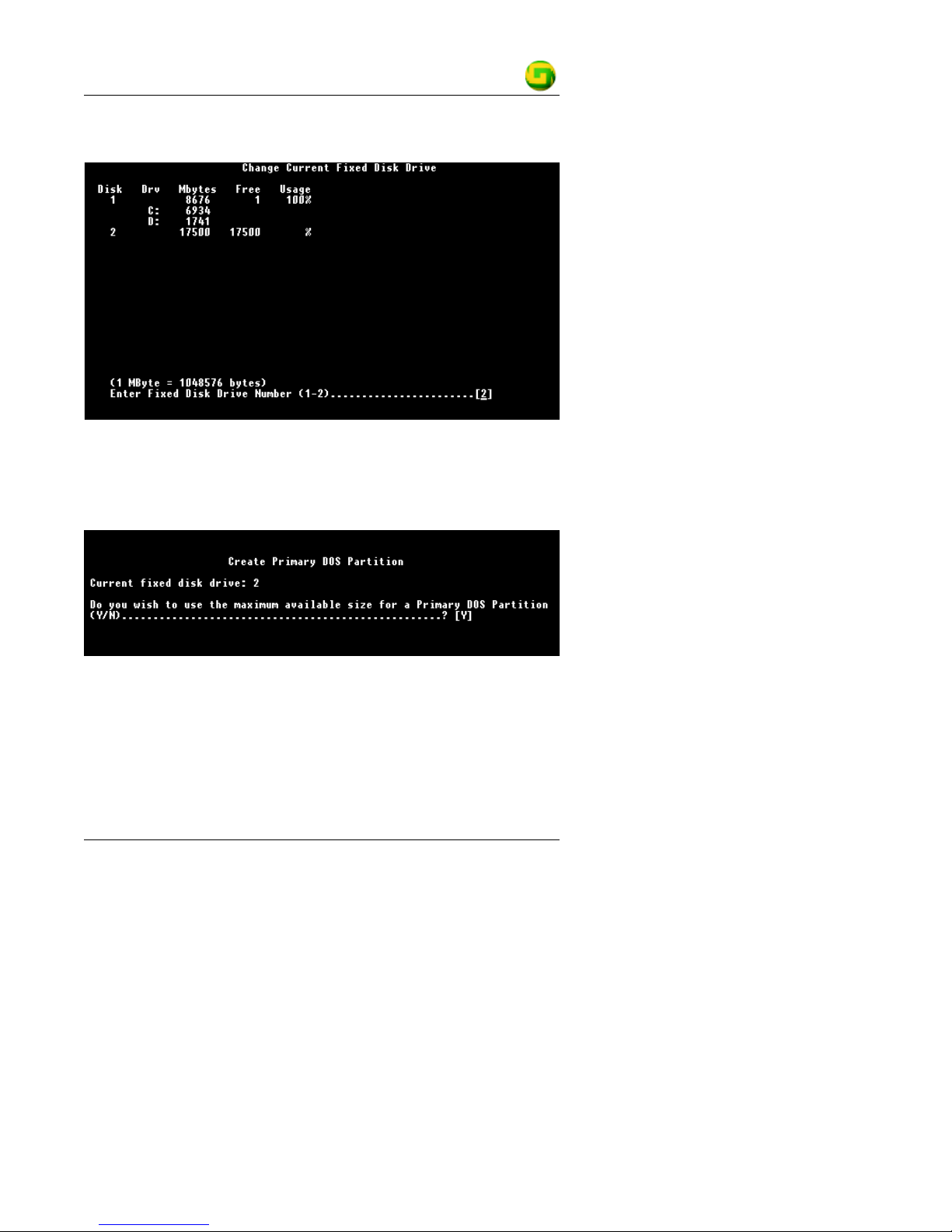

5. Enter the number of the disk that has no corresponding drive
letter (in the example below, that’s Drive 2).

GT 205
Quick Guide #610019-1.02 Preparing Your Drive for Use: Windows Users
© Glyph Technologies – www.glyphtech.com 17
You are invited to make a choice (same list as in Step 3).
6. Enter 1to create a primary DOS partition.
Your computer verifies the drive’s integrity, after which you are
asked to choose whether you want to use all the space available.
7. Enter Yto opt for using the maximum available space.
Your computer again verifies the drive’s integrity.
8. When the drive’s integrity has been verified, press ESC (Escape)
three times to exit fdisk.
9. At the prompt, type exit.

GT 205
Preparing Your Drive for Use: Windows Users QuickGuide #610019-1.02
18 www.glyphtech.com – © Glyph Technologies
10. Restart your computer.
Your new drive is now ready to use.
Windows 2000
1. Right-click My Computer and click Manage.
2. In the Computer Management window, click Disk Management.
The Write Signature wizard pops up.
3. Use the wizard to write a signature to the new drive.
4. Use the instructions that came with your operating system to
continue formatting the drive. We suggest doing a Quick Format.
