GM VENDING Capri User manual

CAPRI
Cod. 21185-01 0
The manufacturer, GMVENDING S.
A., reserves the right to modify the product or its specifications without
prior notice. Also, it does not accept any liability for damages arising form improper use of the information
included in this manual.
This user manual is protected by international copyright laws. No part of this manual may be reproduced,
distributed, translated or transmitted in any form or by any means, electronic or mechanical, including
photocopying, recording, or storing in any information storage and retrieval without prior written consent by
GM VENDING S.A.
INSTRUCTION MANUAL
COFFEE CAPSULES DISPENSER

CAPRI
Cod. 21185-01
1
CONTENT
1.- INTRODUCTION …………………………………………..………………. 2
2.- SAFETY INSTRUCTIONS ………………………………………..………. 2
3.- TECHNICAL SPECIFICATIONS …………………..……..………………. 3
3.1.- OPERATING SPECIFICATIONS …………………..……………..……. 3
3.2.- DIMENSIONS AND CAPACITY …………………...…………......……. 3
4.- MACHINE DESCRIPTION ………….…….………..……..………………. 5
5.- INSTALLATION AND START-UP……….......…..….…..……………..…. 7
5.1.- ELECTRICAL INSTALLATION .…………………...……………...……. 7
5.2.- START-UP ……………….…………..……………...……………......…. 7
5.3.- RELATIONSHIP PRODUCT CHANNEL/SELECTIONS .………….… 7
5.4.- MAKING A PURCHASE ……………………………………………….... 7
6.- PROGRAMMING ..…………………………..……..………………………. 8
7.- MAINTENANCE ………………………...…………..……..…….…....….. 10
7.1.- DIAGNOSTIC OF MALFUNCTIONING ....………...……..............…. 10
7.2.- PRODUCT LABEL CHANGING ……......………...…….….........…… 11
7.3.- CLEANING MACHINE EXTERIOR …………….............………........ 11
8.- ELECTRICAL DRAWING ...………………………..…….…….…..……. 12
See online machine manuals:
Instruction manual Programming manual

CAPRI
Cod. 21185-01
2
1.- INTRODUCTION
•Machines are prepared for coffee and milk capsules selling
independently.
• These models consist on 12 selection buttons for different products, a
coin slot for payment during selling process and 16 product channels in
Capri and Capri D models and 8 in Capri S model.
•These machines are designed for indoor use.
2.- SAFETY INSTRUCTIONS
•The machine should be attached to the wall to ensure its verticality.
•Check mains characteristics coincide with the machine’s and that the
machine is properly grounded.
•Access to the electrical parts of the machine only can be done by
authorized personnel.
•Before handling any component, disconnect the machine from mains.
•Should the mains cable be damaged call our technical support service.
•The machine should not be used for any purpose other than that
indicated by the manufacturer.
•The manufacturer shall not assume any liability for damages arising from
improper use of the machine.
•Always maintain the machine as indicated in the maintenance
instructions.
•This machine is not intended for be used by people (including children)
whose physical, sensory and mental abilities were reduced or they
haven’t the necessary experience or instructions about the use of the
machine by a person in charge of their security.
•Children should be supervised to be sure they don’t play with the
machine.
•The installation of this machine is not suitable in a place where flows of
water could be used.
•The machine won´t be cleaned with flows of water.
Read these instructions carefully before
starting up the machine.

CAPRI
Cod. 21185-01
3
3.- TECHNICAL SPECIFICATIONS
3.1.- OPERATING SPECIFICATIONS
Voltage: 230 VAC
Maximum current: 0.2 A
Maximum power: 50 W
Temperature range: Between 0ºC and 55ºC
Humidity range: Between 35% and 95% relative humidity.
3.2.- DIMENSIONS AND CAPACITY
Unpacked
HEIGHT
(mm.) WIDTH (mm.) DEPTH (mm.) WEIGHT (Kg) CAPACITY (Capsules)
CAPRI 645 470 195 30 208
CAPRI D 645 450 185 30 208
CAPRI S 645 315 185 21 104
Packed
HEIGHT
(mm.) WIDTH (mm.) DEPTH (mm.) WEIGHT (Kg)
CAPRI 690 525 260 32
CAPRI D 690 525 260 32
CAPRI S 690 370 260 23

CAPRI
Cod. 21185-01
4
CAPRI
CAPRI D CAPRI S

CAPRI
Cod. 21185-01
5

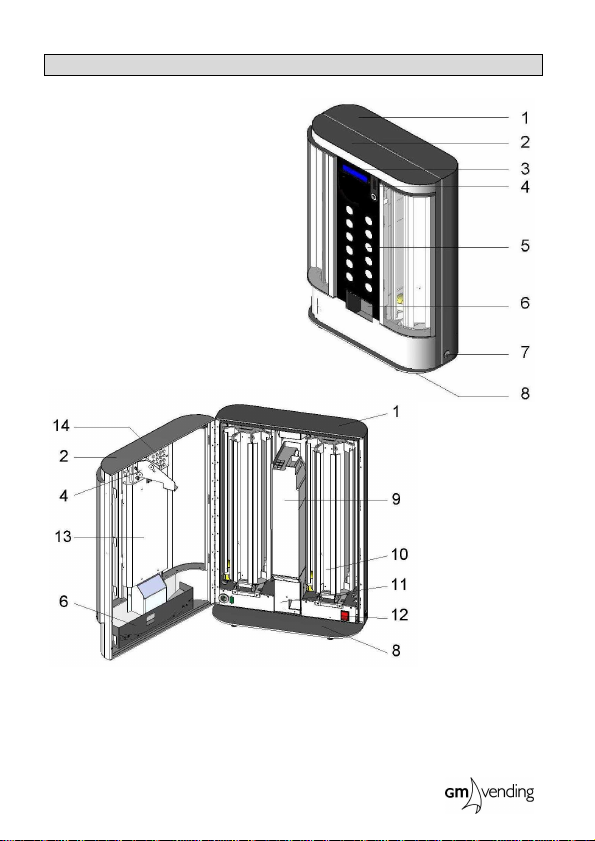

4.- MACHINE DESCRIPTION
1.
-
Case
2.- Door
3.- Display
4.- Coins slot
5.- Product selection pushbuttons
6.- Tray for collecting product
7.- Door lock
8.- Base
9.- Coin changer/Validator
10.- Product tambour
11.- Coin box
12.- General switch
13.- Button panel door
14.- Programming keyboard

CAPRI
Cod. 21185-01
6

CAPRI
Cod. 21185-01
7

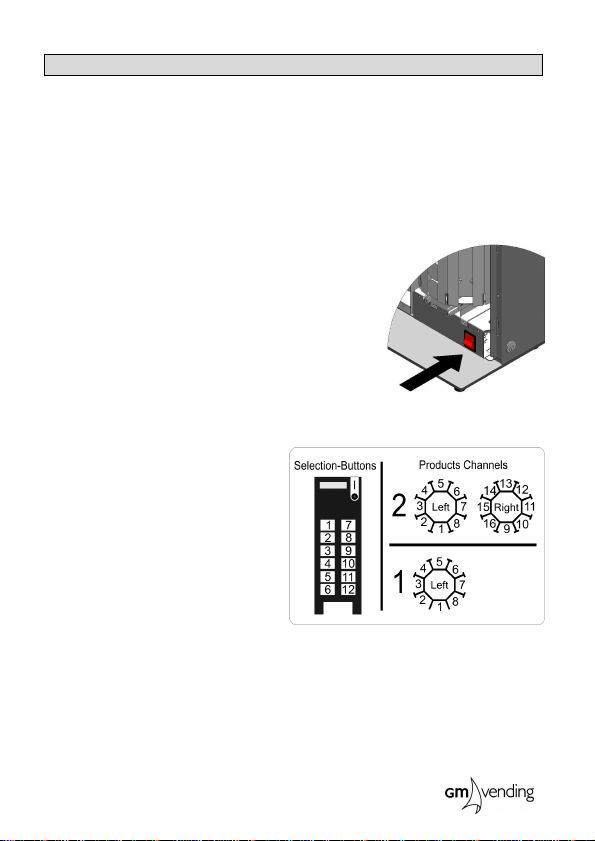

5.- INSTALLATION AND START-UP
5.1.- ELECTRICAL INSTALLATION
•Ensure mains connection is 230 VAC, 50 Hz and 10 A, with a socket with
grounding (same type as machine plug).
•Installation should meet Low Voltage Installation Regulations.
•Once you have installed the machine, check the effectiveness of the
ground connection.
5.2.- START-UP
•Connect the machine to mains and press the
main switch. The machine will carry out an
internal check and finally will appear on the
display MACHINE EMPTY / SOLD OUT.
•As a safety measure, the tambour does not
turn if the door is open.
•Turning the key, channels rotate to verify
product availability and place it in the operating
position.
5.3.- RELATIONSHIP PRODUCT CHANNEL/SELECTIONS
•Number assigned to every
selection button is shown within
button panel. Same as number
for every product channel on
the tambours.
•Place every product sticker on
corresponding selection button.
5.4.- MAKING A PURCHASE
Press the desired selection to verify product availability and price, insert
the amount and press again product selection.

CAPRI
Cod. 21185-01
8

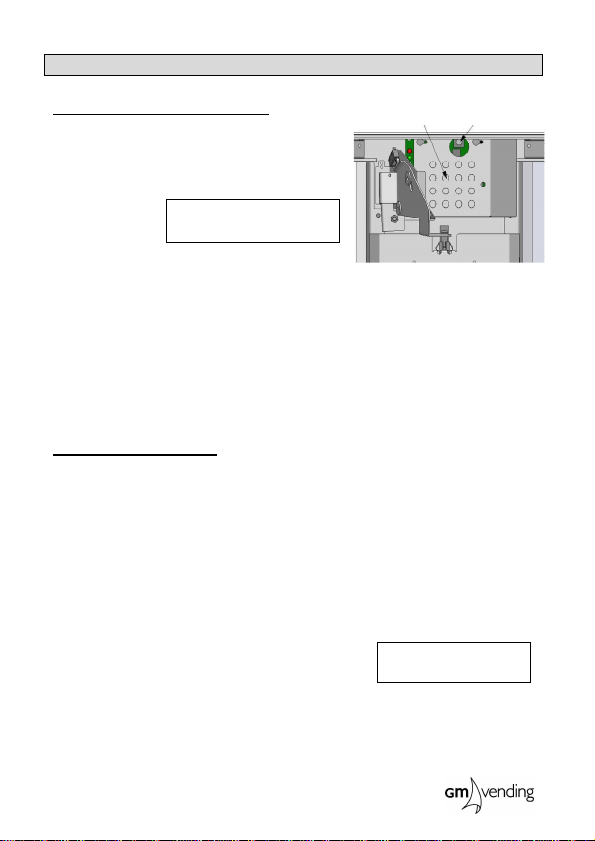

6.- PROGRAMMING
Access to programming options:
Entering programming mode the LCD display
will show the current option name and number.
For example:
Message--------
Option-----------
The programming options are shown using a four-digit code: YX.ZZ
ZZ: Option number. Value between 00 and 99.
X: Sub-option number. Value between 0 and 9. Option enabled (X=1) or
disabled (X=0).
Y: Sub-option number. Value between 0 and 9. Option enabled (Y=1) or
disabled (Y=0).
Moving between options:
•Programming pushbutton (P-PROG): Enters and exits programming.
• 

 (Programming keyboard): Changes to a superior option.
• 

 (Programming keyboard): Changes to an inferior option.
• 

 ( Programming keyboard): Enters in the option.
•# (Programming keyboard): Changes to the desired option.
1. Enter the desired option (ZZ).
2. Press key #.
Reload credit
Reload creditReload credit
Reload credit
00.00
Programming
keyboard Programming pushbotton
Go to option
Go to optionGo to option
Go to option
00.ZZ
00.ZZ00.ZZ
00.ZZ

CAPRI
Cod. 21185-01
9
If you press #without entering any option, it will return to the previous option.
If you enter an option that does not exist or that cannot be accessed, the
program will go to the next accessible option or will exit programming.
Programming of options:
•Selection pushbuttons (P-SEL): (1)
Entering data within an option.
•Programming keyboard: (2)
Entering data within an option.
•Coin return pushbutton (P-REC): (3)
Enabling and validating options.

CAPRI
Cod. 21185-01
10
7.- MAINTENANCE
7.1.- DIAGNOSTIC OF MALFUNCTIONING
Switch off and on the machine before
calling the Technical Service
In view of an error, press programming button and check if the
problem has disappeared.
If the error is still there, take a look at the list below which shows the
messages that the screen may display and the possible solutions.
ERROR iN Channel number xx
The machine says product sold out when there is stock.
Error: Channel out of order. The LCD displays the channel number.
ERR. Reject button
The machine does not accept any coin.
Error: The reject button is permanently pressed.
ERR. product push button
The pushbutton is invalid.
The program does not allow moving among options.
ERR. Tel dialling pad
The program does not allow moving among options.
Deprog. rices
Error: Prices deprogrammed.
Solution: Program them again. Option 01.03, 02.03
Deprog. codes
Error: Product code deprogrammed.
Solution: Program it again. Option 01.11
Deprog. links
Error: Link of channels deprogrammed
Solution: Program it again. Option 01.19
Deprog. machine
Error: Machine type deprogrammed.
Solution: Press programming button.
Deprog. sales
Error: Type of sale deprogrammed..
Solution: Program it again. Option X.12
Deprog. accounts
Error: Some accounts value deprogrammed.
Solution: Press programming.

SERIE CAPRI
Cod. 21178-01 11
When switching on the machine there will appear the following messages:
Bootloader version
rogram version
CHANGE GIVER VERSION
MACHINE MODEL
In normal use there may appear the following error messages:
USHBUTTON WITH NO RODUCT LINK
The LCD displays this message when pushing the button.
Error: Channel link deprogrammed
Solution: Program it again. Option 01.19
7.2.- PRODUCT LABELS CHANGING
The machine comes with an envelope containing a large set of
product labels. Choose the ones you need and insert them in the pushbutton
panel as follows.
•Inserting a label.
Insert the label through the slot as
shown.
•Removing a label.
Press the label with your fingertip
and pull upwards as shown.
7.3.- CLEANING MACHINE EXTERIOR
Do not use any spray to clean the outside of the machine. Use
lukewarm water (between 20ºC and 40ºC) with dishwashing liquid, shampoo
or glass cleaner without bio alcohol.
To rinse the machine use a 2% solution of vinegar (acetic acid) in water
and dry with a soft cloth.
For persistent stains use a 1% solution of sanitary alcohol in water.

CAPRI
Cod. 21185-01 12
8.- ELECTRICAL DRAWING
