Technical Manual
Discover V CIC

Doc. No. 0012750 rev. D
Page 2 of 17
Technical Manual for Discover V CIC
Table of contents
Description ..................................................................................................... 3
Typical performance data ANSI/IEC 118-7.................................................. 4-6
Part No. lists................................................................................................... 7
Programming cable........................................................................................ 8
Microphone complete..................................................................................... 9
Receiver complete ....................................................................................... 10
Prepare the faceplate....................................................................................11
Hybrid connections.................................................................................. 12-14
FP final assembly......................................................................................... 15
Service Tool.................................................................................................. 16
Diagram........................................................................................................ 17

Doc. No. 0012750 rev. D
Page 3 of 17
Technical Manual for Discover V CIC
Description
The Discover V CIC is a fully digital Complete-in-Canal (CIC) hearing instrument. It’s using a
comprehensive set of advanced features that delivers a clear and comfortable sound experience.
The instrument has a user-friendly design and offers WDCR signal processing in four bands. The
listening programme is suitable for all environments and the device features a Notch filter for
feedback management as well as a Noise Clarifier reducing on-going background noise. For mild
to moderate hearing loss.
Battery type 10A Estimated average battery life 78 hours.
Key features :
2-band Wide Dynamic Range Compression (WDCR)
2-band shaping handles.
Audiogram + fitting rule.
Standard configuration :
Battery type 10A.
3 different colors.
Low battery warning indicator.

Doc. No. 0012750 rev. D
Page 4 of 17
Technical Manual for Discover V CIC
Typical performance data - IEC 118-7
Data in accordance with IEC 118-7. All sound pressure levels (dB SPL) refer to 20 μPa.
Unless otherwise is stated, data are based on a batt. voltage of 1.35V and internal impedance of 5 Ohm.
Tolerance Unit
Reference Test gain (60 dB SPL input) at 1600 Hz 17 +/- 5 dB
Full-on Gain (50 dB SPL input) Max. 32 +/- 5 dB
at 1600 Hz 28 +/- 5 dB
Maximum output (90 dB SPL input) Max. 108 +/- 4 dB SPL
at 1600 Hz 104 +/- 4 dB SPL
Total harmonic distortion at 800 Hz 0.3 + 3 %
at 1600 Hz 0.3 + 3 %
Equivalent input noise w/o noise reduction 24 + 3 dB SPL
Frequency range (DIN 45605) 140-00 Hz
Current drain 0.9 + 20% mA
Typical battery life time (battery type 10A) 78 hrs

Doc. No. 0012750 rev. D
Page 5 of 17
Technical Manual for Discover V CIC
Data in accordance with ANSI S3.22-1996. All sound pressure levels (dB SPL) refer to 20 μPa.
Unless otherwise is stated, data are based on a batt. voltage of 1.35V and internal impedance of 5 Ohm.
Tolerance Unit
Reference Test gain (60 dB SPL input) HFA 18 +/- 5 dB
Full-on Gain (50 dB SPL input) Max. 32 +/- 5 dB
HFA 28 +/- 5 dB
Maximum output (90 dB SPL input) Max. 108 +/- 4 dB SPL
HFA 105 +/- 4 dB SPL
Total harmonic distortion at 800 Hz 0.3 + 3 %
at 1600 Hz 0.3 + 3 %
Equivalent input noise w/o noise reduction 23 + 3 dB SPL
Frequency range 140-5500 Hz
Current drain 0.9 + 20% mA
Typical battery life time (battery type 10A) 78 hrs
Reference test gain settings
Gain 16 16
Full-on gain parameter settings
Gain 23 23
Typical performance data - ANSI

Doc. No. 0012750 rev. D
Page 6 of 17
Technical Manual for Discover V CIC

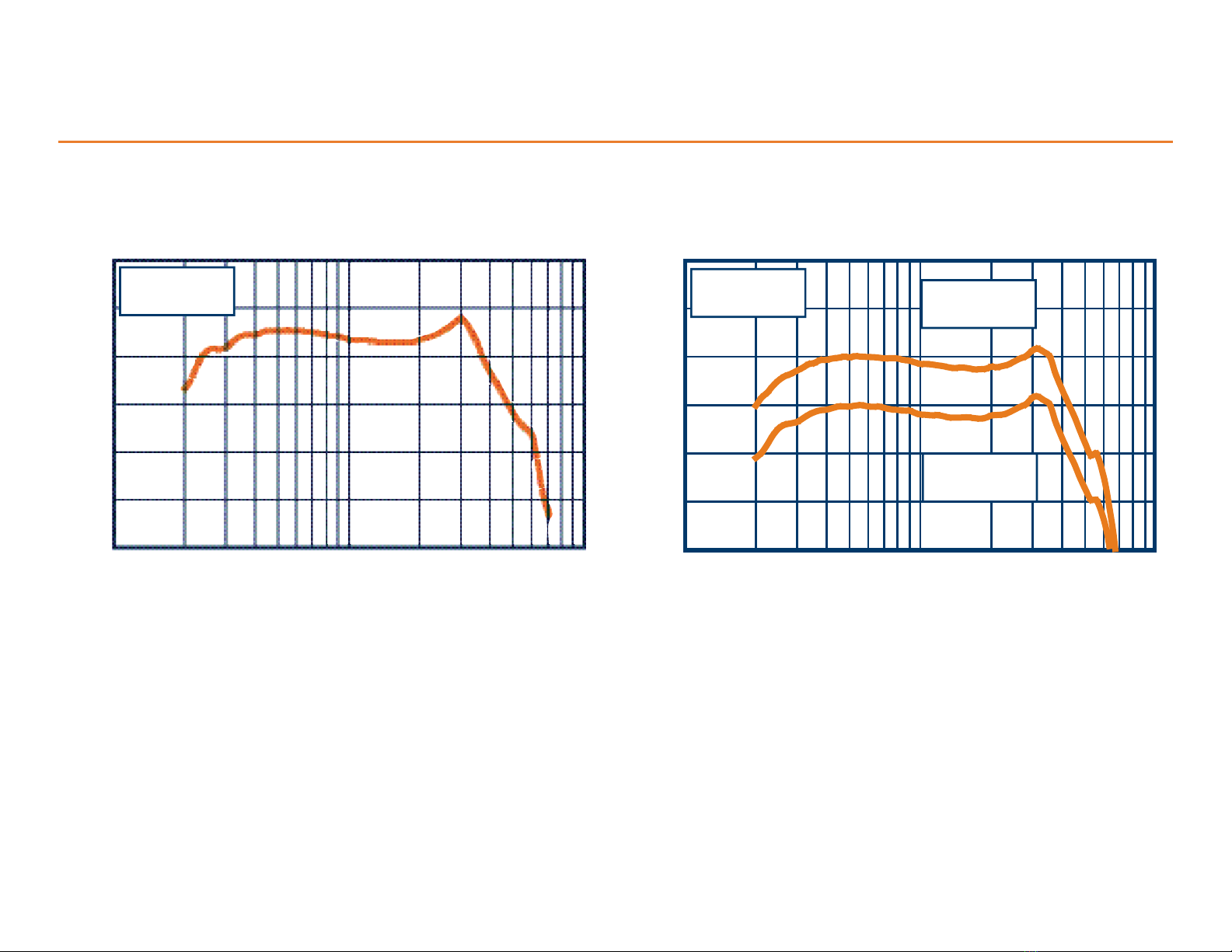

100 1000 10000
2cc
Coupler
Full-on and Reference Test Gain
Frequency: (Hz)
50
40
30
20
10
0
-10
120
110
100
90
80
70
60
100 1000 10000
2cc
Coupler
Maximum Output (OSPL90)
Frequency: (Hz)
Typical performance data- IEC 118-7
Full on Gain 50
dB SPL input
Reference Test
Gain 60 dB SPL

Doc. No. 0012750 rev. D
Page 7 of 17
Technical Manual for Discover V CIC
Item Part No.
Loctite 406 1901-339
Tubing Silicone, uncut 11509-000
Wire ESW 7x50μ, red 16 mm. 15130016
Wire ESW 7x50μ, green 20 mm. 15130220
Wire ESW 7x50μ, amber 16 mm. 15130116
Wire ESW 7x50μ, green 6 mm. 15130206
Wire ESW 7x50μ, blue 14 mm. 15130314
Battery door 10A / R / pink 70931656
Battery door 10A / R / tan 70931672
Battery door 10A / R / brown 70931674
Batt-boot FP BO 10A 70927646
Programming cable 50931702
Flex strip (10 pcs.) 50931703
Battery pill 10A * 80B4813603
Service tool 10158701
Part list
* Supplied by GNO.
Item Part No.
Microphone complete CIC 15240000
Microphone EM 9267/6392 15303400
Tape, 3M,Double face (1.3 mm. x 3 mm.) 10038902
Wrap, 1.3 mm. x 7 mm. 14027-002
Wire ESW 7x50μ, red 14 mm. 15130014
Wire ESW 7x50μ, amber 14 mm. 15130114
Wire ESW 7x50μ, green 14 mm. 15130214
Coating, EGC-1700, 100 ml 15290401
Receiver complete ITC / CIC 15239500
Receiver FH 3375 10114401
tubing, Q-flex, uncut 10049101
Tubing Silicone, uncut 10929-000
Wire ESW 7x50μ, red 26 mm. 15130026
Wire ESW 7x50μ, amber 26 mm. 15130126
Flex hybrid C2.0, DENMARK 15120100
Faceplates Size 10 L/R Part No.
Pink 70931655
Tan 70931671
Brown 70931673
Faceplates Final ass. L/R Part No.
Pink 15209300
Tan 15209301
Brown 15209302

Doc. No. 0012750 rev. D
Page 8 of 17
Technical Manual for Discover V CIC

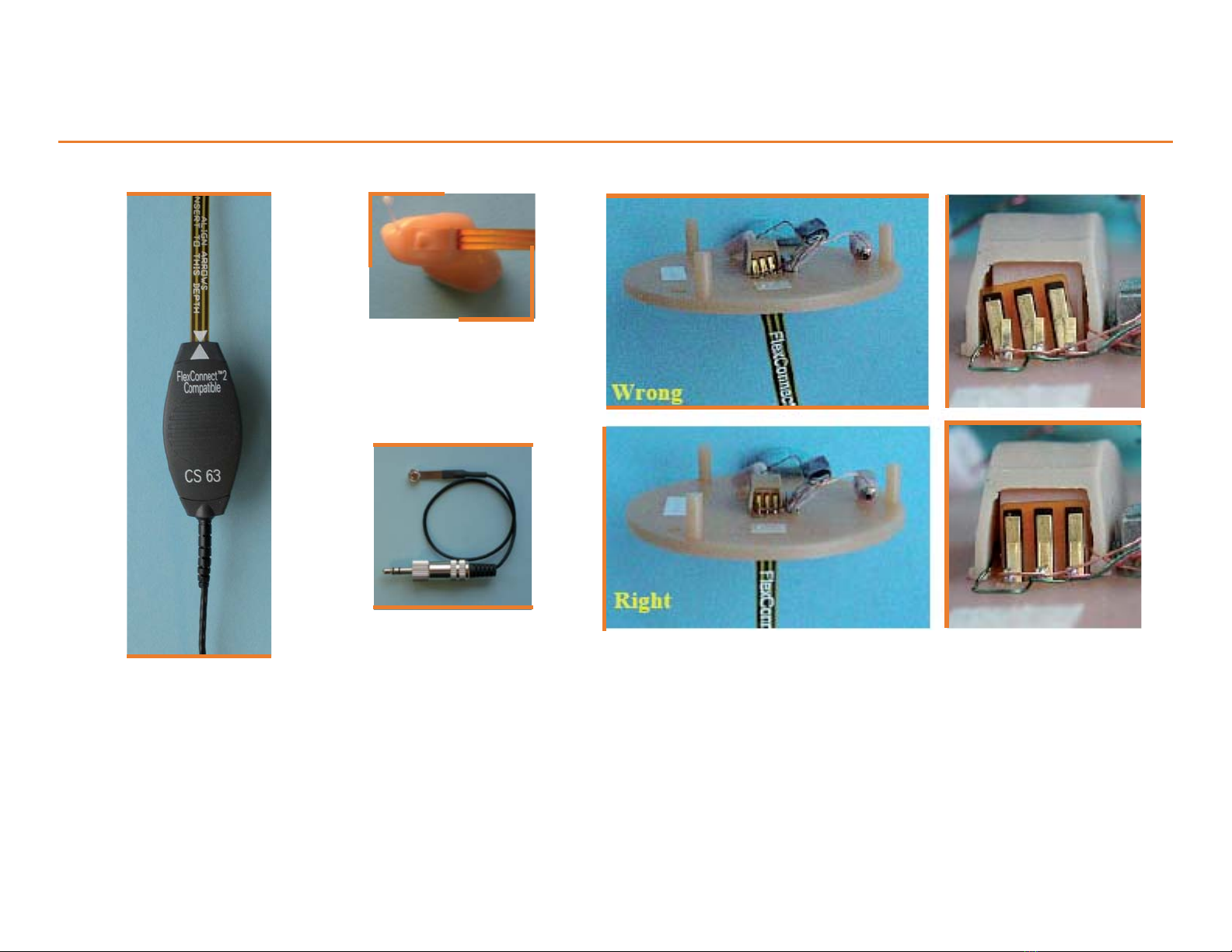

Programming cable
Insert the program-
ing cable with the
flex strip contacts
away from the bat-
tery door.
Connect the flex into
the shell by using the flex
end marked with an arrow.
To ensure good contact during programming and testing, be
sure to insert the programming strip at a 90oangle to the
programming springs. Inserting it at a slanting angle might
cause bad or intermittent contact that will cause failures
during programming. This is important both during FONIX
device calibration/test and when programming on Aventa.
Battery pill, 10A
80B4813603

Doc. No. 0012750 rev. D
Page 9 of 17
Technical Manual for Discover V CIC
Microphone complete
Microphone wires:
Wire stranded red 14 mm, p/n 15130014
Wire stranded amber 14 mm, p/n 15130114
Place the double face tape as shown
and bend the wires towards it.
Place wrap p/n 14027-002
Apply solder to microphone.
Solder wires to microphone.
+IN -

Doc. No. 0012750 rev. D
Page 10 of 17
Technical Manual for Discover V CIC
Receiver complete
Wire stranded, red
p/n 15130026
Wire stranded, Amber
p/n 15130126
Solder wires to receiver.
Silicone tubing
p/n 10929-000
Cut the Qflex tubing to 6 mm. and
place it as shown. Bend the wires.
Cut the silicone tubing to 1.3 mm.
and place it over the wires.
Use brush to apply EGC-1700 p/n 15290401
to the solder points.
Tubing Qflex
p/n 10049101

Doc. No. 0012750 rev. D
Page 11 of 17
Technical Manual for Discover V CIC

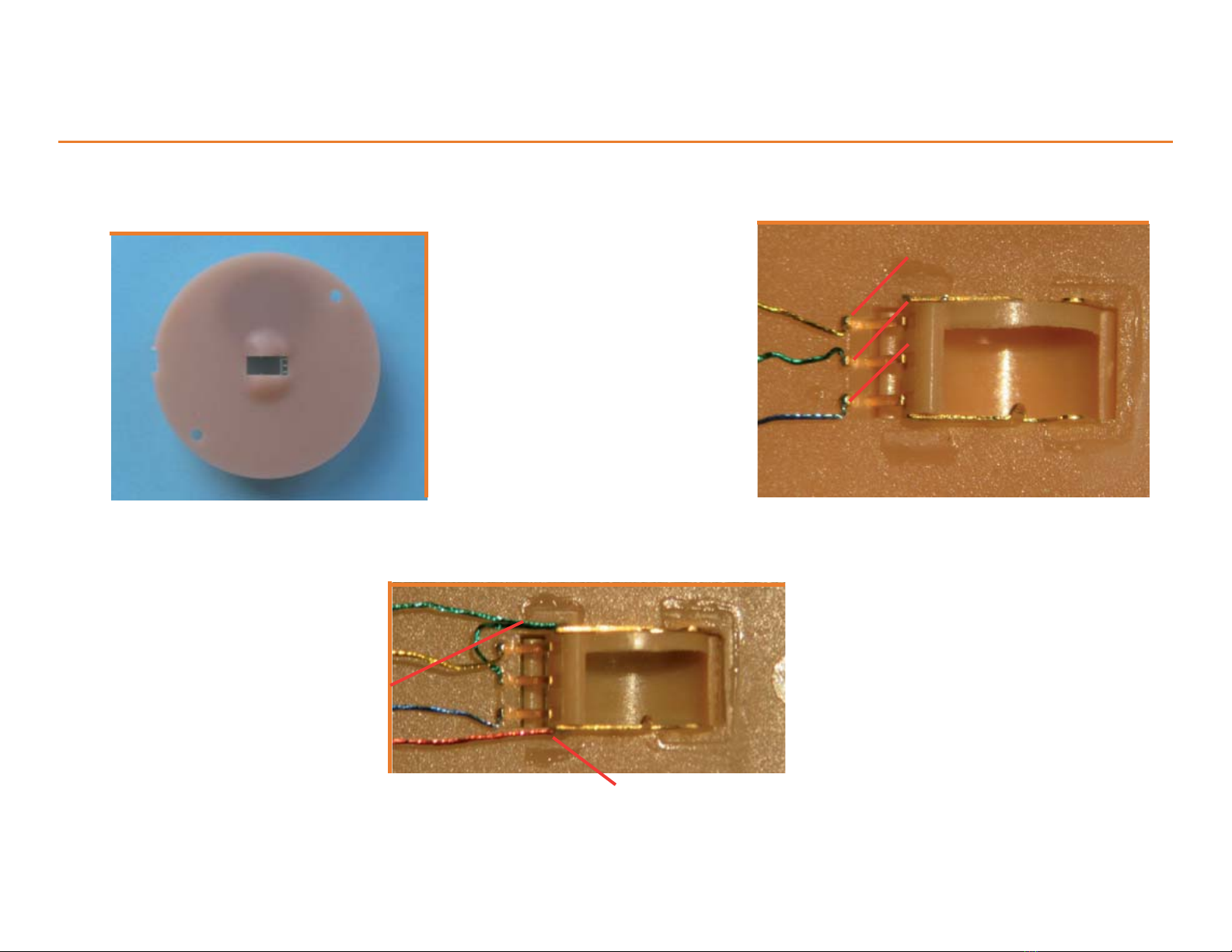

Blank faceplate L/R
Amber wire 16 mm
p/n 15130116
Blue wire 14 mm
p/n 15130314
Green wire 6 mm
p/n 15130206
Prepare the faceplates
Faceplate L/R
L/R Faceplate:
Solder green wire to programming pin 2, amber
wire to pin 1 and blue wire to pin 3
Solder red wire (15130016) to battery contact+
Solder green wire (15130220)
and green wire (15130206)
together to battery contact.
1
3
2

Doc. No. 0012750 rev. D
Page 12 of 17
Technical Manual for Discover V CIC

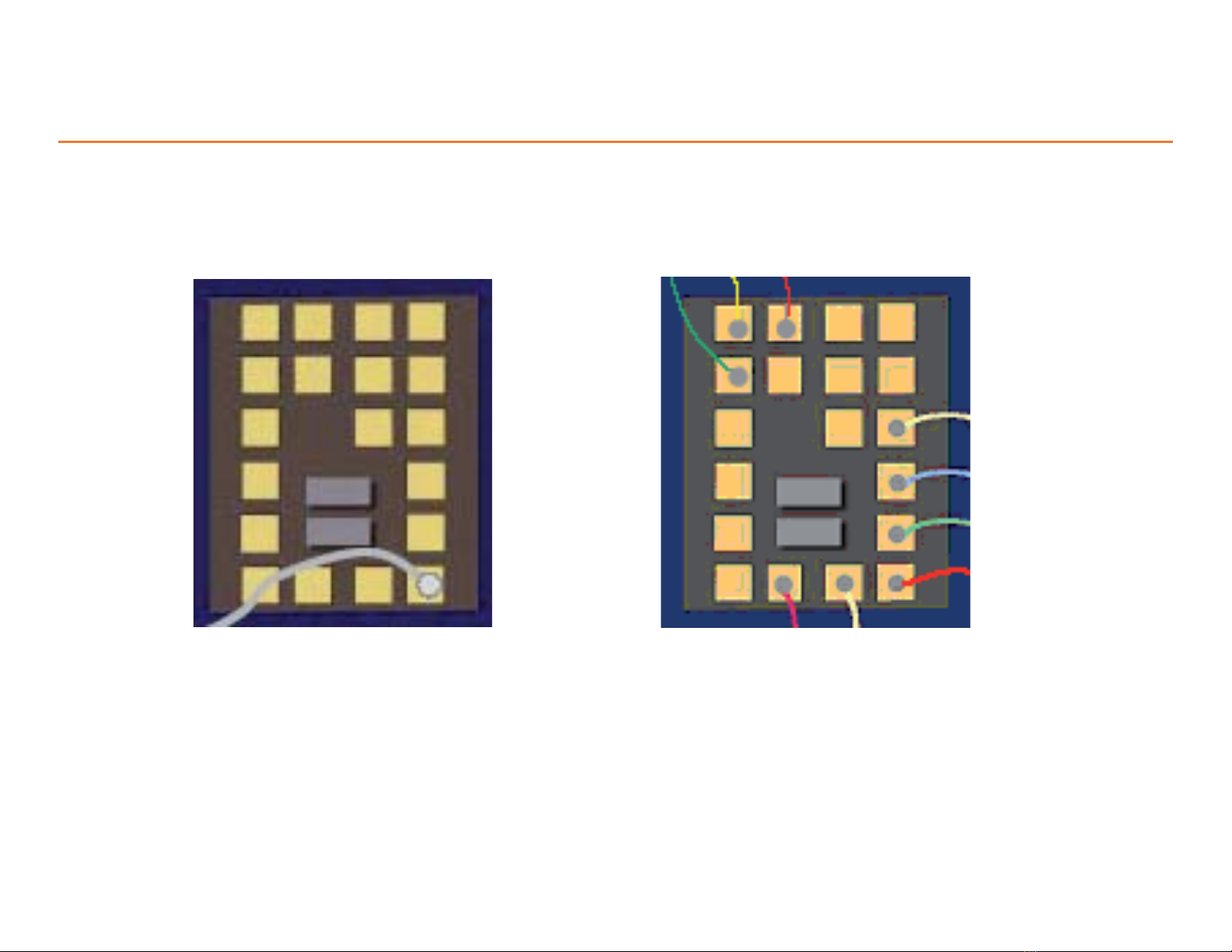

Hybrid connections C 2.0
BAT GND
SDA
VBAT
REC A
MIC.+
REC B
MIC. IN
MIC. -
Solder wires to hybrid
SCL
Pre-tin hybrid contact pads

Doc. No. 0012750 rev. D
Page 13 of 17
Technical Manual for Discover V CIC
Place double face tape (10038902) along side of hybrid.
Route wires along side of the hybrid.
Hybrid connections C 2.0
Use tweezers to slide silicone
tubing (11509-000) over hybrid
Tubing = 6.5 mm.
Dip hybrid in EGC-1700 for 5 seconds.
Air dry for 15 seconds.
Repeat the previous two steps.

Doc. No. 0012750 rev. D
Page 14 of 17
Technical Manual for Discover V CIC

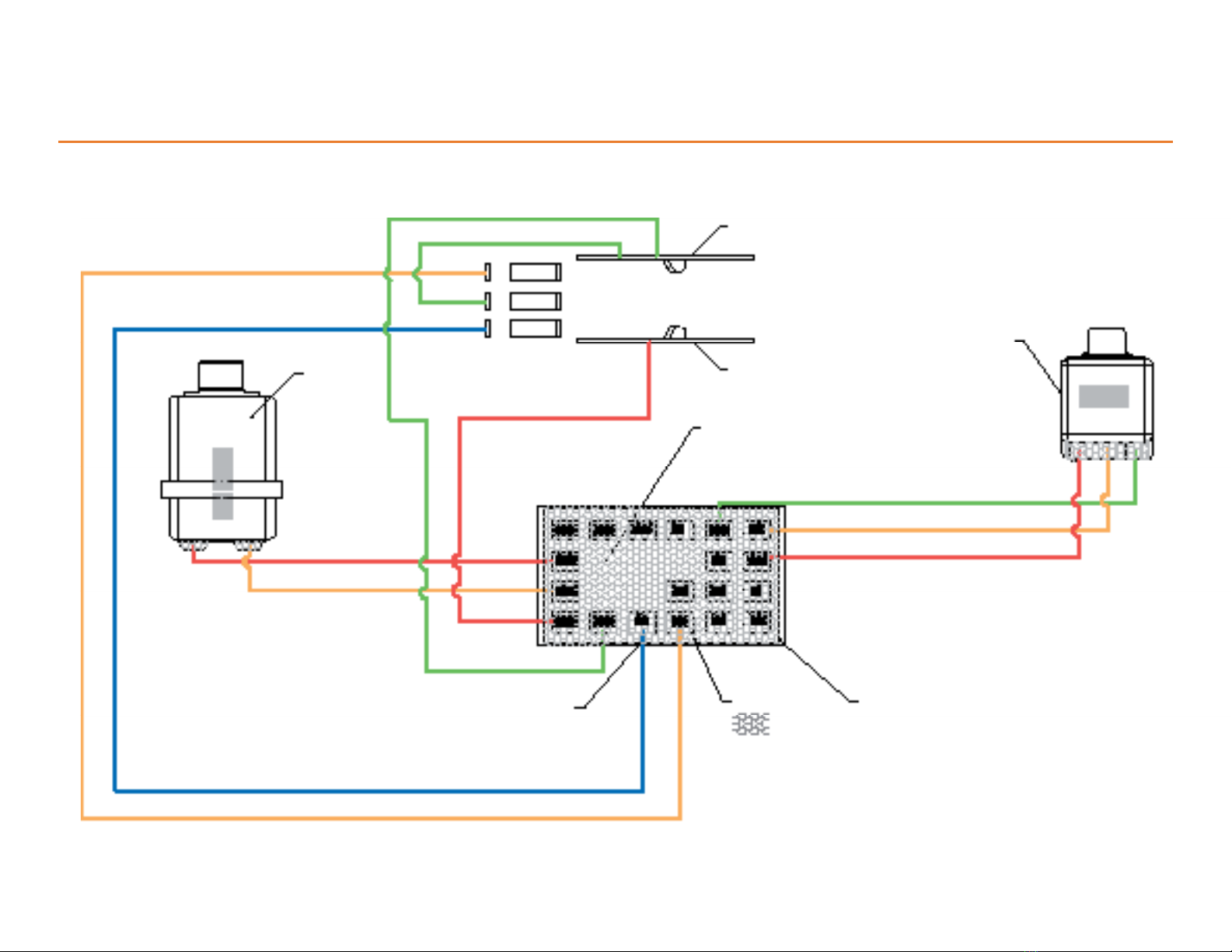

Wiring diagram C 2.0
Wire Green 20 mm.
Wire Green 6 mm.
Wire Amber 16 mm
Wire Blue 14 mm.
Wire Red
26 mm
Wire Amber
26 mm
double face tape
10038902 EGC-1700
15290401
Receiver
Complete
15239500 Wire Green 14 mm
Wire Red 14 mm
Wire Amber 14 mm
Microphone
Complete
15240000
BAT-
BAT+
Coyote C2.0
15120100
Tubing Silicone 6.5 mm.
11509-000
Wire Red 16 mm

Doc. No. 0012750 rev. D
Page 15 of 17
Technical Manual for Discover V CIC
Faceplate Size 10 Final assembly
Faceplate final assembly L/R
Place the Batt-Boot FP BO 10A (70927646) to
the faceplate. Apply Loctite 406 (1901-339)
around the edge of the Batt-Boot. Allow
adhesive to cure for 1 minute.

Doc. No. 0012750 rev. D
Page 16 of 17
Technical Manual for Discover V CIC

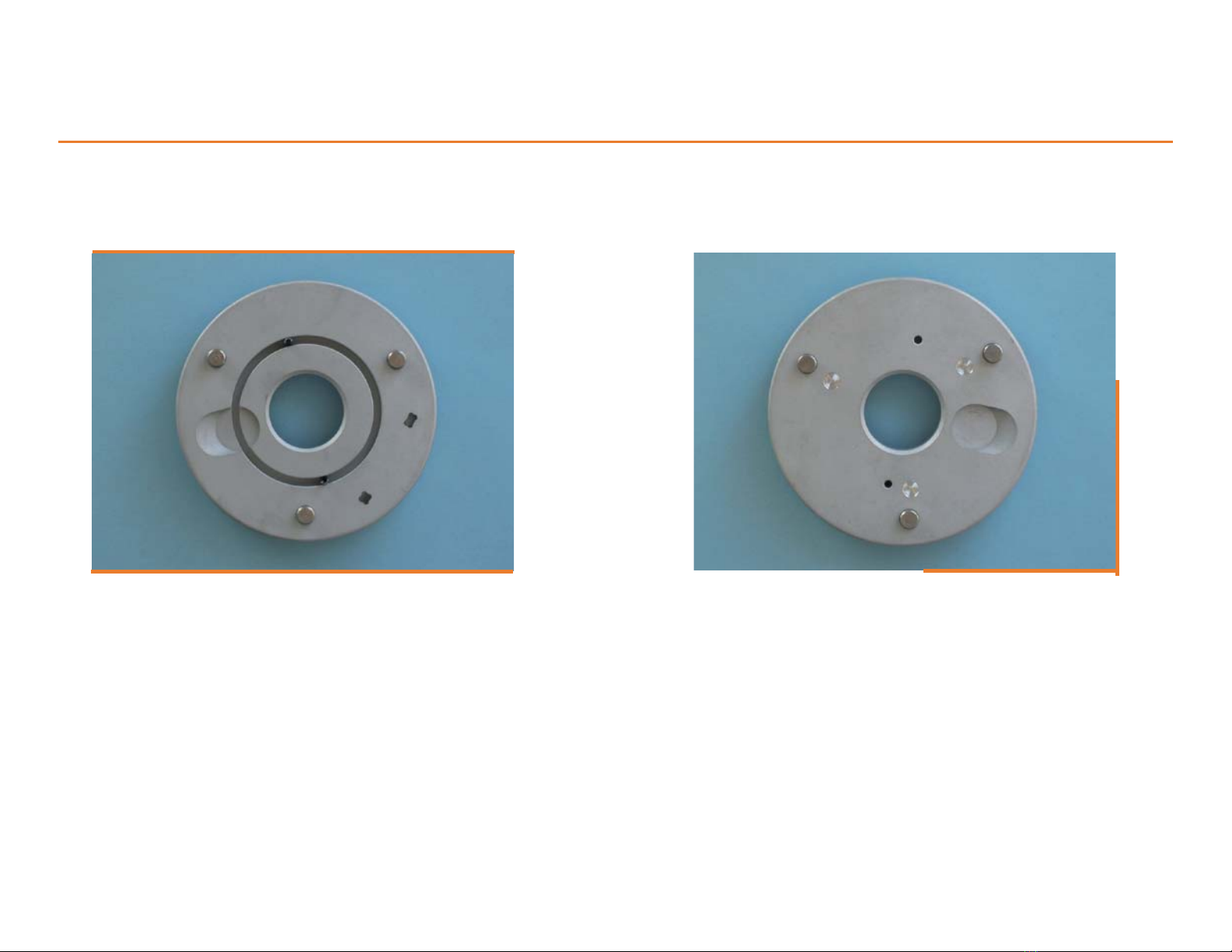

Service tool Size 10
The tool can be used on both sides. One side for size 13 and the other side for size 10 and size 312.
When working on the assembled faceplate a heat sink (p/n 10158701) must always be used in order to
prevent damages to the components.

Doc. No. 0012750 rev. D
Page 17 of 17
Technical Manual for Discover V CIC
Diagram
