GNS 3000 User manual
<?>
<?>
99Channel https://www.gns-elec-
tronics.de/support-gns3000/
99 Channels
Logger Function
SD Card Support
High Sensitivity
Up to 10 Hours
Operation Time
GNS 3000
GPS/ GALILEO/ GLONASS
TRICEIVER
QR Code GNS 3000
Support Page
https://www.gns-electronics.de/support-gns3000/
GNS 3000
GPS/ GALILEO/ GLONASS
TRICEIVER
USER MANUAL

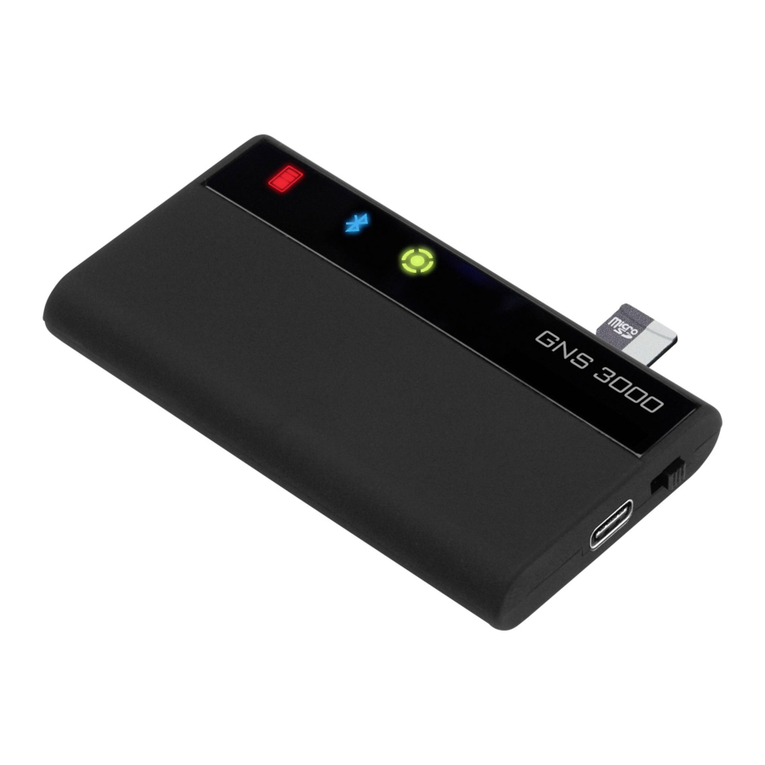

Charge indicator
Bluetooth status
GPS / logging
status
on-/o -switch
USB-C power supply socket
Storage-Card slot
Dear Customer,
thank you for purchasing the
GNS 3000.
Please read the
following information carefully to ensure problem-free and
optimal functionality.
The
GNS 3000
is a GPS/GALILEO/GLONASS receiver with
Bluetooth technology. The powerful 99-channel GNSS receiver
allows simultaneous reception of GPS, GALILEO and GLONASS
signals. The
GNS 3000
supports the SBAS System for accuracy
improvement, all worldwide standards (WAAS, EGNOS, QZSS,
MSAS, GAGAN) are supported. Due to its state of the art GNSS
and Bluetooth technology the GNS 3000 supports almost all
recent and older Apple products as well as Android devices
and other handhelds (smartphones, PDAs, Notebooks) with
highly accurate position information.
Note: The
GNS 3000
is not a USB device, the USB port can
only be used for charging the battery. Data transfer over
USB port is not possible.
Safety notices
• Do not manually operate your GPS navigation system while
driving.
• Protect the
GNS 3000
from moisture; observe the limits on
operating and storage temperatures.
• This device contains a Li-Ion battery and should only be
operated at temperatures between 0° and +50°C (32 and
122°F). Do not expose the
GNS 3000
to direct sunlight or
heat.
• Do not open or modify. Failure to comply will result in the
guarantee and warranty becoming void. There are no
components inside that can be serviced by the user.
• Only connect the
GNS 3000
to the devices and connector
types described in this instructions manual.
• Be sure to respect the laws of the country you are in with
respect to operation of devices whilst driving.
• Do not operate the
GNS 3000
with a damaged charger cable
or if the unit has been dropped or damaged.
• Do not bend the cable forcibly or place a heavy object on it.
This will damage the cord and may cause re or electrical
shock.
• Ensure that you’re
GNS 3000
is rmly xed in your vehicle
to avoid damage.
Package contents
•
GNS 3000
GPS/GALILEO/GLONASS Triceiver
•
GNS 3000
GPS/GALILEO/GLONASS Triceiver charger cable
• This instruction booklet
• Should anything be missing, please contact your dealer.
Please remove protective lm on the LED display before use!
Operating buttons and LEDs
To switch on your
GNS 3000,
move the switch from left to the
right. The green and blue LEDs will start ashing. Move the
switch back to the left to switch o.
Logger Function
The
GNS 3000 f
eatures a logger functionality. GPS data is logged
on a Storage-Card (not included) inserted into the
GNS 3000
St o r age - C ard slot .
The position is logged every second and the duration of logging
is only limited by the available memory of the storage card (1
GB allows for approximately 80 days of continuous logging).
Please only remove and insert the Storage-Card when
the GNS 3000 is switched o!
Storage-Card preparations:
The Storage-Card must have a single partition, formatted FAT or
FAT32 and a maximum of 32 GB in capacity. A maximum of 100
les are allowed on the root directory and for normal logging
purposes there must not be a le named update.gns present.
The logles are named and numbered LOG00001.TXT to
LOG99999.TXT so logging will also cease to work after LOG99999.
TXT is reached.
If the card meets all requirements but still does not work, we
recommend formatting it using the SD Memory Card Formatter
(https://www.sdcard.org/downloads/formatter/).
Start / Stop Logging:
To start GPS data logging with the
GNS 3000
turn the power switch
to OFF, then switch it ON-OFF-ON in a straight sequence within 1.5
seconds.
To stop logging simply switch o the device. Alternatively logging
will automatically stop if the battery is empty or the storage card
capacity is reached.
Logging output format:
GPS data is logged to les named and numbered LOG00001.TXT
to LOG99999.TXT. The data is recorded in NMEA 0183 (v4.10)
GGA and RMC sentences which can easily be converted into other
formats such as Google’s KML or GPX using the free conversion
tool GPSBabel which is available for most operating systems
(https://www.gpsbabel.org/).
Data is only recorded while the device has a GPS x and the actual
log le is created only when the rst GPS x has been acquired
after logging was enabled.
LED indicators and their meanings
Standard Operation Mode
red charging
light
Blue Bluetooth
status
Green GPS
status
o ff
on
blinking
fast
blinking
Normal battery
operation
GNS 3000 plus
is o
GNS 3000
is o
Charger cable at-
tached, battery
fully charged
Bluetooth
connection
established
GPS position
available
Charger cable at-
tached, battery
charging
No Bluetooth
connection
established
GPS position not
(yet) available
Battery almost
empty, device
switching o in
about 10 min.
- -
Logging Operation Mode
* Please verify the following:
1. Is the Storage-Card full or le-limit is reached => Delete non required les
2. Firmware update le “update.gns” is present while no external power
attached => Attach external power for FW update or delete “update.gns” le
* Please verify the following:
1. Is the Storage-Card FAT(32) formatted or larger than 32GB => Format
Storage-Card FAT(32) or use Storage-Card <=32GB
Orange logger
status
Green GPS
status
Double
fl ashing
On with short
interruptions
Flashing
alternately
Fast fl ashing
for 2 seconds
Logging active; no GPS
position available
Logging active; GPS
position available
Logging requested, but the Storage-Card is
full, the le limit is reached, or a le named
update.gns is present and there is no external
power attached*
-Logging requested,
but no Storage-Card
present
-
-
Fast fl ashing >
2seconds
Logging requested,
but Storage-Card not
FAT(32) formatted,
exceeding 32GB
or otherwise not
suited for GNS3000
operation*
-
Combo LED (green / orange)
2
1
1
2
Charging
The
GNS 3000
is equipped with a Li-Ion battery. The operation time
is over 10 hours. Charging: Charging time is approximately 3.5
hours (empty battery). Connect the
GNS 3000
with the supplied
charging cable to a USB port of your choice. This can be, for
example, the USB port of a PC, or any external USB charger like
a cigarette lighter charger, for example. The red charge indicator
light will start blinking to indicate charging. It remains lit when
charging is complete.
Installation and Bluetooth mode
Position the
GNS 3000
so that it has an unobstructed ,,view” of
the sky. (no metal parts between sky and device). Secure the
receiver to avoid slipping. Switch on the
GNS 3000
. Activate the
Bluetooth mode in your Apple- / Android device / PDA / PC and
initiate a search for the
GNS 3000
with your Apple / Android /
PDA / Handheld / Tablet / PC devices Bluetooth manager. This is
described in the manual for your device. When you are asked for
the PIN to establish the link, enter “0000”. In case your device
shows a message to compare the displayed the code with the code
displayed on the GNS3000 just conrm the message. Start your
navigation software and select the appropriate interface under the
GPS settings if required. The
GNS 3000
can be connected with up
to 5 Android or Apple devices simultaneously. For Windows devices
only one exclusive connection at the same time is possible.
Special feature for Apple devices:
After the rst connection with an Apple device, the connection will
be automatically re-established when restarting the
GNS 3000
.
This automatic connection establishment will be interrupted when
you connect your
GNS 3000
with another device intermediately.
GPS data transfer to Android devices:
The
GNS 3000
can also be used with Android devices. The Android
Operating System does not support external Bluetooth GPS
receivers by itself, but when you use an external freeware app
such as „Bluetooth GPS“ (available in every App Store) you can
pass the data from the
GNS 3000
GPS receiver to your Android
device via Bluetooth.
After you have installed the „Bluetooth GPS“ app, set up a
partnership between the
GNS 3000
and your Android device.
Start the „Bluetooth GPS“ app and select the GNS 3000 receiver.
Then choose the „Enable Mock GPS Provider“ option and make the
connection by pressing the „Connect“ button. Your Android device
will now receive the GPS data from the
GNS 3000
via Bluetooth.
Dear Customer,
For more information and guidance on the Bluetooth installation
on your Apple or Android device, please refer to our Installation
Tutorial on https://www.gns-electronics.de/support-gns3000/
Operation over car ignition
For xed and unxed installation and operation in motor vehicles
with 12-24V power supply. Due to the power management features
described below the
GNS 3000
is prepared for xed installation in
motor vehicles. If your vehicle is equipped with a cigarette lighter
socket which is connected to the car ignition and the
GNS 3000
is
connected via USB charging adapter and the included USB cable,
the
GNS 3000
will turn on automatically when the car ignition
is activated and will shut down automatically 15 minutes after
switching o the car ignition (on/o switch of the
GNS 3000
has to
be in the position „on“).
Power management
1. Without external power supply (cable/car ignition o) the
GNS
3000
will shut down automatically after 15 minutes without a
Bluetooth connection to reduce battery consumption.
2. The
GNS 3000
can be turned on again easily using the on/o
switch or by powering the device with an external charging cable.
Reset
For technical reasons the
GNS 3000
is not equipped with a RESET
switch. If you should experience an unexpected malfunction - e.g.
no data is sent or the partner device does not recognize the
GNS
3000
- simply switch o the device, remove storage card and plug
in the external charging cable to perform a full RESET. An existing
Bluetooth connection should be terminated rst.
Te chnical data
General
Bluetooth
GPS
Weight
Dimensions
GNS 3000 only appr. 47 g
Storage -10…+50°C (14…122°F)
Operation
Ambient
temperatures
79.1mm x 45.3mm x 11.3mm
0... +50°C (32…122°F)
Power supply
and consump-
tion
Charging &
operation
5.0V DC (+5%)
500mA
Via car adapter 12..24V DC 10...300mA
Battery
operating time > 10 h
Battery
charging time 0-90% ca. 3.5h
Connectors Supply USB-C socket
Data interface Via Bluetooth Multi connection only
for Apple and Android
devices
Class2 Bluetooth V5.0
Range 10m
Chip set MediaTek MT 3333 99-channel
GPS / GALILEO / GLONASS receiver
GPS SBAS [WAAS, EGNOS, QZSS, MSAS, GAGAN]
Time to fi rst fi x Cold start
Warm start
Hot start
35 s
33 s
< 1 s
Storage-Card Logging
Supported Storage Cards <= 32 Gigabyte
FAT, FAT32
Approx. 9 hours with fully charged battery
NMEA GGA and RMC sentences
100
Supported fi le systems
Logging time (typical)
Logging format
Max number of log fi les
Compliance
The declaration of conformity is available on request from the
manufacturer.
CE: The
GNS 3000
complies with all applicable standards
including the relevant RED and EMC directives.
FCC Compliance: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
MIC certication for Japanese Radio Law: This device conforms
with the Radio Equipment specied in Article 2-1-19 of the
Certication Ordinance.
R&TTE Bluetooth EMC: This device also complies with EN
62479:2010; EN 60950-1:2006+A1+A11+A12; EN 301 489-1 V1.9.2;
EN 301 489-17 V2.1.1; EN 300 440-2 V1.4.1; EN 300 328 V1.7.1 and
is listed under Bluetooth.
Qu ali e d Pro du cts :
Although the GNS 3000 conforms to the current strict guidelines
and norms it cannot be guaranteed that other devices will not
be aected by interference.
Safety notice, Bluetooth operation
FCC Warning Statement
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
Bluetooth should not be used in the proximity of the following
devices or in the following locations: Medicinal devices,
pacemakers, automatic control devices, automatic doors,
re alarms, aeroplanes, public transport. If you are unsure
if the operation of wireless devices is permitted in certain
environments, please enquire before operating the device.
WEEE declaration
This device is labelled in accordance with the European
directive 2012/19/EU concerning waste electrical and electronic
equipment - WEEE. The directive sets down a Europe-wide
framework for the return and recycling of end-of-life devices.
WEEE reg. no. DE 6443033
Warranty notice
The product is to be repaired at no cost within the legal warranty
period of 24 months assuming that there is no damage by third-
party interference, moisture, drop, or other improper handling.
The internal Li-Ion battery has a warranty period of 6 months
and is excluded from the 24 months warranty!
Technical Support
GNS - Electronics GmbH
Adenauerstrasse 18 D-52146 Wuerselen
Telephone +49 (0) 24 05 / 41 48 - 0
Telefax +49 (0) 24 05 / 41 48 - 19
www.gns-gmbh.com [email protected]
Brands, trademarks, product descriptions and logos from
third parties used in these instructions may be trademarks or
registered trademarks of their respective owners.
,,for iPhone“ means that an electronic accessory has been
designed to connect specically to iPhone and has been
certied by the developer to meet Apple per- formance
standards. Apple is not responsible for the operation of this
device or its compliance with safety and regulatory standards.
Android is a trademark of Google Inc.
V 1.0 EU © 2020 by GNS - Electronics GmbH
Reproduction in whole or in part
only with the permission of
GNS - Electronics GmbH
Subject to change without notice
GNS Electronics GmbH
Adenauerstrasse 18
D-52146 Würselen
Telefon +49 (0) 24 05 / 41 48 - 0
Telefax +49 (0) 24 05 / 41 48 -19
www.gns-electronics.com
FCC ID: 2AVM4-GNS3000
204-B00041
Other manuals for 3000
2
Table of contents
Other GNS GPS manuals
