Gocom GD800 User manual

User's Manual
335100413_RevA
Digital Radio

1
To Users
Thank you for purchasing out product! This Manual (contains both
analog and digital radios) is designed to make you quickly grasp the
use of the device. In order to avoid physical injury or property loss due
to improper operation, please read this Manual carefully before using
the device.
Notice
The device meets the requirements of FCC PART 90, PART 97 and
PART 15. Local laws and regulations shall be complied with when
setting up or using the equipment, and corresponding qualifications
and relevant procedures shall be obtained if necessary. Consulting the
relevant authorities is suggested.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications.However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o󰀨 and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
·Reorient or relocate the receiving antenna.
·Increase the separation between the equipment and receiver.
·Connect the equipment into an outlet on a circuit di󰀨erent from that
to which the receiver is connected.
·Consult the dealer or an experienced radio/TV technician for help.
Using Tips

2
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. this device may not cause harmful interference, and.
2. this device must accept any interference received, including
interference that may cause undesired operation.
ISEDC RSS warning
This product meets the applicable Industry Canada technical
specifications. / Le présent matériel est conforme aux specifications
techniques applicables d’Industrie Canada.
Safety Information
In order to use the radio safely and e󰀩ciently, please read the following
safety information:
·The radio can only be maintained by professional technicians. Do not
disassemble the radio without permission.
·Only the batteries and chargers specied by our company can be
used.
·To avoid problems caused by electromagnetic interference and
electromagnetic compatibility, please turn o󰀨 the radio in places
where the "Please turn o󰀨 the radio" sign is displayed, such as
hospitals and other health care places. When taking the ight, please
turn o󰀨 the radio if the crew requests to do so.
·In vehicles with airbags, do not place the radio in the area where
airbag deployment may be involved.
·Please turn o󰀨 the radio before entering ammable or explosive
environment.
·Do not replace or charge the battery in a ammable or explosive
environment.
·Please turn o󰀨 the radio before approaching the blasting area and
the detonator area.
·Do not use the radio with damaged antenna. A damaged antenna
Using Tips

3
Using Tips
may cause minor burns when it comes into contact with the skin.
·Do not expose the radio to direct sunlight for a long time or place it
near the heating Radio.
·If you wear a portable radio, make sure the antenna is at least 2.5
cm away from your body when the radio is transmitting.
WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
CAUTION:
Use the approved charger to charge the battery. The remaining
lithium-ion battery is limited to 30% pursuant to the new lithium battery
shipment regulation approved by International Air Transport Association
(IATA). Before use, charge the battery. It is recommended that the radio
remain powered o󰀨 during charging.
Use of battery not recommend or replaced with incorrect type of battery
may result in a risk of re and explosion or personal injury.
Maximum ambient temperature around the power supply equipment
including charger must not exceed 40℃(104ºF) and device operating
temperature not exceed 55℃(131ºF).
RF Exposure Compliance and Control Guidelines and
Operating Instructions
To control your exposure and ensure compliance with the occupational/
controlled environment
exposure limits always adhere to the following procedures.
Guidelines:
• Do not remove the RF Exposure Label from the device.
• User awareness instructions should accompany device when
transferred to other users.
• Do not use this device if the operational requirements described
herein are not met.
Operating Instructions:
• Transmit no more than the rated duty factor of 50% of the time.

4
To transmit (talk), push the Push-To-Talk (PTT) button. To receive
calls, release the PTT button. Transmitting 50 % of the time, or
less, is important because this radio generates measurable RF
energy exposure only when transmitting (in terms of measuring for
standards compliance).
• Hold the radio in a vertical position in front of face with the
microphone (and the other parts of the radio, including the antenna)
at least one inch (2.5 cm) away from the nose. Keeping the radio at
the proper distance is important because RF exposures decrease with
distance from the antenna. Antenna should be kept away from eyes.
• When worn on the body, always place the radio in approved clip,
holder, holster, case, or body harness for this product. Using
approved body-worn accessories is important because the use other
manufacturer’s non-approved accessories may result in exposure
levels, which exceed the occupational/controlled environment RF
exposure limits.
• If you are not using a body-worn accessory and are not using the
radio in the intended use position in front of the face, then ensure the
antenna and the radio are kept at least 2.5 cm (one inch) from the
body when transmitting. Keeping the radio at the proper distance is
important because RF exposures decrease with increasing distance
from the antenna.
• Use only manufacturer’s approved supplied or replacement
antennas, batteries, and accessories. Use of non-manufacturer-
name approved antennas, batteries, and accessories may exceed
the FCC and IC RF exposure guidelines.
• For a list approved accessories please consult your local dealer for
information.
EU Regulatory Conformance
As certied by the qualied laboratory, the product is in compliance
with the essential requirements and other relevant provisions of the
following directives: 2014/53/EU, 2011/65/EU, and 2012/19/EU. Please
note that the above information is applicable to EU countries only.
Using Tips

5
European Union (EU) Waste of Electrical and Electronic
Equipment (WEEE) directive：
The European Union's WEEE directive requires that products
sold into EU countries must have the crossed out trash bin
label on the product (or the package in some cases). As
dened by the WEEE directive, this cross-out trash bin label
means that customers and end-users in EU countries.
RF Radiation Information
1. This product is limited to occupational applications that can meet RF
energy radiation requirements. The user must be fully aware of the
RF radiation hazards and can take corresponding measures to meet
the RF radiation limitation requirements.
2. Radio frequency (RF) refers to the electromagnetic frequency that
can be radiated into space. It is a widely used technology in the
elds of communication, medical treatment, and food processing. It
will generate certain RF radiation during use.
EXPOSURE RF compliance et Lignes de
contrôle et Instructions opérationnelles
contrôle et Instructions opérationnelles
Pour contrôler votre exposition et garantir le respect des limites
d'exposition dans un environnement professionnel / contrôlé, suivez
toujours les procédures suivantes.
Des lignes directrices:
• Ne retirez pas l'étiquette d'exposition RF de l'appareil.
Using Tips
Frequency Range 446.0~446.2MHz
The Max. Transmit Power 0.5W
EU Frequency Range and the Max. Transmit Power

6
• Les instructions de sensibilisation des utilisateurs doivent accompagner
l'appareil lors de leur transfert à d'autres utilisateurs.
• N'utilisez pas cet appareil si les exigences opérationnelles décrites ici
ne sont pas remplies.
Mode d'emploi:
• Ne transmet pas plus que le facteur de marche nominal de 50% du
temps. Pour transmettre (parler), appuyez sur le bouton Push-To-
Talk (PTT). Pour recevoir des appels, relâchez le bouton PTT. La
transmission 50% du temps, ou moins, est importante car cette radio
génère une exposition mesurable à l'énergie RF uniquement lors de la
transmission (en termes de mesure pour la conformité aux normes).
• Tenez la radio en position verticale devant le visage avec le microphone
(et les autres parties de la radio, y compris l'antenne) à au moins 2,5
cm du nez. Garder la radio à la bonne distance est important car les
expositions RF diminuent avec la distance de l'antenne. L'antenne doit
être tenue à l'écart des yeux.
• Lorsqu'il est porté sur le corps, placez toujours la radio dans un clip,
un support, un étui, un étui ou un harnais de corps approuvé pour ce
produit. L’utilisation d’accessoires approuvés par le corps est importante
car l’utilisation d’accessoires non approuvés par d’autres fabricants peut
entraîner des niveaux d’exposition qui dépassent les limites d’exposition
aux RF des environnements professionnels / contrôlés.
• Si vous n'utilisez pas d'accessoire porté sur le corps et n'utilisez pas la
radio dans la position d'utilisation prévue devant le visage, assurez-vous
que l'antenne et la radio sont maintenues à au moins 2,5 cm (un pouce) du
corps lors de la transmission. . Il est important de garder la radio à la bonne
distance, car les expositions RF diminuent avec l'éloignement de l'antenne.
Using Tips

7
Using Tips
Max. SAR Level(s) Measured Limit (W/Kg)
0.164 W/kg 10g Head SAR
0.181 W/kg 10g Body SAR 2.0
Max. SAR Level(s) Reported Limit (W/Kg)
0.85 W/kg 1g Head SAR
1.26 W/kg 1g Body SAR 8.0
INFORMATION CONCERNING SAR FOR CE
INFORMATION CONCERNING SAR FOR FCC

8
Know the Radio
Programmable key
Product Control
Antenna
LED Indicator
PTT key
Up key
Down key
Menu key
Charging contacts
Speaker
Microphone
USB Port
Headset Port
Power key
Display

9
Know the Radio
Radio LED Indicators

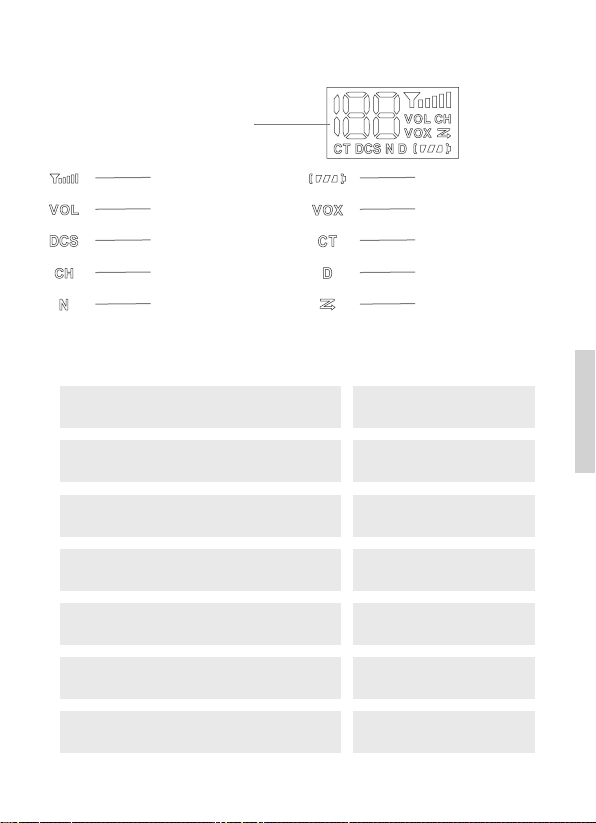

Display Guide
Radio Status
Standby
Low Battery
Transmit (TX)
Receive (RX)
Programming Mode (Read from Radio)
Programming Mode (Write to Radio)
CTCSS Code icon
Digital mode
Scan icon
VOX icon
Battery Level icon
Channel display
Signal strength
DCS Code icon
Analog mode
Channel indication
Volume icon
LED Indication
Green Slow Flash
Red Fast Flash
Solid Red
Solid Green
Red Fast Flash
Red Fast Flash

10
熟悉本机
Battery Installation
1. Use nger tip to pull the latch as shown in picture below to remove
battery cover.
2. Put the battery pack into the battery compartment, close the battery
cover with snap t all latches. Ensure the battery cover is fully x to radio.
3. Install the belt clip holder using a coin or screwdriver as shown in the
picture.
Note: To remove the
battery pack, please turn
o󰀨 the radio rst.
Know the Radio

11
熟悉本机
Belt Clip Installation
1. Align the guide groove of the belt clip to the belt clip holder on the
battery cover and install it appropriately.
Accessory Installation
Step 1: Open the accessory
connector cover.
Step 2: Align the plug of the
accessory (matching headset
or programming cable) with the
accessory connector.
Step 3: Insert the accessory
properly into the accessory
connector.
2.Take out the belt clip to the following angle with belt clip bottom face
up, and remove it toward the top.
Note: The belt clip can
be installed from any
direction, clip on the belt,
and the radio can rotate
180 degrees.
Figure 1 Figure 2
Know the Radio

12
熟悉本机
Charging Function

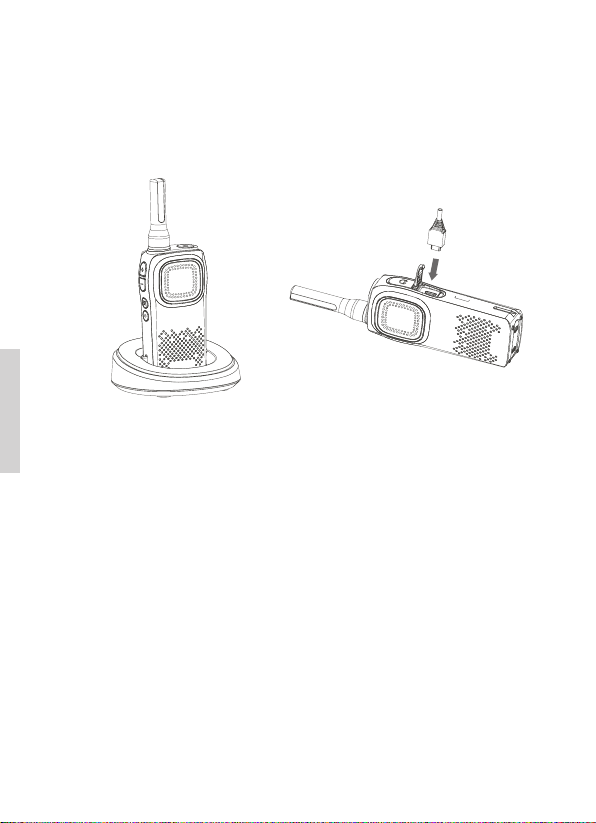

1. This device can support charging with charger tray or direct USB
charging. During charging, the battery icon ashing on the display;
when complete charging, the icon stops scrolling and shows battery
full.
Device charging USB charging
Charging precautions:
·Please use the matching charging base of the model for charging.
·When charging the device, it is recommended to turn off the radio
rst.
·To obtain the best battery performance, please charge for at least 5
hours for the rst time.
·Do not charge the battery pack for a long time, otherwise it will
shorten the battery pack life. When the battery is fully charged,
please stop charging in time.
·The charger can only be used to charge the battery pack of the
product. Do not use it to charge other battery packs, otherwise the
charger and battery pack may be damaged.
·The battery pack should be stored in a cool and dry place after being
fully charged. Do not expose the battery pack near the re or to the
sun, otherwise there are safety risks.
Know the Radio

13
功能介绍
Power On/O󰀨
To turn on radio, press and hold [Power] key 3 seconds. To turn off
radio, press and hold the [Power] key to turn o󰀨 the radio and prompt
tone will be sounded.
Check Channel and
Battery Level status
In standby mode, press the power button to check Channel and Battery
Level status.
Volume Control
press [+] or [-] key to increase or decrease the volume. the volume is
adjustable from level 0 to 10.
Note: When press [+] again under the maximum radio volume, the
speaker of radio will prompt an error sound. When the volume is
adjusted to the minimum by pressing [-] key, the radio is muted.
Transmitting/Receiving
Hold the [PTT] key to transmit the signal of the current channel and the
red LED indicator is on. Release the [PTT] key to receive the signal
from the same channel, the speaker will make a call sound and the
green LED indicator will be on.
Precautions for Radio Operation
·When the radio is transmitting, keep the radio in a vertical position,
·During charging, it is not recommended to transmit the radio.
·The battery pack may slightly heat up during charging, which is a
normal phenomenon.
Know the Radio

14
功能介绍
and keep the microphone 2.5-5 cm away from the mouth. When transmitting,
the radio should be at least 2.5 cm away from the head or body.
·Do not turn on/o󰀨 the radio repeatedly during use, and adjust the
volume to a level suitable for your hearing.
·Before using the radio for communication, please set the transmitter
and receiver to the same frequency point.
·For the analog channel that requires intercom, please set the
transmitter and receiver to the same sub-audio frequency.
·For digital channel,
1. If encryption is enabled for the digital channel that requires intercom,
please set the transmitter and receiver to the same password.
2. For the digital channel that requires intercom, please set the
transmitter and receiver to the same color code.
Menu Selection
1. The [Menu] key were set to (i) switch channel, (ii) set high/low
power, and (iii) turn on/o󰀨 scanning. Continue press menu button to
enter to next function.
2. If the radio is not operated for 3 seconds or [PTT] key is pressed, it
will exit the menu mode.
Channel Selection
In the standby state, press the [Menu] key once to enter the channel
selection menu, and then press the [+] or [-] key to select the channel.
The current channel number will be broadcast every time you select.
There are 1-20 channels (analog)/1-32 channels (digital) to choose
from. If the radio is not operated for 3 seconds or [PTT] key is pressed,
it will exit the menu mode.
Channel Scanning
Press the [Menu] key twice to enter the channel scanning menu, press
Features

15
功能介绍
the [+] or [-] key to start/stop channel scanning, and the speaker will
give a voice prompt "Scan on" or "Scan o󰀨".During scanning, the digital
radio scans the channels in the list and the current main channel.
When any channel in the scan list is transmitting a signal, it will stay
on that channel after scanning the signal. If press the [+] key again will
skip the current channel and continue scanning. When scanning stop,
if the radio is not operated for 3 seconds or [PTT] key is pressed, it will
exit the menu mode.
High/Low Power Setting
Press the [Menu] key thrice to enter high/low power setting, and press
[+] or [-] key again to switch high/low power. If the radio is not operated
for 3 seconds or [PTT] key is pressed, it will exit the menu mode.
RSSI Values Display
·When transmitting at high power, the screen will display 5 grids of
signal, as shown in gure:
·When transmitting at low power, the screen will display 3 grids of
signal, as shown in gure:
TOT (Time out Timer) Function
In order to prevent some users from occupying the same channel
for a long time, users can set to enable the TOT function. When the
user's continuous transmission time on the current channel reaches
the set time, the radio will stop transmitting and the speaker will give
a time-limit prompt tone. You can set the time limit for transmitting by
programming software. OFF, 30-300 seconds are available. When OFF
is selected, the user can keep on transmitting.
Features

16
功能介绍
Voice Control Function
(preset by [Program] key)
1. Preset the [Program] key to [VOX On/O󰀨] key through programming
software.
2. Press the preset [VOX On/O󰀨] key to turn on/o󰀨 the voice control
function. VOX levels can be preset through programming software:
Level 1, Level 2, and Level 3, where Level 3 is the most sensitive.
When the radio VOX function is on, the preset VOX level is used.
Monitoring mode
(preset by [Program] key)
1. Preset the [Program] key to monitoring function through
programming software.
2. Press and hold the [Program] key to enter monitoring mode and
release the key to exit the mode.
Power Saving Function
The power saving function can be enabled/disabled by programming
software.
Low Voltage Alarm Function
1. When the battery voltage is less than one grid (picture), the radio
will prompt "Please charge" once (every 20 seconds) and the
battery indicator will ash quickly. At this time, the radio cannot
transmit and stays in standby and receiving modes only. Please
charge the battery.
2. When the battery power is lower than the standby voltage, the radio
will shut down automatically. Please charge the battery.
Features

17
功能介绍
Program Key
1. Congure the functions of [Program] key through programming software.
2. The [Program] key of analog Mode includes the following functions:
VOX On/O󰀨, Monitoring Mode, Sub-audio Frequency On/O󰀨.
3. The [Program] key of digital Mode includes the following functions:
High/Low Power Switch, VOX On/O󰀨, Monitoring Mode, One Touch
Call, Emergency Alarm, etc.
4. Write the set parameters to the radio and press the corresponding
[Program] key to enter the corresponding function.
CTCSS/DCS
1. Only analog mode can set CTCSS/DCS.
2. CTCSS/DCS can set via programming software.
3. Only both transmit and receive are set the same can talk to each other.
Tail Tone Elimination
· This function is only valid for analog channels:
1. When the tail tone elimination function is enabled, the receiver will
not have tail tone after the transmission is completed; otherwise,
there will be tail tone.
2. There are two types of tail tone elimination: 55HZ and 62HZ.
Setting/Changing Frequency
1. In direct mode (DM) mode, you can talk only when the transmitting
frequency and receiving frequency are the same.
2. Digital radio: In DMR relay mode, the transmitting frequency and
receiving frequency are di󰀨erent, but it needs to be used together
with repeater.
Features

18
功能介绍
Squelch Step (SQ)
1. SQ is only valid for analog channels.
2. After SQ is set to 0, the speaker will automatically turn on and be in
the monitoring state.
3. The higher the SQ step, the better the noise oor suppression e󰀨ect.
4. SQ can be congured through programming software only.
Radio Name Conguration
and Modication
1. Enter the basic setting interface of programming software to
congure or modify the Radio name.
2. Radio name can support: Letters, numbers, Chinese, special
characters, etc.
Radio ID
1. The Radio ID is related to the private call contact, and the ID range
is 1-16776415.
2. When using a private call contact to call the other party, enter the
Radio ID of the other party and then call.
Reading/Writing Password Setting
1. To prevent information leakage, you can set the reading and writing
password through CPS.
2. Each time you read or write, you must enter the correct 8-digit
password before operating.
3. To cancel the password, clear the password and conrm.
4. To change the password, input the old password rst, and then
enter the new password to rewrite.
5. When you forget the password, you can resume the factory settings
Features
