Goelst 4200 User manual
2004
glijder rem
(hele serie)
4007
glijder draaibaar
(4100, 4200, 4600, 4700-serie,
4800, 5100, 5600 & 6200)
4010
glijder (op strip van 10)
(4100, 4200, 4600,
4700-serie, 4800, 5100, 5600
& 6200)
4254
plafondklos 3cm
(5100)
5135
plafondsteun
(5100)
5152
railverbinder
(5100)
5140
afstandssteun
4115-07,5
4115-15
4115-10
4253-A
CAT redesign 2016
4200
hand-drawn
for light, medium- and heavy-weight curtains
Elegant track with a
high level of comfort
Accessories
4253
plastic eindcap
white / grey
Technical specications are subject to change without prior notice.

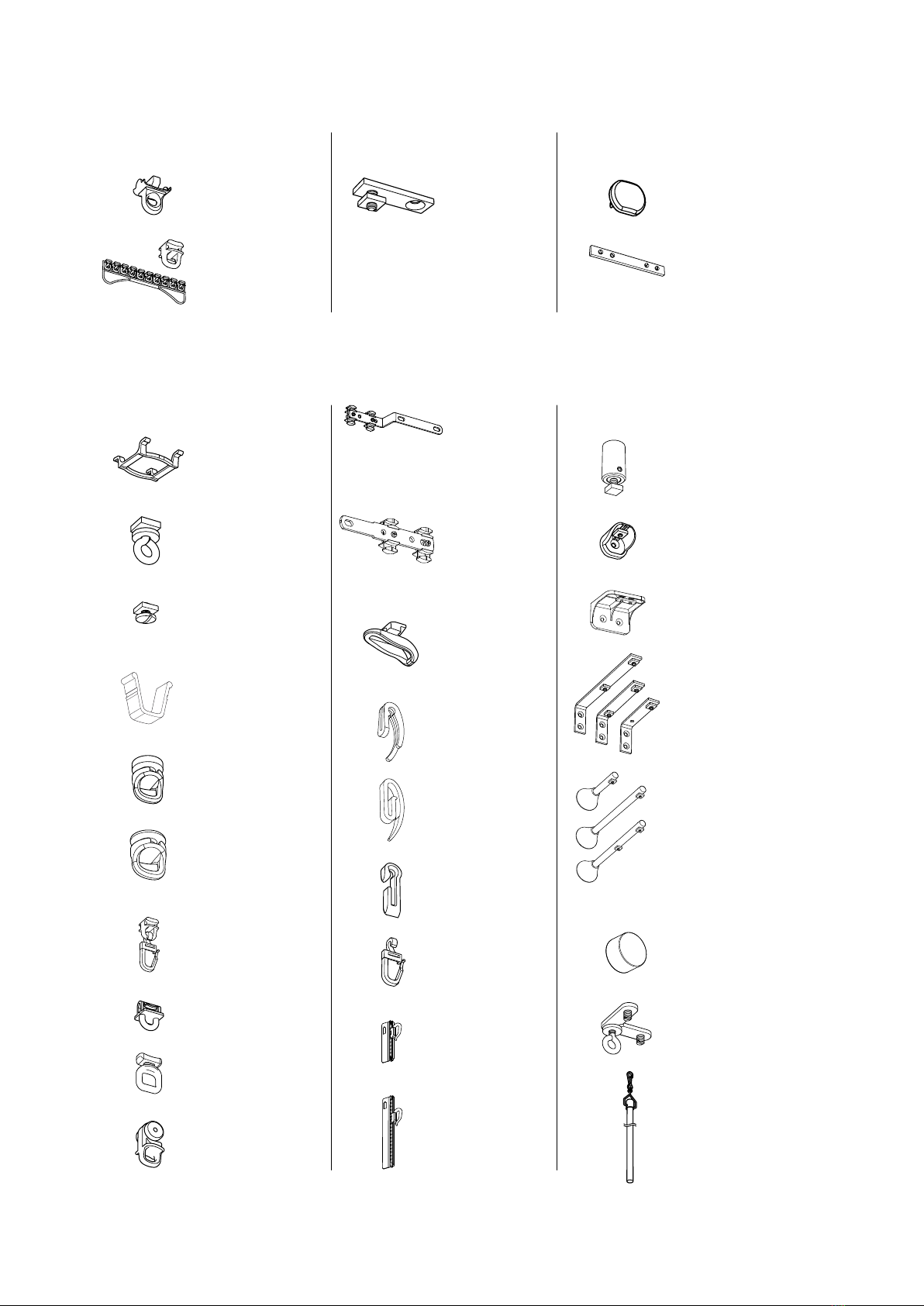

Standard parts
4001
end stop
white / grey / black
4010
glider
white / grey / black
2004
brake glider
white / grey / black
Curtain transport
5115
extension bracket
5, 7.5, 10, 15 cm
white / natural
metallic / black
4020
heavy duty glider
white / grey / black
2021
G-Hook white
2022
curtain hook
white
2023
curtain hook
white
2024-55
adjustable sew
in hook white
55mm
7399
plexiglass draw rod
transparent
2024-95
adjustable sew
in hook white
95mm
Mounting Accessories
Optional parts
Curtain transport Mounting
4001-M-N
end stop metal with
eye natural
4002
end stop metal
4007
rotating glider white/
grey / silver / black
4007-LRS
rotating glider LRS
grijs / rotating glider
LRS rood
4010-50
glider white with
hook 2023
4012
click-in glider white
6010
projection glider
white / grey /
black
2020
double hook
white
4217
adj. extension bracket
10 cm, 1 hole
20 cm, 1 hole
20 cm, 2 holes
white / natural metallic
/ black
4074-1000
carrier with
overlap, a.o. for
draw rod
white / natural
metallic / black
4075-1000
carrier without
overlap, a.o. for
draw rod white /
natural metallic
/ black
4048-08MM
corner connection
4030
roller
white / black
5135
ceiling bracket
white / grey /
black
4254
mini suspension
hanger, white,
natural, black
5140
wall bracket
white / grey / black
5152
connecting brigde
natural
4249
adj.ext. bracket
white / grey
4253-A
aluminium end cap
white / natural metallic
4003
spring stop plastic
requires punch hole
Goelst UK Ltd
Crimple Court | Hornbeam Park | Harrogate |HG2 8PB
Tel 01423 873002 |Fax 01423 874006 | info@goelstuk.com | www.goelst.co.uk
21 mm
18 mm
4200
274 GR/M
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
2024-55
2024-55
6010
4010
Toepassingsvoorbeeld
Door de voorsprong van glijder 6010 kan bij een
ronde rail een hoofdje gecreëerd worden, zonder dat
de rail deze naar voren drukt. De 6010 kan alleen
worden toegepast bij rechte gordijnrail van max.
6 meter en een max. totaal gordijngewicht van 8 kg.
Toepassingsvoorbeeld
Door de voorsprong van glijder 6010 kan bij een
ronde rail een hoofdje gecreëerd worden, zonder dat
de rail deze naar voren drukt. De 6010 kan alleen
worden toegepast bij rechte gordijnrail van max.
6 meter en een max. totaal gordijngewicht van 8 kg.
5100
4200
4217-202
4048-10
4048-08-ZO
10 cm10 cm 30-50 cm30-50 cm
The Goelst 4200 track has the looks of a classic
curtain pole, but it offers the comfort of a curtain
rail. The curtains glide smoothly virtually without
sound. It can be easily mounted in various ways
on a wall or ceiling. A very popular track that can
be used in a wide variety of situations, such as
private homes, but also in ofce buildings and in
the care sector.
• The ideal track for lightweight, medium-heavy
or heavy curtains.
• Easy to bend and exceptional quality.
• Can be forward or reverse bent in different
radii.
• Compatible with the Goelst Flow System for
regularly pleated curtains.
• Silent and smooth running, also round bends.
• Compatible with LRS gliders.
Standard colours
High quality, wear-resistant coating, highly colourfast, UV-resistant.
Other RAL colours & special coatings on request.
RAL 9010 white natural anodised
4200
hand-drawn
elegant & versatile
Prole specications
Aluminium profile:
Mounting surface:
• wood
• masonry/concrete
Bracket type:
• ceiling bracket
• wall bracket
• spacer bracket
Features
Material: aluminium
Colour: white, natural anodised
Dimensions: 18 x 21 mm
Weight prole: 274 gr/m1
Mounting: wall or ceiling
RAL 4 5 6 7
white 9010 ●
natural ●
Colours with RAL code and lengths (m):
Mounting
For more information about this track, go to our website: www.goelst.co.uk
Bending:
Application example
Ceiling mounting 4200 with bracket 5135
Wall mounting with adjustable extension bracket 4217-
101; bracket can be shortened to x = 50mm
Wall mounting 4200 with bracket 4249 Specication guide
Material
- Aluminium EN AW-6060-T66.
- Anodised in accordance with the Qualanod standard.
- Powder coated in accordance with the Qualicoat standard.

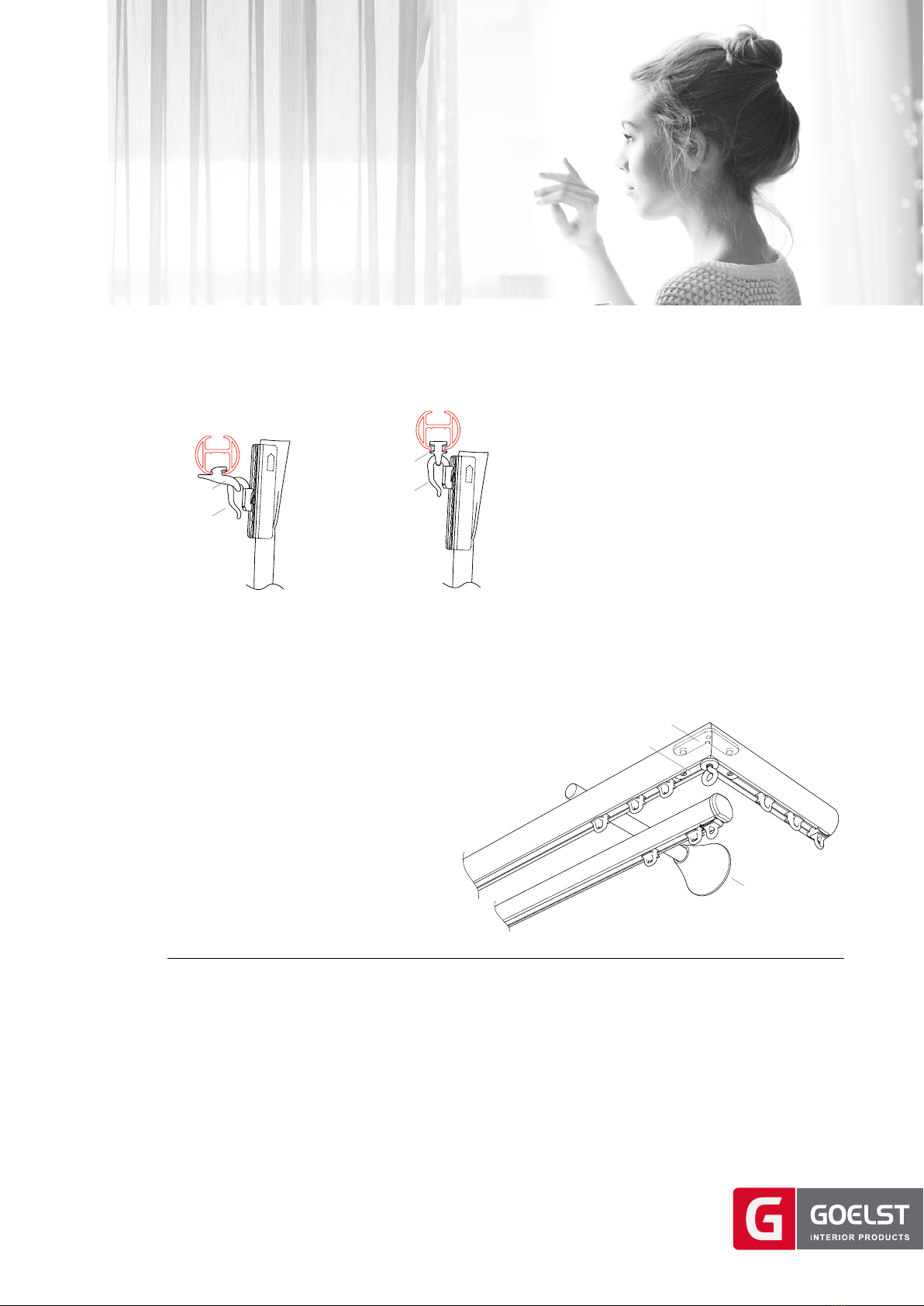

Heading with projection glider
6010
width 15 mm
Without heading with
glider 4010
width 10 mm
The projection on glider 6010 enables a heading to be created with a rounded track without pushing it
forward.
Example of combination of tracks 4200 and 5100 mounted
on extension bracket 4217-202. A return can be made using
corner connection 4048-10 or 4048-08-ZO.
Combination example
Mounting guideline
The distance between the brackets can vary depending on
the following factors: the mounting surface (wood, concrete
or plaster), the weight of the curtains and the curtain fabric
production method, the specic application and the system usage
intensity. General advice: with the curtains open, place additional
brackets where the pleats bunch together. Also place additional
brackets before and after bends.
Flow
The Goelst Flow System keeps pleats
in curtains consistent. It can be used
with small and wide channel tracks
and, because of the broad assortment
of components, it can be integrated in
hand-drawn, cord-pulled and electrically
operated systems.
The Flow System can also be used
with curved curtain tracks. For further
information, see the Flow product data
sheet.
bending radius bending tool
R 10 cm
R 15 cm
R>100 cm
1015
1015
1018
R 10 cm R > 100 cm
21 mm
18 mm
4200
274 GR/M
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
2024-55
2024-55
6010
4010
Toepassingsvoorbeeld
Door de voorsprong van glijder 6010 kan bij een
ronde rail een hoofdje gecreëerd worden, zonder dat
de rail deze naar voren drukt. De 6010 kan alleen
worden toegepast bij rechte gordijnrail van max.
6 meter en een max. totaal gordijngewicht van 8 kg.
Toepassingsvoorbeeld
Door de voorsprong van glijder 6010 kan bij een
ronde rail een hoofdje gecreëerd worden, zonder dat
de rail deze naar voren drukt. De 6010 kan alleen
worden toegepast bij rechte gordijnrail van max.
6 meter en een max. totaal gordijngewicht van 8 kg.
5100
4200
4217-202
4048-10
4048-08-ZO
10 cm10 cm 30-50 cm30-50 cm
The Goelst 4200 track has the looks of a classic
curtain pole, but it offers the comfort of a curtain
rail. The curtains glide smoothly virtually without
sound. It can be easily mounted in various ways
on a wall or ceiling. A very popular track that can
be used in a wide variety of situations, such as
private homes, but also in ofce buildings and in
the care sector.
• The ideal track for lightweight, medium-heavy
or heavy curtains.
• Easy to bend and exceptional quality.
• Can be forward or reverse bent in different
radii.
• Compatible with the Goelst Flow System for
regularly pleated curtains.
• Silent and smooth running, also round bends.
• Compatible with LRS gliders.
Standard colours
High quality, wear-resistant coating, highly colourfast, UV-resistant.
Other RAL colours & special coatings on request.
RAL 9010 white natural anodised
4200
hand-drawn
elegant & versatile
Prole specications
Aluminium profile:
Mounting surface:
• wood
• masonry/concrete
Bracket type:
• ceiling bracket
• wall bracket
• spacer bracket
Features
Material: aluminium
Colour: white, natural anodised
Dimensions: 18 x 21 mm
Weight prole: 274 gr/m1
Mounting: wall or ceiling
RAL 4 5 6 7
white 9010 ●
natural ●
Colours with RAL code and lengths (m):
Mounting
For more information about this track, go to our website: www.goelst.co.uk
Bending:
Application example
Ceiling mounting 4200 with bracket 5135
Wall mounting with adjustable extension bracket 4217-
101; bracket can be shortened to x = 50mm
Wall mounting 4200 with bracket 4249
Specication guide
Material
- Aluminium EN AW-6060-T66.
- Anodised in accordance with the Qualanod standard.
- Powder coated in accordance with the Qualicoat standard.
Heading with projection glider
6010
width 15 mm
Without heading with
glider 4010
width 10 mm
The projection on glider 6010 enables a heading to be created with a rounded track without pushing it
forward.
Example of combination of tracks 4200 and 5100 mounted
on extension bracket 4217-202. A return can be made using
corner connection 4048-10 or 4048-08-ZO.
Combination example
Mounting guideline
The distance between the brackets can vary depending on
the following factors: the mounting surface (wood, concrete
or plaster), the weight of the curtains and the curtain fabric
production method, the specic application and the system usage
intensity. General advice: with the curtains open, place additional
brackets where the pleats bunch together. Also place additional
brackets before and after bends.
Flow
The Goelst Flow System keeps pleats
in curtains consistent. It can be used
with small and wide channel tracks
and, because of the broad assortment
of components, it can be integrated in
hand-drawn, cord-pulled and electrically
operated systems.
The Flow System can also be used
with curved curtain tracks. For further
information, see the Flow product data
sheet.
bending radius bending tool
R 10 cm
R 15 cm
R>100 cm
1015
1015
1018
R 10 cm R > 100 cm
21 mm
18 mm
4200
274 GR/M
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
Montage
21 mm
25 mm
29 mm
30 mm
25 mm
x
33 mm
x
25 mm
13 mm
40 mm
10 mm
24 mm
plafondmontage 4200
met plafondsteun 5135
plafondmontage 5100
met plafondsteun 5135
wandmontage 4200
x min: 50mm
met dagsteun 4249
wandmontage 5100
met dagsteun 5150
plafondmontage 5100
met plafondklos 4254
30 mm
56 mm
48 mm
36 mm
46 mm
36 mm
46 mm
2024-55
2024-55
6010
4010
Toepassingsvoorbeeld
Door de voorsprong van glijder 6010 kan bij een
ronde rail een hoofdje gecreëerd worden, zonder dat
de rail deze naar voren drukt. De 6010 kan alleen
worden toegepast bij rechte gordijnrail van max.
6 meter en een max. totaal gordijngewicht van 8 kg.
Toepassingsvoorbeeld
Door de voorsprong van glijder 6010 kan bij een
ronde rail een hoofdje gecreëerd worden, zonder dat
de rail deze naar voren drukt. De 6010 kan alleen
worden toegepast bij rechte gordijnrail van max.
6 meter en een max. totaal gordijngewicht van 8 kg.
5100
4200
4217-202
4048-10
4048-08-ZO
10 cm10 cm 30-50 cm30-50 cm
The Goelst 4200 track has the looks of a classic
curtain pole, but it offers the comfort of a curtain
rail. The curtains glide smoothly virtually without
sound. It can be easily mounted in various ways
on a wall or ceiling. A very popular track that can
be used in a wide variety of situations, such as
private homes, but also in ofce buildings and in
the care sector.
• The ideal track for lightweight, medium-heavy
or heavy curtains.
• Easy to bend and exceptional quality.
• Can be forward or reverse bent in different
radii.
• Compatible with the Goelst Flow System for
regularly pleated curtains.
• Silent and smooth running, also round bends.
• Compatible with LRS gliders.
Standard colours
High quality, wear-resistant coating, highly colourfast, UV-resistant.
Other RAL colours & special coatings on request.
RAL 9010 white natural anodised
4200
hand-drawn
elegant & versatile
Prole specications
Aluminium profile:
Mounting surface:
• wood
• masonry/concrete
Bracket type:
• ceiling bracket
• wall bracket
• spacer bracket
Features
Material: aluminium
Colour: white, natural anodised
Dimensions: 18 x 21 mm
Weight prole: 274 gr/m1
Mounting: wall or ceiling
RAL 4 5 6 7
white 9010 ●
natural ●
Colours with RAL code and lengths (m):
Mounting
For more information about this track, go to our website: www.goelst.co.uk
Bending:
Application example
Ceiling mounting 4200 with bracket 5135
Wall mounting with adjustable extension bracket 4217-
101; bracket can be shortened to x = 50mm
Wall mounting 4200 with bracket 4249
Specication guide
Material
- Aluminium EN AW-6060-T66.
- Anodised in accordance with the Qualanod standard.
- Powder coated in accordance with the Qualicoat standard.
Heading with projection glider
6010
width 15 mm
Without heading with
glider 4010
width 10 mm
The projection on glider 6010 enables a heading to be created with a rounded track without pushing it
forward.
Example of combination of tracks 4200 and 5100 mounted
on extension bracket 4217-202. A return can be made using
corner connection 4048-10 or 4048-08-ZO.
Combination example
Mounting guideline
The distance between the brackets can vary depending on
the following factors: the mounting surface (wood, concrete
or plaster), the weight of the curtains and the curtain fabric
production method, the specic application and the system usage
intensity. General advice: with the curtains open, place additional
brackets where the pleats bunch together. Also place additional
brackets before and after bends.
Flow
The Goelst Flow System keeps pleats
in curtains consistent. It can be used
with small and wide channel tracks
and, because of the broad assortment
of components, it can be integrated in
hand-drawn, cord-pulled and electrically
operated systems.
The Flow System can also be used
with curved curtain tracks. For further
information, see the Flow product data
sheet.
bending radius bending tool
R 10 cm
R 15 cm
R>100 cm
1015
1015
1018
R 10 cm R > 100 cm
2004
glijder rem
(hele serie)
4007
glijder draaibaar
(4100, 4200, 4600, 4700-serie,
4800, 5100, 5600 & 6200)
4010
glijder (op strip van 10)
(4100, 4200, 4600,
4700-serie, 4800, 5100, 5600
& 6200)
4254
plafondklos 3cm
(5100)
5135
plafondsteun
(5100)
5152
railverbinder
(5100)
5140
afstandssteun
4115-07,5
4115-15
4115-10
4253-A
CAT redesign 2016
4200
hand-drawn
for light, medium- and heavy-weight curtains
Elegant track with a
high level of comfort
Accessories
4253
plastic eindcap
white / grey
Technical specications are subject to change without prior notice.
Standard parts
4001
end stop
white / grey / black
4010
glider
white / grey / black
2004
brake glider
white / grey / black
Curtain transport
5115
extension bracket
5, 7.5, 10, 15 cm
white / natural
metallic / black
4020
heavy duty glider
white / grey / black
2021
G-Hook white
2022
curtain hook
white
2023
curtain hook
white
2024-55
adjustable sew
in hook white
55mm
7399
plexiglass draw rod
transparent
2024-95
adjustable sew
in hook white
95mm
Mounting Accessories
Optional parts
Curtain transport Mounting
4001-M-N
end stop metal with
eye natural
4002
end stop metal
4007
rotating glider white/
grey / silver / black
4007-LRS
rotating glider LRS
grijs / rotating glider
LRS rood
4010-50
glider white with
hook 2023
4012
click-in glider white
6010
projection glider
white / grey /
black
2020
double hook
white
4217
adj. extension bracket
10 cm, 1 hole
20 cm, 1 hole
20 cm, 2 holes
white / natural metallic
/ black
4074-1000
carrier with
overlap, a.o. for
draw rod
white / natural
metallic / black
4075-1000
carrier without
overlap, a.o. for
draw rod white /
natural metallic
/ black
4048-08MM
corner connection
4030
roller
white / black
5135
ceiling bracket
white / grey /
black
4254
mini suspension
hanger, white,
natural, black
5140
wall bracket
white / grey / black
5152
connecting brigde
natural
4249
adj.ext. bracket
white / grey
4253-A
aluminium end cap
white / natural metallic
4003
spring stop plastic
requires punch hole
Goelst UK Ltd
Crimple Court | Hornbeam Park | Harrogate |HG2 8PB
Tel 01423 873002 |Fax 01423 874006 | info@goelstuk.com | www.goelst.co.uk
2004
glijder rem
(hele serie)
4007
glijder draaibaar
(4100, 4200, 4600, 4700-serie,
4800, 5100, 5600 & 6200)
4010
glijder (op strip van 10)
(4100, 4200, 4600,
4700-serie, 4800, 5100, 5600
& 6200)
4254
plafondklos 3cm
(5100)
5135
plafondsteun
(5100)
5152
railverbinder
(5100)
5140
afstandssteun
4115-07,5
4115-15
4115-10
4253-A
CAT redesign 2016
4200
hand-drawn
for light, medium- and heavy-weight curtains
Elegant track with a
high level of comfort
Accessories
4253
plastic eindcap
white / grey
Technical specications are subject to change without prior notice.
Standard parts
4001
end stop
white / grey / black
4010
glider
white / grey / black
2004
brake glider
white / grey / black
Curtain transport
5115
extension bracket
5, 7.5, 10, 15 cm
white / natural
metallic / black
4020
heavy duty glider
white / grey / black
2021
G-Hook white
2022
curtain hook
white
2023
curtain hook
white
2024-55
adjustable sew
in hook white
55mm
7399
plexiglass draw rod
transparent
2024-95
adjustable sew
in hook white
95mm
Mounting Accessories
Optional parts
Curtain transport Mounting
4001-M-N
end stop metal with
eye natural
4002
end stop metal
4007
rotating glider white/
grey / silver / black
4007-LRS
rotating glider LRS
grijs / rotating glider
LRS rood
4010-50
glider white with
hook 2023
4012
click-in glider white
6010
projection glider
white / grey /
black
2020
double hook
white
4217
adj. extension bracket
10 cm, 1 hole
20 cm, 1 hole
20 cm, 2 holes
white / natural metallic
/ black
4074-1000
carrier with
overlap, a.o. for
draw rod
white / natural
metallic / black
4075-1000
carrier without
overlap, a.o. for
draw rod white /
natural metallic
/ black
4048-08MM
corner connection
4030
roller
white / black
5135
ceiling bracket
white / grey /
black
4254
mini suspension
hanger, white,
natural, black
5140
wall bracket
white / grey / black
5152
connecting brigde
natural
4249
adj.ext. bracket
white / grey
4253-A
aluminium end cap
white / natural metallic
4003
spring stop plastic
requires punch hole
Goelst UK Ltd
Crimple Court | Hornbeam Park | Harrogate |HG2 8PB
Tel 01423 873002 |Fax 01423 874006 | info@goelstuk.com | www.goelst.co.uk
Table of contents
Other Goelst Indoor Furnishing manuals
