Goelst Qurails 5600 User manual

5600
hand-drawn
for light, medium- and heavy-weight curtains
Sturdy rail with refined curves

Sturdy rail with refined curves
Standard colours
High quality, wear-resistant coating, highly colourfast, UV-resistant.
Other RAL colours & special coatings on request.
RAL 9010 white RAL 9006 natural
metallic
Features
Material: aluminium
Colour: white, natural metallic
Dimensions: 22 x 30 mm
Weight profile: 492 gr/m
Mounting: wall or ceiling
5600
hand-drawn
for light, medium- and heavy-weight curtains
The Qurails 5600 track is a sturdy rail with refined
curves that can be mounted on a ceiling. The
curtains glide smoothly virtually without sound. A
very popular track that can be used in a wide variety
of situations, such as private homes, but also in office
buildings and in the care sector.
•The ideal track for sheers, medium-heavy or heavy
curtains.
•Easy to bend and exceptional quality.
•Can be forward or reverse bent in different radii.
•Compatible with the Qurails Flow System for
regularly pleated curtains.
•Silent and smooth running, also round bends.

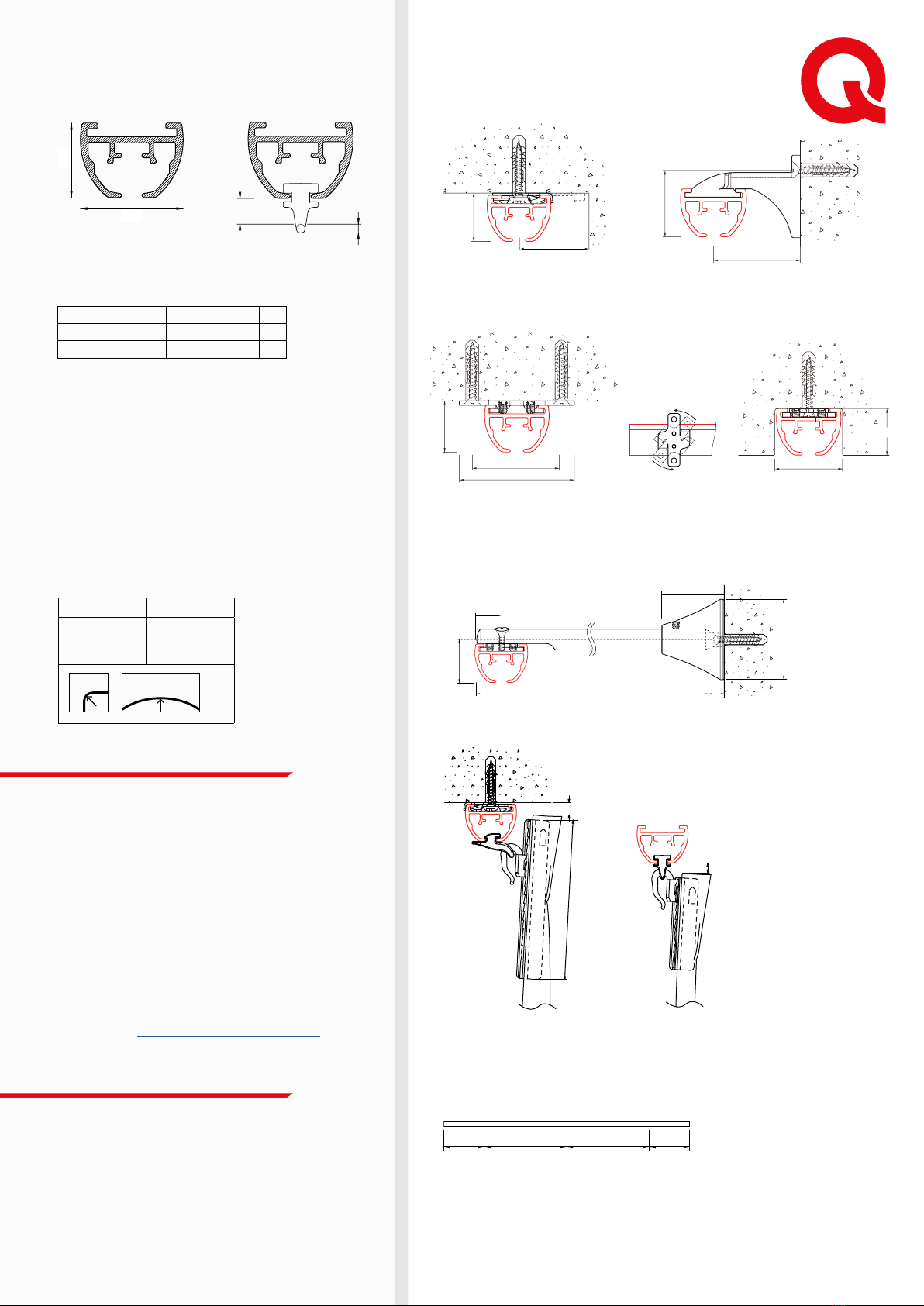

24 mm
54 mm
ceiling xing
6050
42 mm
min. 32 mm
min. 22 mm
40 mm
wall xing with 6051
31 mm
recessed xing with 6055-2000
ceiling xing with 6055-1000
With curved rails, rst bend the
prole then use as a template for the rebate.
Montage
min. 35 mm
23 mm
wandmontage met inkortbare afstandsteun 6017
70 - 150 mm
36 mm
12 mm
9 mm
25 mm
46 mm
24 mm
54 mm
ceiling xing
6050
42 mm
min. 32 mm
min. 22 mm
40 mm
wall xing with 6051
31 mm
recessed xing with 6055-2000
ceiling xing with 6055-1000
With curved rails, rst bend the
prole then use as a template for the rebate.
Montage
min. 35 mm
23 mm
wandmontage met inkortbare afstandsteun 6017
70 - 150 mm
36 mm
12 mm
9 mm
25 mm
46 mm
24 mm
54 mm
ceiling xing
6050
42 mm
min. 32 mm
min. 22 mm
40 mm
wall xing with 6051
31 mm
recessed xing with 6055-2000
ceiling xing with 6055-1000
With curved rails, rst bend the
prole then use as a template for the rebate.
Montage
min. 35 mm
23 mm
wandmontage met inkortbare afstandsteun 6017
70 - 150 mm
36 mm
12 mm
9 mm
25 mm
46 mm
min. 5 mm
min. 5 mm
min. 95 mm
10 cm10 cm 30-50 cm30-50 cm
22
30
5600
492 gr/m
R 20
R 30
R>100
(1015)
(1015)
(1018)
30
22
7,5
2,5
24 mm
54 mm
42 mm min. 32 mm
min. 22 mm
Flow
The Qurails Flow System keeps pleats in
curtains consistent. It can be used with
small and wide channel tracks and, because
of the broad assortment of components,
it can be integrated in hand-drawn, cord-
pulled and electrically operated systems.
The Flow System can also be used
with curved curtain tracks. For further
information, see the Flow product data
sheet.
bending radius bending tool
R 20 cm
R 30 cm
R>100 cm
1015
1015
1018
Profile/ gliderspecifications
Aluminium profile:
Mounting surface:
•wood
•masonry/concrete
Bracket type:
•ceiling bracket
•wall bracket
•spacer bracket
RAL 4 5 6
white 9010 ●
natural metallic 9006 ●
Colours with RAL code and lengths (m):
Mounting
Mounting guideline
Bending:
R 20 cm R > 100 cm
Specification guide
Material
•Aluminium EN AW-6060-T66.
•Powder coated in accordance with the
Qualicoat standard.
Ceiling mounting with
ceiling mounting clamp 6050
Wall mounting with bracket 6051
Ceiling mounting with bracket
6055-1000
Wall mounting with adjustable extension bracket 6017
5600 heading with
projection glider
6010
The distance between the brackets can vary depending on the following
factors: the mounting surface (wood, concrete or plaster), the weight of the
curtains and the curtain fabric production method, the specific application
and the system usage intensity. General advice: with the curtains open,
place additional brackets where the pleats bunch together. Also place
additional brackets before and after bends.
5600 without heading
with glider 4010
Mounting:
turn & click
into place
Concealed mounting, for
example, in channel with
bracket 6055-3100-N-040
when creating bends: cut the
channel on the basis of the
track supplied by Qurails
Glider:
Example: confection with and without heading

2004
glijder rem
(hele serie)
+
Standard parts
