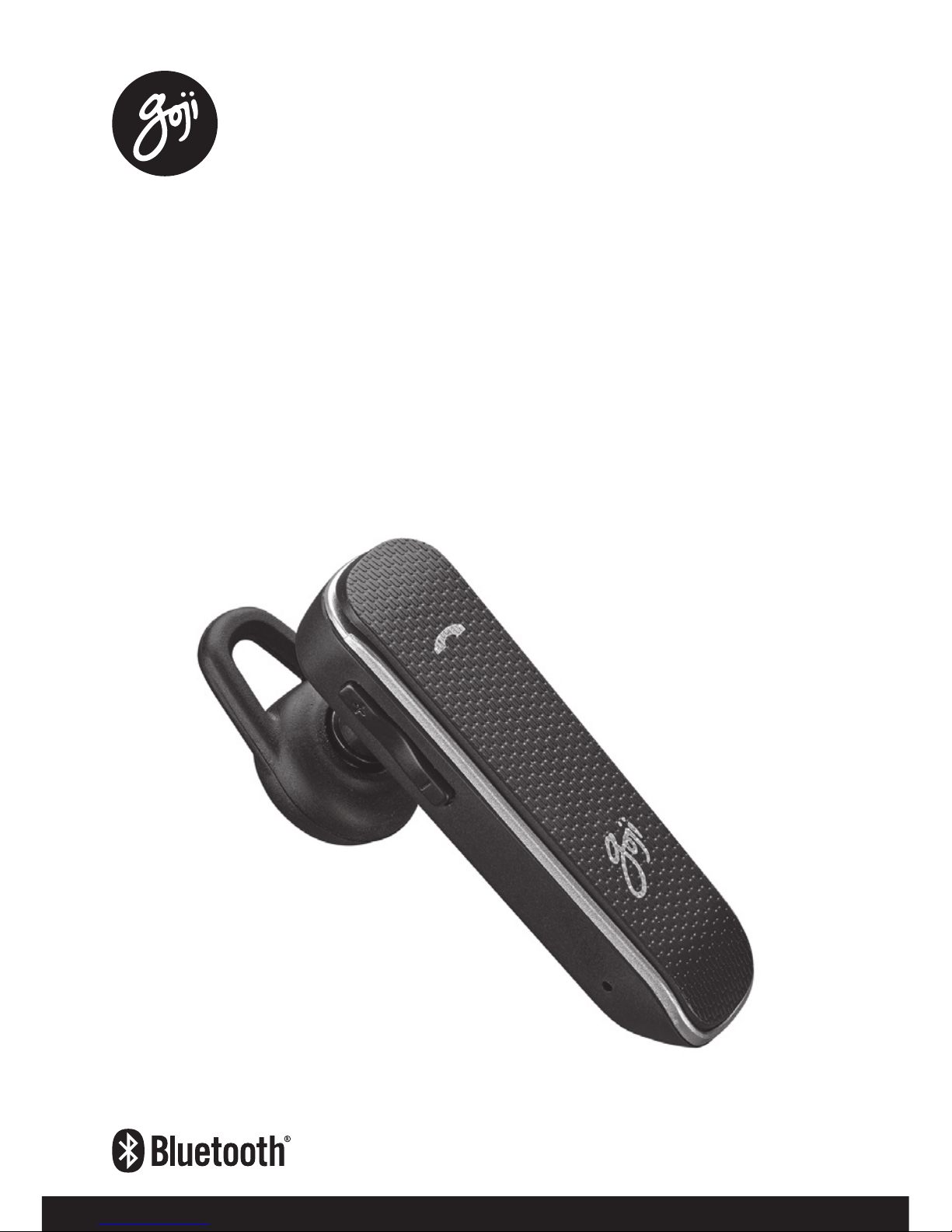

Goji GINMBT19 User manual
Wireless
Mono Headset
Instruction Manual
GINMBT19
Contents
Safety Warnings...............................................................4
Unpacking........................................................................6
Product Overview............................................................7
Charging the Battery.......................................................8
Switching On/O .............................................................9
Bluetooth Pairing ..........................................................10
Operation .......................................................................11
Reset the Headphones ..................................................12
Hints and Tips.................................................................12
Specications.................................................................13
4
Safety Warnings
• For trac safety, do not use earphones while driving
or cycling.
Damage
• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any
doubt about it working normally, or if it is damaged in
any way - switch o, unplug from the mains socket and
consult your dealer.
Temperature
• Avoid extreme degrees of temperature, either hot or
cold. Place the unit well away from heat sources such as
radiators or gas / electric res.
• Avoid exposure to direct sunlight and other sources
of heat.
• Charge battery in a place where the temperature is
between 5° and 40°C.
Naked Flames
• Never place any type of candle or naked ame on the
top of or near the unit.
Interference
• Do not place the unit on or near appliances which may
cause electromagnetic interference. If you do, it may
adversely aect the working performance of the unit,
and cause a distorted sound.
5
Earphones
• Listening to loud sounds for prolonged periods
of time may permanently damage your hearing.
• Before putting on earphones, turn the volume
down then put the earphones on and slowly
increase the volume until you reach a comfortable
listening level.
6
Thank you for purchasing your new
product.
We recommend that you spend some time
reading this instruction manual in order that you
fully understand all the operational features it
oers. You will also nd some hints and tips to
help you resolve any issues.
Read all the safety instructions carefully before
use and keep this instruction manual for future
reference.
Unpacking
Remove all items from the packaging. Retain the
packaging. If you dispose of it please do so according
to local regulations.
The following items are included:
• Main Unit
• USB Charging Cable
• Ear Hook
• Instruction Manual
7
1. button
• Switch the earphone
on/o
• Multi-functional
2. Charger connector
3. Status indicator
4. button
• Increase volume
• Go to next track
5. button
• Decrease volume
• Go to previous track
6. Microphone
Product Overview
1 32
654
8
Charging the Battery
When using the unit for the rst time, charge it fully
rst.
1. Connect the USB charging cable to the earphone.
2. Connect the other end of the USB charging cable to
a powered USB device.
Status LED Indicator
Low battery The red indicator will blink twice
periodically.
Charging The indicator will light up red.
Fully charged The indicator will light up blue.
Charge the battery if the earphone
performance is slow or intermittent.
9
Switching On/O
To switch on, press and hold for about 3 seconds
until the indicator ashes in purple.
• If the earphone is already paired with a Bluetooth
device before, it will automatically connect with the
last paired device when both are in pairing mode.
To switch o, press and hold for about 5 seconds
until the indicator ashes in purple, and then it will
switch o.
10
Bluetooth Pairing
You may increase/decrease the volume of the
connected device for desired volume level.
1. Ensure the earphone is switched o.
2. Press and hold for 5 seconds to enter Bluetooth
pair mode. The red and blue indicator starts ashing
rapidly and alternately.
If no Bluetooth device is paired in about
2.5 minutes, the earphone will switch
into Standby mode, and then switch o
automatically after another 6 minutes.
3. Activate the Bluetooth feature on your Bluetooth
device and start searching. Then select “GINMBT19”.
4. If necessary, enter the passcode, “0000”, to pair and
connect the earphone. Some device also ask to
conrm the headset connection after paring.
5. The blue indicator will blink and the earphone will
voice prompt after you have successfully paired the
earphone.
11
Not compatible with all smartphone brands;
please check your individual smartphone
user manual.
Operation
If you receive or make a call while listening to music,
the music is paused until you end the call.
To Frequency
Increase volume repeatedly as desired
Decrease volume repeatedly as desired
Call Functions
Answer a call / end a call /
cancel calling
once
Reject a call Hold
Redial last call Hold
End current call and
switch to incoming call
once
Hold current call and
switch to incoming call
Hold for 1 second and
then release
Use voice control twice
Playback Functions
Play / pause track once
Skip to next track Hold
Go to previous track Hold
12
Hints and Tips
Product not working:
• Recharge the product.
• Ensure the product is switched on.
• Ensure your Bluetooth-enabled device’s wireless
function is active.
• Ensure there are no other wireless devices in
discovery mode.
• Move the product closer to the device.
• Pair again the product and the device.
• Increase/decrease the volume level of the
connected device (e.g. mobile phone) if you nd the
earphone volume is too low/high.
Reset the Headphones
Press and hold the button for about 10 seconds to
reset the unit.
The indicator will ash in purple and then ash in red
and blue. The reset is done after the indicator is o.
13
Specications
Model GINMBT19
Sensitivity 92±3 dB
Impedance 32 Ω
Rated Input DC 5V 100 mA
Frequency Response 20 Hz – 20 kHz
Frequency Band(s) 2400 – 2482 MHz
Max. Radio Frequency
Power Transmitted
3 dBm
Bluetooth Interface Bluetooth 2.1 + EDR
Bluetooth Profiles A2DP, AVRCP, HFP, HSP
Operating Distance < 10m (open space)
Battery Type Lithium ion 70 mAh
Battery Life Up to 3 hrs (play music/
call)
Up to 120 hrs (standby)
Charging Time 2 hrs
Net Weight 9 g
Recommended
Operation Temperature
5°C - 40°C
Features and specications are subject to change
without prior notice.
14
For general information about this appliance and
handy hints and tips, please visit:
www.TeamKnowhow.com/discover
or call 0344 561 1234
Visit Partmaster.co.uk today for the easiest way to
buy electrical spares and accessories. With over 1
million spares and accessories available we can
deliver direct to your door the very next day. Visit www.partmaster.co.uk or
call 0344 800 3456 (UK customers only). Calls charged at National Rate.
The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household waste.
Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the time of
disposal will help conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment.
For more information about where you can drop o your waste for recycling,
please contact your local authority, or where you purchased your product.
Notes for battery disposal
The batteries used with this product contain chemicals that are
harmful to the environment.
To preserve our environment, dispose of used batteries according
to your local laws or regulations. Do not dispose of batteries with normal
household waste.
For more information, please contact the local authority or your retailer where
you purchased the product.
The Bluetooth® word mark and logos are registered trademarks owned by
the BluetoothSIG, Inc. and any use of such marks by DSG Retail Limited is
under license. Other trademarks and trade names are those of their respective
owner.
All trademarks are the property of their respective owners and all rights are
acknowledged.
IB-GINMBT19-180917V1
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
