Goldair GVC100 User manual

Vacuum Cleaner
Model GVC100
OPERATING INSTRUCTIONS
GVC100: 220 - 240V~50Hz, 1400W, Vacuum Cleaner

GENERAL CARE AND SAFETY GUIDE
Thank you for choosing a Goldair Electric Vacuum. This Goldair appliance has
been designed and manufactured to high standards of engineering and with
proper use and care, as described in this leaflet, will give you years of useful
service. Please read these instructions carefully.
ALWAYS
✔Always ensure hands are dry before
handling the plug or the Vacuum .
✔Use only as described in this manual.
✔Always be sure to unplug from the
socket when not in use and before
cleaning.
✔Use only manufacturers recommended
attachments.
✔Carry out regular checks of the supply
cord to ensure no damage is evident.
✔Hold plug when rewinding the cord.
Don’t allow plug to whip when rewinding.
✔Children should be supervised to
ensure that they do not play with the
appliance.
✔If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified persons
in order to avoid a hazard.
✔Indoor use only.
NEVER
✘Leave vacuum cleaner when plugged
in. Unplug from outlet when not use and
before servicing.
✘Use outdoors or on wet surfaces.
✘Never use this appliance for any
purpose other than its intended use. This
appliance is for household use only.
✘This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge, unless they are supervised or
have been given instruction concerning
the use of the vacuum cleaner by a
person responsible for their safety.
✘Close supervision is necessary when
the appliance is near children.
✘Pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
✘Pull or carry by cord, use cord as a
handle, close door on cord, or pull cord
around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord
away from heated surfaces.
✘Unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
✘Never use harsh, abrasive or caustic
cleaners to clean this appliance.
✘Never operate the appliance with a
damaged cord or plug, after it
malfunctions, or if it has been damaged in
any manner.
✘Use without dust bag and/or filter in
place.
SAVE THESE INSTRUCTIONS

Air Intake Duct
Power Button
Cord Rewind
Telescopic Tube
Combi-Crevice Nozzle
Floor Brush
Front Cover Release
and Vertical Handle
Bag Full Indicator
Horizontal Carry
Handle
COMPONENTS

INSTRUCTIONS FOR USE
WARNING:
Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.
Use and function
Assembling vacuum cleaner
Note: Always remove the power plug from the wall outlet before assembling or removing
accessories.
1.) Attaching the Flexible Hose into the vacuum.
- Connect the flexible hose into the air intake duct, push in until you hear a “click”, indicating it is in
its locked position.
2.) Fitting the tube to the curved wand/hose extension.
- Push the tube into the curved wand/hose extension.
3.) Fitting the Floor Brush to the tube.
- Push the tube into the floor brush. Adjust the telescopic tube to the desired length.
Variable suction control
Once all attachments are in place, unwind the entire length of the power cord and insert the plug
into the wall outlet. A yellow mark on the power cord shows the maximum ideal cable length.
Note: Do not pull the power cord beyond the red mark.
1.) Insert the power plug into the wall outlet.
2.) Press the power button to turn the vacuum cleaner “on”.
3.) To adjust the suction, slide the power control on the vacuum cleaner to required level.
4.) To rewind the power cord, press the cord rewind button with one hand and guide the power cord
with the other hand to ensure that it does not whip causing damage or injury.
Cord Rewind
Power Button
Power Control

INSTRUCTIONS FOR USE CONTINUED
Motor thermostat
Important:
This motor is equipped with a motor protective thermostat. If for some reason the vacuum cleaner
should overheat, the thermostat will automatically turn the unit off. Should this occur turn power
switch off and unplug the vacuum cleaner from the wall outlet, change dust bag and clean filters.
Allow the unit to cool for approximately 1 hour. To restart, plug the vacuum into the wall outlet and
turn the vacuum cleaner back on.
Changing dust bag
1.) Open the cover by pressing the front cover release
2.) Remove the dirty dust bag by sliding out and replacing with a new one.
Removing & cleaning pre-motor and post-motor outlet filters
Warning:
Always unplug the unit from electrical outlet before removing the dust bag.
a.Pre-motor filter
1.) Open the cover by pressing the front cover release
2.) Remove the inlet filter grill and change filter.
1 2
1 2
Pre motor
filter grill

INSTRUCTIONS FOR USE CONTINUED

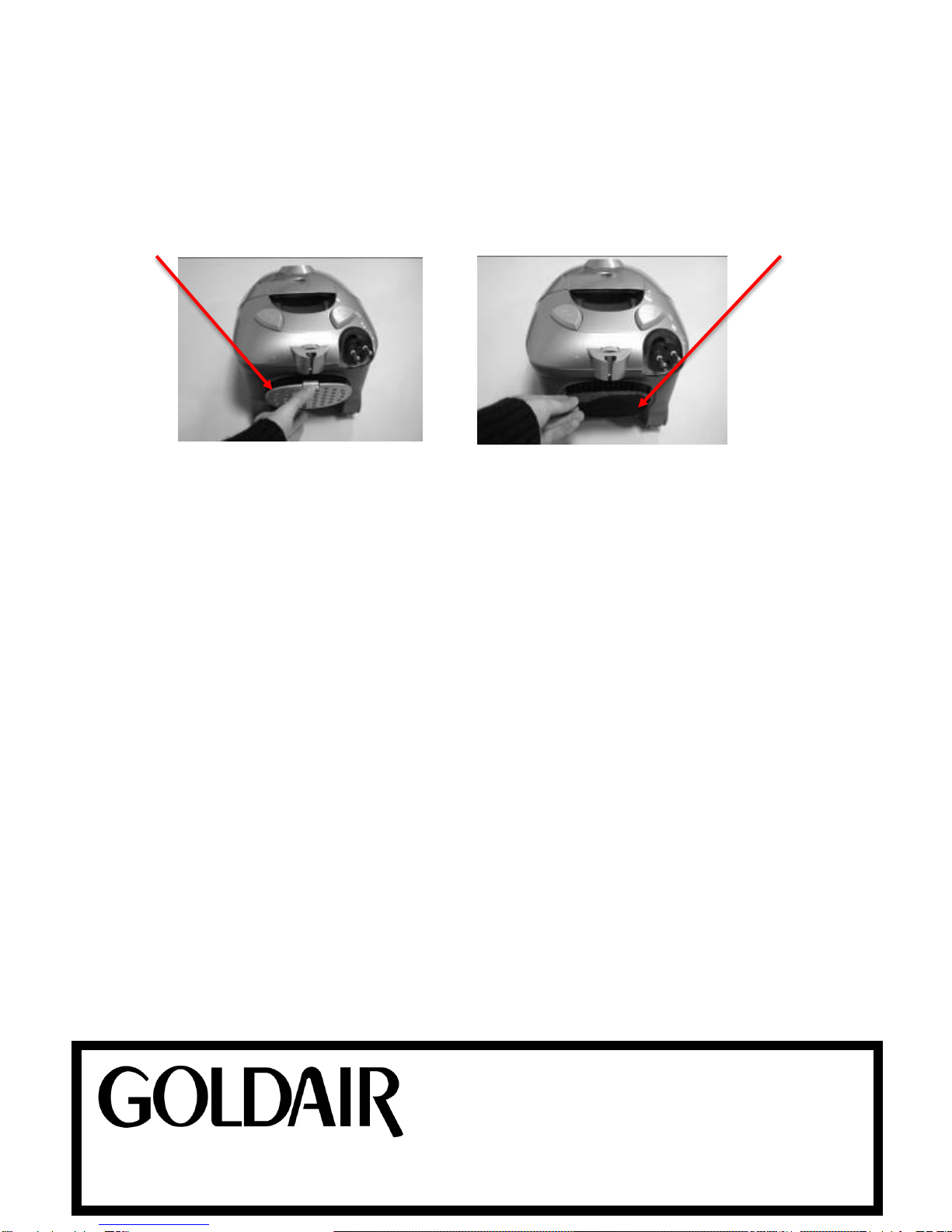

b.Post-motor filter
1.) Remove the outlet filter grill as shown
2.) Take out the post-motor filter and replace.
Please note:
The post-motor filter will became dusty through use. Over time this will affect the performance of the
filter and vacuum if the filter is not cleaned or replaced. We suggest that the filter be
cleaned/replaced when suction appears to be reduced. To wash the filter, rinse in warm water and
allow to dry for 24 hours by air drying away from naked flames and refit into the vacuum.
Note:
The suction hole must be open and free of any obstructions at all times. Otherwise, the motor will
overheat and may become damaged.
Important:
All filters should be checked regularly for signs of damage, preferably after each cleaning task. The
filters must be replaced immediately if they become damaged. Always disconnect the vacuum from
the electrical outlet when checking the filters.
Replacement Vacuum Bags
The GVC100 replacement vacuum bags can be purchased from the retailer that you bought your
vacuum cleaner from. The bags are in a pack of 5 (GVC100BG).
SUPPORT AND TECHNICAL ADVICE
North Shore City, Auckland, New Zealand
Monday –Friday 8am-5pm
Phone: [phone]
Website: www.goldair.co.nz
Outlet filter grill Post-motor filter
1 2

Your Goldair product has been inspected and tested and is guaranteed subject to the
following for a period of two years from the date of purchase against defects in
workmanship and materials. During this period, such defects will be rectified by
repair or replacement of the product purchased. Your product contains no user
serviceable components and this warranty becomes invalid if in our opinion the
product has been misused, abused, incorrectly installed, tampered with, connected
to an electrical supply not corresponding with the name plate specification, or
subjected to power surges. The warranty does not include any labour or other
associated expense that may be involved in removal or installation of the product.
Normal wear and tear is expressly excluded.
If your Goldair product fails to operate satisfactorily, please return it to the retailer
from whom it was purchased. To obtain a repair or replacement product under this
warranty, you will need to produce satisfactory evidence of date of purchase. The
completed warranty and purchase receipt must be presented with the product. The
warranty should be filled out at the time of purchase. It is in your interest to make
sure this is done.
If the product is to be replaced (cannot be repaired) then that replacement will be of
the same or similar product or accessory excluding packaging, instruction card etc.
Where a replacement product is supplied, this shall be guaranteed for the balance of
the original warranty period.
Any model that is no longer available will be replaced by a model of a value and with
such features as we consider appropriate in the circumstances. Goldair Ltd is not
responsible for freight forwarding charges, losses or damage in transit.
If service is required after the warranty period has expired, the product should be
returned to a qualified electrical technician. Service outside of the warranty period
will be at your cost.
Consumers GuaranteeAct (1993).
In accordance with the above act consumers are advised that: The manufacturer
does not undertake that repair facilities and parts are necessarily available for this
product.
If any of the provisions of the foregoing are contrary to any relevant legislation, then
that provision shall be deemed to be excluded from the warranty and the rest of the
provisions will continue to apply.
TWO YEAR WARRANTY
IMPORTANT: PLEASE RETAIN THIS WARRANTY CARD
NAME:
ADDRESS:
PURCHASED FROM:
SUBURB:
DATE OF PURCHASE:
NAME OF PRODUCT:
MODEL No:
