Important Safety Information
"Important – Keep these instructions for future reference
WARNING Never leave your child unattended
WARNING Ensure that all the locking devices are engaged before use
WARNING To avoid injury ensure that your child is kept away when
unfolding and folding this product
WARNING Do not let your child play with this product
WARNING Use a harness as soon as your child can sit unaided
WARNING This seat unit is not suitable for children under 6 months
WARNING Always use the restraint system
WARNING Check that the pram body or seat unit or car seat
attachment devices are correctly engaged before use
WARNING This product is not suitable for running or skating
This pram/stroller is intended for children from newborn (1 month) and up to
maximum weight 15.0kgs.
Adult assembly required. Never allow children to fold, assemble or
disassemble the pram/stroller.
Do not use your pram/stroller if any part is broken, torn or missing.
To avoid injury to fingers, take care when unfolding and folding the
frame.
To avoid injury, never attempt to remove or adjust the seat unit when a
child is occupying the seat.
Put the brake on whenever you park the pram/stroller.
Do not let children play unattended near the pram/stroller.
The pram/bassinet is only suitable for a child who cannot sit up unaided.
Do not add a mattress other than the Ambulo mattress provided with the
product.
Any load attached to the handle, affects the stability of the pram/stroller.
The maximum load for the seatback storage pockets is 1Kg. Maximum
weight for storage basket is 2.5Kg. The pram/stroller may become
unstable if any of the manufacturer’s recommended loads are
exceeded.
Do not inflate the rear wheels to more than 40PSI.
Never use this pram/stroller for more than 1 child simultaneously.
For car seats used in conjunction with a chassis, this vehicle does not
replace a cot or a bed. Should your child need to sleep, then it should
be placed in a suitable pram body, cot or bed.
Only replacement parts supplied or recommended by the
manufacturer/distributor shall be used.

4 | P a g e
Ambulo

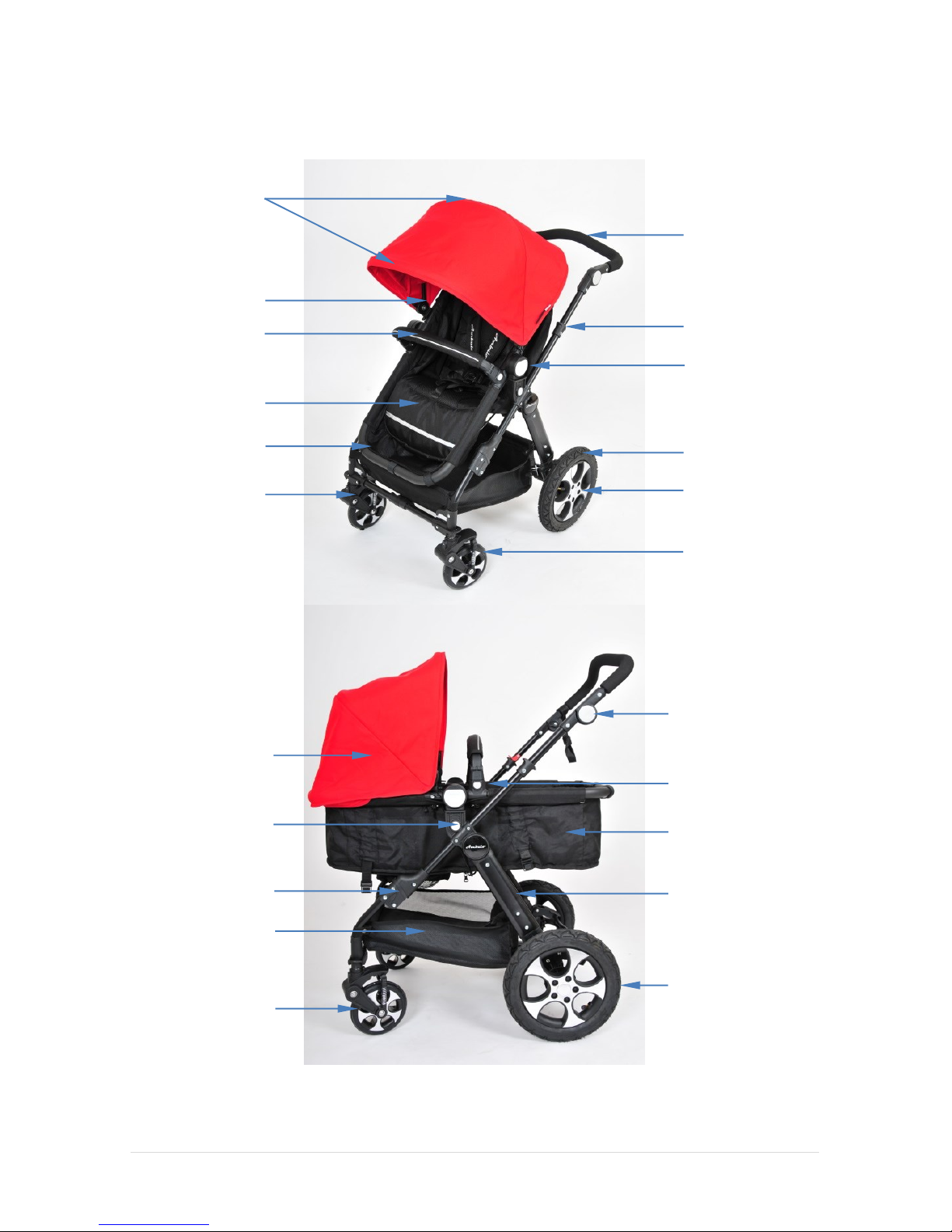

Handle
Canopy Support
Bars
Handrail
Canopy Bases
Seat Unit
Shock Absorber
40 PSI Tyre
Wheel Hub
Adjusting Spring
Rod
Handrail release Button
Frame release locks
Handle Adjustment
Button
Velcro Straps
Bassinet
Frame
Rear Wheel
Front Wheel
Storage Basket
Hinge
Central Adapter
Release Button
Seat Adjustment
Button
Canopy Cover
6Primary Features

5 | P a g e
Ambulo
Opening the Frame
Open the frame clip on the strap.
Place your foot on the rear axle tube to stabilise the chassis as
you lift the handlebar.
Lift the handlebar until you hear an audible “click”. Confirm that
the frame is locked in the open position.
Close the red frame safety lock to avoid unexpected folding of
the chassis.

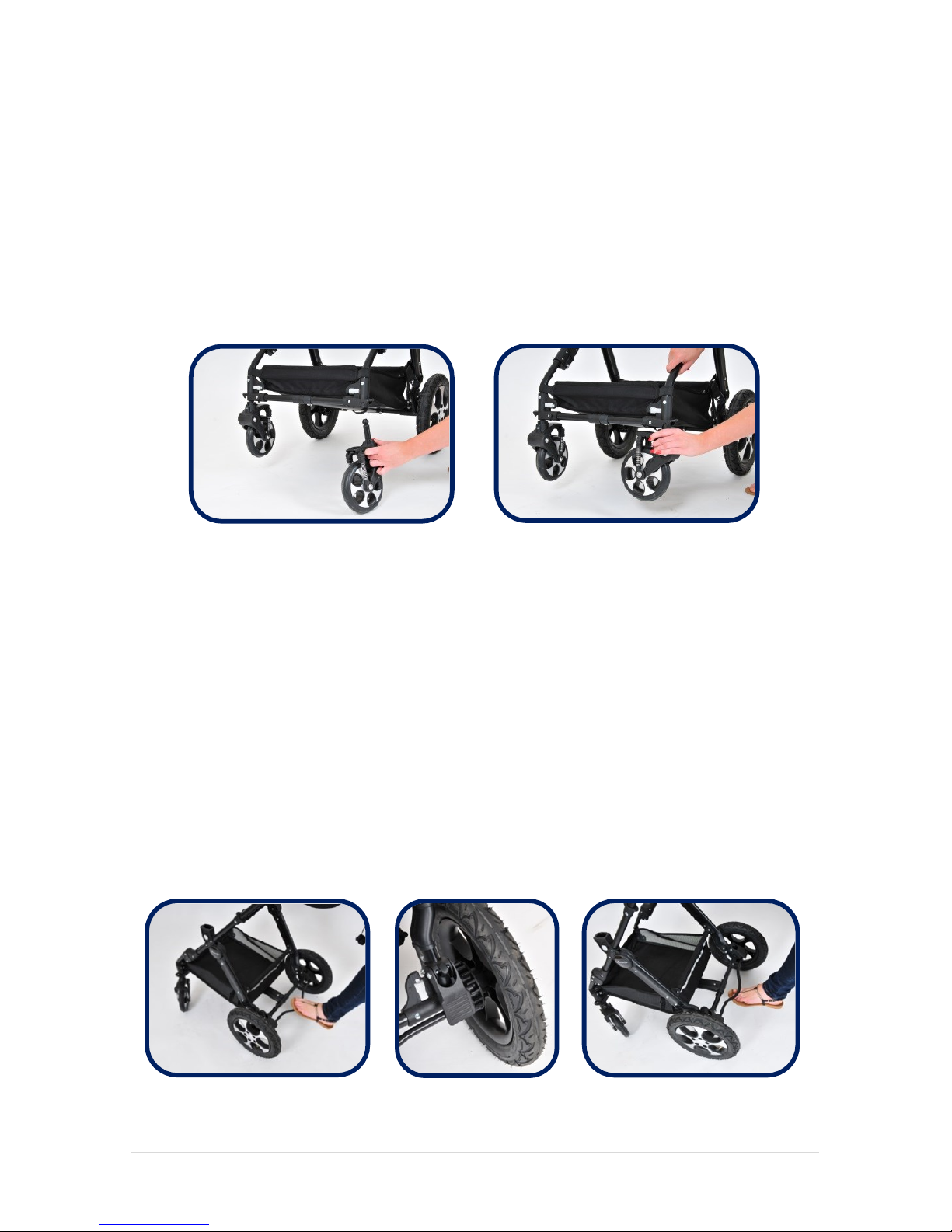

Fitting and Removing the Rear Wheels
Lift the brake to allow the wheel to be fitted.
Insert the rear wheel axle until you hear an audible “click” to
confirm that the wheel is locked into position. Repeat for the
second wheel.
Pull the wheel in the opposite direction to confirm that the wheel
has been fitted properly.
Red frame
Safety lock
Brake connecting lever
Frame Clip

6 | P a g e
Ambulo
Fitting and Removing the Front Wheels
Insert the front wheel axle until you hear an audible “click” to
confirm that the wheel is locked into position. Repeat for the
second wheel
Pull the wheel in the opposite direction to confirm that the
wheel has been fitted properly.
Operating the Brake
To engage the brake, firmly press down with your foot on the
brake connecting lever.
Check that the brake is fully engaged into the rear wheel before
letting go of the handle.
To release the brake, lift up the brake connecting lever with your
foot until the wheels move freely.

7 | P a g e
Ambulo
Operating the Front Wheels
The front wheels can be used in a swivel or fixed mode.
To switch from swivel to locked, Press down the swivel wheel
lock levers with the wheels pointing as illustrated below.
Lift the lever to return to the swivel-wheel position.
Adjusting the Shock Absorber
Press down on the adjustable spring rods with your thumbs while
your forefingers are lifting against the wheel cover.
Push the adjustable spring rods to the needed position.
1
2
3
Swivel position
Locked position

8 | P a g e
Ambulo

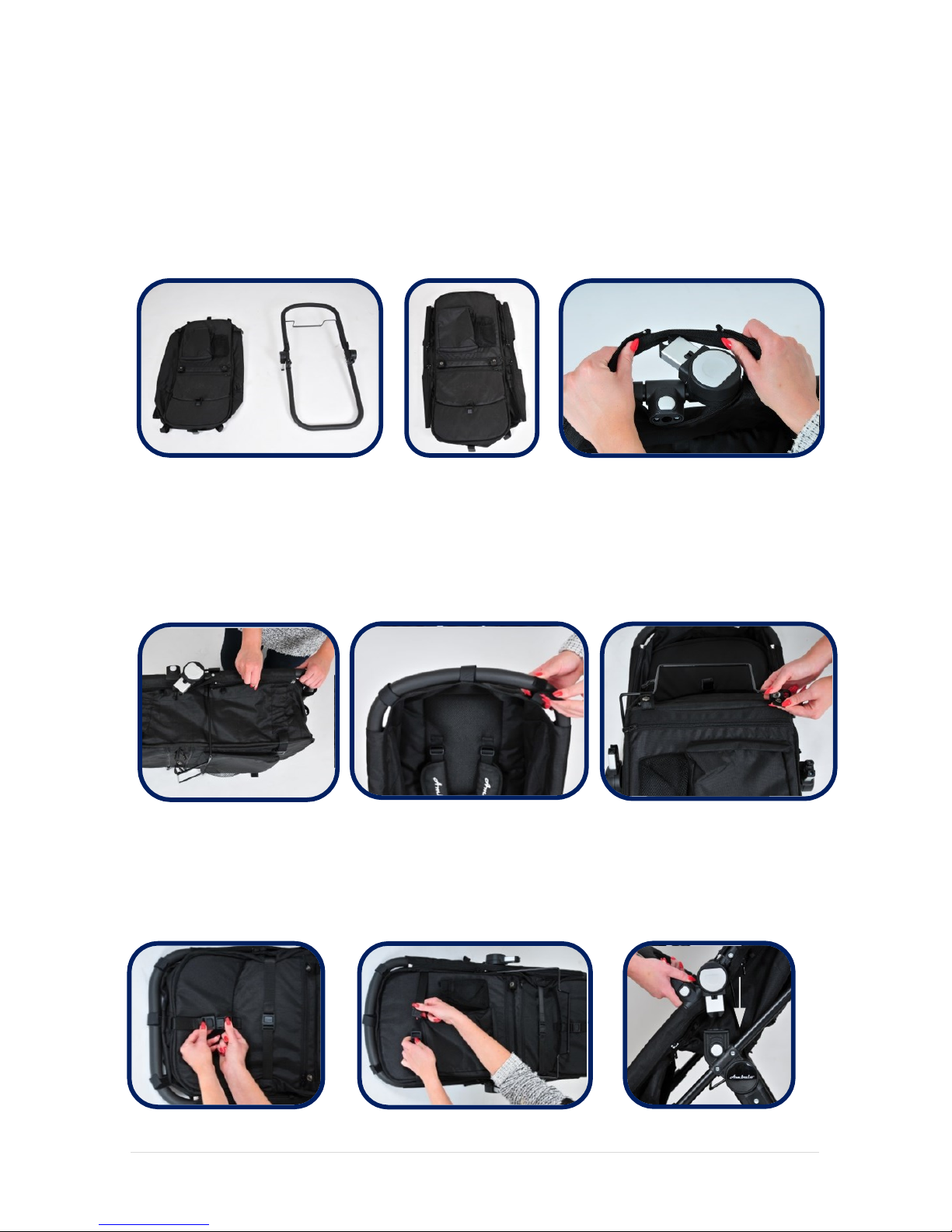

Assembling the Seat Unit
Place the frame and seat cover as illustrated below.
Unzip the zippers on each side.
Place the central adapters through the holes on the seat cover.
Close the 4 zippers
Press and secure the Velcro straps at each end.
Always secure the fasteners to the bassinet support bar.
Close the 3 clips under the bottom of the seat unit as pictured.
To fit the seat unit to the chassis: lower the central adapters into
the attachment devices and push down until it locks into position.
1
2
3

9 | P a g e
Ambulo
Assembling the Canopy

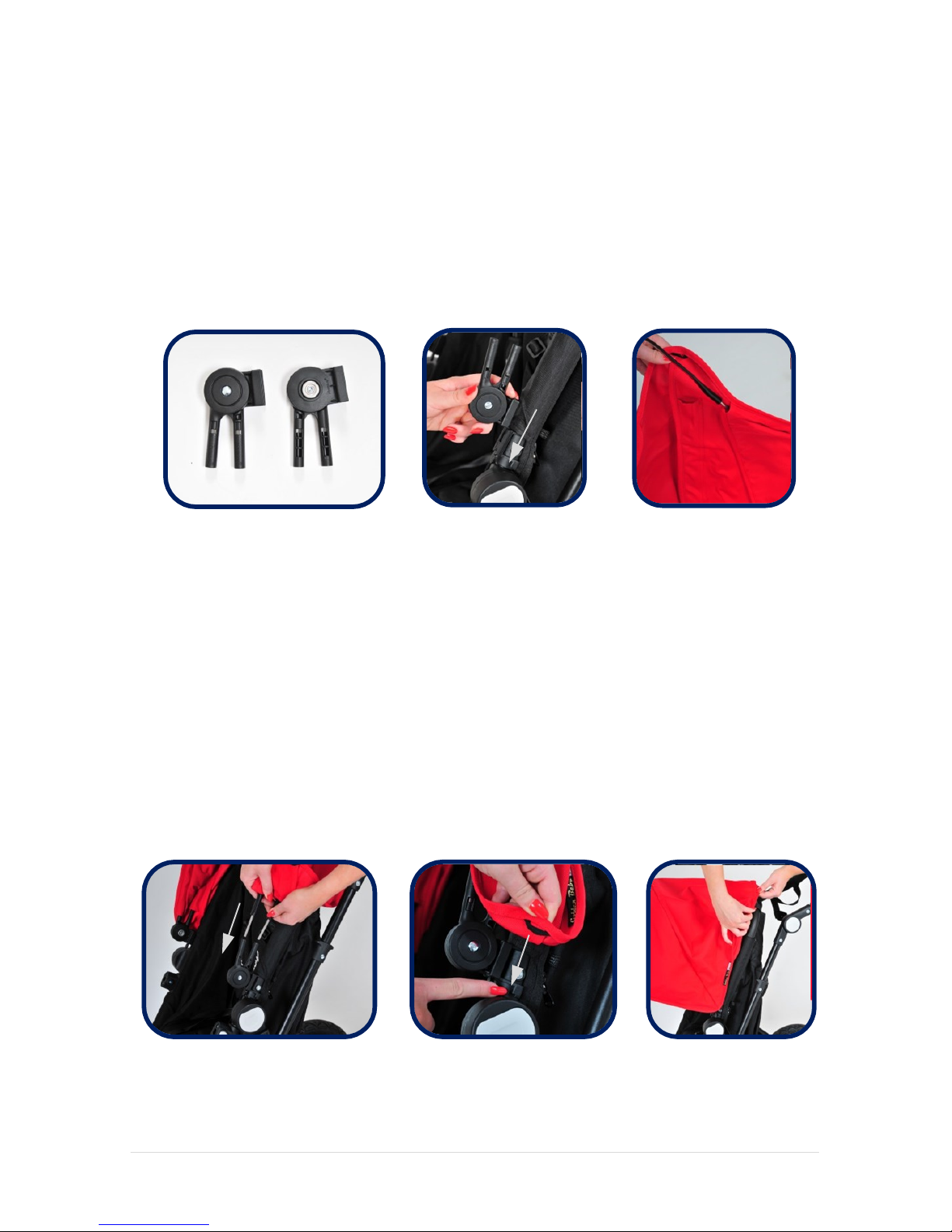

Distinguish the inner and outer sides of the canopy bases.
Install the canopy bases, as illustrated below.
Insert the 2 canopy supports bars through the canopy cover.
Insert the 2 canopy supports simultaneously to the canopy
bases.
Fix the canopy cover to the seat with the elastic loops as
illustrated.
Secure the back of the canopy cover over the top of the frame.
To avoid injury remove the two canopy bases from the stroller
when the canopy is not in use.
Outer Inner

10 | P a g e
Ambulo
Assembling the Hand Rail

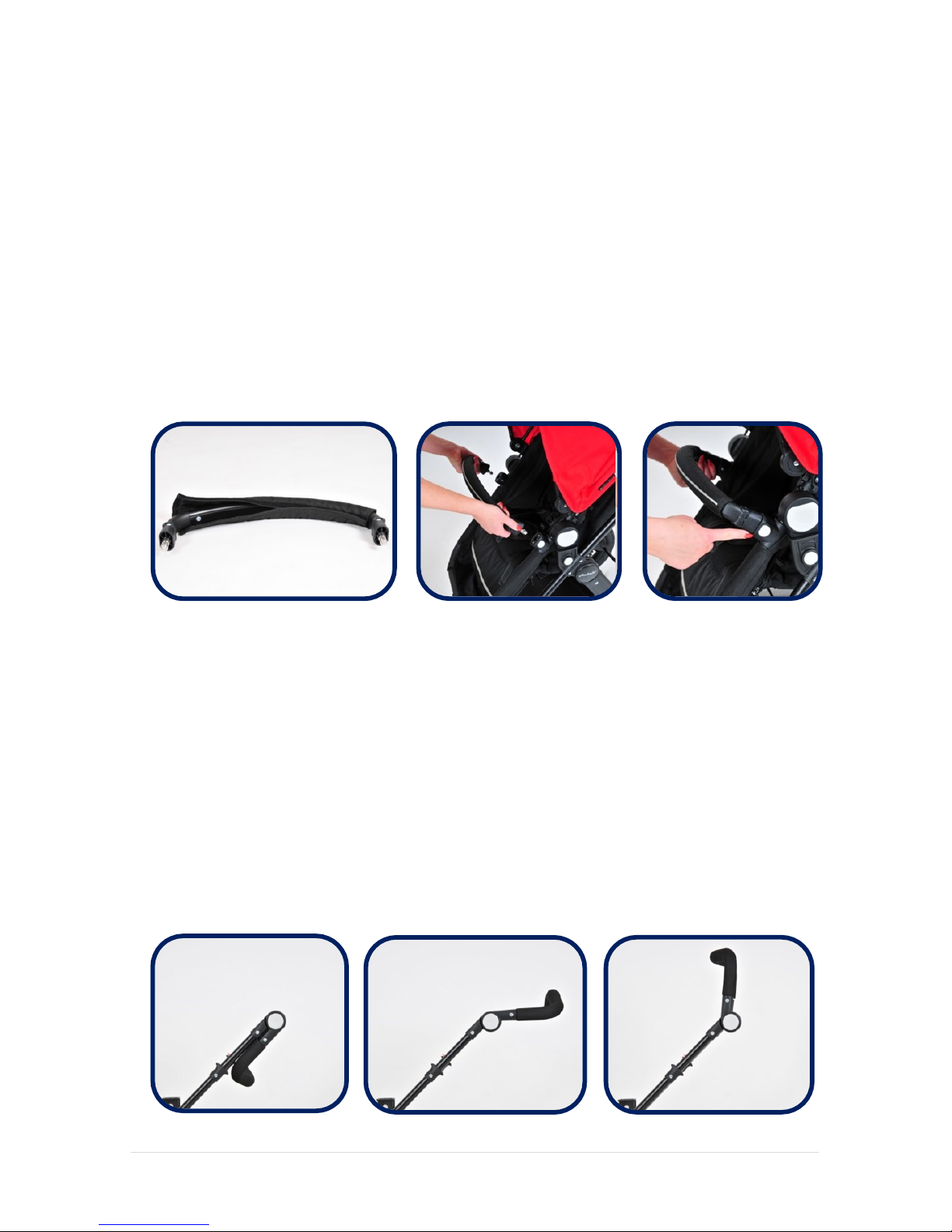

Fit the handrail cover to the handrail.
Install the handrail into the handrail posts until you hear an
audible “click”.
Pull the hand rail in the opposite direction to confirm that it has
been fitted properly.
To release the handrail press the handrail release button as
illustrated below.
Adjusting the Handle Height
The handle height is adjustable to multiple positions.
To adjust the handle height, press-in and hold in the handle
adjustment buttons on the outside of the handle.
Rotate to the desired position.
To enable the stroller to stand independently when folded, put
the handle in the parking position before folding the chassis.
Parking
Position

11 | P a g e
Ambulo
Seat Adjustment
Button
Central Adapter
Release Button

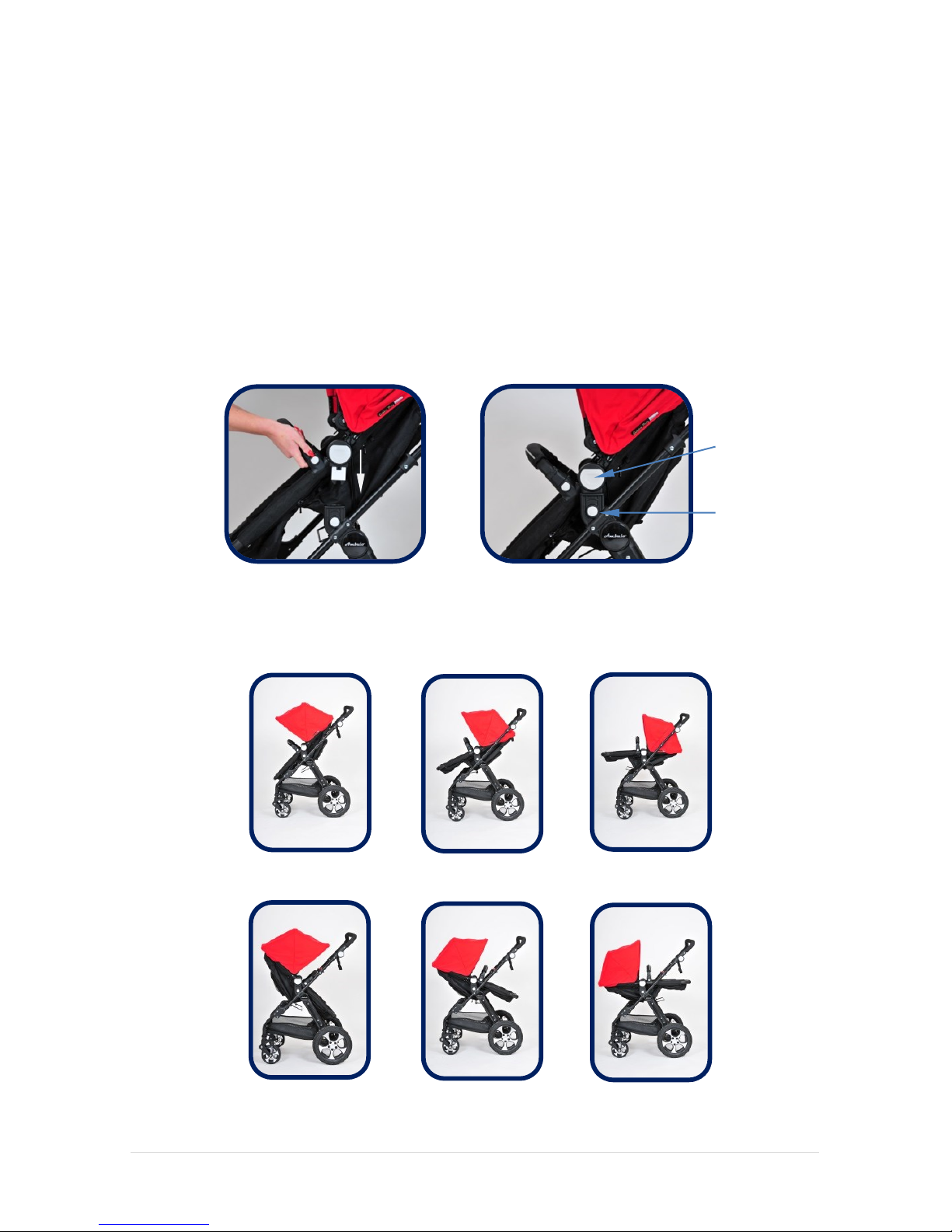

Adjusting the Seat Unit
To fit the seat unit to the chassis, lower the central adapters into
the attachment devices and push down until it locks into position.
To remove/rotate the seat unit press the central adapter release
buttons on both sides and lift the seat unit.
To avoid injury never attempt to fit or remove the seat unit while
the seat is occupied.
Depress the seat adjustment buttons to adjust the seat to the 6
different positions as illustrated below.
1
2
3
4
5
6

12 | P a g e
Ambulo

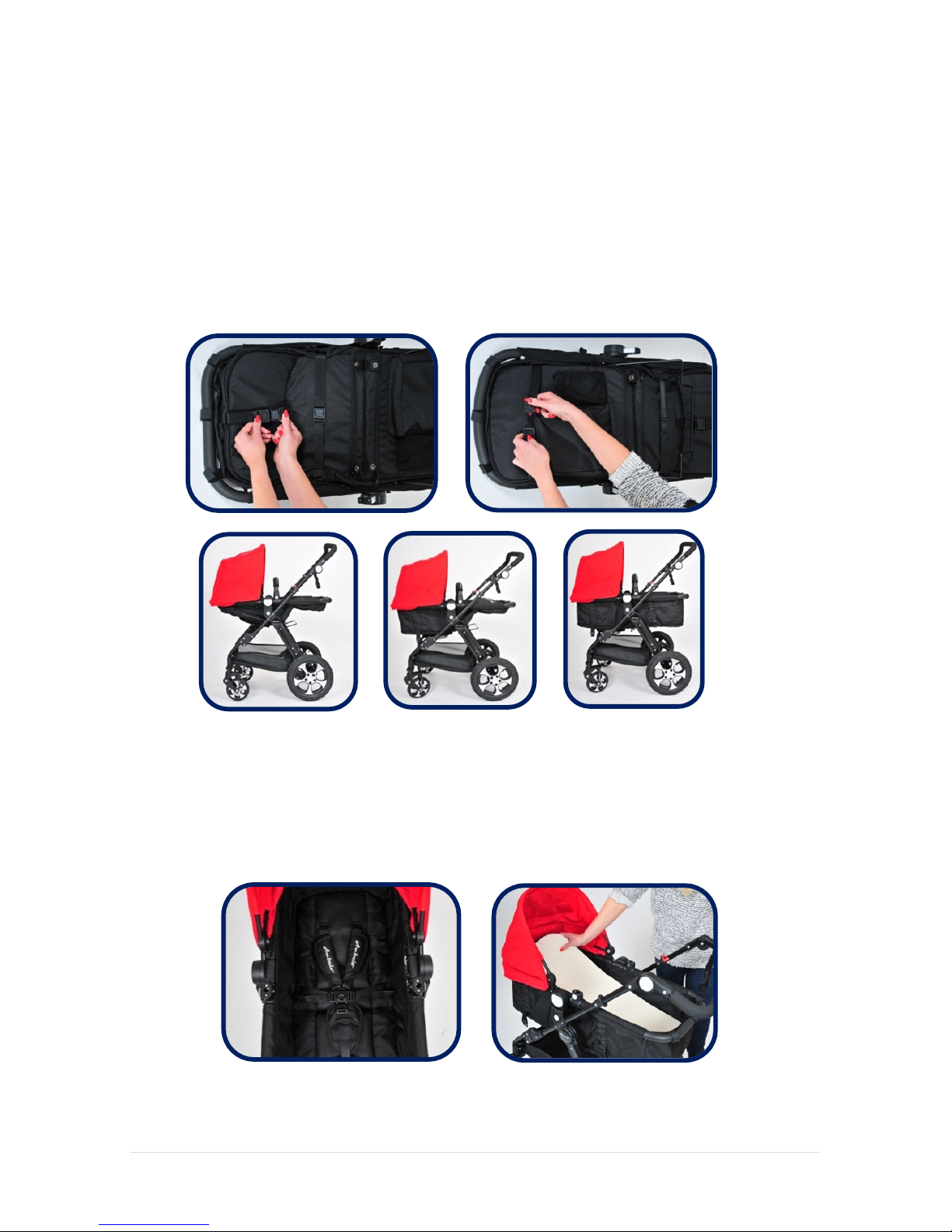

Adjusting the Bassinet
Adjust the seat unit to be in position 6.
Open the 3 clips at the back of the seat unit as illustrated below.
Never open the fasteners on the bassinet support bar.
Lay the buckles flat and insert the mattress into the bassinet.
Re-clip the 3 clips at the back of the bassinet unit to use in the
seated position.

13 | P a g e
Ambulo
Using the Safety Harness
Always apply the parking brake before placing your child in the
pram/stroller.
The safety harness has two shoulder straps, two waist belts and
a crotch strap.
Place the two shoulder straps over the child’s shoulders and the
waist belts around the child’s waist.
The crotch strap should be placed between the child’s legs.
The waist belts & shoulder straps should be clipped into the
centre buckle at the end of the crotch strap.
The harness can be adjusted to suit your child by sliding the
adjusters along the shoulder straps, waist belts and crotch strap.
Ensure that both shoulder straps are at the same level and that
both are secure.
To release the safety harness, push the button on the centre
buckle.
Always use the crotch strap in combination with the waist belts.
WARNING:- ALWAYS USE THE RISTRAIN SYSTEM

14 | P a g e
Ambulo
Folding the Stroller/Chassis
Open the red frame safety lock.
Pull both frame release locks at the same time
Ensure both hinges are fully open before folding the chassis
.
Push down on the handle bar to fold the chassis.
Secure using the parking clip as illustrated below.
For your Ambulo stroller to be self-supporting place the handle in
the parking position before folding the chassis.
To remove the wheels, slide the grey locking tabs as illustrated
below.

15 | P a g e
Ambulo

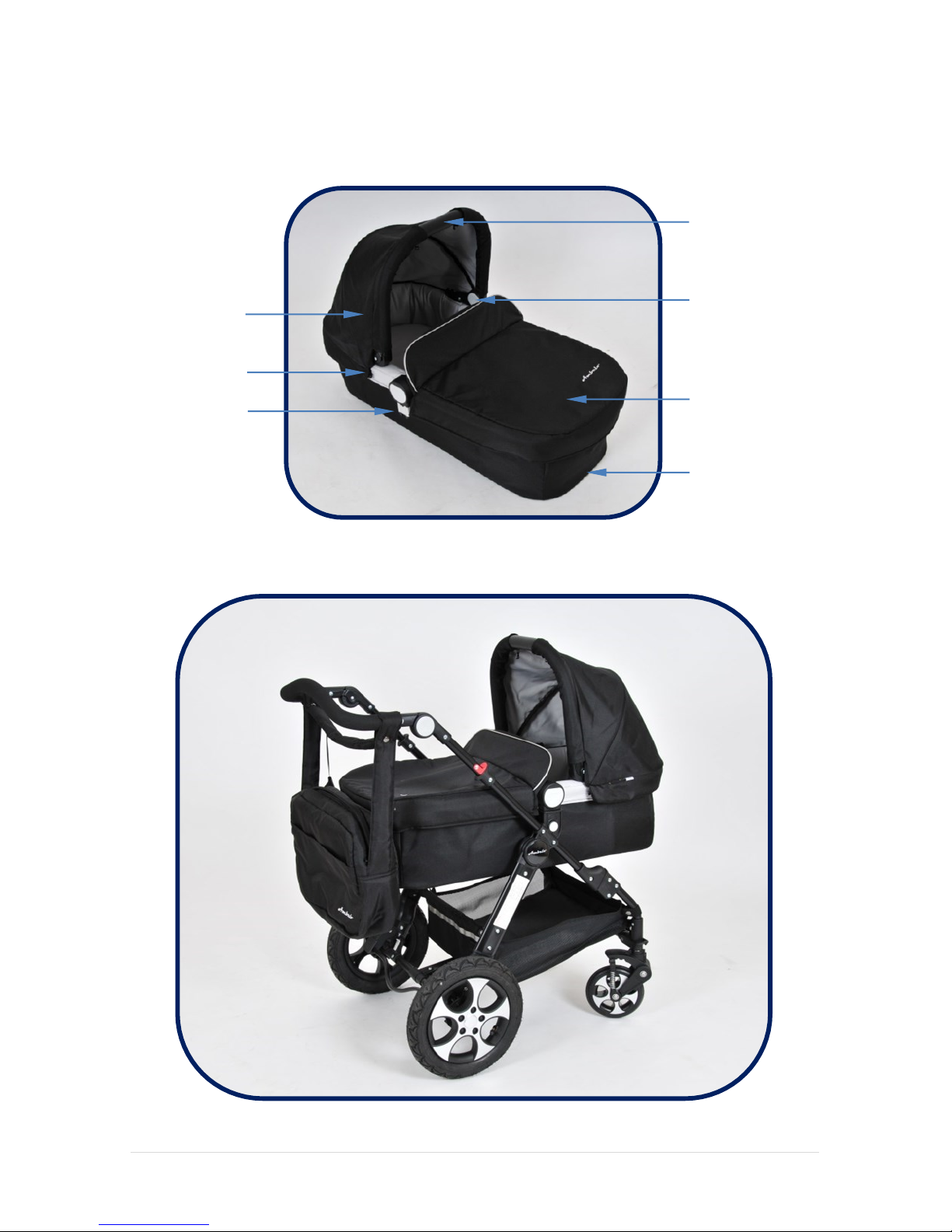

CARRY COT
Important Safety Information
Read the instructions carefully before use and keep them for
future reference.
Keep all packaging away from children and dispose of safely.
Always make sure the chassis is fully open and locked before
use.
Always use the brake when parking the stroller.
Never use this carry cot on a stand.
Do not let other children play unattended near the carry cot.
Do not use if any part is broken, torn or missing.
Do not overload the pocket at the front of the carry cot. Total
maximum load is 1kg.
Never allow children to climb into the carry cot unassisted, the
carry cot may tip over and injure your child.
Never place parcels, bags or accessories on the handle or
canopy.
Always keep the child away from moving parts when being
erected for use or folded or during adjustments made by the
carer.
This product is only suitable for one child who cannot sit up
unaided, roll over and cannot push itself up on its hands and
knees. Maximum weight of the child : 9 kg

16 | P a g e
Ambulo
Carry Handle
Hood
Hood adjustment button
Apron
Base
Toggle
Central adapter
Primary Features

17 | P a g e
Ambulo
Assembling the Carry Cot
Pull back the inner lining of the carry cot.
Slide the nylon strap to the corner of the bracing bar.
Pull the nylon strap towards the baseboard clip until the bracing
bar is securely fixed and repeat on the remaining corners.
Put the inner lining back over the cot frame.
Secure the inner lining using the Velcro tension straps.
Put the apron over the front of the carry cot and secure using the
Velcro tabs.

18 | P a g e
Ambulo
Fitting the Carry Cot
Remove the seat unit from the chassis before fitting the carry cot.
To fit the carry cot to the chassis: lower the central adapters into
the chassis attachment devices and push down until it locks into
position.
2.8
Operating the Carry Cot Hood
Push the hood adjustment buttons on both sides and rotate the
canopy to one of the 5 desired positions. WARNING Always keep
the child away from moving parts when being erected for use or folded
or during adjustments made by the carer.
Removing the Carry Cot
To remove the carry cot press the central adapter release buttons
on both sides and lift away.

19 | P a g e
Ambulo
CAR SEAT
Fitting the Car Seat to the Chassis
The car seat cannot be attached to the chassis until the seat unit
or the carry cot has been removed.
Insert the car seat adaptors into the Ambulo chassis attachment
device. While in front of the chassis locate the adaptor marked
“R” on the right and “L” on the left.
Hold the car seat by the carry handle and lower into the car seat
adaptors.
Push the car seat down firmly until the car seat clicks and locks
into position.
Check that the car seat is secure and locked by pulling up on the
car seat.

20 | P a g e
Ambulo
Removing the Car Seat
To remove the car seat from the chassis press down on the 2
buttons on the sides of the car seat (not the handle adjustment
buttons used to operate the handle recline) and lift the car seat
away from the chassis.
To remove adapters press the central adapter release buttons on
both sides and lift away.
Car Seat Options
The Ambulo multi adaptors can be combined with car seats from
other leading brands. For details see the table below.
