Golden Motor e-Throne User manual

Golden Motor e-Throne Folding Wheelchairs
Brushless Electric Wheelchairs
e-Throne
User's Guide
Golden Motor Technology Co.,Ltd
August 28th,2015

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
2
PRECAUTIONS
Thank you for buying e-Throne folding wheelchair from Golden Motor technology co., ltd. We
sincerely hope that it could bring you a convenient life and spiritual enjoyment. Please read the
instructions before using the wheelchair in order to operate and maintain properly.Golden Motor
assumes no responsibility for personal injury or property damage sustained by or through the use
of this product.

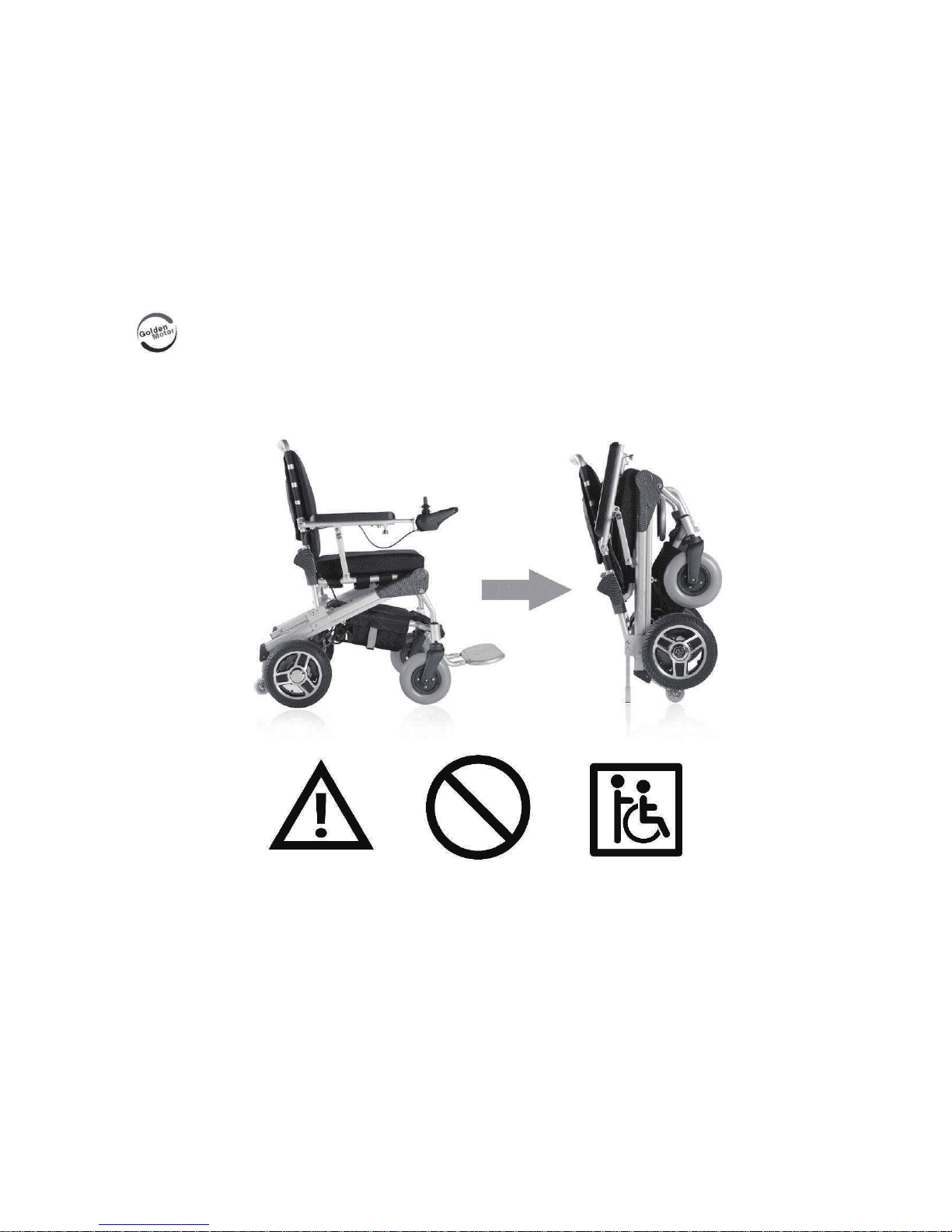

Please pay attention to the following content with these warning symbols.Failure to take
precautions could result in serious injuries.
It can also damage or decrease the life of expectancy of the e-Throne folding wheelchair.
Applicable people: Disabled / Handicapped people; Elderly people
Weight: Less than 130kg
Only 1 people
Wheelchair class hierarchy: B, applicable to EN 12184.

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
3

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
4
TABLE OF CONTENTS
1. E-Throne (8’’ ,10’’，12’’ ) Components ………………………………………………………….… 5
2. Safety Guide …………………………………………………………………………………….… 7
3. Wheelchair Folding Method ……………………………………………………………………...15
4. Charging Instructions ..……………………………………………………………………………18
5. Driving & Operation Method ……………………………………………………………………..18
6. Manual Operation ……………………………………………………………………….……….. 22
7. Transport & Storage ……………………………………………………………………………... 23
8. Maintenance and Testing ……………………………………………………………………….. 24
9. Trouble Shooting …………………………………………………………………………………. 25
10. Technical Parameters ………………………………………………………………………….. 27
11. e-Throne Folding Wheelchair Wiring Diagram ………………………………………………. 30
12. After-sales Service ……………………………………………………………………..……….. 31

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
5
1

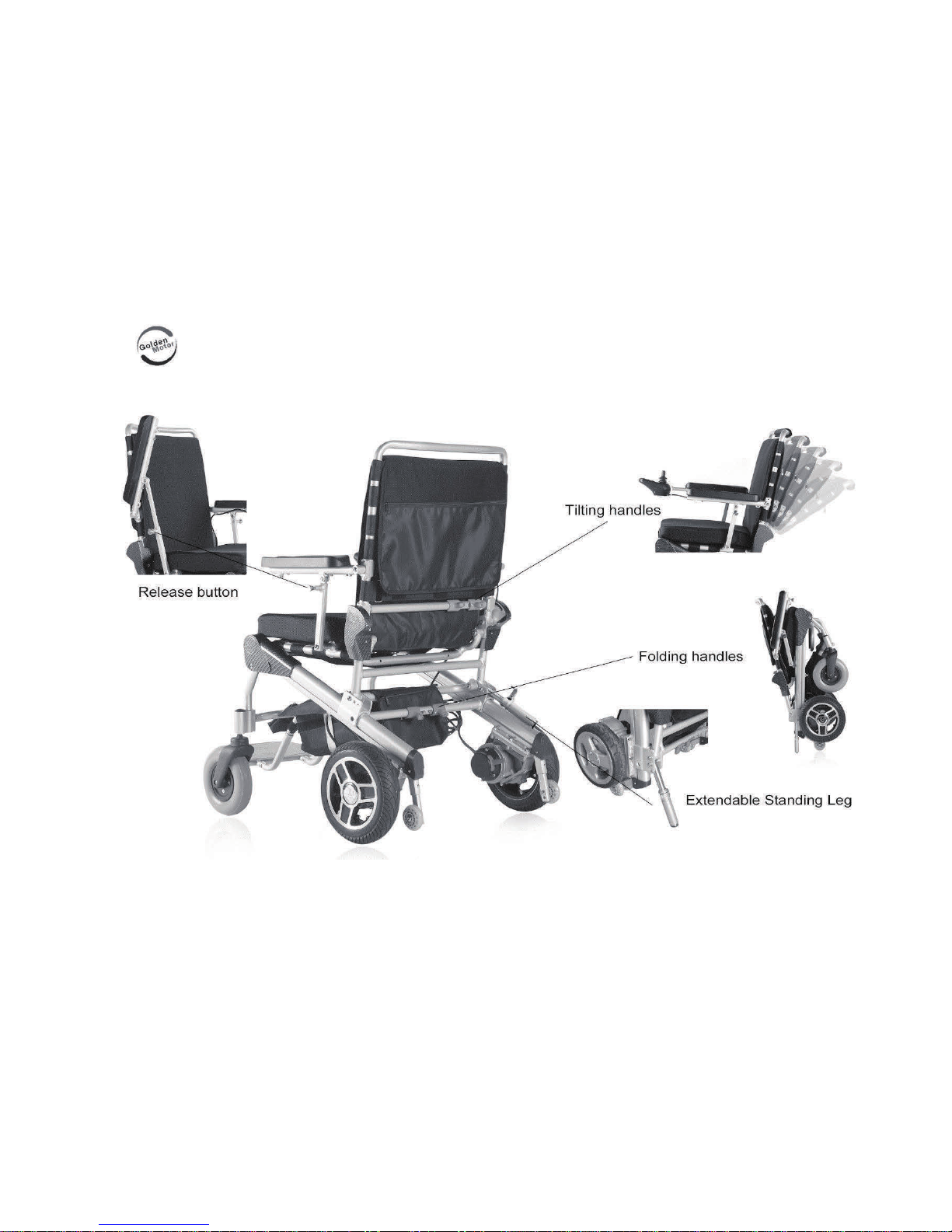

1.E-Throne (8’’,10’’,12’’) Components

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
6

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
7
Turn: lightly push
joystick left or right to
turn left or right.
Meanwhile, the user
needs to pay attention
to left and right
direction situation to
avoid collision..

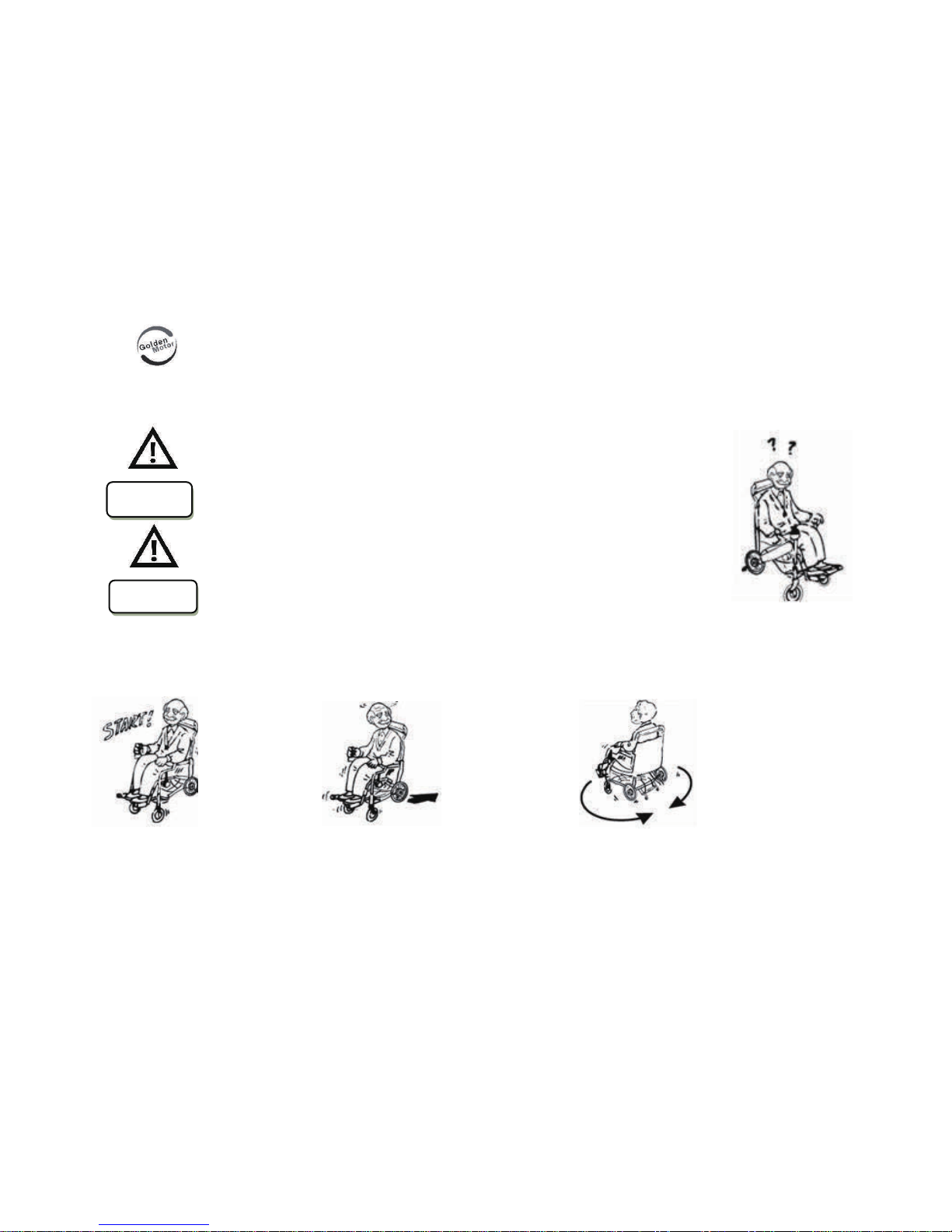

2.Safety Guide
Warning
The user must be of sound mind and judgment. They must be
conscious and have unimpaired motor functions in their hand to use
the controller.
The user must read this user’s guide before operating the chair and
get familiar with its components and features.
The user should practice driving skills with assistance on open, flat,
and safe grounds before normal use.
Note
Backward: lightly
push back joystick.
Meanwhile, the
user needs to pay
attention to back
situation to avoid
collision.
●Forward / Parking ●Backward ●Turning
Forward:lightly
push joystick
forward.
Parking: to
stop,release
joystick

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
8
●Bend Driving ●Barrier Avoiding Practice ●Fast Driving
Lightly push
joystick direction
according to
curve direction
and practice
speed control
accordingly.
Lightly push the
joystick in either
directions to avoid
and maneuver
around the
obstacle/s, practice
speed control.
Push the joystick all
the way in the
direction you want
to go. Pull the
joystick back to the
middle if you do not
feel you are not
100% in control.
●Across Stairs ●Uphill Driving ●Enter & Exit Elevator



Slowly driving
cross the stair.
The step should
not higher than
3cm.
Keep your body
tilted forward to
keep the center of
gravity stable. Drive
slowly. We
recommend the
slope be less than 8
degrees for optimal
performance.
The user should
pay attention to
elevator door open
and close interval
to avoid a collision
while enter or exit
the elevator.

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
9
●Sidewalk Driving ●Crossing Crosswalk
The user should stay on
the sidewalk and avoid
entering the motor vehicle
lane unless to cross the
street. Pay attention to
obstacles and avoid
contact with them.
Pay attention to avoid cars
and only cross when you
are allowed to. Must drive
slowly over the curb, to get
back on the sidewalk,
which should not be more
than 3cm high.
Warning
Driving over train/railroad tracks
We highly recommend you do not cross railroad/train tracks alone in the
e-Throne. You should be accompanied by an assistant, friend, or loved one.
Attempting to cross tracks that are elevated too high (more than 3cm) could
result in a rollover or accident. It could endanger the personal safety of the user.
Nursing

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
10
●Driving over too high of a curb/ step (more than 3cm) could result in rollover.
●Driving on too steep of an incline could also result in a rollover.
●We recommend that the user has assistance getting out and into the chair.
●Move the arm rests and foot rest out of the way before entering and exiting
the chair.
Driving over a high curb/step or steep incline.
Warning
Getting into and out of a bed/chair/couches
Nursing
Warning
●Make sure the electromagnetic brake is closed before driving downhill.
Otherwise it may lead to personal injury. Check the image to the right to see
how the brake should appear closed.
Warning
Driving downhill

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
11

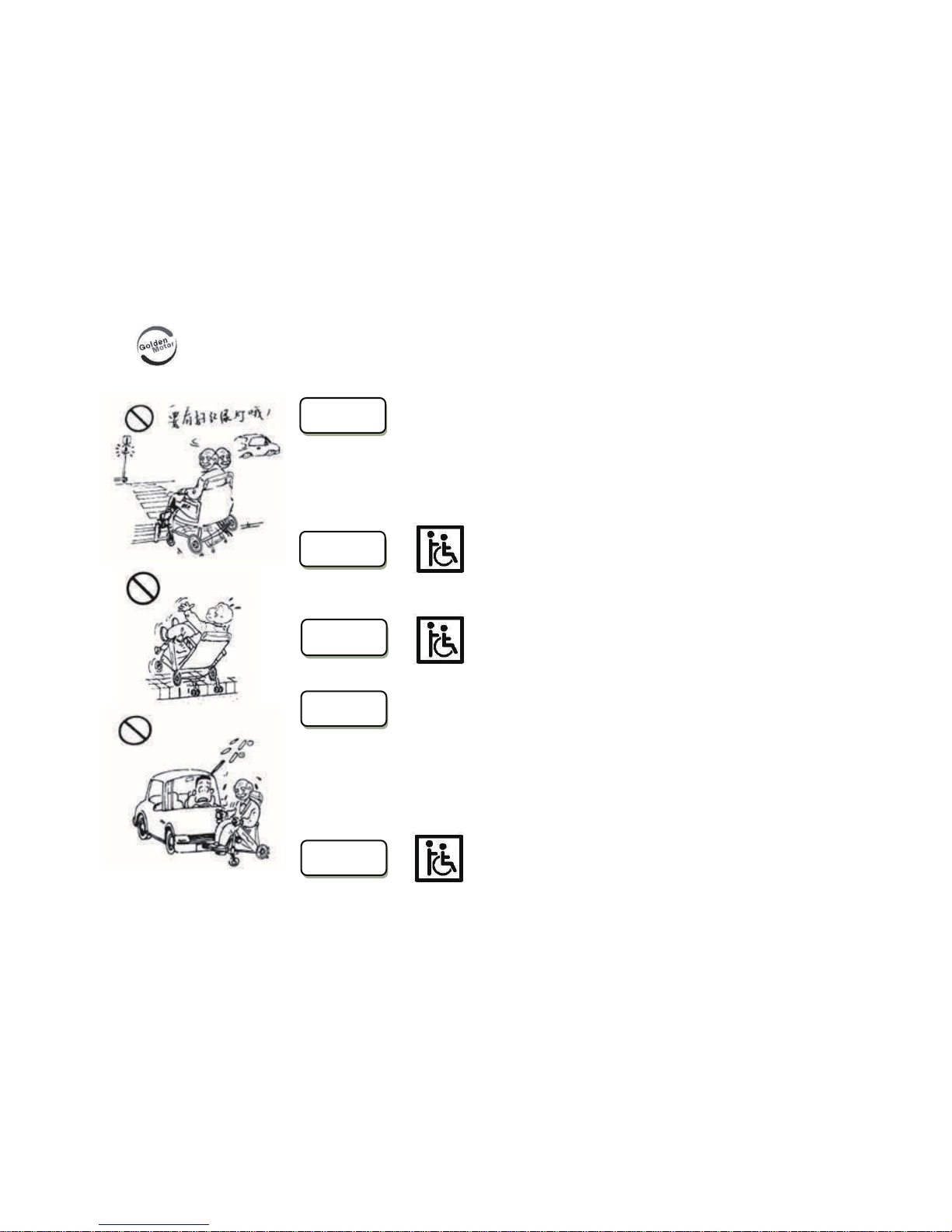

●Make sure your chair has sufficient power before crossing the street.
Stopping suddenly because of power loss in the middle of the street can
cause personal injury or even death.
●Nursing person should be accompanied while the user is crossing the road.
●Pay attention to traffic light switching time when crossing the road.
Otherwise, it may lead to endangering personal safety.
●Nursing person should be accompanied while the user is crossing the road.
Nursing
Warning
Crossing the Road
Nursing
Warning
Driving through the crosswalk
Nursing

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
12
●Don’t lift battery case when moving or handing the passenger and
wheelchair. Otherwise, it may cause the product damage and even
endanger personal safety
●Must carry the frame to move.
Self repair of the E-Throne
Ban
●DO NOT attempt to repair the product on your own. It may cause
permanent damage to the chair and could put yourself at risk of injury or
death.
●The product should be repaired by a professional repair shop or
maintenance service personnel.
●Use the seat belt anytime when using the E-Throne.
Seat Belt
Ban
Moving someone in the chair
Ban

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
13
Washing the E-Throne
Ban
●DO NOT hose down (Spray) the chair with water or any liquids. It will
cause damage to the chair and could also harm or endanger your
personal safety.
●Wipe down with a damp cloth.
●The seat cushion could also be removed to be washed separately
●DO NOT leave the battery or electrical components of the chair in a car
that is baking (heating up) in the sun. It will cause permanent dam-age.
●Keep the battery away from fire and heat sources.
Battery handling and care 1
Battery handling and care 2
DO NOT allow children access to the battery or electrical components to the chair.
●DO NOT allow children access to the battery or electrical components to
the chair.
●Store the battery in a cool, dry area that children do not have access to.

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
14
Battery handling and care 3
●DO NOT place any items over or on the charger while it is charging.
●If the battery becomes hot, deformed, or emits an odor while
charging,stop the charging immediately.
●DO NOT store the battery in direct sunlight. Again, it should be stored in a dry,
cool, and ventilated area that children don’t have access to.
●DO NOT store in a severe cold environment. It will damage and decrease the
life of the battery.
Battery handling and care 4
●Fully charge the battery in case of long term storage. The battery has
discharge characteristics and must be charged once every three months or
it could lead to over discharge damage.
●The Lithium Battery is recyclable. Please discard responsibly through a
recycling option.
Battery handling and care 5

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
15
3. Wheelchair Folding Method
1.fold the foot pedal
2.pull out the Joystick controller and put it in the wheelchair
3.Tighten up the folding handles and let them move toward each other
then wheelchair will be
folded in one second
so easy !
Note:when you folding ,do not put your one hand in the wheelchair to avoid hands clipped.

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
16

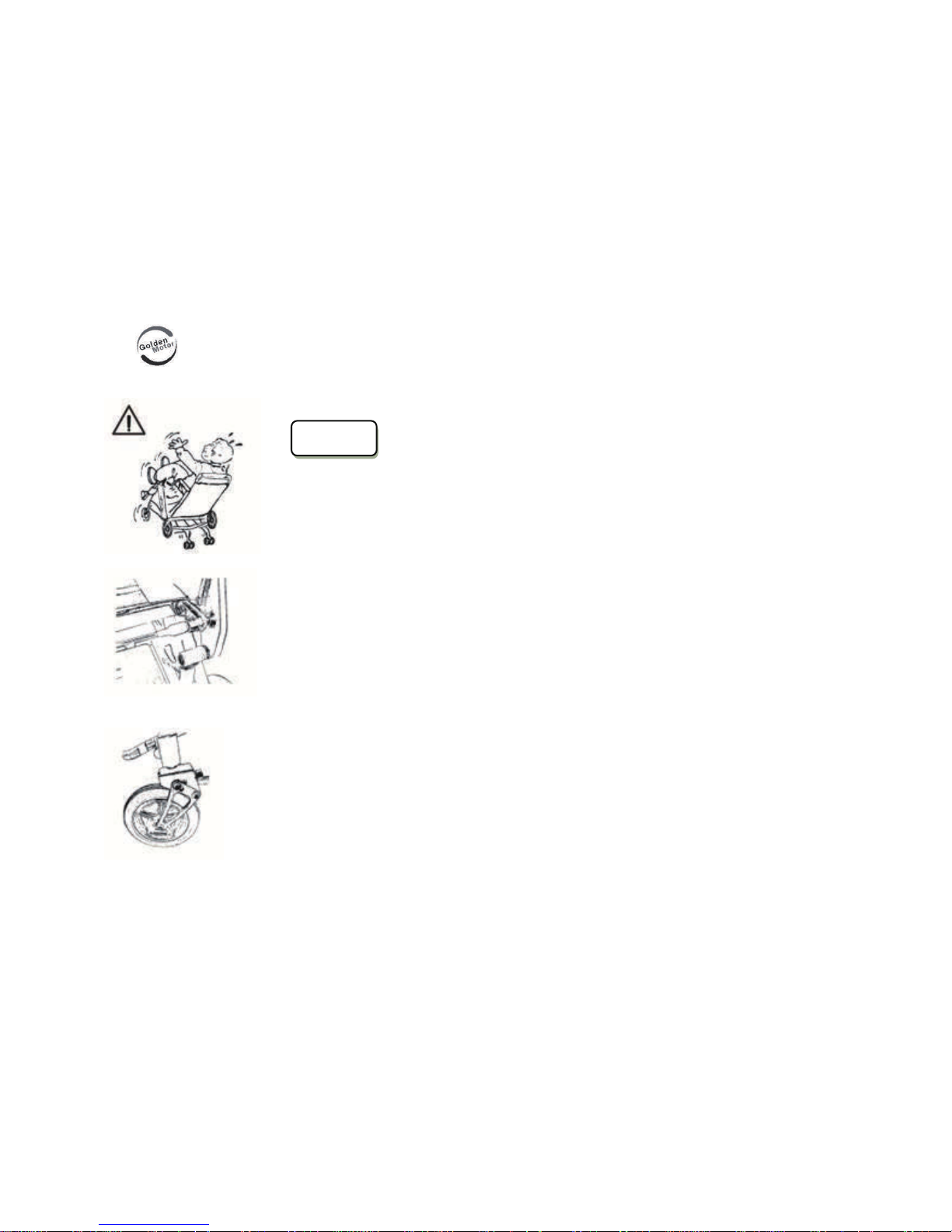

If the E-Throne is not locked in the open position, it can collapse when attempting
to sit on the chair. This can cause damage to the chair and also the user.
Warning
Check the locking device (shown in the image to the left) to make sure the chair is
opened all the way and locked into position.
If the front wheel is not in the proper position (shown in the image to the left) the
chair will not fold tightly and could cause damage. Make sure the front wheels are
in the correct position before closing.

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
17

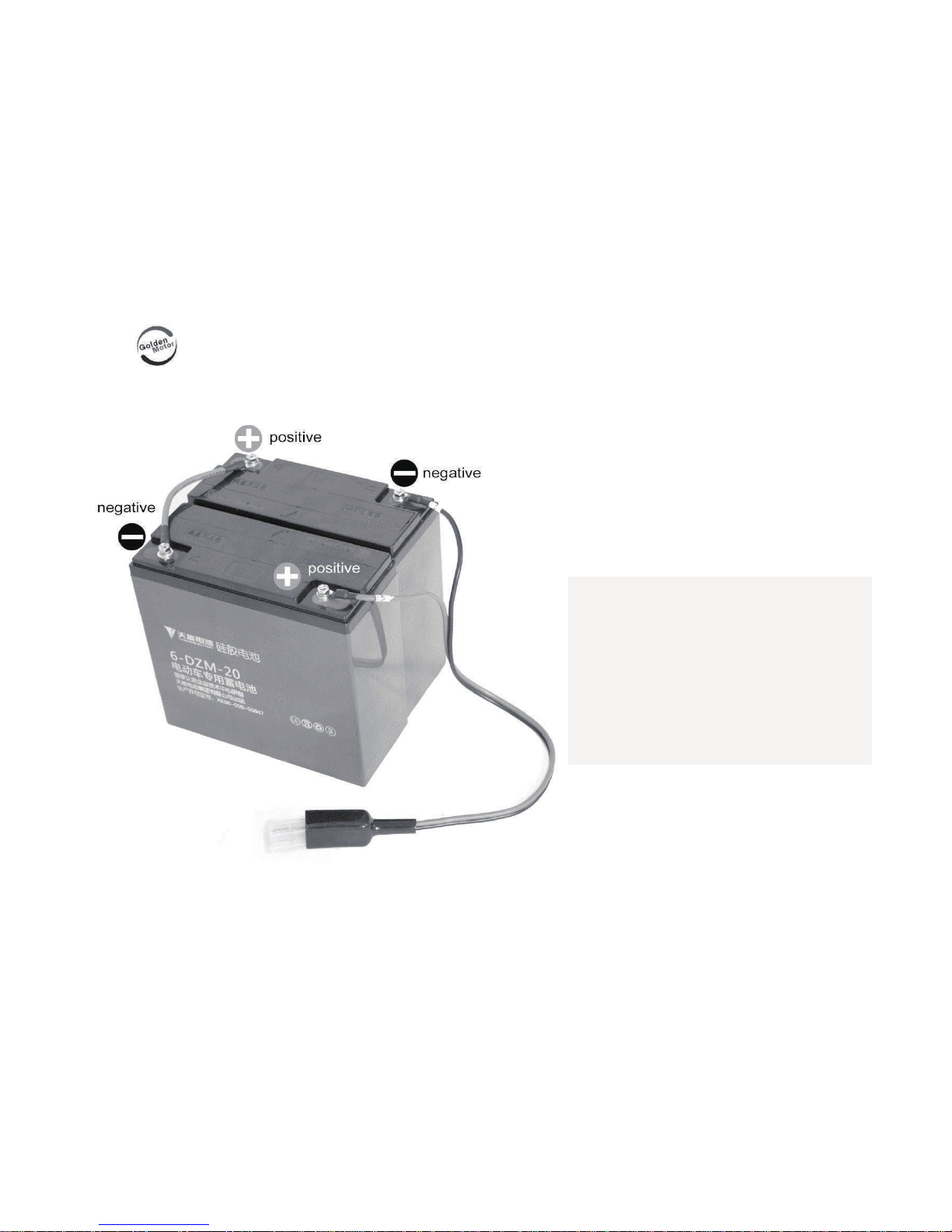

Lead acid battery wiring
diagram
(in case you buy and
install such SLA battery
and charger yourself)
Lead acid battery wiring diagram :
Bear in mind that when you connect,
you should connect "+" to "+"
and "-"to "-",otherwise you will
damage the battery and possible cause
fire.

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
18

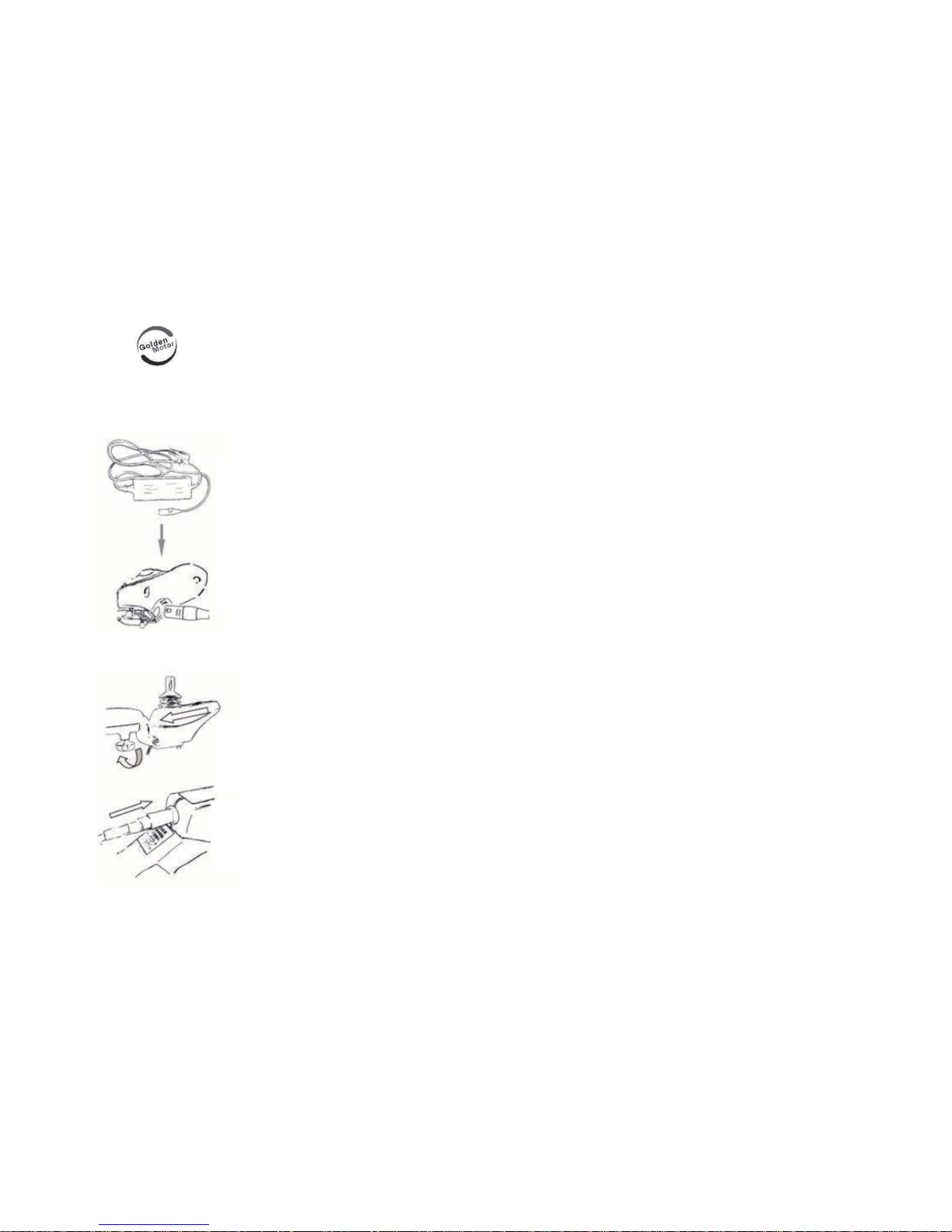

●Please use the Lithium battery charger supplied by Golden motor.
●Insert the charger into the joystick socket, while being mindful of the plug orientation.
●Insert the charger into an electrical outlet, which will cause the charging light to turn on
●Red Indicator light means the battery is charging
●Green Indicator light means the battery is fully charged.
Install the Joystick
Controller
Charging Steps & Instruction
●Insert the controller joystick into the armrest tube and tighten the knob to fix it in
position
●Plug the four prong side into the battery socket. Keep in mind the orientation of
the plug and socket so they are aligned properly.
5. Driving&Operation Method
4. Charging Instructions

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
19

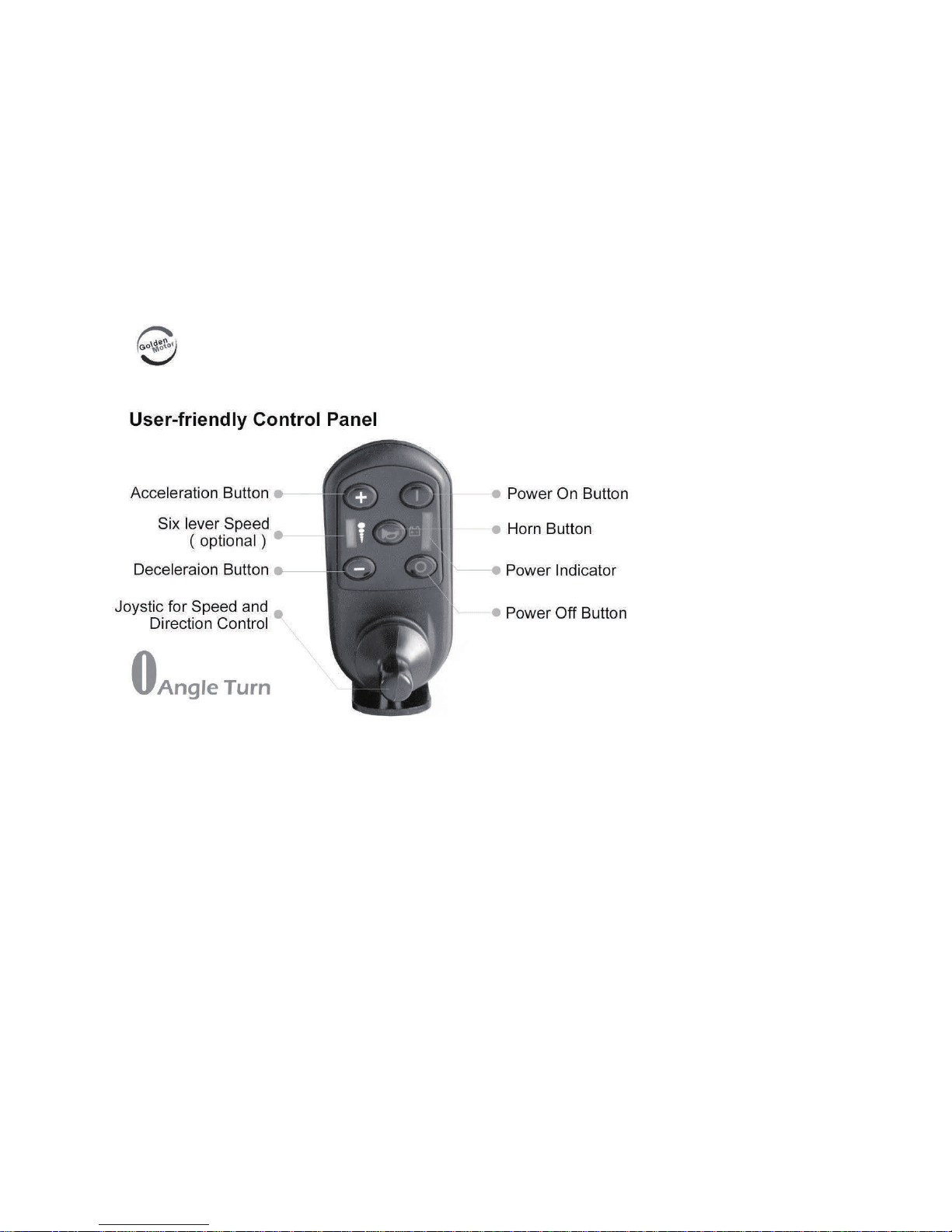

Joystick Function Keys
●Joystick: control chair
direction and speed.
●Power on: press to turn on
the power
●Power off: press to turn off
the power
●Power display: There are
red, yellow and green three
colours LED lights. All light
means battery is full.
●Speaker: horn sounded when press the button, mute when loose the button.
●Accelerate Max. Speed: press to adjust speed.
●Decelerate Max. Speed: press to adjust speed.
●Speed display: All lights on means max. speed. Meanwhile, it also has fault display function

e-Throne Folding Wheelchair User's Guide Originality、Innovation、Creation
—————————————————————————————————————————————
20
Fault Display
●Indicator light 1: If the red light flashes it means the battery is low
●Indicator light 2: If the red light flashes it means joystick has no communication signal
●Indicator light 3: If the red light flashes it means the battery is charging
●Indicator light 4: If the red light flashes it red light flashes it means the motor is not
connected.
●Indicator light 5: If the red light flashes it red light flashes it means the Electromagnetic
brake is not connected
●**Refer to the “Troubleshooting” page for any other problems not covered here.

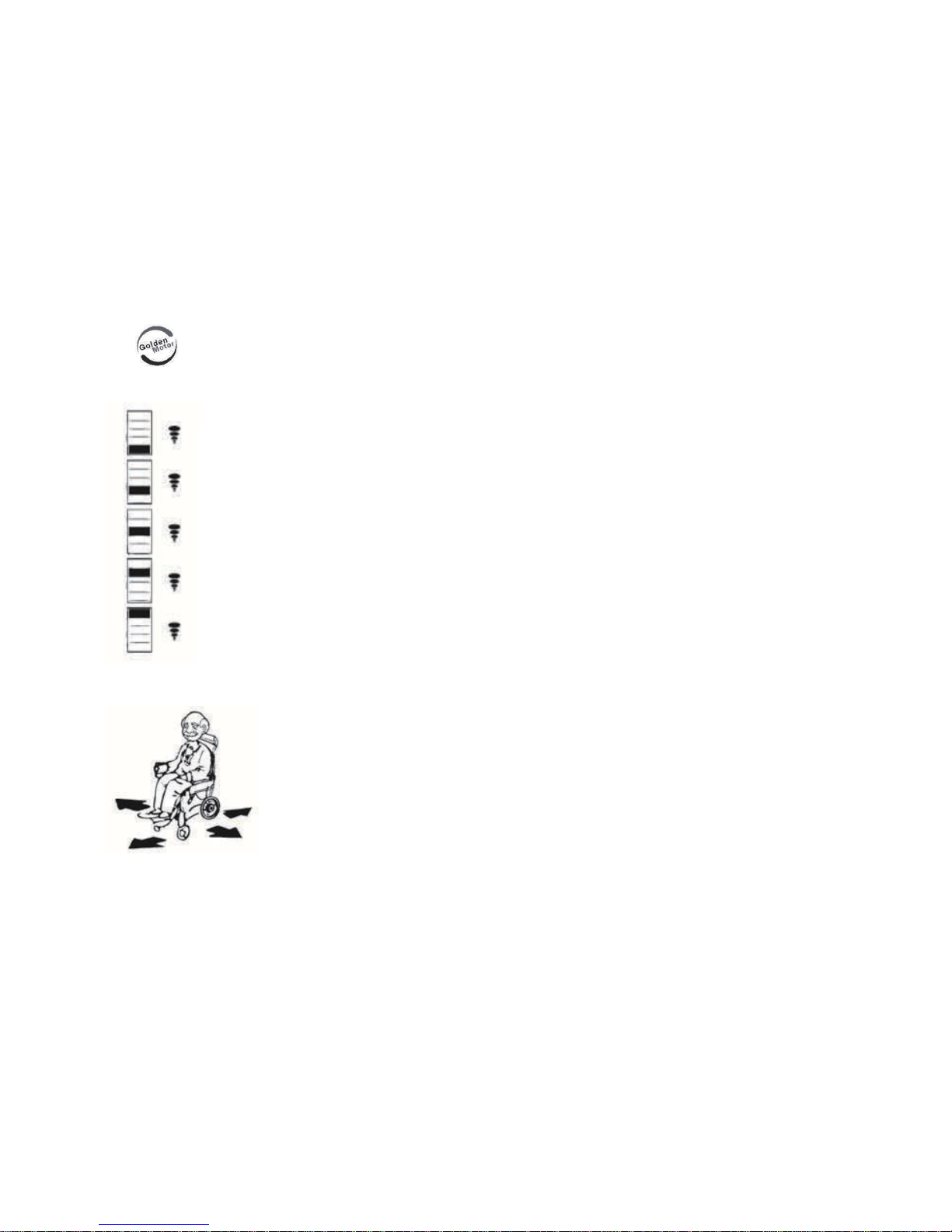

Master Wheelchair Driving Operation Method
After the user is seated in the chair, turn on the power and push joystick.
●Pushing the joystick forward to go forward.
●Pulling joystick back to go back.
●Pushing joystick left to turn left.
●Pushing joystick right to turn right.
