Golden Motor PW-8F20 User manual

Golden Motor Technology Co.,Ltd
March 27th,2013
Brushless Electric Wheelchair
Brushless Electric Wheelchair
PW-8F20
User's Guide
Version1.2

Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
Control of Documents
TIME ACTION EDITOR EXAMINE AND REVISE VERSION
2013.3.27 Draft Carmen Gao

Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
PRECAUTIONS
Thank you for buying product from Golden Motor technology co., ltd. We sincerely hope that it could
bring you a convenient life and spiritual enjoyment. Please read the instructions before using the chair in
order to operate and maintain properly..Golden Motor assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
Please pay attention to the followings:
Warning
Note
Ban
Nursing
The content with warning or warning signs in manual will lead to
personal injury, accident or death if the user does not use as described.
The content with note or note signs in manual will lead to personal
injury or accident if the user does not use as described..
The content with ban or ban signs in manual will lead to personal
injury or accident if the user does not use as described.
The content with nursing or nursing signs in manual will lead to
personal injury or accident if the user does not have nurses accompany.
Main Point
The content with main point in manual icon prompts the user it is
important to grasp correct use method. Otherwise, it may result in product
damage or shorten product life.

TABLE OF CONTENTS
1 Product Structure 1
2 Safety note 2
3 Wheelchair Open&Folding Method 8
4 Charging Instructions 9
5 Driving&Operation Method 11
6 Electric&Hand Push Range 14
7 Transport&Storage 14
8 Maintenance and Test 15
9 Trouble Shooting 16
10 Technical Paramters 17
11 PW-8F20 Power Chair Wiring Diagram 18
12 After-sales Service 18

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
1
1 Product Structure
Lithium battery
Foot rest
Armrest
Backrest cover
Backrest side
Seat Cushion
Suspension front caster
Joystick fixed knob
Controller Joystick
Gas Spring
Anti-tip wheel
Control host
Fender
Driving rear wheel

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
2
2 Safety note
Warning
The user must be conscious and have judge and control ability.
The user must read the manual before using the product.
Note
The user must understand the product features and
repeated practice on open, flat and safe ground to
manage the driving skills before normal use.
The user must practice with nursing.
●Forward / Parking ●Backward /Retreat ●Turn
Forward:lightly push joystick
forward.
Parking: release joystick
Backward: lightly push back
joystick. Meanwhile, the user needs
to pay attention to back situation to
avoid collision.
Turn: lightly push joystick left or
right to turn left or right.
Meanwhile, the user needs to pay
attention to left and right direction
situation to avoid collision..
●Bend Driving ●Barrier Avoiding Practice ●Fast Driving
Lightly push joystick direction
according to curve direction and
practice speed control
accordingly.
Lightly push joystick to avoid
barrier and practice speed control
accordingly.
Lightly push joystick straight along.
Meanwhile, keep vigilant and pay
attention to the front to avoid collision.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
3
Nursing
Prohibiting cross the railway line by user only. Crossing too high step may
lead to a rollover accident and endangering personal safety.
Nursing person should be accompanied while the user is crossing the
railway line.
●Across Stairs ●Uphill Driving ●Enter & Exit Elevator
Slowly driving cross the stair. The
step should not higher than 3cm.
The body should be tilt forward to
keep the center of gravity forward
and drive slowly. The slope should
be less than 8˚.
The user should pay attention to
elevator door open and close interval
to avoid a collision while enter or exit
the elevator.
●Sidewalk Driving ●Crossing Crosswalk
Driving on sidewalk outside, do not
enter motor vehicle lane.
Driving through road on crosswalk. Meanwhile,
pay attention to the step on sidewalk.
Warning

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
4
Warning
Nursing
Driving on too steep slope may lead to a rollover accident and endangering
personal safety.
Nursing person should be accompanied while the user is driving on slope.
Driving through too high step may lead to a rollover accident and
endangering personal safety.
Nursing person should be accompanied while the user is crossing the step.
Nursing
Improper operation when the user goes to or gets out the bed may lead to
slip accident and endangering personal safety.
Nursing person should be accompanied while the user is going to or getting
out the bed.
Warning
Nursing
Warning

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
5
If the electromagnetic brake is not close, driving downhill will lead to slip
accident and endangering personal safety.
The electromagnetic brake must be closed.
Warning
Pay attention to traffic light switching time when crossing the road. Otherwise, it
may lead to endangering personal safety.
Nursing person should be accompanied while the user is crossing the road.
Warning
Nursing
Power chair may be out of power when crossing the road or on vehicle lane. It
may lead to endangering personal safety.
Nursing person should be accompanied while the user is crossing the road.
Warning
Nursing
Ban
The user is prohibited to try to repair the product by yourself, it may cause the
product permanent damage and even endanger personal safety
The product should be repaired by a professional repair shop or maintenance
service personnel.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
6
The user is prohibited to try to repair the product by yourself, it may cause
the product permanent damage and even endanger personal safety
The product should be repaired by a professional repair shop or maintenance
service personnel.
Ban
Don’t lift battery case when moving or handing the passenger and wheelchair.
Otherwise, it may cause the product damage and even endanger personal
safety
Directly flushing power chair will cause the product damage and even
endanger personal safety.
Wipe with damp cloth when necessary.
Ban
Ban

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
7
Battery is prohibited to dismantling or violent impact, otherwise, it may cause battery
burn and even fire.
Battery is prohibited to use in heat or severe cold environment, otherwise, it will reduce
battery performance and even damage.
Battery is prohibited to put into sun baked sealed car, it may cause the battery burst
burning
If battery become hot, deformation, odor during using or charging, it should be
immediately stopped using or charging. Otherwise, it may cause damage or a fire
hazard.
If battery has leakage, it should be away from open flame and heat source. Otherwise, it
may cause a fire or explosion.
Avoiding children to play with battery, the battery should be stored in the place where
children could not touch.
Charger and battery should not be covered by other items during charging. It should be
placed in a cool, dry and well ventilated place.
.Charger and battery should be placed in a cool, dry and well ventilated place not
be placed directly in sunlight
Battery has self-discharge characteristic. It should be avoided storing at the loss
electricity state. It will lead to excessive battery discharge damage.
Battery should be fully charged in case of long-term placement. And, it needs to be
charged once every three months, otherwise, it could lead to over-discharge
damage.
Lithium battery is recyclable, please do not thrown it away randomly

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
8

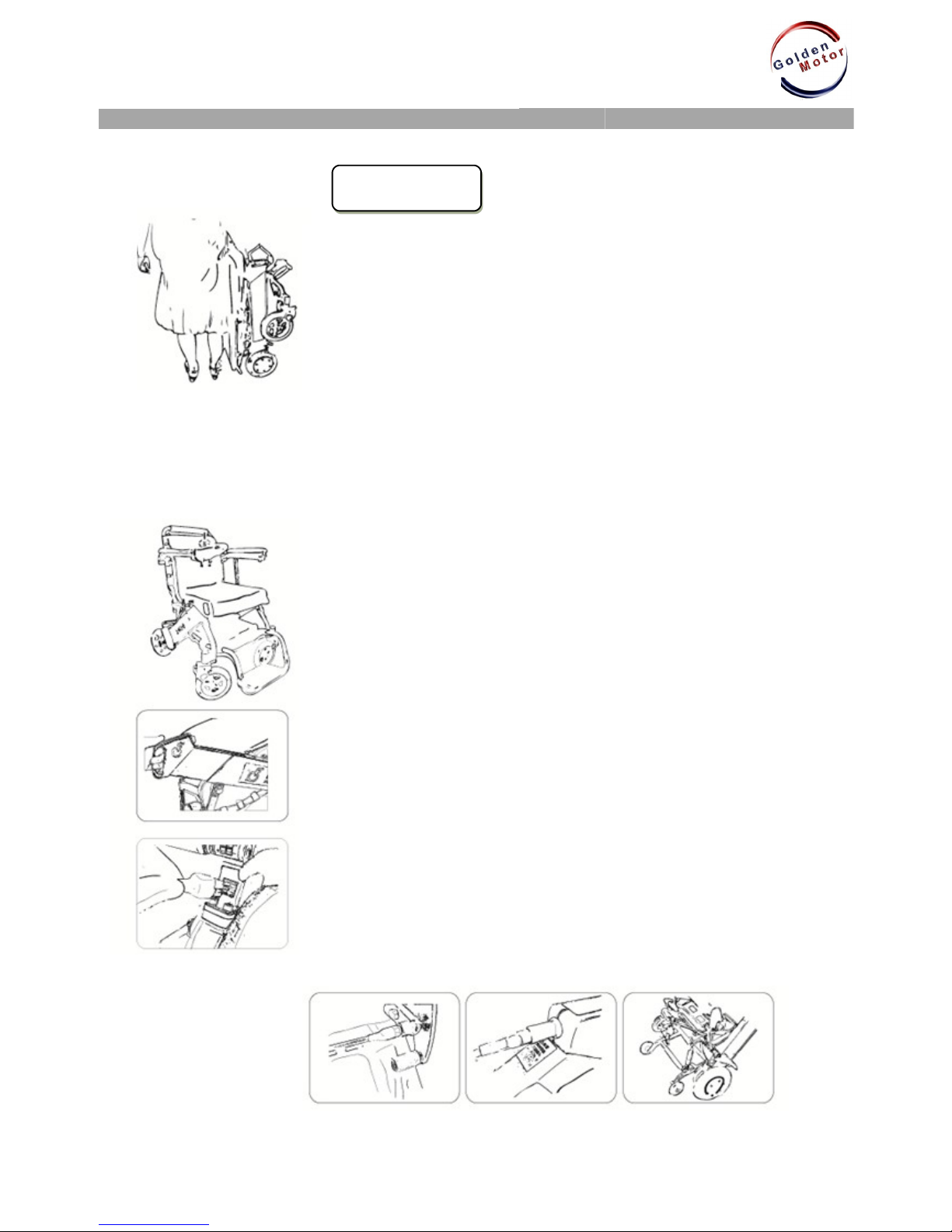

3 Wheelchair Open&Folding Method
PIC1: Put the chair on ground, use foot
to press the footrest, meanwhile, use hands
to pull the armrest.
PIC2: Pulling up the armrest until hearing
the click sound which means the it fully
opened.
PIC3: Check if every part is on right
position.PIC 3 shows full opened chair.
PIC4: Pulling back locking line,
meanwhile pulling back backrest.
PIC5: Pulling back backrest, meanwhile,
adjust the direction of front caster.
PIC5: Pushing down the seat cushion and
flipping up the backrest.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
9
4 Charging Instructions
Main Points
Assure the locking device is in right position after chair opened. Otherwise, the
chair will fold when the user sits on chair. It may lead to a accident and
endangering personal safety, even death.
Pulling back rest to check if the chair will fold. If not, the locking device is in
right position.
Warning
Assure the caster position when folding the chair. If the caster position is not
correct, the frame could not fold tightly.
Before folding the chair, check the position of the caster.
Please use dedicated lithium battery charger.
Plug one side microphone into the joystick socket, please pay attention to the
insert position.
The other side of the triangular plug into a power outlet, the charging light will
be on.
Red indicator light displays on charging; green indicator light display charging
full.
Charging Steps & Instruction

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
10

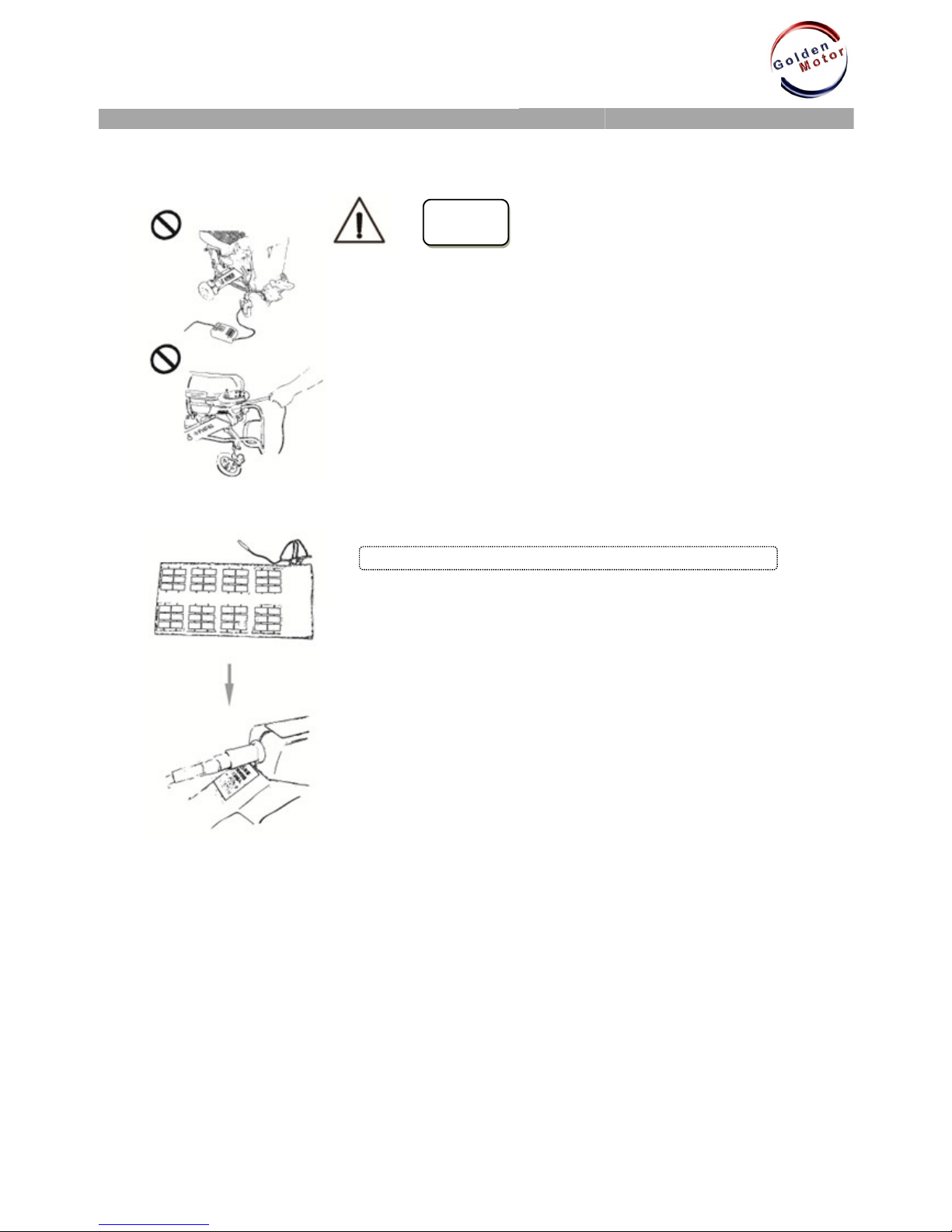

Please use dedicated solar charging bag.
Open solar charging bag and pick a four core plug.
Put four probe plugs into the battery socket, please pay attention to the insert
position.
Keep he light-receiving surface of charging bag perpendicular to the sun ray
direction.
Solar charging is effected by the light intensity. 10am to 2pm is generally the best to
charge.
Solar charging bag is available on sunny day. It is unavailable without direct sunlight
on rainy day.
Prohibit turning on the controller power or using chair during charging period.
Ensure the charger and battery is cooling during charging period. Otherwise, it
may cause product damage or even fire.
Charging time is generally 2-8hours. Please do not keep the charger plugged in
for long time, pull out the plug after charging completed.
Charger is avoided rain, moisture and impact.
Warning
Solar charging bag is not a free option. It should pay additional.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
11
5 Driving&Operation Method
Warning
Solar charging plate is very fragile. Avoiding tread, press and bend.
Prohibit turning on the controller power or using chair during charging
period.
Charging time is generally 4 hours. Pull out the plug after charging
completed.
Charger is avoided rain, moisture and impact. Meanwhile, please pay
attention to the security in outside
Solar charging bag board surface should keep clean, otherwise, it will affect the
efficiency of energy conversion.
Please insert the controller joystick into armrest tube and tighten the knob to
fix.
One side of controller joystick four probe plugs in the battery socket. Please
pay attention to the insert position.
Warning
Install Controller Joystick

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
12
Joystick Function Keys
Joystick: control chair direction and speed.
Power on: press to turn on the power
Power off: press to turn off the power
Power display: There are red, yellow and green three colours LED lights.
All light means battery is full.
Speaker: horn sounded when press the button, mute when loose the
button.
Accelerate Max. Speed: press to adjust speed.
Decelerate Max. Speed: press to adjust speed.
Speed display: All lights on means max. speed. Meanwhile, it also has
fault display function
Speaker
Power on
Power display
Power off
Turn right
Retreat
Joystick
Turn left
Decelerate
Speed display
Accelerate
T
Advance
Fault Display
No.1 red light flash: low battery
No.2 red light flash: Joystick has no communication signal
No.3 red light flash: In charging
No.4 red light flash: The motor is not connected.
No.5 red light flash: Electromagnetic brake is not connected
Problems excluding please refer page 20 “Troubleshooting”

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
13
After the user seat in the chair, turn on the power and push joystick. Pushing
joystick forward to go forward, pulling joystick back to go back, pushing
joystick left to turn left, pushing joystick right to turn right. The chair will go
faster when the magnitude is greater.
Release joystick to park the chair.
Press the power off button to shut down the power.
If you need to push the chair, please switch the clutch handle to separation
position.
More content please refer “Use Safety Note”.
Master Wheelchair Driving Operation Method
Warning
Prohibit directly hand pressure on joystick, please press on the armrest.
Prohibit pull cable directly to remove four probe plug. Please hold the bottom
of plug to pull out from the socket
The cable should be a round in the armrest in order to avoiding pulling
joystick and fall.
Drunk operating the chair is prohibited in order to avoid improper control to
cause injury accident.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
14
6 Electric&Hand Push Range
7 Transport&Storage
Press the clutch handle to keep the electromagnetic brake at separation position,
nurse can push the chair.
Lift the clutch handle to keep the electromagnetic brake at engaged state, the
chair could be driven by electricity, could not be pushed manually.
Warning
If the user operates the chair independently, electromagnetic brake must be at
engaged state. Otherwise, the chair will slip and endanger personal safety in case
of power failure on the ramp
Keep the electromagnetic brake at engaged state in order to keep safety during
driving period.
Stand up the folded chair. One hand holds the seat cushion beneath tube to
lift and transport the chair. Folding method please refer to “Chair Open &
Folding Method”
Folded chair could be stored in the car trunk.
Battery should be fully charged and the chair should be placed in dry and
ventilated place in case of the chair will long-term placement. And, the
battery needs to be charged once every three months, otherwise, it could lead
to over-discharge damage.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
15
8 Maintenance and Test
Avoiding the chair placed in heat, cold or direct sunlight environments, otherwise,
the rubber parts will be easy to age and shorten the service life. The battery is easy
to burn in high temperature environment and it may cause fire accident.
There are electronic components in the joystick. Avoid press it directly.
There is/are a lithium battery/ lithium batteries at the side of the frame. Please avoid
pressing on the battery. Otherwise, it will cause burn and a fire accident.
Main Points
User should periodically check if the frame connector screws are loose every 6
months. If the screws are loose, please tighten them to ensure using safely.
Check if the front and rear wheels are flexible. If there is significant resistance,
please change the bearing.
Check if the tires, armrest and other rubber and plastic parts are wearing or aging. If
so, please replace them.
Check if the battery connectors are oxidative. If so, please replace them.
Checking if folding locking is valid. If it is loose or jamming, please replace it
promptly.
Check if anti-tip device is valid. If it is loose or jamming, please replace it promptly.
Parts replacement should be done by professional repair shop or maintenance service
personnel. Do not replace them by yourself.

All rights reserved.Golden Motor Technology Co.,Ltd 2013
Originality、Innovation、Creation
Brushless Electric Wheelchair (PW-8F20) User's Guide
16
9 Trouble Shooting
No. Problem Reason Solution
1
Power can not
be turned on
Controller host power is not connected. Controller host power is not connected.
Controller host and joystick are not
connected.
Four core plug contacts with joystick.
Battery power is not enough. Charge the battery.
2
Fault display on
contoller plate
No.1 red light flash: low battery Charge the battery.
No.2 red light flash: Joystick is without
communication signal
Four core plug contacts with joystick or
replace the joystick.
No.3 red light flash: In charging Prohibit driving the chair during charging.
No.4 red light flash: The motor is not
connected.
Insert the motor cable and tighten the
plug.
No.5 red light flash: Electromagnetic
brake is not connected
Insert the motor cable and tighten the
plug.
3
Jetty and Noise
exist while chair
starts moving.
Limited max. speed is too low. Adjust liimited max. speed higher.
The motor is lack of phase Replace the motor.
4
Endurance
mileage is shorten
At below 0℃environment It is normal battery characteristic.
Driving on uneven pavement or slope
Energy consumption will increase, it is
normal.
Battery capacity is declining Replace the battery.
5
Battery
Charging Faults
Charger light does not shine Replace the charger.
Charger green light always on
Four probes plug contacts with joystick or
replace the battery.
Charging time is shorten Capacity is decreased, replace the battery.
