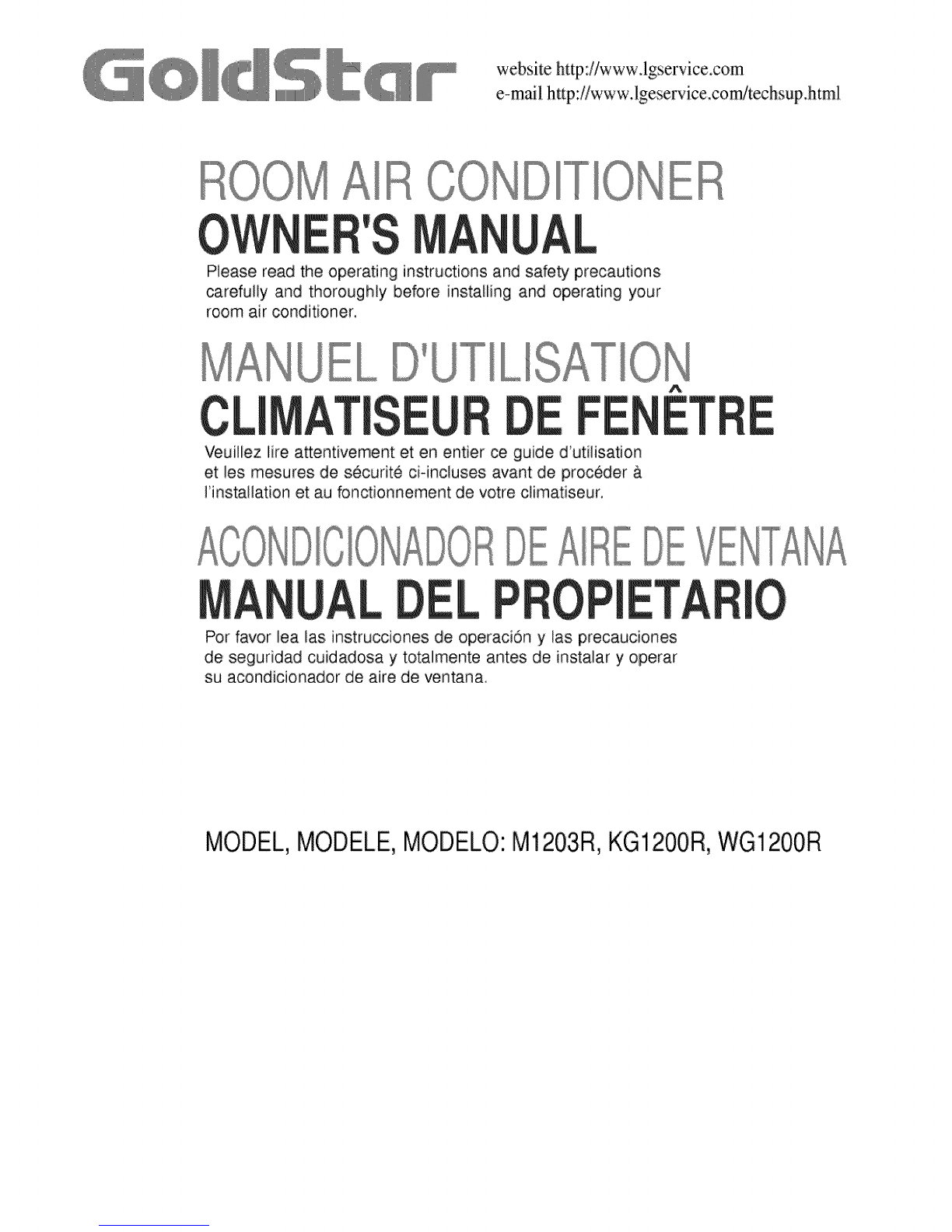

Goldstar M1203R User manual

website http://www.lgservice.com
e-mail http://www.lges_ervice.co_techsup.html
E,'IT_O
I_ UL
Please read the operating instructions and safety precautions
carefully and thoroughly before installing and operating your
room air conditioner.
UELD°U/ILISATIO
CLD TJSE F
Veuillez lire a_entivement et en entier ce guide d'utilisation
et les mesures de securite cidncluses avant de proceder
I1nstallation et au fonctionnement de votre climatiseur.
A
OI0_IADOP,SEAIREDE
LELP OPI
Pot favor lea las instrucciones de operaci6n y las precauciones
de, seguridad cuidadosa y totalmente antes de instalar y operar
su acondicionador de aire de ventana.
MODEL,MODELE,MODELO:M1203R,KG1200R,WG1200R

FEATURES ........................................................................................................................................ 2
SAFETY PRECAUTIONS ..................................................................................................................... 3
OPERATING ....................................................................................................................................... 5
FU NCTION ........................................................................................................................................ 5
REMOTE CONTROLLER ............................................................................................................. 6
VENTILATION ....................................................................................................................................... 7
TO CONTROL AIR DIRECTION ..................................................................................................... 7
HOW TO SECURE THE DRAIN PIPE ............................................................................................. 7
AIR FILTER CLEANING ...................................................................................................................... 8
HOW TO USE THE REVERSIBLE INLET GRILLE ............................................................................. 8
ELECTRICAL DATA .................................................................................................................................... 9
BEFORE CALUNG FOR SERVICE ...................................................................................................... 9
INSTALLATION INSTRUCTIONS .............................................................................................................. 10
ELECTR ICAL SAFETY ................................................................................................................................... 14
1. CABINET
2. HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
3. VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
4. AiR DISCHARGE
5. FRONT GRILLE
6. AMR INTAKE
(INLET GRILLE)
7. AIR FILTER
8. CONTROL BOARD
9. PC_¢¢ER CORD
10. EVAPORATO R
11, CONDENSER
12. COMPRESSOR
13. BASE PAN
14. BRACE
15, REMOTE CONTROLLER
_2_

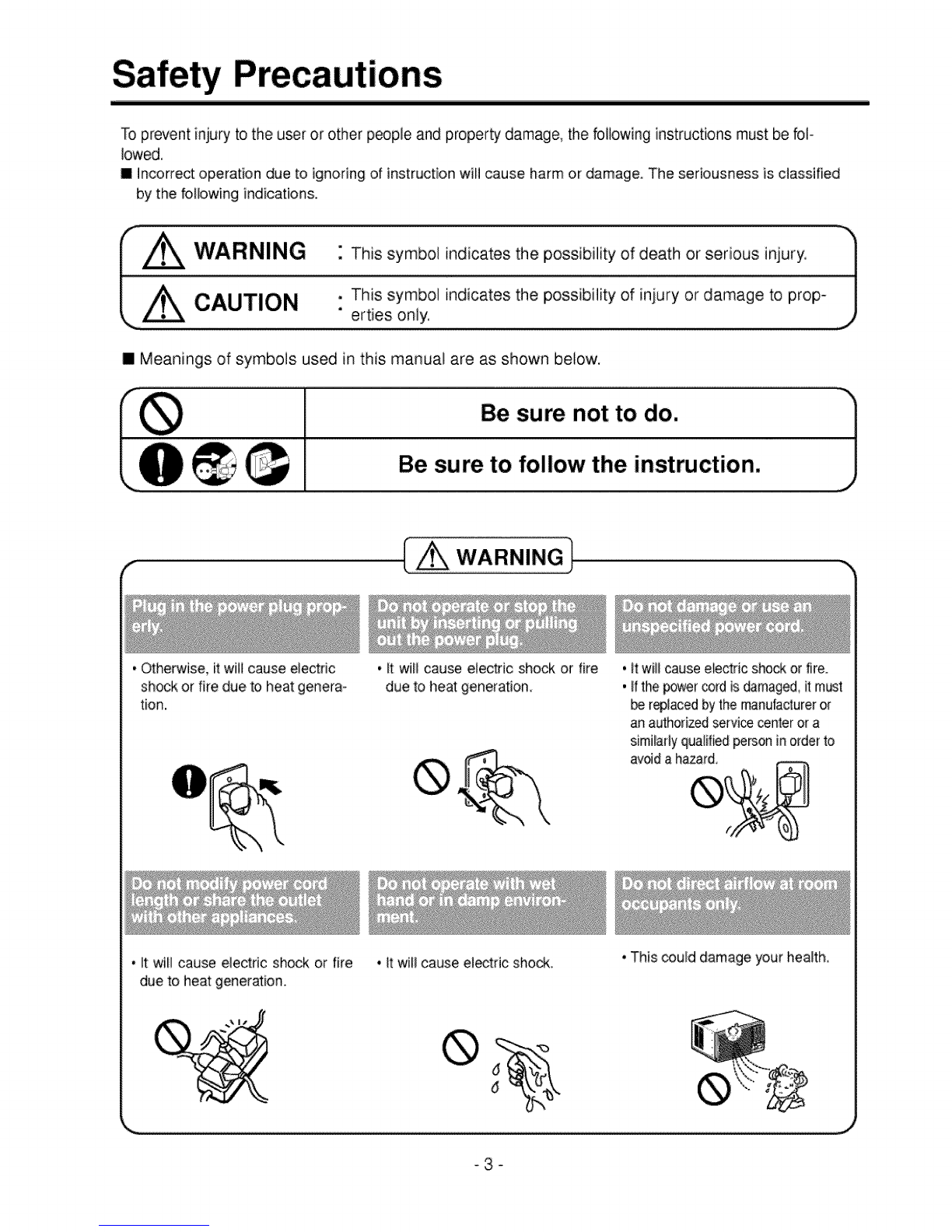

Topreventinjurytotheuserorotherpeopbandpropertydamagethefoilowinginstructionsmustbefol-
lowed.
m incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified
bY the following indications.
•Otherwise, itwill cause electric
shock or fire due to heat genera-
tion.
•It will cause electric shock or fire
due to heat generation, , _twiillcause electricshockor fire. •Ifthe_er cordisdamaged,itmust
be[eplacedbythemanufadureror
anauthorizedservicecenteror a
similarlyqualified_rson in orderto
avdda hazard.
.it will cause electric shock or fire
due to heat generation. , It will cause el_tric shock, . This could damage your hea_th.
-3-

cIo.l
•_tmay cause an iniury. • Water may enter the unit
•This could iniure the pets or
p_ants.
and degrade the insula-
tion. Itmay cause an
electric shock,
•ft may cause a fire or deformation
of the cabinet
• An oxygen shortage may
o_ur
°Since the fan rotates at
high s_ed during oper-
ation, it may cause an
injury.
• Do not usethis air conditioner to
preserve precision devices, hod,
pets, plants, and art obiects.
itmay cause deterioration of quaF
ity,etc.
•It may cause imperfect combus-
tion,
, It may cause an electric slhock.
•U_ caution when handJing the
case. Grip it firmJyand do not allow
it to s_[pwhile holding it.
, Useheavy giovestohaL_dlethe case if
necessary.
• DONOT
allowthe
caseto slide
-4-

• CAUTION
When the air conditioner has been performing its cooling operation and is tu;rned off or set to the fan
position, wait at least 3 minutes before resetting to the cooling operation again.

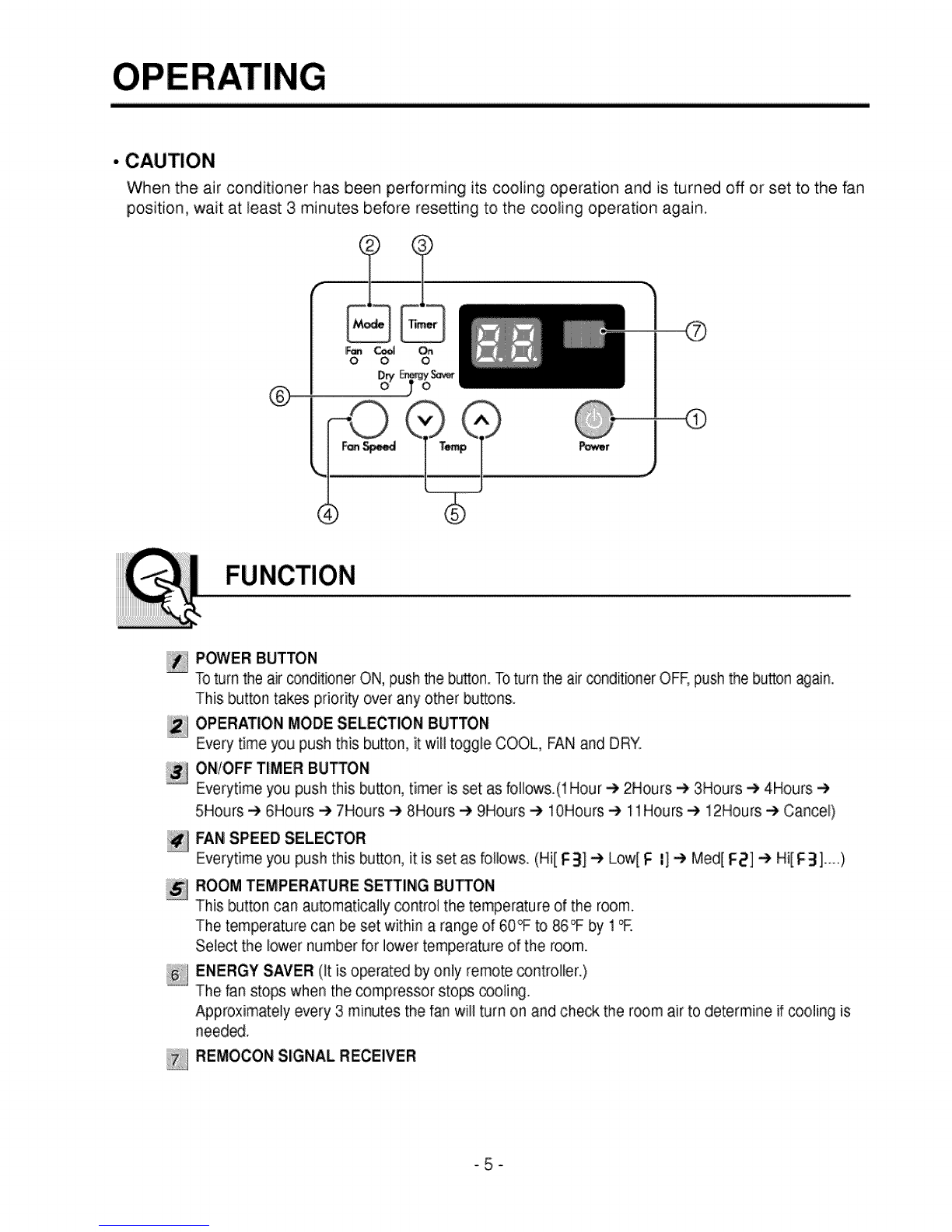

FUNCTION
POWER BUTTON
Toturn the air conditioner ON, push me button. Toturn the air conditioner OFF,push the button again.
This button takes priority over any other buttons.
OPERATION r/lODE SELECTION BUTTON
Every time you push this button, it will toggle COOL, FAN and DRY.
ON/OFF TIMER BUTTON
Everytime you push this bu_on, timer is set as follows.(1 Hour _ 2Hours _ 3Hours --) 4Hours
5Hours _ 6Hours _ 7Hours _ 8Hours _ 9Hours _ 10Hours _ 11Hours --) 12Hours _ Cancel)
FAN SPEED SELECTOR
Everytime you push this button, it is set as follows. (Hi[ F3] -) Low[ Fl] -3' Med[ F2] -') Hi[F 3]....)
ROOM TEMPERATURE SETTING BUTTON
This button can automatically _ntrol the temperature of the room.
The temperature can be set within a range of 60°F to 86°F by 1°F.
Select the lower number for lower temperature of the room.
ENERGY SAVER: (It is operated by only remote controller.)
The fan stops when the _mpressor sto_ cooling.
Approximately every 3 minutes the fan will turn on and check the room air to determine if _oling is
need_.
REMOCON SIGNAL RECEIVER
-5-

REMOTE CONTROLLER
Pir_aution: The Remote Controller will not function propedy if strong light strikes the sensor window
of the air conditioner or if there are obstacles between the Remote Controller and the air
conditioner,
, Toturn theair conditior.erON, pushthe I_Jtton.To turn the air conditioner OFF,pushthe bu_onwain.
, Th_ bu_ontakes priorityov_ any other bu_ons.
•Whenyou first turn iton, theairconditioner [son the High ccolmod_ and the temp.at 72°F(22°0).
TEMPERATURE SE_ING
• This button can automatically control the tem_rature e{ the room.
The temperature can be set within a range of _°F to 86°F by 1°F,(16°C to 30'C by 1°C)
Select the lower number for lower temperature o[ the room.
FAN SPEED
• EverytimeyoupushthisbuttonitMsset asfollows,{High(F3)-*Low(F1)-_Med(F2)-*High(F3).},
ON/OFF TIMER
-STOPPINGOPERATION
• Eve_i_ you pushth_ button, whenthe airconditioner is®eratJng,timer isset asfol_ows,
(1Hour-* 2Hours -*3Hours-* 4Hour-* 5Hours-4-6Hours---7Hours_8Hours -*9Hours-*
lOHours--,11Hours-* 12Hours_ Cancel)
•The Setting Tem_rature will _ rai_d by2_'F(1°C)30rain.later and by2°F(1°C) a_er another 30 min.
- STARTINGOPERATION
• Everyti_ you pushth_ button,whenthe air cond_ionerisnot _erating, tier isset as Io[Iow.
(1Hour-* 2Hours -_3Hours_*4Hours_*5Hours_-6Hours _*7Hours- 8Hours_.9Hours_.
lOHours _.11Hours --.12Hours---CanceE}
ENERGY SAVER
• The fan sto_ when the compressor stops cooling_
Al@roximateiy every 3 minutes the fan will turn on and check the room air to determine if
cooling is needed_
MODE
• Eve_time you push this bu_ton,it wil_toggle between COOL, FAN and DRY.
HOW TO INSERT BATTERIES
1. Remove the cover from the back of the remote controller.
2, Insert two batteries,
• Be sure that the (+) and (-) directions are correct.
• Be sure that both batteries are new,
3. Re-a_ach the cover,
Do not use rechargeable bat=
teries. Such batteries differ
from standard dry ceils in
shape, dimensions, and per-
folrmance.
Remove the batteries from
the remote controller if the air
conditioner is not going to be
used for an extended length
of time.
-6-

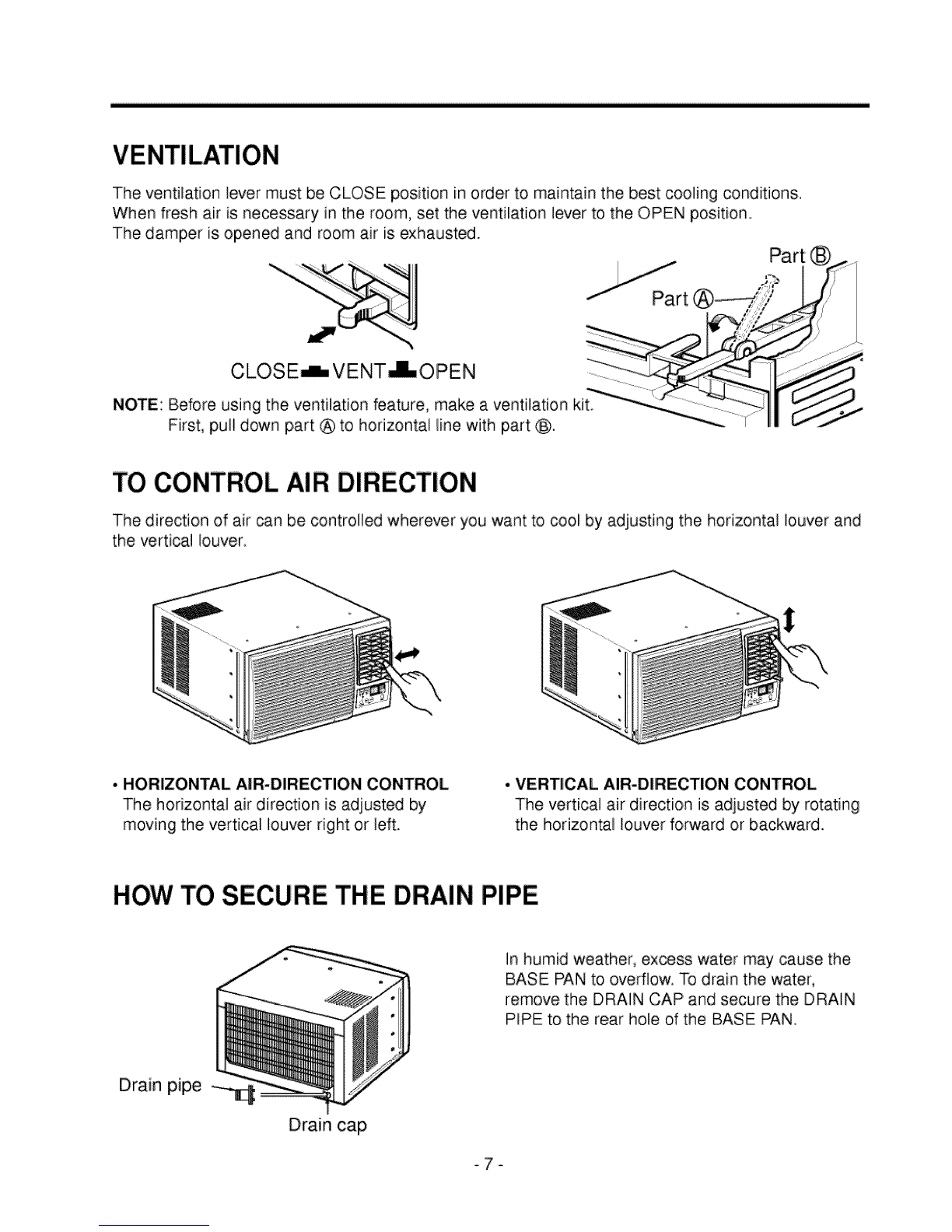

TheventilationlevermustbeCLOSEpositioninorderto maintainthebestcoolingconditions.
Whenfreshairisnecessaryintheroom,settheventilationlevertotheOPENposition.
Thedamperisopenedandroomairisexhausted. Part
CLOSE|VENT|OPEN
NOTE: Before using the ventilation feature, make a ventilation kit
First, pull down part @ to horizontal line with part @.
TO CONTROL AIR DIRECTION
The direction of air can be controlted wherever you want to cool by adjusting the horizontal louver and
the vertical iouven
• HORIZONTAL AIR-DIRECTION CONTROL
The horizontal air direction is adjusted by
moving the vertical louver right or left.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating
the horizontal louver forward or backward.
HOW TO SECURE THE DRAIN PIPE
In humid weather, excess water may cause the
BASE PAN to ovediow. To drain the water,
remove the DRAIN CAP and secure the DRAIN
PIPE to the rear hoie of the BASE PAN
Drain pipe
Drain cap

AIR FILTER CLEANING
The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped
particles in the filter will build up and block the airflow. This reduces the cooling capacity and also
_uses an accumulation of frost on the cooling coils.
1. Open the inlet grille upward by pulling out the bottom of the inlet grille
2, Remove the air filter from the front grille assembly by pulling the air filter up slightly,
3. Wash the filter using lukewarm water below 40_(104_).
4, Gently shake the excess water from the filter completely. Repla_ the filter.
HOW TO USE THE REVERSIBLE INLET GRILLE
The grille is designed to caean the filter both upward and downward.
®
(a) (b)
A. Before attaching the front grille to the cabinet, if you want to pull out the fil-
ter upward;
1. Open the inlet grille slightly (a)
2. Turn inside out the front grille (a),
3. Disassemble the inlet grille from the front grille with separating the hinged part by inserting a
straight type screw-driver tip (b).
4. Then, rotate the inlet grille 180 degrees and insert the hooks into bottom holes of the front grille.
5. insert the filter and attach the front grille to the cabinet.
B. If you want to pull out the filter downward;
The griIle is already designed that way.
-8-

ELECTRICAL DATA
Line Cord Plug
Do not, under any
circumstances, cut or
remove the grounding prong
from the plug.
Power supply cord with
3-prong grounding plug
Use Wall Receptacle
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Power Supply
Use 15 AMP, time
delay fuse or circuit
breaker.
BEFORE CALLING FOR SERVICE
•Air Conditioner will not operate.
1. Is the air conditioner plugged into the outlet?
2. Is the fuse or breaker good?
3. Is the voltage unusually high or low?
•Air from the unit does not feel cold enough on the cooling setting.
1. Is the setting temperature correct?
2. Is the air filter clogged with dust?
3. Is the air flow from the outside(condensers) obstructed?
Leave a clearance of over 1 meter(3.28 feet) between the back of the air conditioner and the wall or
fence behind it.
4. Are the door or windows open, or is there any source of heat in the room?
NOTE: If it is difficult to find out the cause of the trouble, be sure to turn the air conditioner off and
contact the dealer.
• OFF-SEASON MAINTENANCE
1. Clean the air filter and re-install.
2. Turn the power off and disconnect the power plug from the wall receptacle.
-9-

I
SELECT THE BEST LOCATION
1. To prevent vibration and noise, make sure the
unit is installed securely and firmly
2. Install the unit where the sunlight does not
shine directly on tlhe unit.
3. The outside of the _binet must extend
outward for at least 12" and there should be
no obstacles, such as a fence or wall, within
20" from the back of the cabinet because it will
prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce
the cooling efficiency of the air conditioner.
CAUTION: All side louvers of the cabinet must
remain exposed to the outside of the structure.
WINDOW REQUIREMENTS
1, This unit is designed for installation in
standard double hung windows with actual
opening widths from 27" to 39",
The top and bottom window sash must open
sufficiently to allow a clear vertical opening of
16" from the bosom of the upper sash to the
window stool
INSTALLATION KITS CONTENTS
2. Install the unit a little slanted so the back is
slightly lower than the front(about i/2").
This will force condensed water to flow to the
outside,
3 Install the unit with the bottom about 30"_60"
above the floor level,
Fence
Cooled air HeM
radiation
..............................................................
.....................Ov_20_.......................
%
Interior wail
235/8," rain
(Without frame curtain)
1,/2"to 11/4"
Exterior
NO, NAME OF PARTS,
1 FRAME CURTAIN 2
2 SILL SUPPORT 2
3 BOLT 2
4 NUT 2
5 SCREW(TYPE A) 16
6 SCREW(TYPE B) 3
7 SCREW(TYPE C) 5
8 FOAM-STRIP 1
9 FOAM-PE 1
10 UPPER GUIDE 1
11 FOAM-PE 1
12 FRAME GUIDE 2
13 WINDOW LOCKING BRACKET 1
_10-

SUGGESTED TOOL REQUIREMENTS
ISCREWDRIVER(+, -), RULLER, KNIFE, HAMMER, PENCIL, LEVEL
PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet
at both sides and at the back,_
2, Slide the unit from the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabinet.
3. Remove EPS Material.
4. Cut the window sash seal to the proper length,
Peel off the backing and attach the foam-pe @
to the underside of the window sash,
5, Remove the backing from the top upper guide
Foam PE @ and a_ach it to the bottom of the
upper guide @,
6. Attach the upper guide onto the top of: the
cabinet with 3 type A screws,
7, insert the frame guides @ into the bottom of
the cabinet.
8. insert the Frame Curtain _') into the upper
guide @ and frame guides @.
9. Fasten the, curtains to the unit with 4 Type A
screws,
CABINET INSTALLATION
1. Open the window. Mark a line on center of the
window stool(or desired air conditioner
location).
Carefully place the cabinet on the window
stool and align the center mark on the bottom
front with the center line marked in the
window stool.
2. Pull the bottom window sash down behind the
upper guide until it meets.
"i Do not pull the window sash down so tiglhtly
that the movement of Frame Curtain is
restricted.
(Type
Shipping screws
EPS Matedal
(Type A)
Upper Guide _Window stool
FrontAng_,e Fig. 1
Foam-peQ
'_ Fig. 2
-11 -

3.Looselyassemblethesillsupportusingthe
partsinFig.3.
4.Selectthepositionthatwillplacethesill
supportneartheoutermostpointonsill
(SeeFig.4)
NOTE: Be careful when you install the cabinet
(frame guides @ are broken so easily).
5. Attach the sill support to the cabinet track hole
in relation to the seiected position using
2 Type A screws in each support(See Fig. 4).
6 The cabinet should be installed with a very
slight tilt(about 1/2") downward toward the
outside (See Fig. 5),
Adjust the bolt and the nut of sill support for
baJancing the cabinet.
7, Attach the cabinet to the window stool by
driving the screws (_(Type B: Length sixteen
millimeters and below.) through the front angle
into window stool.
8. Pull each Frame curtain fully to each window
sash track, and repeat step 2.
9. Attach each Frame curtain the window sash
using screws ®(Type C).
(See Fig, 6)
Frame Guide @
IND_
Screw(Type A) @
• io ....
a r _i
Fig, 4
Screw(Type B)
Sill support
Sil_ suppod_
FrontAngle
_rew(Type B)
Fig. 5
Fig, 6
_12-

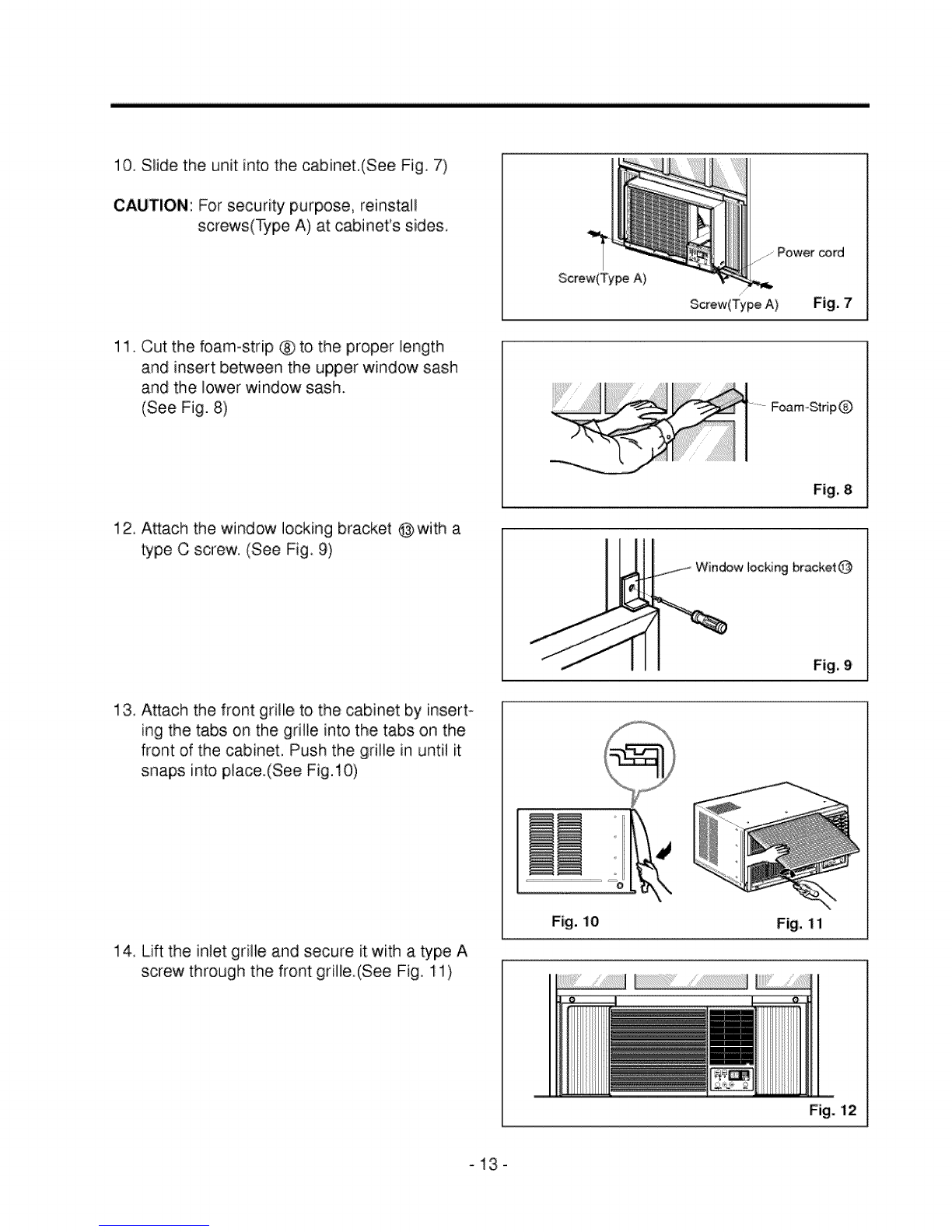

10.Slidetheunitintothecabinet.(SeeFig.7)
CAUTION:Forsecuritypurpose,reinstalU
screws(_peA)atcabinet'ssides.
11.Cutthefoam-strip® totheproper!ength
andinsertbetweentheupperwindowsash
andthelowerwindowsash.
(SeeFig.8)
12,Attachthewindowlockingbracket@witha
typeCscrew.(SeeFig 9)
13.Attachthefrontgrilletothecabinetbyinsert-
ingthetabsonthegrilleintothetabsonthe
frontofthecabinet,Pushthegrilleinunti!it
snapsintoplace.(SeeFig.10)
14.Liftthein!etgrilleandsecureitwithatypeA
screwthroughthefrontgrille.(SeeFig,11)
Screw(Ty_ A)
......Power cord
/
Screw(Type A) Fig. 7
Foam-StripQ
Fig, 8
locking bracket@
Fig. 9
Fig, 10 Fig, 11
Fig. 12
_13-

ELECTRICAL SAFETY
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL
SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However,
if you wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL-listed
adapter, available from most local hardware
store(Fig. 14). The large slot in the adapter must
be aligned with the large slot in the receptacle to
assure a proper polarity connection.
The power cord of this appliance is equipped
with a three-prong(grounding) plug. Use this with
a standard three-slot(grounding) wall power
outlet(Fig. 13) to minimize the hazard of electric
shock. The customer should have the wall
receptacle and circuit checked by a qualified
electrician to make sure the receptacle is
properly grounded.
PREFERREDMETHOD Fig. 13
DO NOT CUT OR REMOVE THE
THIRD(GROUND) PRONG FROM THE
POWER PLUG.
A. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED ONLY
OCCASIONALLY:
TEMPORARYMETHOD _Fig. 14
Adapterplug-_ _1
I'_ Metalscrew
J Receptacle cover
CAUTION: Attaching the adapter ground terminal
to the wall receptacle cover screw does not
ground the appliance unless the cover screw is
metal, and not insulated, and the wall receptacle
is grounded through the house wiring.
The customer should have the circuit checked by
a qualified electrician to make sure the
receptacle is properly grounded.
Disconnect the power cord from the adapter,
using one hand on each. Otherwise, the adapter
ground terminal might break. DO NOT USE the
appliance with a broken adapter plug.
B. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to
an eventual breakage of the ground terminal.
The wall power outlet should be replaced by a
three-slot(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord.
However, if you wish to use an extension cord,
use a CSA certified/UL-listed 3-wire(grounding)
extension cord, rated 15A, 125V.
-14-

CARACTERISTIQUES...................................................................................................................15
MESURESDESECURITE...............................................................................................................16
FONCTIONNEMENT........................................................................................................................18
LESCOMMANDES.....................................................................................................................18
TELECOMMANDE.........................................................................................................................19
LAVENTILATION.................................................................................................................................20
AJUSTERLADIRECTIOND'AIR...................................................................................................20
COMMENTUTILISERLETUYAUD'EVACUATION.......................................................................20
NETTOYAGEDUFILTREAAIR..................................................................................................21
COMMENTUTILISERLAGRILLED'ADMISSlONREVERSIBLE..............................................21
DONNEESSURL'ELECTRICITE....................................................................................................22
AVANTDEFAIREAPPELA UNTECHNIClEN..................................................................................22
INSTRUCTIONSPOURD'INSTALLATION..................................................................................23
MESURESDESECURITEELECTRIQUES....................................................................................27
t
1 BOTTLER
2_ DEFLECTEUR D'AIR HORIZONTAL
(VOLET VERTtCAL)
3. DEFLECTEUR D'AIR VERTICAL
(VOLET HORIZONTAL)
4. DECHARGE D'AIR
5. GRILLAGE FRONTAL
6. PRISE D'ADMISSION D'AIR
(GRILLAGE DE LA PRISE)
7. FILTRE A AIR
8. PANNEAU DES COMMANDES
9. FUL D'AMMENTATION
10. EVAPORATEUR
11. CONDENSEUR
12, COMPRESSEUR
13, PLATEAU DE LA BASE
14, ATTACHE
15. TELECOMMANDE
_15-

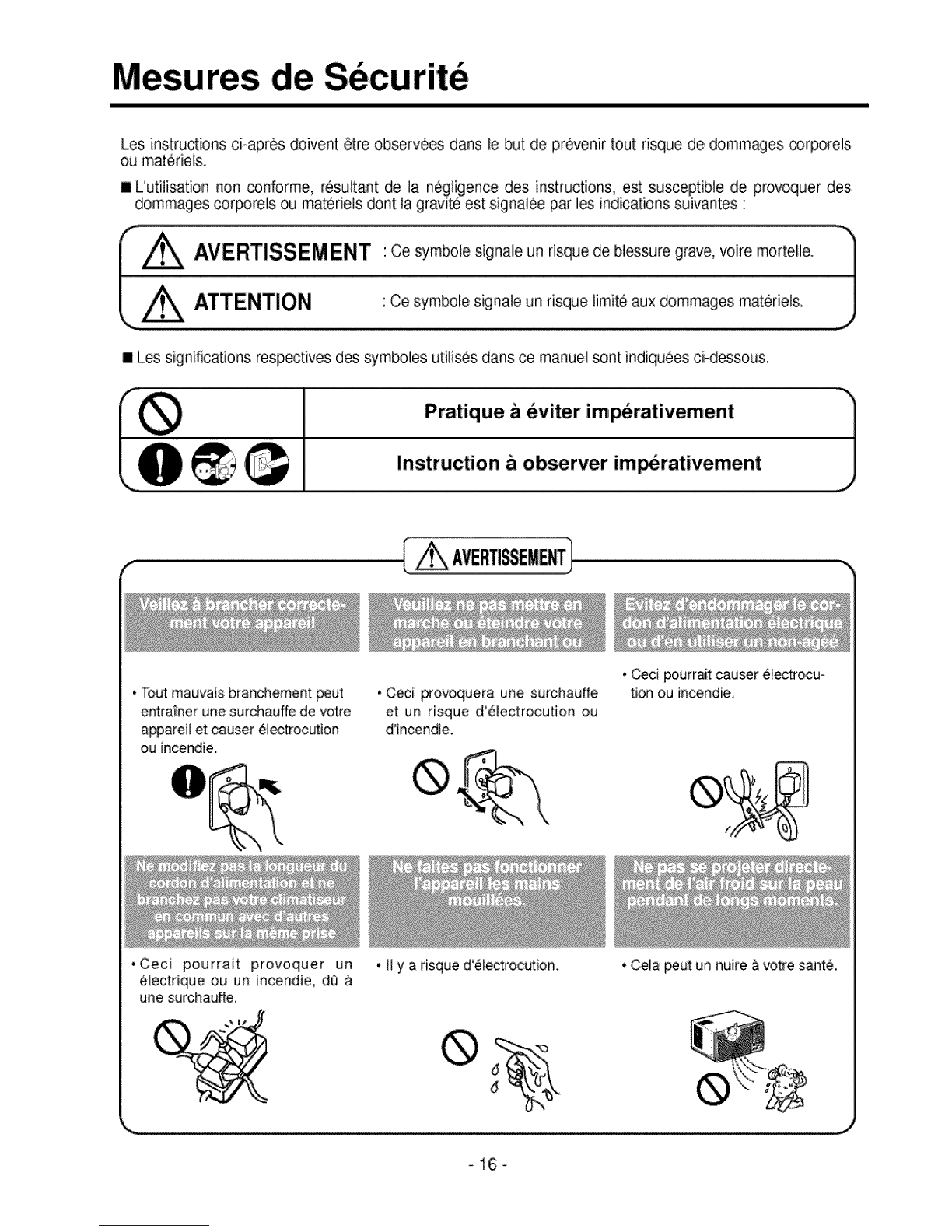

Lesinstructionsci-apresdoiventetreobserveesdanslebutdeprevenirtoutrisquededommages_rporels
oumateriels,
mUutiiisationnonconforme,resultantdela negligencedesinstructions,estsusceptibledeprovoquerdes
dommagescorporelsoumaterielsdontlagraviteestsignaleeparlesindicationssuivantes•
_,_ AVERTISSEM ENT ' ce symbole siglnale un risque de blessure grave, voire mortefle- i ]
ATTENTION ' Ce symbole signale un risque limite aux dommages materiels,
m Les significations respectives des symboles utilises dans ce manuel sont indiquees ciodessous.
( I
, Tout mauvais branchement peut
entrafner une surchauffe de votre
a_areil et causer 61_trocution
ou incendie.
•Ceci pourrait provoquer un
, Ceci provoquera une surchauffe
et un risque d'61ectrocution ou
d'incendie.
• ii y a risque d'electrocution,
•Ceci pourra_ causer electrocu-
tion ou incendie,
electrique ou un incendie, dO
une surchauffe,
• Cela _ut un nuire &votre sante,
J
-16-

I_ o"i}
•Vousrisquezdevousblesser. •UeaupewsinfiHtrerdansI°_-
Celapeut@galementprovo-
querune@lectm-cution
•L'animal comme la p_antepeuo
vent en souffrir.
, Eneffet,ibxygene s_pauvrit
dansces conditionsd'utilisa,-
tion,
•Leventiiateurdemfroidisse
menttournant&grande
peutprovoquerunaccident
• Le climatiseur ne doit pas @tre
utHis@_ur proteger certains
appareils de pr_ision, des a_i-
ments, des animaux, des pJantes
et des o_ets d'art. La qualite,
risque d'en souffrir.
• IIy a risque d'_lectrocution,
•L'appareHrisque de prendre feu
ou le coffret risque d'etre
deforme.
• La combustion de I_appareil' de
chauffage risque d'etre
entravee
•Faitesattentionenmanipulant_ehoarier
S_sissezleboi#erfermementetnele
laissezpasglissertoutenletenant
•Employezlesgants_ourdspourmanipo
u_erleboitieraubesom
, Nelaissez
/ebottier
g/isser_ntre
votrepeau!
-17-

•MISE EN GAFIDE
Si, apres avoir utilis6 le climatiseur en mode de refroidissement, vous le mettez hors tension ou en
mode de ventilateur, attendez au moins 3 minutes avant de le remettre & la position de
refroidissement.
®
LES COMMANDES
@
ALIMENTATION
Pour meEre l'appareil en marche (ON), pressez ce bouton.
Pour eteindre I'appareil (OFF), pressez de nouveau sur le bouton.
Ce bouton a pdodte sur tousles autre&
REFRO|DISSEM ENT/VENTILATEUR
Chaque fois que vous pressez ce bouton COOL et FAN alterneront.
MINUTERIE MARCHE/ARRET
Chaque lois que vous pressez ce bouton la minutede se regle comme suit.
(1 Heure _ 2 Heures _ 3 Heures -e 4 Heures "_ 5 Heures _ 6 Heures .-e,7 Heures "_
8 Heures _ 9 Heures _ 10 Heures .e 11 Heures -) 12 Heures -) annulation)
VITESSE DE VENTILATEUR
Chaque lois que vous appuyez sur _ bouton, le reglage se fait comme suit.
(Hi[F3] _ LOW[F t] _ Ned[F2] _ Hi[F3]...)
REGLAGE DE LA TEMPERATURE
Ce bouton peut contreler automatiquement la temperature de la piece. On peut regler ia
temperature dans une gamme de 60°F a 86°F par tranche de 1°R
Choisir un chiffre plus bas pour une temperature de la piece plus basse.
ECONOMIE D'ENERGIE (tl est opere par le contreleur seulement eloigne.)
Le ventilateur s'arrete Iorsque ie compressur cesse de refroidir.
Environ toutes les 3 minutes, le ventlateur se mettra en marche et verifiera I'air de la
piece pour determiner si un refroidissement est necessaire.
CAPTEUR DU SIGNAL DE LA TELECOMMAND, E
-18-

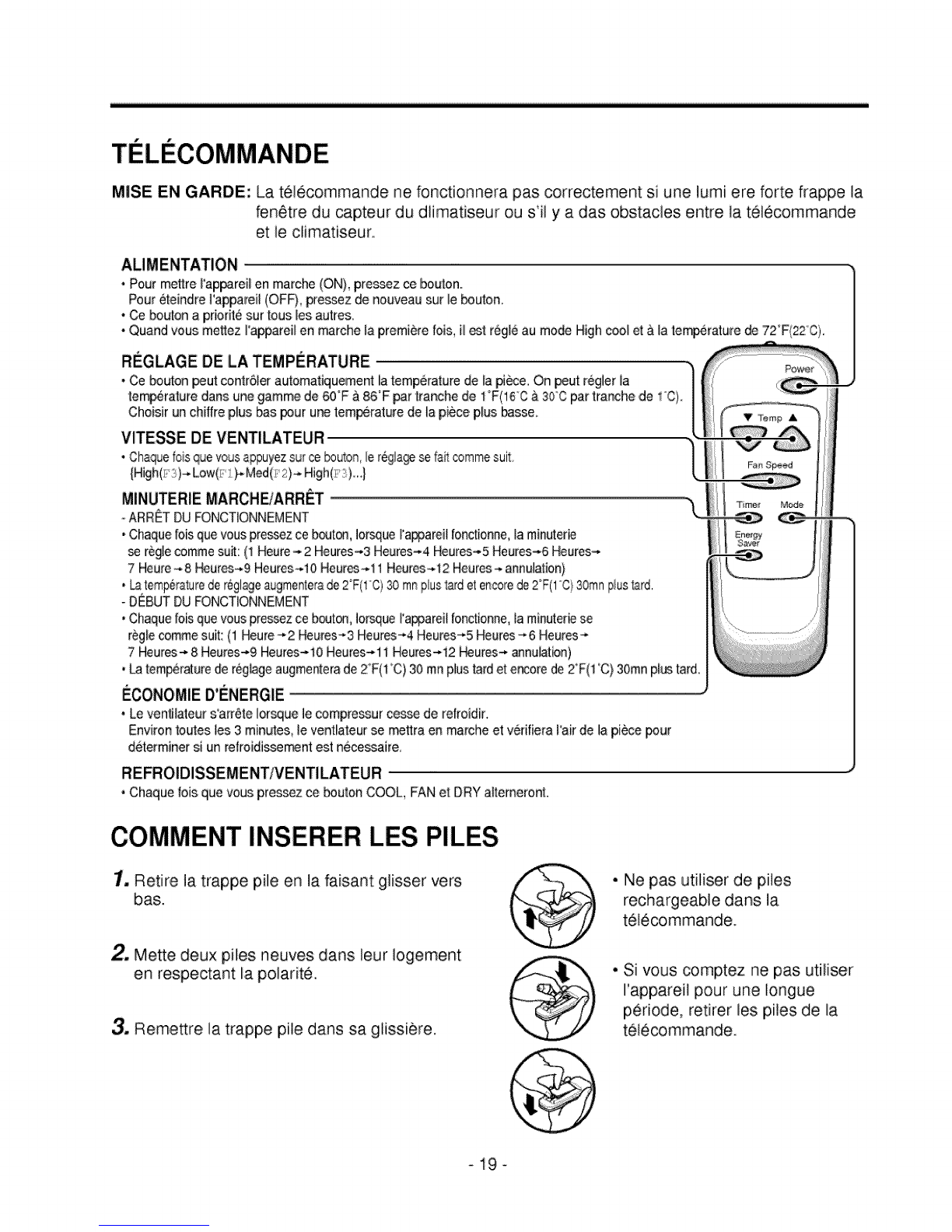

TELECOMMANDE
MISE EN GARDE: La telecommande ne fonctionnera pus correctement si une lumi ere forte frappe la
fen6tre du capteur du dlimatiseur ou s'il y adas obstacles entre ta tel6commande
et le climatiseur,
• Pour mettre ['appareil en marehe (ON), pre_z ce boulon.
Pour eteindre i'appareil (OFF), pressez de nouveau sur le _uton,
• Ce bouton a priodte sur teus les autres,
•Quand vous mettez I'appareilen marche fapremiere lois, iUest regle au mode High cool et & la tem_rature de 72°F(22C),
REGLAGE DE LA TEMPERATURE
•Ce bouton put contr6_erautomatiquement la temperature de la_ece On put regler _a
re.future dans une gamme de 60°F & 86T par tranche de 1°F(160 &300 par tranche de 1C).
Choisir un chiffre plus bus pour unetem_rature de lapiece pius _sse.
VITESSE DE VENTILATEUR
• Chaquefois quevo_sappuyezsur ce _u!on, le r6gla_ _ faircommesuit
{High(_2,)-*Low(z:z_Med(r: 2)-*High(f._)...}
MINUTERiE MARCHEIARRET
-ARR#_TDU FONCTIONNEMENT
• ChaqueIoisque vous pressezce bout®, Ior_ue r_areil bnctionne, ]aminutede
ser_g_ecommesu_: (1 Heure--.2 Heures-_3Heures_4 Heures_5 Heures--*6Heures---
7 Heure_ 8 _ures.*9 Heures-.lO Heu[es-*l 1Heures-.12 Heures_.annulation)
• _ ternp6raturede reglageaugrnenterade2°F(1C) 30mnp_us_d etencorede2°F(1C) 30ranp}_star&
- D_BUT DU FONCTIONNEMENT
•Chaquelois quevous p_ssez ee bout®, Ior_ue ra_areil fonctionne, laminuteriese
reglecomme suit:(1 Heure_2 Heures_-3Heures_4 Heures_5 Heures_6 Heures-,.
7 Heures--*8 Heures-*9 Heures_*lo Heures--*lI Heures--*12Heures-.*annulatbn)
• Latem_rature de reghge augmenterade 2T(1 °C)30 mnplus tardet encore de2"F(1°C)30mn plus_rd,
ECONOMIE D'ENERGIE
• Le ventilateur s'arrete Iorsque le compressur cesc_ de refroidi_.
Environ toutestes3 minute& le ventlateur se mettra en marche et verifiera Fairde la piece pour
determiner si un reffoidisse_nt est necessaire,
REFROIDISSEMENT/VENTI LATEU R
•Chaque lois que vous pressezce bouton COOL, FAN et DRY altemeront.
COMMENT INSERER LES PILES
1.Retire la trappe pile en la faisant: glisser vers
bus.
2, Mette deux piles neuves duns leur Iogement
en respectant la polarite,
3, Remettre la trappe pile dans sa glissiere.
G
G
• Ne pas utiliser de piles
rechargeable dans la
t616commande.
• Si vous comptez ne pus utiliser
I'appareil pour une Iongue
p6riode, retirer les piles de la
t616commande.
-19-

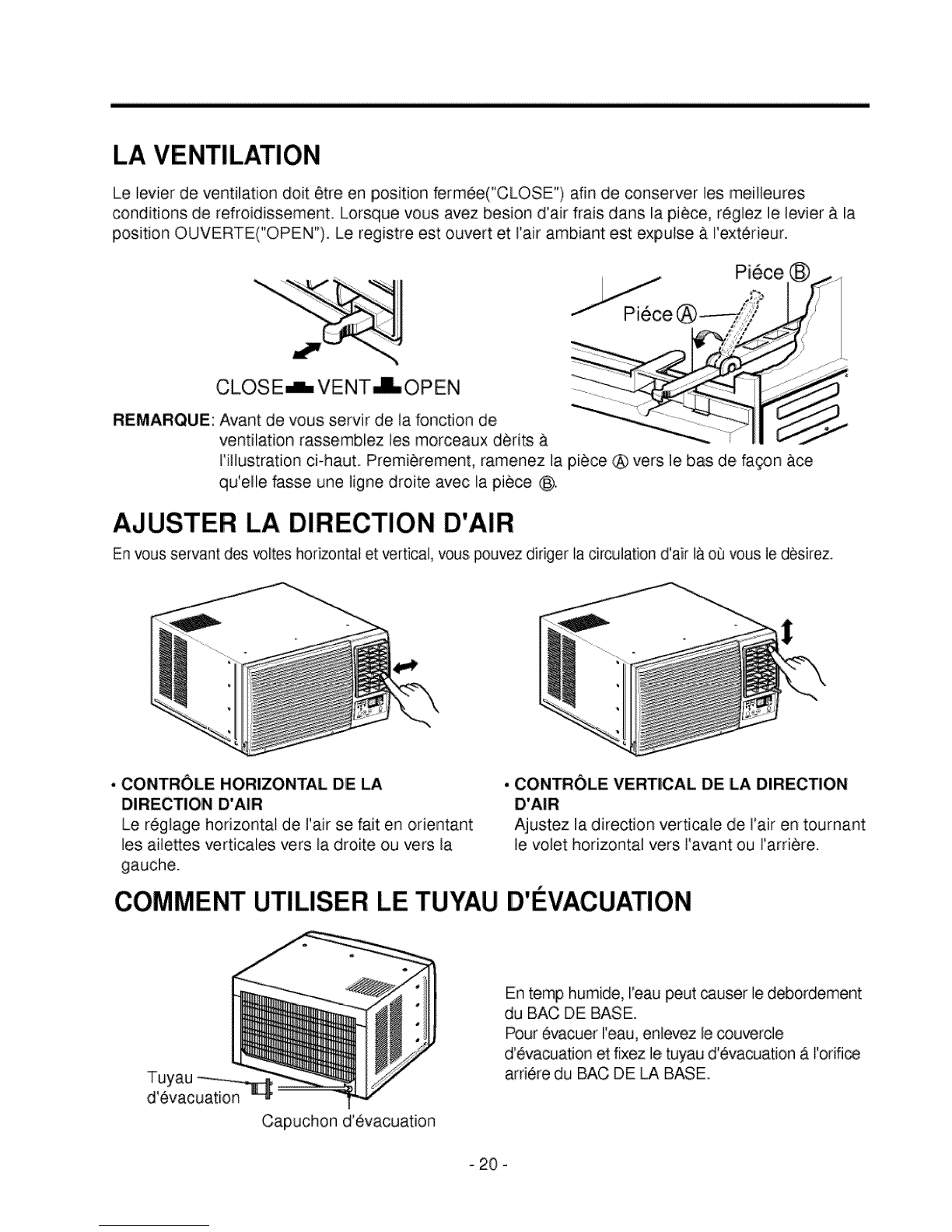

LA VENTILATION
Le levier de ventilation dolt 6tre en position ferm6eCCLOSE") afin de conserver les meilleures
conditions de refroidissement. Lorsque vous avez besion d'air frais dans la piece, reglez le levier & la
position OUVERTE("OPEN"). Le registre est ouvert et fair ambiant est expulse & Vext6rieur.
CLOSE -m- VENT_OpIEN
Piece
REMARQUE,: Avant de vous servir de la fonction de
ventilation rassemblez les morceaux derits A .....
I%ustration ci-haut. Premierement, ramenez ta piece @ vers le bas de fagon Ace
qu'elle fas.se une ligne droite avec la piece ®.
AJUSTER LA DIRECTION D'A,IR
En vous servant des ,_ltes horizontal et vertical, vous pouvez didger la circulation d'air I_ o0 vous le desirez.
• CONTROLE HORIZONTAL DE LA
DIRECTION D'AIR
Le reglage horizontal de I'air se fait en orientant
ies aile_es verticaies vers la droite ou vers la
gauche.
COMMENT
• CONTR_iLE VERTICAL DE LA DIRECTION
D'AIR
Ajustez la direction verti_le de I'air en tournant
le volet horizontal vers I'avant ou rarriere.
UTILISER LE TUYAU D'EVACUATION
Tuyau
d'evacuation _
Capuchon d'evacuation
En temp humide, l'eau peut _user le debordement
du BAC DE BASE.
Pour 6vacuer I'eau, enlevez le @u,_rcle
d'6vacuation et fixez le tuyau d'6vacuation _ rorifi_
arriere du BAC DE LA BASE.
- 20 -
