Goldstar R7003 User manual

Website: http://www.LGEservice.com
E-mail: http :llwww.L GEservice.comJtechsup,html
ROOMAIRC DITIO
UL
Pease ead t_e operat r9 irst_ucions and safety p_ec_£ (n_','f ,,:'
carelui y a;rd toro__ghiy befo_'e rsaiin{_ asd op@as sf_ yo_
_o_@It ortega,
MANUELD°UTILISATIO
I TISEU FE
Veu iez _...atten vemet et e:l"_er@ei ce 9@de du isaton
et les rnes_:_ ;._es de s@c rt@ ci-irlouses avast de proc@der a
instai at on et au fonc ionremer t de votre c/ma'ise_
ER
AE
IClONAI}OF1DEAIREDE
UL P Pl
Po/avo_' _r ....
i,,_a as de ope8,; Oli y las l,,)lecaucio _@s
de sogu_idad 6t dado;>a y totailmer R)antes de _h:tal,{ yopeLa'
@ % i '
SU £OONd=/C/C NadOf Ij@ 8iir:e d@ _eNtal'S&
MODEL, MODELES, MODELO: R5003, R5204, R5205_ R6003, R7003
R-5003, R-5204, R-5205, R-6003, R-7003

FOR 'fOUR RECORDS
Write down the model and serial numbers here:
Model #
You can find them on a Ilabelon the side of each unit.
_aler"s Name
Date Purchased
Staple your receipt here for proof of purchase.
READ THIS MANUAL
inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips If you review our cha_ of
Troubleshooting Tips first, you may not need to cail for
service at all.
, Contact an Authorized Service Center for repair or
maintenance of this unit.
° The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.

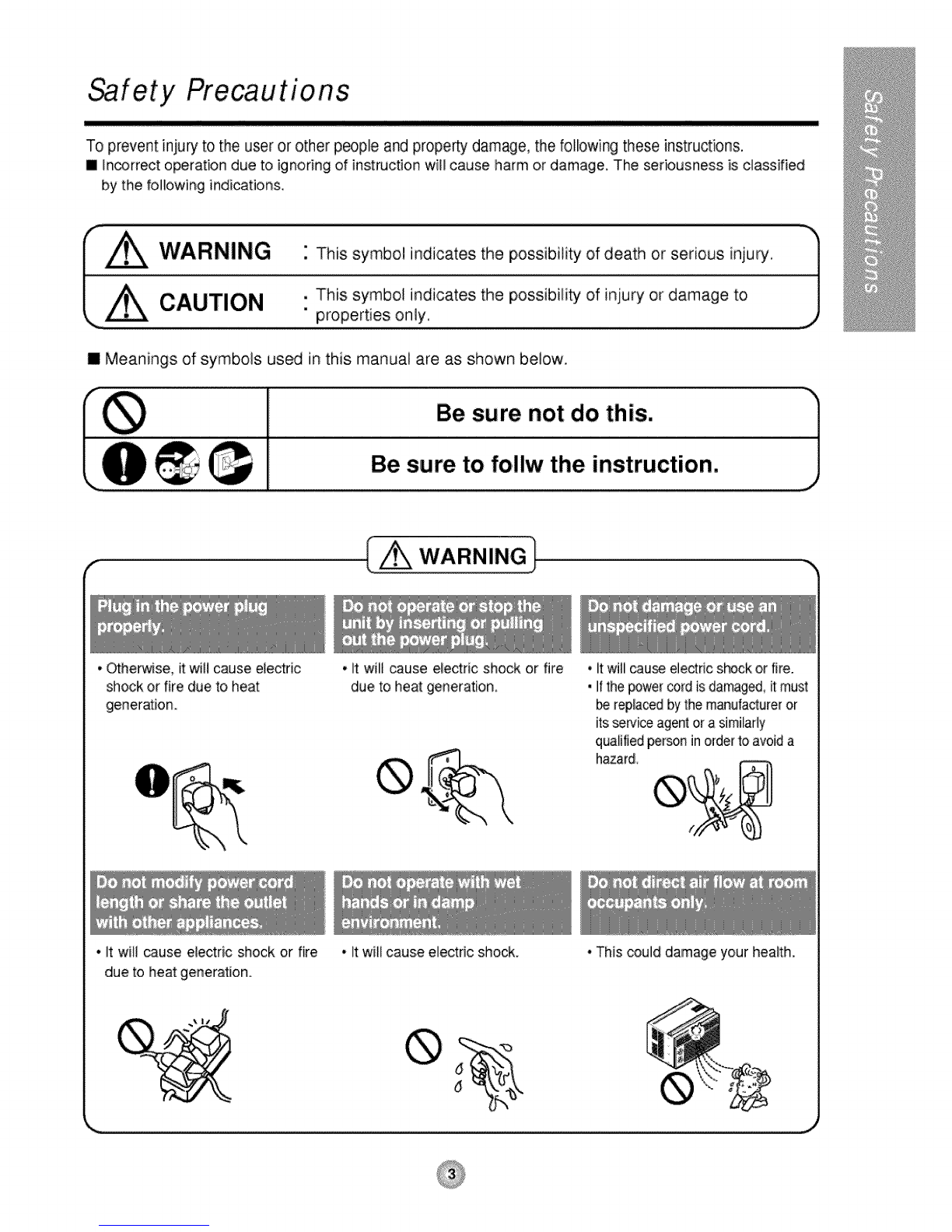

ety Precautions
To prevent injury to the user or other people and property damage, the following these instructions.
IIn_rrect operation due to ignoring of instruction wi]_cause harm or damage. The seriousness is classified
by the following indications,
I_ WARNING "This symbol indicates the possibility of death or serious injury, /
J
CAUTION •This symbol indicates the possibiiity of injury or damage to
, " properties only.
II Meanings of symbols used in this manual are as shown below,
f" Be sure not do this. --]
L,., € "_ Be sure to fo,llw the instruction, ,,J
r _ WARNING_
LJ
,,Otherwise, it will cause electric
shock or fire due to heat
generation.
*It will cause eJectric shock or fire
due to heat generat:ion.
• It will cause electric shock or fire
due to heat generation.
•it will cause electric shock.
• It will_use electricshockor fire.
• Itthepowercordisdamaged,it must
bereplacedbythemanulactureror
itsserviceagentor a similarly
qualifiedpersonin orderto avoida
hazard,
•This could damage your health.
®

• They are sharp and may cause
an injury.
, This could injurethe pets or #ants.
!IAcio.l
• Water may enter the unit and
degrade the insulation. Itmay
cause an electric shock..
*Since the fan rotates at high
speed dunng operation, it may
cause an injury,
®
• Do not use this air _nditioner to preserve pr_[sion
devices, food, pets, plants, and art objects,
Itmay cause deterioration of quality, etc.
, It may cause an electric shock. ._tmay cause a fire or deformation of the cabinet

About thie ntrols on the air conditioner
The controls will look like one of the following.
Off
',
X\\_ Low
*'---.J/)-ooo/
Off
High Fan
Low Fan
High Cool
Low Cool
oTurns air _nditioner off.
o High speed fan operation without _oling.
-Low speed fan operation without cooling.
oCooling with high speed fan operation.
- Cooling with low speed fan operation,
This automatically controls the temperature of the indoor air.
Turn the knob so that arrow points to the larger marks for greater cooling,
Point the arrow to the smaller marks for more moderate cooling.
(i.e. the higher number, the greater cooling)
.FOR NORMAL COOLING
!. Turn the operation switch to the High Cool or the Low Cool setting.
2. Set the thermostat control to the desired temperature mark _ (the mid-point is a good
starting position). If the room temperature is not satisfactory a_er a reasonable time, adjust the
control to a cooler or warmer setting, as appropriate.
,, FOR MAXIMUM COOLING
1. Turn the operation switch to the High Cool setting.
2. Set the thermostat control to the largest % temperature mark.
• FOR QUIETER OPERATION
1. Turn the operation switch to, the Low Cool setting.
2. Set the thermostat control as needed.
•CAUTION
When the air conditioner has been performed its cooling operation and is turned off or set to the
fan position, wait at least 3 minutes before resetting to the cooling operation again.

Additional controls and important information.
Air Direction
• ADJUSTING THE AIR DIRECTION USING THE HORIZONTAL AIR.DEFLECTOR CONTROL
Using the control tabs, the air flow can be directed
to the left, right, straight ahead, or any combination
of these directions.
Care and Maintenance
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
•TO CLEAN FILTER
The air filter will become dirty as it removes
dust from the inside air.
It should be washed at least every 2 weeks. Donotforce
open or open to
If the air filter remains full of dust, the air far (about 56°)
flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.
1. Pull the inlet grille forward and pull out the
air filter. (Fig. 1)
2. Wash the air filter in warm 104ff:(40_) water.
Be sure to shake Off all the water before
replacing the filter.
• CLEANING THE AIR CONDITIONER
The front grille and Inlet grille may be wiped with a
cloth dampened in a mild detergent solution. (Fig. 2)
The cabinet may be washed with mild soap or
detergent and lukewarm water then polished with
Liquid Wax for Appliances.
Fig. 1
Fig, 2
To ensure continued peak efficiency, the condenser
coils(outside of unit) should be checked
periodically and cleaned if clogged with soot or
dirt from the atmosphere.
,, HOW TO REMOVE THE FRONT GRILLE
1. Remove the thermostat knob and the operation
knob by pulling
2. Remove the screw securing the Front Gri!le.(Fig, 3)
3. Push the grille up from the bottom and pull
the top of the grille away from the _se as
the top tabs lift out of their slots.(Fig 4)
Fig, 3
Fig. 4

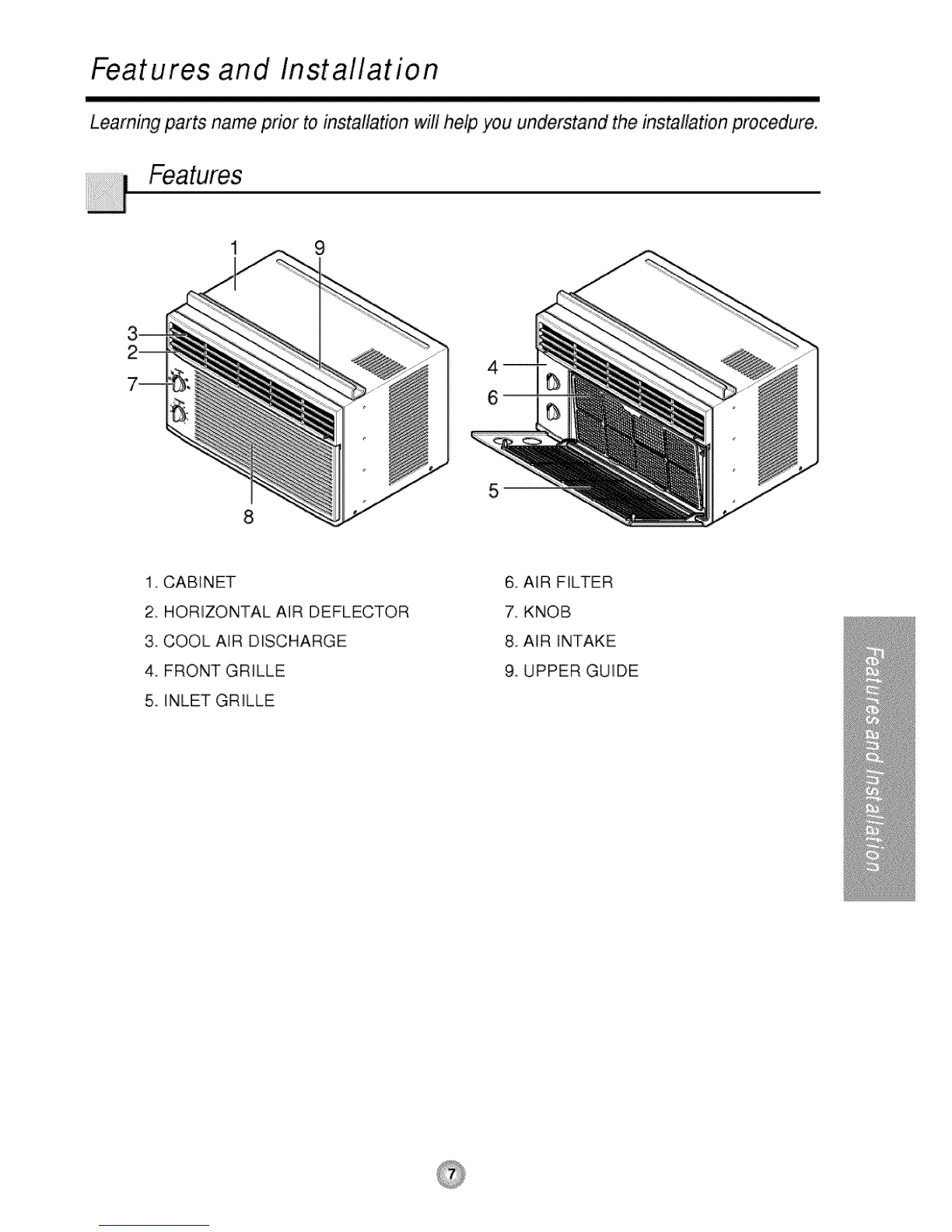

Features and Installation
Leaming parts name prior to installation will help you understand the installation procedure.
1 9
8
1. CABINET
2. HORIZONTAL AIR DEFLECTOR
3. COOL AIR DISCHARGE
4. FRONT GRILLE
5. INLET GRILLE
6. AIR FILTER
7 KNOB
8. AIR INTAKE
9. UPPER GUIDE
Z

WindowRequirements
NOTE: All supporting parts should be secur_ to firm wood, masonry, or metal.
1. This unit is designed for installation in standard double hung windows with actual opening widths of
22" to 36" The upper and lower sash must open sufficiently to allow aclear vertical opening of 14"
from the bottom of the sash to the window stool.
2.If storm window presents interference, fasten a 2" wide wood strip (OUTER SILL) to inner window
sill across the full width dthe sill. The wood strip should be thick enough to raise the height of the
window sill so that the unit can be installed without interference by the storm window frame.
See Fig. 5-2. Top of:wood strip should be approximately 3/4" higher than the storm window frame
(STORM WINDOW FRAME) or wood strip (OUTDOORS) to help _ndensation to drain properly to
the outside.
3. Install a second wood strip (approximately 6" long by 1-1/2" wide and same thickness as first strip)
in the center of the outer sill flush against the back off the inner sill. This will raise the L bracket as
shown Fig. 5-2
4. if the distance beh,¢eenSTORM WINDOW FRAME and WOOD STRIP MOUNTED ON TOP OF
INNER SILL is more than 1'_,two of wood strip are not necessary
iNNER WOOD STRIP MOUNTED 1" MAX.
Fig. _1 Fig. _2
HARDWARE ]
TYPEA: 1lEA TYPEB:4EA TYPEC: 3EA
..... (SHORTSCREW) .(W_D SCREW) . (L BACKET)
TYPE D: 1EA TYPE E: 1EA TYPE F: 2EA
(SEAL STRIP) (SASH SEAL) (GUIDE PANEL)
(Adhesive backed) (Notadhesivebacked)

A. BEFORE INSTALLATION
1. Insert the guide panels into the guides of the air
conditioner. Fasten the curtains to the unit with
screws (TYPE A), as shown Fig. 6.
2. Cut the adhesive-backed seal strip (TYPE D) to the
window width
Remove the backing from the seal strip and attach
the seal strip to the underside of the bottom
window (Fig, 7)
B" NOW START INSTALLATION
1. LOCATING UNIT IN WINDOW
Open the window and mark center line on the
center of the inner sill, as shown in Fig. 8.
'r'FPEA
Fig, 6
SEAL STRIP
(TYPE D)
Fig. 7
TYPE A
2, ATTACH L BRACKET
& Install the Lbrackets behind the inner window
siil, with short side of bracket as shown Use the
2 screws (TYPE A) provided.
b. The bracket helps to hold unit securely in place.
Be sure to place bracket edge flush against back
of inner sill. See Fig. 9.
&INSTALL THE AtR CONDITIONER IN THE
WINDOW
a. Carefully li_ the air conditioner and slide it into
the open window. Make sure the _ttom guide of
the air conditioner drops into the notches of the
L bracket. See Fig. 9.
During the following step, hold unit firmly until
window sash is lowered to top channel behind
side panel frames. Personal injury or property
damage may result if unit falls from window,
Fig. 8
iNNER SILL
OUTER SILL TYPE A
OUTSIDE
L BRACKET
Fig. 9
I
IMPORTANT:
When the air conditioner drops into the Lbracket, the
air conditioner will be centered in window opening as
shown in Fig l& Fig. i0 CENTER LINE

b_While steadying the air _nditioner, carefully bring
the win_w sash down behind the upper guide of the
air conditioner, as shown in Fig. 11.
4. SECURE THE GUIDE PANELS
Extend the guide panels (TYPE F) to fill the window
opening using 4 screws (TY'PE B) to secure them, as
shown in Fig 12.
5. INSTALL THE SASH SEAL AND SASH LOCK
& Cut the sash seal (TYPE E) to the window width,
Stuff the sash seal between the glass and the
window to prevent air and insects from getting into
the room, as shown in Fig. 12.
b. Fasten the sash lock using a (TYPE A) screw, as
shown in Fig. 12.
6. Window installation of room air conditioner is now
completed, See ELECTRICAL DATA for attaching
power cord to electrical out/eL
L BRACKET
TYPE
TYPE B
Fig, 12
I/4°
SASHSEAL
(TYPEE)
C HOW TO SECURE THE DRAIN PIPE
In humid weather, excess water may cause the BASE
PAN to overflow. To drain the water, remove the
DRAIN CAP and secure the DRAIN PiPE to the rear
hole of the BASE PAN. (Fig. 13)
REMOVAL FROM WINDOW Fig. 13 DRA_NCAP
DRAINPIPE
Turn the air _nditioner off, disconnect the power _rd, remove the Lbracket and the screws installed
through the top and bottom of the guide panels, and save for reinstallation later. Close the guide panels.
Keeping a firm grip on the air conditioner, raise the sash, and carefully tilt the air conditioner backward,
draining any _ndensate water. Lift the air oonditioner from the window and remove the sash seal from
between the window&
Line Cord Plug
I Oooo,uodo ao¢
_/! circumstances cut
.../___._ tI or remove the
_--_ grounding prong
Power supply cord with
3-prong grounding plug
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Use 15 AMP, time
delay fuse or circuit
breaker.
USE OF EXTENSION CORDS
Because of potential safety h_ards, we strongly discourage the use of an extension _rd. However, ifyou wish to
use an extension cord, use a CSA c_rtified/UL-listed 3-wire (grounding) extension _rd, rated 15A, 125V.

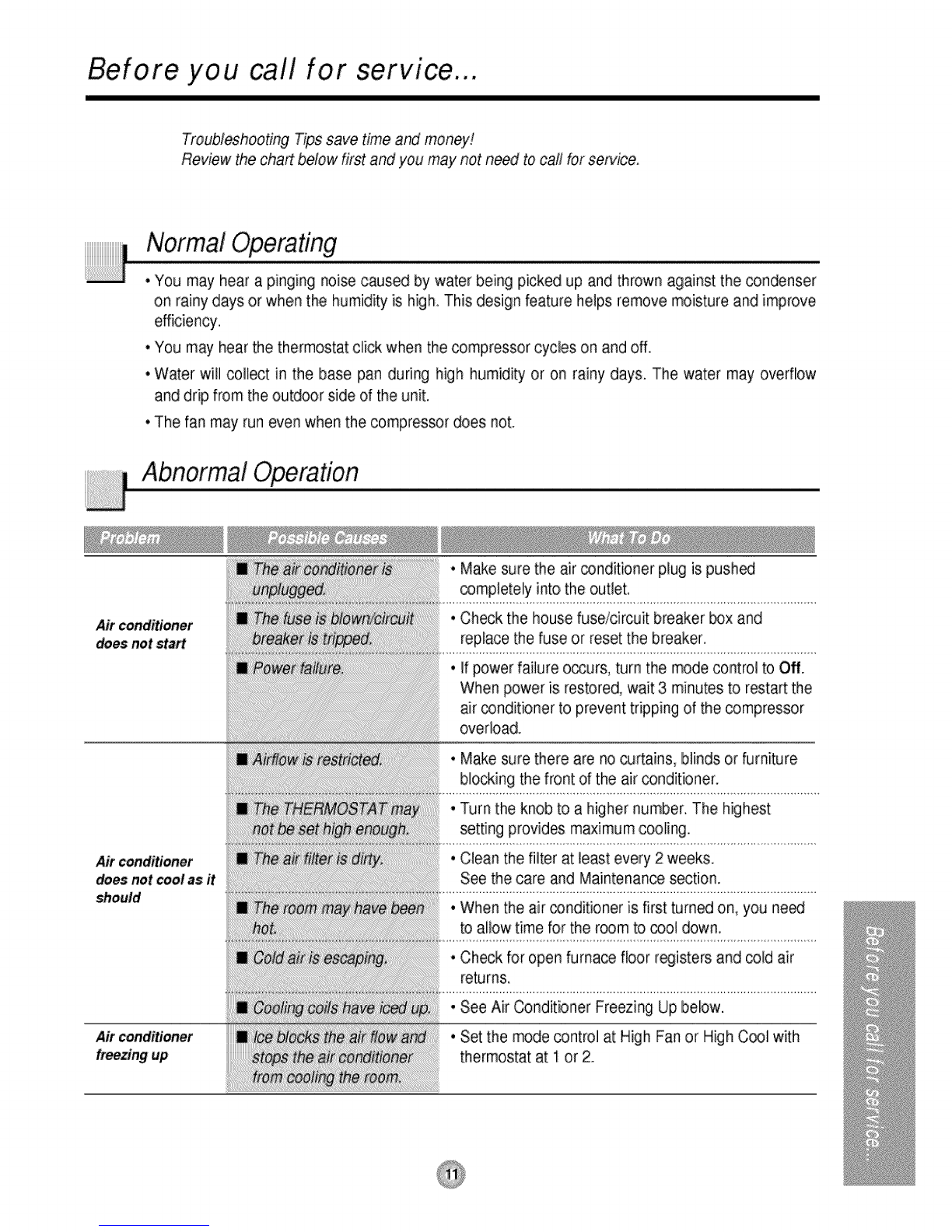

Before you call for service ....
Troubleshooting Tips save time and money!
Review the chad below first and you may not n_d to call for seFvice.
Normal Operating
, You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
• You may hear the thermostat click when the compressor cycles on and off.
• Water will collect in the Ibase pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
• The fan may run even when the compressor does not.
Abnormal Operation
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
Make sure the air conditioner plug is pushed
completely into the outlet.
Check the house fuse!circuit breaker _x and
replace the fuse or reset the breaker.
If power failure occurs, turn the mode control to Off.
When power is.restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the _mpressor
overload.
Make sure there are no curtains, blinds or furniture
blocking the front of the air conditioner.
Turn the knob to a higher number. The highest
setting provides maximum cooling.
Clean the filter at least every 2 weeks.
See the care and Maintenance section.
When the air conditioner is first turned on, you ne_
to allow time for the room to cool down,
Check for open furnace floor registers and cold air
returns.
• See Air Conditioner Freezing Up below.
,Set the mode control at High Fan or High C_l with
thermostat at 1 or 2.
