Goldstar WG1805R User manual

ww_ .goldsgir applianc cs_com
OWNER'S MANUAL
MANUAL DEL PROPIETARIO
Models/Modelo WG ! 805R,WG2405R
para el future

,o

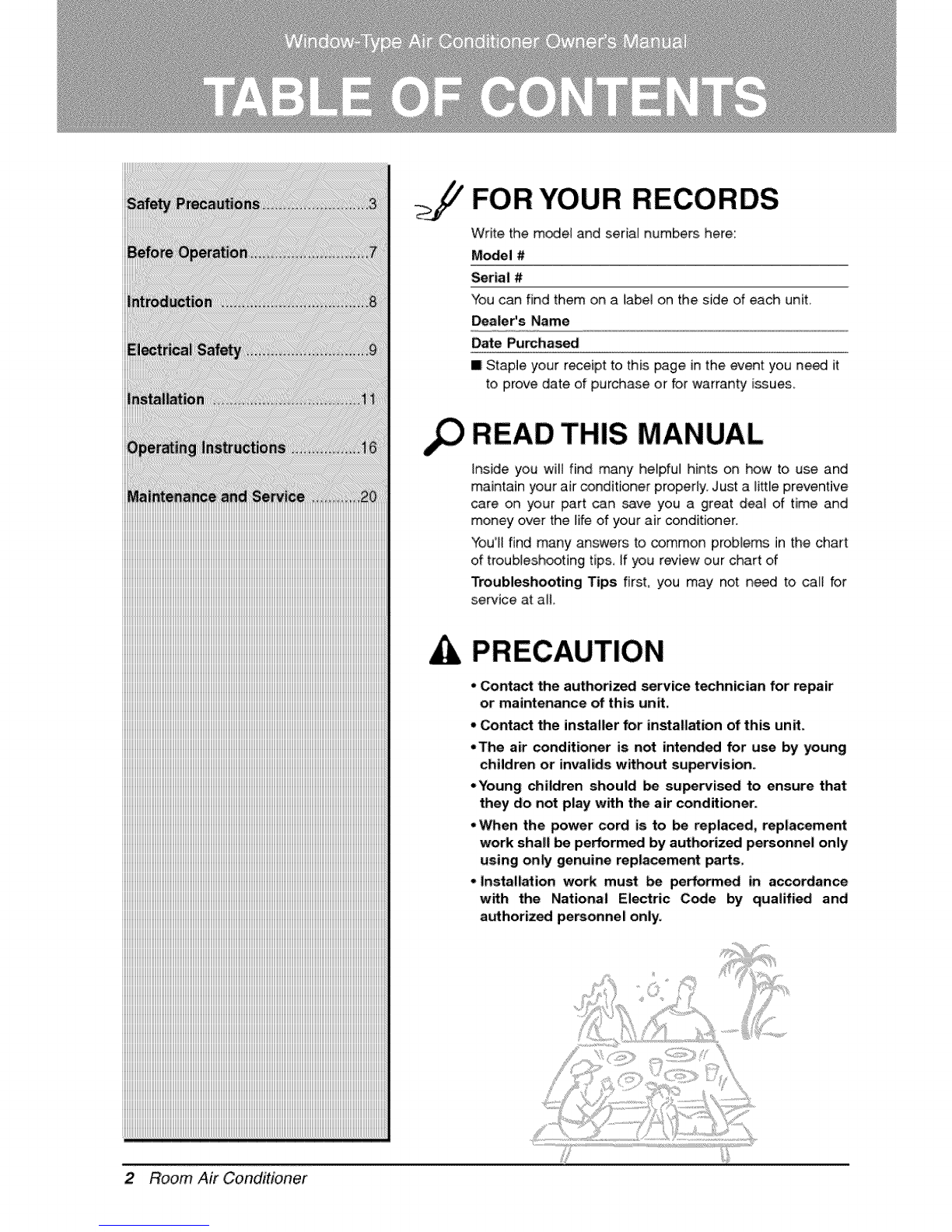

FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit,
Dealer's Name
D_e Purchased
Staple your receipt to this page in the event you need it:
to prove date of purchase or for warranty issues.
READ THiS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great dea_ of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at aH_
PRECAUTION
•Contact the authorized service technician for repair
or maintenance of this un_.
•Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids w_ho_ supervision,,
-Young children should _supervised to ensure that
they do not play"with the air conditioner.
• When the power cord is to _replaced, replacement
work shah be performed by authorized personnel only
using only genuine replacement pans.
•installation work must _performed in accordance
w_h the National Electric Code by qualified and
authorized personnel only.
2 Room Air Conditioner

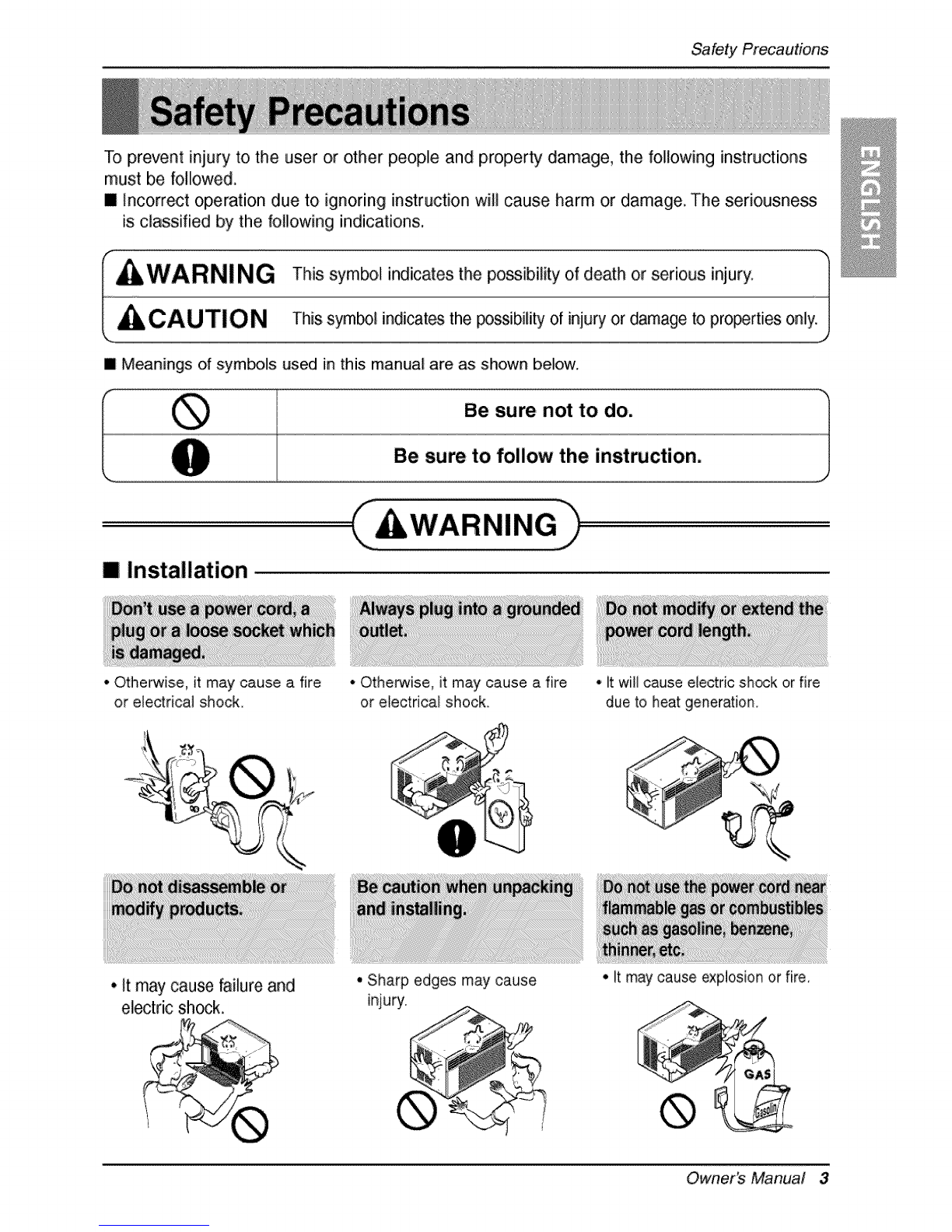

SafetyPrecautions
To prevent injury to the user or other people and proper_ damage, the following instructions
must be followed,
m Incorrect operation due to ignoring instruction will cause harm or damage, The seriousness
is classified by the fol!owing indications,
This symbol indicates the possibility of death or serious injury: J
J
This sym_l indicates the possibility of injury or damage to properties only.
[] Meanings of sym_ls used in this manual are as shown below.
[] Installation
* Othe_ise, it may cause a fire
or electrica( shock.
• it may cause failure and
electric sh_k.
*Otherwise, it may cause a fire
or electrical shock. * It wilt cause electric sh_k or fire
due to heat generation.
*Sharp edges may cause
injury.
• It may cause explosion or fire.
®
Owner_ Manual 3

SafetyPrecautions
[] Operation
•There is danger of fire or electric
sh_k,
*It may cause fire and el_tric
sh_k,
• It will cause electric shock or fire
due to hea[ generation.
• It wiElcause failure of machine or
electric shock.
•Othe_ise it may cause fire and
electric shock accident.
*An oxygen shortage may occur,
• Otherwise, it may electrical
shock and failure.
• Otherwise, it may _use a fire
or electrical shock.
• The _pearance of the air
conditioner may deteriorate,
change color, or develop su_ace
flaws.
° Since the fan rotates at high
speed during operation, it may
cause injury:
4 Room Air Conditioner
•Prevent accidental startup and
the possibility of injury,

Safety Precautions
, it will cause electric shock or fire • It will cause eiectdc shock or fire. • It will cause electric sh_k
due to heat generation.
• it may cause electric shock and
damage. - Othe_ise, it may cause explosion, and a fire. oThey are sharp and may cause injury.
[] Installation
• Otherwise, it may cause dispute with the
neighbors. *Otherwise, it may cause vibration or water
Jeakage.
Owner_ Manual 5

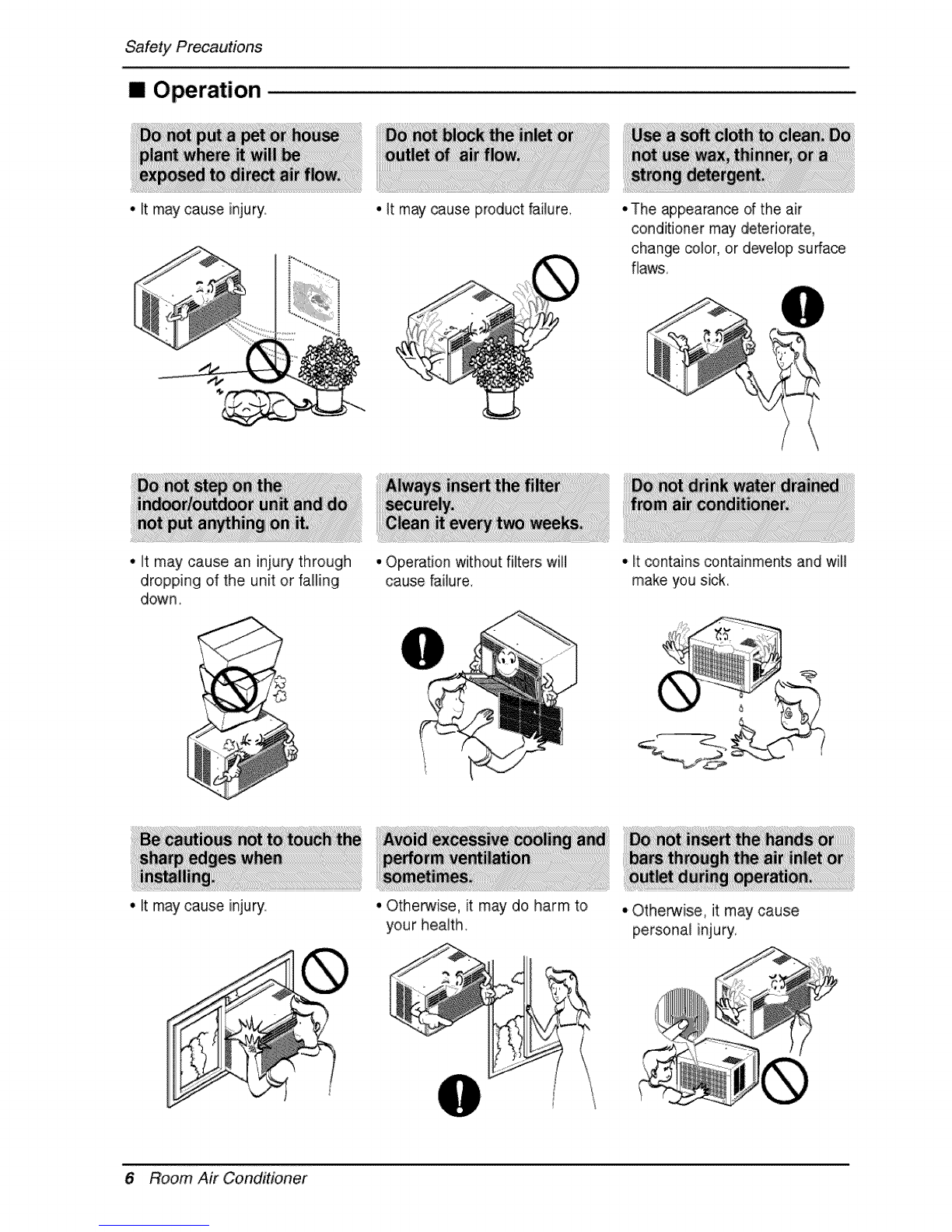

SafetyPrecautions
[] Operation
• It may cause injury • It may Ruse product failure • The appearance dthe air
conditioner may deteriorate,
change color, or develop surface
flaws,
• It may cause an injury through
dropping of the unit or falling
down
• It may cause injury:
• Operation without filters will
cause failure+
° Otherwise, it may do harm to
your health+
, It contains containments and will
make you sicL
@
6ROom Air Conditioner
• Otherwise, it may' cause
personal injury.

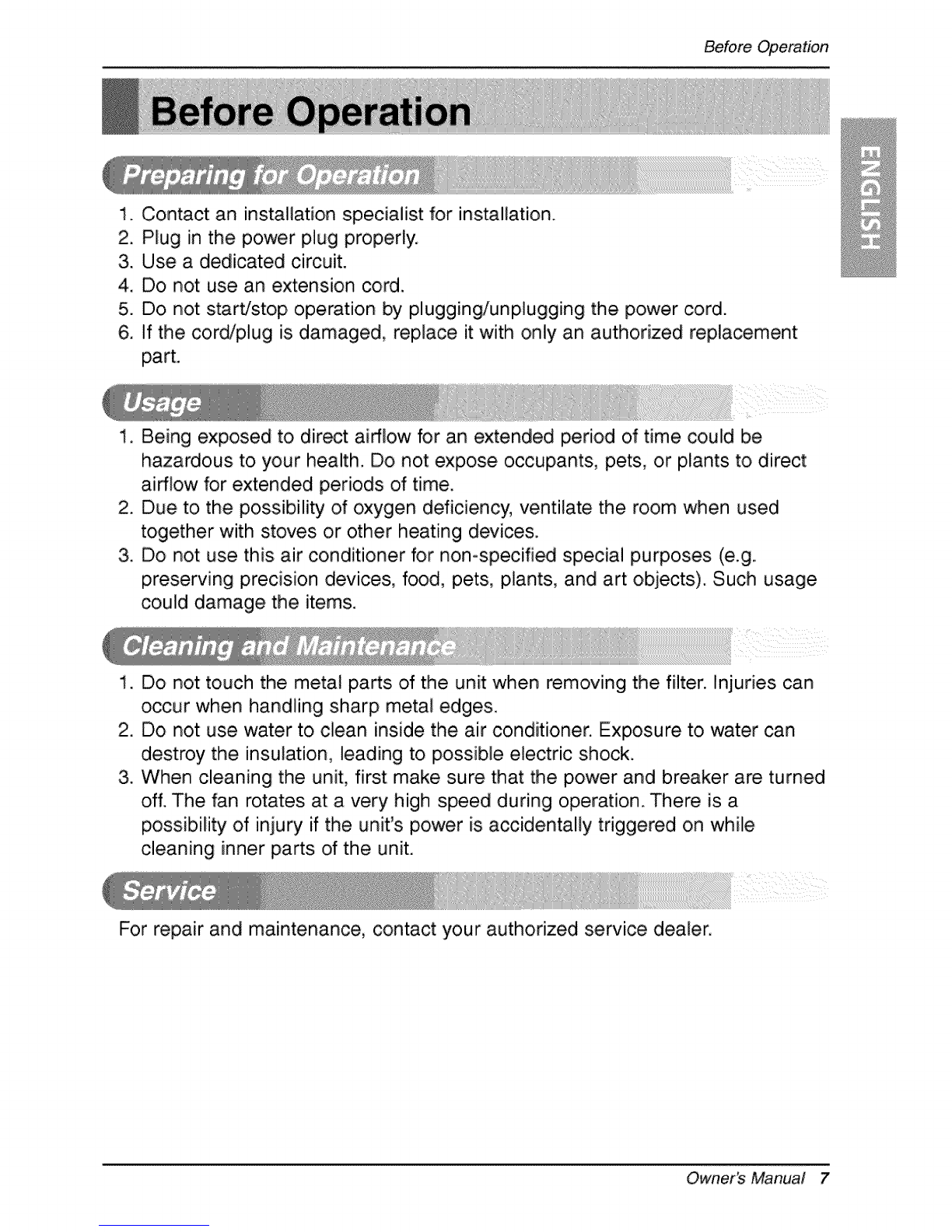

Before Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/st:op operation by plugging/unplugging the power cord.
6. If the cordlplug is damaged, replace it with only an authorized replacement
part.
1. Being exposed to. direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency; ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
i ii i
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditio.ner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Owner_ Manual 7

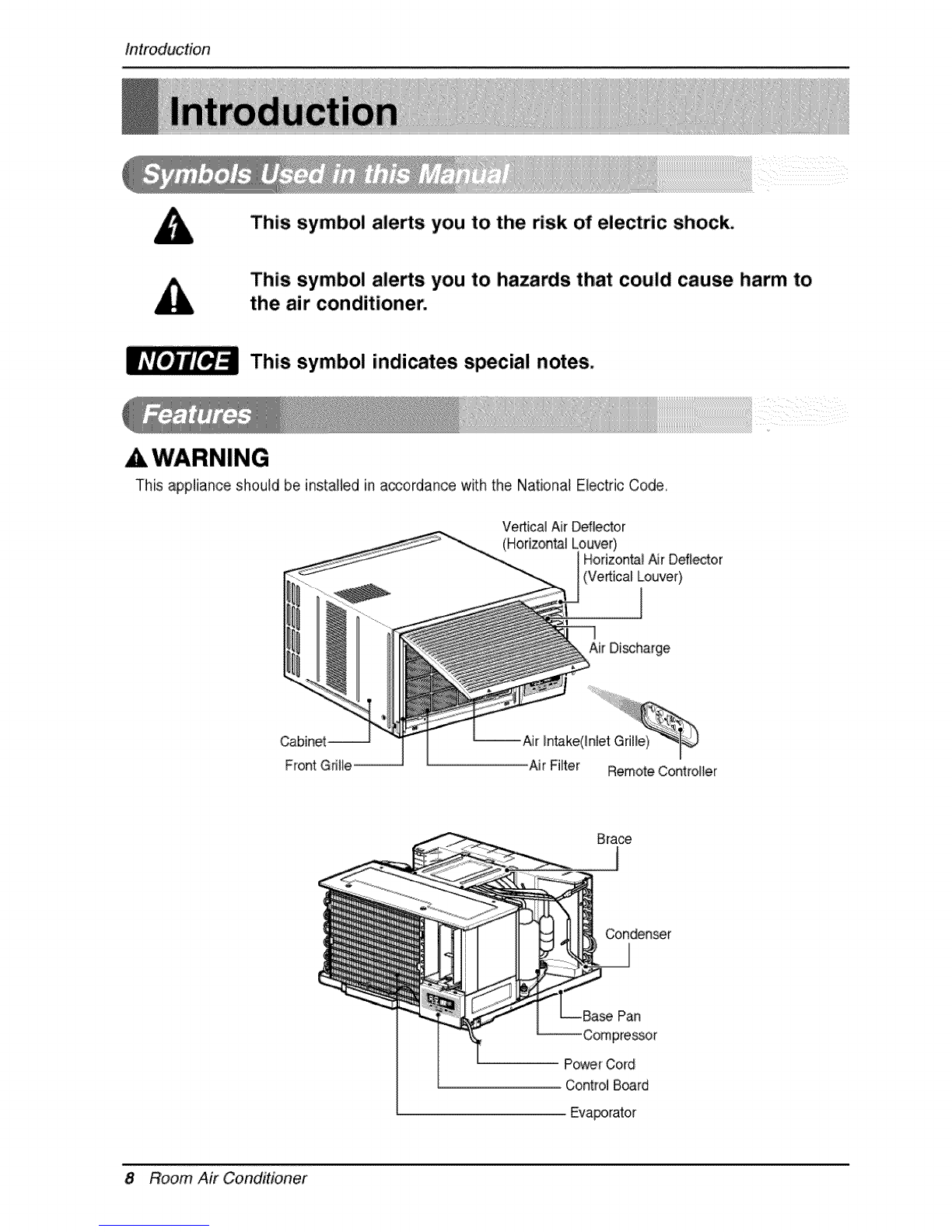

Introduction
This symbol ale,s you to the risk of electric shock,
This symbol ale,s you to hazards that could cause harm to
the air conditioner;
This symbol indicates special notes.
This appaianceshould be installedin a_ordance withthe National Electric Code
Vertical Air Deflector
(Hofizon_l Louver)
Hofizon_ Air Deflector
(Ve_ica_Louver)
1
Air IntakednietGrille
Air Fi_ter RemoteController
Conden_r
Pan
Compressor
PowerCord
ContromBoard
Eva_rator
8 Room Air Conditioner

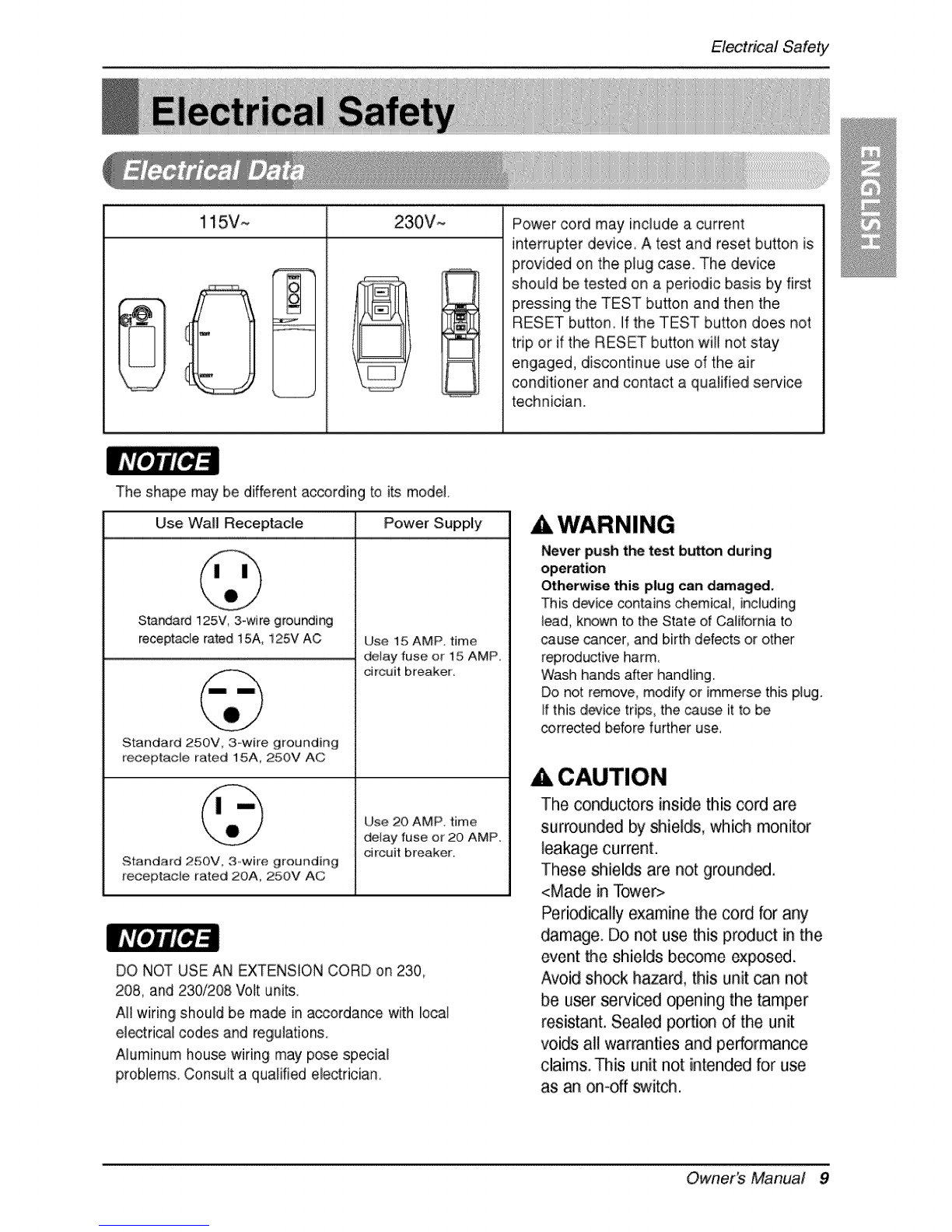

ElectricalSafety
115V~ 230V~
m
Power cord may include a current
interrupter device, A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST bu_on and then the
RESET button if the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
The shape may be different according to its model
Use Wall Receptacle Power Supply
Sta_ard 125V, 3_wiregrounding
receptacle rated 15A, 125V AC
Standard 250V_ 3-wire grounding
receptacle rated 15A 250V A©
Standard 250V 3owire grounding
receptacle rated 20A 250V AC
Use 15 AMP, time
delay fuse or 15 AMP.
circuit breaker,
Use 20 AMP, time
delay fuse or" 20 AMP
c4rcuit breaker,
DO NOT USE AN EXTENSION CORD on 230,
208° and 230/208 Volt units
All wiring should be made in accordance with local
electrical codes and regulations.
Aluminum house wiring may pose special
probiem& Consult a qualified electrician,
Never push the test b_on during
Otherwise this plug can damaged.
This device contains chemical including
lead, known to the State of California to
_use cancer, and birth defects or other
reproductive harm,
Wash hands after handling.
Do not remove, modify or immerse this plug.
If this device trips, the cause it to be
corrected before further use,
The conductors inside this cord are
surrounded by shields, whichmonitor
leakage current.
These shields are not grounded.
<Made in Tower>
Periodically examine the cord for any'
damage. Do not use this product in the
event the shields become exposed.
Avoid sh_k hazard, this unit can not
be user serviced opening the tamper
resistant. Sealed porti_ of the unit
voids all warranties and performance
claims. This unit not intended for use
as an on-off switch.
Owner_ Manual 9

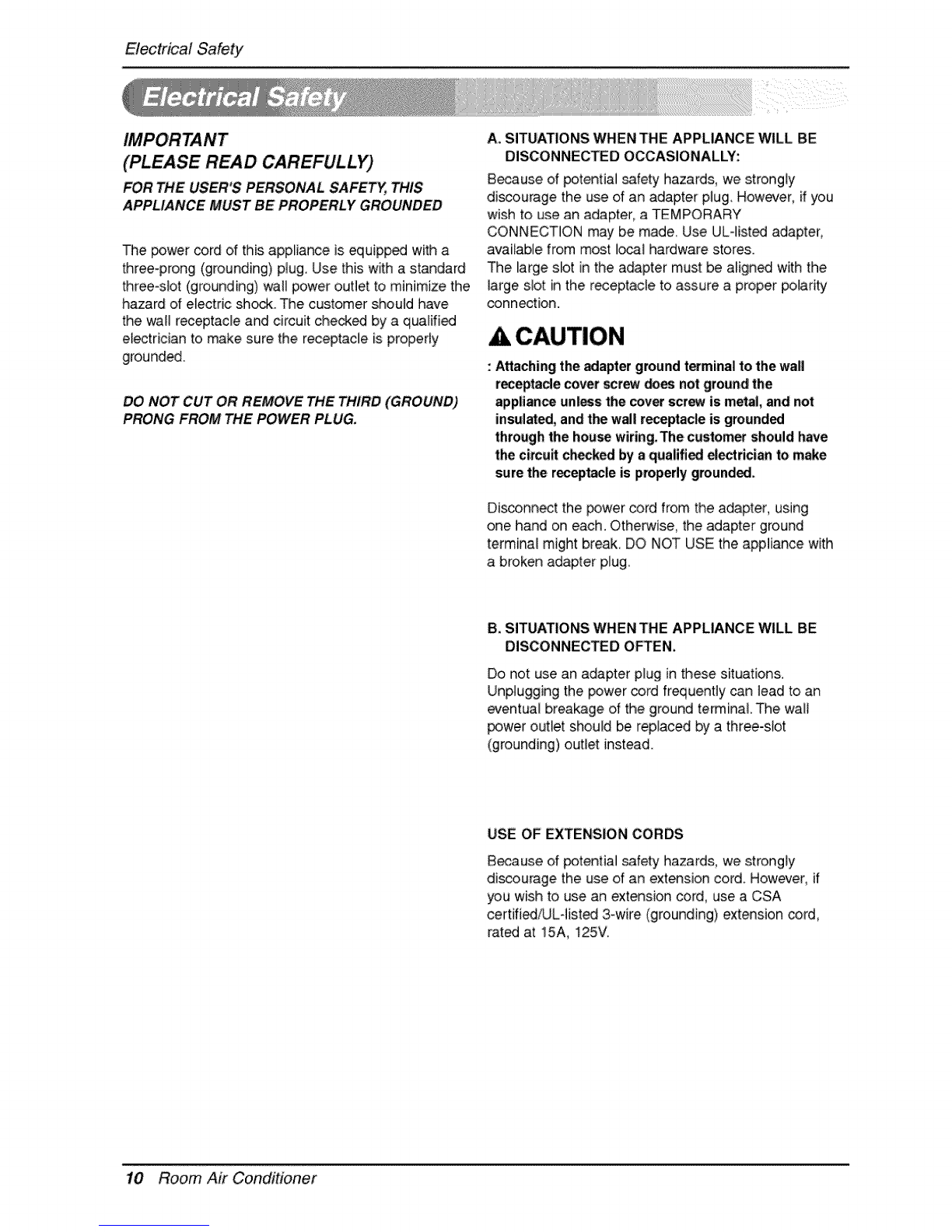

Electrical Safety
(PLEASE READ' CAREFULLY')
FOR THE USER'S PERSONAL SAFET_ THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a standard
three-sbt (grounding) wall power outlet to minimize the
hazard of: electric shock. The customer should have
the wall receptacle and circuit chewed by a qualified
electridan to make sure the receptacle is properly
grounded.
DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG,
A. SITUATIONSWHEN THE APPLIANCE WILL BE
DISCONNECTED OCCASIONALLY:
Because of potential safety hazards, we strongly
di_urage the use of an adapter p]ug, However, if you
wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL4isted adapter,
available from most Iot'HI hardware stores.
The large slot in the adapter must be aligned with the
large slot in the receptacle to assure a proper polarity
connection.
ACAUTION
: Attaching the adapter ground terminal to the wall
receptacle cover screw _ not ground the
appliance unless the cover scr_ is metal, and not
insulated, and the wali receptacle is grounded
through the hou_ wiring. The customer should have
the circuit _ecked by a qualified ei_rician to make
sure the recep_le is properly grounded.
Disconnect the power cord from the adapter, using
one hand on each. Othe_ise, the adapter ground
terminal might br_k. DO NOT USE the appliance with
a broken adapter plug.
B, SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to an
eventual breakage dthe ground terminal. The wall
power outlet should be replaced by' a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
B_use dpotential safety hazards, we strongly
di_urage the use of an extension cord. However, if
you wish to use an extension cord, use a CSA
certifiediUL-listed 3°wire (grounding) extension cord,
rated at 15A, 125V.
10 Room Air Conditioner

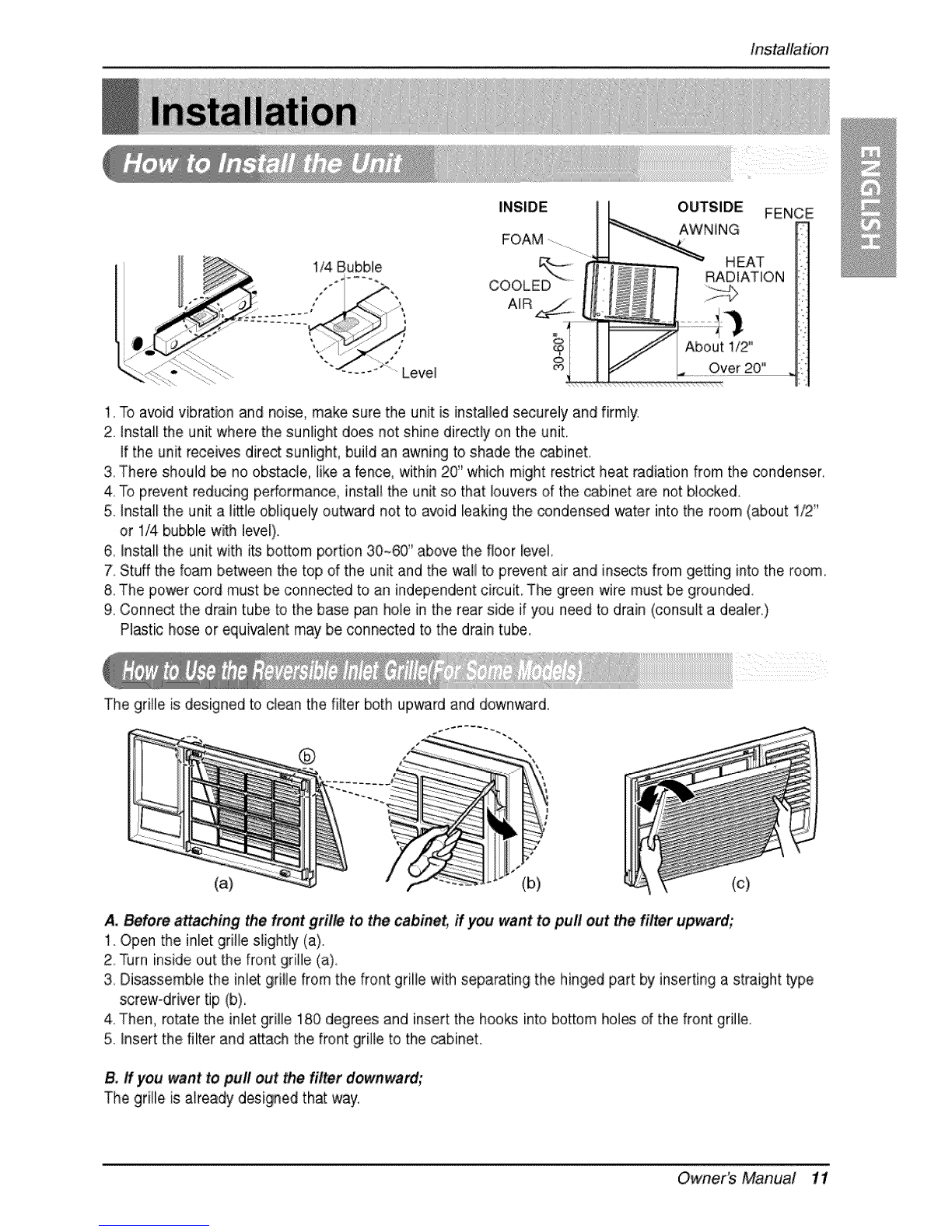

Installation
114Bubble
I
Level
INSIDE
FOAM ...............
COOLED
OUTSIDE FENCE
AWNING;
HEAT
RADIATION
About 1/2"
Over 20"
1.To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet
3, There should be no obstacle, like a fence, within 20" which might restrict heat radiation from the condenser
4. To prevent reducing performance, install the unit so that louvers of the cabinet are not blocked.
5. Install the unit a little obliquely outward not to avoid leaking the condensed water into the room (about 1/2"
or 1/4 bubble with level).
6, Install the unit with its bosom portion 30-60" above the floor level,
7. Stuff the foam between the top of the unit and the wall to prevent air and insects from geeing into the room,
8. The power cord must be connected to an independent circuit. The green wire must be grounded.
9. Connect the drain tube to the base pan hole in the rear side if you need to drain (consult a dealer.)
Pl_tic hose or equivalent may be connected to the drain tube,
The grille is designed to clean the filter both upward and down_rd.
®
(a) (b) (c)
A. Before attaching the front grille to the cabinet, ff you want to puff out the filter upward;
1. Open the inlet grille slightly (a).
2_Turn inside out the front gr[He(a).
3, Disassemble the inlet griile from the front grille with separating the hinged part by inserting a straight type
screw-driver tip (b),
4. Then, rotate the inlet grille 180 degrees and insert the hooks into bottom holes of the front grille.
5. Insert the filter and attach the front grille to the _binet.
B. ff you want to pull out the filter downward;
The grille is already designed that way.
Owner's Manual 11

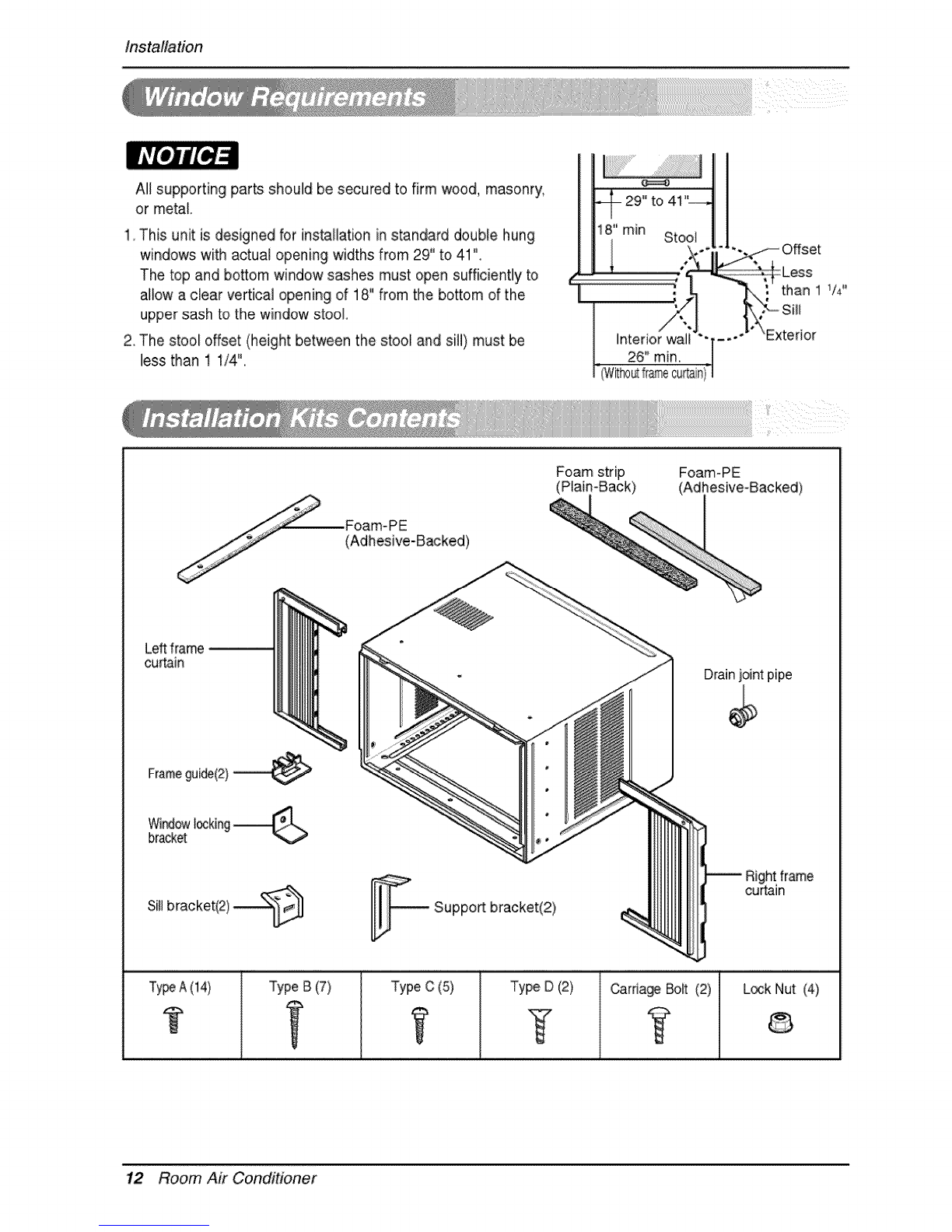

tnstallation
All supporting parts should be secured to firm wood, masonry,
or metal.
1,This unit is designed for installation in standard double hung
windows with actual opening widths from 29" to 41",
The top and bottom window sashes must open sufficiently to
allow a clear vertical opening of 18" from the bottom of the
upper sash to the window stool,
2. The stool offset (height between the stool and sift) must be
less than 1 1/4"_
29" to 41'_
18" min Stool Offset
Less
"_',,,_,!' than1 '/4"
Foam strip Foam-PE
(Plain-Back) (Adhesive-Backed)
Ty_ A (14) Type B (7) Type C(5) Type D (2) Carria_ Bolt (2) L_k Nut (4)
12 Room Air Conditioner

Installation

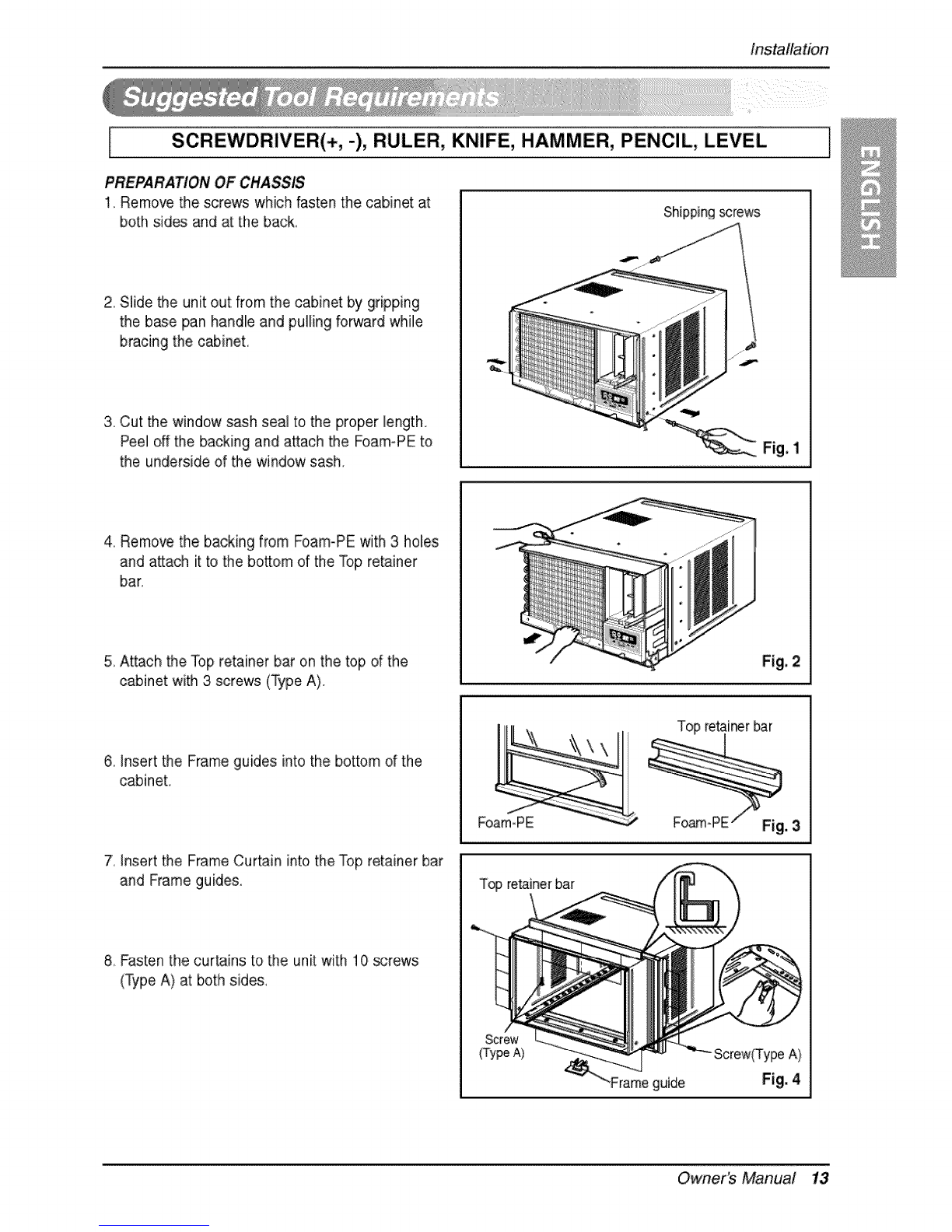

PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet at
both sides and at [he back,
2 Slide the unit out:from the cabinet by gripping
the base pan handle and pulling forward wMe
bracing the cabinet.
3. Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-PE to
the underside of the window sash.
Shipping screws
Fig, 1
4. Remove the backing from Foam-PE with 3 holes
and attach it:to the bosom of the Top retainer
bar,
5, Attach the Top retainer bar on the top of the
cabinet with 3 screws (Type A). Fig. 2
6. Insert the Frame guides intothe bottom of the
cabineL
7, Insert the Frame Curtain into the Top retainer bar
and Frame guides,
8 Fasten the curtains to the unit with 10 screws
(Type A) at both sides,
Foam-PE
Topretai_r bar
Top retainer bar
Screw(TypeA)
guide Fig. 4
Owner_ Manual 13

tnstallation

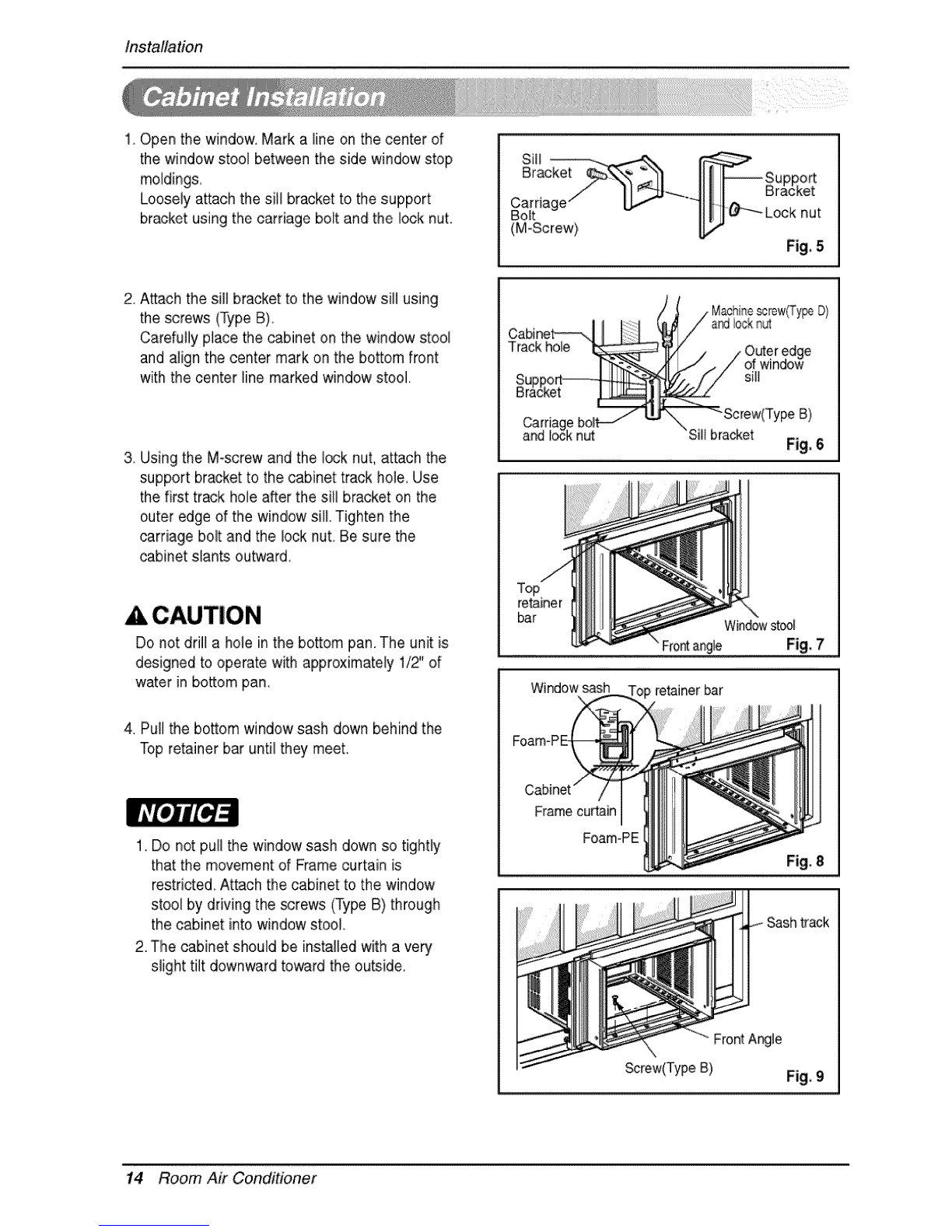

I Open the window. Mark a line on the center of
the window stool between the side window stop
molding&
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the look nut.
Sill
Bracket
Carriag
BoJt
(M-Screw) nut
Fig, 5
2. Attach the sill bracket to the window sill using
the screws (Type B),
Carefully place the cabinet on the window stool
and align the center mark on the bottom front
with the center line marked window stool.
3, Using the M-screw and the lock nut, attach the
support bracket to the cabinet track hole, Use
the first track hole after the sill bracket on the
outer edge of the window sill. Tighten the
carriage bolt and the lock nut. Be,sure the
cabinet slan_ outward,
ACAUTION
Do not drill a hole in the bottom pan. The unit is
designed to operate with approximately 1/2" of
water in bottom pan,
4. Pull the bottom window sash down behind the
Top retainer bar until they meet.
1. Do not pull the window sash down so tightly
that the movement of Frame curtain is
restricted Attach the cabinet to the window
stool by driving the _rews (Type B) through
the cabinet into window stool.
2.The cabinet should be installed with a very
slight tilt downward toward the outside.
quietedge
Ofw_naow
sill
B)
Sill bracket Fig, 6
retainer
bar Wind_ st_l
Frontangle Fig. 7
Window sash retainer bar
Frame curtain
Foam-PE
Fig. 8
FrontA_le
Screw(TypeB) Fig, 9
14 Room Air Conditioner

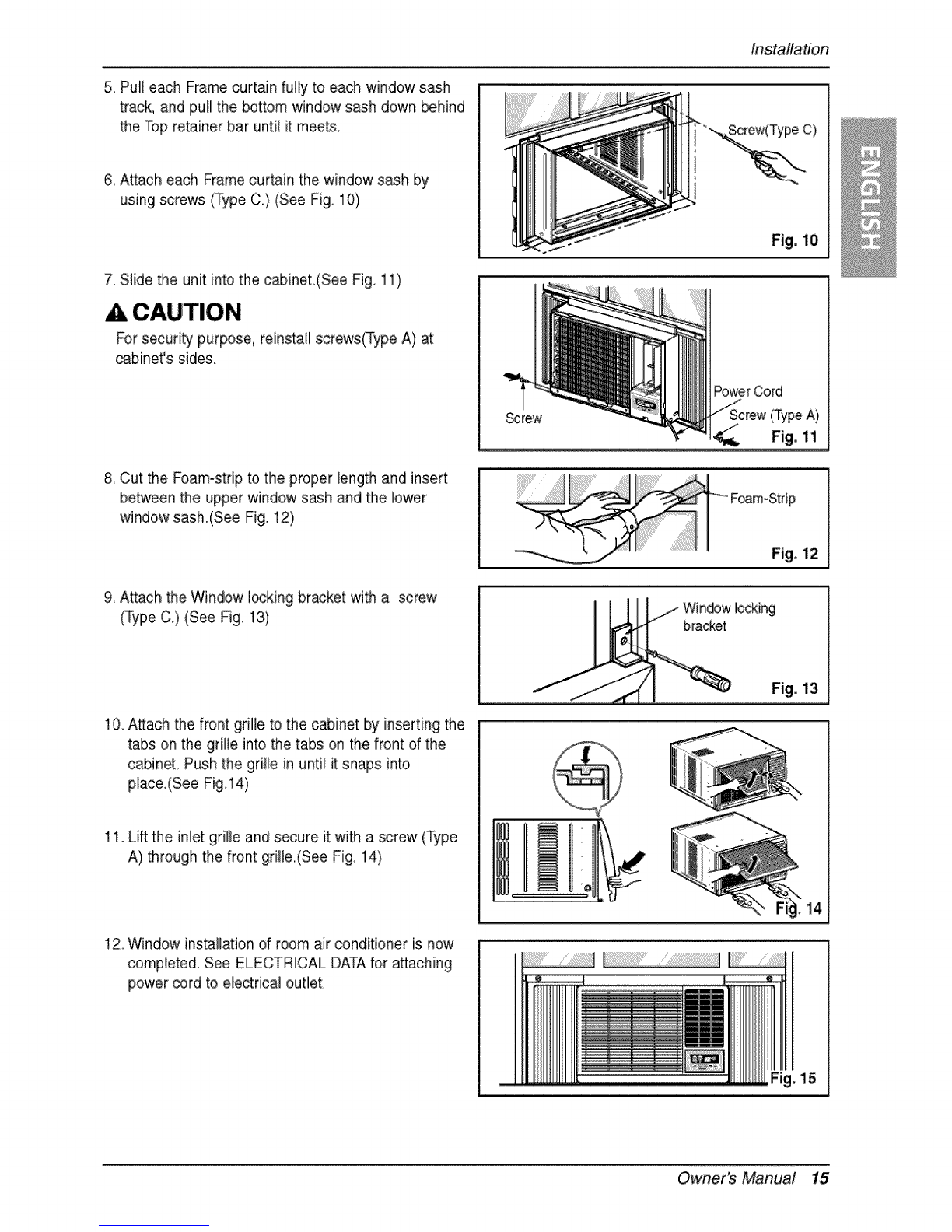

5. Pull each Frame curtain fully to each window sash
track, and pull the bottom window sash down behind
the Top retainer bar until it meet&
6, Attach each Frame curtain the window sash by
using screws (Type C.) (See Fig, 10)
7. Slide the unit into the cabinet.(See Fig. 11)
ACAUTION
For security purpose_ reinstall screws(Type A) at
cabinet's sides.
8 Cut the Foam-strip to the proper length and insert
between the upper window sash and the lower
window sash.(See Fig. 12)
9, Attach the Window I_king bracket with a screw
(Type C.) (See Fig, 13)
10 Attach the front grille to the cabinet by inserting the
tabs on the grille into the tabs on the front of the
cabinet, Push the grille in until it snaps into
place.(See Fig.14)
11. Lift the inlet grille and secure it with a screw (Type
A) through the front grille.(See Fig. 14)
12 Window ins:tailation of room air conditioner is now
completed. See ELECIRICAL DATAfor attaching
power cord to electrical outlet.
Installation
c_
Fig. i0
rew
Power Cord
Fig. 11
Fig. i2
/. II1/---wio wIo iog 1
Fig. 13
_14
i5
Owner_ Manual 15

Operating Instructions
me mmote control and control panel wifl look like one of the foflowing pictures,
© ®
®@
®
.............................,
© ®
®
®
®
16 Room Air Conditioner

Opera#ngInstructions

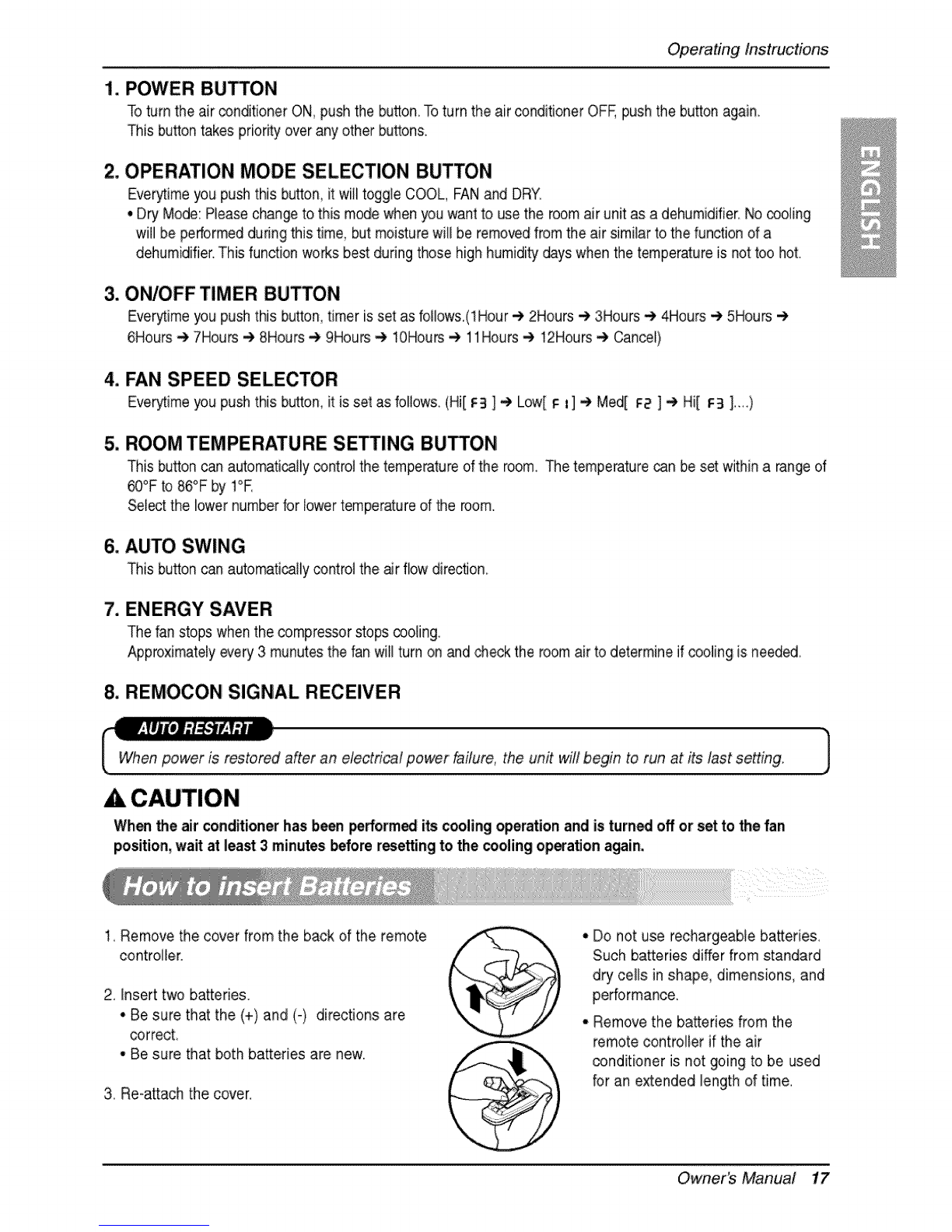

1. POWER BUTTON
Toturn the air conditioner ON_push the button.Toturn the air conditioner OFF,push the bu_on again.
This button takes pr[or_y over any other buttons.
2. OPERATION MODE SELECTION BUTTON
Everytime you push this button, itwilltoggle COOL, FANand DRY.
• Dry Mode: Please change to this mode when you want to use the room air unit as a dehumidifier. No cooling
will be performed during this time, but moisturewill be removed from the air similar to the function of a
dehumidifier.This function works best during those high humidity days when the temperature is not too hot.
3. ON/OFF TIMER BUTTON
Every'timeyou push this button, timer isset as follows.(1Hour 4, 2Hours 4, 3Hours 4, 4Hours 4, 5Hours 4,
6Hours 4, 7Hou_ 4, 8Hours 4, 9Hours 4, lOHours 4, 11Hours 4, 12Hours 4, Cancel}
4. FAN SPEED SELECTOR
Everytime you push this button, itis set as follows. (Hi[ _3 ] 4, Low[ f: I] 4, Med[ 1:2] 4, Hi[ 1:3]-)
5. ROOM TEMPERATURE SETTING BUTTON
This button can automatically control the temperature of the room_The temperature can be set within a range of
60°Fto 86°F by 1°R
Select the lower numberfor lowertemperature of the room.
6. AUTO SWING
This bu_on can automati_lly control the _r flow direction,
7. ENERGY SAVER
The fan stops when the compressor stops _oling
Approximately every 3 munutes the fan will turn on and check the room air to determine if cooling is needed.
8. REMOCON SIGNAL RECEIVER
after an electrical power _itum, the unit wifl begin to run at its last setting. )
When the air conditioner has been performed i_ cooling operation and is turned off or set to the fan
position, wait at least 3minutes before resetting to the cooling operation again.
1, Remove the cover from the back of the remote
controller.
2. Insert two batteries.
• Besure that the (+) and (-) directions are
correcL
° Be sure that both batteries are new.
3 Re-a_ach the cover,
• Do not use rechargeable baEeries,
Such batteries differ from standard
dry cells in shape, dimensions, and
performance.
° Remove the batteries from the
remote controller if the air
_nditioner is not going to be, used
for an extended length of time.
Owner's Manual 17

Operating Instructions

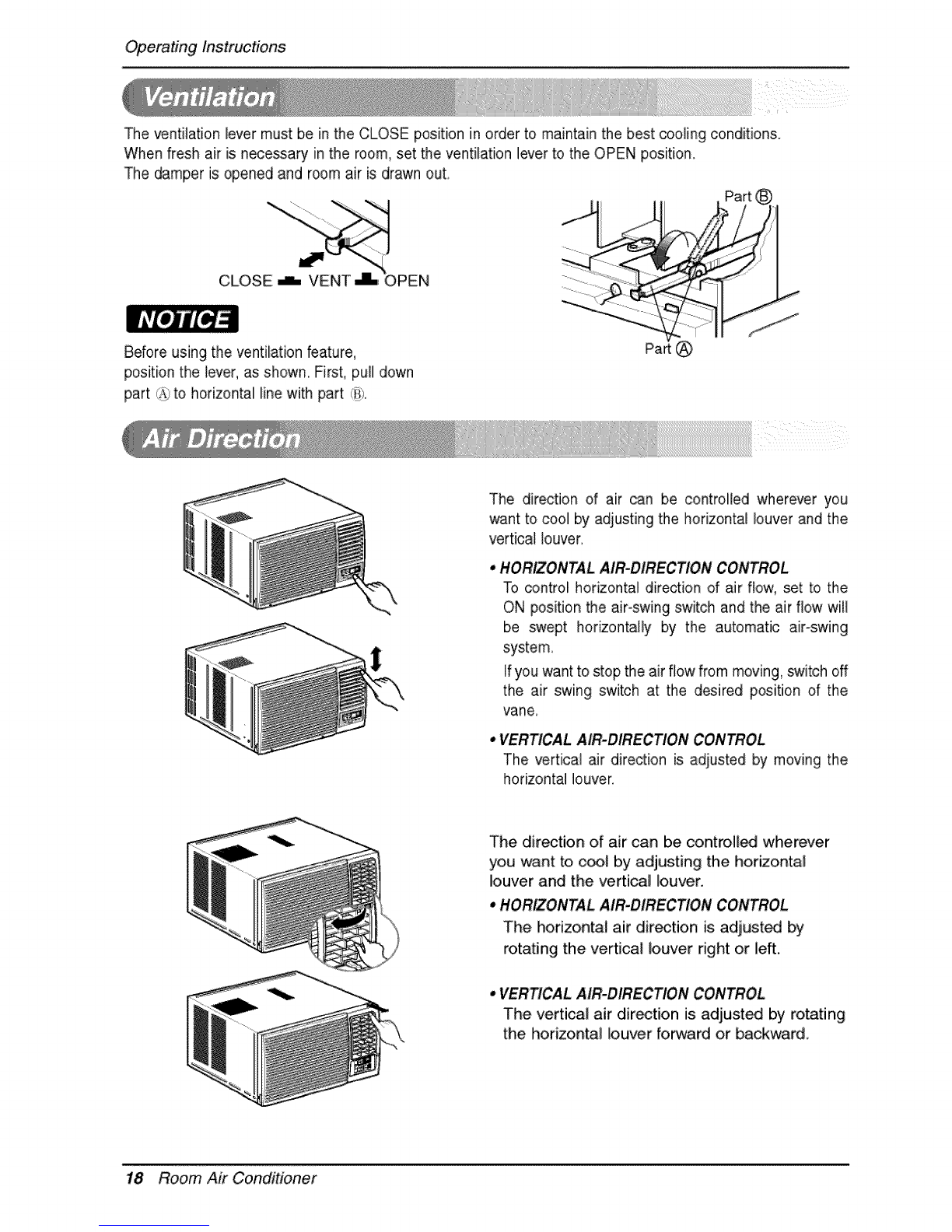

The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is drawn ouL
BeDre using the ventilation feature,
position the lever, as:shown. First, pull down
part :,i_._to horizontal line with part d;>.
The direction of air can be controlled wherever you
want to cool by adjusting the horizontal louver and the
vertical louver,
HORIZONTAL AIR-DIRECTION CONTROL
To control horizontal direction of air flow, set to the
ON position the air-swing switch and the air flow will
be _ept horizontally by the automatic air-swing
system
Ifyou want to stop the air flow from moving, Twitch off
the air swing switch at the desired position of the
vane
•VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louver.
The direction of air can be controlled wherever
you want to cool by adjusting the horizontal
louver and the vertical louver.
°HORIZONTAL AIR-DIRECTION CONTROL
The horizontal air direction is adjusted by
rotating the vertical louver right or left.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating
the horizontal louver forward or backward.
18 Room Air Conditioner

OperatingInstructions

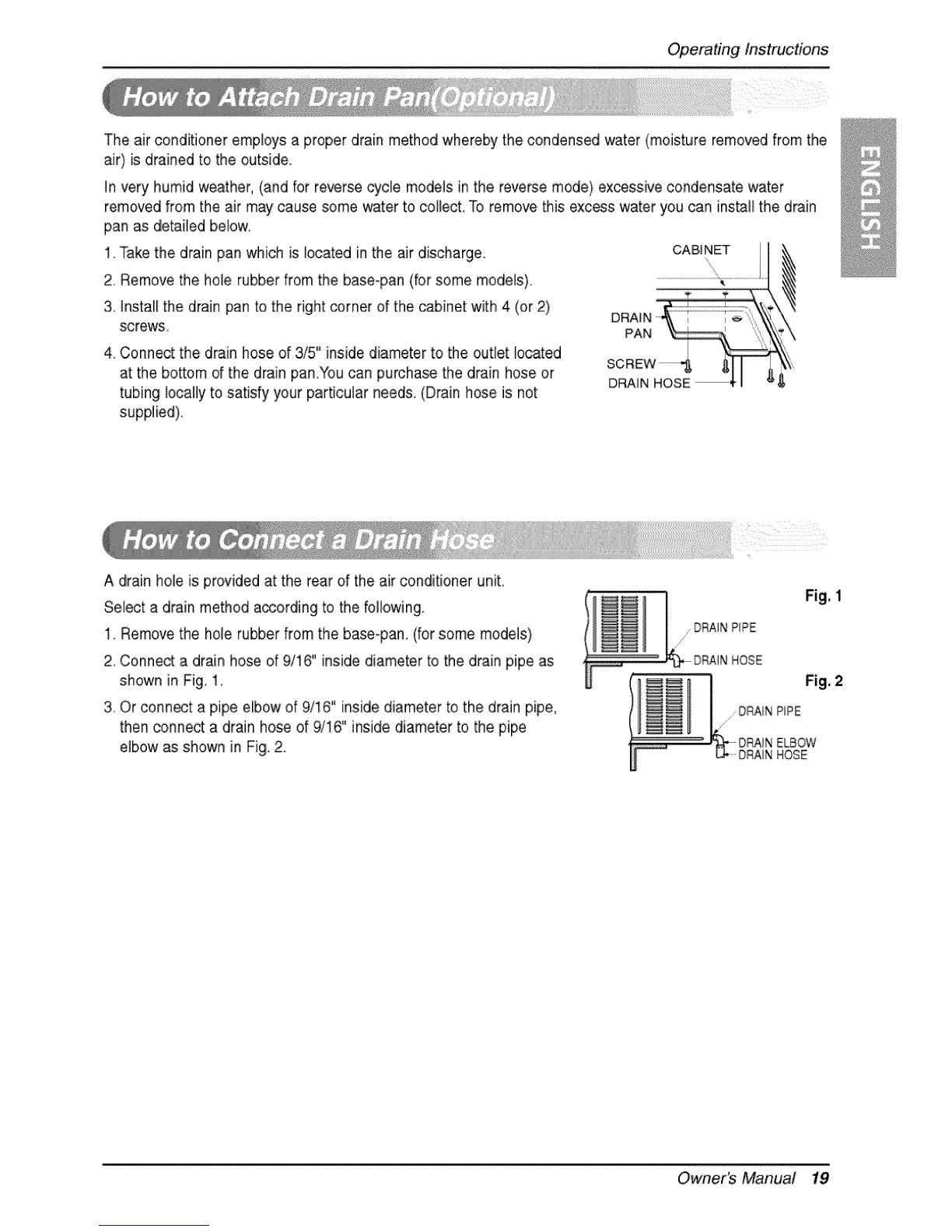

The air conditioner employs a proper drain method whereby the condensed water (moisture removed from the
air) is drained to the outside.
in very humid weather, (and for reverse cycle models in the reverse mode) excessive condensate water
removed from the air may cause some 'waterto collect To remove this excess water you can install the drain
pan as detailed below.
1.Take the drain pan which is located in the air discharge.
2, Remove the hole rubber from the base-pan (for some models),
3. install the drain pan to the right corner of the cabinet with 4 (or 2)
screws,
4, Connect the drain hose of 3/5" inside diameter to the outlet located
at the bottom of the drain pan.You can purchase the drain hose or
tubing locally to satisfy your particular needs. (Drain hose is not
supplied),
DRAI N
PAN
SCREW
DRAIN HOSE ÷ I _ ,_
A drain hole is provided a_the rear of the air conditioner unit.
Select a drain method a_ording to the following.
1. Remove the hole rubber from the base-pan. (for some models)
2. Connect a drain hose of 9/16" inside diameter to the drain pipe as
shown in Fig. 1.
3, Or conn_t a pipe elbow of 9/16" inside diameter to the drain pipe,
then connect a drain hose of 9/16" inside diameter to the pipe
elbow as shown in Fig. 2.
Ownerb Manual 19

Maintenance and Service
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
he air filter should be checked at least twice a month to see if cleaning is necessary. Trapped particles in the,
filter will build up and block the airflow:This reduces the cooling capacity and also causes an accumulation of
frost on the cooling coils.
1. Open the inlet grille upward by pulling out the bottom of the inlet grille.(a)
in another case, you can open the inlet grille downward by pulling out the top of the inlet grilb,(b)
2, Remove the air filter from the front grille assembly by pulling the air filter up or down slightly.
3. Wash the filter using luke_rm water below 40°C (104°F),(c)
4 Gently shake the excess water from the filter completely, Replace the filter_
(a) (b) (c)
Mark A of inlet grille means opening direction.
1. Pull down front grille from the cabinet top.
2. Push front grille's tips to_rd the cabinet in order
to insert front grilleb tabs into
the cabinet,
3, Open the inlet gritle.
4. Tighten the _rew through the front grille into the
plate of the evaporator or base pan
5, Close inlet grille
20 Room Air Conditioner
