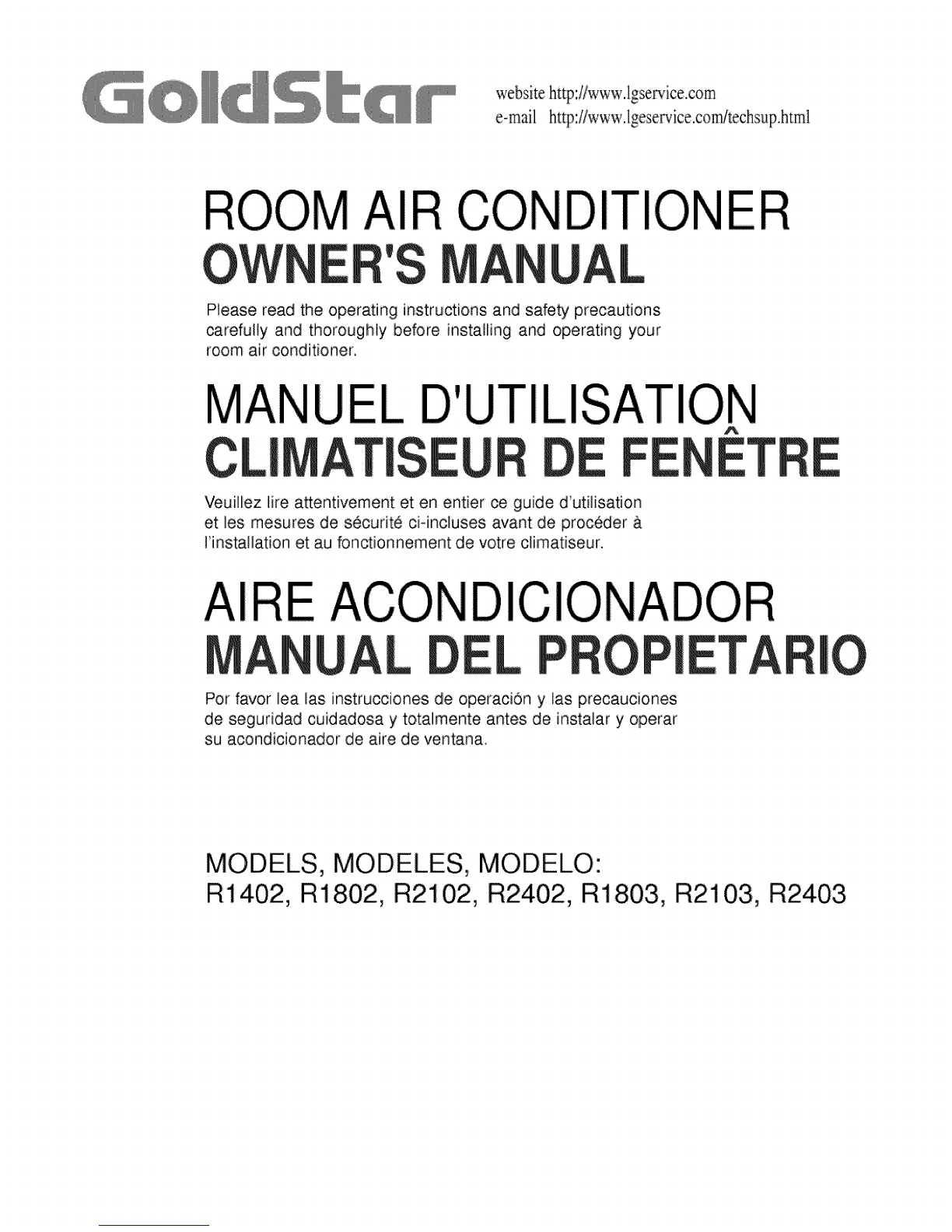

Goldstar R1402 User manual

websitehttp:Ywww,lgservice.com
e-mail http:Ywww.lgeservice.com/techsup.html
E'S UITI L
Please, read the operating instructions and safety precautions
carefully and thoroughly before installing and operating your
room air conditioner.
MANUEL 'UTILIS
CLI TISE E F
Veuillez life a_entivement et en entier ce guide d'utilisation
et les mesures de securite ci-incluses avant de proceder
I'installation et au fonctionnement de votre clirnatiseur.
NE
I N
A
ET E
ILIC!ONA
EL
Por favor lea las instrucciones de operacion y las precauciones
de seguridad cuidadosa y totalmente antes de instalar y operar
su acondicionador de aire de ventana.
I0
MODELS, MOIDELES, MODELO::
R1402, R1802, R2102, R240,2, R1803, R2103, R2403

FOR YOUR RECORDS
Staple your receipt to this page in case you ne_ it later.
Write down the.model and serial numbers here:
Model #
You can find them on a label on the side of each unit.
_aler's Name
DatePurchased
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems inthe chart
of troubleshooting tips If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
• Contact the authorized Service technician for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or infirm persons without supervision.
• "Youngchildren should be supewised to ensure that they
do not play with the air conditioner.
T

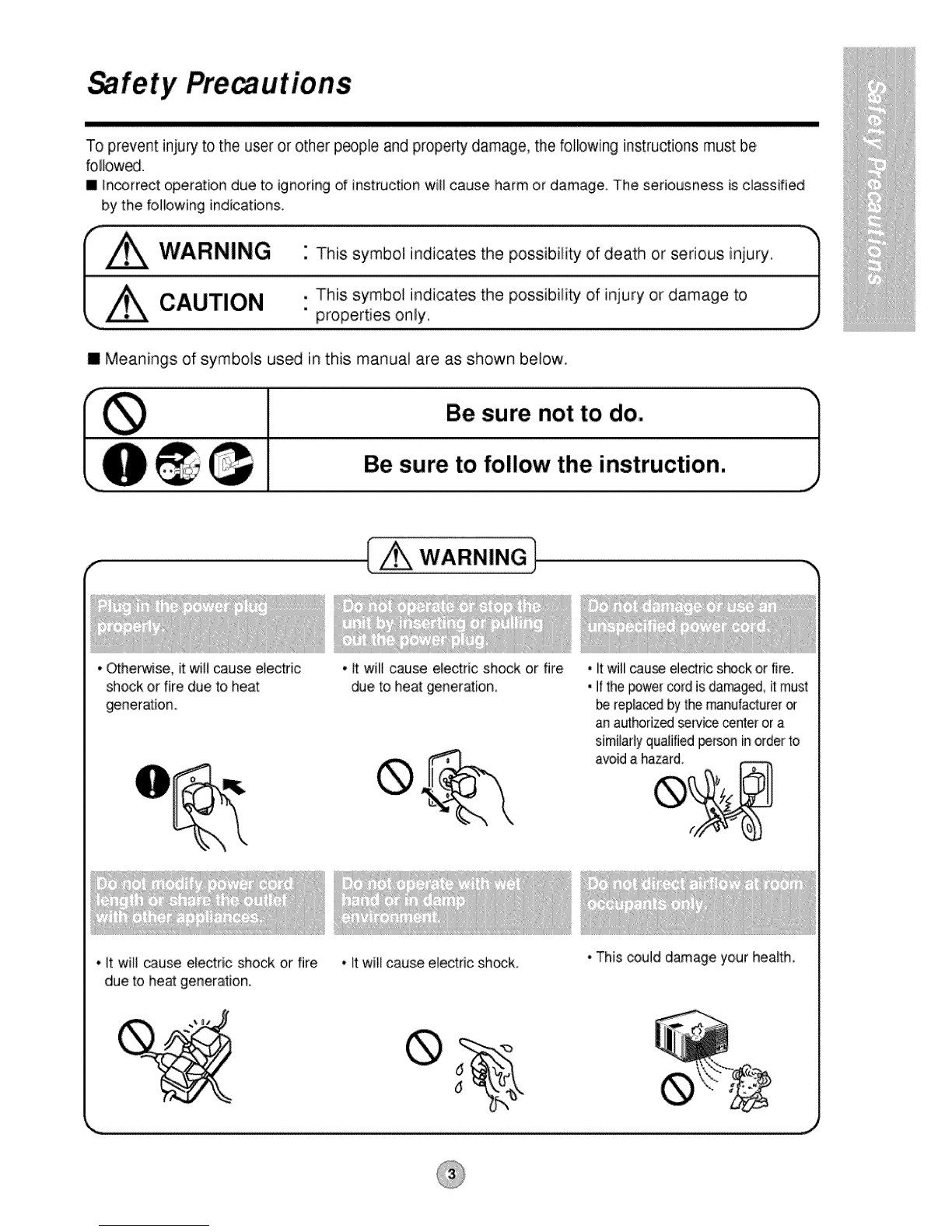

fety Pre utions
To prevent injury to the user or other p_pie and property damage, the following instructions must be
follow_.
m Incorrect operation due to ignoring of instruction will cause harm or damage+ The seriousness isclassified
by the following indications.
Z_ WARNING "This symbol indicates the possibility of death or serious injury, /
J
Z_ CAUTION .This symbol indicates the 13ossibiNty of injury or damage to
"properties only.
II Meanings of symbols used in this manual are as shown below.
_Be sure to follow the instruction.
r _ WARNING 1
fL J
• Otherwise, it will cause electric
shock or fire due to heat
generation.
• it will cause electric shock or fire
due to heat generation. • It willau_ electrics_ck or fire. •Ifthepowercordis da_ged, it must
replacedbythemanufacturer
an authorizedservicecenteror a
similarlyqualifiedpersoninorderto
avoida hazard,
• It will cause electric shock or fire .Itwill cause electric shock.
due to heat generation. • This could damage your health,
®

, It may cause an injury,
Ic ,o.1
• Water may enter the unit and , An oxygen shortage may occur.
degrade t6e insulation. It may
cause an e]ectr[,c shock.
i
i
i
,Since the fan rotates at high
speed during operation, it may
cause an iniury,
.This couldinjure the pets or
plants.
. Do not use this air _ndifloner to
Feserve precision devices, food,
_ts, plants, and art objects,
It may cause deteriorat_on of
quality, etc.
• it may cause an electric shock. . It may cause a fire or deformation , It may cause imperfect
of the c_inet, combustion.
J

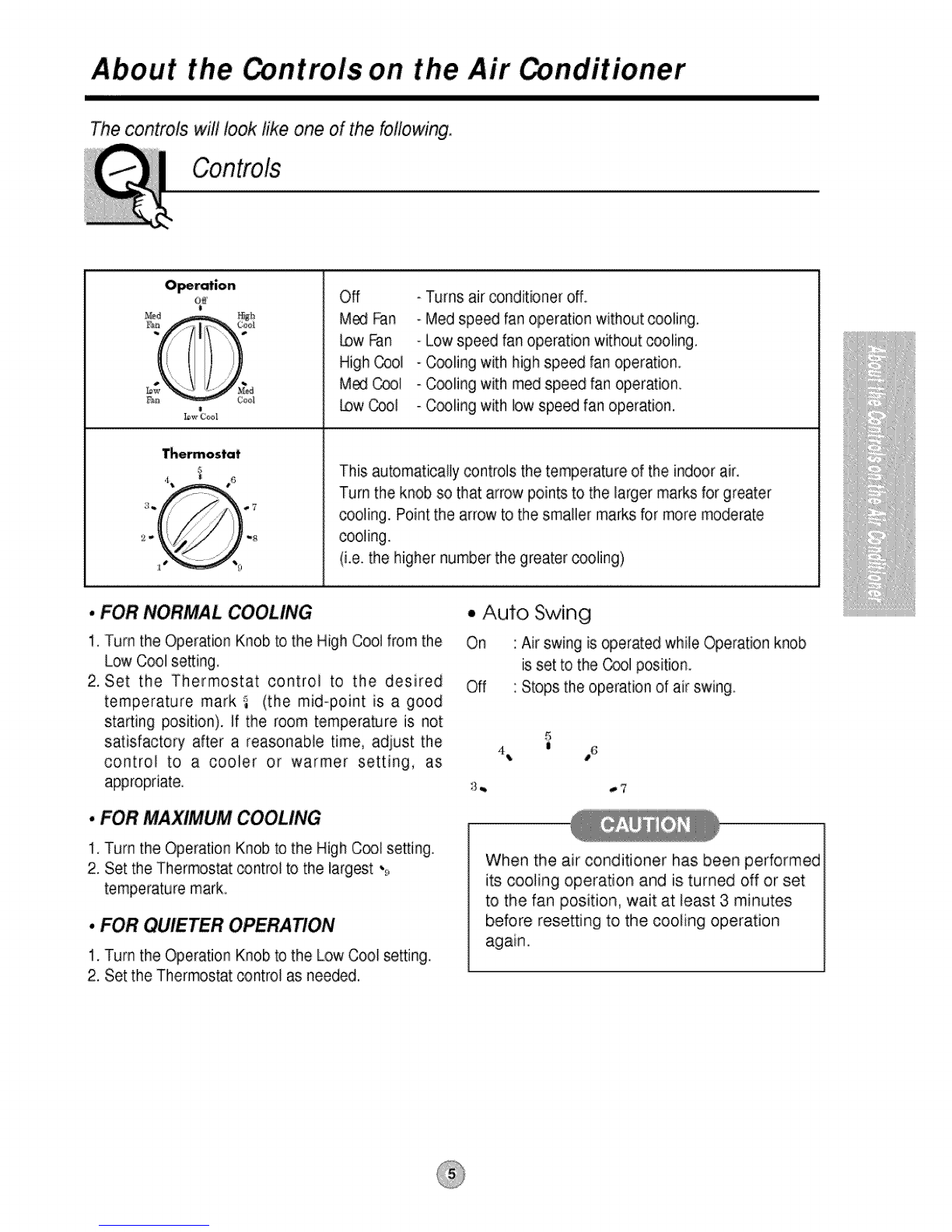

About the ntrols on the Air Conditioner
The controls will look like one,of the following.
i
Thermostat
Off
M_ _n
Low _n
High COol
M_ Cool
LowCool
- Turns air conditioner off.
oMed speed fan operation without cooling.
oLow speed fan operation without cooiing.
oC_ling with high speed fan operation..
- C_ling with reed speed fan operation
- C_ling with low speed fan operation.
This automatically controls the temperature of the indoor air.
Turn the knob so that arrow points to the larger marks for greater
cooling. Point the arrow to the simaller marks for more moderate
cooling.
(i.e. the higher number the greater _oling)
•FOR NORMAL COOLING
1. Turn the Operation Knob to the High Cool from the
Low Cool setting.
2. Set the Thermostat control to the desired
temperature mark i (the mid-point is a good
starting position). If the room temperature is not
satisfactory after a reasonable time, adjust the
control to a cooler or warmer setting, as
appropriate.
•Auto Swing
On : Air swing is operated while Operation knob
is set to the _1 position.
Off : Stops the operation of air swing
3_
4_
•FOR MAXIMUM COOLING
1. Turn the Operation Knob to the High C_I setting
2. Set the Thermostat control to the largest ,_,
temperature mark.
•FOR QUIETER OPERATION
1. Turn the Operation Knob to the Low Cool setting.
2. Set the Thermostat _ntrol as needed.
When the air conditioner has been performed
its cooling operation and is turned off or set
to the fan position, wait at least 3 minutes
before resetting to the cooling operation
again_

Additional controls and important information.
The ventilation lever must be in the CLOSE _sition in order to maintain the best cooling _nditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air isdrawn out.
NOTE: Before using the ventilation feature,
poslti,onthe lever, as shown. First, pull down
part (&}to horizontal line with part _).
Air Direction
The dir_tion of air can be controlled wherever you want to
cool by adjusting the horizontal louver and the verticai
louver.,
• HORIZONTAL AIR-DIRECTION CONTROL
To control horizontal direction of air flow, set to the ON
position the air-swing switch and the air flow will be swept
horizontally by the automatic air-swing system.
if you want to stop the air flow from moving, switch off the
air swing switch at the desired position of the vane.
. VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louver.
How to Attach Drain Pan
The air _nditioner employs a proper drain method whereby the condensed water (moisture removed from
the air) is drained to the outside.
Invery humid weather, (and for reverse cycle mo_ls in the rever_ mode) excessive condensate water
removed from the air may cause some w_er to collect. To remove this excess water you can instaii the
drain p_ as detail_ below.
1.Take the drain pan which is located in the air di_haJge.
2. Remove the hole rubber from the base-pan (for some models).
3. Installthe drain pan to the fight _mer of the cabinet with 4 (or 2)
screws.
4. Connect the drain hose of 3/5"insi_ diameter to the outlet located
at the _ttom of the drain p_.You _n purcha_ the drain hose or
tubing locallyto saSsfy your particular needs. (Drain hose is not
supplied).
CABINET
PAN
DRAIN HOSE

Howto Connecta DrainHose
A drain hole iisprovided at the rear of the air _ndit:ioner unit. i] I Fig. 1
Select a drain method according to the foilowing ( J DRAIN PiPE
1. Remove the hole rubber from the base-pan. (for some models) ,.......................... :
2. asC°nnectadrainshownin Fig. h°se °f°/1_1. inside diameter to thedrain,, pipe __!_
3. Or connect a pipe elbow of 9/_, insidediameter to the drain
pipe, then connect a drain hose of 9/1o'inside diameter to the
pipe elbow as shown in Fig. 2. Lr---_ '&_R_I_ _0_
and Maintenance
TURN THE AiR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET
Air Filter Cleaning
The air filter should be checked at least twice a month to see if cleaning is necessary.
Trapped particles in the filter will build up and block the airflow. This reduces the cooling
capacity and also causes an accumulation of frost on the cooling coils.
1. Open the inlet grille upward by puffing out the bosom of the inlet grille.(a)
in another case, you can open the inlet grille downward by pulling out the top of the inlet
grille.(b)
2. Remove the air filter from the front gdlle assembly by puffing the air filter up or down
slightly.
3. Wash the filter using lukewarm water below 40 _C (104 '_).(c)
4. Gently shake the excess water from the filter completely. Replace the filter.
(_
NOTE: Mark A of inlet grille means, opening direction.
How to Attach Front Grille to Cabinet
(b) (c)
1. Pull down front grille from the cabinet
top
2. Push front griIWs tips toward the cabinet
in order to insert front grille's tabs into
the cabinet
3. Open the inlet grille.
4. Tighten the screw through the front grille
into the plate of the evaporator,
5 Close inlet grille,

Features and In allation

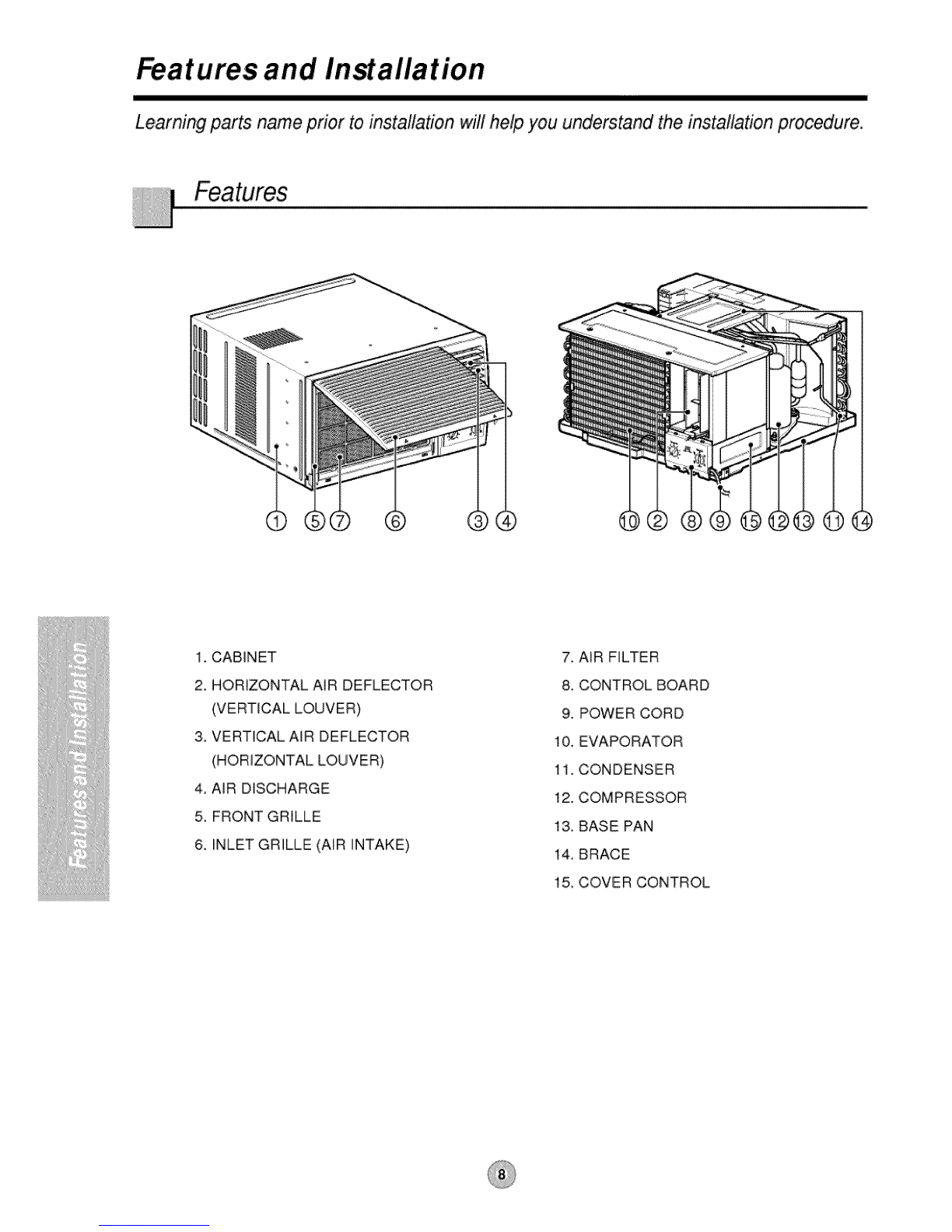

Learning parts name prior to installation will he!p you understand the installation procedure.
1. CABINET
2. HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
3. VERTICAL A_R DEFLECTOR
(HORIZONTAL LOUVER)
4, AIR D_SCHARGE
5, FRONT GRILLE
6, INLET GRILLE (AIR INTAKE)
7. AIR FILTER
8. CONTROL BOARD
9. POWER CORD
10. EVAPORATOR
11. CONDENSER
12. COMPRESSOR
13, BASE PAN
14. BRACE
15. COVER CONTROL

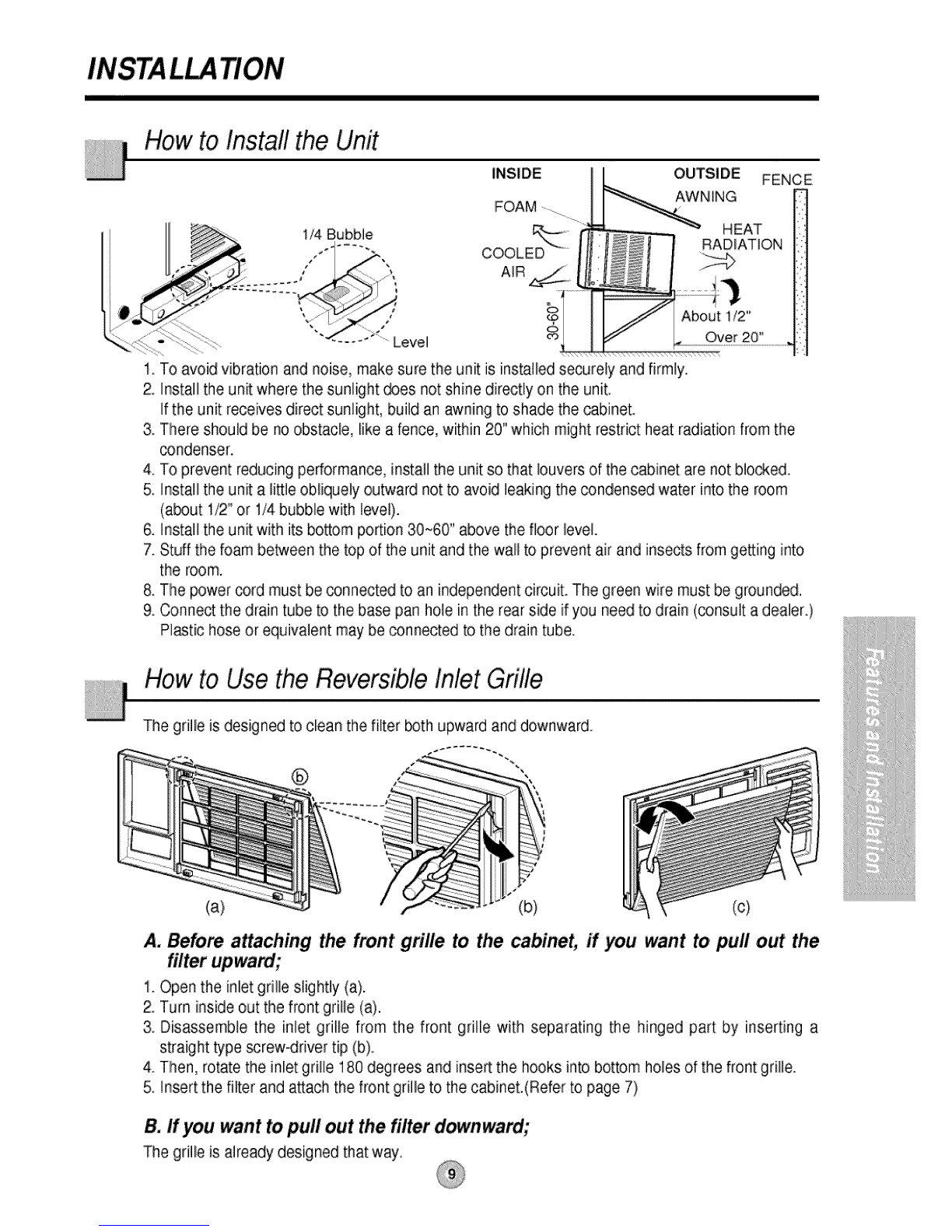

How to Install the Unit
_ ¸¸.¸4
._:._ ......
1/4 Bubble
INSIDE OUTSIDE FENCE
AWNING
FOAM ...........
COOLE_I HEAT
RADIATION
About 1/2"
Over 20"
1. To avoid vibration and noise, make sure the unit:is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
if the unit receives direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, like a fence, within 20" which might restrict heat radiation from the
_ndenser.
4. To prevent reducing performance, install the unit so that louvers of the cabinet are not blocked.
5. Install the unit a little obliquely outward not to,avoid leaking the condensed water into the room
(about 1/2" or 1/4 bubble with level).
6. install the unit with its bottom portion 30~60" above the floor level.
7. Stuff the foam between the top of the unit and the wa!l to prevent air and insects from getting into
the room.
8. The power cord must be connected to an independent circuit. The green wire must be grounded.
9. Connect the drain tube to the base pan hole in the rear side if you need to drain (_nsult a dealer.)
Plastic hose or equivalent may be connected to the drain tube.
How to Use the Reversible Inlet Grille
The grille is designed to clean the filter _th upward and downward.
®
(a}
A. Before attaching
w(b)
the front grille to the cabinet, if you want to,puff out the
1. Open the inlet grille slightly (a).
2. Turn inside out the front grille (a).
3. Disassemble the inlet grille from the front grille with separating the hinged part by inserting a
straight type _rew-driver tip (b).
4. Then, rotate the inlet grille 180 degrees and insert the hooks into bottom holes of the front grille.
5. Insert the filter and attach the front grille to the cabinet.(Refer to page 7)
B. If you want to pull out the filter downward;
The grille is already designed that way,

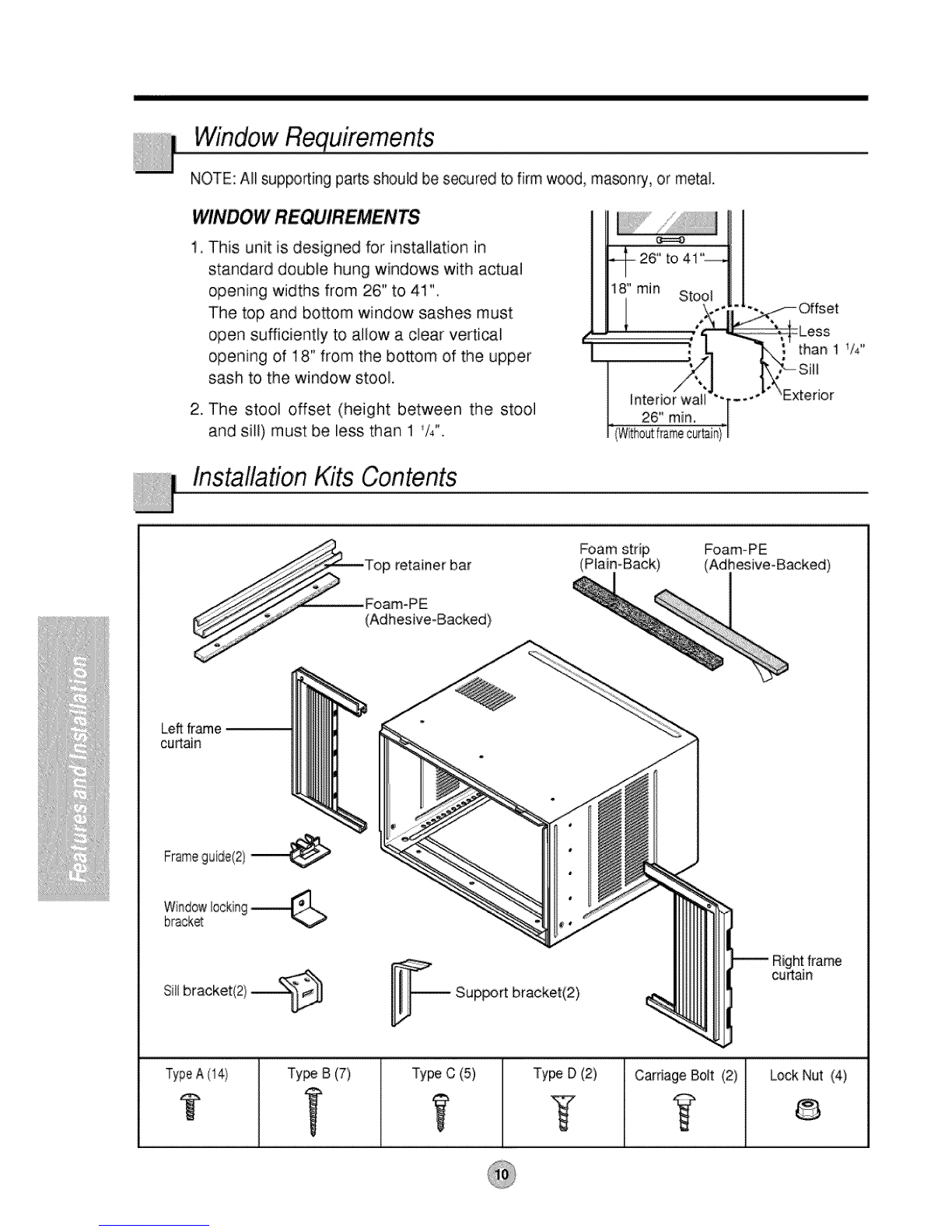

WindowRequirements
NOTE: Al! supporting parts should be secured to firm wood, masonry, or metal.
WINDOW REQUIREMENTS
1. This unit is designed for installation in
standard double hung windows with actual
opening widths from 26" to 41".
The top and botom window sashes must
open sufficiently to allow a clear vertical
opening of 18" from the bottom of the upper
sash to the window stool.
2. The stool offset (height between the stool
and sil0 must be less than 1 '/4".
h26" to
8" min Stool
InstallationKits Contents
J
Type A (14} Ty_ B (7) Type C (5) Type D (2) Carriage Bol (2) Lock Nut (4)

Suggested ToolRequirements
SCREWDRIVER(+,-), RULER, KNIFE, HAMMER, PENCIL, LEVEL

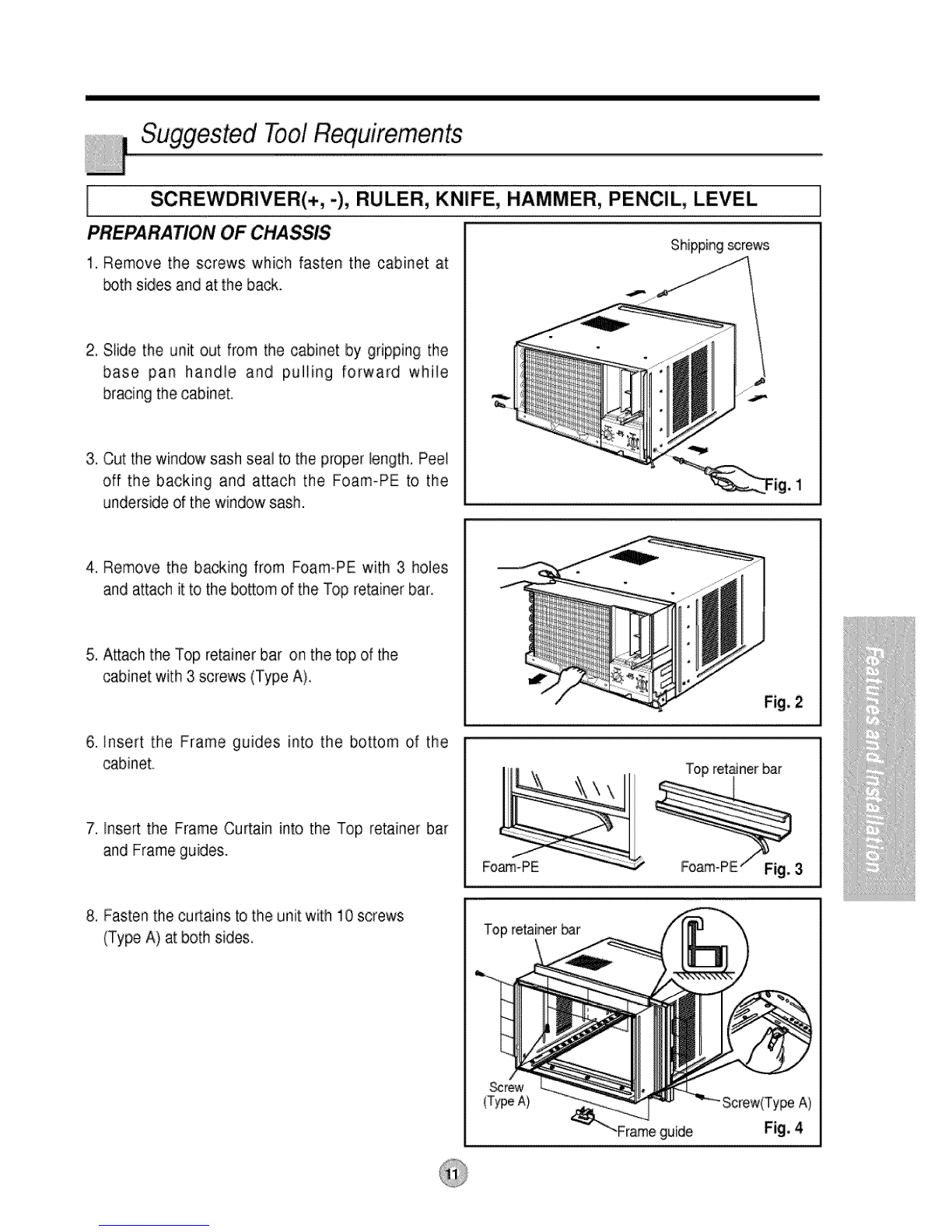

PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet at
_th sides and at the back.
2, Slide the unit out from the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabineL
3, Cut the window sash seal to the proper length, Peel
off the backing and attach the Foam-PE to the
underside of the window sash.
Shippingscrews
4. Remove the backing from Foam-PE with 3 holes
and attach it to the bottom of the Top retainer bar.
5, A_ach the Top retainer bar on the,top of the
cabinet with 3 screws (Type A).
6. Insert the Frame guides into the bottom of the
cabinet.
7. Inse_ the Frame Curtain into the Top retainer bar
and Frame guides.
Topretorter bar
8, Fasten the cu_ains to the unit with 10 screws
(Type A) at both sides. Top retainerbar
few
(T_e A)
--Frameguide
Screw(TypeA)

Cabinet Installation
1. Open the window, Mark a line on the center
of the window stool between the side
window stop moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the lock
nut.
Sill
Bracket
Carriage
Bo_t
(M-Screw) nut
2. A_ach the sill bracket to the window sill
using the screws (Type B).
Carefully place the _binet on the window
stool and align the center mark on the
bottom front with the center line marked
window stool. Carnage
and Jocknut
Machinescrew(Ty_D)
andlocknut
O_er edge
Ot window
sill
3. Using the Moscrew and the dock nut, attach
the support bracket to the cabinet tra_ hole.
Use the first track hole aRer the silt bracket
on the outer edge of the window sill. Tiglhten
the carriage bolt and the lock nut, Be sure
the cabinet slants ou_ard.
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate
with approximately 1/2'°of water
in bottom pan.
4, Pull the bottom window sash down behind
the Top retainer bar until they meet,
retorter
bar Windowstool
Frontangle
Window sash retainer bar
Framecu_ain
Foam-PE
NOTE: 1. Do not pull the win_w sash down so
tightly that the movement of Frame
curtain is restricted. Attach the
cabinet to the window stooi by
driving the screws (Type B) through
the cabinet into window stool
2. The _binet should be installed with
a very slight tilt downward toward the
outside.
track
FrontAngle
Screw(Ty_ B)

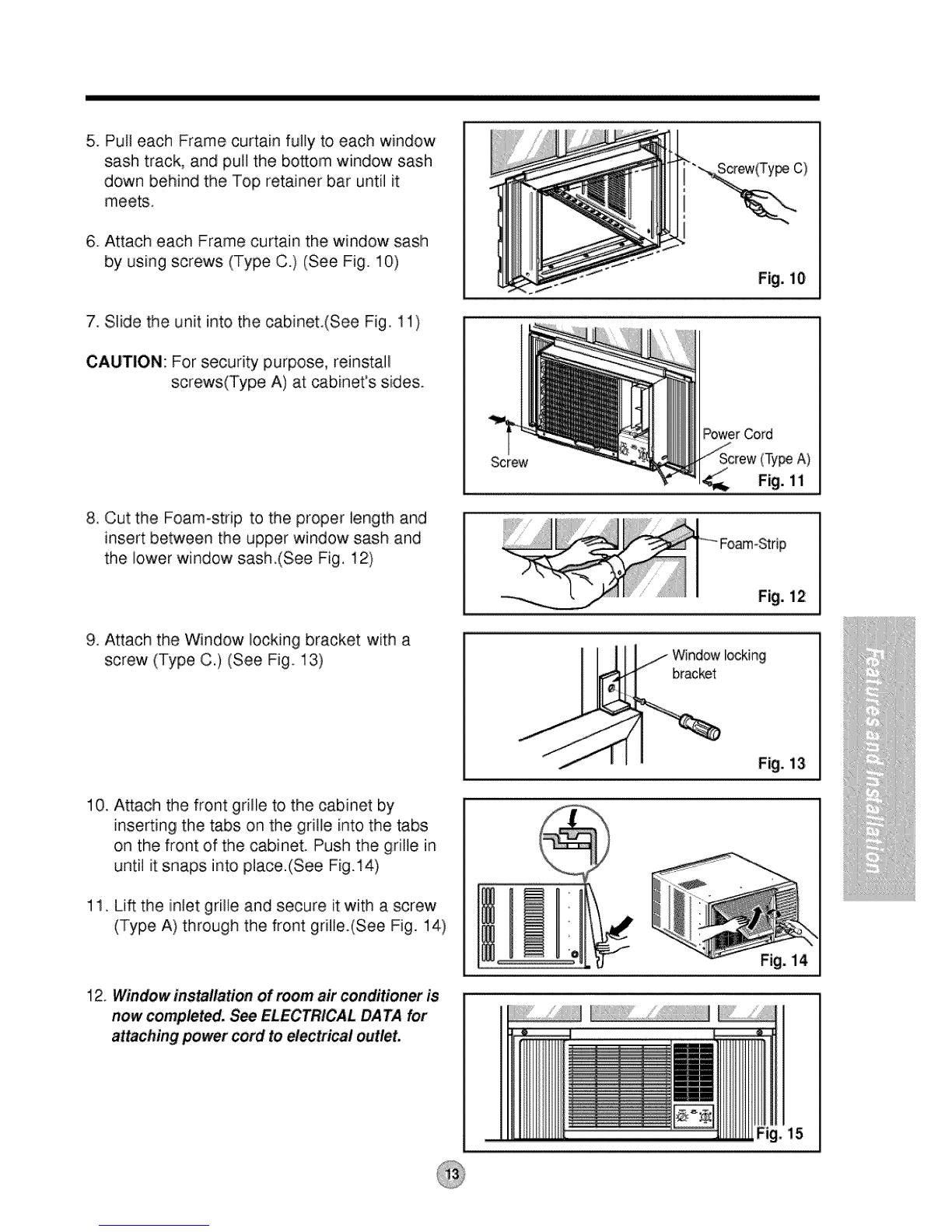

5. Pull each Frame curtain fully to each window
sash track, and pull the bottom window sash
down behind the Top retainer bar until it
meets.
6. Attach each Frame curtain the window saslh
by using screws (Type C.) (See Fig. 10)
c)
Fig. i0
7. Slide the unit into the cabinet.(See Fig. 11)
CAUTION: For security purpose, reinstall
screws(Type A) at cabinet's sides.
8. Cut the Foam-strip to the proper length and
insert between the upper window sash and
the lower window sash.(See Fig. 12)
9. Attach the Window locking bracket with a
screw (Type C.) (See Fig. 13)
10. A_ach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille in
until it snaps into place.(See Fig.14)
11. Lift the inlet grille and secure it with a screw
(Type A) through the front grille.(See Fig. 14)
12. Window installation of room air conditioner is
now completed. See ELECTRICAL DATA for
attaching power cord to electrical outlet.
Screw
Cord
(_ypeA)
Fig. 11
::' } _' ;' Foam-Strip
Fig. 12
fJ
Window locking
bracket
Fig. i3
Fig. 14
,Fig. 15

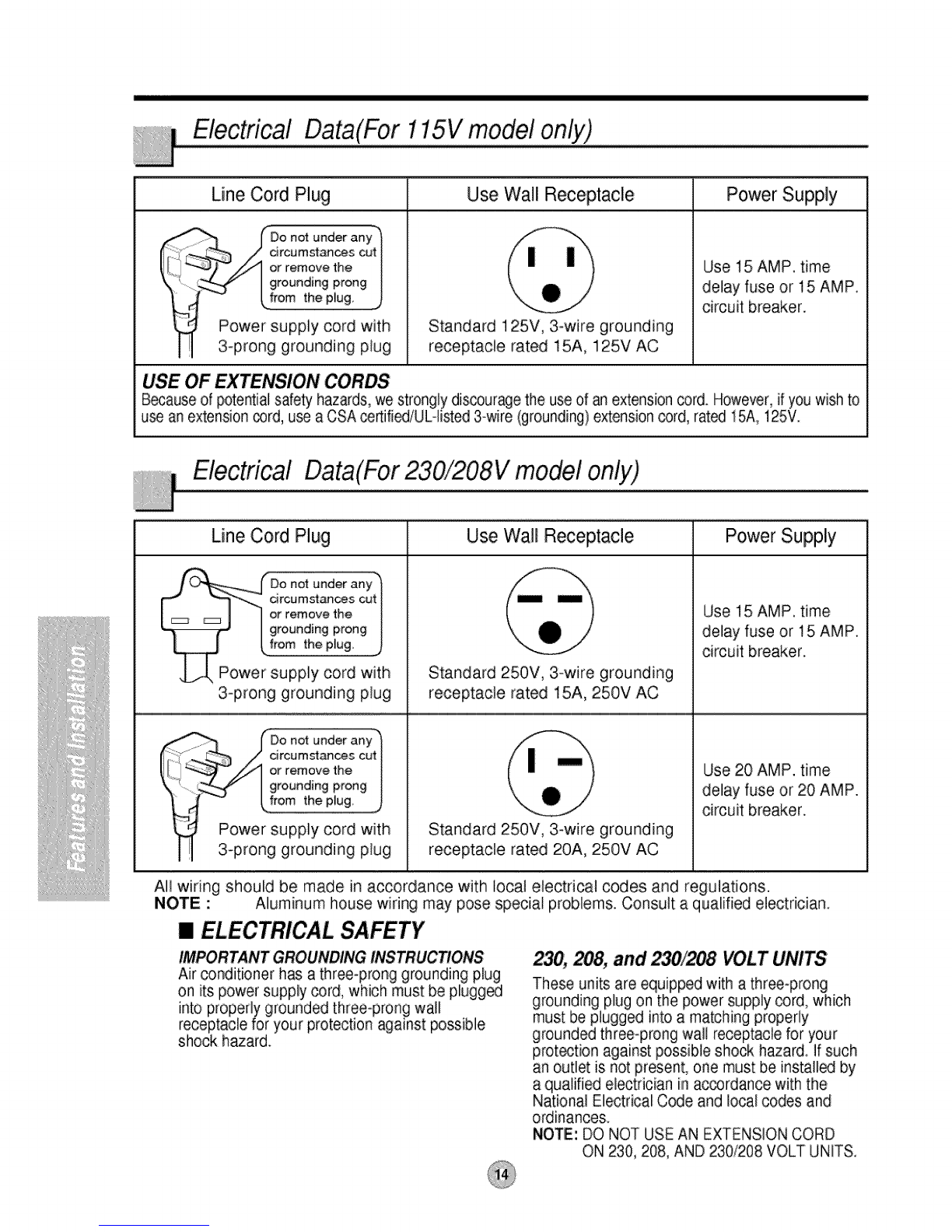

Data(For 115Vmodel only)
Line Cord Plug Use Wall Receptacle Power Supply
t' _ l Do not under any _
......_ Jcircumst_ces _t
_4._, or remove the
._'_ZD// grounding prong
¢from the pklg. .,
_'_ Power supply cord with
3-prong grounding plug Standard 125V, 3-wire grounding receptacle rated 15A, 125V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly disicourage the use of an extension cord_However, if you wish to
u_ an extension _rd, u_ a CSA _ified/UL-listed 3-wire (grounding) extension _rd, rated 15A, 125V.
Data(For230/208Vmodel only)
Power SupplyLine Cord Plug Use Wall Receptacle
f_l-,_=-_----.,....._f Do not under any
r" "-fi----.F.oir_,,m_oo_o_t
I_ _ _ or remove the !
_{--ra grounding prong
J
I I supply cord with Standard 250V, 3-wire grounding
3-prong grounding plug receptacle rated 15A, 250V AC
Use 15 AMP, time
delay fuse or 15 AMP.
circuit breaker.
I _.] €Do not under an€
........_l /c]rcumst_s cut
_--/_,i or remove the Use 20 AMP. time
_..t V grounding prong
Jrom the plug _, delay fuse or 20 AMP.
circuit breaker.
_" Power supply cord with Standard 250V, 3-wire grounding
3-prong grounding plug receptacle rated 20A, 250V AC
All wiring should be made in accordance with local electrical codes and regulations.
NOTE • Aluminum house wiring may pose special problems. Consult a qualified electrician.
[] ELECTRICAL SAFETY
IMPORTANT GROUNDING INSTRUCTIONS
Air _nditioner has a three-prong grounding plug
on its power supply cord, which must be plugged
into properly grounded three-prong wall
receptacle for your protection against: possible
shock hazard
230, 208, and 230/_ VOLT UNITS
These units are equipped with a three-prong
grounding plug on the power supply cord, which
must be plugged into a matching properly
grounded three-prong wall receptacle for your
protection against possible shock hazard if such
an outlet is not present, one must be installed by
a qualified electrician in accordance with the
National Electrical Code and local codes and
ordinances
NOTE: DO NOT USE AN EXTENSION CORD
ON 230, 208, AND 230/2:08 VOLT UNITS,

fore you for
Troubleshooting Tips
Save, time and money! Review the chart below first and
you may not ne_ to cal! for service.
• You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency
• You may hear the thermostat click when the compressor cycles on and off.
• Water will collect in the base pan during high humidity' or on rainy days The water may overflow
and drip from the outdoor side of the unit,
• The fan may' run even when the compressor does not.
Abnormal Operation
!!iiii!!,iii iii ,f!!i
•Make sure the air conditioner plug is pushed
completely into the outlet.
Air conditioner *Check the house fuse/circuit breaker box and
does not start replace the fuse or reset the breaker.
Air conditioner
does not cool as it
should
Air conditioner
•If power failure o_urs, turn the mode control to OFF.
When power is restored wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload,
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
• Turn the knob to a higher number. The highest
se_ing provides maximum cooling.
• Clean the filter at least every 2 weeks.
See the operating instructions s_tion.
• When the air conditioner is first turned on
you need to allow time for the room to cool down.
• Check for open furnace floor registers
and cold air returns.
• Set the air conditioner's vent to the closed position.
• See Air Conditioner Freezing Up below.
•Set the, mode control at Meal Fan or High Cool with
the thermostat at ! or 2,
