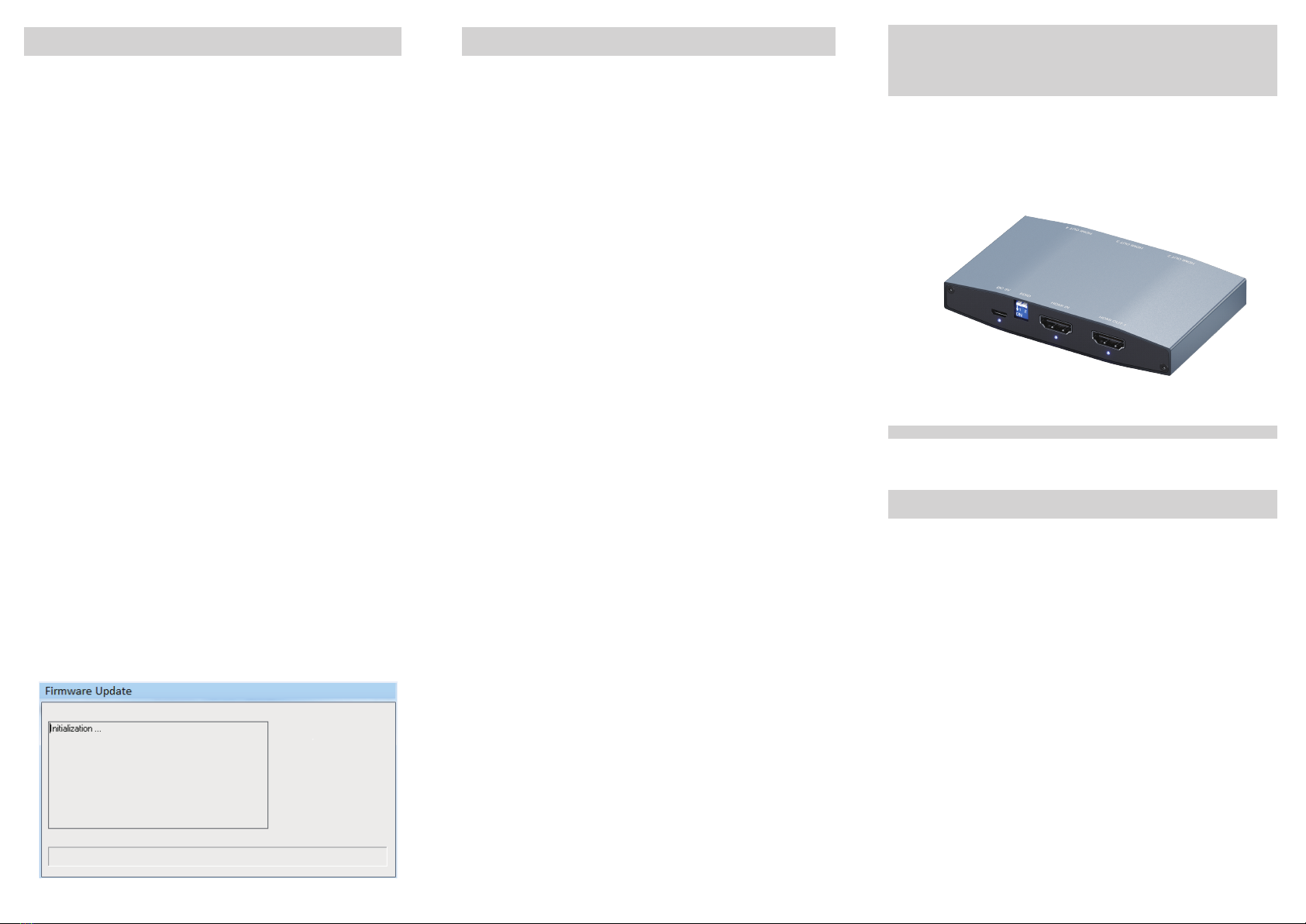

GoMax Electronics SP-5004IZM User manual

1x4 HDMI 2.0a Splitter with Built-in &
User Adjustable EDID Management
The SP-5004IZM 1x4 HDMI 2.0a Splitter with Built-in&
User Adjustable EDID Management provides the most cost
effective and advanced HDMI splitter solution in the
market, by which the high definition video and high quality
audio can be transmitted to 4 different locations without
losing any quality.SP-5004IZM also supports HDR and the
true 4K2K video!
With built-in USB firmware update mechanism, the
compatibility among countless HDMI sources and
receivers can be further guaranteed. With the upmost
HDR/4K2K@60 4:4:4 8bits and high definition audio
support, SP-5004IZM is suitable for high quality HDMI
broadcasting, digital signage and education applications!
NOTICE
(1)
1.
(2)
(3)
(4)
(5)
SP-5004IZM
User Manual
rev: 200528
Made in Taiwan
INTRODUCTION
WARRANTY
If somehow user cannot get video output, please try to
adjust EDID dip switch to “[pin1, pin2]=[↑-↓]” or “[pin1,
pin2]=[↓-↓]” for trouble shooting. Under “[pin1,
pin2]=[↑-↓]”, there will be video output. The only
requirement is that the display has to support at least
Full HD. If default Full-HD EDID still cannot work, user
can switch to “[pin1, pin2]=[↓-↓]” to learn the EDID
from output 1 to customize the EDID information.
(Please note that the display with lowest resolution
must be connected to output 1)
2. Firmware update is proceeded through Micro-USB
Select to [pin1, pin2]=[↑-↓] - Full-HD(1080p@60) – 12bit
3D video & 7.1ch audio
(1) Set the rotary switch to “[pin1, pin2]=[↑-↓]”
(2) Power on the device
Select to [pin1, pin2]=[
↓-↓
] – Learning EDID from output 1
(1) Set the dip switch to “[pin1, pin2]=[↓-↓]”
(2) Power on the device
(3) It will automatically learn EDID from output 1
[NOTE]
a. If the user wants to change EDID mode, please power
cycle the device after setting dip switch.
Save the firmware file (.bin) & software in the same
folder.
Connect the Micro-USB cable between PC and device
Open firmware update software and then device will
start to update firmware automatically.
After update process is done, software will show
“Success” message and then be closed automatically.
Power cycle the device
The SELLER warrants the SP-5004IZM 1x4 HDMI
2.0aSplitter with Built-in& User Adjustable EDID
Management free from defects in the material and
workmanship for 1 year from the date of purchase from
the SELLER or an authorized dealer. Should this
product fail to be in good working order within 1 year
warranty period, The SELLER, at its option, repair or
replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge
and power surge. This warranty is offered by the
SELLER for its BUYER with direct transaction only. This
warranty is void if the warranty seal on the metal
housing is broken.
Unit that fails under conditions other than those
covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs
are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail,
customers agree to insure the unit or assume the risk
of loss or damage in transit. Under no circumstances
will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties
expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for
any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim
warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables
and power adapters are limited to a 30 day warranty
and must be free from any markings, scratches, and
neatly coiled.
The content of this manual has been carefully
checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies
that may be contained in this manual. The SELLER will
NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or
omission in this manual, even if advised of the
possibility of such damages. Also, the technical
information contained herein regarding the
SP-5004IZM features and specifications is subject to
change without further notice.

HDMI2.0a compliant
Supports 4K2K@60 4:4:4 8bits
Supports HDR, which is 4K2K@60 4:2:0 10bits
HDCP 2.2 and 1.4 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Supports resolution downscaling from 4K2K to 1080P
Supports default EDID and EDID learning from display
Supports xvYCC, x.v.Color& Deep Color
Micro-USB firmware update for expanding compatibility
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Easy installation
!
NOT supports
SP-5004IZM can bypass 4K HDR data content, but can NOT




Power LED: Lights on when device is ready
Micro-USB Port: Connect to 5V DC power supply unit
EDID MODE:
Signal LED: Input signal LED indicator
HDMI IN: Connect to a HDMI input source
Signal LED: Output 1-4 signal LED indicator
HDMI OUT 1-4: HDMI outputs to HDMI displays
[HDMI OUT1: EDID Learn Default]
1.

        
         
        


1x SP-5004IZM
1x Micro-USB to USB cable
1x User Manual
Broadcasts HDMI signal to 4 HDMI displays!
1. Switch off all devices, including monitors.
2. Connect to the displays.
3. Connect an HDMI source (such as a Blu-ray Disc player)
to the HDMI In.
4. Plug in 5V DC power supply.
5. Power on the HDMI monitors.
6. Power on the HDMI source.
SPECIFICATIONS
HARDWARE INSTALLATION
FEATURES
PACKAGE CONTENTS
PANEL DESCRIPTIONS
Technical
Role of usage
HDMI compliance
HDCP compliance
Input Video bandwidth
Video support
Audio support
ESD protection
Firmware update
Input
Output
HDMI connector
Dip switch
Model Name SP-5004IZM
1x4 Distribution Amplifier (Splitter)
HDMI 2.0a
HDCP 2.2 / 1.4
Single-link 594MHz [18Gbps]
Up to HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM
Human body model - ±15kV [air-gap discharge] &
±8kV [contact discharge]
Feasible via Micro-USB port
1x HDMI
4x HDMI
Type A [19-pin female]
EDID Mode selection
Metal enclosure
104.8 x 63 x 17.4mm[4.1" x 2.4" x 0.6" ]
140 x 113 x 24mm [5.5" x 4.4" x 0.9"]
405 x 275 x 255mm [1'3" x 10.8" x 10"]
100g[3.5 oz]
162g[5.7 oz]
Wall-mounting case
5V 1A DC
4 Watts [max]
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
Mechanical
Housing
Dimensions
[L x W x H]
Weight
Fixedness
Power supply
Power consumption
Operation temperature
Storage temperature
Relative humidity
Model
Package
Carton
Model
Package
HDR = High Dynamic Range.
The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384
MHz, and the 4K2K@60 4:4:4 8bits is 594MHz.
i1.
2. 1.
2.
3.
4.
5.
6.
7.
!
1
2
3 4
5
6
7
7
6

○
!
DIP Switch Position Description
Off [] Off []
Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio
On [] Off [] Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio
Off [] On [] Full HD(1080p@60) – 12bit 3D video & 7.1ch audio
On [] On [] Learning EDID from output 1
CONNECTION DIAGRAM
