GoMax Electronics MA-5588H User manual

8X8 HDMI 2.0a Matrix
User Manual
rev: 130701
Made in Taiwan
MA-5588H

Safety and Notice
The MA-5588H 8x8 HDMI 2.0a matrix has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipment,
the MA-5588H should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
HARDWARE INSTALLATION.............................................................................................4
CONNECTION DIAGRAM ..................................................................................................4
OPERATION APPROACH..................................................................................................5
EDID LEARNING................................................................................................................8
FAQ ..................................................................................................................................16
WARRANTY .....................................................................................................................17

1
* HDR = High Dynamic Range.
** The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is about the 4K2K@60 4:4:4 8bits
INTRODUCTION
The MA-5588H 8x8 HDMI 2.0a matrix provides the most flexible and cost effective solution in the
market to route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any
of the four HDMI sources to the remote displays at the same time. MA-5588H supports HDR and the true
4K2K video!
With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, MA-5588H is well
suited for use in home theater, conference room presentation systems, or other similar setting or
application
EATURES
●HDMI 2.0a compliant
●Supports 4K2K@60 4:4:4 8bits
●Supports HDR*, which is 4K2K@60 4:2:0 10bits**
●HDCP 2.2 compliant
●Allows any source to be displayed on multiple displays at the same time
●Allows any HDMI display to view any HDMI source at any time
●Supports 7.1 channel digital audio
●Supports default HDMI EDID and learns the EDID of displays to matrix switcher
●The matrix switcher can switch every output channels from any HDMI inputs by Push button, IR remote
control, RS-232, IP control and cloud control
●Easy installation with rack-mounting
●Fast response time – 2~3 seconds for channel switch
PACKAGE CONTENTS
●1x MA-5588H
●1x IR Receiver
●1x DC 12V 7.5A
●1x IR Remote control*
●1x Rack-mounting ear set
●1x Installation software CD
●1x User Manual
* Additional IR remote controllers and IR blasters can be purchased as optional accessories to
control the HDMI sources located separately.

2
SPECIFICATIONS
Model Name
MA-5588H
Technical
Role of usage
True 8x8 matrix
HDMI compliance
HDMI 2.0a
HDCP compliance
HDCP1.4/HDCP 2.2
Video bandwidth
Single-link 594MHz [18Gbps]
Video support
HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up
6-layer board [impedance control — differential 100Ω; single 50Ω]
Input
8x HDMI / 1x RS-232 / 1x Ethernet / 1x IR socket for IR receiver
Output
8x HDMI
HDMI Input selection
Push-in button / IR remote control / RS-232 control / Ethernet control
IR remote control
Electro-optical characteristics: π= 25° / Carrier frequency: 38kHz
HDMI connector
Type A [19-pin female]
RJ-45 connector
WE/SS 8P8C with 2 LED indicators
RS-232 connector
DE-9 [9-pin D-sub female]
USB connector
Type A
3.5mm connector
[System IR] Receives IR commands from remote control
Mechanical
MA-5588H
Enclosure
Metal case
Dimensions
(L x W x H)
Model
440 x 220 x 44mm [1'7" x 12.5" x 6.1"]
Package
526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
Carton
543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
Weight
Model
2680g [94.5oz]
Package
3954g [8.7 lbs]
Fixedness
1RU rack-mount with ears Wall hanging holes
Power supply
12V 7.5A DC
Power consumption
60 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
Front Panel
1. Source Status: Input source detection LED
2. Display Status: Output display detection LED
3. Output Push Button & 7-segment LED: Front panel push buttons used to select the number of
display channel & LED display for output ports
4. IR SENSOR: IR sensor for receiving the IR commands from IR remote
5. Input Push Button & 7-segment LED: Front panel push buttons used to select the number of input
source & LED display for input channels
Rear Panel
6. INPUT 1-8: HDMI inputs
7. OUTPUT 1-8: HDMI outputs
8. USB: for firmware update only
9. Ethernet: Ethernet control port
10. System IR Receiver: Ext. IR receiver
11. +12V DC: 12V DC power jack
12. RS-232: RS-232 control port
13. Power Switch

4
HARDWARE INSTALLATION
MA-5588H as master
1. Connect all sources to HDMI Inputs on the 8x8 HDMI Matrix MA-5588H.
2. Connect all display to HDMI Outputs on the 8x8 HDMI Matrix MA-5588H
4. Connect the +12V 7.5A DC power supply to the 8x8 HDMI Matrix MA-5588H.
CONNECTION DIAGRAM

5
OPERATION APPROACH
Method A: Push-in Button
1. IN/OUT MAP
1) Use the “+”or “-“ output push button to select the number of display
2) Use the “+”or “-“ input push button to select the number of input source
“+”: change selected input/output port in ascending order
“-” : change selected input/output port in descending order
After you select the desired input/output port, the LED will blink twice and the setting will be effective

6
Method B: IR Remote Control
1. IN/OUT Switch
Operation
Procedure
7-Segment LED
IN/OUT Switch
Output Number (1~8)+ Input Number (1~8)
Ex: Input 2
To Output 3
1. Press output number key “3” to select Output 3
3
-
2. Press input number key “2” to select Input 2
3
2
2. Function Key
Button Function
OFF
Standby mode
ON
Power on the matrix switcher
MUTE
Turn off output’s video and audio
STATUS
Preset output status
SAVE
Save current mapping mode
PRESET
Preset mapping mode
DEFAULT EDID
Begin default EDID selection
LEARN EDID
Begin EDID learning from one output
CLEAR
Clear the previous IR operation procedure
TAKE
Trigger the previous setting
F1
Reserved
F2
Reserved
1
2

7
Operation Procedure 7-Segment LED
Output Status
Status + Output Number (1~8) + Take
Ex: Output 4
(Input 2)
1.Press “STATUS” button
-
-
2.Press output number key “4” to select Output 4
4
-
3.Press “TAKE” button
4
2
Save Current Mapping
Save + Output Number (1-8 storage site) + Take
Ex: Save current
mapping to 5
1.Press “SAVE” button
d
-
2.Press output number key “5” to select the storage
site 5
d
5
3.Press “TAKE” button
Preset Mapping
Preset + Output Number (1-8 storage site) + Take
Ex: Preset saved
mapping from 5
1.Press “PRESET” button
P
-
2.Press output number key “5” to select the storage
site 5
P
5
3.Press “TAKE” button
Learn default EDID
Default EDID + Output Number (1-8 default EDID) +
Input Number (input 1~8) + Take
Ex: Default EDID 2
Input 3
1.Press “DEFAULT EDID” button
E
d
2.Press output number key “2” to select default EDID 2
2
d
3.Press input number key “3” to select Input 3
2
3
4.Press “TAKE” button
0 F
0 (success)
F(fail)
Learn Output EDID
Learn + Output Number (Output 1~8) +Input
Number (input 1~8) + Take
Ex: Learn Output 4
Input 3
1.Press “LEARN” button
E
L
2.Press output number key “4” to select Output 4
4
L
3. Press input number key “3” to select Input 3
4
3
4.Press “TAKE” button
0 F
0 (success) F(fail)
Mute Output
Mute + Output Number (1~8) + Take
Ex: Mute Output 3
1. Press “MUTE” button
-
0
2. Press output number key “3” to select Output 3
3
0
3.Press “TAKE” button
3
0

8
Method C: Software Control through RS-232 port / Ethernet port
1. System Requirement
1) OS Information: MS WinXP/7
2) Baud rates: 9600
3) Software size: 3 MB
4) Minimum RAM requirement: 256 MB
Method D: Software Control through RS-232 port
1
Power ON/ Standby mode
5
EDID Button
2
Control SW via RS-232
6
Rename I/O Button
3 COM Port Selection 7
Network Setting & Default Reset
Button
4
I/O Routing Button
8
Firmware Update Button
1
2
4
5
6
7
8
3

9
1. I/O Routing Button
1) I/O:
a) Switch the input for each output
2) Recall Mapping:
a) Select the stored Mapping(1-16)
b) Click “Recall” button to recall previous mapping which are saved
3) Save Mapping:
a) Select Mapping(1-16)
b) Click “Save” button to save current mapping

10
2. EDID Button
1) Learn EDID from Default to Input
a) Select Default EDID(1-17 Default EDID)
b) Select designated Input
c) Click “Apply” button to learn from default EDID
2) Learn EDID from Display to Input
a) Select output
b) Select designated Input
c) Click “Apply” button to learn from display EDID
3) Load EDID File to Input
a) Click “Load File” button to select the EDID file
b) Select designated Input
c) Click “Apply” button to load EDID File
4) Auto EDID

11
=> The matrix will do Automatic EDID learning and generate the best EDID among all
connected monitors
a) “Read” button
=> Get the auto EDID status from device
5) View EDID
a) Select Input or HDMI output
b) Click “View” button to read and analyze the EDID
3. Rename I/O Button
1) Rename I/O:
a) Rename the Inputs
b) Rename the Outputs
2) Rename Mapping:
a) Rename the Mappings

12

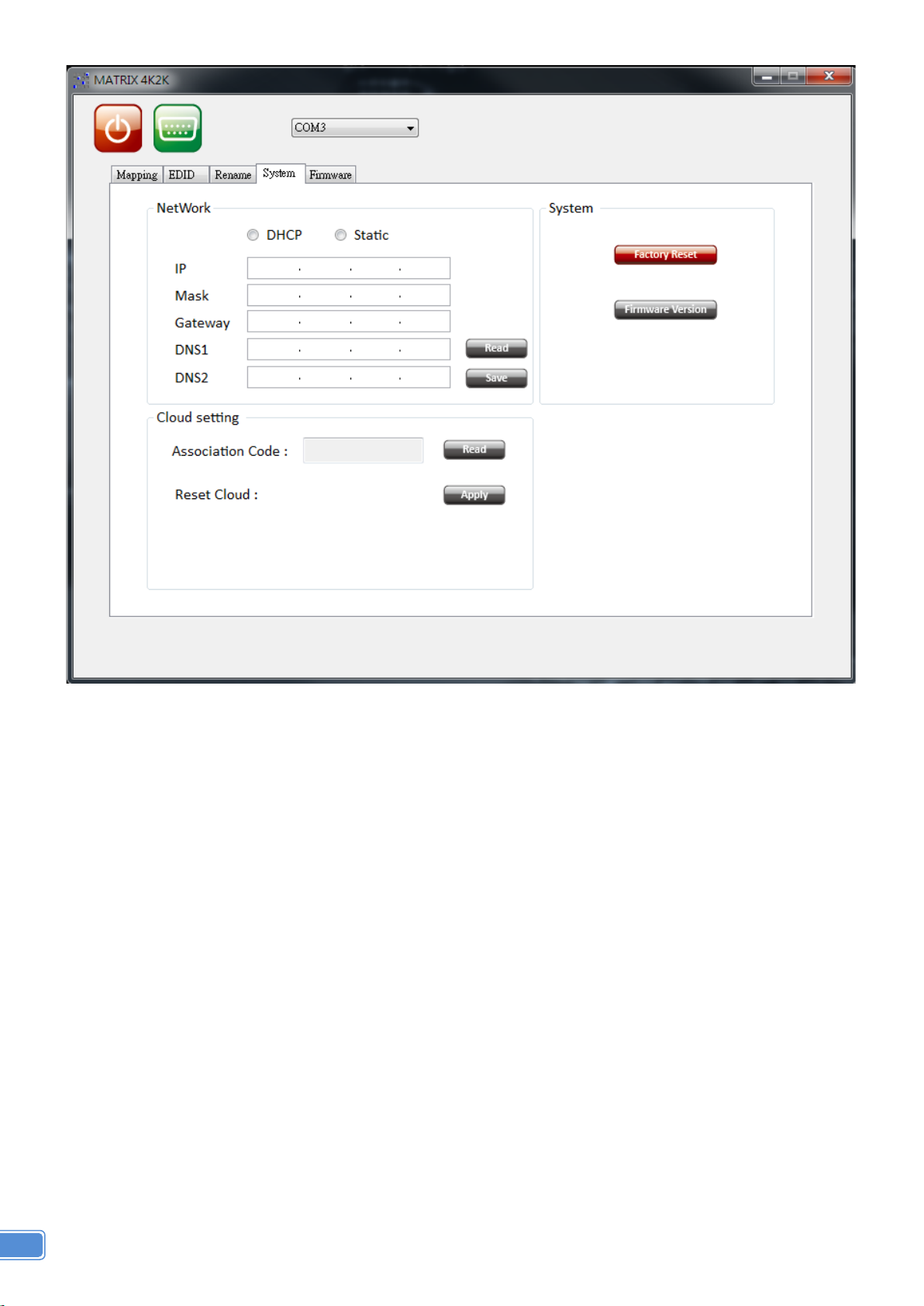

4. System Button
1) Network
a) DHCP mode
=> Click DHCP and then click the “Read” button to get the IP address Info
b) Static mode
=> Click Static and then key in the “IP”, “MASK”, ”GATEWAY” info. After setting IP
Address, please click “Save” to save IP address Info
c) “Save” button
=> Save the key- in IP address
d) “Read” button:
=> Read the IP address from the device
Note: The default IP address is 192.168.1.111
2) System
a) Factory Reset
b) Firmware Version
=> To get the F/W version information

13
3) Cloud setting
a) Association Code
=> To get an “association code”. The device can use this code to pair with cloud server.
b) Reset Cloud
=> To reset cloud after a successful pairing

14
5. Firmware Update Button
1) Update from USB
a) Please ensure the file of new firmware files are in the root directory of USB Flash
Drive. The file suffix is .bin.
b) Connect the USB Flash Drive on matrix USB interface.
c) Click “Start” button to start the FW update process
2) Update from NET
a) Key in the Matrix’s “IP” address which user wants to update firmware
b) Key in “5888” to “PORT” column
c) Click “Load file” button to select the new firmware file
d) Click “Start” button to start the FW update process
Note: The PC & matrix have to be in the same domain

15
EDID LEARNING
The EDID learning function is only necessary whenever you encounter any display on the HDMI
output port that cannot play audio and video properly. Because the HDMI source devices and displays
may have various level of capability in playing audio and video, the general principle is that the source
device will output the lowest standards in audio format and video resolutions to be commonly acceptable
among all HDMI displays. In this case, a 720p stereo HDMI signal output would be probably the safest
choice. Nevertheless, the user can force the matrix to learn the EDID of the lowest capable HDMI display
among others to make sure all displays are capable to play the HDMI signals normally.
There are THREE methods to do EDID Learning as below,
1. IR Remote Control: Please refer to the Operation Approach\ Method B: IR Remote Control (Page
6. 7.)
2. Software Control: Please refer to the Operation Approach\ Method C: Software Control through
RS-232 port (Page 10. 11.)
There are eight embedded default EDID as below,
1. Full-HD(1080p@60)-24bit 2D & 2ch
2. Full-HD(1080p@60)-24bit 2D & 7.1ch
3. Full-HD(1080p@60)-24bit 3D & 2ch
4. Full-HD(1080p@60)-24bit 3D & 7.1ch
5. HD(1080i@60)(720p@60)-24bit 2D & 2ch
6. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch
7. Full-HD(1080p@60)-36bit 2D & 2ch
8. Full-HD(1080p@60)-36bit 2D & 7.1ch
9. Full-HD(1080p@60)-24bit 2D & 2ch & Dolby 5.1ch
10. 4k2k@30 2ch
11. 4k2k@30 7.1ch
12. 4k2k@30 3D PCM2CH(2ch)
13. 4k2k@30 3D BITSTR(7.1ch)
14. 4k2k@60 420 3D PCM2CH(2ch)
15. 4k2k@60 420 3D BITSTR(7.1ch)
16. 4k2k@60 3D PCM2CH(2ch)
17. 4k2k@60 3D BITSTR(7.1ch)

16
FAQ
QCan every TV work with the HDMI matrix?
A
Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID
LEARNING section to learn EDID from your TV.
QWhat is EDID? Why do I need to learn EDID?
A
EDID contains the whole information of the display such as the resolution and audio setting which
this display can support. Therefore, based on the EDID information, media player will pick up the
most suitable resolution and audio setting to the display. In order to faithfully transmit the EDID
information from display to the media player, learning EDID from display to this device is
necessary.
QWhat should I do to learn EDID for the matrix?
A
Due to the limitation of HDMI, the source device can only output one format of video and audio. In
other words, the source device cannot output 720p and 1080p video at the same time, or output
stereo and surround sound at the same time. Therefore, you may need to manually setup each
HDMI input for desirable audio/video output format. The mechanism of EDID Learning is to pick up
the HDMI display with the lowest capability among the ones you would use for this input source.
For example, if user would like to play the Input-2 upon output-2, output-3 and output-4, and only
output-3 cannot support 1080p [support up to 720p only], please learn the EDID from the display
connected to the output-3 at the Input-2 port. Of course, if outpt-3 would get the HDMI signals from
every HDMI input, please learn EDID information from output3 to all four HDMI inputs. For more
information about EDID Learning, please refer to EDID LEARNING section.
QMy TV can support 1080p, but why there is no audio?
A
The factory default EDID of this device is 1080p & 2ch audio. However, there would be a problem
after you change to use 1080p & 7.1ch if the TV cannot support 7.1ch audio. Please use the
default EDID, 1080p & 2ch audio.
QWhen I set an audio amplifier (AV receiver) between TV and the matrix to extract 7.1ch
audio, but why there is still no audio?
A
Basically, the default EDID of the chosen input can support 7.1ch audio, but the problem is that the
EDID of the amplifier still cannot match the default setting. Therefore, the best method is to learn
EDID from the amplifier directly. Please refer to EDID LEARNING section and follow the steps to
learn the EDID. When learning EDID from the amplifier, user just needs to connect the matrix and
amplifier. Please don't connect HDMI cable between amplifier and TV when the EDID
learning is proceeding.
QWhen I play the same content upon multi-displays, why only the TV equipped with amplifier
can have 7.1ch audio, and the others don't have 7.1ch audio even no stereo?
A
Due to the limitation of HDMI, the source only can choose one video and one audio format to play,
which can be either 1080p and 7.1ch or 1080p and stereo audio. It means when the user sets the
matrix at 1080p and 7.1ch, the source will only play the content under this format. Therefore if the
TV cannot decode 7.1ch audio, there is definitely no audio.

17
WARRANTY
The SELLER warrants the MA-5588H 8x8 HDMI 2.0a matrix free from defects in the material and
workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this
product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or
replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surge. This warranty is offered by the
SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal
housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the MA-5588H features and specifications is
subject to change without further notice.
