GoMax Electronics MX-5004MZ2F User manual

MX-5004MZ2F
4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60
4:4:4
User Manual
rev: 201214
Made in Taiwan
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS ....................................................................................................3
CONNECTION DIAGRAM ..................................................................................................4
HARDWARE INSTALLATION.............................................................................................4
OPERATION APPROACH..................................................................................................5
WARRANTY.....................................................................................................................23

-1-

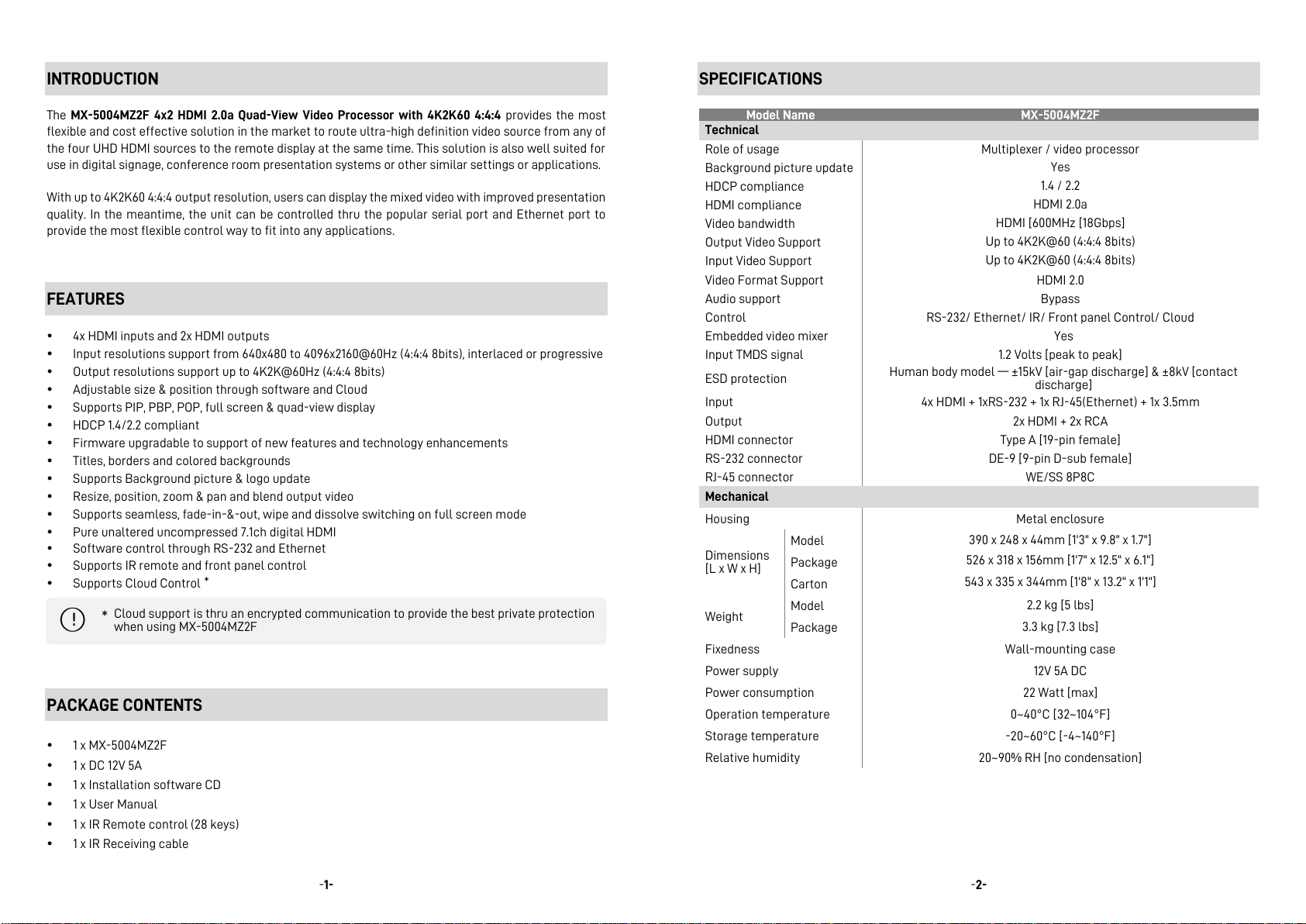

INTRODUCTION
The MX-5004MZ2F 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 provides the most
flexible and cost effective solution in the market to route ultra-high definition video source from any of
the four UHD HDMI sources to the remote display at the same time. This solution is also well suited for
use in digital signage, conference room presentation systems or other similar settings or applications.
With up to 4K2K60 4:4:4 output resolution, users can display the mixed video with improved presentation
quality. In the meantime, the unit can be controlled thru the popular serial port and Ethernet port to
provide the most flexible control way to fit into any applications.
FEATURES
4x HDMI inputs and 2x HDMI outputs
Input resolutions support from 640x480 to 4096x2160@60Hz (4:4:4 8bits), interlaced or progressive
Output resolutions support up to 4K2K@60Hz (4:4:4 8bits)
Adjustable size & position through software and Cloud
Supports PIP, PBP, POP, full screen & quad-view display
HDCP 1.4/2.2 compliant
Firmware upgradable to support of new features and technology enhancements
Titles, borders and colored backgrounds
Supports Background picture & logo update
Resize, position, zoom & pan and blend output video
Supports seamless, fade-in-&-out, wipe and dissolve switching on full screen mode
Pure unaltered uncompressed 7.1ch digital HDMI
Software control through RS-232 and Ethernet
Supports IR remote and front panel control
Supports Cloud Control *


PACKAGE CONTENTS
1 x MX-5004MZ2F
1 x DC 12V 5A
1 x Installation software CD
1 x User Manual
1 x IR Remote control (28 keys)
1 x IR Receiving cable
Cloud support is thru an encrypted communication to provide the best private protection
when using MX-5004MZ2F
!
*
-2-
SPECIFICATIONS
Model Name
MX-5004MZ2F
Technical
Role of usage
Multiplexer / video processor
Background picture update
Yes
HDCP compliance
1.4 / 2.2
HDMI compliance
HDMI 2.0a
Video bandwidth
HDMI [600MHz [18Gbps]
Output Video Support
Up to 4K2K@60 (4:4:4 8bits)
Input Video Support
Up to 4K2K@60 (4:4:4 8bits)
Video Format Support
HDMI 2.0
Audio support
Bypass
Control
RS-232/ Ethernet/ IR/ Front panel Control/ Cloud
Embedded video mixer
Yes
Input TMDS signal
1.2 Volts [peak to peak]
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact
discharge]
Input
4x HDMI + 1xRS-232 + 1x RJ-45(Ethernet) + 1x 3.5mm
Output
2x HDMI + 2x RCA
HDMI connector
Type A [19-pin female]
RS-232 connector
DE-9 [9-pin D-sub female]
RJ-45 connector
WE/SS 8P8C
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
390 x 248 x 44mm [1'3" x 9.8" x 1.7"]
Package
526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
Carton
543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
Weight
Model
2.2 kg [5 lbs]
Package
3.3 kg [7.3 lbs]
Fixedness
Wall-mounting case
Power supply
12V 5A DC
Power consumption
22 Watt [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

-3-
PANEL DESCRIPTIONS
1. Windows Source Selection A-D: Window A-D source selection (from the left to the right is D, C, B, A)
2. Presets: User preset 2 and user preset 1
3. Quad: Fast switch to quad-view mode
4. Full Screen: Switch Window in full scree mode
5. IR SENSOR: IR sensor for receiving the IR commands from IR remote
6. OSD Button
7. Power switch: Power On/Off
8. +12V DC: 12V DC power jack
9. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver
10. SOURCE 1-4: HDMI inputs
11. Stereo audio output –L/R
12. OUTPUT 1-2: HDMI outputs*
13. RS-232: RS-232 control port
14. Ethernet: Ethernet control port
15. Micro USB: For F/W update
The MX-5004MZ2F is able to automatically downscale on output 2 according to
EDID of connected display equipment.
.
!
*
-4-
CONNECTION DIAGRAM
HARDWARE INSTALLATION
MX-5004MZ2F as master
1. Connect all sources to HDMI Inputs on the MX-5004MZ2F.
2. Connect the display to HDMI Output on the MX-5004MZ2F.
3. Connect the +12V 5A DC power supply to the MX-5004MZ2F.

-5-

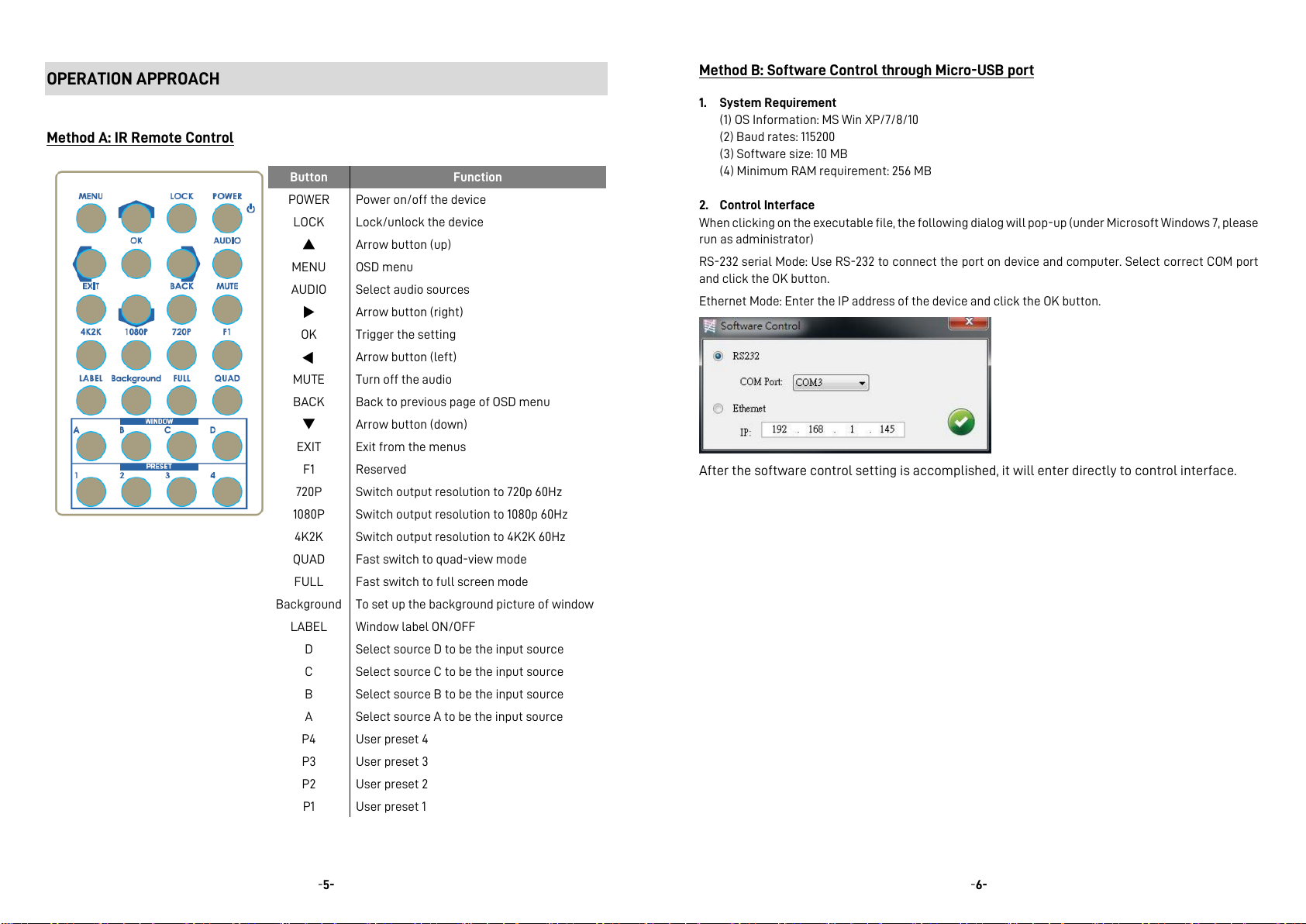

OPERATION APPROACH
Method A: IR Remote Control
Button
Function
POWER
Power on/off the device
LOCK
Lock/unlock the device
▲
Arrow button (up)
MENU
OSD menu
AUDIO
Select audio sources
Arrow button (right)
OK
Trigger the setting
Arrow button (left)
MUTE
Turn off the audio
BACK
Back to previous page of OSD menu
▼
Arrow button (down)
EXIT
Exit from the menus
F1
Reserved
720P
Switch output resolution to 720p 60Hz
1080P
Switch output resolution to 1080p 60Hz
4K2K
Switch output resolution to 4K2K 60Hz
QUAD
Fast switch to quad-view mode
FULL
Fast switch to full screen mode
Background
To set up the background picture of window
LABEL
Window label ON/OFF
D
Select source D to be the input source
C
Select source C to be the input source
B
Select source B to be the input source
A
Select source A to be the input source
P4
User preset 4
P3
User preset 3
P2
User preset 2
P1
User preset 1
▲
▲
-6-
Method B: Software Control through Micro-USB port
1. System Requirement
(1) OS Information: MS Win XP/7/8/10
(2) Baud rates: 115200
(3) Software size: 10 MB
(4) Minimum RAM requirement: 256 MB
2. Control Interface
When clicking on the executable file, the following dialog will pop-up (under Microsoft Windows 7, please
run as administrator)
RS-232 serial Mode: Use RS-232 to connect the port on device and computer. Select correct COM port
and click the OK button.
Ethernet Mode: Enter the IP address of the device and click the OK button.
After the software control setting is accomplished, it will enter directly to control interface.

-7-
Control Interface
1. Connection Status:
Show the connect information and status. If users use RS-232 serial Mode to connect device, the
graph is . In contrast, the graph of Ethernet is . In addition, if users would link to change
the control method, uses can click on the button to change.
1
2
3
4
5
6
7
9
8
-8-
2. Output Settings
In this section, users can set up the coordinate for inputs, the source of window A~D, output
resolution, layout setting (PAP or full screen) and switch mode.
(1) Source Selection
For each display window, you can assign arbitrary video source here.
(2) Quick Selection
We provide 9 default modes, 8 custom modes and 4 switching effects (Seamless, Fade in/out,
Dissolve, Wipe) for user to select.
(3) Output Resolution
Set the output resolution.

-9-
(4) Save Layout
We provide 8 custom layout space for users to save the frequently used scenarios into the flash
memory.
(5) Display Panel
In the left part of control interface, user can customize the display mode thru control. The
different colors of frame represent the different input windows. The information of coordinate
shows the position of input source screen. In addition, we provide display ratio for users to set
the display panel sizes. If you want to change window layer, please drag window icon in Layer
Control section.
-10-
3. Advanced Setting
(1) Label Text
In here, users can input the texts to be shown with the video.
(2) Sound
To set up the audio source of the output and R/L channels.
Audio Mode
Fixed: The audio source of the output and R/L channels will fix to be selected source
Follow Full-Screen: The audio source of output and R/L channels will follow selected full
screen. (This function only can be enabled on full screen mode)

-11-
(3) Window Label
In this function, users can determine if the window’s label/border is turned on or off.
(4) Background Screen
To set up the background of window. We provide 4 empty space for user to upload background
pictures. User can click File button to load the picture which you want to use and click Start
button to write this picture into the device.
(5) HDR Control
To Enable/ Disable HDR
-12-
4. Crop Setting
* If users want to use Crop mode, remember to set the window A-D to the same video source in the
Source Selection of the Connection Status page.
(1) Visible Window Control
Users can customize the display mode thru control. First, Select the input windows to be
displayed on output1 and output2 on the right. Then adjust the range of the window in the Display
Panel on the left. The different colors of frame represent the different input windows.

-13-
(2) Corp Area & Crop Area Control
User can customize the range to crop video source and display it on window A-D. Define the area
range by entering parameters or adjusting the frame in the crop area. After setting the crop range,
please click the “Enable Crop” and the “OK” button.
(3) To get the width & height of source information
Users can get the width & height of source 1-4 information as a reference for the cutting range.
* The image below shows an example of using Crop mode.
-14-
5. EDID (Extended display identification data)
Learn EDID from Default or Display
Select EDID
Select Input
Click button to learn EDID.

-15-
6. Net Setting
(1) IP Configure
User also can use the WEB to control the mixer. Please setup the Ethernet for the unit as below
example shows. After the step of IP configuration, please click the button.
The default IP: 192.168.1.46
IP Configure-DHCP mode
Select DHCP and click button to automatically get the IP address
IP Configure-Static mode
Select Static and then key in the “IP”, “MASK”, “GATEWAY” information. After the step of IP
configuration, please click the button. The setup of Ethernet for the unit as below
example shows.
-16-
(2) MAC address
MAC
Read the device’s MAC address information.
(3) Cloud Setting
Register mode
To get an “association code”. The device can use this code to pair with cloud server.
Cloud mode
To reset cloud after a successful pairing

-17-

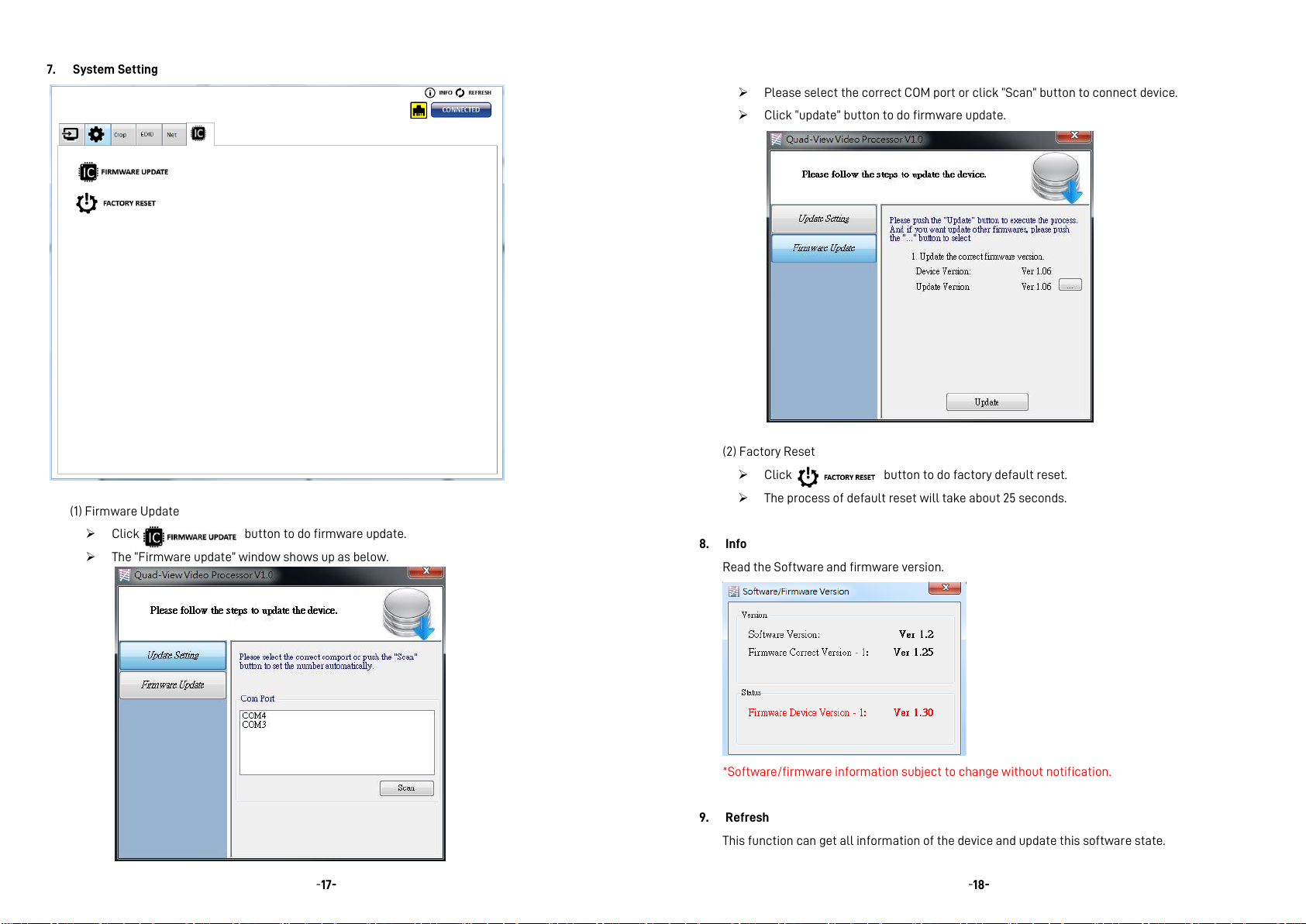

7. System Setting
(1) Firmware Update
Click button to do firmware update.
The “Firmware update” window shows up as below.
-18-
Please select the correct COM port or click “Scan” button to connect device.
Click “update” button to do firmware update.
(2) Factory Reset
Click button to do factory default reset.
The process of default reset will take about 25 seconds.
8. Info
Read the Software and firmware version.
*Software/firmware information subject to change without notification.
9. Refresh
This function can get all information of the device and update this software state.

-19-
Method C: Web Interface Control
The default IP address: 192.168.1.46
User can choose Operator or Admin account to login.
1. The password of Operator: operator
2. The password of Admin: admin
-20-
Method D: Cloud Control (Eagleyes) through Ethernet Port
Create Account
The first time to use the Eagleyes service, please create a new account.
1. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”.
2. The Registration page will pop up and please fill in your email and password information to create
your private account.

-21-
Add Device to Eagleyes
1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the
software with device to get the register code (Note: the status of software is connected).
2. Access Eagleyes (http://www.eagleyes.io), and then log in your account on the right top corner.
Click Add device to add the device which you just got its association code.
3. Enter the Installer Email for online support in the future, and the Association Code for pairing with
your device.
-22-
4. Click the “SET” button on software to reset cloud
5. After adding the device, the list of device related to your account will show on the right top corner.
You can click the button to switch device for control.

-23-
WARRANTY
The SELLER warrants the MX-5004MZ2F 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60
4:4:4 free from defects in the material and workmanship for 1 year from the date of purchase from the
SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year
warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and
power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This
warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume
the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return
authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty
and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the MX-5004MZ2F features and specifications is
subject to change without further notice.
