GoMax Electronics VW-1312P User manual

12-Display / 9-Display 4K2K Video Wall
Processor
User Manual
rev: 150409
Made in Taiwan
VW-1312P
Safety and Notice
The VW-1312P 12-Display / 9-Display 4K2K Video Wall Processor has been tested for
conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipments, the VW-1312P should be used with care. Please read and
follow the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
HARDWARE INSTALLATION.............................................................................................3
CONNECTION DIAGRAM ..................................................................................................4
PANEL DESCRIPTIONS.....................................................................................................5
OPERATION APPROACH..................................................................................................7
EDID LEARNING..............................................................................................................17
WARRANTY .....................................................................................................................18

1
INTRODUCTION
The VW-1312P 12-Display / 9-Display 4K2K Video Wall Processor is a powerful, most cost
effective, and fully real time data/video processor for multiple flat panel displays or projectors. VW-1312P
can support up to 12 DVI/HDMI outputs to expand the spectrum of video wall applications. With add-on
card design concept, users can therefore adjust the number of output ports based on different scenarios.
Meanwhile, with the very same chassis of VW-1312P, the bandwidth of the video, the controllability of the
module, and the input complexity can be further explored to either cost down the project budget or
enhance with the new features from the new I/O cards.
Thru digital transmission, the quality of the outcome videos is guaranteed. The output display is
grained up to 255 by 255 squares. Virtually any setups for the display layout can be possible by the
provided software. The VW-1312P allows you to input DVI/HDMI, VGA, Component, wherever positions
and whatever sizes you want for viewing. The embedded scaler converts signals from two of input
sources to match the native resolution of monitors, flat panel displays, projectors as well as
user-selectable output settings up to WUXGA (1920x1200). The VW-1312P sends the resulting
processed video thru DVI/HDMI interface to the connected monitors/projectors based on the display
layout. The layout can be readily modified to fit your applications and optimize visual effects. Typical
applications include digital signage, and broadcasting/education/ surveillance systems, etc.
FEATURES
Up to 12 DVI outputs from 640x480 to 1920x1200 with a local loop out for monitoring
Support input rotation
PIP, side-by-side (PAP), full screen modes and adjustable size & position through software
Resize, position, flip, zoom output video
Each DVI output has an independent controllable display area
User-selectable output settings, up to 1920x1200
Image parameters and layouts are automatically saved in flash non-volatile of the device
and can be recalled for later use
Several image parameters and layouts can be saved in computers and can be loaded for
later use
Software control through RS-232 and Ethernet
Firmware upgradable for new features and technology enhancements
Support one of HDMI input resolution up to 4K2K@30Hz, other inputs up to 1080p/WUXGA
PCIE-interface add-on card design
Supports DVI/HDMI, VGA and Component input format from 640x480 to 1920x1200,
interfaced or progressive
Perfectly as a video screen splitter, a video converter and a video switcher
Can be cascaded to obtain more displays
HDCP compliant
Advanced video de-interlacer for improving 480i and 576i SD video input
2.5 RU size
PACKAGE CONTENTS
1x VW-1312P / VW-1312P-9X
2x DVI to HDMI adapter
1x User Manual
1x VGA to component breakout cable
1x Installation software CD
1x Rack-mounting ear set
1x AC power cord
1x USB to RS-232 cable
There are two kinds of the unit (9 outputs and 12 outputs), if you buy VW-1312P-9X, the output card
module cage #4 (output 10~12) is optionally available.
2
SPECIFICATIONS
Model Name
VW-1312P
VW-1312P-9X
Technical
Role of usage
Video Wall Processor
Output displays
12 outputs
9 outputs (up to 12)
Number of module cage
4
3
Input Format Support
DVI/HDMI / VGA/ Component
Output support
DVI/HDMI
HDCP compliance
Yes
Video bandwidth
DVI [Single-link 4.95Gbps[
HDMI [2.25G to 6.75Gbps]
Component [30MHz]
VGA [165MHz]
Input video support
Up to 1920x1200@60 / 4K2K@30
Audio Support
No
Control
RS-232 / Ethernet
Input TMDS signal
1.2 Volts [peak-to-peak]
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact
discharge]
Input
2x DVI/HDMI + 1x VGA + 1x Component +1x RS-232 + 1x RJ-45
DVI connector
DVI-I [29-pin female, digital only]
VGA connector
HD-15 [15-pin D-sub female]
RS-232 connector
DE-9 [9-pin D-sub female]
RJ45 connector
WE/SS 8P8C
Mechanical
Enclosure
Metal enclosure
Dimensions
(L x W x H)
Model
44 x 37.47 x 13.12 cm
Carton
57 x 47 x 26.5 cm
Weight
Model
9.5 kg
9.16 kg
Package
11 kg
10.66 kg
Fixedness 2.5RU rack-mount with ears
Power supply
AC Power 100-240V
Power Consumption
30 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3
HARDWARE INSTALLATION
VW-1312P as master
1. Connect all sources to DVI/HDMI, VGA or Component Inputs on the VW-1312P.
2. Connect all displays to DVI/HDMI Outputs on the VW-1312P.
3. Connect the AC Power cord (100-240V) to the VW-1312P.
4. Power up the VW-1312P.
5. Switch on all devices connected and then control the display output through RS-232, Ethernet and
software.
4
CONNECTION DIAGRAM

5
PANEL DESCRIPTIONS
VW-1312P
Front Panel
Rear Panel
1. AC Power Supply
2. Input Port: DVI/HDMI input
3. Input Port: DVI/HDMI input, supports input resolution up to 4K2K@30
4. Input Port: VGA/Component input
5. RS-232 control: RS-232 control port
6. Power Switch: Power ON/OFF switch
7. Ethernet control: Ethernet control port
8. Output Port 1-12: DVI/HDMI outputs
The output card module cage #4 (output 10~12) is optionally available
6
SUPPORTED RESOLUTION
Input resolution supported
HDMI 1
HDMI 2
VGA
Component (YPbPr)
640x480
640x480
800x600 @60Hz
EIA 720x480p @59.95(60)Hz
720x480
720x480
1024x768 @60Hz
EIA 720x576p @50Hz
720x576 720x576 1280x720 @60Hz EIA 1280x720p @59.94 (60)Hz
800x600
800x600
1280x768 @60Hz
EIA 1920x1080i @59.94(60)Hz
1024x768
1024x768
1280x960 @60Hz
EIA 1920x1080p @59.94(60)Hz
1152x864
1152x864
1280x1024 @60Hz
1280x720
1280x720
1360x768 @60Hz
1280x768
1280x768
1400x1080 @60Hz
1280x800
1280x800
1600x1200 @60Hz
1280x960
1280x960
1920x1080 @60Hz
1280x1024
1280x1024
1360x768
1360x768
1366x768
1366x768
1400x1050
1400x1050
1440x240
1440x240
1440x288(576i)
1440x288(576i)
1440x900
1440x900
1600x900
1600x900
1600x1200
1600x1200
1680x1050
1680x1050
1920x540(1080i)
1920x540(1080i)
1920x1080
1920x1080
1920x1200
1920x1200
4K2K@30Hz
Output resolution supported
800x600@60
1024x768@60
1280x720@60
1280x1024@60
1366x768@60
1440x900@60
1440x1050@60
1600x1200@60
1920x1080@60
1920x1200@60

7
OPERATION APPROACH
Software Operation
System Requirements and Precautions
1. Whenever power off VW-1312P, please stay unpowered at least 5 to 10 seconds to allow power
capacitors to discharge.
2. The VW-1312P provides software control program which runs under Microsoft Windows 98, 2000,
XP, 7, 8 through the interface of RS-232 serial control.
3. Before you click on the icon of the software, make sure you have secured the connection between
your computer COM port and the VW-1312P.
Start the Software Control Program
When clicking on the executable file, the following dialog will pop-up. There are two ways to control the
VW-1312P device (under Microsoft Windows 7, please run as administrator).
RS-232 serial Mode: Use RS-232 to connect the port on device and computer. Select correct COM port
and click the button.
Ethernet Mode: Enter the device IP address and click the button.
After the software control setting is accomplished, it will enter the control interface directly.
8
Control Interface
1. Connection Status:
Show the connect information and status. If you use RS-232 serial control Mode to connect device,
the graph is . In contrast, the graph of Ethernet is .
2. Input Control:
In this part, you can set up the input source, source display mode and screen rotation.
(1) Source setting
Set the Input source. You can select at most two input source.
1
2
3
4
5
6
7

9
(2) Display mode
In here, we provide 7 default mode and one customize mode for you to select.
In the right part of control interface, users can customize the display mode thru controls.
The different colors of frame represents the different input sources. The information of
coordinate shows the position of input source screen. In different color frame, it will show a
white circle in the right corner. User can slide the white circle to resize the input source screen
or adjust the position by setting coordinate. Besides, user can also click the button
to make the window precedence.
10
(3) Input Rotation
Please take a closer look at this function. This function is only for full screen mode to use.
When selecting the full screen mode, the following window will pop-up. It has two directions to
rotate the input screen.
or
3. Output control
In this part, user can set up the output resolution, display setting and the output’s brightness and
contrast.
(1) Output Resolution
Set the output resolution. User can choose the desired display icon to select the output port*
and setup resolution. When setting the different resolution, the coordinate of output will also
be changed.
* If you buy VW-1312P-9X, the display output port will only show output 1~9.

11
(2) Display setting
There are two modes.
Custom
In Custom define mode, user can slide the white circle to adjust the size of the output
screen or enter the number to adjust the coordinate. In addition, if user wants to
understand or estimate which part you may select, it also can select the button
to show grid on the graph. After the setting, please click the button.
Quick Select
In Quick Select mode, user can define how to cut in both directions and the part you
desired to show on output TV.
12
(3) Contrast/Brightness
In here, user can adjust the brightness and contrast of output.
4. Advanced setting
(1) File Options
User can click the button to save all the configuration for future use. You can also
click the button to load and read back the configuration from the existing file.

13
(2) Learn EDID
Select Default EDID (1-4 default EDID).
(The default EDID of 4K2K only suit for HDMI 2)
Select Input.
Click button to learn EDID.
(3) View EDID content
Select the EDID input source (HDMI 1, HDMI 2).
Click button to read the EDID description and analysis.
(4) Input Card firmware update
Make sure your RS-232 is connected and the connection status is
Click the button to enter the interface.
Click button to select the firmware file which you want to update.
Click button and the firmware will start to update.
14
(5) Output Card firmware update*
* If you buy VW-1312P-9X, the output card will only show output 1~9.
Make sure your RS-232 is connected and the connection status is
Click the button to enter the interface.
Click button to select the firmware file which you want to update.
Click button and the firmware will start to update.
After firmware update, it will display the status of each output card.

15

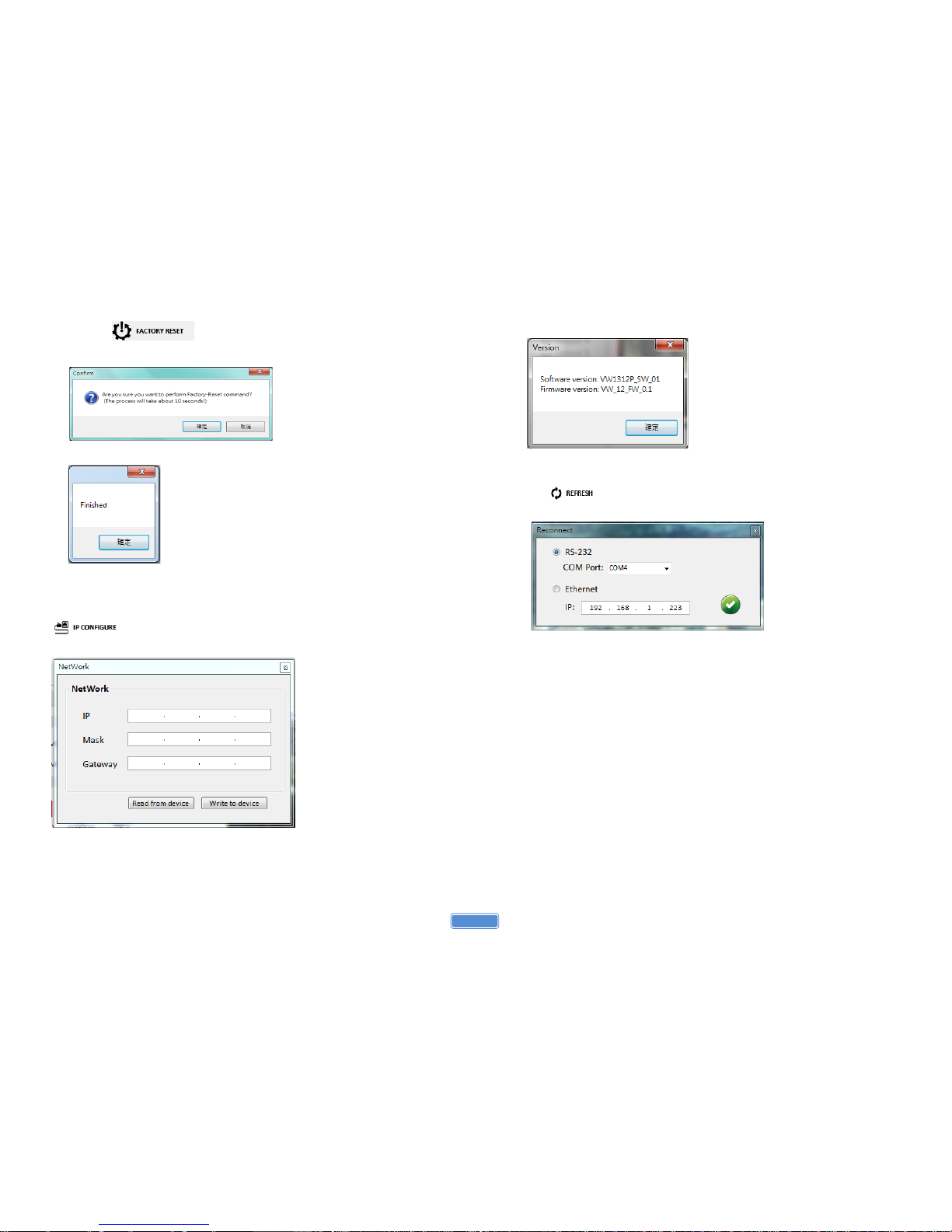

(6) Factory Reset
Click button to do factory default reset.
This default reset process will take about 10 seconds.
After pop-up a dialog indicates “Finished”, please restart this machine.
5. IP Configure
You can also use the Ethernet to control software program. First, you should click the
button to setup network set. Next, you can read the Ethernet setting from device
or manually set to device. After the step of IP configuration, please restart the machine.
16
6. Info
Read the software and firmware version.
7. Refresh
This function can not only refresh the information of setting but also reconnect this device. You can
click button to update the control connection. After you click this button, pop-up a
“Reconnect” window, shows you can select the approach to connect this device.

17
EDID LEARNING
The EDID learning function is only necessary whenever you encounter any display on the HDMI
output port that cannot play video properly. Because the HDMI sources and displays may have various
level of capability in playing video, the general principle is that the source will output the lowest standards
in terms of video resolutions to be commonly acceptable among all HDMI displays. In this case, a 720p
HDMI signal output would be probably the safest choice. Nevertheless, the user can force the matrix to
learn the EDID of the lowest capable HDMI display among others to make sure all displays are capable to
play the HDMI signals normally.
There is a methodto do EDID Learning as below:
Software Control: Please refer to the Operation Approach\ Software Operation (Page 13.)
There are four embedded default EDIDsas below,
1. Full-HD(1080p@60)-24bit 2D | 2ch
2. Full-HD(1080i@60)(720p@60)-24bit 2D & 2ch
3. Full-HD(1080p@60)-30bit 2D | 2ch
4. 4K2K@30-24bit 2D & 2ch
18
WARRANTY
The SELLER warrants the VW-1312P 12-Display / 9-Display 4K2K Video Wall Processor free
from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or
an authorized dealer. Should this product fail to be in good working order within 1 year warranty period,
The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
This warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if
the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the VW-1312P features and specifications is
subject to change without further notice.
