GoMax Electronics MX-5004MZ2-UF User manual

1
4x2 HDMI 2.0a Quad-View Video Processor
with 4K2K60 4:4:4 & USB 3.0 FHD Video
Capture Function
User Manual
rev: 190506
Made in Taiwan
MX-5004MZ2-UF
The MX-5004MZ2-UF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB 3.0
FHD Video Capture Function has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipment,
the MX-5004MZ2-UF should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................2
SPECIFICATIONS..............................................................................................................3
HARDWARE INSTALLATION.............................................................................................4
CONNECTION DIAGRAM ..................................................................................................4
PANEL DESCRIPTIONS.....................................................................................................5
OPERATION APPROACH..................................................................................................6
USB PIN DEFINITION ......................................................................................................21
WARRANTY .....................................................................................................................22

1
INTRODUCTION
The MX-5004MZ2-UF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB
3.0 FHD Video Capture Function provides the most flexible and cost effective solution in the
market to route ultra-high definition video source from any of the four UHD HDMI sources to the
remote display at the same time. Using powerful built-in USB 3.0 capture & auto scale down
features, users can broadcast up to 1080p video & 2ch audio thru real-time on line software,
such as skype. This unique function makes this 4K video processor perfectly work as a live
switch for either educational or multiple commercial applications. This solution is also well suited
for use in digital signage, conference room presentation systems or other similar settings or
applications.
With up to 4K2K60 4:4:4 output resolution, users can display the mixed video with improved
presentation quality. In the meantime, the unit can be controlled thru the popular serial port and
Ethernet port to provide the most flexible control way to fit into any applications.
FEATURES
4x HDMI inputs and 2x HDMI outputs
Input resolutions support from 640x480 to 4096x2160@60Hz (4:4:4 8bits), interlaced or
progressive
Output resolutions support up to 4K2K@60Hz (4:4:4 8bits)
Adjustable size & position through software and Cloud
Supports PIP, PBP, POP, full screen & quad-view display
HDCP 1.4/2.2 compliant
Firmware upgradable to support of new features and technology enhancements
Titles, borders and colored backgrounds
Supports Background picture & logo update
Resize, position, zoom & pan and blend output video
Supports seamless, fade-in-&-out, wipe and dissolve switching on full screen mode
Perfect as a video converter and a live video switcher
Pure unaltered uncompressed 7.1ch digital HDMI
Software control through RS-232 and Ethernet
Supports IR remote and front panel control
Supports Cloud Control*
Supports USB 3.0 FHD Video Capture
- HDMI video and audio streams over USB 3.0
- Supports UVC1.0
2
- Supports video resolution up to 1080p 60Hz (Video stream over USB 3.0)
- Supports HDMI loopout from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
- Supports HDMI audio extraction
- Recording Video Format: H.264 (Software Compression)
- Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
- Compatible with most 3rd party software such as OBS Studio and AMCap
- Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG)
PACKAGE CONTENTS
1x MX-5004MZ2-UF
1x DC 12V 5A
1x Installation software CD
1x User Manual
1x IR Remote control (28 keys)
1x IR Receiving cable
1x USB 3.0 A to A Cable (host to device)
*Cloud support is thru an encrypted communication to provide the best private protection when
using MX-5004MZ2-UF

3
SPECIFICATIONS
Model Name
MX-5004MZ2-UF
Technical
Role of usage
Multiplexer / video processor
Background picture update
Yes
HDCP compliance
1.4 / 2.2
HDMI compliance
HDMI 2.0a
Video bandwidth
HDMI [600MHz [18Gbps]
Output Video Support
Up to 4K2K@60 (4:4:4 8bits)
Video support(USB)
Up to 1080p60
Input Video Support
Up to 4K2K@60 (4:4:4 8bits)
Video Format Support
HDMI 2.0
Audio support
Bypass
Control
RS-232/ Ethernet/ IR/ Front panel Control/ Cloud
Embedded video mixer
Yes
Input TMDS signal
1.2 Volts [peak to peak]
Recording Mode
Software Compression
Recording Video Format
YUY2 (USB3.0), MJPG (USB2.0/3.0)
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact discharge]
Input
4x HDMI + 1xRS-232 + 1x RJ-45(Ethernet) + 1x 3.5mm (IR)
Output
3x HDMI + 1x USB + 2x RCA + 1x 3.5mm
HDMI connector
Type A [19-pin female]
USB connector
USB 3.0 Type A (SuperSpeed USB)
RS-232 connector
DE-9 [9-pin D-sub female]
RJ-45 connector
WE/SS 8P8C
Software compatibility
(not complete list)(Video
Capture Function)
OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸VLC
(OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X), Zoom
(Windows), Hangout (Windows), TeamViewer (Windows)
OS Support (Video Capture
Function)
Windows 7 /8.1 /10, Mac and Linux OS
Mechanical
Housing
Metal enclosure
Dimensions
(L x W x H)
Model
390 x 248 x 44mm [1'3" x 9.8" x 1.7"]
Package
526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
Carton
543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
Weight
Model
2.2 kg [5 lbs]
Package
3.5 kg [7.8 lbs]
Power supply
12V 5A DC
Power Consumption
22 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
4
HARDWARE INSTALLATION
MX-5004MZ2-UF as master
1. Connect all sources to HDMI Inputs on the MX-5004MZ2-UF.
2. Connect the display to HDMI Output on the MX-5004MZ2-UF.
3. Connect the +12V 5A DC power supply to the MX-5004MZ2-UF.
CONNECTION DIAGRAM

5
PANEL DESCRIPTIONS
MX-5004MZ2-UF
Front Panel
1. Windows Source Selection A-D: Window A-D source selection (from the left to the right is D, C, B,
A)
2. Presets: User preset 2 and user preset 1
3. Quad: Fast switch to quad-view mode
4. Full Screen: Switch Window in full scree mode
5. IR SENSOR: IR sensor for receiving the IR commands from IR remote
6. OSD Button
Rear Panel
7. Power switch: Power On/Off
8. +12V DC: 12V DC power jack
9. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver
10. SOURCE 1-4: HDMI inputs
11. Stereo audio output –L/R
12. OUTPUT 1-2: HDMI outputs
13. RS-232: RS-232 control port
14. Ethernet: Ethernet control port
15. Micro USB: For F/W update
16. STEREO AUDIO OUT: Audio extracts from selected HDMI input
17. USB OUT: Connect to a USB host (PC, NB, MAC…)
18. HDMI LOOPOUT: Connect to a HDMI display
6
OPERATION APPROACH
Method A: IR Remote Control
Button
Function
POWER
Power on/off the device
LOCK
Lock/unlock the device
▲
Arrow button (up)
MENU
OSD menu
AUDIO
Select audio sources
Arrow button (right)
OK
Trigger the setting
Arrow button (left)
MUTE
Turn off the audio
BACK
Back to previous page of OSD menu
▼
Arrow button (down)
EXIT
Exit from the menus
F1
Reserved
720P
Switch output resolution to 720p 60Hz
1080P
Switch output resolution to 1080p 60Hz
4K2K
Switch output resolution to 4K2K 60Hz
QUAD
Fast switch to quad-view mode
FULL
Fast switch to full screen mode
Background
To set up the background picture of window
LABEL
Window label ON/OFF
D
Select source D to be the input source
C
Select source C to be the input source
B
Select source B to be the input source
A
Select source A to be the input source
P4
User preset 4
P3
User preset 3
P2
User preset 2
P1
User preset 1
▲
▲

7

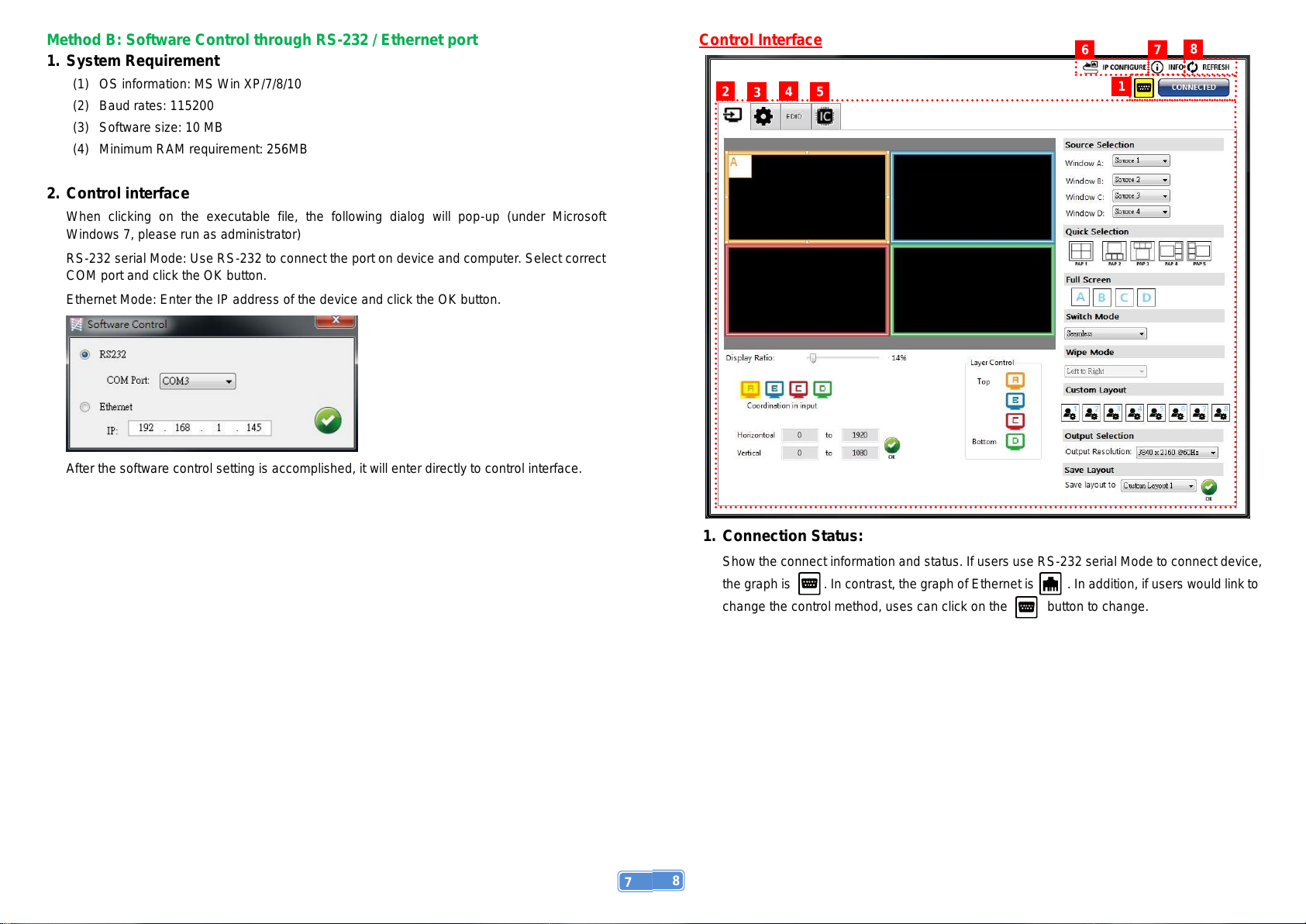

Method B: Software Control through RS-232 / Ethernet port
1. System Requirement
(1) OS information: MS Win XP/7/8/10
(2) Baud rates: 115200
(3) Software size: 10 MB
(4) Minimum RAM requirement: 256MB
2. Control interface
When clicking on the executable file, the following dialog will pop-up (under Microsoft
Windows 7, please run as administrator)
RS-232 serial Mode: Use RS-232 to connect the port on device and computer. Select correct
COM port and click the OK button.
Ethernet Mode: Enter the IP address of the device and click the OK button.
After the software control setting is accomplished, it will enter directly to control interface.
8
Control Interface
1. Connection Status:
Show the connect information and status. If users use RS-232 serial Mode to connect device,
the graph is . In contrast, the graph of Ethernet is . In addition, if users would link to
change the control method, uses can click on the button to change.
1
2
3
4
5
6
7
8

9

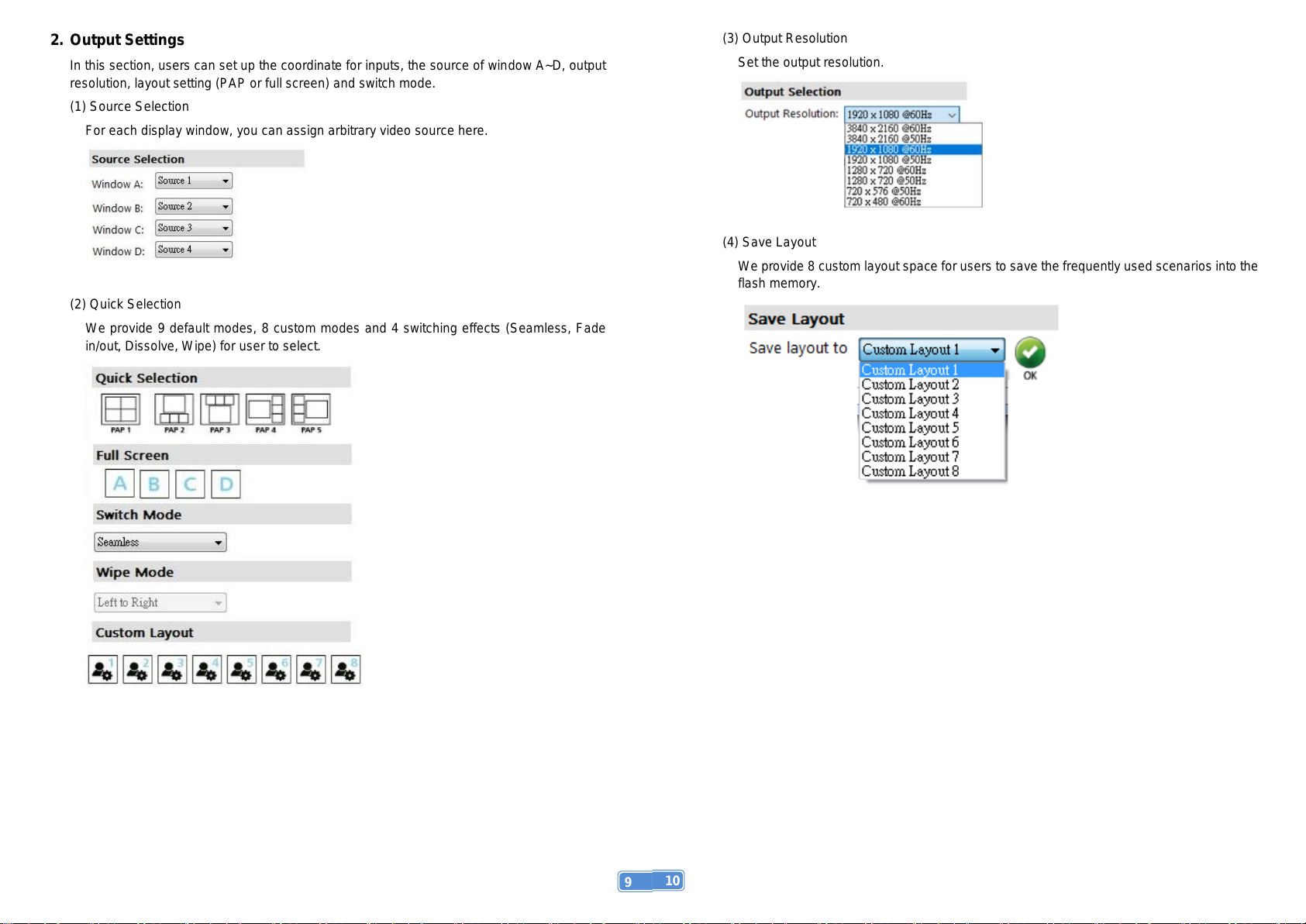

2. Output Settings
In this section, users can set up the coordinate for inputs, the source of window A~D, output
resolution, layout setting (PAP or full screen) and switch mode.
(1) Source Selection
For each display window, you can assign arbitrary video source here.
(2) Quick Selection
We provide 9 default modes, 8 custom modes and 4 switching effects (Seamless, Fade
in/out, Dissolve, Wipe) for user to select.
10
(3) Output Resolution
Set the output resolution.
(4) Save Layout
We provide 8 custom layout space for users to save the frequently used scenarios into the
flash memory.

11
(5) Display Panel
In the left part of control interface, user can customize the display mode thru control. The
different colors of frame represent the different input windows. The information of
coordinate shows the position of input source screen. In addition, we provide display ratio
for users to set the display panel sizes. If you want to change window layer, please drag
window icon in Layer Control section.
12
3. Advanced Setting
(1) Label Text
In here, users can input the texts to be shown with the video.
(2) Sound
To set up the audio source of the output and R/L channels.

13

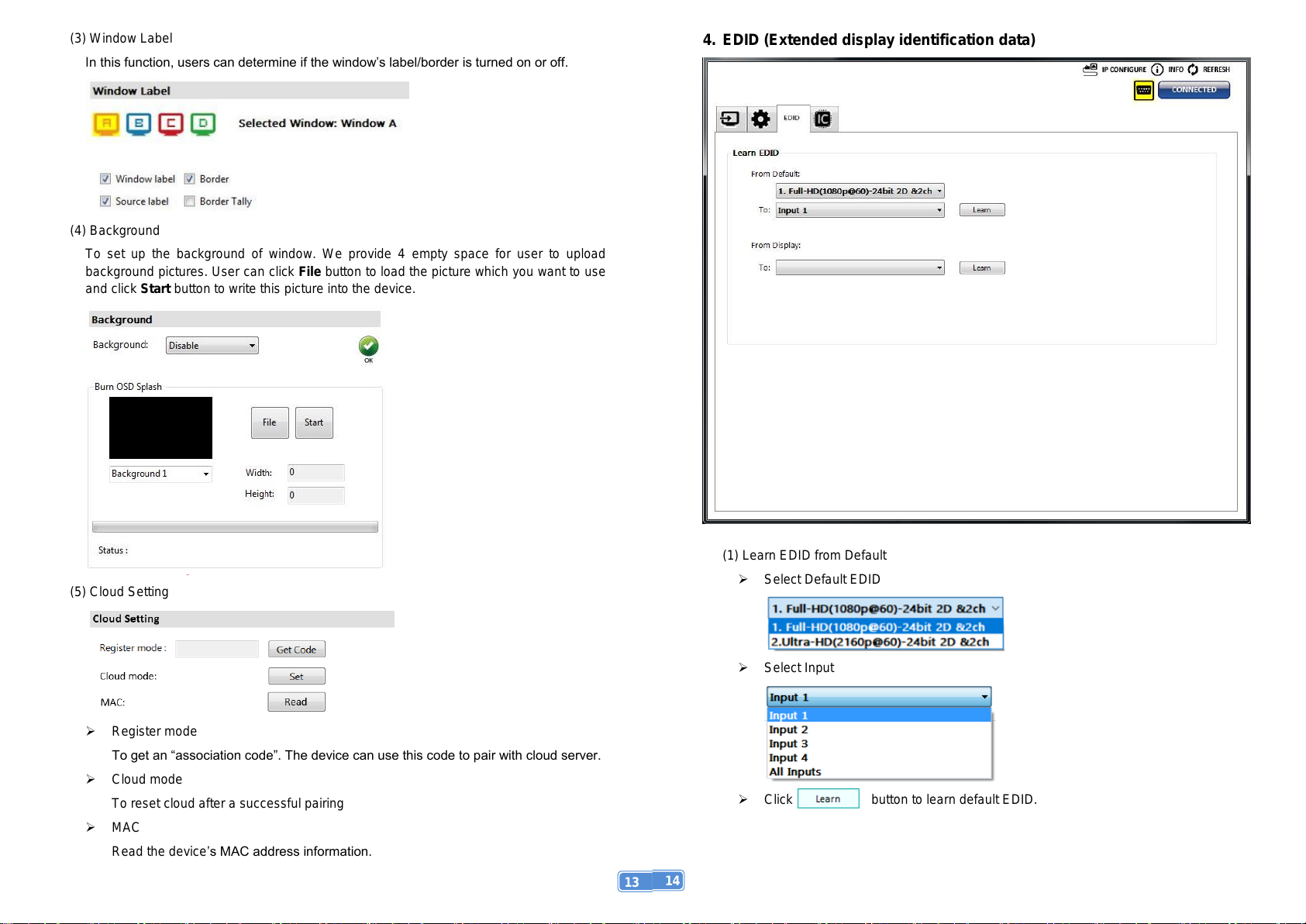

(3) Window Label
In this function, users can determine if the window’s label/border is turned on or off.
(4) Background
To set up the background of window. We provide 4 empty space for user to upload
background pictures. User can click File button to load the picture which you want to use
and click Start button to write this picture into the device.
(5) Cloud Setting
Register mode
To get an “association code”. The device can use this code to pair with cloud server.
Cloud mode
To reset cloud after a successful pairing
MAC
Read the device’s MAC address information.
14
4. EDID (Extended display identification data)
(1) Learn EDID from Default
Select Default EDID
Select Input
Click button to learn default EDID.

15
5. System Setting
(1) Firmware Update
Click button to do firmware update.
The “Firmware update” window shows up as below.
Please select the correct COM port or click “Scan” button to connect device.
16
Click “update” button to do firmware update.
(2) Factory Reset
Click button to do factory default reset.
The process of default reset will take about 25 seconds.

17

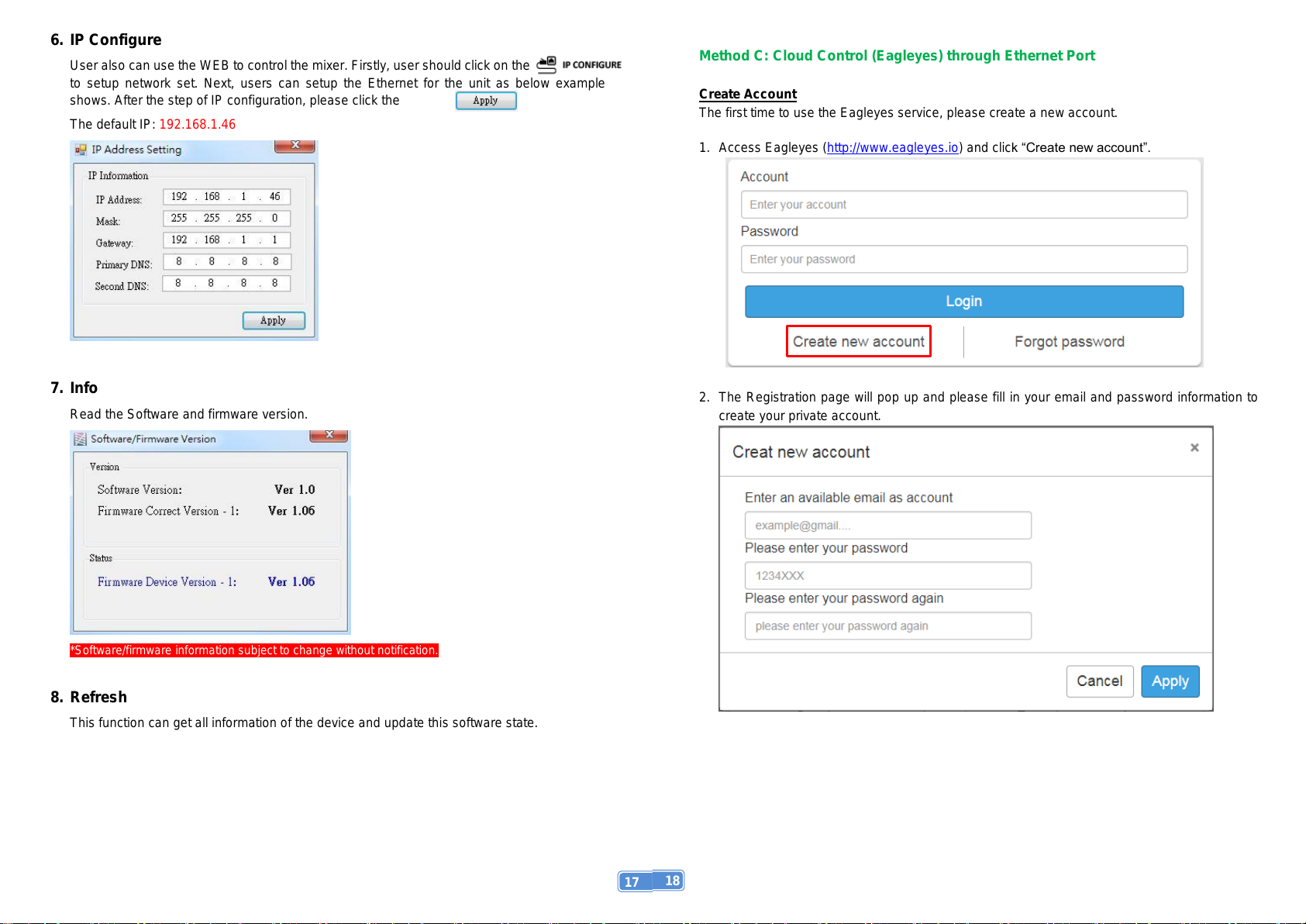

6. IP Configure
User also can use the WEB to control the mixer. Firstly, user should click on the button
to setup network set. Next, users can setup the Ethernet for the unit as below example
shows. After the step of IP configuration, please click the button.
The default IP: 192.168.1.46
7. Info
Read the Software and firmware version.
*Software/firmware information subject to change without notification.
8. Refresh
This function can get all information of the device and update this software state.
18
Method C: Cloud Control (Eagleyes) through Ethernet Port
Create Account
The first time to use the Eagleyes service, please create a new account.
1. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”.
2. The Registration page will pop up and please fill in your email and password information to
create your private account.

19
Add Device to Eagleyes
1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the
software with device to get the register code (Note: the status of software is connected).
2. Access Eagleyes (http://www.eagleyes.io), and then log in your account on the right top
corner. Click Add device to add the device which you just got its association code.
3. Enter the Installer Email for online support in the future, and the Association Code for pairing
with your device.
20
4. After adding the device, the list of device related to your account will show on the right top
corner. You can click the button to switch device for control.

21
USB PIN DEFINITION
P1
P2
VBUS
1
1
D-
2
2
D+
3
3
GND
4
4
SSRX-
5
5
SSRX+
6
6
GND
7
7
SSTX-
8
8
SSRX+
9
9
Shield
SHELL
SHELL
22
WARRANTY
The SELLER warrants the MX-5004MZ2-UF 4x2 HDMI 2.0a Quad-View Video Processor with
4K2K60 4:4:4 & USB 3.0 FHD Video Capture Function free from defects in the material and
workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this
product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or
replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surge. This warranty is offered by the
SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal
housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agreeto insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the MX-5004MZ2-UF features and specifications
is subject to change without further notice.
