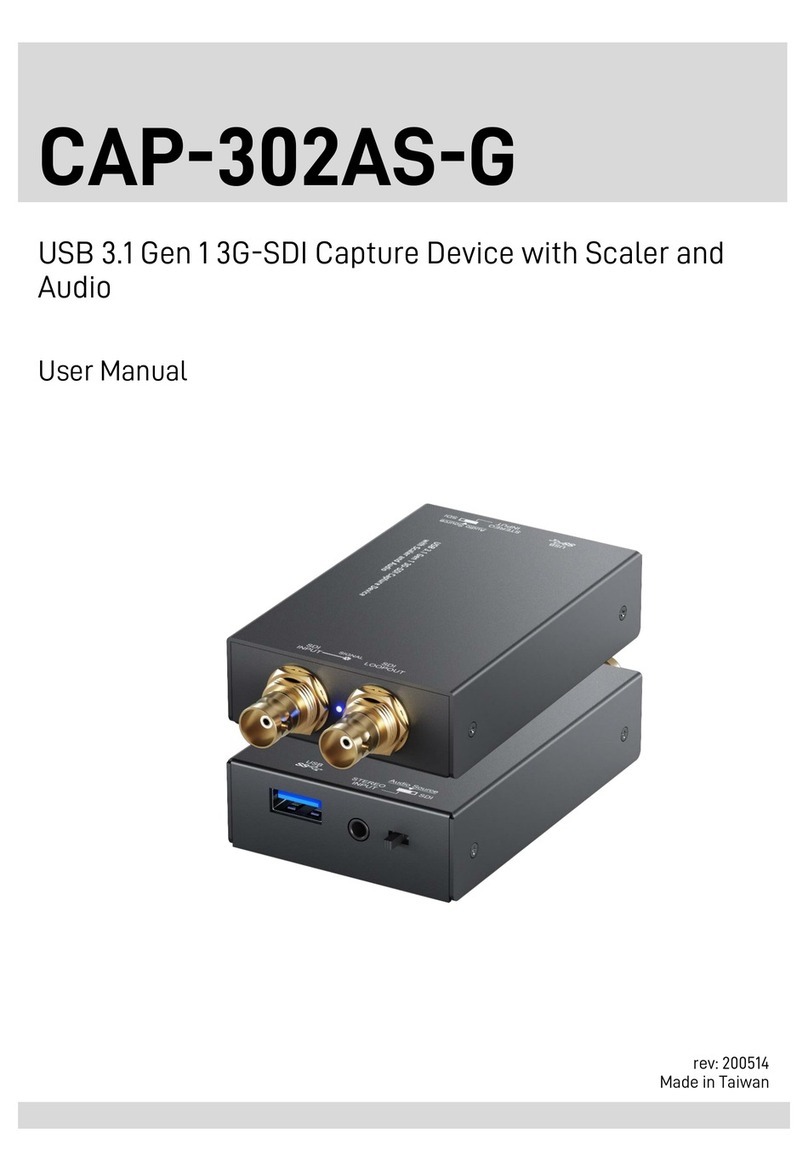

GoMax Electronics CAP-302AS-G User manual

GoMax Electronics

GoMax Electronics CAP-302AS-G User manual

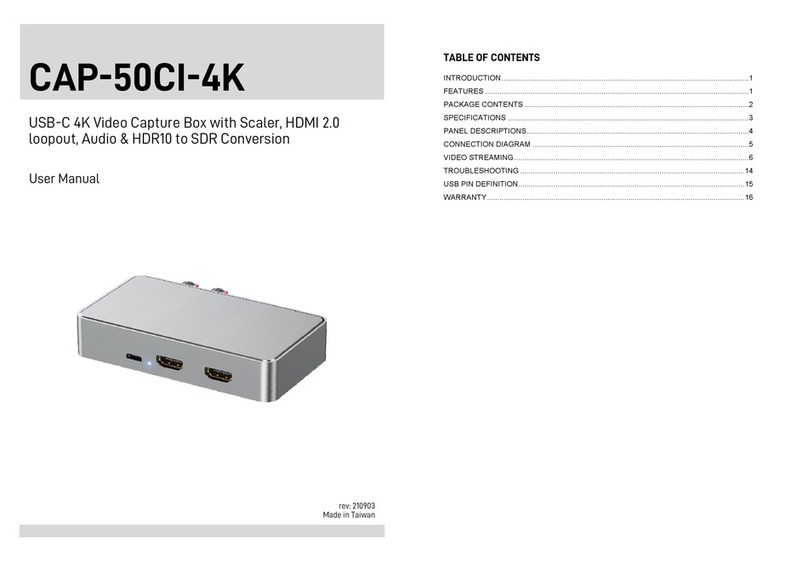

GoMax Electronics CAP-50CI-4K User manual

GoMax Electronics

GoMax Electronics CAP-50CI-4K User manual

GoMax Electronics CAP-502MJH User manual

GoMax Electronics

GoMax Electronics CAP-502MJH User manual

Popular PCI Card manuals by other brands

Avermedia ER330 Quick installation guide

Avermedia

Avermedia ER330 Quick installation guide

ERMA SSI 1417 instruction manual

ERMA

ERMA SSI 1417 instruction manual

SIIG CyberSerial Dual PCI Software installation

SIIG

SIIG CyberSerial Dual PCI Software installation

Airlink101 AWLH3028 user manual

Airlink101

Airlink101 AWLH3028 user manual

Dolphin MXH932 user guide

Dolphin

Dolphin MXH932 user guide

I-Bus IBC2602 user guide

I-Bus

I-Bus IBC2602 user guide

ICP DAS USA PCI-1002H user manual

ICP DAS USA

ICP DAS USA PCI-1002H user manual

Exsys EX-60102 manual

Exsys

Exsys EX-60102 manual

Chelsio Communications T5 Series Installation and user guide

Chelsio Communications

Chelsio Communications T5 Series Installation and user guide

Conrad Electronic 97 46 71 operating instructions

Conrad Electronic

Conrad Electronic 97 46 71 operating instructions

Micro Innovations USB650A Quick installation guide

Micro Innovations

Micro Innovations USB650A Quick installation guide

KTI Networks KF-310 user guide

KTI Networks

KTI Networks KF-310 user guide

Intellinet 500517 user manual

Intellinet

Intellinet 500517 user manual

Asus SpaceLink WL230 user manual

Asus

Asus SpaceLink WL230 user manual

SIIG SC2475 Quick installation guide

SIIG

SIIG SC2475 Quick installation guide

TRENDnet TEW-703PI Quick installation guide

TRENDnet

TRENDnet TEW-703PI Quick installation guide

Pericom PI7C7100 manual

Pericom

Pericom PI7C7100 manual

ADLINK Technology cPCI-3548 user manual

ADLINK Technology

ADLINK Technology cPCI-3548 user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Full HD HDMI PCIe Video Capture Card
with HDMI 2.0a loopout & Audio
User Manual
rev: 180425
Made in Taiwan
PCIE-502MJZ
The PCIE-502MJZ Full HD HDMI PCIe Video Capture Card with HDMI 2.0a loopout & Audio has
been tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the PCIE-502MJZ should be used with
care. Please read and follow the safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION................................................................................................................ 1
FEATURES........................................................................................................................ 1
PACKAGE CONTENTS...................................................................................................... 1
SPECIFICATIONS.............................................................................................................. 2
PANEL DESCRIPTION ...................................................................................................... 3
CONNECTION DIAGRAM.................................................................................................. 4
LIMITED WARRANTY........................................................................................................ 5
1
INTRODUCTION
The PCIE-502MJZ Full HD HDMI PCIe Video Capture Card with HDMI 2.0a loopout & Audio provides
a professional way to capture HDMI video signals. It adopts PCIe Gen2 x1 interface, which can realize
high-speed transmission. Besides, the HDMI input and loopout can support up to 4K2K@60. With this
device, users can connect to 4K2K@60 source and capture Full HD (1080p60) video. PCIE-502MJZ also
uses large volume image buffer technology which effectively avoids the video tearing. The high sampling
rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges.
FEATURES
HDMI video and audio streams over PCIe
Supports video resolution up to 1080p 60Hz (Video stream over PCIe)
Supports HDMI input & loopout from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
Supports resolution downscaling from 4K2K to 1080P3
Supports line-in mix with HDMI audio
Supports HDMI audio extraction
Auto-detection on video format to ensure plug-play operations
Recording Video Format: H.264 (Software Compression)
Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
Compatible with most 3rd party software such as OBS Studio and AMCap
Supports MJPG/YUY2
Low Lattency
System Requirements (Recommanded)
- Windows® 7(SP1) / Windows 8.1 / Windows 10
- PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
- Laptop: Intel® Core i7-4810MQ + NVIDIAGeForce GTX 870M or higher
- 4GB RAM or higher
PACKAGE CONTENTS
1x PCIE-502MJZ
1x User Manual
1. Video quality is apparently related to the capability of computer and software setting.
2. NOT supports
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P
(2) 4K2K@60 4:2:2 to 4K2K@60 4:2:0
2
SPECIFICATIONS
Model Name
PCIE-502MJZ
Technical
Role of usage
PCIe Video Capture Card
Input Video bandwidth
Single-link 600MHz [18Gbps]
Video bandwidth via
PCIe
Up to 350MBps
Video support(PCIe)
Up to 1080p60
Video support(Loopout)
Up to 4K2K60
Audio Input
HDMI Embedded Audio & Stereo audio Input
Audio Format
2CH 16bit PCM
Recording Mode
Software Compression
Recording Video Format
YUY2, MJPG
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact
discharge]
PCB stack-up
6-layer board [impedance control —differential 100; single 50]
Host Interface
PCIe Gen2 x1
Input
1x HDMI + 1x 3.5mm
Output
1x HDMI +1x 3.5mm
HDMI connector
Type A [19-pin female]
Software compatibility
(not complete list)
OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸
VLC (OS X, Linux), XSplit Boardcast (Windows), Skype (Windows, OS X),
Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS Support
Windows 7 /8.1 /10, Mac and Linux OS
Mechanical
CAP-502MJ
Housing
Metal enclosure
Fixedness
Wall-mounting case with screws
Power consumption
3 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
3
PANEL DESCRIPTION
Front/Rear Panel
1. HDMI LOOPOUT: Connect to a HDMI display
2. HDMI IN: Connect to a HDMI source
3. STEREO AUDIO IN:Connect to analog stereo audio source
4. STEREO AUDIO OUT: Audio extracts from HDMI input
4
CONNECTION DIAGRAM
5
LIMITED WARRANTY
The SELLER warrants the PCIE-502MJZ Full HD HDMI PCIe Video Capture Card with
HDMI 2.0a loopout & Audio to be free from defects in the material and workmanship for 1 year from
the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be
free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the PCIE-502MJZ features and specifications is
subject to change without further notice.
