Good-Lite ESV1500 User manual

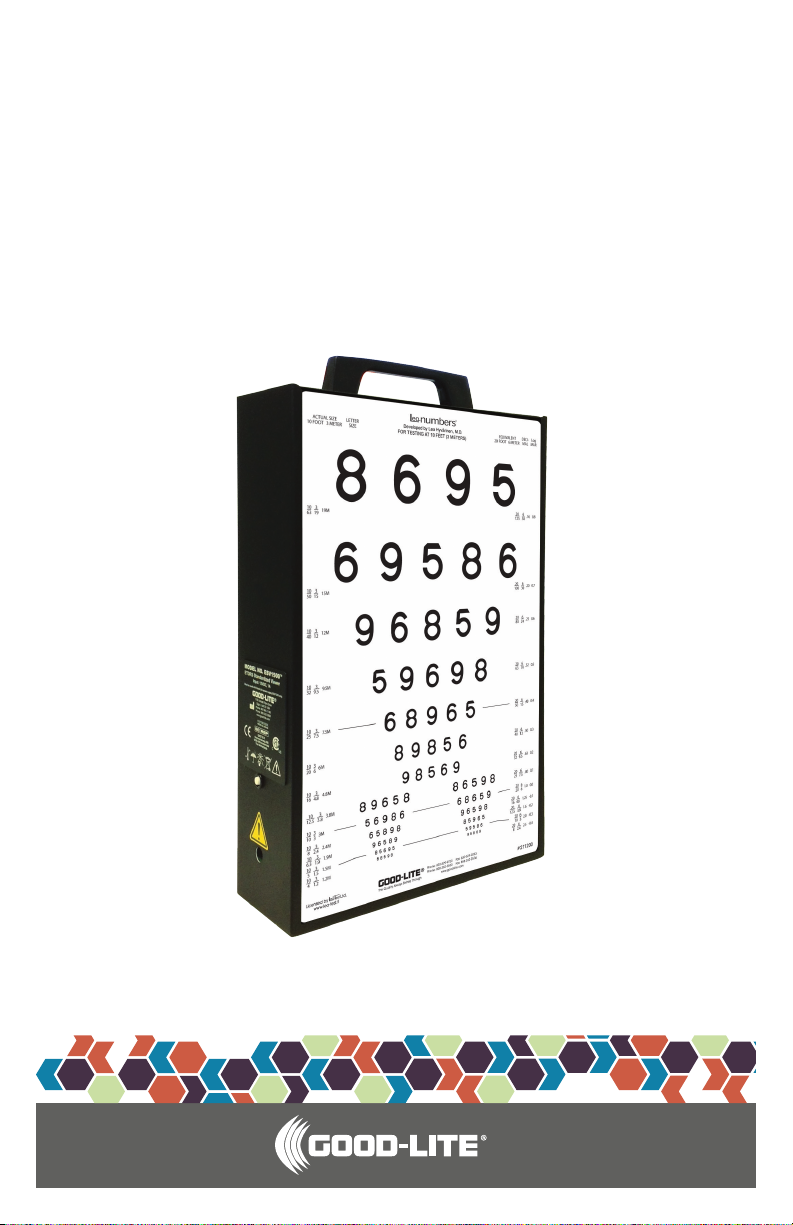

ESV1500
Illuminated Cabinet
INSTRUCTION MANUAL

ESV1500 Illuminated Cabinet
ESV1500 Illuminated Cabinet
Universal Power Supply
ESV1500 Illuminated Cabinet Charts

www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax 1
Table Of Contents
Intended Use ..............................................2
Warnings and Precautions....................................2
Instructions for Use .........................................3
Mounting Instructions .......................................3
Cleaning and Maintenance ...................................4
Service Information .........................................4
Disposal .................................................4
Electrical Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty .................................................5
Legal Notices..............................................5
Cabinet Specifications
Product: ESV1500 Illuminated Cabinet
Dimensions: 9" W x 14" H x 3" D (23 cm x 36 cm x 7.8 cm)
Weight: 5.2 lbs. (2.36 kgs.)
Power Supply: 15w Switching Power Adapter with Universal Input 90 - 264VAC
Interchangeable AC Plugs
Environmental Operating Temperature Range: 10ºC to 44ºC
Isolation is provided by the power supply.
1155 Jansen Farm Drive
Elgin, IL 60123 USA
Toll Free: 800-362-3860 Phone: [phone]
Toll Free Fax: [phone] Fax: [phone]
www.good-lite.com
QNET B.V.
Kantstraat 19
NL-5076 NP Haaren
The Netherlands

2ESV1500 Illuminated Cabinet
Read all instructions carefully before using this cabinet. Save these instructions
for future reference. Failure to follow all instructions, warnings and cautions
may result in serious personal injury, property damage and/or may void your
warranty.
Intended Use
Proper luminance affects visual acuity measurement results for vision screening and testing
eye examinations. The ESV1500 Illuminated Cabinet is intended to be used by an eyecare
professional to provide consistent LED back-lighting for visual acuity and contrast charts
used for visual acuity measurements.ESV1500
Warnings
To reduce the risk of fire, electrical shock, injury, or damage to your cabinet:
• Do not use if unit is damaged.
• Use this product only for its intended use as described in this manual.
• Never leave your Illuminated Cabinet plugged in for long term storage.
• Never insert or drop any object into any opening on the device.
• Do not use the Illuminated Cabinet on or near hot surfaces.
• Only use the power supply adapter supplied to power this unit. Do not use the supplied
power adapter with any other appliance.
• To avoid damage to the power supply adapter and cord, never carry the charger by the
cord or yank to disconnect from an outlet. Firmly grasp the charger body and pull to
disconnect. Do not pull cord around sharp edges or corners.
• Do not operate if power supply adapter or cord is damaged.
• Do not place the Illuminated Cabinet on a table since it runs the risk of tipping over
damaging the unit and/or may void your warranty.
Failure to securely mount cabinet either to a wall or optional caster base may result in
serious personal injury, property damage and/or may void your warranty.
Precautions
• Remove the power supply adapter from the ESV1500 Illuminated Cabinet and electrical
outlet before storing.
• Store your ESV1500 Illuminated Cabinet in a clean, dry location when not in use. Do not
leave in direct sunlight, or exposed to extreme heat or cold.
+
+

www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax 3
Instructions For Use
ESV1500 Illuminated Cabinet should be mounted as per the following
instructions:
Wall Mounting:
Two (2) keyhole slots on 8.75" (22.22 cm) centers on
the back of the cabinet for wall mounting. The ESV1500
Illuminated Cabinet needs to be mounted at a height that
is approximately at the patient’s eye level.
Use appropriate fasteners designed for mounting surface
with a minimum hanging weight of 30 lbs. (14 kgs.).
Step 2: Plug universal power supply
into wall socket.
Step 3: Push switch to illuminate ESV1500
Illuminated Cabinet.
Step 1: Plug power cord into ESV1500 Illuminated Cabinet.
©2011 Good-Lite Company

4ESV1500 Illuminated Cabinet
Mounting to Optional Wall Bracket (sku #706003)
1. Attach the Wall Mount Bracket securely to the wall with open end toward ceiling.
2. Slide Adjustable Shelf onto the Wall Mount Bracket and secure by tightening the two
(2) knobs to desired height.
3. Attach the ESV1500 Illuminated Cabinet to the Adjustable Shelf.
4. Use appropriate fasteners designed for mounting surface with a minimum hanging
weight of 30 lbs. (14 kgs.).

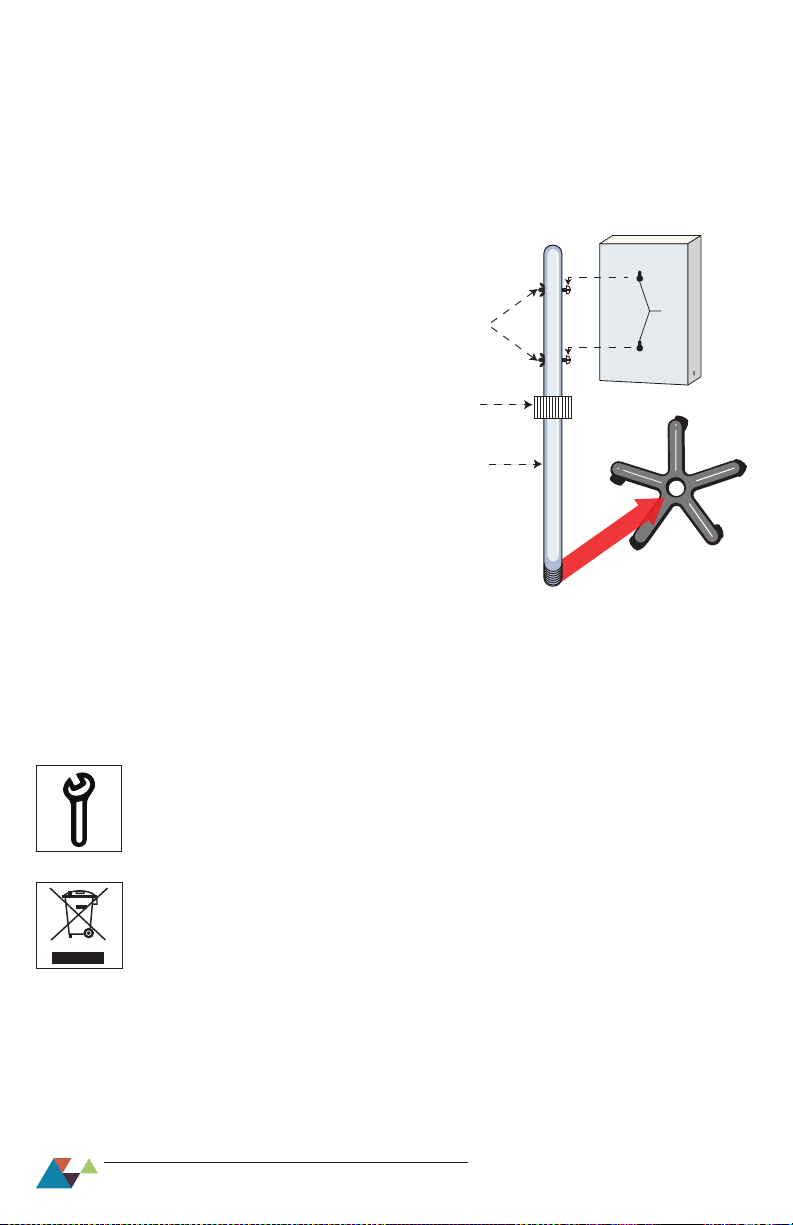

Mounting to Optional Adjustable Base
(sku #704000 or #705000)
1. Screw stand bottom into base.
2. Loosen stand height adjustment knuckle
and extend inside tube out approximately
16" (40 cm)
3. Position key hole slots on back of cabinet
between screw heads and washers on
stand, tighten with permanently affixed wing
nuts.
4. Adjust stand to eye level of patient.
5. Once properly mounted, connect the power
supply adapter to the unit and plug into an
outlet.
Cleaning and Maintenance
You may clean the exterior of your ESV1500 Illuminated Cabinet by using a clean, dry cloth
to remove dirt, dust, oil, grease etc.
Store all visual acuity charts out of direct sunlight. Over time, UV light may turn the charts
yellow, which could interfere with the visual acuity testing. If charts yellow, discard and
replace.
Service Information
There are no user repairable or serviceable parts found in the ESV1500
Illuminated Cabinet. Contact Good-Lite if your ESV1500 Illuminated Cabinet
needs repair.
Disposal
Dispose of cabinet per federal, state, and local regulations.
Key
Holes
Wing Nuts
Stand
Knuckle
(#2)
(#3)
(#1)

www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax 5
Electrical Conformity
This cabinet is designed to meet the requirements of the following regulations and
standards for safety of electrical medical devices.
• CAN/CSA C22.2 No. 61010-1-04
• ANSI/UL 61010-1, 2nd Edition
• 73/23/EEC; Low-Voltage Directive (safety)
• 89/336/EEC; Electromagnetic Compatibility Directive (EMC)
• Medical Device Directive MDD 93/42/EC
Warranty
Good-Lite warrants the ESV1500 Illuminated Cabinet for one (1) year from date of purchase
against any defects in material or workmanship under normal use and service, subject to
conditions and limitations as described below.
This warranty covers only normal use. Damage, defect, malfunctions, or any use that
does not comply with the operator instructions, are excluded. Damage or any failure to the
cabinet caused by repair, done by anyone other than Good-Lite, is not covered.
The warranty obligations of Good-Lite shall be limited to repair or replacement of the
ESV1200 Illuminated Cabinet. Good-Lite shall not be liable or responsible under any
circumstances or in any amount for consequential or incidental damages, or for injury or
damages to persons or property using or used in connection with the cabinet, or for loss
of profits or other costs or expenses of any kind of character. There are no other warranties
or representations by Good-Lite other than as set forth herein, either expressed or implied,
and no person, firm, or corporation is authorized to make any representation or incur any
obligation in the name of or on behalf of Good-Lite except as stated herein.
Legal Notices
Software License
The Good-Lite cabinet described in this manual may include copyrighted Good-Lite and
third-party software stored in semiconductor memories or other media. Laws in the United
States and other countries preserve for Good-Lite and third-party software providers
certain exclusive rights to distribute or reproduce the copyrighted software. Accordingly,
any copyrighted software contained in the Good-Lite cabinet may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law.
Furthermore, the purchase of the Good-Lite cabinet shall not be deemed to grant either
directly or by implication, estoppel, or otherwise, any license under the copyrights, patents,
or patent applications of Good-Lite or any third-party software provider, except for the
normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale
of a cabinet.
A Declaration of Conformity is available from Good-Lite upon request.

1155 Jansen Farm Drive
Elgin, IL 60123
Phone: [phone] Fax: [phone]
Phone: [phone] Fax: [phone]
www.good-lite.com
version: November 2017
