•RefertoServiceManualRS6200006forinstallation,operation&troubleshootinginformation.
•Allsafetyinformation must be followed asprovidedin the Service Manual.
•RefertotheappropriatePartsCatalogforpart number information.
•Models listed on page 3.
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
RT6121001r2
January2011
Copyright © 2010 - 2011 Goodman Manufacturing Company, L.P.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman
does not assume any responsibility for property damage or personal injury due to improper
service procedures or services performed by an unqualified person.

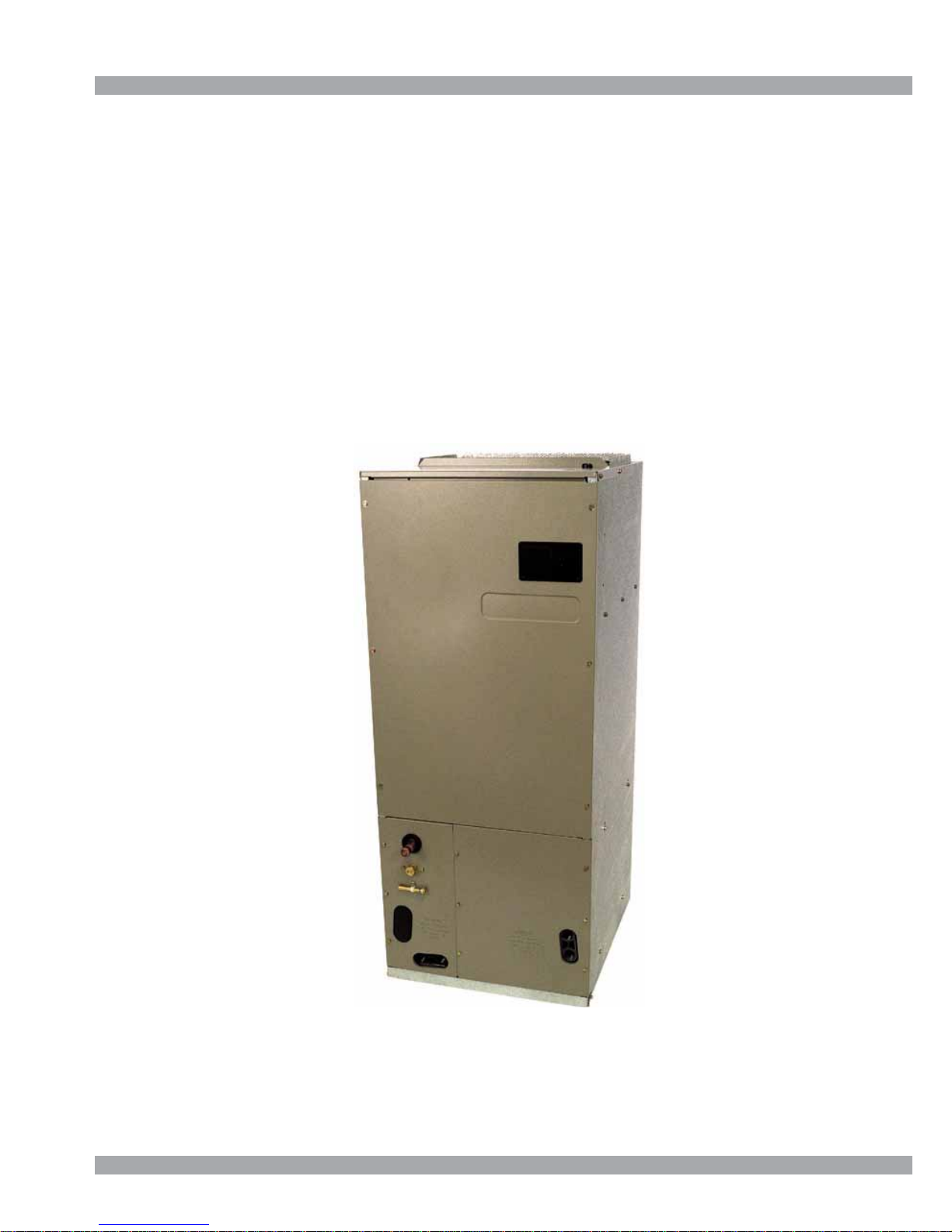

AVPTC Air Handlers

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by in-
dividuals meeting (at a minimum)
the requirements of an "entry level technician", as speci-
fied by the Air-Conditioning, Heating, and Refrigeration
Institute (AHRI). Attempting to install or repair this unit
without such background may result in product damage,
personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
All Airhandlers use DIRECT DRIVE MOTORS. Power supply is AC 208-230v, 60 hz, 1 phase.
AVPTC183014AA
PRODUCT
TYPE:
A: Air Handler
CABINET FINISH:
U:Unpainted
P: Painted
N:Uncased
EXPANSION
DEVICE:
F: Flowrater
T: TXV
(Expansion
Device) MAJOR
REVISION*
MINOR
REVISION*
ELECTRICAL:
1: 208-230V/1ph/60Hz
APPLICATION
C: Ceiling MountPSC Motor
D: Downflow PSC Motor
E: Multi-Position Varible Speed Motor
R: Multi-Position PSC Motor
S: Energy-Efficient Motor:
Multi-Position PSC Motor
T: Coated Coils
V: Variable Speed ECM Motor
REFRIGERANT CHARGE:
4: R-410A
NOMINAL CAPACITY RANGE:
Multi-Position & Downflow Applications
1830: 1 1/2 - 2 1/2 Tons
3137: 2 1/2 - 3 Tons
4260: 3 1/2 - 5 Tons
EXPANSION
DEVICE:
C: 4-Wire
Communicating
Ready

PRODUCT IDENTIFICATION
3
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
AVPTC183014**
AVPTC313714**
AVPTC426014**
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING

PRODUCT DESIGN
4
WARNING
When installing or servicing this equipment, safety
clothing, including hand and eye protection, is
strongly advised. If installing this equipment in an
areathat has special safety requirements (hard hats
etc.), observe these requirements. To protect the
unit when brazing close to the painted surfaces,
the use of a quenching cloth is strongly advised to
prevent scorching or marring of the equipment fin-
ish.
WARNING
If this appliance is installed in an enclosed area
such as a garage or utility room with any carbon
monoxide (CO) producing appliance (i.e. automo-
bile, furnace, water-heaters, etc.), ensure the area
is properly ventilated.
WARNING
The unit MUST have an uninterrupted, unbroken
electricalground to minimize the possibility of per-
sonal injury if an electrical fault should occur. The
electrical ground circuit may consist of an appro-
priately sized electrical wire connecting the
ground lug in the unit control box to the building
electricalservice panel. Other methods of ground-
ing are permitted if performed in accordance with
the “National Electric Code” (NEC)/“American Na-
tional Standards Institute” (ANSI)/“National Fire
Protection Association” (NFPA) 70 and local/state
codes. In Canada, electrical grounding is to be in
accordance with the Canadian Electric Code CSA
C22.1. Failure to observe this warning can result
in electrical shock that can cause personal injury
or death.
AIRHANDLERS
*See Air Handler Specification Sheet for Proper Combinations.
ALL AIR HANDLERS USE DIRECT DRIVE MO-
TORS. POWER SUPPLY IS 220-240 V, 60 HZ, 1
PHASE
Installation
Beforeinstallingthisapplianceinsurethatitisproperlysized
andadequate power is available.
This appliance can be installed in the vertical position with-
outmodification.
The horizontal left and downflow positions require product
modificationandinstructionsfor these field conversions can
befound in the AVPTCinstallation instruction manual.
This product is designed for zero inches (0 inches) clear-
ance;however,adequateaccessforserviceor replacement
mustbe considered without removing permanent structure.
Thisunit can be installedonaplatformwhendeemedneces-
sary.
In an attic installation a secondary drain pan must be pro-
vided by the installer and placed under the entire unit with a
separatedrain line properlyslopedandterminated in anarea
visibleto the owner.This secondary drainpan is requiredin
theeventthat there is a leak ormaindrainblockage. Closed
cellinsulationshould be applied to the drain lines in uncondi-
tionedspaces where sweating may occur.
Appliancesinstalled in garages, warehouses orotherareas
where they may be subjected to mechanical damage must
be suitably guarded against such damage by installing be-
hindprotective barriers, being elevated orlocated out of the
normalpathof vehicles. When installedona base, the base
must also be protected by similar means.
Heating and cooling equipment located in garages, which
maygenerate a glow, sparkorflamecapableof igniting flam-
mable vapors, must be installed with the ignition source at
least18"[46cm]abovethefloorlevel.
When more than one appliance is installed in a building it
shall be permanently identified as to the area or space ser-
vicedbytheequipment.

PRODUCT DESIGN
5
When this product is installed in the downflow installation in
anunconditionedspace,removethe horizontaldrainpan and
install the following insulation kit
AVPTC Model InsulationKit
1830 DPI36-42/20
3137
4260 DPI48-61/-20
Thiskitisusedtopreventsweatingonthe vertical drain pan.
Topreventthehorizontaldrainpanfromsweatinginhigh
humidity applications, it is recommended that a DPIH
insulationaccessorykitbeused.NOTE: The DPIH insu-
lation kit is not supplied with this product and must be
purchasedseparately.
See following chart for the correct DPIH kit.
AVPTC Model Insulation Kit
1830 DPIH36-42
3137
4260 DPIH48-61
*AVPTC isa multi-position, variable-speed air handlerandis
used with R-410A. The unit's blower design includes a vari-
able-speed ECM motor and is compatible with heat pumps
andvariable-capacity coolingapplications.(Seenotebelow.)
*NOTE: Factory-sealedtoachievea2%orlessleakagerate
at1.0" water gauge external duct static pressure.
Complies with the Factory-sealed Air Handling Credit as
listedinthe2001FloridaBuildingCode,Chapter13,Section
610.2.A.2.1.

PRODUCT DIMENSIONS
6
AVPTC
Model A B C D E F G H I J
AVPTC183014 463/4" 22" 17 1/2" 19 1/2" 10' 14 1/2" 11 15/16" 17 1/8" 17 15/16" 2"
AVPTC313714 531/4" 24" 20" 22" 12" 19 5/8" 11 15/16" 19 5/8" 19 15/16" 1 13/16"
AVPTC426014 531/4" 24" 20" 22" 12" 19 5/8" 11 15/16" 19 5/8" 19 15/16" 1 13/16"
A
B
E
SUCTION
LINE
LIQUID
LINE
INLET
TUBE
I
INLET
(RIGHT SIDE VIEW)
H
INLET
(FRONT VIEW)
D
C
FG

PRODUCT SPECIFICATIONS
7
AVPTC
AVPTC183016* AVPTC313716* AVPTC426016*
BlowerWheel
Diameter 9 1/2" 10 5/8" 10 5/8"
Width 8" 10 5/8" 10 5/8"
Lineset Connection Size
Coil Drain Connection FPT 3/4" 3/4" 3/4"
Liquid 3/8" 3/8" 3/8"
Suction 3/4"7/8"7/8"
Electrical Data
Voltage 208/240 208/240 208/240
Min. Circuit Ampacity 4.9/4.9 6.5/6.5 8.6/8.6
Max. Overcurrent Device (amps) 15/15 15/15 15/15
Minimum VAC 197 197 197
Maximum VAC 253 253 253
BlowerMotor
FLA 3.90 5.20 6.90
HP 1/2 3/4 1
Ship Weight (lbs) 127 178 197

BLOWER PERFORMANCE DATA
8
C ------- 7.5 min/82% 60 sec/100%
Profiles Pre-Run Short-Run OFF Delay
To set Comfort Mode:
B ------- 30 sec/50% 60 sec/100%
Speed Selection Dip Switches
0140A00048 REV A
A OFF OFF OFF OFF OFF OFF
D 30 sec/50% 7.5 min/82% 30 sec/50%
To set airflow:
TAP 1 2 3 4 5 6
B ON OFF ON OFF ON OFF
A ------- -------- 60 sec/100%
Select desired Comfort Mode profile
(see profiles above). Set switches 5 and 6 to theapproriate
ON / OFF positions.
(1) Select model and desired
high stage cooling airflow. Determine the cooresponding tap
( A, B, C, or D ). Set dip switches1 and 2 to the appropriate
ON / OFF positions. (2) Select model and installed electric
heater size. Set switches 9, 10,and 11 to the appropriate
ON/OFF positions. (3) Select the airflow adjustmentfactor tap
A and D are 0%; Tap B is +10%; Tap C -10%. Set dip switches 3
and 4 to the appropriate ON / OFF positions.
C OFF ON OFF ON OFF ON
D ON ON ON ON ON ON
Cool Adjust Profile
Selection Selection Selection
Switches Switches Switches
20 OFF OFF ON NR NR 1600
15 OFF ON OFF NR 1400 1400
10 OFF ON ON 1200 1200 1200
8 ON OFF OFF 1000 1000 1000
6 ON OFF ON 800 800 800
5 ON ON OFF 700 700 700
3 ON ON ON 600 600 600
Htr Kw 9 10 11 AVPTC 183014* AVPTC 313714* AVPTC 426014 *
21 OFF OFF OFF NR NR 1600
C ------- 7.5 min/82% 60 sec/100%C ------- 7.5 min/82% 60 sec/100%C ------- 7.5 min/82% 60 sec/100%
B ------- 30 sec/50% 60 sec/100%B ------- 30 sec/50% 60 sec/100%B ------- 30 sec/50% 60 sec/100%
D 30 sec/50% 7.5 min/82% 30 sec/50%D 30 sec/50% 7.5 min/82% 30 sec/50%D 30 sec/50% 7.5 min/82% 30 sec/50%D 30 sec/50% 7.5 min/82% 30 sec/50%
To set airflow:
(1) Select model and desired
To set airflow:
(1) Select model and desired(1) Select model and desired
high stage cooling airflow. Determine the cooresponding tap
high stage cooling airflow. Determine the cooresponding tap
( A, B, C, or D ). Set dip switches1 and 2 to the appropriate
ON / OFF positions. (2) Select model and installed electric
A 810 1210
C 1047 1562
D 1209 1804
A 409 610
B 553 825
C 696 1040
D 829 1237
A 422 630
B 563 840
C 694 1036
D 825 1232
AVPTC 183014 *
Model Tap Low Stage High Stage
Cool Cool
AVPTC 313714 *
AVPTC 426014 *
A 409 610A 409 610A 409 610
B 553 825
B 553 825B 553 825
C 696 1040
C 696 1040C 696 1040
A 422 630
A 422 630A 422 630
B 563 840
B 563 840B 563 840
C 694 1036
C 694 1036C 694 1036
D 825 1232
D 825 1232D 825 1232
AVPTC 183014 *
AVPTC 313714 *
Electric Heat Airflow and Temperature Rise Table
Cooling/Heat Pump Airflow Table
NOTE: Airflow data shown applies to the emergency heat mode (electric heat only)
in either legacy mode operation or fully communicating mode operation.
MODELS AVPTC183014A* AVPTC313714* AVPTC426014A*
HKR-03* X X X
HKR-05*/-05C* X X X
HKR-06* X X X
HKR-08*/-08C* X X X
HKR-10*/-10C* X1XX
HKR-15C X2X
HKR-20C X3
HKR-21C X3
HeatKitSelection
* Revision level that may or may not be designated.
C Circuit breaker option.
1For units operating in Legacy mode, use dip switches 9-ON, 10-OFF, 11-OFF, to obtain 1000 CFM, or 9-OFF, 10-ON, 11-ON to obtain 1200 CFM.
For units operating in Communicating mode, use dip switch 8 kW Htr to obtain 1000 CFM or 10 kW Htr to obtain 1200 CFM.
2This heater kit can only be used for ‘1000 CFM or higher’ applications.
3This heater kit can only be used for ‘1200 CFM or higher’ applications.

BLOWER PERFORMANCE DATA
9
TERM
Dipswitch
Switch 1 Switch 2 Switch 3 Switch 1 Switch 2
ON ON ON ON ON >2.5 <2.5 >0.2
ON ON OFF ON ON >2.8 <2.2 >0.6
ON ON ON OFF ON >2.8 <2.2 >0.6
ON ON ON ON OFF >2.8 <2.2 >0.6
ON ON OFF OFF OFF 5 0 5
OFFONONONON000
ONOFFON ONON550
OFF OFF ON or OFF ON or
OFF ON or OFF 000
BIAS Dipswitches
Indoor Control
TERM1 / TERM2 = Termination dipswitches at outdoor unit. See installation
instructions with CTTM compatiable outdoor unit.
Data Line
Voltages, Vdc
Outdoor
Control
1-C 2-C 1-2
TERM
Dipswitches
1
2
ONOFF
3
BIAS
BIAS
TERM
Indoor Unit BIAS and TERMINATION Dipswitches

WIRING DIAGRAMS
10
HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
AVPTC
RD
M4
FL
BL
RD
3
BK
BK
L2
RD
YL
8
BK
RD
3
L1
RD RD
5
BK
FL
TL
FOUR
(
4
)
ELEMENT ROWS
M2
HTR1
4
1
5
M5
2
M2
R
L2 L1 L1
4
RD
BL
L2
FL
1
3
7
RD
THREE (3) ELEMENT ROWS
TL
L2
BL
BL
2
RD
M8
7
RD
5
7
BK
BL
BK
YL
PU
1
BR
YL
FL
TL
9
BK
M1
7
WH
6
BK
RD
BR
TL BK
5
M1
WH
2
M1
HTR1
PU
M6
BK
FL
HTR1
TL
HTR4
R1
PU
M2
FL
BK
4
6
RD
PU
BK
RD
BK
6
M3
BL
BK
WH
9
M3
BK
R1
M4
RD
8
RD
9
HTR3
R2
4
L1
TL
L1
BL
FL
RD
HTR2
YL
M3
M2
TL
HTR3
TL
ONE (1) ELEMENT ROWS
BL
BK
M1
BK
1
BK
3
M1
RD
L2
9
R2
HTR2
M2
M4
BK
L1
8
TWO (2) ELEMENT ROWS
TL
TL
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEAT ER
HTR2
BL
R
6
RD
FL
YL
M7
2
WH
BK
RD
FL
FL
L2
8
HTR1
BK
BK
YL
RD
BKGY
BL
AF HEAT
COM
CIRCULATOR BLOWER
2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED
WHENSERVICING.
1
1
SEE
NOTE 5
BK BLACK
OR ORANGE
CIRCULATOR
CIRCULATOR
RD
WH
TO
MICRO
R
W2(2)
AIR
DIAGNOSTIC
LED
PL1
BL BLUE
4
2
PK PINK
EQUIPMENT GND
SEE
NOTE
7
DEHUM
TERMINAL
GY GRAY
O
PLUG CONNECTION
DEHUM
RD RED
24 VAC
RD
FUSE
4
-
BLWR
LEARN
5
DIPSWITCHES
AIR
40 VA
ADJUST
2
3
LOW VOLTAGE FIELD
1
3
3
HI VOLTAGE FIELD
8
L1
9
INDOOR
7
4. UNIT MUST BE PERMANENTLYGROUNDED AND CONFORM TO N.E.C.AND
LOCAL CODES.
BIAS
4
BK
1
5BL
PL2
WH WHITE
FUSE 3A
208/230 VAC
GND
JUNCTION
ECM MOTOR
HARNESS
GND
6
L2
6
L1
COM
BR
G
VT VIOLET
UNUSED
MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK INDICATES NO HEAT KIT INSTALLED.
G
INTEGRATED CONTROLMODULE
O
1
2
W2
6. BIAS AND TERM DIP SWITCHES MUST BE IN "ON" POSITION. RED
STATUS LED PROVIDES NETWORK STATUS. GREEN RX LED INDICATES
NETWORK TRAFFIC. USE LEARN BUTTON TO RESET NETWORK.
BIAS
BK
3
HI VOLTAGE (230V)
3. IF ANY OF THE ORIGINAL WIRES AS SUPPLIED WITH THIS UNIT
MUST BE REPLACED, IT MUST BE REPLACED WITH WIRING
MATERIAL HAVING A TEMPERATURE RATING OF AT LEAST 105°C.
USE COPPER CONDUCTORS ONLY
RX LED
4
24V THERMOSTAT CONNECTIONS
7. DISCARD CONNECTOR PL1 WHEN INSTALLING OPTIONAL HEAT KIT
1. PLACE RED WIRE ON TRANSFORMER TERMINAL 2 FOR 208 VAC
OPERATION.
YL YELLOW
W2
L2
1
DISCONNECT
KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED ABOVE.
BRBROWN
SEE NOTE 6
2
BL
Y2
BK
RESISTER
TR
C
1
3
GND (4)
2
2
PROT. DEVICE
INDOOR
INTEGRATED CONTROL
9
RD
TH
+VDC (1)
Y1
5. TO RECALL THE LAST 6 FAULTS, MOST RECENT TO LEAST RECENT,
DEPRESS SWITCH FOR MORE THAN 2 SECONDS WHILE IN STANDBY (N
THERMOSTAT INPUTS)
ELEC
STATUS
LED
TH
B
K
Y2
COLOR CODES:
RX (2)
RD
GND
4
24 V
3A
W1
GND
4
LOW VOLTAGE (24V)
NOTES:
GN
Y1
R
CFM LED
W1
8
FIELD SPLICE
5
W1(1)
C
R
D
DEHUM
TX (3)
BL
INTERNAL TO
3
FIELD GND
GND
TERM
HEAT SEQUENCER R2
RD
TRANSFORMER
DELAY
COOL
GN GREEN
24 V THERMOSTAT CONNECTIONS
HEAT SEQUENCER R1
GN
7TR
OVERCURRENT
2
BLWR
0140A00039 REV.C
6. BIAS AND TERM DIP SWITCHES MUST BE IN "ON" POSITION. RED
STATUS LED PROVIDES NETWORK STATUS. GREEN RX LED INDICATES
NETWORK TRAFFIC. USE LEARN BUTTON TO RESET NETWORK.
7. DISCARD CONNECTOR PL1 WHEN INSTALLING OPTIONAL HEAT KIT
2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED
4. UNIT MUST BE PERMANENTLYGROUNDED AND CONFORM TO N.E.C.AND
3. IF ANY OF THE ORIGINAL WIRES AS SUPPLIED WITH THIS UNIT
MUST BE REPLACED, IT MUST BE REPLACED WITH WIRING
MATERIAL HAVING A TEMPERATURE RATING OF AT LEAST 105°C.
USE COPPER CONDUCTORS ONLY
1. PLACE RED WIRE ON TRANSFORMER TERMINAL 2 FOR 208 VAC
5. TO RECALL THE LAST 6 FAULTS, MOST RECENT TO LEAST RECENT,
DEPRESS SWITCH FOR MORE THAN 2 SECONDS WHILE IN STANDBY (N
CIRCULATOR BLOWER
4
234
23
1
ECM MOTORECM MOTOR
HARNESS
3
1
ECM MOTOR
1
2
SEE
NOTE 5
DEHUM
DIPSWITCHES
ADJUST
1
BIAS
UNUSED
BIAS
SEE NOTE 6
BL
ELEC
STATUS
LED
4
CFM LED
5
TERM
DELAY
COOL
0140A00039 REV.C
