Goodman GPH 14 SEER R-410A User manual

•RefertoServiceManualRS6300011(Horizontal)
forinstallation,operation,and troubleshooting information.
•Allsafety information mustbe followed asprovided in the Service Manual.
•Refertothe appropriate Parts Catalogfor part number information.
•Models listed on page 3.
•Modelsqualify for the2009 and 2010Federal Tax Creditsfor Energy Efficiency**
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
GPH 14 SEER R-410A
Package Heat Pump Units
RT6332012r2
September2010
Copyright © 2010 Goodman Manufacturing Company, L.P.
**Note that these tax credits are subject to specific requirements set forth in the American Recovery and
Reinvestment Act of 2009 and in the Internal Revenue Code. Goodman recommends that consumers
consult a tax professional if they have questions about the applicability of these credits.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does not
assume any responsibility for property damage or personal injury due to improper service procedures or
services performed by an unqualified person.

PRODUCT IDENTIFICATION
2
Themodelandmanufacturingnumberareusedfor positive identification of component partsusedinmanufacturing. Please
usethesenumbers when requestingservice or partsinformation.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by
individuals meeting (at a minimum) the requirements of
an "entry level technician" as specified by the Air-Condi-
tioning, Heating, and Refrigeration Institute (AHRI). At-
tempting to install or repair this unit without such back-
ground may result in product damage, personal injury or
death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
GPH1424H41AA
PRODUCT
TYPE:
Package Unit
PRODUCT
FAMILY:
H:Heat Pump
PRODUCT
SERIES:
SEER Rating
BRAND:
G:Goodman®
Brand
N
OMINAL
C
APACITY
2
4: 24,000 BTUH
3
0: 30,000 BTUH
3
6: 36,000 BTUH
4
2: 42,000 BTUH
4
8: 48,000 BTUH
6
0: 60,000 BTUH
CONFIGURATION:
H: Horizontal
REFRIGERANT:
4: R-410A
VOLTAGE:
1: 208-230v
1ph/60Hz
MAJOR REVISION:
A
: Initial Release
MINOR REVISION:
A
: Initial Release

PRODUCT IDENTIFICATION
3
GPH1424H41AB
GPH1430H41AB
GPH1436H41AB
GPH1442H41AB
GPH1448H41AB
GPH1460H41AB
Themodelandmanufacturingnumberareused for positive identification of componentpartsusedinmanufacturing. Please
usethesenumbers when requestingservice or partsinformation.
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
Modelsqualify for the 2009and 2010 FederalTax Credits
forEnergy Efficiency**
**Note that these tax credits are subject to specific requirements set forth in the American
Recovery and Reinvestment Act of 2009 and in the Internal Revenue Code. Goodman
recommends that consumers consult a tax professional if they have questions about the
applicability of these credits.

4
PRODUCT DESIGN
GPH Package Units are designed for outdoor installations
only in either residential or light commercial applications.
The connecting ductwork (Supply and Return) can only be
connectedforhorizontalairflow.
Areturnairfiltermustbeinstalledbehind thereturnairgrille(s)
or provision must be made for a filter in an accessible loca-
tionwithinthereturn air duct. Theminimumfilterarea should
not be less than those sizes listed in the Specification Sec-
tion. Under no circumstances should the unit be operated
withoutreturn air filters.
A3/4"pipeis provided for removalofcondensate water from
theindoorcoil. In orderto provide proper condensateflow, a
drain trap is supplied and shipped loose inside the unit for
field installation. (Do not reduce the drain line size).
Refrigerant flow control is achieved by use of restrictor ori-
fices.
PackageHeat Pump modelsuse a combination of restrictor
orificesandthermostaticexpansion valves forrefrigerantflow
control.
Someheatpumpmodels also haveasuction line accumula-
torinstalledbetween thereversingvalveandthecompressor.
The object of the accumulator is to:
1. Providealiquidrefrigerantstoragevesselduringprolonged
system off cycles.
2. Storeexcessliquid refrigerant notneededby the system
whilerunning.
3. Return oil and saturated vapor to the compressor at a
controlledrate.
4. Retainstoredexcessrefrigerantduring a sudden system
pressure fluctuation such as seen in defrost cycles.
Refrigerant flow control is achieved by use of restrictor ori-
fices. GPH units use the FasTest Access Fitting System,
witha saddle that is either soldered to the suction and liquid
lines or is fastened with a locking nut to the access fitting
box (core) and then screwed into the saddle. NOTE: The
core must not be removed from the saddle until the
refrigerant charge has been removed. Failure to do so
could result in property damage or personal injury.
Thesingle phase unitsuse permanent split capacitor (PSC)
design compressors. Starting components are not required
for these units. A low microfarad run capacitor assists the
compressor to start and remains in the circuit during opera-
tion.
GPH14[24-60]H41*unitshaveX-13indoorblowermotorsthat
areenergizedbya 24V signalfromtheIBR and areconstant
torque motors with very low power consumption. The X-13
featuresanintegral control module.
Air for condensing (cooling cycle) or evaporation (heating
cycle) is drawn through the outdoor coil by a propeller fan,
and is discharged vertically out the top of the unit. The out-
door coil is designed for .0 static. No additional restriction
(ductwork)shallbe applied.
Conditioned air is drawn through the filter(s), field installed,
across the coil and back into the conditioned space by the
indoorblower.
PackageHeatPump indoor sections aredesigned to accept
optional components such as auxiliary electric heaters and
circuitbreakers.Provisionsforthesecomponentshavebeen
madeat time ofmanufacture.
LocationandClearances
NOTE:Toensurepropercondensatedrainage, unit must be
installed in a level position.

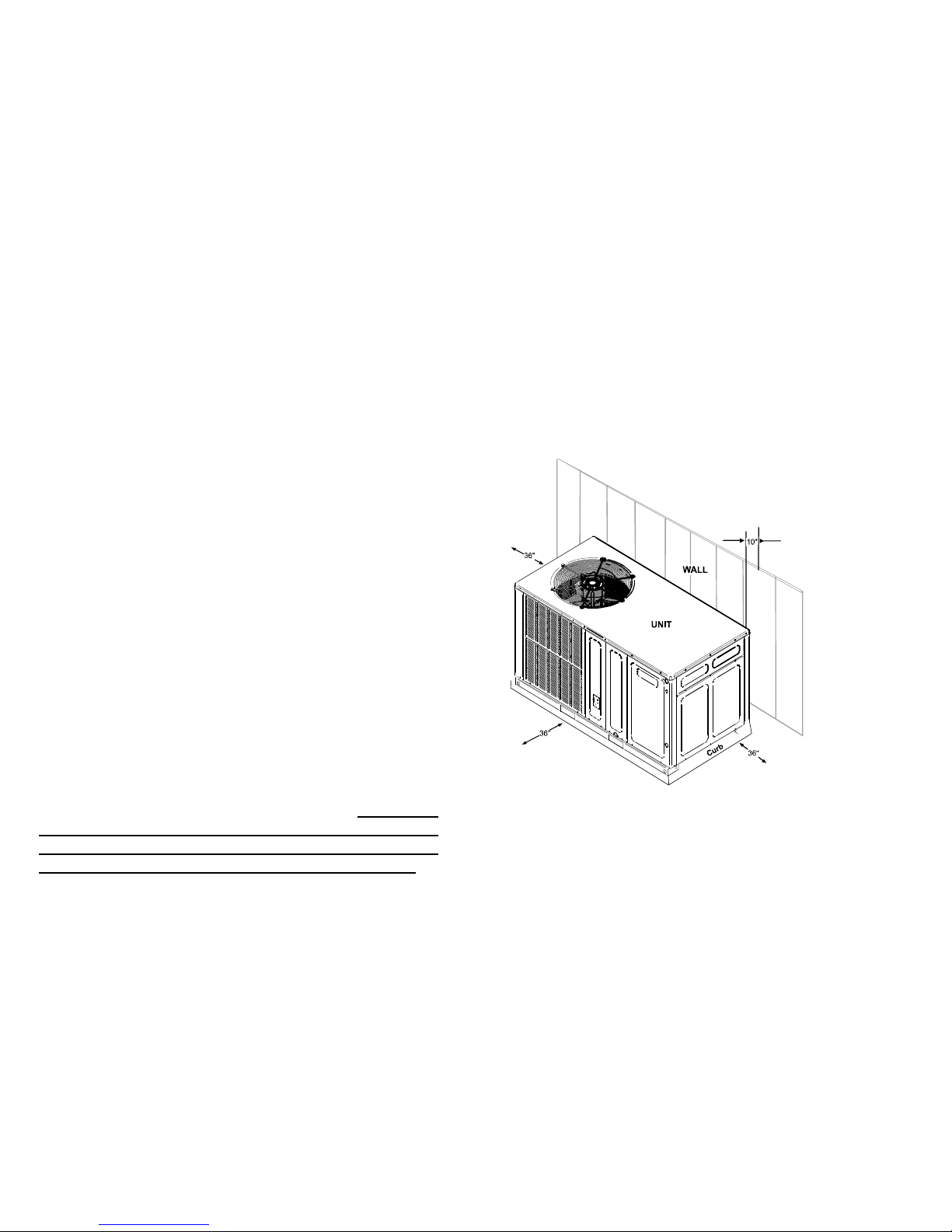

Outside Slab Installation - Horizontal (H)
NOTE:Roof overhangshouldbenomorethan36"andprovi-
sions made to deflect the warm discharge air out from the
overhang.
Minimum clearances are required to avoid air recirculation
and keep the unit operating at peak efficiency.

PRODUCT DESIGN
5
36"
36"
24"
PLENUM
UNIT
PLATFORM
CURB

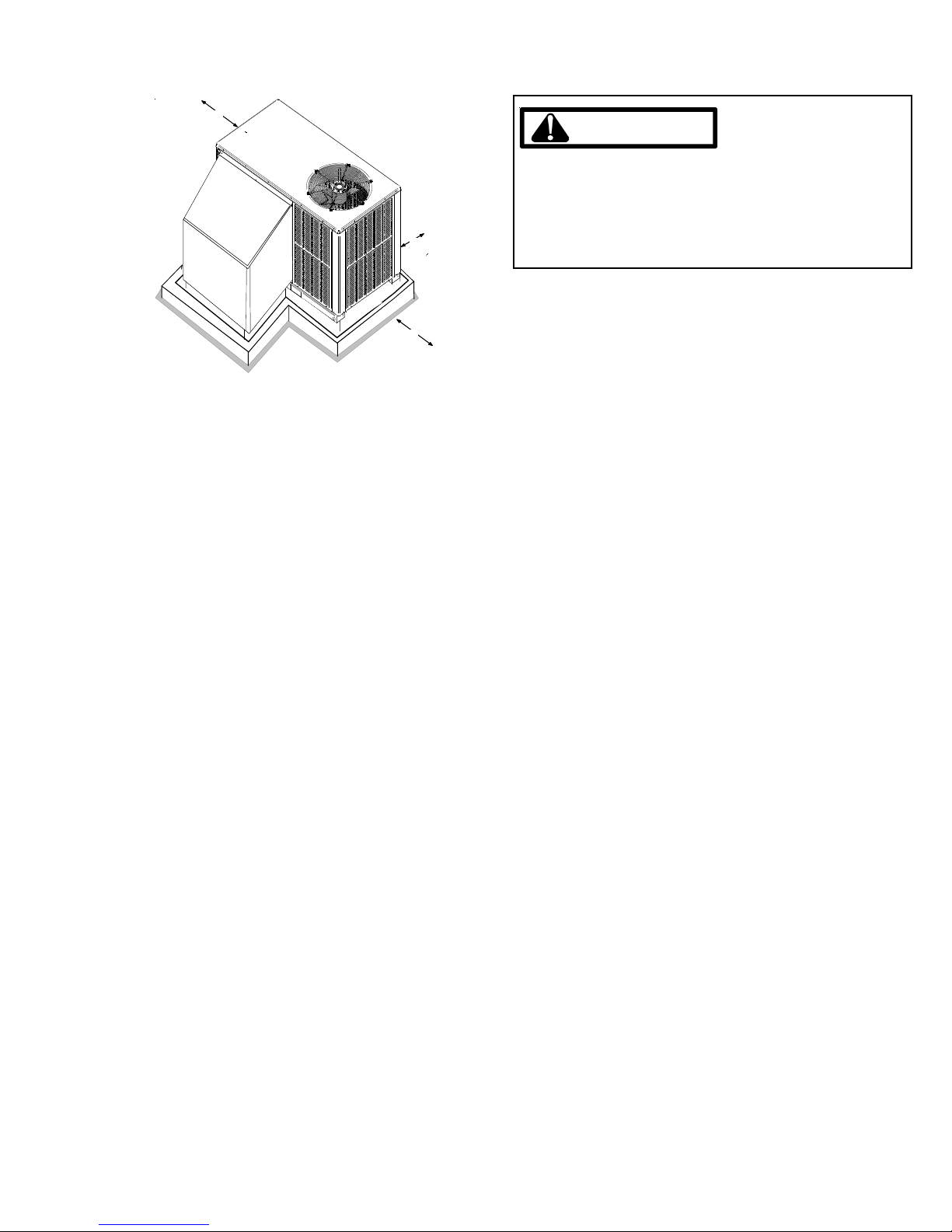

Rooftop Installation - Horizontal (H)
NOTE:Toensurepropercondensatedrainage, unit must be
installed in a level position.
Ininstallationswhere the unitis installed aboveground level
and not serviceable from the ground (Example: roof top in-
stallations)theinstallermustprovideserviceplatformforser-
vicepersonwithrailsorguardsinaccordancewithlocalcodes
or ordinances, or, in their absence, with the latest edition of
theUniform Mechanical CodeSection 305.
WARNING
TO PREVENT POSSIBLE PROPERTY DAMAGE, THE
UNIT SHOULD REMAIN IN AN UPRIGHT POSITION
DURING ALL RIGGING AND MOVING OPERATIONS.
TOFACILITATELIFTINGANDMOVINGIFACRANEIS
USED, PLACE THE UNIT IN AN ADEQUATE CABLE
SLING.
Refer to Roof curb Installation Instructions for proper curb
installation.Curbingmustbe installed in compliancewiththe
NationalRoofingContractors Association Manual.

6
PRODUCT DESIGN
HKR ELECTRICAL DATA
All wires and overcurrent protection devices are sized for use with electric heaters only and without
refrigeration. If heaters are not installed with above wire size, overheating and fire could occur. See
PACKAGE COOLING SPECIFICATIONS section for minimum circuit ampacity and maximum overcurrent
protection during refrigeration cycle.
IMPORTANT NOTE: A separate power supply is required for the HKR heater kit.
WARNING
WARNING
GPH14[24-60]H41A*
Maximum Maximum
Overcurrent Overcurrent
Protection (amps) Protection (amps)
at 208 / 240V at 208 / 240V
GPH1424H41A*
HKR05*,C* 24 / 27 30 / 30 ---- ---- 4.75 /16,200
HKR08*,C* 33 / 28 40 / 40 ---- ---- 7.00 /23,800
HKR10*,C* 45 / 51 60 / 60 ---- ---- 9.50 / 32,400
GPH1430H41A*
HKR05*,C* 24 / 27 30 / 30 ---- ---- 4.75 /16,200
HKR08*,C* 34 / 39 40 / 40 ---- ---- 7.00 /23,800
HKR10*,C* 45 / 52 60 / 60 ---- ---- 9.50 /32,400
HKR15*,C* 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
GPH1436H41A*
HKR05*,C* 24 / 27 30 / 30 ---- ---- 4.75 /16,200
HKR08*,C* 34 / 39 40 / 40 ---- ---- 7.00 /23,800
HKR10*,C* 45 / 52 60 / 60 ---- ---- 9.50 /32,400
HKR15*,C* 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
GPH1442H41A*
HKR05*,C* 25 / 27 30 / 30 ---- ---- 4.75 /16,200
HKR08*,C* 34 / 39 40 / 40 ---- ---- 7.00 /23,800
HKR10*,C* 46 / 52 60 / 60 ---- ---- 9.50 /32,400
HKR15*,C* 46 / 52 60 /60 22 / 25 30 /30 14.25 / 48,600
HKR20*,C* 46 / 52 60 / 60 43 / 49 60 / 60 19.50 / 66,500
GPH1448H41A*
HKR05*,C* 25 / 28 30 / 30 ---- ---- 4.75 /16,200
HKR08*,C* 34 / 40 40 / 40 ---- ---- 7.00 /23,800
HKR10*,C* 46 / 53 60 / 60 ---- ---- 9.50 /32,400
HKR15*,C* 46 / 52 60 /60 22 / 25 30 /30 14.25 / 48,600
HKR20*,C* 46 / 52 60 /60 43 / 49 60 /60 19.50 / 66,500
GPH1460H41A*
HKR05*,C* 26 / 30 30 / 30 ---- ---- 4.75 /16,200
HKR08*,C* 36 / 40 40 / 40 ---- ---- 7.00 /23,800
HKR10*,C* 48 / 54 60 / 60 ---- ---- 9.50 /32,400
HKR15*,C* 48 / 54 60 /60 22 / 25 30 /30 14.25 / 48,600
HKR20*,C* 48 / 54 60 / 60 43 / 49 60 / 60 19.50 / 66,500
Actual
kW & BTU
at 240V
Minimum Circuit
Ampacity
at 208 / 240V
Minimum Circuit
Ampacity
at 208 / 240V
Model and Heat Kit Usage
Circuit #1 Circuit #2

PRODUCT DIMENSIONS
7
34.075
66.542
4.512
14.000
14.000
SUPPLY 6.500 RETURN
4.500
BACK VIEW
(DUCT OPENINGS)
A
14.000
B
GPH14[24-60]H41A*
Chassis Model A B
GPH1424H41** 22.000 29.932
GPH1430H41** 22.000 29.932
GPH1436H41** 24.000 34.932
GPH1442H41** 24.000 34.932
GPH1448H41** 24.000 38.682
GPH1460H41** 24.000 38.682
Small
Medium
Large

PACKAGE HEAT PUMP SPECIFICATIONS
8
GPH14[24-36]H41AB
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
*Calculated external filter size based on air velocity of 300 ft/min.
Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.
IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers
in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.
GPH1424H41** GPH1430H41** GPH1436H41**
COOLING COOLING CAPACITY,BTUH 24,400 29,600 36,000
CAPACITY SEER / EER 15.0 / 12.2 14.5 / 12.2 14.3 / 12.0
HEATING 47°/43°F 22,800 27,600 33,000
RATING 35°/33°F 15,500 18,600 26,000
17°/15°F 13,000 15,400 21,400
HSPF 8.0 8.3 8.5
UNIT VOLTAGE (NAMEPLATE) 208/230-60-1 208/230-60-1 208/230-60-1
ELECTRICAL AMPS 15.4 17.1 20.1
SPECIFICATION MIN CIRCUITAMPACITY 12.5 15.6 24.2
MAX OVERCURRENT PROTECTION(2) 20 25 40
COMPRESSOR TYPE SCROLL SCROLL SCROLL
RATED LOAD AMPS 12.8 14.1 16.7
LOCKED ROTOR AMPS 58.3 73 79
CONDENSER HORSEPOWER 1/6 1/6 1/4
FAN MOTOR RPM 815 815 1075
FULL LOAD AMPS 1.1 1.1 1.5
LOCKED ROTOR AMPS 1.7 1.7 3.0
CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 3 22 / 3 22 / 4
CONDENSER FACE AREA (SQ. FT.) 13.4 13.4 17
COIL NUMBER OF ROWS 1 1 1
FINS PER INCH 24 24 24
EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 1/2 - 5 1/2 - 5
BLOWER FULL LOAD AMPS 1.50 1.86 1.86
MOTOR LOCKED ROTOR AMPS NA NA NA
MOTOR SPEED TAP - COOLING T2 T2 T2
RPM 1,050 1,050 1,050
EVAPORATOR DIAMETER X WIDTH (INCHES) 10 X 8 10 X 8 10 X 8
BLOWER RATED SCFM COOLING 850 1,050 1,200
HI EFFICIENCY COOLING CFM 850 1,050 1,200
FAN ONLYCOOLING CFM 800 950 1,100
MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5 0.5
EVAPORATOR FACE AREA (SQ. FT.) 5.25 4.67 5.20
COIL NUMBER OF ROWS 3 4 3
FINS PER INCH 16 16 14
GENERAL FILTER SIZE (SQ. FT.) 20 x 20 x 1 20 x 25 x 1 25 x 25 x 1
INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4" 3/4"
EXPANSION DEVICE (INDOOR / OUTDOOR) ORIFICE (0.057 / 0.049) ORIFICE (0.065 / 0.047) ORIFICE (0.068 / 0.067)
REFRIGERANTCHARGE R-410A (OZS.) 85 105 125
POWER SUPPLY CONDUIT KNOCKOUT SIZE (") 3/4, 1, 1-1/4 3/4, 1, 1-1/4 3/4, 1, 1-1/4
LOW VOLTAGE CONDUIT KNOCKOUT SIZE (") 1/2 1/2 1/2
LO PRESSURE SWITCH
OPENS / CLOSES PSIG 22 / 50 22 / 50 22 / 50
HI PRESSURE SWITCH - OPENS PSIG
OPENS / CLOSES PSIG 660 / 420 660 / 420 660 / 420
SHIPPING WEIGHT (LBS.) 325 325 385
OPERATING WEIGHT (LBS.) 315 315 375

PACKAGE HEAT PUMP SPECIFICATIONS
9
GPH14[42-60]H41AB
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
*Calculated external filter size based on air velocity of 300 ft/min.
Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.
IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers
in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.
GPH1442H41** GPH1448H41** GPH1460H41**
COOLING COOLING CAPACITY, BTUH 40,000 46,000 57,000
CAPACITY SEER / EER 14.2 / 12.0 14.5 / 12.1 14.2 / 12.0
HEATING 47°/43°F 37,600 45,000 54,500
RATING 35°/33°F 27,500 32,000 43,000
17°/15°F 21,600 26,000 33,800
HSPF 8.3 8.3 8.4
UNIT VOLTAGE (NAMEPLATE) 208/230-60-1 208/230-60-1 208/230-60-1
ELECTRICAL AMPS 22.2 24.2 30.7
SPECIFICATION MIN CIRCUIT AMPACITY 26.6 29.2 40.2
MAX OVERCURRENT PROTECTION(2) 40 45 60
COMPRESSOR TYPE SCROLL SCROLL SCROLL
RATED LOAD AMPS 17.9 19.9 26.4
LOCKED ROTOR AMPS 112 109 134
CONDENSER HORSEPOWER 1/4 1/4 1/4
FAN MOTOR RPM 1075 1075 1075
FULL LOAD AMPS 1.4 1.4 1.4
LOCKED ROTOR AMPS 2.9 2.9 2.9
CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 4 22 / 4 22 / 4
CONDENSER FACE AREA (SQ. FT.) 17 19.1 19.1
COIL NUMBER OF ROWS 1 2 2
FINS PER INCH 24 16 16
EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 3/4 - 5 3/4 -5
BLOWER FULL LOAD AMPS 2.9 2.9 2.9
MOTOR LOCKED ROTOR AMPS NA NA NA
MOTOR SPEED TAP - COOLING T2 T2 T2
RPM 1,050 1,050 1,050
EVAPORATOR DIAMETER X WIDTH (INCHES) 10 X 8 10 X 8 11 X 8
BLOWER RATED SCFM COOLING 1,300 1,600 1,600
HI EFFICIENCY COOLING CFM 1,300 1,600 1,600
5 TON NOMINAL COOLING CFM NA NA 1,800
FAN ONLY COOLINGCFM 1,200 1,400 1,600
MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5 0.5
EVAPORATOR FACE AREA (SQ. FT.) 6.2 6.2 7.0
COIL NUMBER OF ROWS 4 4 4
FINS PER INCH 14 14 14
GENERAL FILTER SIZE (SQ.FT.) (2) 20 x 20 x 1 (2) 20 x 20 x 1 (2) 20 x 25 x 1
INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4" 3/4"
EXPANSION DEVICE (INDOOR / OUTDOOR) ORIFICE (0.072 / 0.065) ORIFICE (0.076 / 0.065) ORIFICE (0.088 / 0.071)
REFRIGERANT CHARGE R-410A (OZS.) 150 190 200
POWER SUPPLY CONDUIT KNOCKOUT SIZE (INCHES) 3/4, 1, 1-1/4 3/4, 1, 1-1/4 3/4, 1, 1-1/4
LOW VOLTAGE CONDUIT KNOCKOUT SIZE (INCHES) 1/2 1/2 1/2
LO PRESSURE SWITCH
OPENS / CLOSES PSIG 22 / 50 22 / 50 22 / 50
HI PRESSURE SWITCH - OPENS PSIG
OPENS / CLOSES PSIG 660 / 420 660 /420 660 / 420
SHIPPING WEIGHT (LBS.) 385 415 415
OPERATING WEIGHT (LBS.) 375 405 405

ACCESSORIES
10
GPH14[24-60]H41A*
Part Number Description
OT18-60A Outdoor Thermostat Kit w/Lockout Stat
OT/EHR18-60 Emergency Heat Relay Kit
HKR Electric Heat Kit
PCCP101-103 Roof Curb
PCP101-103 Downflow Plenum Kit
PCP101-103R8 Downflow Plenum Kit w/ R-8 Insulation
GPCED101-103 Downflow Economizer for GPC-(H) A/C - To Be Used With PCP101-103
GPHED101-103 Downflow Economizer for GPH-(H) Heat Pump - To Be Used With PCP101-103
GPCEH101-103 Horizontal Economizer for GPC-(H) A/C
GPHEH101-103 Horizontal Economizer for GPH-(H) Heat Pump
PCMD101-103 Manual Damper - To Be Used With PCP101-103
PCMDM101-103 Motorized Damper - To Be Used With PCP101-103
GPHMD101-103 Manual Damper for Horizontal Applications
SQRPCH101 Square to Round Adapters 16"&14"
SQRPCH102-103 Square to Round Adapters 18"&14"
SQRPC101 Square to Round Adapter - For Use With PCCP101-103 Curb 16" Rounds
SQRPC102-103 Square to Round Adapter For Use With PCCP101-103 Curb 18" Rounds
PCFR101-103 External Horizontal Filter Rack
PCEF101-103 Elbow & Flashing w/ R-8 Liner
CDK36 Flush Mount Concentric Duct Kit
CDK36515 Flush Mount Concentric Duct Kit w/ Filter
CDK36530 Step Down Concentric Duct Kit
CDK36535 Step Down Concentric Duct Kit w/ Filter
CDK4872 Flush Mount Concentric Duct Kit
CDK4872515 Flush Mount Concentric Duct Kit w/ Filter
CDK4872530 Step Down Concentric Duct Kit
CDK4872535 Step Down Concentric Duct Kit w/ Filter
