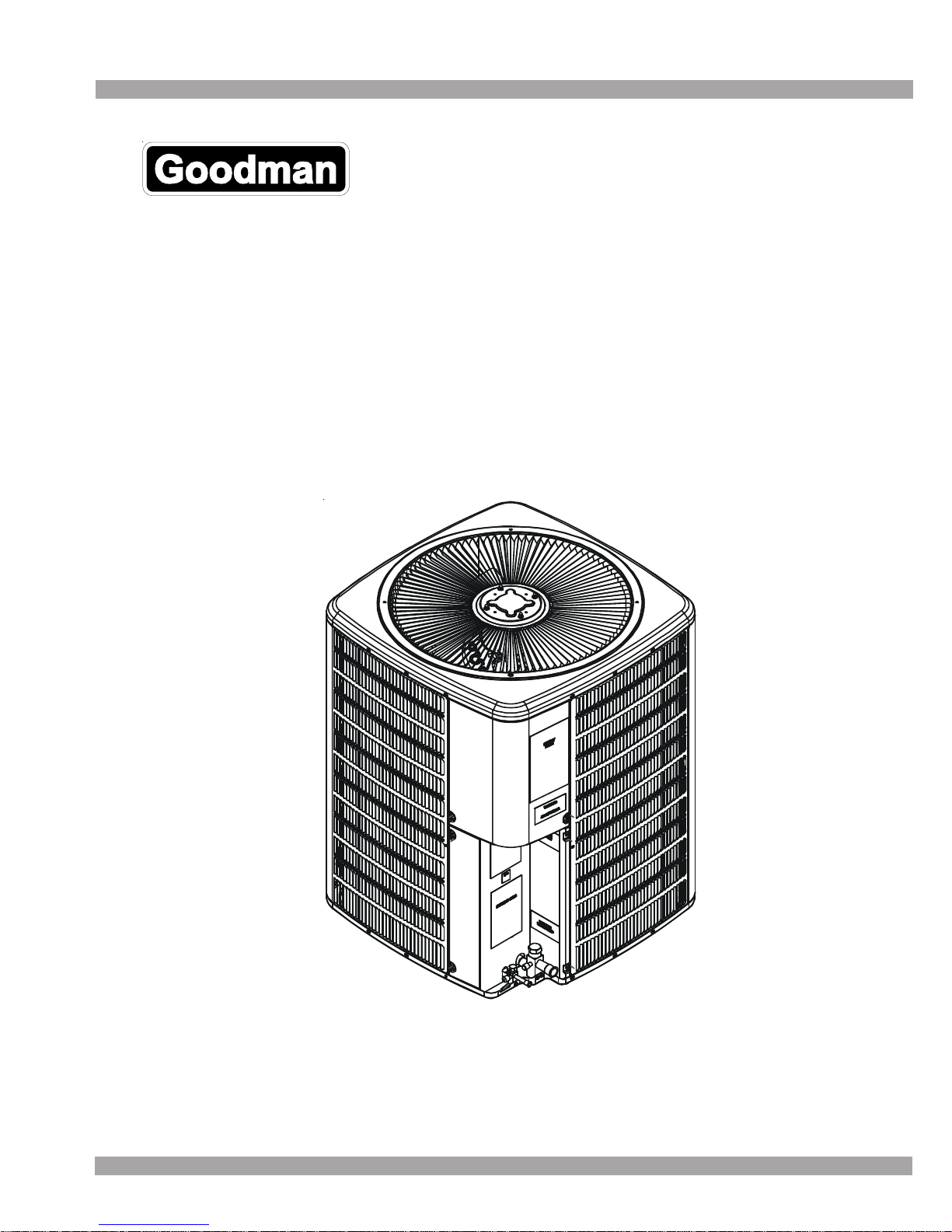

Goodman SSZ 14 SEER User manual

SSZ 14 SEER
Split System Heat Pumps
•RefertoServiceManualRS6200005forinstallation,operation,andtroubleshootinginformation.
•Allsafetyinformation must be followedasprovided in the ServiceManual.
•RefertotheappropriatePartsCatalog for part number information.
•Models listed on page 3.
RT6213005r7
November2011
Copyright © 2006 - 2007, 2009-2011 Goodman Manufacturing Company, L.P.
®TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by in-
dividuals meeting (at a minimum)
the requirements of an "entry level technician", at a
minimum, as specified by the Air-Conditioning, Heating,
and Refrigeration Institute (AHRI). Attempting to install
or repair this unit without such background may result
in product damage, personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
S S Z 14 036 1 A A
Major Revision
SEER
SEER Rating
Nominal Capacity
Electrical
1:208/230V/60Hz/1ph
3:208/230V/60Hz/3ph
4:460V/60Hz/3ph
Product Family
S: Split System
Product Type
Brand Name
018: 1.5 tons
024: 2 tons
030: 2.5 tons
036: 3 tons
042: 3.5 tons
048: 4 tons
060: 5 tons
G:Goodman
(Standard Feature Set Models)
S:Goodman
(High Feature Set Models)
C:CondenserR-22
X:CondenserR-410A
H:HeatPumpR-22
Z:HeatPumpR-410A
A:InitialRelease
MinorRevision
A:InitialRelease

PRODUCT IDENTIFICATION
3
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequestingserviceorpartsinformation.
* Indicates minor revision & is not used for order entry or inventory management
SSZ140181A*
SSZ140241A*
SSZ140301A*
SSZ140361A*
SSZ140421A*
SSZ140481A*
SSZ140601A*
SSZ140361B*

PRODUCT DESIGN
4
SSZ14modelsareavailablein 1 1/2 through 5 tonsizesand
use R-410A refrigerant. They are designed for 208/230 volt
singlephaseapplications.
The condenser air is pulled through the condenser coil by a
direct drive propeller fan. This condenser air is then dis-
charged out of the top of the cabinet.
These units are designed for free air discharge, so no addi-
tional resistance like duct work shall be attached.
The suction and liquid line connections on present models
areofthesweattypeforfieldpipingwithrefrigeranttypecop-
per. Front seating valves are factory installed to accept the
fieldruncopper. The total refrigerantcharge for a normal in-
stallationisfactoryinstalledinthecondensing unit. SSZunits
are charged for the matching evaporator coil and a 15 foot
refrigerantlineset.
Systems should be properly sized by heat gain and loss
calculations made according to methods of the Air Condi-
tioning Contractors Association (ACCA) or equivalent. It is
the contractors responsibility to ensure the system has ad-
equate capacity to heat or cool the conditioned space.
SSZmodelsusehigh-efficiencyCopeland®scroll "Ultratech"
compressorswhichare specifically desgined for R-410Are-
frigerant.Thereareanumberofdesigncharacteristicswhich
aredifferentfromthescrollcomparedtothetraditionalrecip-
rocatingcompressor.
"Ultratech" Series scroll compressors with Copeland®
ComfortAlert diagnositics will not have a discharge thermo-
stat. Some of the early model scroll compressors required
dischargethermostats.
Due to their design Scroll compressors are inherently more
tolerantofsmall quantities of liquid refrigerant.
NOTE: Eventhoughthecompressorsectionof aScrollcom-
pressor is more tolerant of liquid refrigerant, continued
floodback or flooded start conditions may wash oil from the
bearingsurfacescausing premature bearing failure.
"Ultratech" Series scroll compressors use "POE" or
polyolesteroil whichisNOT compatiblewithmineraloilbased
lubricants like 3GS. "POE" oil must be used if additional oil
isrequired.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
Operating pressures and amp draws may differ from stan-
dardreciprocatingand/orscroll compressors. This informa-
tion may be found in the "Cooling Performance Data" sec-
tion.
This unit is for outdoor installation only. Refer to minimum
figure for clearances from the sides of the unit to full walls
andother objects.
NOTE: This unit cannot be completely enclosed. At least
one side must be unrestricted.
Theseclearanceswillhelpavoidairrecirculation.Ifinstalling
two or more units at the same location, allow at least 24
inches between units. If only one side is restricted (for ex-
ample, against the outside wall of a house), the unit may be
placed as close as 8" to that one wall.
DO NOT locate the unit:
* Directlyundera vent termination fora gas appliance.
* Within 3 feet of a clothes drier vent
* Wheretherefreezingofdefrostwaterwould create
ahazard
* Where water may rise into the unit.
OK!
OK!
AA AAA
A
CC
CCOK!
OK!
OK!
OK!
NOT
RECOMMENDED
AA
AA AA
AA
AA
B B B
B
Model Type A B C AA
Residential 10" 10" 18" 20"
Light Commercial 12" 12" 18" 24"
Minimum Airflow Clearance
Model Dimensions - W x D x H
SSZ140181A* 29 x 29 x 34¼
SSZ140241A* 29 x 29 x 38¼
SSZ140301A* 29 x 29 x 38¼
SSZ140361A* 35½ x 35½ x 38¼
SSZ140421A* 35½ x 35½ x 38¼
SSZ140481A* 35½ x 35½ x 38¼
SSZ140601A* 35½ x 35½ x 38¼
SSZ140361B* 29 x 29 x 38¼

HEAT PUMP SPECIFICATIONS
5
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
SSZ140[18,30,342,48,60]1AA-AE;SSZ140241AA-AH;SSZ140361AA-AG
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
SSZ140181AA-AE SSZ140241AA-AH SSZ140301AA-AE
SSZ140361AA-AG
SSZ140421AA-AE SSZ140481AA-AE SSZ140601AA-AE
Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 42,000 48,000 60,000
Compressor
R.L. Amps 8.97 12.82 14.10 16.67 17.95 19.87 26.41
L.R. Amps 48.0 58.3 73.0 79.0 112.0 109.0 130.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/12 1/6 1/6 1/4 1/4 1/4 1/4
F.L. Amps 0.6 1.1 1.1 1.5 1.5 1.5 1.5
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 3/4" 3/4" 7/8" 7/8" 7/8" 7/8"
Refrigerant Charge 143.0 163.0 188.0 213.0 213.0 273.0 278.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 11.80 17.10 18.73 22.40 24.00 26.40 34.60
Maximum Overcurrent Device(2) 20 25 30 30 40 40 60
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 199 207 219 242 242 266 280

HEAT PUMP SPECIFICATIONS
6
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/
circuit breakers and wires in accordance with all national and/or local electrical codes. Use copper wire only.
SSZ140[18,30]1AF; SSZ140241AJ; SSZ140361AH
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
SSZ140181AF SSZ140241AJ SSZ140301AF
SSZ140361AH
Cooling Capacity,BTUH 18,000 24,000 30,000 36,000
Compressor
R.L. Amps 9.0 12.82 14.10 16.67
L.R. Amps 48.0 58.3 73.0 79.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/12 1/6 1/6 1/4
F.L.Amps 0.6 1.1 1.0 1.5
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 3/4" 3/4" 7/8"
Refrigerant Charge 140.0 160.0 185.0 210.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum CircuitAmpacity(1) 11.90 17.10 18.60 22.40
Maximum Overcurrent Device(2) 20 25 30 30
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 199 207 219 242

HEAT PUMP SPECIFICATIONS
7
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.
SSZ140[42,48,60]1AF; SSZ140481AG
SSZ140421AF SSZ140481AF
SSZ140481AG
SSZ140601AF
Cooling Capacity,BTUH 42,000 48,000 48,000 60,000
Compressor
R.L. Amps 17.95 19.9 19.9 26.41
L.R. Amps 112.0 109.0 109.0 130.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/4 1/4 1/4 1/4
F.L.Amps 1.51.51.51.5
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8"
Suction Line,Inches O.D.* 7/8" 7/8" 7/8" 7/8"
Refrigerant Charge 210.0 270.0 270.0 275.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum CircuitAmpacity(1) 23.90 26.40 26.40 34.50
Maximum Overcurrent Device(2) 40 40 45 60
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 242 266 266 280

HEAT PUMP SPECIFICATIONS
8
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/
circuit breakers and wires in accordance with all national and/or local electrical codes. Use copper wire only.
SSZ140361B*
SSZ140361B*
Cooling Capacity, BTUH 35,000
Compressor
R.L. Amps 14.1
L.R. Amps 77.0
LowPressure Switch
Open 22 PSIG
Close 50 PSIG
High Pressure Switch
Open 610 PSIG
Close 420 PSIG
Condenser Fan Motor
Horsepower 1/4
F.L.Amps 1.5
Liquid Line, Inches O.D.* 3/8"
Suction Line, Inches O.D.* 7/8"
Refrigerant Charge 186.0
Power Supply 208/230-60-1
Minimum Circuit Ampacity(1) 19.1
Maximum Overcurrent Device(2) 30
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4
Approximate Shipping Weight 215
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOORUNIT,NOTTHEINDOORCOIL.

9
COOLING PERFORMANCE DATA SSZ140181A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140181A* / CA*F3131*6A* +TXV / MBR800**-1
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 17.6 18.3 20.0 - 17.2 17.9 19.6 - 16.8 17.4 19.1 - 16.4 17.0 18.6 - 15.6 16.2 17.7 - 14.4 15.0 16.4 -
S/T 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -
Delta T 18 15 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 15 12 - 17 14 11 -
675 KW 1.17 1.19 1.23 - 1.25 1.28 1.32 - 1.33 1.36 1.40 - 1.40 1.43 1.47 - 1.45 1.48 1.53 - 1.50 1.53 1.58 -
AMPS 4.2 4.3 4.4 - 4.5 4.6 4.8 - 4.9 5.0 5.2 - 5.3 5.4 5.6 - 5.6 5.7 5.9 - 5.9 6.1 6.3 -
HIPR 213 229 242 - 239 257 271 - 271 292 308 - 309 333 351 - 348 374 395 - 384 413 436 -
LO PR 107 113 124 - 113 120 131 - 117 124 136 - 123 131 143 - 129 137 150 - 133 142 155 -
MBh 17.1 17.7 19.4 - 16.7 17.3 19.0 - 16.3 16.9 18.5 - 15.9 16.5 18.1 - 15.1 15.7 17.2 - 14.0 14.5 15.9 -
S/T 0.70 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.62 0.43 - 0.77 0.64 0.45 - 0.80 0.67 0.46 - 0.81 0.67 0.47 -
Delta T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
70 600 KW 1.16 1.18 1.22 - 1.24 1.27 1.31 - 1.32 1.35 1.39 - 1.38 1.41 1.46 - 1.44 1.47 1.52 - 1.49 1.52 1.57 -
AMPS 4.2 4.3 4.4 - 4.5 4.6 4.8 - 4.9 5.0 5.2 - 5.2 5.3 5.5 - 5.5 5.7 5.9 - 5.9 6.0 6.2 -
HIPR 210 227 239 - 236 254 268 - 269 289 305 - 306 329 348 - 344 370 391 - 380 409 432 -
LO PR 105 112 122 - 111 119 129 - 116 123 134 - 122 129 141 - 127 136 148 - 132 140 153 -
MBh 15.8 16.4 17.9 - 15.4 16.0 17.5 - 15.1 15.6 17.1 - 14.7 15.2 16.7 - 14.0 14.5 15.9 - 12.9 13.4 14.7 -
S/T 0.68 0.57 0.39 - 0.70 0.59 0.41 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.78 0.65 0.45 -
Delta T 19 16 12 - 19 16 12 - 19 16 12 - 19 17 13 - 19 16 12 - 18 15 12 -
525 KW 1.13 1.15 1.19 - 1.21 1.24 1.28 - 1.29 1.31 1.35 - 1.35 1.38 1.42 - 1.41 1.44 1.48 - 1.45 1.48 1.53 -
AMPS 4.1 4.2 4.3 - 4.4 4.5 4.6 - 4.7 4.9 5.0 - 5.1 5.2 5.4 - 5.4 5.5 5.7 - 5.7 5.8 6.0 -
HIPR 204 220 232 - 229 247 260 - 261 280 296 - 297 319 337 - 334 359 379 - 369 397 419 -
LO PR 102 109 119 - 108 115 126 - 112 119 130 - 118 126 137 - 124 132 144 - 128 136 149 -
MBh 17.9 18.5 20.0 21.5 17.5 18.0 19.5 21.0 17.1 17.6 19.1 20.5 16.7 17.2 18.6 20.0 15.9 16.3 17.7 19.0 14.7 15.1 16.4 17.6
S/T 0.84 0.75 0.57 0.36 0.87 0.78 0.59 0.38 0.89 0.80 0.60 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.65 0.42 0.96 0.86 0.65 0.42
DeltaT20191511211916112119161121 19 16 11 21 19 16 11 19 18 15 10
675 KW 1.18 1.20 1.24 1.27 1.26 1.29 1.33 1.37 1.34 1.37 1.41 1.46 1.41 1.44 1.48 1.53 1.46 1.50 1.54 1.59 1.51 1.55 1.60 1.65
AMPS 4.2 4.3 4.5 4.6 4.6 4.7 4.8 5.0 5.0 5.1 5.2 5.4 5.3 5.4 5.6 5.8 5.6 5.8 6.0 6.2 6.0 6.1 6.3 6.5
HIPR 215 231 244 255 241 259 274 286 274 295 311 325 312 336 355 370 351 378 399 416 388 418 441 460
LO PR 108 114 125 133 114 121 132 141 118 126 137 146 124 132 144 154 130 138 151 161 135 143 156 166
MBh 17.4 17.9 19.4 20.8 17.0 17.5 19.0 20.3 16.6 17.1 18.5 19.9 16.2 16.7 18.1 19.4 15.4 15.8 17.2 18.4 14.3 14.7 15.9 17.1
S/T 0.80 0.71 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.91 0.81 0.62 0.40 0.92 0.82 0.62 0.40
DeltaT21201611222016112220161122 20 16 11 21 20 16 11 20 18 15 10
75 600 KW 1.17 1.19 1.23 1.26 1.25 1.28 1.32 1.36 1.33 1.36 1.40 1.44 1.40 1.43 1.47 1.52 1.45 1.48 1.53 1.58 1.50 1.53 1.58 1.64
AMPS 4.2 4.3 4.4 4.6 4.5 4.6 4.8 5.0 4.9 5.0 5.2 5.4 5.3 5.4 5.6 5.8 5.6 5.7 5.9 6.1 5.9 6.1 6.3 6.5
HIPR 213 229 242 252 239 257 271 283 271 292 308 322 309 333 351 366 348 374 395 412 384 413 437 455
LO PR 107 113 124 132 113 120 131 139 117 124 136 145 123 131 143 152 129 137 150 159 133 142 155 165
MBh 16.1 16.5 17.9 19.2 15.7 16.2 17.5 18.8 15.3 15.8 17.1 18.3 15.0 15.4 16.7 17.9 14.2 14.6 15.8 17.0 13.2 13.5 14.7 15.7
S/T 0.77 0.69 0.52 0.34 0.80 0.71 0.54 0.35 0.82 0.73 0.55 0.36 0.84 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.88 0.79 0.60 0.39
DeltaT22201611222017112220171122 20 17 12 22 20 16 11 20 19 15 11
525 KW 1.14 1.16 1.20 1.24 1.22 1.25 1.29 1.33 1.30 1.32 1.37 1.41 1.36 1.39 1.44 1.48 1.42 1.45 1.49 1.54 1.47 1.50 1.54 1.60
AMPS 4.1 4.2 4.3 4.5 4.4 4.5 4.7 4.8 4.8 4.9 5.1 5.2 5.1 5.2 5.4 5.6 5.4 5.6 5.7 6.0 5.7 5.9 6.1 6.3
HIPR 206 222 234 244 231 249 263 274 263 283 299 312 300 323 341 355 337 363 383 400 373 401 423 442
LO PR 103 110 120 128 109 116 127 135 113 121 132 140 119 127 138 147 125 133 145 155 129 137 150 160
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempow er AMPS=outdoor unit amps (comp.+fan

10
COOLING PERFORMANCE DATA SSZ140181A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140181A* / CA*F3131*6A* +TXV / MBR800**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 18.3 18.7 19.9 21.3 17.8 18.2 19.5 20.8 17.4 17.8 19.0 20.3 17.0 17.4 18.5 19.8 16.1 16.5 17.6 18.8 14.9 15.3 16.3 17.4
S/T 0.92 0.86 0.70 0.52 0.95 0.89 0.73 0.54 1.00 0.92 0.75 0.56 1.00 0.94 0.77 0.57 1.00 1.00 0.80 0.60 1.00 1.00 0.80 0.60
DeltaT23221915232219152422191523 22 19 162222191520211814
675 KW 1.19 1.21 1.25 1.28 1.27 1.30 1.34 1.38 1.35 1.38 1.42 1.47 1.42 1.45 1.50 1.54 1.48 1.51 1.56 1.61 1.53 1.56 1.61 1.66
AMPS 4.3 4.4 4.5 4.7 4.6 4.7 4.9 5.1 5.0 5.1 5.3 5.5 5.3 5.5 5.7 5.9 5.7 5.8 6.0 6.2 6.0 6.2 6.4 6.6
HIPR 217 233 247 257 243 262 277 288 277 298 315 328 315 339 358 374 355 382 403 420 392 422 445 465
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 162 136 145 158 168
MBh 17.7 18.1 19.4 20.7 17.3 17.7 18.9 20.2 16.9 17.3 18.5 19.7 16.5 16.8 18.0 19.2 15.7 16.0 17.1 18.3 14.5 14.8 15.8 16.9
S/T 0.88 0.82 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.94 0.76 0.57 1.00 0.94 0.77 0.57
DeltaT24232016242320162423201624 23 20 16 24 23 20 16 22 21 19 15
80 600 KW 1.18 1.20 1.24 1.27 1.26 1.29 1.33 1.37 1.34 1.37 1.41 1.46 1.41 1.44 1.48 1.53 1.46 1.50 1.54 1.59 1.51 1.55 1.60 1.65
AMPS 4.2 4.3 4.5 4.6 4.6 4.7 4.8 5.0 5.0 5.1 5.3 5.4 5.3 5.4 5.6 5.8 5.6 5.8 6.0 6.2 6.0 6.1 6.3 6.5
HIPR 215 231 244 255 241 259 274 286 274 295 311 325 312 336 355 370 351 378 399 416 388 418 441 460
LO PR 108 114 125 133 114 121 132 141 118 126 137 146 124 132 144 154 130 138 151 161 135 143 156 166
MBh 16.4 16.7 17.9 19.1 16.0 16.3 17.4 18.6 15.6 15.9 17.0 18.2 15.2 15.6 16.6 17.8 14.5 14.8 15.8 16.9 13.4 13.7 14.6 15.6
S/T 0.84 0.79 0.64 0.48 0.88 0.82 0.67 0.50 0.90 0.84 0.69 0.51 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 0.97 0.91 0.74 0.55
DeltaT24232016242320162523201625 24 21 162423201623221915
525 KW 1.15 1.17 1.21 1.24 1.23 1.26 1.30 1.34 1.31 1.34 1.38 1.42 1.37 1.40 1.45 1.49 1.43 1.46 1.51 1.56 1.48 1.51 1.56 1.61
AMPS 4.1 4.2 4.4 4.5 4.5 4.6 4.7 4.9 4.8 4.9 5.1 5.3 5.2 5.3 5.5 5.7 5.5 5.6 5.8 6.0 5.8 5.9 6.1 6.4
HIPR 208 224 237 247 234 252 266 277 266 286 302 315 303 326 344 359 341 367 387 404 376 405 428 446
LO PR 104 111 121 129 110 117 128 136 115 122 133 142 120 128 140 149 126 134 147 156 131 139 152 161
MBh 18.6 18.9 19.8 21.2 18.1 18.5 19.4 20.7 17.7 18.1 18.9 20.2 17.3 17.6 18.4 19.7 16.4 16.7 17.5 18.7 15.2 15.5 16.2 17.3
S/T 0.96 0.93 0.84 0.68 1.00 0.96 0.87 0.71 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.96 0.78
DeltaT24242320252423202424232024 24 23 202223232021212118
675 KW 1.19 1.22 1.26 1.29 1.28 1.31 1.35 1.39 1.36 1.39 1.43 1.48 1.43 1.46 1.51 1.56 1.49 1.52 1.57 1.62 1.54 1.57 1.62 1.68
AMPS 4.3 4.4 4.6 4.7 4.7 4.8 4.9 5.1 5.1 5.2 5.3 5.5 5.4 5.5 5.7 5.9 5.7 5.9 6.1 6.3 6.1 6.2 6.4 6.7
HIPR 219 236 249 260 246 265 279 291 280 301 318 331 318 343 362 377 358 386 407 425 396 426 450 469
LO PR 110 117 127 136 116 123 135 143 121 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
MBh 18.0 18.4 19.3 20.5 17.6 18.0 18.8 20.1 17.2 17.5 18.4 19.6 16.8 17.1 17.9 19.1 15.9 16.2 17.0 18.2 14.8 15.0 15.8 16.8
S/T 0.92 0.89 0.80 0.65 0.95 0.92 0.83 0.67 0.98 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.92 0.74
DeltaT25252420262524212625242126 25 24 212425242123232219
85 600 KW 1.19 1.21 1.25 1.28 1.27 1.30 1.34 1.38 1.35 1.38 1.42 1.47 1.42 1.45 1.50 1.54 1.48 1.51 1.56 1.61 1.53 1.56 1.61 1.66
AMPS 4.3 4.4 4.5 4.7 4.6 4.7 4.9 5.1 5.0 5.1 5.3 5.5 5.3 5.5 5.7 5.9 5.7 5.8 6.0 6.2 6.0 6.2 6.4 6.6
HIPR 217 233 247 257 243 262 277 288 277 298 315 328 315 339 358 374 355 382 403 420 392 422 445 465
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 162 136 145 158 168
MBh 16.6 17.0 17.8 19.0 16.3 16.6 17.4 18.5 15.9 16.2 16.9 18.1 15.5 15.8 16.5 17.6 14.7 15.0 15.7 16.8 13.6 13.9 14.5 15.5
S/T 0.89 0.85 0.77 0.63 0.92 0.89 0.80 0.65 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 0.98 0.89 0.72
DeltaT26252421262624212626242126 26 24 212626242124242320
525 KW 1.16 1.18 1.22 1.25 1.24 1.27 1.31 1.35 1.32 1.35 1.39 1.43 1.38 1.41 1.46 1.51 1.44 1.47 1.52 1.57 1.49 1.52 1.57 1.62
AMPS 4.2 4.3 4.4 4.6 4.5 4.6 4.8 4.9 4.9 5.0 5.2 5.3 5.2 5.3 5.5 5.7 5.5 5.7 5.8 6.1 5.9 6.0 6.2 6.4
HIPR 210 226 239 249 236 254 268 280 269 289 305 318 306 329 348 362 344 370 391 408 380 409 432 451
LO PR 105 112 122 130 111 118 129 138 116 123 134 143 122 129 141 150 127 136 148 158 132 140 153 163
Shaded area is ARIRating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempow er
A
MPS=outdoor unit amps (comp.+fan

11
COOLING PERFORMANCE DATA SSZ140241A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140241A* / CA*F3636*6A*+TXV / MBR800**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 23.5 24.4 26.7 - 23.0 23.8 26.1 - 22.4 23.2 25.5 - 21.9 22.7 24.8 - 20.8 21.5 23.6 - 19.3 20.0 21.9 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.87 0.72 0.50 -
Delta T 17 15 11 - 17 15 11 - 17 15 11 - 17 15 11 - 17 15 11 - 16 14 11 -
956 KW 1.65 1.68 1.73 - 1.77 1.80 1.86 - 1.87 1.91 1.97 - 1.97 2.01 2.07 - 2.04 2.09 2.15 - 2.11 2.16 2.22 -
AMPS 10.1 10.2 10.4 - 10.5 10.7 10.9 - 11.0 11.2 11.4 - 11.5 11.7 11.9 - 12.0 12.2 12.4 - 12.4 12.6 12.9 -
HIPR 222 239 252 - 249 268 283 - 283 305 322 - 323 347 367 - 363 391 412 - 401 432 456 -
LO PR 110 117 128 - 116 124 135 - 121 129 140 - 127 135 147 - 133 142 155 - 138 146 160 -
MBh 22.8 23.7 25.9 - 22.3 23.1 25.3 - 21.8 22.6 24.7 - 21.2 22.0 24.1 - 20.2 20.9 22.9 - 18.7 19.4 21.2 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.83 0.69 0.48 -
Delta T 18 15 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 15 12 - 17 14 11 -
70 850 KW 1.64 1.67 1.72 - 1.75 1.79 1.84 - 1.86 1.90 1.95 - 1.95 1.99 2.05 - 2.03 2.07 2.14 - 2.09 2.14 2.21 -
AMPS 10.0 10.1 10.3 - 10.5 10.6 10.8 - 11.0 11.1 11.4 - 11.4 11.6 11.9 - 11.9 12.1 12.3 - 12.3 12.5 12.8 -
HIPR 220 236 250 - 247 265 280 - 280 302 319 - 319 344 363 - 359 387 408 - 397 427 451 -
LO PR 109 116 127 - 115 122 134 - 120 127 139 - 126 134 146 - 132 140 153 - 136 145 158 -
MBh 21.1 21.8 23.9 - 20.6 21.3 23.4 - 20.1 20.8 22.8 - 19.6 20.3 22.3 - 18.6 19.3 21.1 - 17.3 17.9 19.6 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
Delta T 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
744 KW 1.60 1.63 1.68 - 1.72 1.75 1.80 - 1.82 1.85 1.91 - 1.90 1.94 2.00 - 1.98 2.02 2.08 - 2.04 2.09 2.15 -
AMPS 9.8 10.0 10.2 - 10.3 10.4 10.6 - 10.8 11.0 11.2 - 11.2 11.4 11.7 - 11.7 11.9 12.1 - 12.1 12.3 12.6 -
HIPR 213 229 242 - 239 257 272 - 272 293 309 - 310 333 352 - 349 375 396 - 385 414 438 -
LO PR 106 112 123 - 112 119 130 - 116 123 135 - 122 130 142 - 128 136 148 - 132 141 153 -
MBh 23.9 24.6 26.7 28.6 23.4 24.1 26.0 27.9 22.8 23.5 25.4 27.3 22.2 22.9 24.8 26.6 21.1 21.8 23.6 25.3 19.6 20.2 21.8 23.4
S/T 0.860.770.580.370.890.790.600.390.910.810.620.400.94 0.84 0.64 0.41 0.98 0.87 0.66 0.42 0.98 0.88 0.67 0.43
DeltaT20181510201815102018151020 19 15 10 20 18 15 10 19 17 14 10
956 KW 1.661.701.751.801.781.821.871.931.891.931.992.051.98 2.02 2.09 2.15 2.06 2.10 2.17 2.24 2.13 2.17 2.24 2.32
AMPS 10.1 10.2 10.4 10.7 10.6 10.7 10.9 11.2 11.1 11.3 11.5 11.8 11.6 11.8 12.0 12.3 12.0 12.2 12.5 12.8 12.5 12.7 13.0 13.3
HIPR 224 241 255 266 252 271 286 298 286 308 325 339 326 351 370 386 367 395 417 435 405 436 460 480
LO PR 111 118 129 138 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172
MBh 23.2 23.9 25.9 27.8 22.7 23.4 25.3 27.1 22.1 22.8 24.7 26.5 21.6 22.2 24.1 25.8 20.5 21.1 22.9 24.5 19.0 19.6 21.2 22.7
S/T 0.820.730.550.360.850.760.570.370.870.780.590.380.90 0.80 0.61 0.39 0.93 0.83 0.63 0.41 0.94 0.84 0.63 0.41
DeltaT21191511211916112119161121 19 16 11 21 19 16 11 19 18 15 10
75 850 KW 1.651.681.731.781.771.801.861.921.871.911.972.031.97 2.01 2.07 2.13 2.04 2.09 2.15 2.22 2.11 2.16 2.22 2.30
AMPS 10.1 10.2 10.4 10.6 10.5 10.7 10.9 11.1 11.0 11.2 11.4 11.7 11.5 11.7 11.9 12.2 12.0 12.2 12.4 12.7 12.4 12.6 12.9 13.2
HIPR 222 239 252 263 249 268 283 295 283 305 322 336 323 347 367 382 363 391 412 430 401 432 456 475
LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 147 157 133 142 155 165 138 146 160 170
MBh 21.4 22.1 23.9 25.6 20.9 21.6 23.3 25.0 20.4 21.0 22.8 24.4 19.9 20.5 22.2 23.8 18.9 19.5 21.1 22.7 17.5 18.1 19.6 21.0
S/T 0.790.700.530.340.820.730.550.360.840.750.570.360.86 0.77 0.58 0.38 0.90 0.80 0.61 0.39 0.90 0.81 0.61 0.39
DeltaT21191611211916112119161121 20 16 11 21 19 16 11 20 18 15 10
744 KW 1.611.641.691.741.731.761.821.871.831.871.921.981.92 1.96 2.02 2.08 2.00 2.04 2.10 2.17 2.06 2.10 2.17 2.24
AMPS 9.9 10.0 10.2 10.4 10.3 10.5 10.7 10.9 10.9 11.0 11.2 11.5 11.3 11.5 11.7 12.0 11.8 11.9 12.2 12.5 12.2 12.4 12.7 13.0
HIPR 215 232 245 255 242 260 275 286 275 296 312 326 313 337 356 371 352 379 400 417 389 419 442 461
LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 152 129 137 150 160 133 142 155 165
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Totalsystem pow er
A
MPS=outdoor unit amps (comp.+fa
n

12
COOLING PERFORMANCE DATA SSZ140241A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140241A* / CA*F3636*6A*+TXV / MBR800**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 24.3 24.9 26.6 28.4 23.8 24.3 26.0 27.7 23.2 23.7 25.3 27.1 22.6 23.1 24.7 26.4 21.5 22.0 23.5 25.1 19.9 20.4 21.8 23.3
S/T 0.94 0.88 0.72 0.54 1.00 0.91 0.74 0.56 1.00 0.94 0.76 0.57 1.00 0.97 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.82 0.62
DeltaT22211815232119152221191522 21 19 152121181519201714
956 KW 1.67 1.71 1.76 1.81 1.80 1.83 1.89 1.95 1.90 1.94 2.00 2.06 2.00 2.04 2.10 2.17 2.08 2.12 2.19 2.26 2.15 2.19 2.26 2.33
AMPS 10.2 10.3 10.5 10.7 10.6 10.8 11.0 11.2 11.2 11.3 11.6 11.8 11.6 11.8 12.1 12.4 12.1 12.3 12.6 12.9 12.6 12.8 13.1 13.4
HIPR 226 244 257 268 254 273 289 301 289 311 328 343 329 354 374 390 370 399 421 439 409 440 465 485
LO PR 112 119 130 139 119 126 138 147 123 131 143 153 130 138 150 160 136 144 158 168 140 149 163 174
MBh 23.6 24.1 25.8 27.6 23.1 23.6 25.2 26.9 22.5 23.0 24.6 26.3 22.0 22.5 24.0 25.7 20.9 21.3 22.8 24.4 19.3 19.8 21.1 22.6
S/T 0.90 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.73 0.54 0.98 0.92 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.96 0.79 0.59
DeltaT23221915232219152322191523 22 19 16 23 22 19 15 21 21 18 14
80 850 KW 1.66 1.70 1.75 1.80 1.78 1.82 1.87 1.93 1.89 1.93 1.99 2.05 1.98 2.02 2.09 2.15 2.06 2.10 2.17 2.24 2.13 2.17 2.24 2.32
AMPS 10.1 10.2 10.4 10.7 10.6 10.7 10.9 11.2 11.1 11.3 11.5 11.8 11.6 11.8 12.0 12.3 12.0 12.2 12.5 12.8 12.5 12.7 13.0 13.3
HIPR 224 241 255 266 252 271 286 298 286 308 325 339 326 351 370 386 367 395 417 435 405 436 460 480
LO PR 111 118 129 138 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172
MBh 21.8 22.3 23.8 25.5 21.3 21.8 23.3 24.9 20.8 21.3 22.7 24.3 20.3 20.7 22.2 23.7 19.3 19.7 21.0 22.5 17.9 18.2 19.5 20.8
S/T 0.86 0.81 0.66 0.49 0.90 0.84 0.68 0.51 0.92 0.86 0.70 0.52 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.76 0.57
DT 23 22 19 16 24 23 20 16 24 23 20 16 24 23 20 16 23 22 20 16 22 21 18 15
744 KW 1.63 1.66 1.71 1.76 1.74 1.78 1.83 1.89 1.84 1.88 1.94 2.00 1.93 1.97 2.04 2.10 2.01 2.05 2.12 2.19 2.08 2.12 2.19 2.26
AMPS 9.9 10.1 10.3 10.5 10.4 10.5 10.7 11.0 10.9 11.1 11.3 11.6 11.4 11.5 11.8 12.1 11.8 12.0 12.3 12.6 12.3 12.5 12.7 13.1
HIPR 217 234 247 258 244 263 277 289 278 299 315 329 316 340 359 375 356 383 404 422 393 423 447 466
LO PR 108 115 125 133 114 121 132 141 118 126 138 146 124 132 144 154 130 139 151 161 135 143 157 167
MBh 24.8 25.2 26.4 28.2 24.2 24.7 25.8 27.6 23.6 24.1 25.2 26.9 23.0 23.5 24.6 26.2 21.9 22.3 23.4 24.9 20.3 20.7 21.6 23.1
S/T 0.98 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.98 0.79 1.00 1.00 0.98 0.80
DeltaT23232219232322192323221922 23 22 192121221919202018
956 KW 1.69 1.72 1.77 1.83 1.81 1.85 1.90 1.96 1.92 1.96 2.02 2.08 2.01 2.05 2.12 2.19 2.09 2.14 2.21 2.28 2.16 2.21 2.28 2.35
AMPS 10.2 10.3 10.5 10.8 10.7 10.8 11.1 11.3 11.2 11.4 11.6 11.9 11.7 11.9 12.1 12.4 12.2 12.4 12.6 13.0 12.7 12.9 13.1 13.5
HIPR 229 246 260 271 257 276 292 304 292 314 332 346 332 358 378 394 374 402 425 443 413 445 470 490
LO PR 113 121 132 140 120 127 139 148 125 132 145 154 131 139 152 162 137 146 159 170 142 151 165 175
MBh 24.0 24.5 25.7 27.4 23.5 23.9 25.1 26.8 22.9 23.4 24.5 26.1 22.4 22.8 23.9 25.5 21.2 21.7 22.7 24.2 19.7 20.1 21.0 22.4
S/T 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.94 0.76
DeltaT24242320252423202524232024 25 23 202323232021222118
85 850 KW 1.67 1.71 1.76 1.81 1.80 1.83 1.89 1.95 1.90 1.94 2.00 2.06 2.00 2.04 2.10 2.17 2.08 2.12 2.19 2.26 2.15 2.19 2.26 2.33
AMPS 10.2 10.3 10.5 10.7 10.6 10.8 11.0 11.2 11.2 11.3 11.6 11.8 11.6 11.8 12.1 12.4 12.1 12.3 12.6 12.9 12.6 12.8 13.1 13.4
HIPR 226 244 257 268 254 273 289 301 289 311 328 343 329 354 374 390 370 399 421 439 409 440 465 485
LO PR 112 119 130 139 119 126 138 147 123 131 143 153 130 138 150 160 136 144 158 168 140 149 163 174
MBh 22.2 22.6 23.7 25.3 21.7 22.1 23.1 24.7 21.2 21.6 22.6 24.1 20.6 21.0 22.0 23.5 19.6 20.0 20.9 22.3 18.2 18.5 19.4 20.7
S/T 0.91 0.87 0.79 0.64 0.94 0.91 0.82 0.66 0.96 0.93 0.84 0.68 0.99 0.96 0.87 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.91 0.73
DeltaTDeltaT242320252523202525232025 25 24 202425232022232219
744 KW 1.64 1.67 1.72 1.77 1.75 1.79 1.84 1.90 1.86 1.90 1.95 2.02 1.95 1.99 2.05 2.12 2.03 2.07 2.13 2.20 2.09 2.14 2.21 2.28
AMPS 10.0 10.1 10.3 10.5 10.5 10.6 10.8 11.0 11.0 11.1 11.4 11.6 11.4 11.6 11.9 12.1 11.9 12.1 12.3 12.6 12.3 12.5 12.8 13.1
HIPR 220 236 250 260 246 265 280 292 280 302 319 332 319 344 363 378 359 387 408 426 397 427 451 470
LO PR 109 116 127 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168
Shaded area is ARIRating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempower
A
MPS=outdoor unit amps (comp.+fan

13
COOLING PERFORMANCE DATA SSZ140301A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140301A* / CA*F3642*6A*+TXV / MBR1600**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 67715963 67 715963677159636771
MBh 28.2 29.3 32.0 - 27.6 28.6 31.3 - 26.9 27.9 30.6 - 26.3 27.2 29.8 - 24.9 25.8 28.3 - 23.1 23.9 26.2 -
S/T 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.84 0.70 0.48 - 0.86 0.72 0.50 - 0.90 0.75 0.52 - 0.90 0.75 0.52 -
Delta T 17 15 11 - 17 15 11 - 18 15 11 - 18 15 12 - 17 15 11 - 16 14 11 -
1181 KW 1.99 2.03 2.09 - 2.13 2.18 2.24 - 2.26 2.30 2.37 - 2.37 2.42 2.49 - 2.46 2.51 2.59 - 2.54 2.59 2.67 -
AMPS 2.3 2.5 2.7 - 2.9 3.0 3.3 - 3.5 3.7 4.0 - 4.1 4.3 4.6 - 4.6 4.8 5.1 - 5.1 5.4 5.7 -
HIPR 221 237 251 - 247 266 281 - 281 303 320 - 321 345 364 - 361 388 410 - 398 429 453 -
LO PR 112 119 130 - 118 126 137 - 123 131 143 - 129 137 150 - 135 144 157 - 140 149 162 -
MBh 27.4 28.4 31.1 - 26.8 27.7 30.4 - 26.1 27.1 29.7 - 25.5 26.4 28.9 - 24.2 25.1 27.5 - 22.4 23.2 25.5 -
S/T 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.82 0.69 0.48 - 0.85 0.71 0.49 - 0.86 0.72 0.50 -
Delta T 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
70 1050 KW 1.98 2.02 2.08 - 2.12 2.16 2.22 - 2.24 2.29 2.36 - 2.35 2.40 2.47 - 2.44 2.49 2.57 - 2.52 2.57 2.65 -
AMPS 2.3 2.4 2.6 - 2.8 3.0 3.2 - 3.4 3.6 3.9 - 4.0 4.2 4.5 - 4.5 4.7 5.1 - 5.1 5.3 5.6 -
HIPR 218 235 248 - 245 264 278 - 279 300 317 - 317 342 361 - 357 384 406 - 394 425 448 -
LO PR 111 118 129 - 117 124 136 - 122 129 141 - 128 136 148 - 134 142 155 - 138 147 161 -
MBh 25.3 26.2 28.7 - 24.7 25.6 28.1 - 24.1 25.0 27.4 - 23.5 24.4 26.7 - 22.3 23.2 25.4 - 20.7 21.5 23.5 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
Delta T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
919 KW 1.94 1.97 2.03 - 2.07 2.11 2.17 - 2.19 2.23 2.30 - 2.30 2.34 2.41 - 2.38 2.43 2.51 - 2.46 2.51 2.59 -
AMPS 2.1 2.2 2.4 - 2.6 2.8 3.0 - 3.2 3.4 3.7 - 3.7 3.9 4.2 - 4.3 4.5 4.8 - 4.8 5.0 5.3 -
HIPR 212 228 241 - 238 256 270 - 270 291 307 - 308 331 350 - 346 373 394 - 383 412 435 -
LO PR 107 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -
MBh 28.7 29.5 32.0 34.3 28.0 28.9 31.2 33.5 27.4 28.2 30.5 32.7 26.7 27.5 29.8 31.9 25.4 26.1 28.3 30.3 23.5 24.2 26.2 28.1
S/T 0.89 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.95 0.85 0.64 0.41 0.98 0.88 0.66 0.43 1.00 0.91 0.69 0.44 1.00 0.92 0.69 0.45
DeltaT201815102019151120 19 15112019 15 11 20 19 15 10 18 17 14 10
1181 KW 2.01 2.05 2.11 2.17 2.15 2.19 2.26 2.33 2.28 2.32 2.39 2.47 2.39 2.44 2.51 2.59 2.48 2.53 2.61 2.69 2.56 2.61 2.70 2.78
AMPS 2.4 2.5 2.8 3.0 2.9 3.1 3.4 3.7 3.6 3.8 4.0 4.4 4.1 4.3 4.6 5.0 4.7 4.9 5.2 5.6 5.2 5.5 5.8 6.2
HIPR 223 240 253 264 250 269 284 296 284 306 323 337 324 348 368 384 364 392 414 432 402 433 457 477
LO PR 113 120 131 140 119 127 139 148 124 132 144 153 130 139 151 161 137 145 159 169 141 150 164 175
MBh 27.9 28.7 31.1 33.3 27.2 28.0 30.3 32.6 26.6 27.4 29.6 31.8 25.9 26.7 28.9 31.0 24.6 25.4 27.4 29.5 22.8 23.5 25.4 27.3
S/T 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.66 0.43
DeltaT211916112119161121 19 16112120 16 11 21 19 16 11 20 18 15 10
75 1050 KW 1.99 2.03 2.09 2.15 2.14 2.18 2.24 2.31 2.26 2.30 2.37 2.45 2.37 2.42 2.49 2.57 2.46 2.51 2.59 2.67 2.54 2.59 2.67 2.76
AMPS 2.3 2.5 2.7 3.0 2.9 3.0 3.3 3.6 3.5 3.7 4.0 4.3 4.1 4.3 4.6 4.9 4.6 4.8 5.1 5.5 5.1 5.4 5.7 6.1
HIPR 221 237 251 261 248 266 281 293 281 303 320 334 321 345 364 380 361 388 410 427 399 429 453 472
LO PR 112 119 130 138 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 162 173
MBh 25.7 26.5 28.7 30.8 25.1 25.9 28.0 30.0 24.5 25.2 27.3 29.3 23.9 24.6 26.7 28.6 22.7 23.4 25.3 27.2 21.1 21.7 23.5 25.2
S/T 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.94 0.84 0.64 0.41
DeltaT211916112120161121 20 16112220 16 11 21 20 16 11 20 18 15 10
919 KW 1.95 1.99 2.05 2.11 2.09 2.13 2.19 2.26 2.21 2.25 2.32 2.39 2.31 2.36 2.43 2.51 2.40 2.45 2.53 2.61 2.48 2.53 2.61 2.69
AMPS 2.1 2.3 2.5 2.8 2.7 2.8 3.1 3.4 3.3 3.5 3.7 4.0 3.8 4.0 4.3 4.6 4.4 4.6 4.9 5.2 4.9 5.1 5.4 5.8
HIPR 214 230 243 254 240 258 273 285 273 294 310 324 311 335 353 369 350 376 398 415 387 416 439 458
LO PR 109 115 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 140 152 162 136 144 158 168
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempower
A
MPS=outdoor unit amps (comp.+fan

14
COOLING PERFORMANCE DATA SSZ140301A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140301A* / CA*F3642*6A*+TXV / MBR1600**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 67715963 67 715963677159636771
MBh 29.2 29.8 31.9 34.1 28.5 29.2 31.1 33.3 27.9 28.5 30.4 32.5 27.2 27.8 29.7 31.7 25.8 26.4 28.2 30.1 23.9 24.4 26.1 27.9
S/T 1.00 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 1.00 0.80 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.85 0.64 1.00 1.00 0.86 0.64
DeltaT232119152222191522 22 19152122 19152021191519191714
1181 KW 2.02 2.06 2.12 2.19 2.17 2.21 2.28 2.35 2.29 2.34 2.41 2.49 2.40 2.45 2.53 2.61 2.50 2.55 2.63 2.71 2.58 2.64 2.72 2.80
AMPS 2.4 2.6 2.8 3.1 3.0 3.2 3.4 3.7 3.7 3.9 4.1 4.5 4.2 4.4 4.7 5.1 4.8 5.0 5.3 5.7 5.3 5.6 5.9 6.3
HIPR 225 242 256 267 253 272 287 299 287 309 326 340 327 352 372 388 368 396 418 436 407 438 462 482
LO PR 114 121 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177
MBh 28.4 29.0 31.0 33.1 27.7 28.3 30.2 32.3 27.0 27.6 29.5 31.6 26.4 27.0 28.8 30.8 25.1 25.6 27.4 29.2 23.2 23.7 25.3 27.1
S/T 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 0.99 0.93 0.76 0.57 1.00 0.96 0.78 0.59 1.00 1.00 0.81 0.61 1.00 1.00 0.82 0.61
DeltaT232219152423201624 23 20162323 20 16 22 22 19 16 20 21 18 15
80 1050 KW 2.01 2.05 2.11 2.17 2.15 2.19 2.26 2.33 2.28 2.32 2.39 2.47 2.39 2.44 2.51 2.59 2.48 2.53 2.61 2.69 2.56 2.61 2.70 2.78
AMPS 2.4 2.5 2.8 3.0 2.9 3.1 3.4 3.7 3.6 3.8 4.0 4.4 4.1 4.3 4.6 5.0 4.7 4.9 5.2 5.6 5.2 5.5 5.8 6.2
HIPR 223 240 253 264 250 269 284 296 284 306 323 337 324 348 368 384 364 392 414 432 403 433 457 477
LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 151 161 137 145 159 169 141 150 164 175
MBh 26.2 26.7 28.6 30.5 25.6 26.1 27.9 29.8 25.0 25.5 27.2 29.1 24.3 24.9 26.6 28.4 23.1 23.6 25.3 27.0 21.4 21.9 23.4 25.0
S/T 0.90 0.85 0.69 0.51 0.93 0.88 0.71 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.75 0.56 1.03 0.96 0.78 0.59 1.04 0.97 0.79 0.59
DeltaT242320162423201624 23 20162423 20162423201622211815
919 KW 1.97 2.00 2.06 2.12 2.10 2.14 2.21 2.27 2.22 2.27 2.34 2.41 2.33 2.38 2.45 2.53 2.42 2.47 2.55 2.63 2.50 2.55 2.63 2.72
AMPS 2.2 2.4 2.6 2.8 2.7 2.9 3.2 3.4 3.4 3.5 3.8 4.1 3.9 4.1 4.4 4.7 4.4 4.7 5.0 5.3 5.0 5.2 5.5 5.9
HIPR 216 233 246 256 243 261 276 287 276 297 313 327 314 338 357 372 353 380 402 419 390 420 444 463
LO PR 110 117 127 136 116 123 135 143 120 128 140 149 126 135 147 156 133 141 154 164 137 146 159 170
MBh 29.7 30.3 31.7 33.9 29.0 29.6 31.0 33.1 28.3 28.9 30.3 32.3 27.6 28.2 29.5 31.5 26.3 26.8 28.0 29.9 24.3 24.8 26.0 27.7
S/T 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.98 0.80 1.00 1.00 1.00 0.83 1.00 1.00 1.00 0.83
DeltaT232322192323221922 22 22192222 23202021221919192018
1181 KW 2.04 2.08 2.14 2.20 2.18 2.23 2.29 2.36 2.31 2.36 2.43 2.50 2.42 2.47 2.55 2.63 2.52 2.57 2.65 2.74 2.60 2.66 2.74 2.83
AMPS 2.5 2.7 2.9 3.2 3.1 3.3 3.5 3.8 3.7 3.9 4.2 4.5 4.3 4.5 4.8 5.2 4.9 5.1 5.4 5.8 5.4 5.7 6.0 6.4
HIPR 227 245 258 269 255 274 290 302 290 312 330 344 330 356 375 392 372 400 422 440 411 442 467 487
LO PR 115 123 134 143 122 130 141 151 127 135 147 157 133 141 154 164 139 148 162 172 144 153 167 178
MBh 28.9 29.4 30.8 32.9 28.2 28.7 30.1 32.1 27.5 28.0 29.4 31.3 26.8 27.4 28.7 30.6 25.5 26.0 27.2 29.0 23.6 24.1 25.2 26.9
S/T 0.98 0.95 0.85 0.69 1.00 0.98 0.88 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.97 0.79 1.00 1.00 0.98 0.80
DeltaT252423202525232024 25 23202424 23202223232021212219
85 1050 KW 2.02 2.06 2.12 2.19 2.17 2.21 2.28 2.35 2.29 2.34 2.41 2.49 2.40 2.45 2.53 2.61 2.50 2.55 2.63 2.71 2.58 2.64 2.72 2.80
AMPS 2.4 2.6 2.8 3.1 3.0 3.2 3.4 3.7 3.7 3.9 4.1 4.5 4.2 4.4 4.7 5.1 4.8 5.0 5.3 5.7 5.3 5.6 5.9 6.3
HIPR 225 242 256 267 253 272 287 299 287 309 326 340 327 352 372 388 368 396 418 436 407 438 462 482
LO PR 114 121 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177
MBh 26.6 27.1 28.4 30.3 26.0 26.5 27.8 29.6 25.4 25.9 27.1 28.9 24.8 25.3 26.4 28.2 23.5 24.0 25.1 26.8 21.8 22.2 23.3 24.8
S/T 0.95 0.91 0.82 0.67 0.98 0.95 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.94 0.77
DeltaT252523202525242125 25 24212525 24212424242022222219
919 KW 1.98 2.02 2.08 2.14 2.12 2.16 2.22 2.29 2.24 2.29 2.35 2.43 2.35 2.40 2.47 2.55 2.44 2.49 2.57 2.65 2.52 2.57 2.65 2.74
AMPS 2.3 2.4 2.6 2.9 2.8 3.0 3.2 3.5 3.4 3.6 3.9 4.2 4.0 4.2 4.5 4.8 4.5 4.7 5.0 5.4 5.1 5.3 5.6 6.0
HIPR 218 235 248 259 245 264 278 290 279 300 317 330 317 341 361 376 357 384 406 423 394 424 448 467
LO PR 111 118 129 137 117 124 136 145 122 129 141 150 128 136 148 158 134 142 155 166 138 147 161 171
Shaded area is ARIRating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempower
A
MPS=outdoor unit amps (comp.+fan

15
COOLING PERFORMANCE DATA SSZ140361A*
EXPANDED PERFORMANCE DATA
MODEL: SSZ140361A* / CA*F4860*6A*+TXV / MBR1600**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 33.9 35.1 38.5 - 33.1 34.3 37.6 - 32.3 33.5 36.7 - 31.5 32.7 35.8 - 30.0 31.1 34.0 - 27.8 28.8 31.5 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
Delta T 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 18 16 12 -
1181 KW 2.34 2.39 2.46 - 2.51 2.56 2.64 - 2.66 2.72 2.80 - 2.79 2.85 2.94 - 2.90 2.96 3.06 - 3.00 3.06 3.16 -
AMPS 8.6 8.8 9.1 - 9.3 9.5 9.8 - 10.1 10.3 10.6 - 10.7 11.0 11.3 - 11.4 11.7 12.0 - 12.0 12.3 12.7 -
HIPR 218 235 248 - 245 264 278 - 279 300 317 - 317 342 361 - 357 384 406 - 395 425 448 -
LO PR 105 112 122 - 111 118 129 - 115 123 134 - 121 129 141 - 127 135 148 - 132 140 153 -
MBh 32.9 34.1 37.4 - 32.2 33.3 36.5 - 31.4 32.5 35.6 - 30.6 31.7 34.8 - 29.1 30.2 33.0 - 26.9 27.9 30.6 -
S/T 0.69 0.58 0.40 - 0.71 0.60 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.79 0.66 0.45 - 0.79 0.66 0.46 -
Delta T 20 17 13 - 20 17 13 - 20 17 13 - 20 18 13 - 20 17 13 - 19 16 12 -
70 1050 KW 2.33 2.37 2.44 - 2.49 2.54 2.62 - 2.64 2.69 2.78 - 2.77 2.83 2.92 - 2.88 2.94 3.03 - 2.98 3.04 3.14 -
AMPS 8.6 8.8 9.0 - 9.2 9.4 9.7 - 10.0 10.2 10.5 - 10.6 10.9 11.2 - 11.3 11.6 11.9 - 11.9 12.2 12.6 -
HIPR 216 233 246 - 243 261 276 - 276 297 314 - 314 338 357 - 354 380 402 - 391 420 444 -
LO PR 104 111 121 - 110 117 128 - 114 122 133 - 120 128 140 - 126 134 146 - 130 139 151 -
MBh 30.4 31.5 34.5 - 29.7 30.8 33.7 - 29.0 30.0 32.9 - 28.3 29.3 32.1 - 26.9 27.8 30.5 - 24.9 25.8 28.2 -
S/T 0.67 0.56 0.38 - 0.69 0.58 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.76 0.64 0.44 -
Delta T 20 18 13 - 20 18 13 - 20 18 13 - 21 18 14 - 20 18 13 - 19 16 12 -
919 KW 2.28 2.32 2.39 - 2.44 2.49 2.56 - 2.58 2.63 2.71 - 2.71 2.76 2.85 - 2.81 2.87 2.96 - 2.90 2.97 3.06 -
AMPS 8.4 8.5 8.8 - 9.0 9.2 9.5 - 9.7 9.9 10.3 - 10.4 10.6 10.9 - 11.0 11.2 11.6 - 11.6 11.9 12.3 -
HIPR 210 226 238 - 235 253 267 - 268 288 304 - 305 328 346 - 343 369 390 - 379 408 431 -
LO PR 101 107 117 - 107 114 124 - 111 118 129 - 117 124 135 - 122 130 142 - 126 134 147 -
MBh 34.5 35.5 38.4 41.2 33.7 34.7 37.5 40.3 32.9 33.8 36.6 39.3 32.1 33.0 35.7 38.4 30.5 31.4 34.0 36.4 28.2 29.1 31.5 33.8
S/T 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.94 0.84 0.64 0.41
DeltaT22 20 171122 211712 22 21 171223 21 17 12 22 20 17 12 21 19 16 11
1181 KW 2.36 2.41 2.48 2.55 2.53 2.58 2.66 2.74 2.68 2.74 2.82 2.91 2.81 2.87 2.96 3.06 2.93 2.99 3.08 3.18 3.02 3.09 3.19 3.29
AMPS 8.7 8.9 9.2 9.5 9.4 9.6 9.9 10.3 10.2 10.4 10.7 11.1 10.8 11.1 11.4 11.8 11.5 11.8 12.1 12.6 12.1 12.4 12.8 13.3
HIPR 221 237 251 261 248 266 281 293 282 303 320 334 321 345 364 380 361 388 410 428 399 429 453 472
LO PR 106 113 123 131 112 119 130 139 117 124 136 144 123 130 142 152 128 137 149 159 133 141 154 164
MBh 33.5 34.5 37.3 40.0 32.7 33.7 36.4 39.1 31.9 32.9 35.6 38.2 31.1 32.1 34.7 37.2 29.6 30.5 33.0 35.4 27.4 28.2 30.5 32.8
S/T 0.78 0.70 0.53 0.34 0.81 0.73 0.55 0.35 0.83 0.75 0.56 0.36 0.86 0.77 0.58 0.37 0.89 0.80 0.60 0.39 0.90 0.81 0.61 0.39
DeltaT23 21 171223 211812 23 21 181223 22 18 12 23 21 17 12 22 20 16 11
75 1050 KW 2.34 2.39 2.46 2.54 2.51 2.56 2.64 2.72 2.66 2.72 2.80 2.89 2.79 2.85 2.94 3.03 2.90 2.97 3.06 3.16 3.00 3.06 3.16 3.26
AMPS 8.7 8.8 9.1 9.4 9.3 9.5 9.8 10.2 10.1 10.3 10.6 11.0 10.7 11.0 11.3 11.7 11.4 11.7 12.0 12.5 12.0 12.3 12.7 13.2
HIPR 218 235 248 259 245 264 279 290 279 300 317 330 317 342 361 376 357 384 406 423 395 425 448 468
LO PR 105 112 122 130 111 118 129 137 116 123 134 143 121 129 141 150 127 135 148 157 132 140 153 163
MBh 30.9 31.8 34.4 37.0 30.2 31.1 33.6 36.1 29.5 30.3 32.8 35.2 28.7 29.6 32.0 34.4 27.3 28.1 30.4 32.7 25.3 26.0 28.2 30.3
S/T 0.76 0.68 0.51 0.33 0.78 0.70 0.53 0.34 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.87 0.78 0.59 0.38
DeltaT23 22 181224 221812 24 22 181224 22 18 12 24 22 18 12 22 20 17 11
919 KW 2.29 2.34 2.41 2.48 2.46 2.51 2.58 2.66 2.60 2.65 2.73 2.82 2.73 2.78 2.87 2.96 2.84 2.89 2.98 3.08 2.93 2.99 3.08 3.18
AMPS 8.4 8.6 8.9 9.2 9.1 9.3 9.6 9.9 9.8 10.0 10.4 10.7 10.5 10.7 11.0 11.4 11.1 11.3 11.7 12.1 11.7 12.0 12.4 12.8
HIPR 212 228 241 251 238 256 270 282 270 291 307 320 308 331 350 365 346 373 394 411 383 412 435 454
LO PR 102 109 119 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 153 128 136 148 158
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempow er
A
MPS=outdoor unit amps (comp.+fa
n

16
COOLING PERFORMANCE DATA SSZ140361A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140361A* / CA*F4860*6A*+TXV / MBR1600**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59 63 677159 636771 59 63 677159 63 67 715963677159636771
MBh 35.09 35.86 38.31 40.95 34.28 35.03 37.42 40.00 33.46 34.19 36.53 39.05 32.64 33.36 35.64 38.10 31.01 31.69 33.86 36.19 28.73 29.35 31.36 33.53
S/T 0.90 0.85 0.69 0.51 0.93 0.88 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.93 0.75 0.56 1.00 0.96 0.78 0.59 1.00 0.97 0.79 0.59
DeltaT25 24 211625 242117 25 24 211725 24 21 172424211622221915
1181 KW 2.38 2.43 2.50 2.57 2.55 2.60 2.68 2.77 2.70 2.76 2.84 2.93 2.84 2.90 2.99 3.08 2.95 3.01 3.11 3.21 3.05 3.11 3.21 3.32
AMPS 8.8 9.0 9.3 9.6 9.5 9.7 10.0 10.3 10.3 10.5 10.8 11.2 10.9 11.2 11.5 12.0 11.6 11.9 12.3 12.7 12.3 12.5 13.0 13.4
HIPR 223 240 253 264 250 269 284 296 284 306 323 337 324 349 368 384 364 392 414 432 403 433 457 477
LO PR 107 114 125 133 113 121 132 140 118 125 137 146 124 132 144 153 130 138 151 160 134 143 156 166
MBh 34.1 34.8 37.2 39.8 33.3 34.0 36.3 38.8 32.5 33.2 35.5 37.9 31.7 32.4 34.6 37.0 30.1 30.8 32.9 35.1 27.9 28.5 30.4 32.5
S/T 0.86 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.91 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.75 0.56
DeltaT26 25 211726 252217 26 25 221726 25 22 17 26 25 22 17 24 23 20 16
80 1050 KW 2.36 2.41 2.48 2.56 2.53 2.58 2.66 2.74 2.68 2.74 2.82 2.91 2.81 2.87 2.96 3.06 2.93 2.99 3.08 3.18 3.02 3.09 3.19 3.29
AMPS 8.7 8.9 9.2 9.5 9.4 9.6 9.9 10.3 10.2 10.4 10.7 11.1 10.8 11.1 11.4 11.8 11.5 11.8 12.1 12.6 12.2 12.4 12.8 13.3
HIPR 221 237 251 261 248 266 281 293 282 303 320 334 321 345 364 380 361 388 410 428 399 429 453 472
LO PR 106 113 123 131 112 119 130 139 117 124 136 144 123 130 142 152 128 137 149 159 133 141 154 164
MBh 31.4 32.1 34.3 36.7 30.7 31.4 33.5 35.8 30.0 30.6 32.7 35.0 29.3 29.9 31.9 34.1 27.8 28.4 30.3 32.4 25.7 26.3 28.1 30.0
S/T 0.83 0.78 0.63 0.47 0.86 0.81 0.66 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.69 0.52 0.94 0.89 0.72 0.54 0.95 0.89 0.73 0.54
DeltaT26 25 221726 252218 26 25 221827 26 22 182625221725232016
919 KW 2.31 2.36 2.42 2.50 2.47 2.52 2.60 2.68 2.62 2.67 2.76 2.84 2.75 2.81 2.89 2.98 2.86 2.92 3.01 3.10 2.95 3.01 3.11 3.21
AMPS 8.5 8.7 9.0 9.3 9.1 9.4 9.6 10.0 9.9 10.1 10.4 10.8 10.5 10.8 11.1 11.5 11.2 11.5 11.8 12.2 11.8 12.1 12.5 13.0
HIPR 214 230 243 254 240 258 273 285 273 294 310 324 311 335 353 369 350 377 398 415 387 416 439 458
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 133 145 154 129 137 150 159
MBh 35.71 36.40 38.12 40.67 34.88 35.55 37.23 39.72 34.04 34.70 36.35 38.78 33.21 33.86 35.46 37.83 31.55 32.16 33.69 35.94 29.23 29.79 31.20 33.29
S/T 0.95 0.91 0.82 0.67 0.98 0.95 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.94 0.77
DeltaT26 26 242127 262521 26 26 252126 26 25 222525252123232320
1181 KW 2.40 2.45 2.52 2.59 2.57 2.62 2.70 2.79 2.72 2.78 2.87 2.96 2.86 2.92 3.01 3.11 2.97 3.04 3.13 3.23 3.07 3.14 3.24 3.34
AMPS 8.9 9.1 9.4 9.7 9.6 9.8 10.1 10.4 10.3 10.6 10.9 11.3 11.0 11.3 11.6 12.1 11.7 12.0 12.4 12.8 12.4 12.7 13.1 13.6
HIPR 225 242 256 267 253 272 287 299 287 309 326 340 327 352 372 388 368 396 418 436 407 438 462 482
LO PR 108 115 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 139 152 162 136 144 157 168
MBh 34.7 35.3 37.0 39.5 33.9 34.5 36.1 38.6 33.1 33.7 35.3 37.6 32.2 32.9 34.4 36.7 30.6 31.2 32.7 34.9 28.4 28.9 30.3 32.3
S/T 0.90 0.87 0.79 0.64 0.93 0.90 0.81 0.66 0.96 0.92 0.83 0.68 0.99 0.95 0.86 0.70 1.00 0.99 0.89 0.73 1.00 1.00 0.90 0.73
DeltaT27 27 252228 272622 28 27 262228 27 26 222727262225252421
85 1050 KW 2.38 2.43 2.50 2.57 2.55 2.60 2.68 2.77 2.70 2.76 2.84 2.93 2.84 2.90 2.99 3.08 2.95 3.01 3.11 3.21 3.05 3.11 3.21 3.32
AMPS 8.8 9.0 9.3 9.6 9.5 9.7 10.0 10.3 10.3 10.5 10.8 11.2 10.9 11.2 11.5 12.0 11.6 11.9 12.3 12.7 12.3 12.5 13.0 13.4
HIPR 223 240 253 264 250 269 284 296 284 306 323 337 324 349 368 384 364 392 414 432 403 433 457 477
LO PR 107 114 125 133 113 121 132 140 118 125 137 146 124 132 144 153 130 138 151 160 134 143 156 166
MBh 32.0 32.6 34.2 36.4 31.3 31.9 33.4 35.6 30.5 31.1 32.6 34.7 29.8 30.3 31.8 33.9 28.3 28.8 30.2 32.2 26.2 26.7 28.0 29.8
S/T 0.87 0.84 0.76 0.61 0.90 0.87 0.78 0.64 0.92 0.89 0.80 0.65 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 1.00 0.96 0.87 0.71
DeltaT28 27 262228 282623 28 28 262328 28 26 232828262326262421
919 KW 2.33 2.37 2.44 2.52 2.49 2.54 2.62 2.70 2.64 2.69 2.78 2.86 2.77 2.83 2.92 3.01 2.88 2.94 3.03 3.13 2.98 3.04 3.13 3.24
AMPS 8.6 8.8 9.0 9.4 9.2 9.4 9.7 10.1 10.0 10.2 10.5 10.9 10.6 10.9 11.2 11.6 11.3 11.6 11.9 12.4 11.9 12.2 12.6 13.1
HIPR 216 233 246 256 243 261 276 287 276 297 313 327 314 338 357 372 353 380 402 419 391 420 444 463
LO PR 104 111 121 129 110 117 128 136 114 122 133 141 120 128 139 149 126 134 146 156 130 138 151 161
Shaded area is ARIRating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Totalsystempower
A
MPS=outdoor unit amps (comp.+fa
n

17
COOLING PERFORMANCE DATA SSZ140421A*
EXPANDED PERFORMANCE DATA
MODEL: SSZ140421A* / CA*F4860*6A*+TXV / MBR2000**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 39.2 40.6 44.5 - 38.3 39.7 43.5 - 37.4 38.7 42.4 - 36.5 37.8 41.4 - 34.6 35.9 39.3 - 32.1 33.3 36.4 -
S/T 0.77 0.65 0.45 - 0.80 0.67 0.46 - 0.82 0.69 0.48 - 0.85 0.71 0.49 - 0.88 0.74 0.51 - 0.89 0.74 0.51 -
Delta T 18 15 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 15 12 - 17 14 11 -
1575 KW 2.65 2.71 2.78 - 2.84 2.90 2.98 - 3.01 3.07 3.16 - 3.15 3.22 3.31 - 3.28 3.34 3.45 - 3.38 3.45 3.56 -
AMPS 9.7 9.9 10.2 - 10.4 10.7 11.0 - 11.3 11.6 12.0 - 12.1 12.4 12.8 - 12.8 13.1 13.6 - 13.6 13.9 14.4 -
HI PR 218 234 247 - 244 263 277 - 278 299 315 - 316 340 359 - 356 383 404 - 393 423 447 -
LO PR 107 114 125 - 113 121 132 - 118 125 137 - 124 132 144 - 130 138 151 - 134 143 156 -
MBh 38.1 39.4 43.2 - 37.2 38.5 42.2 - 36.3 37.6 41.2 - 35.4 36.7 40.2 - 33.6 34.9 38.2 - 31.2 32.3 35.4 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.45 - 0.81 0.68 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -
Delta T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
70 1400 KW 2.63 2.69 2.76 - 2.82 2.88 2.96 - 2.98 3.04 3.14 - 3.13 3.19 3.29 - 3.25 3.32 3.42 - 3.36 3.43 3.53 -
AMPS 9.6 9.8 10.1 - 10.4 10.6 10.9 - 11.2 11.5 11.8 - 12.0 12.2 12.6 - 12.7 13.0 13.4 - 13.4 13.8 14.2 -
HI PR 215 232 245 - 242 260 275 - 275 296 312 - 313 337 356 - 352 379 400 - 389 419 442 -
LO PR 106 113 123 - 112 120 130 - 117 124 136 - 123 130 142 - 129 137 149 - 133 141 154 -
MBh 35.1 36.4 39.9 - 34.3 35.6 39.0 - 33.5 34.7 38.0 - 32.7 33.9 37.1 - 31.0 32.2 35.2 - 28.8 29.8 32.7 -
S/T 0.71 0.59 0.41 - 0.74 0.62 0.43 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.68 0.47 - 0.82 0.68 0.47 -
Delta T 19 16 12 - 19 16 12 - 19 16 13 - 19 17 13 - 19 16 12 - 18 15 12 -
1225 KW 2.58 2.63 2.70 - 2.76 2.81 2.89 - 2.92 2.97 3.06 - 3.06 3.12 3.21 - 3.17 3.24 3.34 - 3.28 3.35 3.45 -
AMPS 9.4 9.6 9.9 - 10.1 10.3 10.6 - 10.9 11.2 11.5 - 11.6 11.9 12.3 - 12.4 12.7 13.1 - 13.1 13.4 13.8 -
HI PR 209 225 237 - 234 252 266 - 267 287 303 - 304 327 345 - 342 368 388 - 377 406 429 -
LO PR 103 110 120 - 109 116 127 - 113 120 132 - 119 127 138 - 125 133 145 - 129 137 150 -
MBh 39.9 41.0 44.4 47.7 38.9 40.1 43.4 46.6 38.0 39.1 42.4 45.5 37.1 38.2 41.3 44.4 35.2 36.3 39.3 42.1 32.6 33.6 36.4 39.0
S/T 0.88 0.79 0.60 0.38 0.91 0.82 0.62 0.40 0.94 0.84 0.63 0.41 0.97 0.86 0.65 0.42 1.00 0.90 0.68 0.44 1.00 0.90 0.68 0.44
DeltaT20191511211916112119 161121 19 16 11 21 19 16 11 19 18 15 10
1575 KW 2.67 2.73 2.80 2.89 2.86 2.92 3.01 3.10 3.03 3.09 3.18 3.28 3.18 3.24 3.34 3.45 3.30 3.37 3.47 3.58 3.41 3.48 3.59 3.70
AMPS 9.8 10.0 10.3 10.7 10.5 10.8 11.1 11.5 11.4 11.7 12.1 12.5 12.2 12.5 12.9 13.3 12.9 13.3 13.7 14.2 13.7 14.0 14.5 15.0
HI PR 220 236 250 260 247 265 280 292 280 302 319 332 319 344 363 379 359 387 408 426 397 427 451 471
LO PR 108 115 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 140 152 162 136 144 158 168
MBh 38.7 39.8 43.1 46.3 37.8 38.9 42.1 45.2 36.9 38.0 41.1 44.1 36.0 37.1 40.1 43.1 34.2 35.2 38.1 40.9 31.7 32.6 35.3 37.9
S/T 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.89 0.80 0.60 0.39 0.92 0.82 0.62 0.40 0.96 0.86 0.65 0.42 0.96 0.86 0.65 0.42
DeltaT21201611222016112220 161122 20 16 11 21 20 16 11 20 18 15 10
75 1400 KW 2.65 2.71 2.78 2.87 2.84 2.90 2.98 3.07 3.01 3.07 3.16 3.26 3.15 3.22 3.32 3.42 3.28 3.34 3.45 3.56 3.38 3.45 3.56 3.68
AMPS 9.7 9.9 10.2 10.6 10.4 10.7 11.0 11.4 11.3 11.6 12.0 12.4 12.1 12.4 12.8 13.2 12.8 13.1 13.6 14.1 13.6 13.9 14.4 14.9
HI PR 218 234 247 258 244 263 277 289 278 299 316 329 316 340 359 375 356 383 404 422 393 423 447 466
LO PR 107 114 125 133 113 121 132 140 118 125 137 146 124 132 144 153 130 138 151 161 134 143 156 166
MBh 35.7 36.8 39.8 42.7 34.9 35.9 38.9 41.7 34.1 35.1 38.0 40.7 33.2 34.2 37.0 39.7 31.6 32.5 35.2 37.8 29.2 30.1 32.6 35.0
S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.37 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
DeltaT22201611222017112220 171122 20 17 12 22 20 16 11 20 19 15 11
1225 KW 2.60 2.65 2.72 2.80 2.78 2.83 2.92 3.00 2.94 3.00 3.09 3.18 3.08 3.14 3.24 3.34 3.20 3.27 3.37 3.47 3.30 3.37 3.48 3.59
AMPS 9.4 9.7 10.0 10.3 10.2 10.4 10.7 11.1 11.0 11.3 11.6 12.1 11.7 12.0 12.4 12.9 12.5 12.8 13.2 13.7 13.2 13.5 14.0 14.5
HI PR 211 227 240 250 237 255 269 281 269 290 306 319 307 330 349 364 345 371 392 409 381 410 433 452
LO PR 104 111 121 129 110 117 128 136 114 122 133 142 120 128 140 149 126 134 146 156 130 139 151 161
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempower
A
MPS=outdoor unit amps (comp.+fan

18
COOLING PERFORMANCE DATA SSZ140421A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140421A* / CA*F4860*6A*+TXV / MBR2000**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 40.6 41.5 44.3 47.3 39.6 40.5 43.3 46.2 38.7 39.5 42.2 45.1 37.7 38.6 41.2 44.0 35.9 36.6 39.1 41.8 33.2 33.9 36.3 38.8
S/T 0.97 0.91 0.74 0.55 1.00 0.94 0.76 0.57 1.00 0.96 0.78 0.59 1.00 1.00 0.81 0.60 1.00 1.00 0.84 0.63 1.00 1.00 0.85 0.63
DeltaT232219152322191523 22 191522 23 19 162121191519201814
1575 KW 2.69 2.75 2.83 2.91 2.88 2.94 3.03 3.12 3.05 3.11 3.21 3.31 3.20 3.27 3.37 3.47 3.33 3.40 3.50 3.61 3.44 3.51 3.62 3.73
AMPS 9.9 10.1 10.4 10.8 10.6 10.9 11.2 11.6 11.5 11.8 12.2 12.6 12.3 12.6 13.0 13.5 13.1 13.4 13.8 14.3 13.8 14.2 14.6 15.2
HIPR 222 239 252 263 249 268 283 295 283 305 322 336 323 347 367 382 363 391 412 430 401 432 456 475
LO PR 110 117 127 136 116 123 134 143 120 128 140 149 126 134 147 156 132 141 154 164 137 146 159 169
MBh 39.4 40.2 43.0 46.0 38.5 39.3 42.0 44.9 37.6 38.4 41.0 43.8 36.6 37.4 40.0 42.8 34.8 35.6 38.0 40.6 32.2 32.9 35.2 37.6
S/T 0.92 0.86 0.70 0.53 0.95 0.90 0.73 0.54 0.98 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 0.98 0.80 0.60 1.00 0.99 0.81 0.60
DeltaT242320162423201624 23 201624 23 20 16 23 23 20 16 21 21 19 15
80 1400 KW 2.67 2.73 2.80 2.89 2.86 2.92 3.01 3.10 3.03 3.09 3.18 3.28 3.18 3.24 3.34 3.45 3.30 3.37 3.48 3.59 3.41 3.48 3.59 3.71
AMPS 9.8 10.0 10.3 10.7 10.5 10.8 11.1 11.5 11.4 11.7 12.1 12.5 12.2 12.5 12.9 13.3 12.9 13.3 13.7 14.2 13.7 14.0 14.5 15.0
HIPR 220 237 250 260 247 265 280 292 280 302 319 332 319 344 363 379 359 387 408 426 397 427 451 471
LO PR 109 115 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 140 152 162 136 144 158 168
MBh 36.4 37.1 39.7 42.4 35.5 36.3 38.8 41.4 34.7 35.4 37.8 40.5 33.8 34.6 36.9 39.5 32.1 32.8 35.1 37.5 29.8 30.4 32.5 34.7
S/T 0.89 0.83 0.68 0.51 0.92 0.86 0.70 0.53 0.94 0.89 0.72 0.54 0.97 0.91 0.74 0.56 1.01 0.95 0.77 0.58 1.02 0.96 0.78 0.58
DeltaT242320162524201625 24 201625 24 21 162423201623221915
1225 KW 2.61 2.67 2.74 2.82 2.80 2.85 2.94 3.03 2.96 3.02 3.11 3.21 3.10 3.17 3.26 3.36 3.22 3.29 3.39 3.50 3.33 3.40 3.50 3.62
AMPS 9.5 9.7 10.0 10.4 10.3 10.5 10.8 11.2 11.1 11.4 11.7 12.2 11.9 12.1 12.5 13.0 12.6 12.9 13.3 13.8 13.3 13.6 14.1 14.6
HIPR 213 229 242 253 239 257 272 284 272 293 309 322 310 333 352 367 349 375 396 413 385 414 438 456
LO PR 105 112 122 130 111 118 129 138 116 123 134 143 121 129 141 150 127 135 148 157 132 140 153 163
MBh 41.3 42.1 44.1 47.0 40.3 41.1 43.0 45.9 39.4 40.1 42.0 44.8 38.4 39.1 41.0 43.7 36.5 37.2 38.9 41.5 33.8 34.4 36.1 38.5
S/T 1.00 0.98 0.88 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.97 0.78 1.00 1.00 1.00 0.81 1.00 1.00 1.00 0.82
DeltaT242423202424232023 23 232022 23 23 202122232020202118
1575 KW 2.71 2.77 2.85 2.93 2.91 2.96 3.05 3.15 3.08 3.14 3.23 3.33 3.23 3.29 3.39 3.50 3.35 3.42 3.53 3.64 3.46 3.54 3.65 3.76
AMPS 9.9 10.2 10.5 10.9 10.7 11.0 11.3 11.7 11.6 11.9 12.3 12.7 12.4 12.7 13.1 13.6 13.2 13.5 13.9 14.5 13.9 14.3 14.8 15.3
HIPR 224 241 255 266 252 271 286 298 286 308 325 339 326 351 370 386 367 395 417 434 405 436 460 480
LO PR 111 118 129 137 117 124 136 145 122 129 141 150 128 136 148 158 134 142 155 165 138 147 161 171
MBh 40.1 40.9 42.8 45.6 39.1 39.9 41.8 44.6 38.2 39.0 40.8 43.5 37.3 38.0 39.8 42.5 35.4 36.1 37.8 40.3 32.8 33.4 35.0 37.4
S/T 0.97 0.93 0.84 0.68 1.00 0.97 0.87 0.71 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.78
DeltaT252524202625242125 25 242124 25 24 212324242122222219
85 1400 KW 2.69 2.75 2.83 2.91 2.88 2.94 3.03 3.12 3.05 3.11 3.21 3.31 3.20 3.27 3.37 3.47 3.33 3.40 3.50 3.61 3.44 3.51 3.62 3.73
AMPS 9.9 10.1 10.4 10.8 10.6 10.9 11.2 11.6 11.5 11.8 12.2 12.6 12.3 12.6 13.0 13.5 13.1 13.4 13.8 14.3 13.8 14.2 14.6 15.2
HIPR 222 239 252 263 249 268 283 295 283 305 322 336 323 347 367 382 363 391 412 430 401 432 456 475
LO PR 110 117 127 136 116 123 134 143 120 128 140 149 126 134 147 156 132 141 154 164 137 146 159 169
MBh 37.0 37.7 39.5 42.1 36.1 36.8 38.6 41.2 35.3 36.0 37.7 40.2 34.4 35.1 36.7 39.2 32.7 33.3 34.9 37.2 30.3 30.9 32.3 34.5
S/T 0.93 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.95 0.86 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.76
DeltaT262524212626242126 26 242126 26 25 212525242123232320
1225 KW 2.63 2.68 2.76 2.84 2.82 2.87 2.96 3.05 2.98 3.04 3.13 3.23 3.13 3.19 3.29 3.39 3.25 3.32 3.42 3.53 3.36 3.43 3.53 3.64
AMPS 9.6 9.8 10.1 10.5 10.3 10.6 10.9 11.3 11.2 11.5 11.8 12.3 12.0 12.2 12.6 13.1 12.7 13.0 13.4 13.9 13.4 13.8 14.2 14.7
HIPR 215 232 245 255 242 260 275 286 275 296 312 326 313 337 356 371 352 379 400 417 389 419 442 461
LO PR 106 113 123 131 112 119 130 139 117 124 136 144 123 130 142 152 128 137 149 159 133 141 154 164
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er
A
MPS=outdoor unit amps (comp.+fan

19
COOLING PERFORMANCE DATA SSZ140481A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140481A* / CA*F4860*6A*+TXV / MBR2000**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 45.1 46.7 51.2 - 44.0 45.6 50.0 - 43.0 44.5 48.8 - 41.9 43.5 47.6 - 39.8 41.3 45.2 - 36.9 38.2 41.9 -
S/T 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.48 - 0.87 0.73 0.50 - 0.88 0.73 0.51 -
Delta T 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
1744 KW 2.98 3.04 3.13 - 3.19 3.26 3.36 - 3.38 3.45 3.56 - 3.55 3.62 3.73 - 3.69 3.77 3.88 - 3.81 3.89 4.01 -
AMPS 5.9 6.2 6.5 - 6.8 7.0 7.4 - 7.7 8.0 8.5 - 8.6 8.9 9.4 - 9.5 9.8 10.3 - 10.3 10.7 11.2 -
HIPR 217 233 247 - 243 262 277 - 277 298 315 - 315 339 358 - 355 382 403 - 392 422 445 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 132 141 154 -
MBh 43.8 45.4 49.7 - 42.7 44.3 48.5 - 41.7 43.2 47.4 - 40.7 42.2 46.2 - 38.7 40.1 43.9 - 35.8 37.1 40.7 -
S/T 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.77 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.84 0.70 0.48 -
Delta T 19 16 12 - 19 17 13 - 19 17 13 - 19 17 13 - 19 16 12 - 18 15 12 -
70 1550 KW 2.96 3.02 3.10 - 3.17 3.23 3.33 - 3.36 3.42 3.53 - 3.52 3.59 3.70 - 3.66 3.74 3.85 - 3.78 3.86 3.98 -
AMPS 5.8 6.1 6.4 - 6.7 6.9 7.3 - 7.6 7.9 8.4 - 8.5 8.8 9.3 - 9.3 9.7 10.2 - 10.2 10.5 11.0 -
HIPR 215 231 244 - 241 259 274 - 274 295 311 - 312 336 355 - 351 378 399 - 388 418 441 -
LO PR 105 112 122 - 111 118 129 - 115 122 134 - 121 129 140 - 127 135 147 - 131 139 152 -
MBh 40.4 41.9 45.9 - 39.5 40.9 44.8 - 38.5 39.9 43.7 - 37.6 38.9 42.7 - 35.7 37.0 40.5 - 33.1 34.3 37.5 -
S/T 0.70 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.62 0.43 - 0.77 0.64 0.45 - 0.80 0.67 0.46 - 0.81 0.67 0.47 -
Delta T 19 17 13 - 19 17 13 - 19 17 13 - 20 17 13 - 19 17 13 - 18 16 12 -
1356 KW 2.89 2.95 3.04 - 3.10 3.16 3.25 - 3.28 3.34 3.45 - 3.44 3.51 3.62 - 3.57 3.65 3.76 - 3.69 3.77 3.89 -
AMPS 5.5 5.8 6.1 - 6.3 6.6 7.0 - 7.3 7.6 8.0 - 8.1 8.4 8.9 - 8.9 9.3 9.7 - 9.7 10.1 10.6 -
HIPR 208 224 237 - 234 252 266 - 266 286 302 - 303 326 344 - 341 367 387 - 376 405 428 -
LO PR 102 108 118 - 107 114 125 - 112 119 130 - 117 125 136 - 123 131 143 - 127 135 148 -
MBh 45.8 47.2 51.1 54.8 44.8 46.1 49.9 53.6 43.7 45.0 48.7 52.3 42.6 43.9 47.5 51.040.541.745.148.537.538.641.844.9
S/T 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.99 0.88 0.67 0.43 1.00 0.89 0.67 0.43
DeltaT211916112120161121 20 161121 20 16 11 21 19 16 11 20 18 15 10
1744 KW 3.00 3.06 3.15 3.25 3.22 3.28 3.38 3.49 3.41 3.48 3.58 3.70 3.58 3.65 3.76 3.88 3.72 3.80 3.92 4.04 3.84 3.92 4.05 4.18
AMPS 6.0 6.3 6.6 7.0 6.9 7.1 7.5 8.0 7.9 8.2 8.6 9.1 8.7 9.1 9.5 10.0 9.6 9.9 10.4 11.0 10.4 10.8 11.3 11.9
HIPR 219 236 249 260 246 265 279 291 280 301 318 331 319 343 362 378 358 386 407 425 396 426 450 469
LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 153 129 138 150 160 134 142 155 165
MBh 44.5 45.8 49.6 53.2 43.5 44.8 48.4 52.0 42.4 43.7 47.3 50.8 41.4 42.6 46.1 49.539.340.543.847.036.437.540.643.6
S/T 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.59 0.38 0.91 0.81 0.61 0.40 0.94 0.84 0.64 0.41 0.95 0.85 0.64 0.41
DeltaT222016112220171222 20 171222 21 17 12 22 20 17 11 21 19 15 11
75 1550 KW 2.98 3.04 3.13 3.22 3.19 3.26 3.36 3.46 3.38 3.45 3.56 3.67 3.55 3.62 3.73 3.85 3.69 3.77 3.88 4.01 3.81 3.89 4.01 4.14
AMPS 5.9 6.2 6.5 6.9 6.8 7.0 7.4 7.9 7.7 8.1 8.5 9.0 8.6 8.9 9.4 9.9 9.5 9.8 10.3 10.9 10.3 10.7 11.2 11.8
HIPR 217 233 247 257 243 262 277 289 277 298 315 328 315 339 358 374 355 382 403 421 392 422 445 465
LO PR 106 113 123 131 112 119 130 138 116 124 135 144 122 130 142 151 128 136 149 158 132 141 154 164
MBh 41.1 42.3 45.8 49.1 40.1 41.3 44.7 48.0 39.2 40.3 43.7 46.8 38.2 39.3 42.6 45.736.337.440.543.433.634.637.540.2
S/T 0.80 0.71 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.91 0.81 0.61 0.40 0.92 0.82 0.62 0.40
DeltaT222017122221171222 21 171223 21 17 12 22 21 17 12 21 19 16 11
1356 KW 2.91 2.97 3.06 3.15 3.12 3.18 3.28 3.38 3.30 3.37 3.47 3.58 3.46 3.54 3.65 3.76 3.60 3.68 3.79 3.91 3.72 3.80 3.92 4.04
AMPS 5.6 5.9 6.2 6.6 6.4 6.7 7.1 7.5 7.4 7.7 8.1 8.6 8.2 8.6 9.0 9.5 9.1 9.4 9.9 10.4 9.9 10.2 10.7 11.3
HIPR 210 226 239 249 236 254 268 280 269 289 305 318 306 329 348 363 344 370 391 408 380 409 432 451
LO PR 103 109 119 127 109 115 126 134 113 120 131 140 118 126 138 147 124 132 144 154 128 137 149 159
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total systempow er
A
MPS=outdoor unit amps (comp.+fa
n

20
COOLING PERFORMANCE DATA SSZ140481A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: SSZ140481A* / CA*F4860*6A*+TXV / MBR2000**-1 Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 46.7 47.7 50.9 54.4 45.6 46.6 49.7 53.2 44.5 45.5 48.6 51.9 43.4 44.3 47.4 50.6 41.2 42.1 45.0 48.1 38.2 39.0 41.7 44.6
S/T 0.95 0.89 0.73 0.54 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.83 0.62 1.00 1.00 0.83 0.62
DeltaT232219162423201623 23 201623 23 20 162222201620211815
1744 KW 3.03 3.08 3.18 3.27 3.24 3.31 3.41 3.51 3.43 3.51 3.61 3.73 3.60 3.68 3.79 3.91 3.75 3.83 3.95 4.07 3.87 3.95 4.08 4.21
AMPS 6.1 6.4 6.7 7.1 7.0 7.3 7.6 8.1 8.0 8.3 8.7 9.2 8.8 9.2 9.6 10.2 9.7 10.1 10.6 11.2 10.6 11.0 11.5 12.1
HIPR 221 238 252 262 248 267 282 294 282 304 321 335 322 346 366 381 362 390 411 429 400 430 454 474
LO PR 108 115 125 134 114 121 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 45.3 46.3 49.5 52.9 44.2 45.2 48.3 51.6 43.2 44.1 47.2 50.4 42.1 43.1 46.0 49.240.040.943.746.737.137.940.543.3
S/T 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.96 0.90 0.74 0.55 0.99 0.93 0.76 0.57 1.00 0.97 0.79 0.59 1.00 0.98 0.79 0.59
DeltaT242320162524211625 24 211625 24 21 17 24 23 20 16 22 22 19 15
80 1550 KW 3.00 3.06 3.15 3.25 3.22 3.28 3.38 3.49 3.41 3.48 3.58 3.70 3.58 3.65 3.76 3.88 3.72 3.80 3.92 4.04 3.84 3.92 4.05 4.18
AMPS 6.0 6.3 6.6 7.0 6.9 7.1 7.5 8.0 7.9 8.2 8.6 9.1 8.7 9.1 9.5 10.1 9.6 9.9 10.4 11.0 10.4 10.8 11.3 11.9
HIPR 219 236 249 260 246 265 279 291 280 301 318 332 319 343 362 378 358 386 407 425 396 426 450 469
LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 153 129 138 150 160 134 142 155 165
MBh 41.8 42.7 45.6 48.8 40.8 41.7 44.6 47.7 39.9 40.7 43.5 46.5 38.9 39.7 42.5 45.4 36.9 37.8 40.3 43.1 34.2 35.0 37.4 39.9
S/T 0.87 0.82 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.93 0.76 0.57 1.00 0.94 0.77 0.57
DeltaT252421172524211725 24 211725 24 21 172524211723221916
1356 KW 2.94 2.99 3.08 3.17 3.14 3.21 3.30 3.40 3.33 3.40 3.50 3.61 3.49 3.56 3.67 3.79 3.63 3.71 3.82 3.94 3.75 3.83 3.95 4.08
AMPS 5.7 6.0 6.3 6.7 6.6 6.8 7.2 7.6 7.5 7.8 8.2 8.7 8.4 8.7 9.1 9.6 9.2 9.5 10.0 10.6 10.0 10.4 10.9 11.5
HIPR 213 229 242 252 239 257 271 283 271 292 308 322 309 333 351 366 348 374 395 412 384 413 436 455
LO PR 104 110 121 128 110 117 127 136 114 121 132 141 120 127 139 148 125 133 146 155 130 138 151 160
MBh 47.5 48.4 50.7 54.1 46.4 47.3 49.5 52.8 45.3 46.1 48.3 51.6 44.2 45.0 47.1 50.3 42.0 42.8 44.8 47.8 38.9 39.6 41.5 44.3
S/T 1.00 0.96 0.87 0.70 1.00 1.00 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 1.00 0.81
DeltaT252523202425232024 24 242023 24 24 202223232020212219
1744 KW 3.05 3.11 3.20 3.30 3.27 3.33 3.43 3.54 3.46 3.53 3.64 3.76 3.63 3.71 3.82 3.95 3.78 3.86 3.98 4.11 3.90 3.99 4.11 4.25
AMPS 6.2 6.5 6.8 7.2 7.1 7.4 7.8 8.2 8.1 8.4 8.8 9.4 9.0 9.3 9.8 10.3 9.9 10.2 10.7 11.3 10.7 11.1 11.6 12.3
HIPR 224 241 254 265 251 270 285 297 285 307 324 338 325 350 369 385 366 393 415 433 404 435 459 479
LO PR 109 116 127 135 115 123 134 143 120 127 139 148 126 134 146 156 132 140 153 163 136 145 158 169
MBh 46.1 47.0 49.2 52.5 45.0 45.9 48.1 51.3 43.9 44.8 46.9 50.1 42.9 43.7 45.8 48.8 40.7 41.5 43.5 46.4 37.7 38.5 40.3 43.0
S/T 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77
DeltaT262624212626242126 26 242125 26 25 212425242122232320
85 1550 KW 3.03 3.08 3.18 3.27 3.24 3.31 3.41 3.51 3.43 3.51 3.61 3.73 3.60 3.68 3.79 3.91 3.75 3.83 3.95 4.07 3.87 3.95 4.08 4.21
AMPS 6.1 6.4 6.7 7.1 7.0 7.3 7.6 8.1 8.0 8.3 8.7 9.2 8.8 9.2 9.6 10.2 9.7 10.1 10.6 11.2 10.6 11.0 11.5 12.1
HIPR 221 238 252 262 248 267 282 294 282 304 321 335 322 346 366 381 362 390 411 429 400 430 454 474
LO PR 108 115 125 134 114 121 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 42.5 43.4 45.4 48.5 41.5 42.4 44.4 47.3 40.6 41.3 43.3 46.2 39.6 40.3 42.2 45.1 37.6 38.3 40.1 42.8 34.8 35.5 37.2 39.7
S/T 0.92 0.88 0.80 0.65 0.95 0.92 0.83 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.92 0.74
DeltaT262625212726252227 26 252227 27 25 222526252124242320
1356 KW 2.96 3.02 3.10 3.20 3.17 3.23 3.33 3.43 3.35 3.42 3.53 3.64 3.52 3.59 3.70 3.82 3.66 3.74 3.85 3.97 3.78 3.86 3.98 4.11
AMPS 5.8 6.1 6.4 6.8 6.7 6.9 7.3 7.8 7.6 7.9 8.3 8.8 8.5 8.8 9.2 9.8 9.3 9.7 10.1 10.7 10.2 10.5 11.0 11.6
HIPR 215 231 244 254 241 259 274 286 274 295 311 325 312 336 355 370 351 378 399 416 388 417 441 460
LO PR 105 111 122 130 111 118 129 137 115 122 134 142 121 129 140 150 127 135 147 157 131 139 152 162
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Totalsystem pow er
A
MPS=outdoor unit amps (comp.+fa
n
