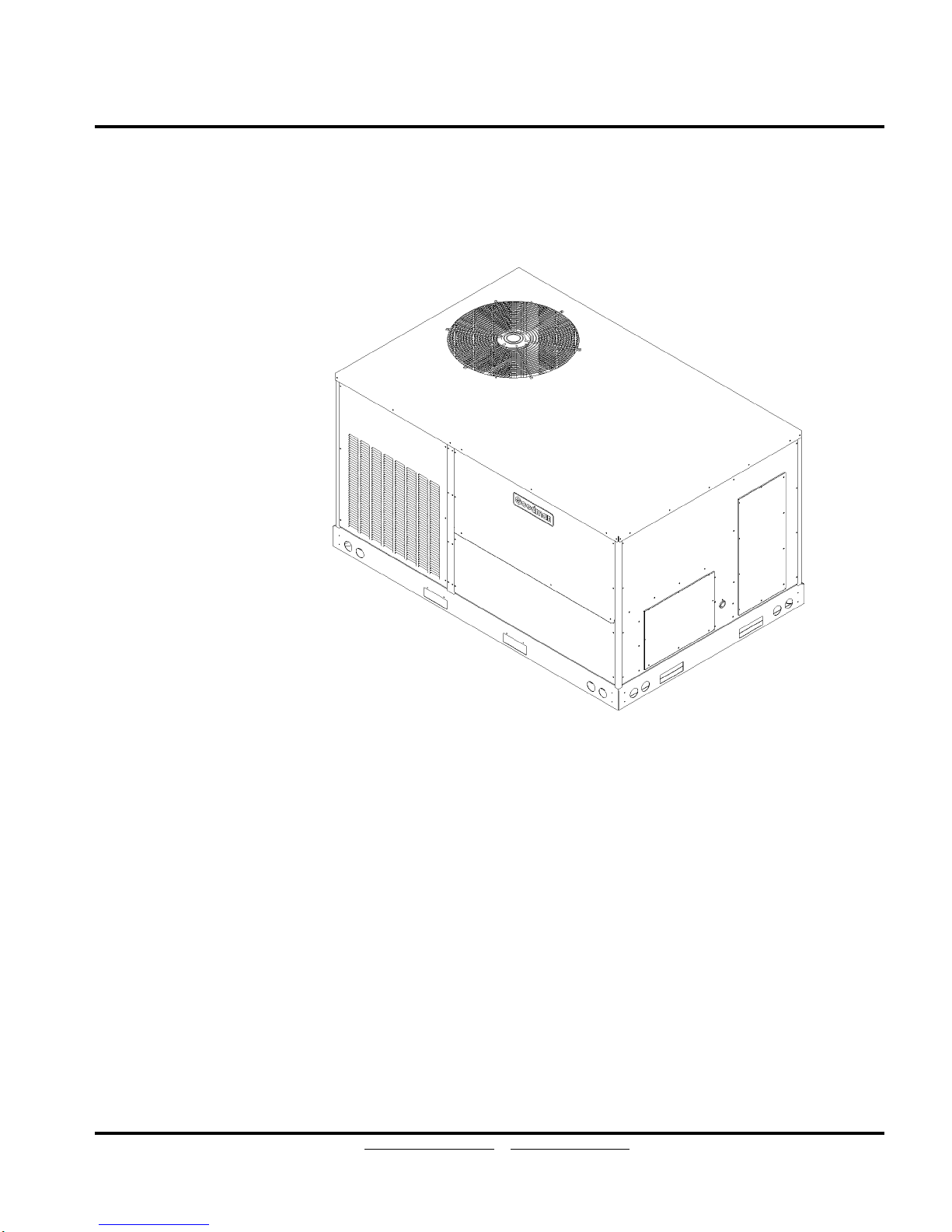

Goodman RP-526A Use and care manual

Light Commercial 3 - 6 Ton
Belt Drive Packaged Heat Pumps
REPAIR PARTS
RP-526A
This manual is to be used by qualified technicians only.
www.goodmanmfg.com www.amana-hac.com
This manual replaces RP-526
© 2008-2009 Goodman Manufacturing Company, L.P. ◊5151 San Felipe, Suite 500 ◊Houston, TX 77056
April 2009
CPH036XXX3BXJXB
A
CPH036XXX3BXXXB
A
CPH036XXX4BXJXB
A
CPH036XXX4BXXXB
A
CPH048XXX3BXJXB
A
CPH048XXX3BXXXB
A
CPH048XXX4BXJXB
A
CPH048XXX4BXXXB
A
CPH048XXX7BXJXB
A
CPH048XXX7BXXXB
A
CPH060XXX3BXJXB
A
CPH060XXX3BXXXB
A
CPH060XXX4BXJXB
A
CPH060XXX4BXXXB
A
CPH060XXX7BXJXB
A
CPH060XXX7BXXXB
A
CPH072XXX3BXJXB
A
CPH072XXX3BXXXB
A
CPH072XXX4BXJXB
A
CPH072XXX4BXXXB
A
CPH072XXX7BXJXB
A
CPH072XXX7BXXXB
A

Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
This system uses R410A refrigerant. If sealed system work is required, use approved equipment and follow
service procedures. Refer to Service Manual or Installation Instructions for service procedures.
Rev. A: Added 6 Ton models
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
Consumer Affairs Department
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
International Division
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
www.goodmanmfg.com www.amana-hac.com
4 - 13
3
RP-526A

Functional Parts
Part
No: Description:
0130M00025S 24V RELAY (M3, M4, M7, M8, M9, M10, M13,
M14, M15, M16, M19, M20, M21, M22)
PCBFM103S BOARD, ELECTRONIC BLOWER TIME
DELAY RELAY
CAP050000370VAS CAPACITOR 5/370V
ZP31K5ETF5830 COMPRESSOR 31200, 200/230/60/3 (M1, M2)
ZP31K5ETFD830 COMPRESSOR 31200, 460/60/3 (M3, M4)
ZP39K5ETF5830 COMPRESSOR 39000, 200/230/60/3 (M5, M6)
ZP39K5ETFD830 COMPRESSOR 39000, 460/60/3 (M7, M8)
ZP39K5ETFE830 COMPRESSOR 39000, 575/60/3 (M9, M10)
ZP51K5ETF5830 COMPRESSOR 51000, 208/230/60/3 (M11,
M12)
ZP51K5ETFD830 COMPRESSOR 51000, 460/60/3 (M13, M14)
ZP51K5ETFE830 COMPRESSOR 51000, 575/60/3 (M15, M16)
ZP61KCETF5830 COMPRESSOR 61500, 200/230/60/3 (M17,
M18)
ZP61KCETFD830 COMPRESSOR 61500, 460/60/3 (M19, M20)
ZP61KCETFE830 COMPRESSOR 61500, 575/60/3 (M21, M22)
0131M00008PS COND MOTOR 1/3 HP, 1 SP, 6 PL (M17, M18)
B13400249S COND MOTOR 1/3 HP, 460V (M19, M20)
0131M00007PS COND MOTOR 1/4 HP, 1 SP, 6 PL (M1, M2,
M5, M6, M11, M12)
B13400269S COND MOTOR 380/460 50/60 CYCLE (M3,
M4, M7, M8, M13, M14)
0131M00098S COND MOTOR 575V (M9, M10, M15, M16)
0131M00100S COND MOTOR 575V (M21, M22)
CONT3P025024VS CONTACTOR 25 AMP, 3P, 24V (M3, M4, M7,
M8, M9, M10, M13, M14, M15, M16, M19, M20,
M21, M22)
CONT3P030024VS CONTACTOR 30 AMP, 3P, 24V (M1, M2, M5,
M6, M11, M12, M17, M18)
0130M00055 CUT-OUT SWITCH, HIGH PRESSURE
0130L00007 CUT-OUT SWITCH, LOW PRESSURE
0130M00056 DEFROST CONTROL (M1, M2, M3, M4, M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
PCBDM101S DEFROST CONTROL BOARD
0130M00038S TERMINAL BOARD
B1141643 TRANSFORMER 208/230, 24V (M1, M2, M5,
M6, M11, M12, M17, M18)
B1141672 TRANSFORMER 480V, 75VA, RESETTABLE
(M3, M4, M7, M8, M13, M14, M19, M20)
0130M00045S TRANSFORMER 575/24V (M9, M10, M15,
M16, M21, M22)
SPECIAL PARTS
IO-354A INSTALLATION INSTRUCTIONS
RP-526A REPAIR PARTS MANUAL
B1757910 SUPPLEMENTAL INSERT (EBTDR)
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
3
RP-526A www.goodmanmfg.com www.amana-hac.com

Top Panel/Tubing Assy
4RP-526
A
www.goodmanmfg.com www.amana-hac.com

Top Panel/Tubing Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: INSULATED ASSY, TOP PANEL0270L00086S11
COND MOTOR 1/3 HP, 1 SP, 6 PL (M17, M18)0131M00008PS21
COND MOTOR 1/3 HP, 460V (M19, M20)B13400249S21
COND MOTOR 1/4 HP, 1 SP, 6 PL (M1, M2, M5,
M6, M11, M12)
0131M00007PS21
COND MOTOR 380/460 50/60 CYCLE (M3, M4, M7,
M8, M13, M14)
B13400269S21
COND MOTOR 575V (M9, M10, M15, M16)0131M00098S21
COND MOTOR 575V (M21, M22)0131M00100S21
ACORN NUT 5/16 HEX BLACK (QTY 4)0163M00006P31
FAN GRILLE0152G00002S41
PVC CONDUIT 8.25"17788000083F51
FAN BLADE0150G00001S61
VENTURI RING 22"0161L0000071
Image 2: ACCUMULATOR (M1, M2, M3, M4)B122620612
ACCUMULATOR .875 (M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17, M18, M19,
M20, M21, M22)
B122620712
CUT-OUT SWITCH, LOW PRESSURE0130L0000722
SOLENOID COILB1225022S32
SIDE RAIL (QTY 2)0121L00244RF42
BI-FLOW FILTER DRIER (M17, M18, M19, M20,
M21, M22)
2048520152
BI-FLOW FILTER DRIER, STEEL (M1, M2, M3, M4,
M5, M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
B121920452
REVERSING VALVE (M1, M2, M3, M4)B1227316S62
REVERSING VALVE (M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17, M18, M19,
M20, M21, M22)
B1227318S62
CUT-OUT SWITCH, HIGH PRESSURE0130M0005572
COMPRESSOR GROMMET (QTY 4)B133953382
END RAIL (QTY 2)0121L0024592
TF SHOULDER SCREW (QTY 4)M0221641102
COMPRESSOR 31200, 200/230/60/3 (M1, M2)ZP31K5ETF5830112
COMPRESSOR 31200, 460/60/3 (M3, M4)ZP31K5ETFD830112
COMPRESSOR 39000, 200/230/60/3 (M5, M6)ZP39K5ETF5830112
COMPRESSOR 39000, 460/60/3 (M7, M8)ZP39K5ETFD830112
COMPRESSOR 39000, 575/60/3 (M9, M10)ZP39K5ETFE830112
COMPRESSOR 51000, 208/230/60/3 (M11, M12)ZP51K5ETF5830112
COMPRESSOR 51000, 460/60/3 (M13, M14)ZP51K5ETFD830112
COMPRESSOR 51000, 575/60/3 (M15, M16)ZP51K5ETFE830112
COMPRESSOR 61500, 200/230/60/3 (M17, M18)ZP61KCETF5830112
COMPRESSOR 61500, 460/60/3 (M19, M20)ZP61KCETFD830112
COMPRESSOR 61500, 575/60/3 (M21, M22)ZP61KCETFE830112
COMPRESSOR MOUNTING PLATE0121L00309122
COMPRESSOR SCROLL HARNESS0159L00028NS
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
5
RP-526A www.goodmanmfg.com www.amana-hac.com

Cabinet Assy
6RP-526
A
www.goodmanmfg.com www.amana-hac.com

Cabinet Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: INSULATED ASSY, FILTER DOOR (M1, M2, M3,
M4, M5, M6, M7, M8, M9, M10, M11, M12, M13,
M14, M15, M16)
0270L0008011
INSULATED ASSY, FILTER DOOR (M17, M18,
M19, M20, M21, M22)
0270L0013911
INSULATED ASSY, ECONOMIZER DOOR0270L0008121
POST-SIDE SUPPORT (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
0121L00233RFDG31
POST-SIDE SUPPORT (M17, M18, M19, M20, M21,
M22)
0121L00343RFDG31
CORNER POST (M1, M2, M3, M4, M5, M6, M7, M8,
M9, M10, M11, M12, M13, M14, M15, M16)
0121L00237RFDG41
CORNER POST (M17, M18, M19, M20, M21, M22)0121L00344RFDG41
LOUVERED COMPRESSOR PANEL (M1, M2, M3,
M4, M5, M6, M7, M8, M9, M10, M11, M12, M13,
M14, M15, M16)
0121L00263DG51
LOUVERED COMPRESSOR PANEL (M17, M18,
M19, M20, M21, M22)
0121L00354DG51
SMOKE DETECTOR COVER0121L00321NS
Image 2: INSULATED ASSY, DUCT PANEL (M1, M2, M3, M4,
M5, M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
0270L0007912
INSULATED ASSY, DUCT PANEL (M17, M18, M19,
M20, M21, M22)
0270L0014512
INSULATED ASSY, RETURN DUCT0270L00011S22
INSULATED ASSY, SUPPLY DUCT0270L00012S32
ELECTRIC HEAT DOOR0121L00279DG42
INSULATED ASSY, BLOWER DOOR (M1, M2, M3,
M4, M5, M6, M7, M8, M9, M10, M11, M12, M13,
M14, M15, M16)
0270L0008452
INSULATED ASSY, BLOWER DOOR (M17, M18,
M19, M20, M21, M22)
0270L0014652
RAIL CORNER BRACKET (QTY 4)0121G0030162
LOUVERED CONTROL PANEL (M1, M2, M3, M4,
M5, M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
0121L00262DG72
LOUVERED CONTROL PANEL (M17, M18, M19,
M20, M21, M22)
0121L00353DG72
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
7
RP-526A www.goodmanmfg.com www.amana-hac.com

Partition Assy
8RP-526
A
www.goodmanmfg.com www.amana-hac.com

Partition Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: TUBING ASSY, COND COIL (M2, M4)0201L00038S11
TUBING ASSY, COND COIL (M12, M14, M16)0201L00039S11
TUBING ASSY, COND COIL (M6, M8, M10)0201L00040S11
TUBING ASSY, COND COIL (M11, M13, M15)0201L00043S11
TUBING ASSY, COND COIL (M5, M7, M9)0201L00044S11
TUBING ASSY, COND COIL (M1, M3)0201L00047S11
TUBING ASSY, COND COIL (M18, M20, M22)0201L0005311
TUBING ASSY, COND COIL (M17, M19, M21)0201L0005511
COND BLOCK-OFF (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M13, M14, M15, M16)
0121L0031121
COND BLOCK-OFF (M17, M18, M19, M20, M21,
M22)
0121L0034821
TUBING ASSY, EVAP COIL (M11, M12, M13, M14,
M15, M16)
0202L00020S31
TUBING ASSY, EVAP COIL (M1, M2, M3, M4)0202L00026S31
TUBING ASSY, EVAP COIL (M5, M6, M7, M8, M9,
M10)
0202L00029S31
TUBING ASSY, EVAP COIL (M17, M18, M19, M20,
M21, M22)
0202L0003231
DRAIN PAN GASKET (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
0154L0000941
DECK SIDE CHANNEL0121L0024351
ELECTRIC HEAT RETAINER0121L0028861
ELECTRIC HEAT COVER0121L0014471
ELECTRIC HEAT PANEL0121L0025681
BLOWER DECK0121L0024291
FLOWRATOR (M11, M12, M13, M14, M15, M16)0162L00012S101
FLOWRATOR (M1, M2, M3, M4)0162M00097S101
FLOWRATOR .076 (M5, M6, M7, M8, M9, M10)0162M00108101
FLOWRATOR [EVAP] (M17, M18, M19, M20, M21,
M22)
0162M00121101
FLOWRATOR (M1, M2, M3, M4)0162M00096111
FLOWRATOR .057 (M5, M6, M7, M8, M9, M10)0162M00106111
FLOWRATOR .065 (M11, M12, M13, M14, M15,
M16)
0162M00060111
FLOWRATOR .080 [COND] (M17, M18, M19, M20,
M21, M22)
0162M00120111
DEFROST CONTROL (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
0130M00056NS
Image 2: DRAIN PAN0161L0000512
COND BLOCK-OFF PLATE0121L0032422
COND MOUNTING ANGLE (M1, M2, M3, M4, M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14, M15,
M16)
0121L0025432
COND MOUNTING ANGLE (M17, M18, M19, M20,
M21, M22)
0121L0034932
DRAIN PAN SUPPORT0121L0023842
FILTER ANGLE-VERTICAL (RETURN SIDE) (M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14, M15,
M16)
0121L0028752
Image 2: FILTER ANGLE-VERTICAL (RETURN SIDE) (M17,
M18, M19, M20, M21, M22)
0121L0035752
FILTER ANGLE-HORIZONTAL (CENTER) (M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16,
M17, M18, M19, M20, M21, M22)
0121L0029862
FILTER ANGLE-HORIZONTAL (M5, M6, M7, M8,
M9, M10, M11, M12, M13, M14, M15, M16, M17,
M18, M19, M20, M21, M22)
0121L0028672
FILTER ANGLE-VERTICAL (HAIRPIN SIDE) (M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14, M15,
M16)
0121L0030382
FILTER ANGLE-VERTICAL (HAIRPIN SIDE) (M17,
M18, M19, M20, M21, M22)
0121L0035882
FILTER ANGLE-TOP (M1, M2, M3, M4)0121L0029092
FILTER ANGLE-VERTICAL (M1, M2, M3, M4)0121L00292102
FILTER ANGLE-BOTTOM (M1, M2, M3, M4)0121L00291112
AIR FILTER 20 X 16 X 2 (M17, M18, M19, M20,
M21, M22)
B1369608NS
FILTER 14 X 20 X 2 (M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16)
0160L00008NS
FILTER 24 X 24 (M1, M2, M3, M4)0160L00046NS
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
9
RP-526A www.goodmanmfg.com www.amana-hac.com

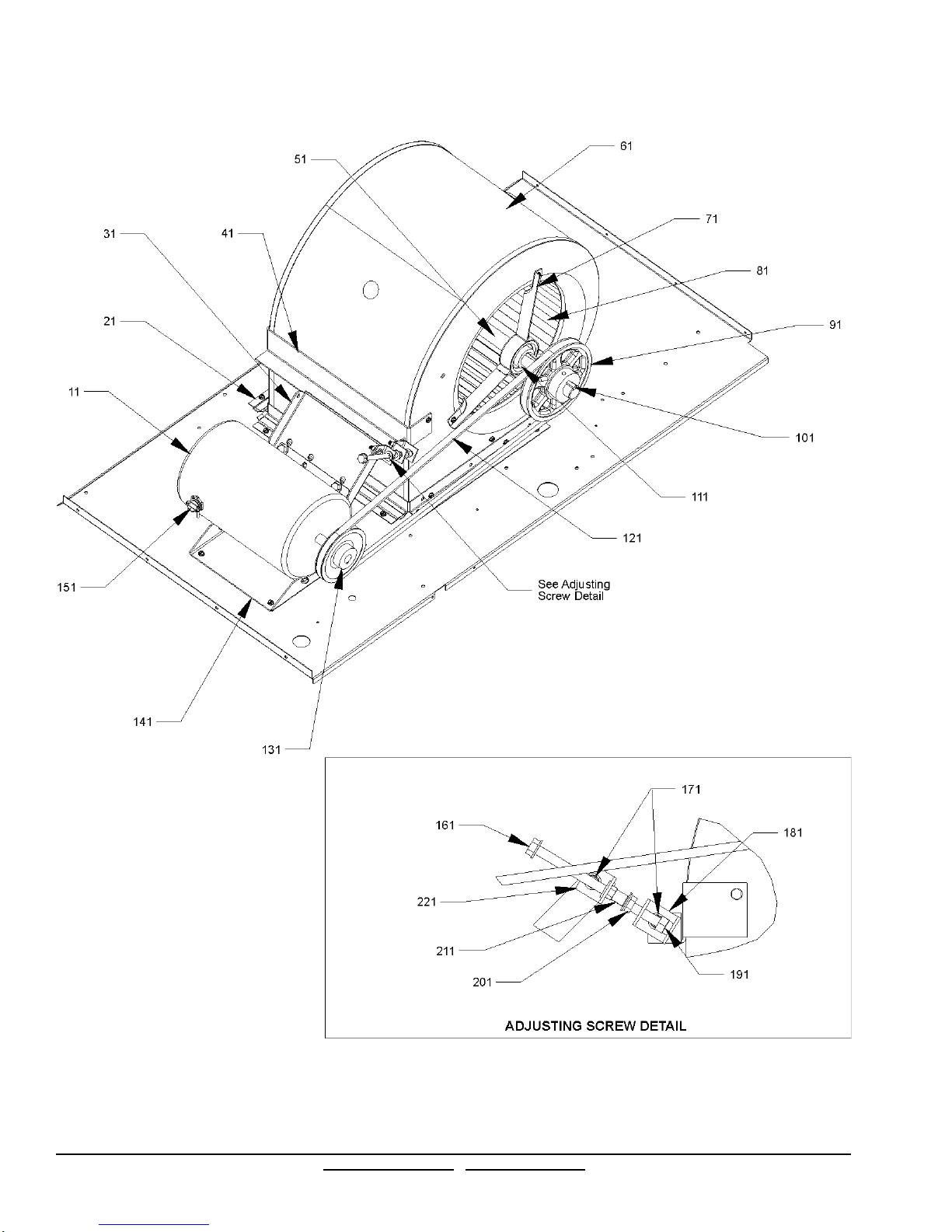

Belt Drive Assy
10 RP-526
A
www.goodmanmfg.com www.amana-hac.com

Belt Drive Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: BELT DRIVE MOTOR (230/460)/60/3P (M17, M18,
M19, M20)
B324000711
BELT DRIVE MOTOR 1 HP (M1, M2, M3, M4, M5,
M6, M7, M8, M11, M12, M13, M14)
0131L00003S11
BELT DRIVE MOTOR 1.5 HP 575V (M9, M10, M15,
M16, M21, M22)
0131L00004S11
BLOWER SIDE ANGLE (QTY 3)0121L0029721
MOTOR MOUNT PLATE0121L0027131
MOTOR MOUNT ANGLE0121L0027241
BELT DRIVE BLOWER SHAFT0163L0000551
BLOWER HOUSING 11 X 102539302FS61
MOUNTING BRACKET BEARING (QTY 2)B320130071
BELT DRIVE BLOWER WHEELB136805681
FIXED SHEAVE (M1, M2, M3, M4)B212001191
FIXED SHEAVE AK59 (M17, M18, M19, M20, M21,
M22)
0163L0003191
FIXED SHEAVE AK61 (M11, M12, M13, M14, M15,
M16)
B320430391
FIXED SHEAVE AK66 (M5, M6, M7, M8, M9, M10)B320431091
STEEL KEY (000158812) 2.0"B1398604101
BALL BEARING 1.00" (QTY 2)B1399500111
FAN BELT, NOTCHED0164L00003121
VARIABLE PITCH SHEAVE 1VL40 X 5/8" (M1, M2,
M3, M4)
0163L00024131
VARIABLE PITCH SHEAVE 1VL44 X 3/8" (M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
B2120001131
VARIABLE PITCH SHEAVE 1VL44 X 7/8" (M17,
M18, M19, M20, M21, M22)
B2120014131
MOTOR PIVOT ANGLE0121L00273141
ELECT. CONNECTING BUSHINGB1393726151
BOLT0163M00054161
BOLT 1/4-20 X 3/4" (QTY 4)B1393738171
MOTOR ADJUST BRACKET0121L00274181
ACORN NUT 5/16 X 180163M00055191
FLANGED LOCKNUT 5/16-18TPIB1393020201
HEX NUT INSERT 5/16-18 (QTY 5)B1393027211
MOUNTING BRACKET INSERT0121L00275221
BELT DRIVE BLOWER CUT-OFF1864700FNS
STEEL KEY (000158812) 4.5"B1398603NS
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
11
RP-526A www.goodmanmfg.com www.amana-hac.com

Control Box Assy
12 RP-526
A
www.goodmanmfg.com www.amana-hac.com

Control Box Assy
Ref.
No: Part No: Description: Ref. No: Part No: Description:
Image 1: DEFROST CONTROL BOARDPCBDM101S11
TRANSFORMER 208/230, 24V (M1, M2, M5, M6,
M11, M12, M17, M18)
B114164321
TRANSFORMER 480V, 75VA, RESETTABLE (M3,
M4, M7, M8, M13, M14, M19, M20)
B114167221
TRANSFORMER 575/24V (M9, M10, M15, M16,
M21, M22)
0130M00045S21
24V RELAY (M3, M4, M7, M8, M9, M10, M13, M14,
M15, M16, M19, M20, M21, M22)
0130M00025S31
CONTACTOR 25 AMP, 3P, 24V (M3, M4, M7, M8,
M9, M10, M13, M14, M15, M16, M19, M20, M21,
M22)
CONT3P025024VS41
CONTACTOR 30 AMP, 3P, 24V (M1, M2, M5, M6,
M11, M12, M17, M18)
CONT3P030024VS41
CAPACITOR 5/370VCAP050000370VAS51
TERMINAL BOARD0130M00038S61
BOARD, ELECTRONIC BLOWER TIME DELAY
RELAY
PCBFM103S71
CAPACITOR STRAP20520901NS
CONTROL HARNESS0259L00076NS
DEFROST HARNESS (M1, M2, M5, M6, M11, M12,
M17, M18)
0259L00077NS
DEFROST HARNESS (M3, M4, M7, M8, M9, M10,
M13, M14, M15, M16, M19, M20, M21, M22)
0259L00078NS
WIRING HARNESS0259L00057NS
WIRING HARNESS0259L00061NS
WIRING HARNESS (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M13, M14, M15, M16)
0259L00065NS
WIRING HARNESS (M1, M2, M5, M6, M9, M10,
M11, M12, M15, M16, M17, M18, M21, M22)
0259L00070NS
WIRING HARNESS (M3, M4, M7, M8, M13, M14,
M19, M20)
0259L00071NS
WIRING HARNESS (M17, M18, M19, M20, M21,
M22)
0259L00094NS
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
13
RP-526A www.goodmanmfg.com www.amana-hac.com
