Item Part No. Material Description Material Specification Qty Position Remarks

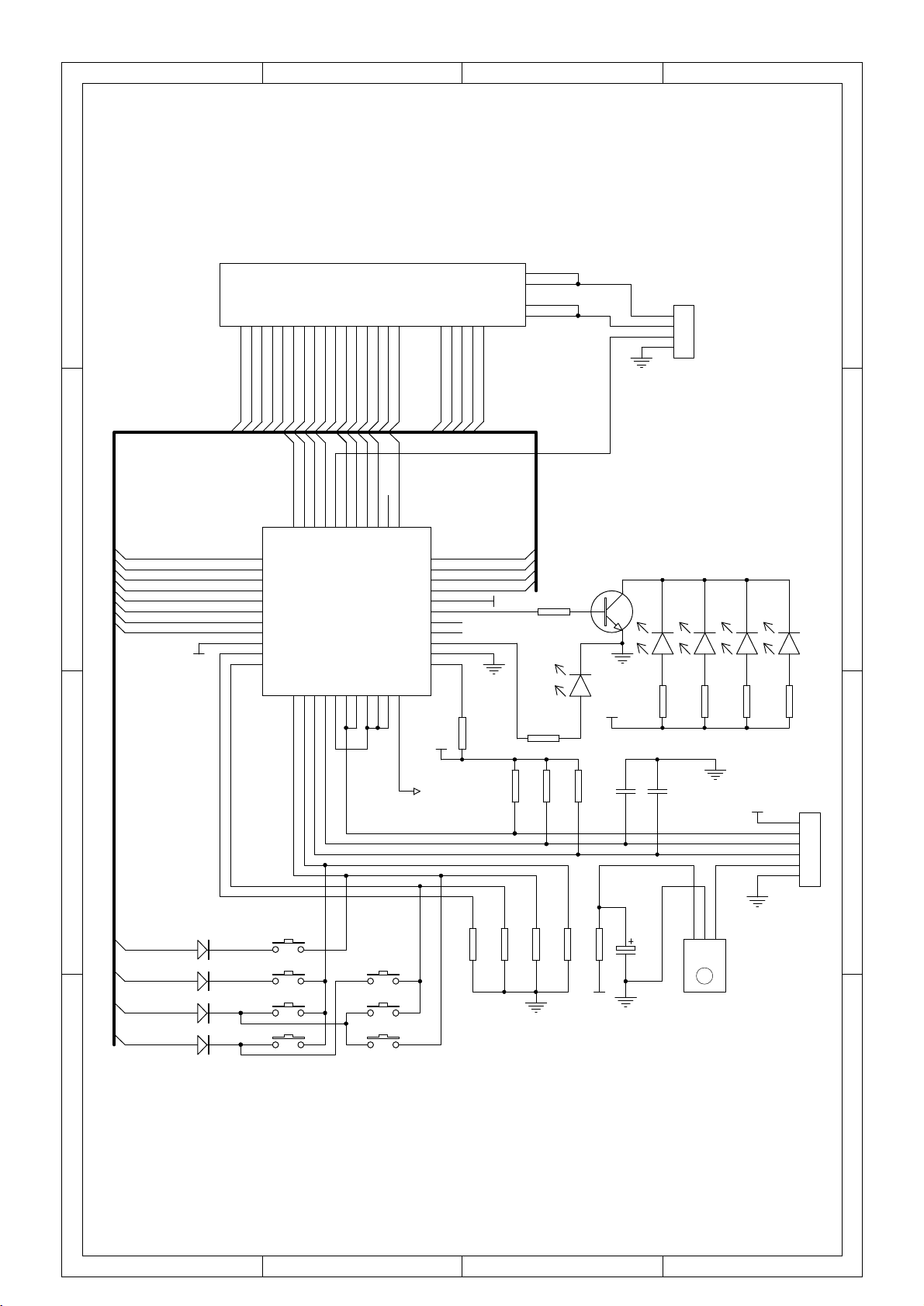

7.01.2.D302V341 Parts for control panel
1 1.01.1.47R0J031 carbon resistor 47Ω,1/8W,±5% 1 R8
2 1.01.1.1002J031 carbon resistor 10K,1/8W,±5% 7 R1,R2,R3,R4,905,R906,R907
3 1.01.1.5602J031 carbon resistor 56K,1/8W,±5% 1 R908
4 1.04.1.101M0601 ceramic capacitor 100pF,50V,±20% 3 C902,C903,C904
5 1.04.1.104M0601 ceramic capacitor 0.1uF,50V,±20% 1 C905
6 1.04.6.107M0201 Elec 100uF,10V,±20% 1 C901
7 1.06.1.03560001 magnetic ball Φ3.5×6mm 2 L902,L904
8 1.09.1.01N41481 diode 1N4148 3 D1,D2,D3
9 1.15.3.06060501 touch switch 6×6,H=5mm 5 OPEN/CLOSE1,PLAY/PAUSE1,STOP1,PREV1,NEXT1
10 1.31.2.00GP1U51 infrared receiving tube GP1U5 1 REM1
11 1.17.2.0PT63111 integrated PT6311,QFP52 1 IC901
12 1.18.1.C08SS471 VFD display display ,HNVC08SS47 1
13 1.23.1.44012101 wire length120mm,P/N:161-440-001121 1 CN1
14 1.23.1.66030199 wire length300mm,P/N:161-660-099301 1 J902
15 1.30.2.D302V341 PCB control panel,08SS47RDS.PCB 1 128×38.5mm
7.01.4.D302V341 Parts for MIC board
16 5.01.1.10000001 jumper 10mm 1 S1
17 1.01.1.1000J031 carbon resistor 100Ω,1/8W,±5% 1 R15
18 1.01.1.4700J031 carbon resistor 470Ω,1/8W,±5% 2 R8,R9
19 1.01.1.1001J031 carbon resistor 1K,1/8W,±5% 3 R4,R5,R14
20 1.01.1.4701J031 carbon resistor 4.7K,1/8W,±5% 2 R1,R11
21 1.01.1.1002J031 carbon resistor 10K,1/8W,±5% 4 R2,R3,R10,R12
22 1.01.1.1502J031 carbon resistor 15K,1/8W,±5% 1 R13
23 1.01.1.2202J031 carbon resistor 22K,1/8W,±5% 2 R6,R7
24 1.04.1.221M0601 ceramic capacitor 220pF,50V,±20% 3 C1,C2,C5
25 1.04.2.102M0601 polyster capacitor 1000pF,50V,±20% 2 C3,C4
26 1.04.6.106Z0401 Elec 10uF,25V,+80%/-20% 8 E1-E9
27 1.04.6.107Z0301 Elec 100uF,16V,+80%/-20% 1 E9
28 1.17.1.00045581 integrated MC4558,DIP8 2 IC1,IC2
29 1.20.2.0TJC35A1 jack TJC3-5A 1 J2
30 1.23.1.33322102 wire length220mm,shielded line,P/N:161-333-002221 1 J1 to decoder board, CN12
31 1.21.2.635037BB MIC jack CK6.35-03-7B,silver 2 MIC1,MIC2
32 1.30.4.D302V341 PCB MIC board,K18OK.PCB NO.DV2023-14 1 72×60mm
7.01.3.D303V501 Parts for MIC volume board
33 1.02.B.10306302 adjustable resistor IR,R1212N120F,B10K, F axis,20mm 2 VR1,VR2
34 1.23.1.55580006 wire length80mm,shielded line,P/N:161-555-006800 1 MIC jackJ2 to MIC jack volume board J1
35 1.30.3.D303V501 PCB MIC volume board,DV2023VOL.PCB,181-D303-553 1 38.5×32.5mm,NO.DV2023-13
7.01.7.D302V171 Parts for power switch board
36 1.15.2.00A101D1 key switch power switch,KDC-A10-1D 1 VDE ,VDE
37 5.10.1.D303V011 insulated protection set power switch insulated protection set 1 power switch
38 1.30.7.D302V011 PCB power switch board,D302POWER.PCB,181-D302-060 1 20.5×17mm,
7.01.G.D303V501 Parts for audio board
39 1.21.5.AV484132 AV jack AV4-8.4-13, up red and down white 1
40 1.23.1.55010101 wire length100mm,P/N:161-550-001101 1 connected to amplifier board, J11
41 1.30.G.D303V501 PCB audio board, DV2023AUDIO.PCB,181-D303-544 1 25×19mm,NO.DV2023-4
7.01.D.D303V502 Parts for SCART board
42 1.21.4.0RC21021 SCART jack RC2102 1
43 1.23.1.55080001 wire length80mm,P/N:161-550-001800 1 to decoder board, CN13
44 1.23.1.76080002 wire length80mm,P/N:161-760-002800 1 connected to decoder board CN14()
45 1.30.D.D303V501 PCB SCART BOARD,DV2023SCART.PCB,181-D303-545 1 48.5×15.5mm,NO.DV2023-5
7.01.D.D303V501 Amplifer board (B board)
46 5.01.1.05000001 jumper 5mm 23 S1~S16,S18~S20,S22,S34,S68,S73
47 5.01.1.07500001 jumper 7.5mm 17 S21,S23~S33,S36,S37,S71,S72,Z2
48 5.01.1.10000001 jumper 10mm 14 S38~S49,S74,S75
49 5.01.1.12500001 jumper 12.5mm 8 S35,S57-S63
50 5.01.1.15000001 jumper 15mm 8 S51~S56,S69,S70
51 5.01.1.17500001 jumper 17.5mm 4 S64~S67
