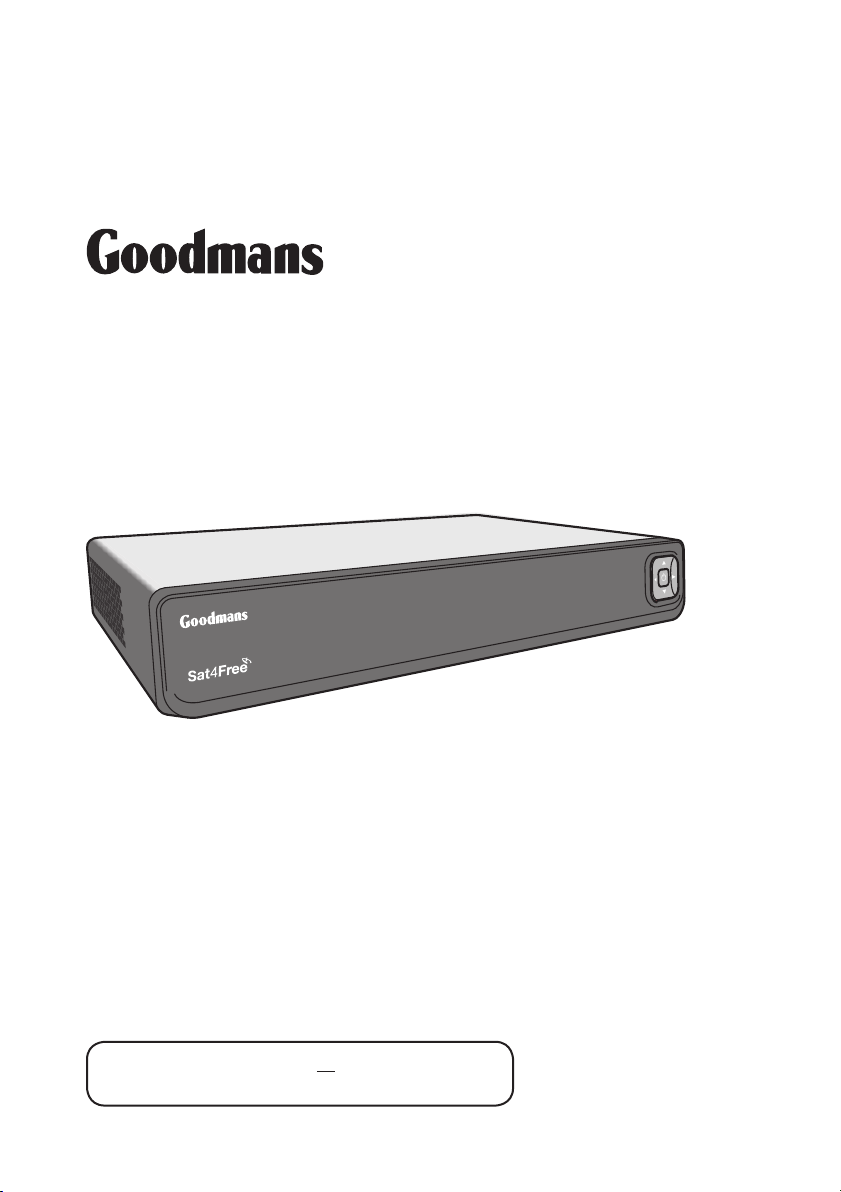

Goodmans GSAT200HDEX User manual

GSAT200HDEX
HD digital box
Instruction Manual
HD
IMPORTANT: Please read all instructions
carefully before use and keep for future reference.
GSAT200HDEX IB-Rev1-August08.indd 1 15/08/2008 11:44:36

In the box
HD
Welcome
Thank you for choosing this Goodmans HD digital box.
Not only can it receive over 80 subscription free channels, but you
can also get free HD content*, and radio channels.
It’s really simple to use; it’s all done using the clear, easy to understand on screen menus
which are operated from the remote control. It even has a reminder function so that you
won’t miss your favourite programmes.
*A HD digital box and HD Ready TV with a HDMI socket are required to receive HD
content.
Your new HD digital box
2 x AAA batteries
HDMI cable
Quick start guide
Remote control
For a one off payment, you can buy a
digital box, satellite dish and
installation giving you over 80 channels
covering the best of TV and more.
A digital box that can receive HD
content with a HDMI socket, lets you
view HD programmes through your HD
ready TV* when connected together
using a HDMI cable.
1
01
Power adapter
GSAT200HDEX IB-Rev1-August08.indd 2 15/08/2008 11:44:40

14/19V
DC 12V IN
Your digital box
Front view
Rear view
LNB IN Signal In
from LNB on satellite
LNB OUT This
has no function and
does not act as a loop
through
SPDIF Digital
Audio Out con-
nection
ETHERNET For future
use (Broadband
connection required)
HDMI High
definition output
(For connection
to a HD Ready
TV)
VCR Standard
definition SCART
output (For
connection to a
recording device)
RS232 For
factory use
only
TV Standard definition
SCART output (For connection
to a non HD TV or recording
device)
NAVIGATION
Navigate up/down/left/
right in menus/on screen
displays.
STANDBY Power On/
Standby.
2
02
GSAT200HDEX IB-Rev1-August08.indd 3 15/08/2008 11:44:40

Your remote control
STANDBY Power On/Standby.
MUTE Turns the volume On
and Off.
NUMBER PAD Enter values and
select the channel number directly by
entering it’s number.
WIDE Adjust the aspect ratio of the
video output.
TV/DTV Switches between the two
SCART signals.
INFO Display the Info bar.
NAVIGATION Navigate up/down/
left/right in menus/on screen displays.
OK Confirm selection in menu/on
screen displays.
EXIT Closes menu.
BACK Takes you back to the previous
menu.
CH +/- Channel up and down.
COLOUR BUTTONS For
interactive use and navigating menus.
CH LIST Opens the channel list
menu.
SUB Cycle through the
available subtitles for the
current programme.
AD Turns audio description On
and Off.
GUIDE Opens the programme list
menu.
TEXT Displays digital teletext when
available.
VOL +/- Volume up and down.
SWAP Return to the previous
selected channel.
MENU Opens the main menu.
3
03
GSAT200HDEX IB-Rev1-August08.indd 4 15/08/2008 11:44:41

Daily use
Introducing the channel lists
There are two channel lists available to
you;
The ‘Channel list’ shows all the available
channels that you can receive.
The ‘Programme list’ shows the
scheduled programmes available on each
channel.
You can use the arrow buttons to select
a different channel and use the coloured
buttons to move to a new page of
channels.
Press [OK] to watch the selected
programme.
103 UTV
104 Channel 4
106 BBC Three
107 BBC Four
108 BBC HD
109 ITV2
110 ITV3
111 ITV3+1
102 BBC Two NI
101 BBC One NI
112 ITV4
TV Listings
Show TV List Show Fav List Edit Fav List Lock Channel
Watch Exit Menu Delete Channel
101 BBC One NI
102 BBC Two NI
103 UTV
104 Channel 4
106 BBC Three
107 BBC Four
108 BBC HD
109 ITV2
Page Down
Torchwood
Holby City
Top Gear
Page Up +24 Hrs -24 Hrs
Watch
Dr Who Confidential
Send In The Dogs
Gordon Ramsey F
Charles Wheeler Batman
Bird on a W
10 Years
Previ
Mat
Exit Menu
News

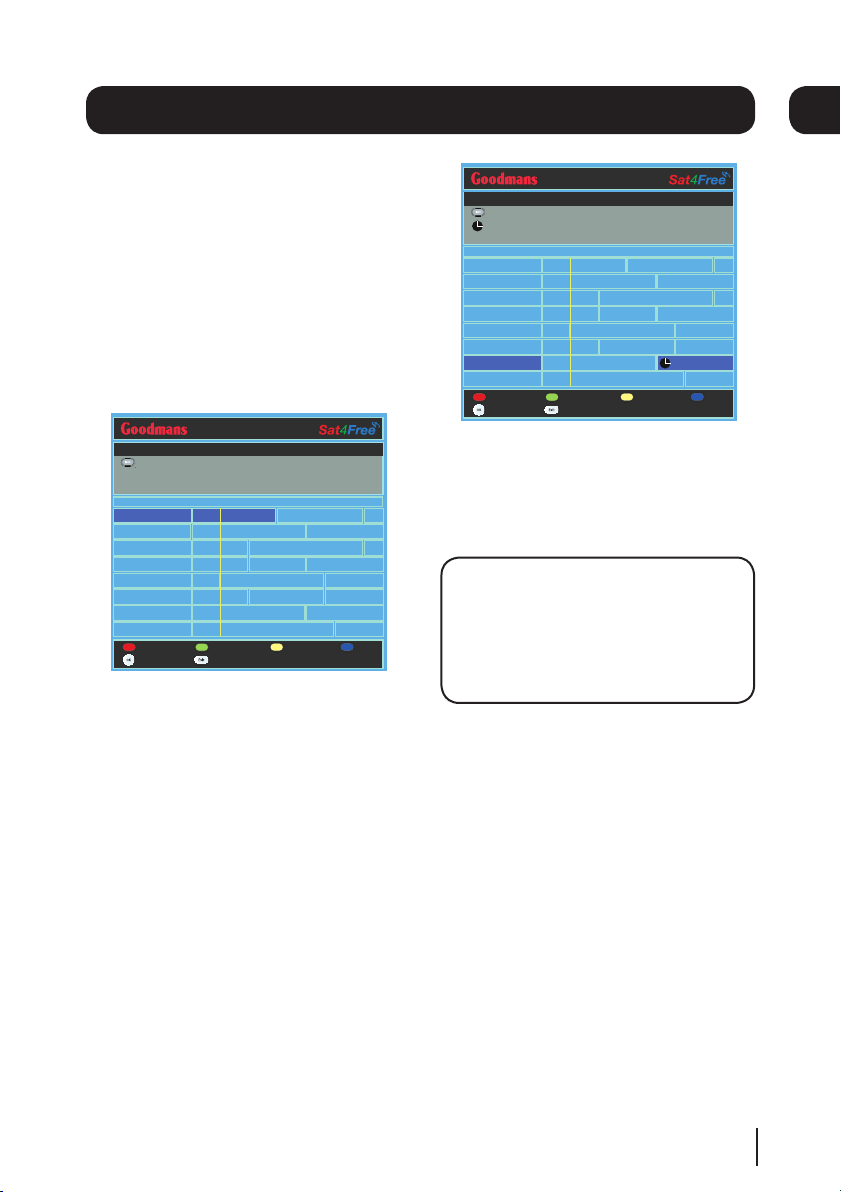

Eastenders 20:00 - 20:30
20:00 20:30 21:00
22nd July
Bon
Tanya fears her family is in meltdown and grows concerned that Lauren has run
away with Peter. Bradley fumes when he finds Clare's notebook and refuses to
lend her any money.
Real Hustle
Bonekickers
Eastenders
Emmerdale
Time Shift
Jurassic Park III
V o y a g e s
Changing the channel
You can select the channel you want to
watch by using the [CH+] and [CH-}
buttons on the remote control.
Alternatively use the number buttons to
key in the channel number.
When you change the channel the info
screen will be displayed for a few
seconds. This shows the details of the
programme currently showing and the
next programme for the selected channel.
Changing the volume
You can change the volume by using the
[VOL+] and [VOL-} buttons on the remote
control. You can turn off the volume by
pressing the [MUTE] button. To turn it
back on press the [MUTE] button again.
Audio description
Audio description is an additional
narration that describes all significant
visual information such as body language,
facial expression, scenery, costumes -
anything that is important to the plot of
the story, event or image.
Press the [AD] button to switch audio de-
scription on (if available). Press the [AD]
button again to switch it off.
Subtitles
Press the [SUB] button to display subtitles
(if available). Press the [SUB] button again
to turn them off.
4
04
Now:
Next:
101
Eastenders 20:00 - 20:30
Holby City 20.30 - 21:00
BBC One 20:14
GSAT200HDEX IB-Rev1-August08.indd 5 15/08/2008 11:44:42

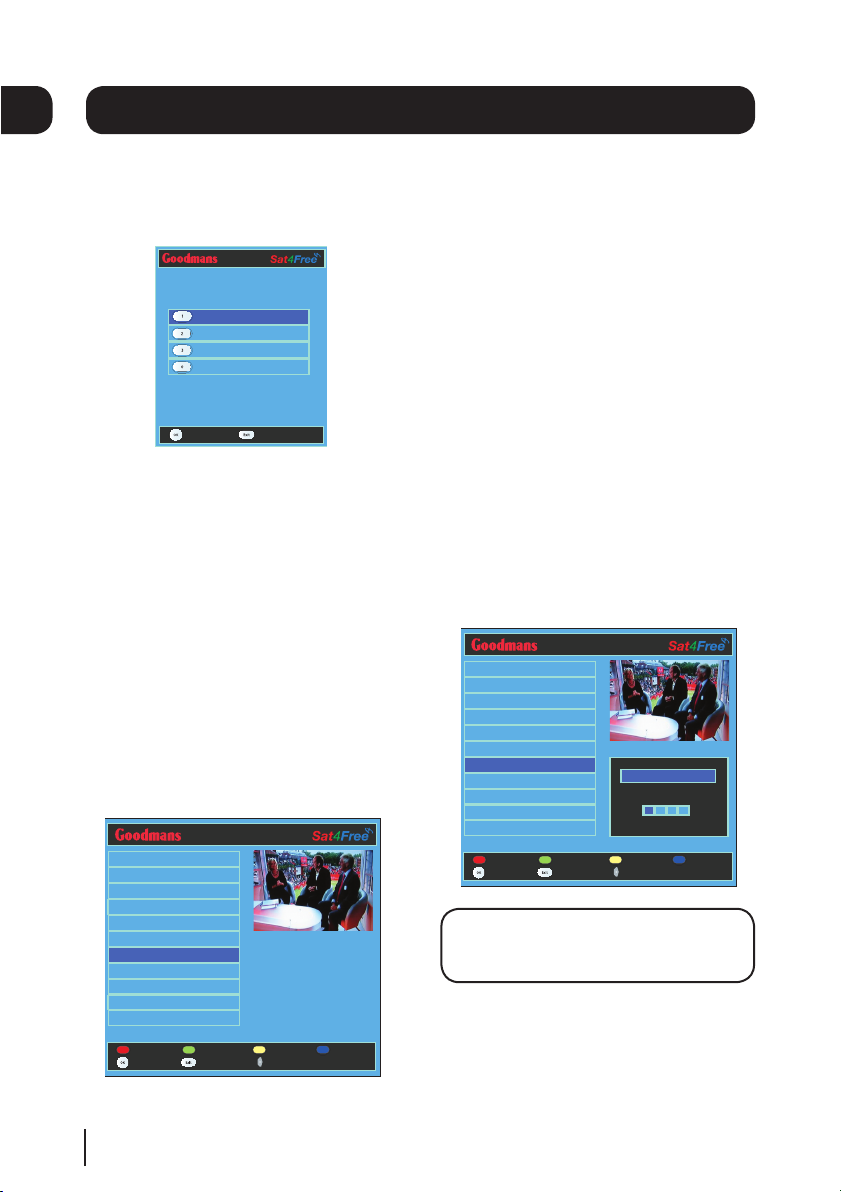

The menu system
The main menu
To open the main menu screen press the
[MENU] button on the remote control.
To select a menu, press the relevant
number button to open it. For example
press [1] on the remote control to open
‘TV Listings’, then press the [OK] button.
To close any of the menu screens, press
the [EXIT] button.
TV listings menu
The TV listings menu shows you all of
your available channels. This list is
updated automatically each time you
open the menu, so there is no need to
re-tune your digital box when new
channels become available.
The [DELETE] button lets you delete a
channel from the TV list.
The [RED] button opens/returns to the
full TV listing menu and shows you the full
channel line up available.
The [GREEN] button will show you all
your channels in your favourite list.
Favourite channels are shown with a tick
next to them.
The [YELLOW] button lets you edit your
favourite channel list so that you can add
and delete channels that you use most
often.
The [BLUE] button lets you lock channels
so that they can’t be viewed. This can be
useful if you want to restrict children from
watching unsuitable channel content.
DON’T FORGET! To lock and unlock a
channel you will need to enter the code
0000.
Main Menu
TV Listings
Settings
Language
Information
Select Exit Menu
103 UTV
104 Channel 4
106 BBC Three
107 BBC Four
108 BBC HD
109 ITV2
110 ITV3
111 ITV3+1
102 BBC Two NI
101 BBC One NI
112 ITV4
TV Listings
Show TV List Show Fav List Edit Fav List Lock Channel
Watch Exit Menu Delete Channel
103 UTV
104 Channel 4
106 BBC Three
107 BBC Four
108 BBC HD
109 ITV2
110 ITV3
111 ITV3+1
102 BBC Two NI
101 BBC One NI
112 ITV4
TV Listings
Show TV List Show Fav List Edit Fav List Lock Channel
Confirm Exit Menu Delete Channel
Enter Lock Code
*
5
05
GSAT200HDEX IB-Rev1-August08.indd 6 15/08/2008 11:44:43

The menu system
The settings menu
The settings menu allows you to change
the default settings on your digital box.
To select one of the options use the arrow
buttons, then press the [OK] button to
select.
Audio language
You can change the default language to
English, Welsh or Gaelic.
Genre Settings
This setting lets you turn off the Genre
window when you press the [GUIDE]
button on the remote control, so that all
channels are shown in the programme list
as default.
TV screen size
This changes the format of the screen.
Select the option that best suits your type
of TV.
HDMI output
You can set the output quality of the
HDMI port. The options are 576p, 720p
and 1080i.
Parental settings
This allows you to change the channel
lock code.
TV Screen Size
HDMI Output
P a rental Settings
Receiver Upgr a de
First Time Install
Add Manual Channels
Show Manual Channels
Genre Settings
Audio Language
TV Listings
Select Exit Menu
Receiver upgrade
You can set your digital box to search for
new system software either manually or
automatically.
First time install
This allows you to put your digital box
back to the factory default settings. You
will need to enter your pass code to
continue. The default pass code is 0000.
DON’T FORGET! Use the right arrow
key on the remote control to select your
TV screen size. Press the [OK] button to
continue.
Add Manual Channels
This menu allows you to manually add
Free to Air channels to the channel list.
DON’T FORGET! Manually added Free
to Air channels will not be shown in the
programme list.
Show Manual Channels
This menu allows you to see the manually
added Free to Air channels in the channel
list.
DON’T FORGET! The default setting is
not to show manually added Free to Air
channels.
TV Screen Size
Widescreen (16:9)
�
Set your screen type with then press to continue
�
6
05
GSAT200HDEX IB-Rev1-August08.indd 7 15/08/2008 11:44:44

The menu system

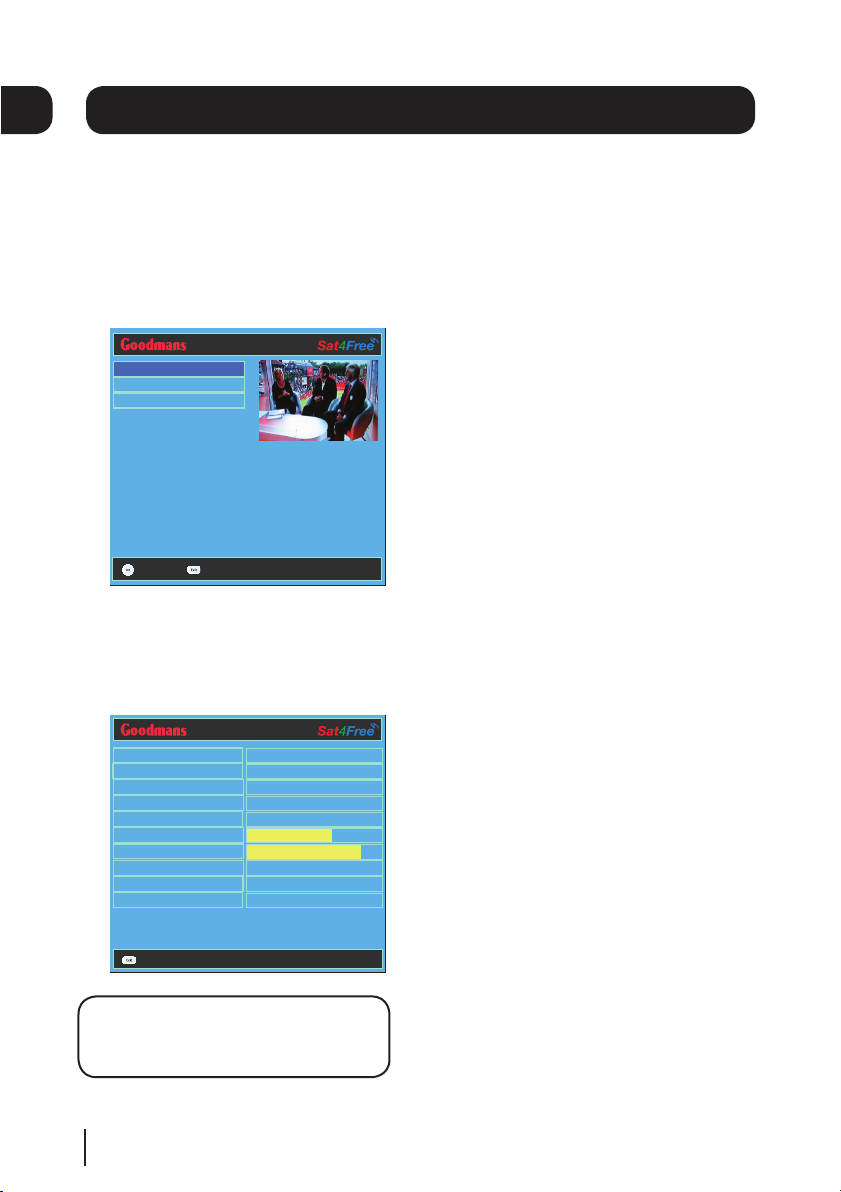

The language menu
The language menu allows you to change
the default language settings for
interactive services and subtitles.
To select between English, Welsh or
Gaelic use the arrow buttons, then press
the [OK] button to select.
The information menu
This menu shows you information about
your digital box.
DON’T FORGET! It is useful to have
this information when contacting
the call centre.
Gaelic
Welsh
English
TV Listings
Select Exit Menu
Hardware Version
Serial Number
Software Version
Model Number
Manufacturer
01
AE956FCS2
1.4.33
GSAT200HDEX
Goodmans
Signal Strength
Signal Quality
Lock Indicator OK
Network ID 003b
Transport ID 090b
Exit Menu
7
05
GSAT200HDEX IB-Rev1-August08.indd 8 15/08/2008 11:44:44

Using the programme reminder
You can use the reminder function to let
you know when a programme is going to
start.
Press the [GUIDE] button on the remote
control and then press the [OK] button.
The programme list will be displayed. The
channel and programme that you are
currently watching are highlighted in dark
blue.
Using the arrow buttons on the remote
control, move to a different programme
that you want to set as a reminder.
Press the [OK] button to set the reminder.
When the reminder has been set a clock
icon is shown before the programme
name.
101 BBC One NI
102 BBC Two NI
103 UTV
104 Channel 4
106 BBC Three
107 BBC Four
108 BBC HD
109 ITV2
Page Down
Torchwood
Holby City
Top Gear
Page Up +24 Hrs -24 Hrs
Watch
Dr Who Confidential
Send In The Dogs
Gordon Ramsey F
Charles Wheeler Batman
Bird on a W
10 Years
Previ
Mat
Exit Menu
News
Eastenders 20:00 - 20:30
20:00 20:30 21:00
22nd July
Bon
Tanya fears her family is in meltdown and grows concerned that Lauren has run
away with Peter. Bradley fumes when he finds Clare's notebook and refuses to
lend her any money.
Real Hustle
Bonekickers
Eastenders
Emmerdale
Time Shift
Jurassic Park III
V o y a g e s
101 BBC One NI
102 BBC Two NI
103 UTV
104 Channel 4
106 BBC Three
107 BBC Four
108 BBC HD
109 ITV2
Page Down
Torchwood
Holby City
Top Gear
Page Up +24 Hrs -24 Hrs
Watch
Dr Who Confidential
Send In The Dogs
Gordon Ramsey F
Charles Wheeler Batman
Bird on a W
10 Years
Previ
Mat
Exit Menu
News
Torchwood 20:45 - 21:15
20:00 20:30 21:00
22nd July
Bon
Torchwood (2008) Widescreen, AD, Subtitles. 30 Minutes.
Science-fiction drama created by Russell T Davies. Rhys discovers the truth
about Torchwood and is involved in the investigation of alien meat.
Real Hustle
Bonekickers
Eastenders
Emmerdale
Time Shift
Jurassic Park III
V o y a g e s
When the reminder time is reached, the
digital box will automatically switch over to
the correct channel and your programme
will start.
DON’T FORGET! To cancel a
programme reminder, highlight the
programme where the reminder has
been set, and press the [OK] button.
The clock icon will disappear and the
reminder will be cancelled.
8
06
GSAT200HDEX IB-Rev1-August08.indd 9 15/08/2008 11:44:45

Help and advice
In which direction should my satellite
dish be positioned?
Your satellite dish should be fitted on a
south facing wall in the direction of 28.2°
East of South.
Can I connect more than one digital
box to my satellite dish?
Yes you can. You will need an LNB fitted
that has more than one connection. You
will need one connection for each digital
box.
How do I do a first time install again?
Press the [MENU] button and choose
option 2. Select ‘First Time Installation’
and press the [OK] button.
How do I look for new system
software?
Press the [MENU] button and choose
option 2. Select ‘Receiver Upgrade’ and
press the [OK] button.
How do I find out system
information about my digital box?
Press the [MENU] button and choose
option 0.
How do I change the default audio
language?
Press the [MENU] button and choose
option 2. Select ‘Audio Language’. The
options are English, Welsh and Gaelic.
Can I use a SCART cable with my HD
digital box?
Yes, but you will not be sending a high
definition signal to your TV. To get the
very best out of your HD digital box you
will need to connect it to your HD Ready
TV using the HDMI cable supplied.
9
07
GSAT200HDEX IB-Rev1-August08.indd 10 15/08/2008 11:44:46

Safety
General Safety
This equipment has been designed
and manufactured to meet European
safety standards, but like any electrical
equipment, care must be taken if you are
to obtain the best results and safety is to
be assured.
Do read these operating instructions
before you attempt to use the equipment.
Do ensure that all electrical connections
(including the mains plug, extension
leads and interconnections between
pieces of equipment) are properly made
in accordance with the manufacturer’s
instructions.
Switch off and remove the mains
plug when making or changing any
connections.
Do consult your dealer if you are ever in
doubt about the installation, operation or
safety of your equipment.
Don’t continue to operate the equipment
if you are ever in doubt about it working
normally, or if it is damaged in any way.
Switch it off withdraw the plug from the
mains and consult your dealer.
Don’t remove any fixed covers as this may
expose you to dangerous voltages.
Don’t leave the equipment switched On
when it is unattended for long periods of
time, unless it is specifically stated that
it is designed for unattended operation or
has a standby mode.
Make sure that other people in your
household are conversant with the
equipment.
Don’t obstruct the ventilation vents on the
equipment, for example with curtains or
soft furnishings.
Overheating will cause damage and
shorten the life of the product.
Don’t allow electrical equipment to be
exposed to rain or moisture.
Do use the mains adapter that is supplied
with your equipment. Using other
adapters may cause permanent damage
to the equipment.
10
08
GSAT200HDEX IB-Rev1-August08.indd 11 15/08/2008 11:44:46

www.goodmans.co.uk
Rev1-150808
GSAT200HDEX IB-Rev1-August08.indd 12 15/08/2008 11:44:46
