Goodwe HCA Series User manual

User Manual
AC Charger
HCA Series
V1.2-2024-02-20
(7-22kW)

I
Copyright Statement
User Manual V1.2-2024-02-20
The information in this user manual is subject to change due to product updates or other
reasons. This manual cannot replace the safety instructions or labels on the equipment unless
otherwise specied.
and other GoodWe trademarks are trademarks of GoodWe Company. All
other trademarks or registered trademarks mentioned in this manual are owned by GoodWe
Company.
Trademarks
NOTICE
No part of this manual can be reproduced or transmitted to the public platform in any form or
by any means without the prior written authorization of GoodWe.
Copyright©GoodWe Technologies Co.,Ltd. 2024. All rights reserved.

II
CONTENT User Manual V1.2-2024-02-20
CONTENT
1 About This Manual ......................................................................................1
1.1 Applicable Model .........................................................................................................................1
1.2 Target Audience ...........................................................................................................................1
1.3 Symbol Denition ........................................................................................................................2
2 Safety Precaution........................................................................................3
2.1 General Safety..............................................................................................................................3
2.2 AC Charger Safety........................................................................................................................3
2.3 Personnel Requirements ............................................................................................................4
2.4 Declaration of Conformity ..........................................................................................................5
3 Product Introduction ..................................................................................6
3.1 Product Overview ........................................................................................................................6
3.2 Application Scenarios..................................................................................................................7
3.3 Charging Mode ............................................................................................................................9
3.4 Operating Status of the Charger ..............................................................................................10
3.5 Functionality...............................................................................................................................11
3.6 Appearance ................................................................................................................................12
3.6.1 Parts Description ....................................................................................................................................................... 12
3.6.2 Dimension .................................................................................................................................................................. 14
3.6.3 Indicator Description ............................................................................................................................................... 16
3.6.4 Nameplate.................................................................................................................................................................. 16
4 Check and Storage ....................................................................................17
4.1 Check Before Receiving.............................................................................................................17
4.2 Deliverables................................................................................................................................17
4.3 Storage........................................................................................................................................18
5 Installation ................................................................................................19
5.1 Installation Requirements ........................................................................................................19
5.2 Installation.................................................................................................................................21
5.2.1 Moving the Charger.................................................................................................................................................. 21
5.2.2 Installing the Charger............................................................................................................................................... 22
5.2.3 Installing the Charger (Post Mounting) ................................................................................................................ 24
6 Electrical Connection................................................................................26
6.1 Safety Precaution.......................................................................................................................26
6.2 Connecting the RCD Cable .......................................................................................................27
6.3 Connecting the AC Cable ..........................................................................................................29
7 Equipment Commissioning......................................................................32
7.1 Check Before Power ON............................................................................................................32
7.2 Power On ....................................................................................................................................32

III
CONTENT
User Manual V1.2-2024-02-20
7.3 Charging EV................................................................................................................................33
7.3.1 Online Charging via SEMS Portal App....................................................................................................................33
7.3.2 Oine Charging Steps via SolarGo App................................................................................................................33
7.3.3 Plug And Charge........................................................................................................................................................33
8 System Commissioning ............................................................................ 34
8.1 Indicator......................................................................................................................................34
8.2 Setting and Checking Charger Information via SolarGo APP (installers) ...........................34
8.3 Setting and Checking Charger Information via SEMS Portal (User)....................................35
9 Maintenance.............................................................................................. 36
9.1 Power O the Charger.............................................................................................................. 36
9.2 Dismantle the Charger..............................................................................................................36
9.3 Discard the Charger ..................................................................................................................36
9.4 Routine Maintenance ................................................................................................................36
9.5 Troubleshooting......................................................................................................................... 37
10 Technical Parameters ............................................................................... 39

1
User Manual V1.2-2024-02-20 01 About This Manual
• GW7K-HCA
• GW11K-HCA
• GW22K-HCA
1 About This Manual
This manual describes the product information, installation, electrical connection, commissioning,
troubleshooting and maintenance of the charger. Read through this manual before installing and
operating the product. All the installers and users have to be familiar with the product features,
functions, and safety precautions. This manual is subject to update without notice. For more
product details and latest documents, visit https://en.goodwe.com/.
1.1 Applicable Model
This manual applies to the listed chargers below: (Hereinafter referred to as HCA).
1.2 Target Audience
This manual applies to trained and knowledgeable technical professionals only. The technical
personnel has to be familiar with the product, local standards, and electric systems.

2
01 About This Manual User Manual V1.2-2024-02-20
1.3 Symbol Denition
Dierent levels of warning messages in this manual are dened as follows:
DANGER
Indicates a high-level hazard that, if not avoided, will result in death or serious injury.
WARNING
Indicates a medium-level hazard that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a low-level hazard that, if not avoided, could result in minor or moderate injury.
NOTICE
Highlight and supplement the texts. Or some skills and methods to solve product-related
problems to save time.

3
User Manual V1.2-2024-02-20 02 Safety Precaution
2 Safety Precaution
NOTICE
The charger is designed and tested in compliance with related safety rules. Read and follow all
the safety instructions and cautions before any operations. Improper operation might cause
personal injury or property damage as the charger is electrical equipment.
Please strictly follow these safety instructions in the user manual during the operation.
2.1 General Safety
NOTICE
• The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions in the manual are for guidance only.
• Before installations, read through the user manual to learn about the product and the
precautions.
• All installations should be performed by trained and knowledgeable technicians who are
familiar with local standards and safety regulations.
• Use insulating tools and wear personal protective equipment when operating the charger
to ensure personal safety. Wear anti-static gloves, cloths, and wrist strips when touching
electronic devices to protect the charger from damage.
• Strictly follow the installation, operation, and conguration instructions in this manual.
The manufacturer shall not be liable for equipment damage or personal injury if you do
not follow the instructions. For more warranty details, please visit: https://en.goodwe.com/
warranty.
2.2 AC Charger Safety
DANGER
• Do not dismantle the charger modules personally. Do not extend the charging cable.
Otherwise, it may cause Ingress Protection Rating derating or electric danger.
• The equipment supports charging Electric Vehicle (EV hereinafter) only. Do not charge
other devices.
• After using the charging connector, please cover the charging plug properly,and wrap the
charging cable around the charger.
• The charger and cables shall not be over bended, squeezed or entangled. Otherwise, it
may cause damage to the equipment.
• Disconnect the charger and its upstream switches before installation, maintenance and
other operations.
• It is strictly forbidden to touch the charging connector when the charger is live.
WARNING
Check whether the cover and appearance of the charger are normal regularly.

4
02 Safety Precaution User Manual V1.2-2024-02-20
DANGER
• All labels and warning marks should be visible after the installation. Do not cover, scrawl,
or damage any label on the equipment.

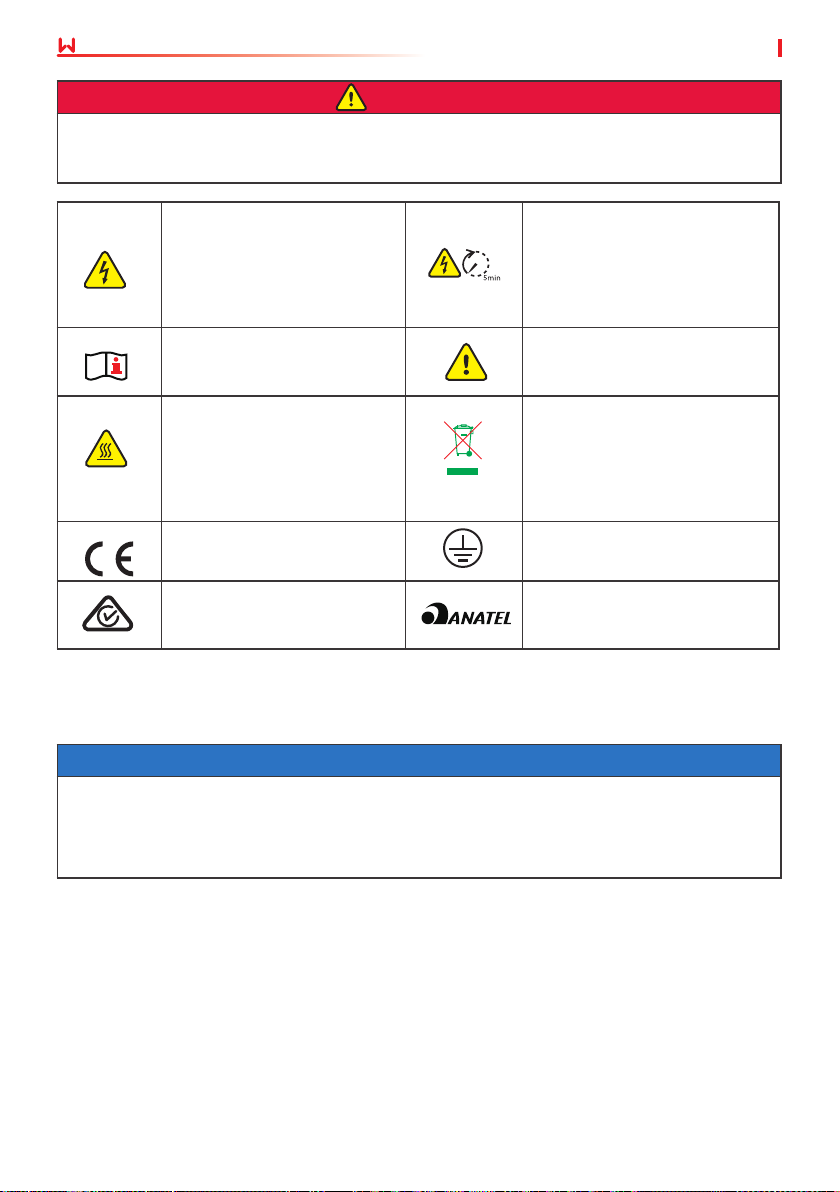

• Warning labels on the Charger are as follows:
HIGH VOLTAGE HAZARD
High voltage exists during
the charger’s running.
Disconnect all incoming
power and turn o the
product before working on it.
Delay discharge. Wait 5 minutes
after power o until the
components are completely
discharged.
Read through the user
manual before any
operations.
Potential risks exist. Wear
proper PPE before any
operations.
High-temperature hazard. Do
not touch the product under
operation to avoid being
burnt.
Do not dispose of the charger
as household waste. Discard
the product in compliance with
local laws and regulations,
or send it back to the
manufacturer.
CE Marking.Grounding point.
RCM Marking.Incorpora produto homologado
pela Anatel sob número 13091-
23-02673
2.3 Personnel Requirements
NOTICE
• Personnel who install or maintain the equipment must be strictly trained, learn about
safety precautions and correct operations.
• Only qualied professionals or trained personnel are allowed to install, operate, maintain,
and replace the equipment or parts.

5
User Manual V1.2-2024-02-20 02 Safety Precaution
2.4 Declaration of Conformity
The product with wireless communication function sold in the British market meets the
requirements of the following directives:
• Radio Equipment Regulations 2017
• The Restrictions of the use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012 (S.I. 2012/3032)
The product with wireless communication function sold in the European market meets the
requirements of the following directives:
• Radio Equipment Directive 2014/53/EU (RED)
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)
EU
UK
The product with wireless communication function sold in the Brazil market meets the
requirements of the following directives:
• Incorpora produto homologado pela Anatel sob número 13091-23-02673 .
• Este equipamento não tem direito à proteção contra interferência prejudicial e não pode
causar interferência em sistemas devidamente autorizados. Para maiores informações,
consulte o site da ANATEL www.gov.br/anatel/pt-br.
Brazil

6
03 Product Introduction User Manual V1.2-2024-02-20
No. Referring to Explanation
1 Brand Code GW: GoodWe
2 Norminal Power • 7K: the output power is 7kW.
• 11K: the output power is 11kW.
• 22K: the output power is 22kW.
3 Series HCA: HCA Series
3 Product Introduction
3.1 Product Overview
HCA series product is one AC household charger mainly for EV charging, with functions like
charging protection, online monitoring, remote upgrading, and so on.
Model
Model description
This manual applies to the listed chargers below:
• GW7K-HCA
• GW11K-HCA
• GW22K-HCA

7
User Manual V1.2-2024-02-20 03 Product Introduction
3.2 Application Scenarios

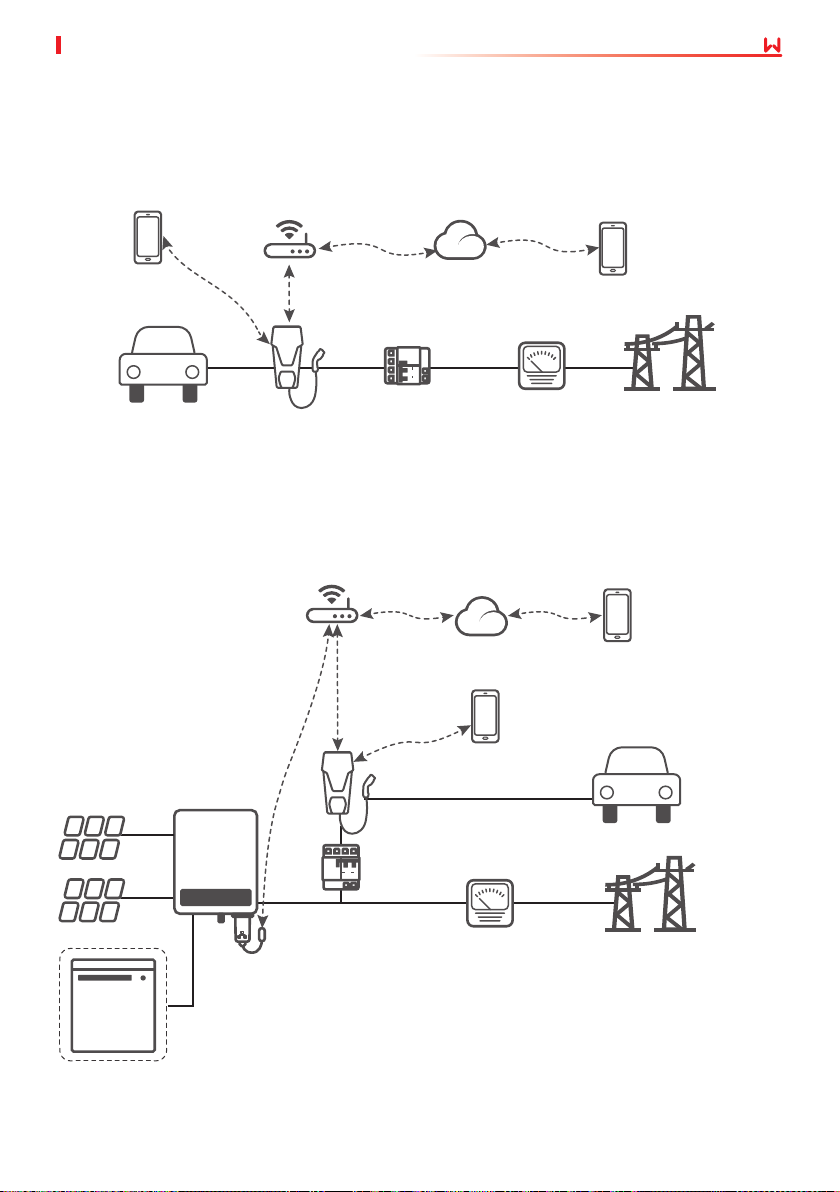

Connected to Gird Only
Utility Grid
Utility Meter
RCD
Charger
EV (Electric Vehicle)
SolarGo App
Utility Grid
Charger
RCD
Battery
PV String Inverter
Utility Meter
Connected to PV & Battery & Grid
SEMS Portal App
Bluetooth< 10m WiFi< 15m
SEMS PortalRouter
SEMS Portal
App
WiFi< 15m
SEMS PortalRouter
WiFi< 15m
LAN< 100m SolarGo App
EV (Electric
Vehicle)

8
03 Product Introduction User Manual V1.2-2024-02-20

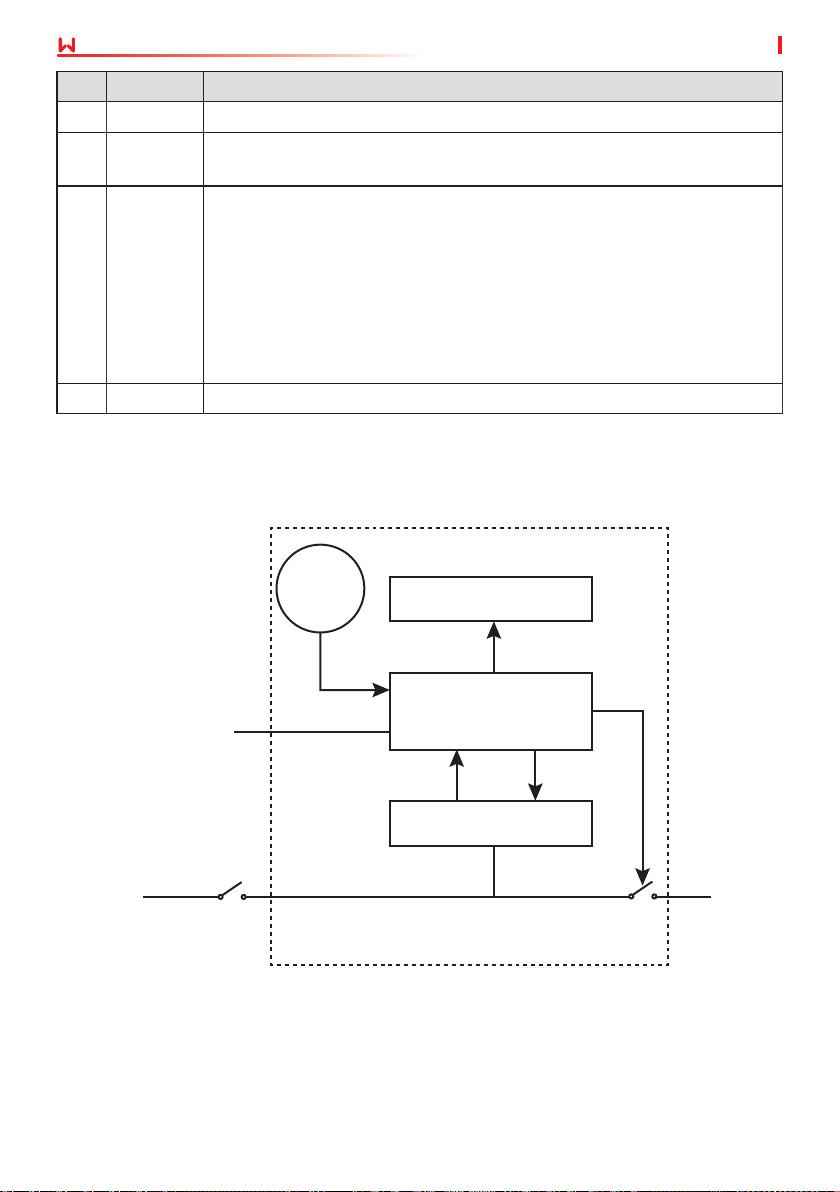

No. Parts Description
1 Inverter Refers to GoodWe Grid-Tied PV Inverters and Hybrid Inverters.
2 Battery Refers to batteries matched with GoodWe inverters (Only Hybrid Inverters
hereof).
3 RCD Provides overcurrent protection for the charger. Contact the charger
manufacturer for purchasing.
Recommended RCD specications: TYPE A, with a nominal residual
operating current of 30mA.
Nominal voltage of GW11K-HCA and GW22K-HCA: AC 400V(4P).Nominal
voltage of GW7K-HCA: AC 230V(2P).
Nominal current of GW7K-HCA and GW22K-HCA: 40A. Nominal current of
GW11K-HCA: 25A.
4 Charger GoodWe HCA Series Charger.
Circuit Diagram
Below is the circuit diagram for HCA Charger:
LED Status Display
Intelligent
Controlling Unit
Electrical Energy
Measuring Unit
Emergency
Stop
Reserved
Input
Leakage
Protection
Switch
Output Relay
Output
Grid or
AC Power
Source
For single phase AC charger and three phase AC charger, the input port is used to connect with
single-phase three-wire power cable and three-phase ve-wire power cable respectively.
The output port is used to connect with the charging connector.
Emergency Stop refers to the emergency stop button.

9
User Manual V1.2-2024-02-20 03 Product Introduction

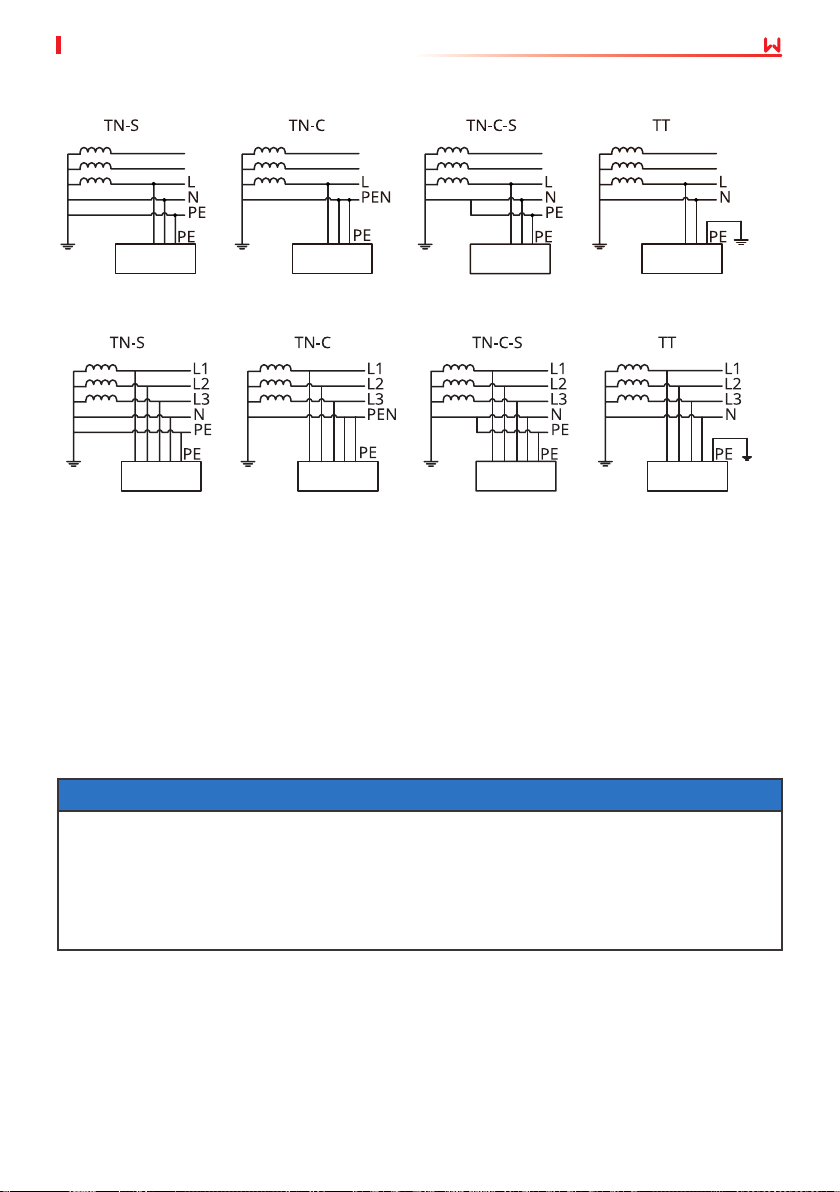

Grid Types
Single phase scenario:
Charger Charger Charger Charger
Three phase scenario:
Charger Charger Charger Charger
3.3 Charging Mode
Depending on actual situation, the charger uses electricity from power grid, PV, or batteries to
charge electric vehicles. The output power of the charger defaults to the rated power, and users
can customize the output power according to their actual needs.
Only the PV power is used to charge the EV. Loads take priority in PV power consumption, the
remaining power will charge the EV.
When the remaining PV power is less than the minimum output power of the charger, users
can set whether to allow the charger to purchase electricity from power grid on SolarGo App
according to actual needs:
• If allowed, the charger will purchase electricity from power grid to meet the charging needs.
• If not allowed, the charger will interrupt charging until the electricity converted by PV exceeds
the minimum output power of the charger, then the charger will automatically start to
charge.
Fast
PV priority
NOTICE
• Only applies to the PV-Storage-Charge scenario composed of charger and inverter.
• When using this mode, the inverter's power limit function needs to be disabled, otherwise
the charger cannot function properly.
• If the EV does not support automatic charging, after the charger recovers from the
interrupted charging state, it is necessary to unplug and reinsert the charging plug,then
manually start charging on SolarGo App.

10
03 Product Introduction User Manual V1.2-2024-02-20

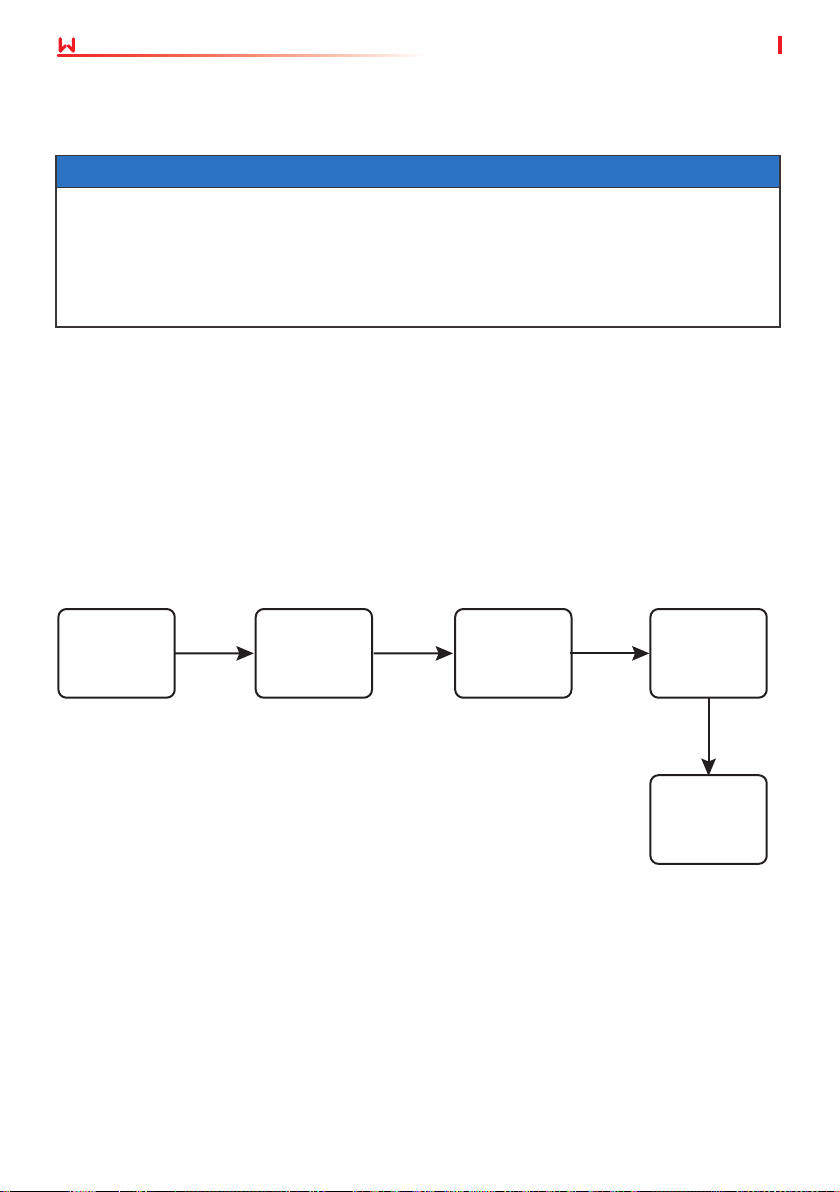

3.4 Operating Status of the Charger
Idle Charging
Charging
complete or
Alarm
PreparingWaiting
The PV power and battery are used to charge the EV. Loads take priority in power consumption,
the remaining power will charge the EV.
When the remaining PV power and battery level are less than the minimum output power of the
charger, users can set whether to allow the charger to purchase electricity from power grid on
the SolarGo App according to actual needs:
• If allowed, the charger will purchase electricity from power grid to meet the charging needs.
• If not allowed, the charger will interrupt charging until the electricity converted by PV
or battery exceeds the minimum output power of the charger, then the charger will
automatically start to charge.
PV + Battery
NOTICE
• Only applies to the PV-Storage-Charge scenario composed of charger and inverter.
• When using this mode, the inverter's power limit function needs to be disabled, otherwise
the charger cannot function properly.
• If the EV does not support automatic charging, after the charger recovers from the
interrupted charging state, it is necessary to unplug and reinsert the charging plug,then
manually start charging on SolarGo App.

11
User Manual V1.2-2024-02-20 03 Product Introduction
3.5 Functionality
• The charger can be used together with grid-tied or hybrid inverters to form a PV-Storage-
Charging integrated ecological system.
• The charger can be connected with grid.
Applicable for Diverse Scenarios
When the charger is on line, users can control it remotely via SEMS Portal app, and upgrade the
rmware remotely via the device management platform.
Remote Control
Safe and Reliable
Easy to Use and Maintain
• The charger supports operation via commands issued by APP remotely when it is on line.
• The charger supports operation via Bluetooth connected to APP in a short distance when it is
o line.
• The charger supports charging EV directly under Plug And Charge mode.
• Users can check the charger’s real-time status via its indicator.
• Users can check the charger's fault and operating data via APP.
• The ingress protection rating of the charger is IP65, and the ingress protection rating of the
charging plug is IP55. With a high rating, the charger has excellent anti-dust and waterproof
features and can be operated and maintained outdoors.
• To protect the product and ensure a secure running status, the product is integrated with
over voltage and under voltage protection, over load protection, short-circuit protection,
leakage protection, grounding, over temperature protection, EMS protection and protection
against lighting.
WARNING
When using a charger in conjunction with an inverter,ensure the number of phases between
the charger and the inverter is the same. Dierent phases may lead to three-phase imbalance
of the inverter, thus result in limited charging methods of the charger or low-voltage faults.

12
03 Product Introduction User Manual V1.2-2024-02-20
No. Parts Description
1 Indicator Indicates the operating status of the charger.
2 Input Port for AC cable Connects with single or three phase AC input cable.
3 Reserved -
4 Charging Cable -
5 Mounting Plate Fixes the charger on the support.
6 Emergency Stop Button Used for emergency protection.
7 Charging Plug Connected to EV charging port.
3.6 Appearance
3.6.1 Parts Description
Charger
1
23
4
5
6
7

13
User Manual V1.2-2024-02-20 03 Product Introduction

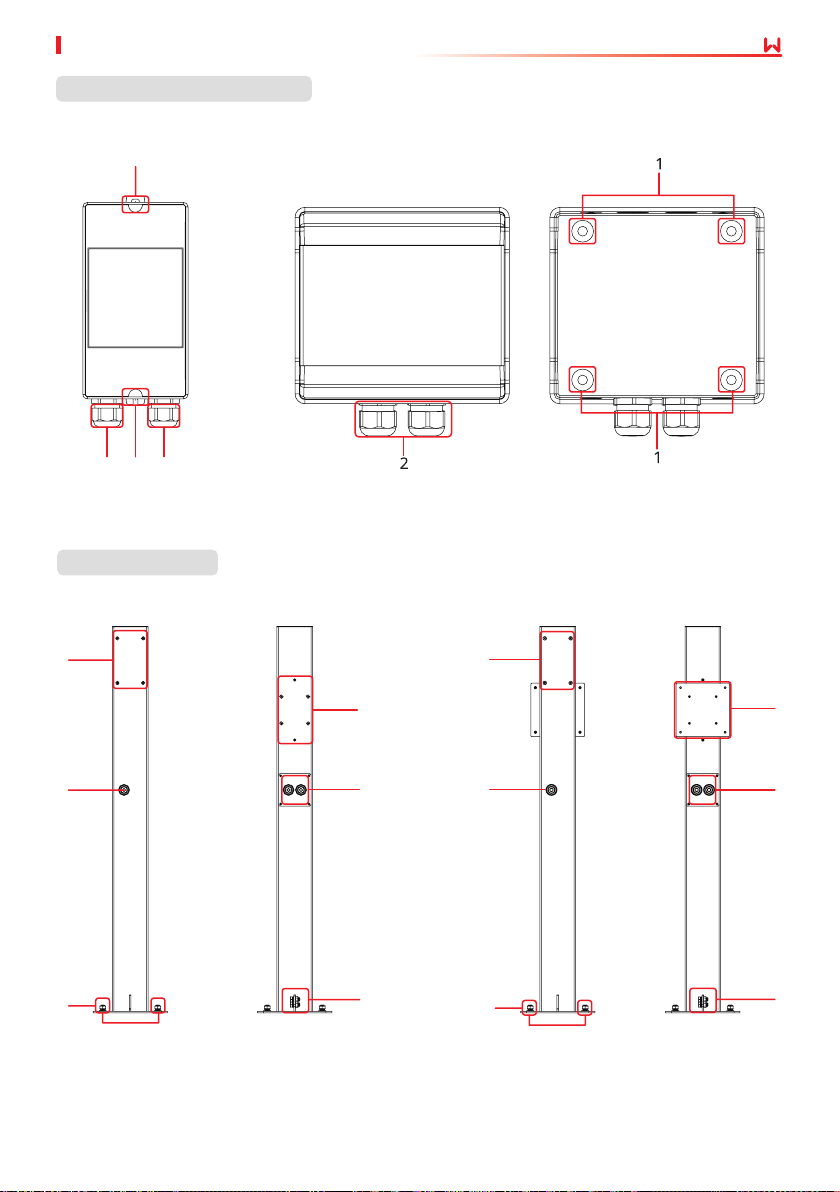

1. Mounting plate
position 2. Output port for AC cables 3. Hole position for xing the base
4. RCD installation
position 5. Input and output port for AC cables 6. Protective earthing
2
1
4
5
6
3
GW7K-HCA
1
1
22
GW11K-HCA and GW22K-HCA
1. Fixing hole position 2. Input and output port for AC cables
GW7K-HCA GW11K-HCA and GW22K-HCA
36
4
5
2
1
(Optional) Distribution Board
(Optional) Post

14
03 Product Introduction User Manual V1.2-2024-02-20

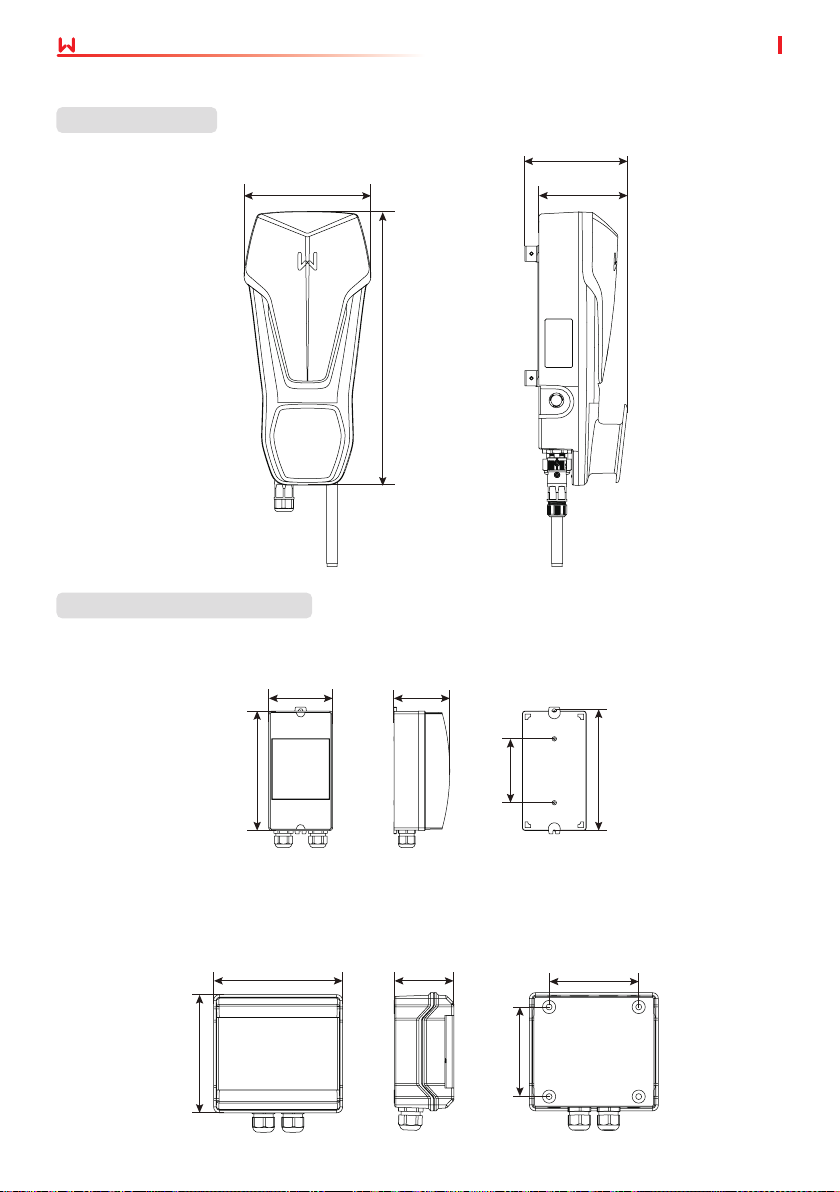

3.6.2 Dimension
208mm 150mm
170mm
450mm
Charger
212mm
107mm 92mm
107mm
202mm
GW7K-HCA
219mm
200mm
100mm 150mm
150mm
GW11K-HCA and GW22K-HCA
(Optional) Distribution Board

15

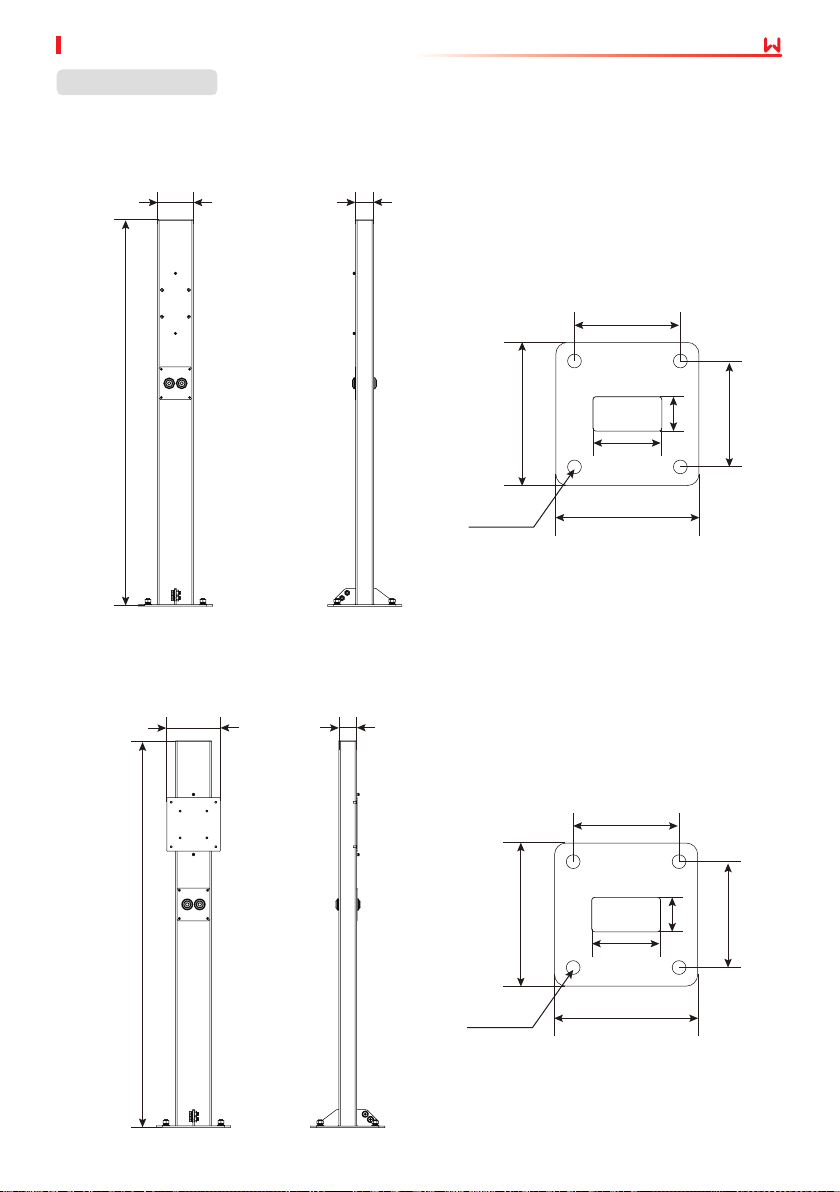

User Manual V1.2-2024-02-20 03 Product Introduction
1300mm
185mm
185mm
250mm
250mm
120mm 60mm
55mm
115mm
Φ: 15mm
GW7K-HCA
GW11K-HCA and GW22K-HCA
1300mm
180mm 60mm
185mm
185mm
250mm
250mm
55mm
115mm
Φ: 15mm
(Optional) Post

16
03 Product Introduction User Manual V1.2-2024-02-20
Indicator Color Explanation
Green ON The charger is standby.
Flash in Green The system of the charger is upgrading.
Blue ON The charger is in charging.
Red ON A fault has occurred.
3.6.3 Indicator Description
3.6.4 Nameplate
Technical parameters
Safety symbols and certication marks
Contact information and serial number
The nameplate is for reference only.
GOODWE trademark, product type, and
product model
NOTICE
Pay attention to the following matters during the remote upgrade process of the charger:
• Ensure that the charger is powered on,otherwise it may result in upgrade failure.
• Wait for the remote upgrade to complete before using the charger, otherwise it may result in
charging failure.
• During the remote upgrade process, the Bluetooth is temporarily turned o. After the upgrade
is completed, you need to manually reconnect to the SolarGo App. If Bluetooth cannot be
connected or the charger on the App shows oine status, please restart the charger and try
again.
