miniBatt FI60 User manual

Fi60
WIRELESS FURNITURE CHARGER
Please register online
www.miniBatt.com/register
USER MANUAL miniBatt Fi60.indd 1 19/4/16 18:51

Thank you for purchasing a miniBatt wireless charger.
With this charger, you can charge any Qi-compatible device like a
smartphone or other device without the inconveniencies of tangled
cables. Just pop your smartphone on the charging surface and your
smartphone will start charging.
Parts of the product are magnetic. Metallic materials may be
attracted to the charger. Do not place any credit card or other
magnetic storage media near the product, because info stored
on them may be erased.
Read this user manual carefully before using the product.
Also, read the user manual for the device that you connect to the
charger.
Qi is a global standard that makes wireless charging possible for
your device.With this Qi-compatible device, you don´t need to
connect any cable to charge it.
Qi and Qi mark, are the trade marks of WPC.
This product applies for all Qi standard receivers.
Thank you for selecting miniBatt products.
USER MANUAL miniBatt Fi60.indd 2 19/4/16 18:51

miniBatt Fi60 is visible and invisible wireless charger - the king
of versatility in the Wireless charging. It can easily be integrated into
virtually any piece of furniture and charge all kinds of devices of 5V
(Example: smartphones)
This low power wireless charging transmitter is made in accordance
with QI standard (QI V1.2); it inducts the receiver with one to one
charging. It designs depending on A11 one coil standard with 5
power supply and 5W max output power. Sound is set as charging
indicator.
Front View Side View Back View
Cover
Micro USB to USB
cable Stickers
PRODUCT INTRODUCTION:
PRODUCT OVERVIEW:
USER MANUAL miniBatt Fi60.indd 3 19/4/16 18:51

ITEM PARAMETER SPECIFICATION
Standard Qi Version 1.2
Charging Type Wireless Charging One To One Charging
Input Input Interface Micro USB
Input Voltage 4.9-5.5V
Input Current 1.5A max
Standby Current <30mA
Standby Power <90mW
Output Output Power 5W
Max Output Current 1A
(@Output 5V)
Working Distance Charging Distance 0-6mm
Vertical Working Distance 0-12mm(coil to coil )
Best Vertical Induction Distance 4mm
Transversal Induction Distance 18mm
Lengthways Induction Distance 18mm
Working Area 324mm2
Transfer Efficiency Electronic Energy ≥72%
Transform Efficiency @0.5A
Electronic Energy ≥66%
Transform Efficiency @1A
Electronic Parameter Working Frequency 110-205KHz
FOD Detecting Yes or No Yes
Function
Thermal Protection Temperature 55
ELECTRONIC FEATURES:
ITEM PARAMETER SPECIFICATION
Weight N.W. 40g
Dimension Diameter 70mm
Thickness 13mm
Working Condition Working Temperature 0℃-42℃
Working Humidity 15%-90% ( No Condensation)
Storage Temperature -20℃-70℃
Working Humidity 15%-90% ( No Condensation)
FINISHED PRODUCT CONFIGURATION:
USER MANUAL miniBatt Fi60.indd 4 19/4/16 18:51

- Never open or repair the device by yourself. It should only be done
by an authorized specialist.
- Do not install the device under an electrical conductive surface.
Never use the device if it is damaged or wet.
- Observe a sufficient distance from warm or wet elements.
- Do not use the device outdoors.
- Remove dust and what residues from the milled hole before
installation.
- Make sure that while charging no metal parts are between the
Fi60 and the charging device.
- Make sure that all electrical connections and supply cables
connected to other devices are in accordance with safety
guidelines and with the instruction manual.
- Pay attention not to overcharge the power sockets and supply
cables, it could cause fire or electric shock.
- Keep all parts out of reach of children.
- Avoid strong shocks or impacts which could damage the electric
circuits.
- Never replace damage power supplies yourself! Disconnect the
devices and contact a specialist.
- The power adapter used in conjunction with the wireless charge
must be a SELV type (Safety Extra Low Voltage).
SAFETY INFORMATION:
- Wireless charger 1 PCS
- Cover 1 PCS
- Micro USB cable to USB cable 1 PCS
- Sticker 2 PCS
- User Manual 1 PCS
PARTS LIST (INCLUDED IN THIS PACKAGE):
USER MANUAL miniBatt Fi60.indd 5 19/4/16 18:51

Maintenance
The device is maintenance-free, so please do not open it.The
warranty becomes void if the device has been opened. Clean the
device externally with a soft, dry brush or cloth. Please remove all
current supplies before cleaning.
INSTALLATION:
miniBatt Fi60 can easily be integrated into virtually any piece of
furniture.This charging station can be seamlessly installed for new
furniture by the manufacturers, or it can be installed in any existing
piece of furniture. Just take out the existing cable through-hole
cover from your desk and insert the charging station into the hole.
Or in case there is no hole, make room for the miniBatt Fi60 Wireless
Charging Station in the surface of the desired piece of furniture, and
cover it up with our stylish miniBatt Fi60 Cover.

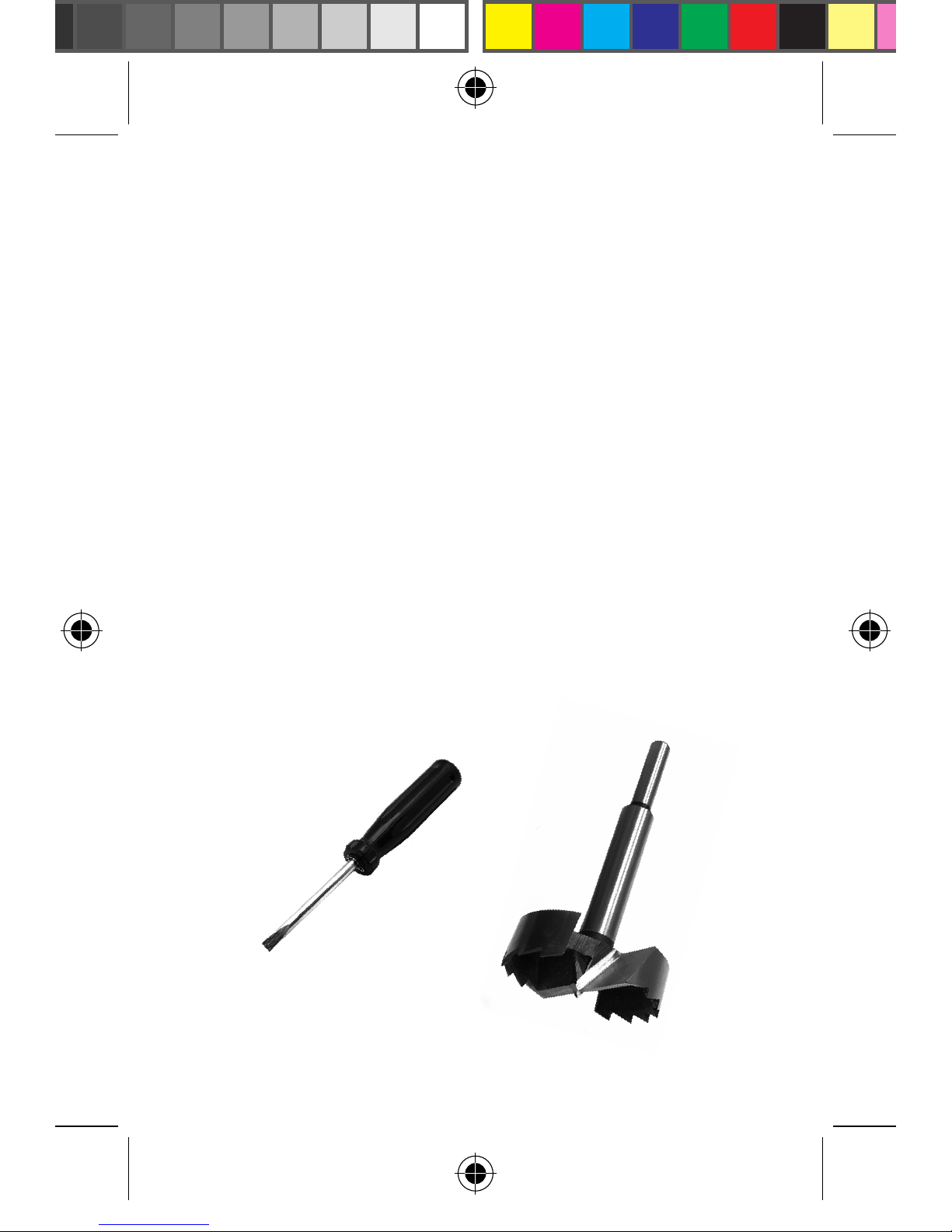

Any installation project would require the right tools such as: drill bit
and screwdriver.
Screwdriver
Ø 60 mm drill bit
USER MANUAL miniBatt Fi60.indd 6 19/4/16 18:51

Installation when the hole is already done on the desk:
Installation when the hole is already done on the desk:
miniBatt Fi60 is made to cover any Ø 60mm furniture standard
through hole.
1.Take out the existing cable through-hole cover from your desk.
2. Insert one end of the cable into the input port of the Fi60
wireless charger.
3. Integrate the miniBatt Fi60 on the desk hole.
4. Plug in the power adaptor into the power outlet.
5. Put the miniBatt cover.
Cover Ø: 70 mm / Hole Ø 60 mm / Height: 2,5 mm
Watch video at YouTube if needed.
https://www.youtube.com/watch?v=P91eoqnT9TQ
1. Existing hole ø 60 mm 2. Wireless Charger
4. Cover3. Micro USB
to USB cable
USER MANUAL miniBatt Fi60.indd 7 19/4/16 18:51

Installation when you have to do a new hole on the surface:
There are different ways of installing the charger when you have to do
the hole on the surface: Option 1: Doing a hole on the table. Option 2:
“Invisible Installation”: countersink up to 4 mm of the surface.
Option 1: Doing a hole on the table:
1. Measure the exact place where you want to have the Wireless
Charging Station.
2. Do a through hole of Ø 60mm.
3. Insert one end of the cable into the output port of the charger.
4. Integrate the wireless charger into the hole.
5. Plug in the power adapter into the power outlet.
6. Put the miniBatt cover.
Ø 60 mm + 3
USER MANUAL miniBatt Fi60.indd 8 19/4/16 18:51

Option 2: INVISIBLE installation:
1. Measure the exact place where you want to have the Wireless
Charging Station.
2. Do a hole of Ø 60mm up to 4 mm of the surface.
3. Insert the miniBatt Fi60 into the hole from below and screw it.
4. Insert one end of the cable into the input port of the Fi60
wireless charger.
5. Plug in the power adaptor into the power outlet.
6. Put the sticker on the desk to indicate the exact charging area.
4 mm
USER MANUAL miniBatt Fi60.indd 9 19/4/16 18:51

USER GUIDE:
Switch on and charging:
1. After doing the installation, be aware the power adaptor is
plugged in into the wall socket.

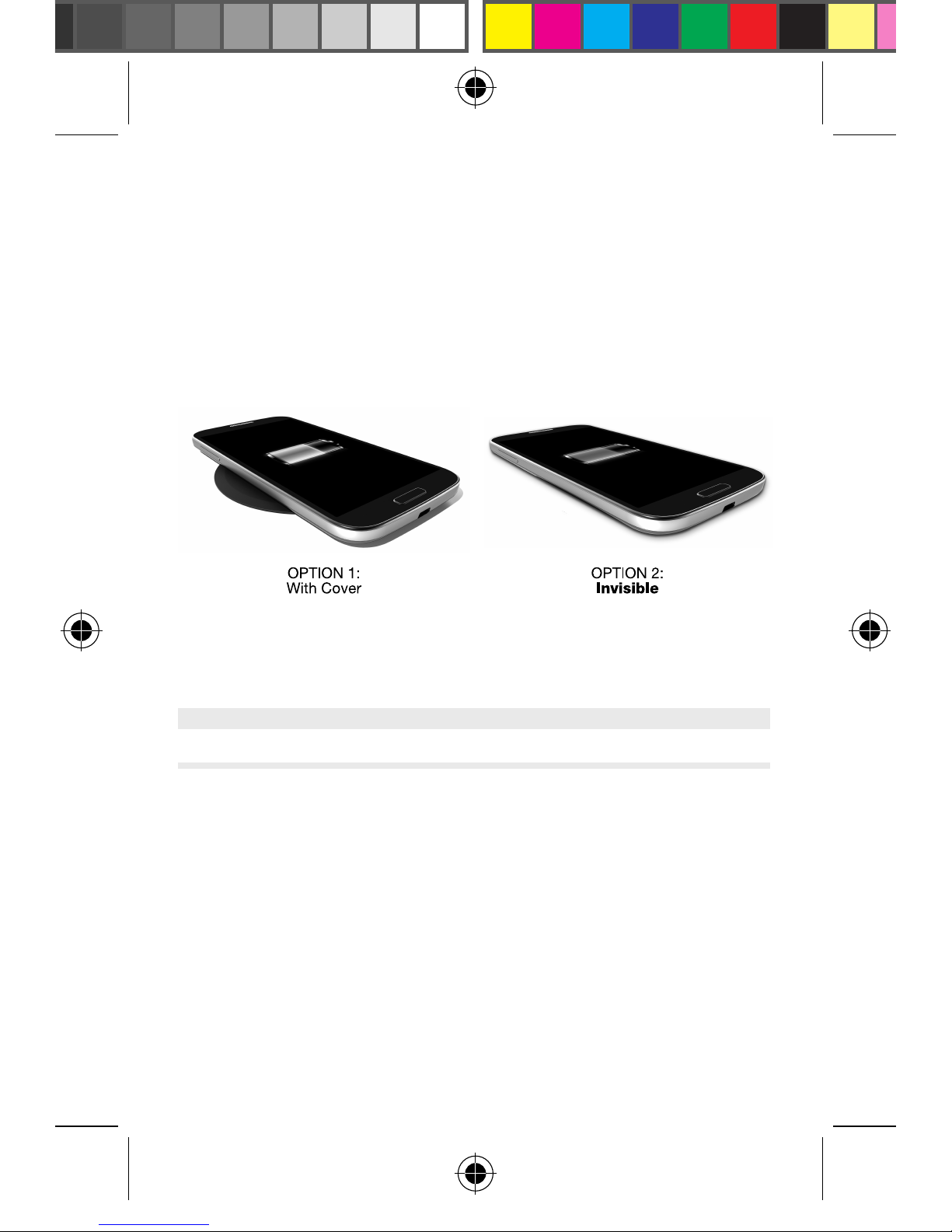

2. Just place the smartphone on the wireless charging area.
Option 1: on the cover. Option 2: on the sticker.
WORKING CONDITION BUZZER
Working Normally A Short Sound (0.5s)
FOD Alarm A Long Sound (2s)
OPERATING INDICATOR STATUS:
ADDITIONAL INFORMATION:
Applicable devices:
- Devices with build-in wireless charging receiver.
- Devices with reserved wireless charging interface beside its battery.
- Devices connected to a wireless charging receiver like a protection
case or miniBatt PowerRING.
Note: All devices must be Qi Standard.
USER MANUAL miniBatt Fi60.indd 10 19/4/16 18:51

• Please use a 5V/2A adaptor and good quality cable to ensure
charging effect.
• Please keep the charger away from water or other liquid.
• If you need to clean the charger, please make sure it is not
connected to power supply.
• Working temperature: 0℃ ~ 42 ºC℃
• Working humility: 15% ~90% (no vapor condense)
• Keep the device dry. Precipitation, humidity and all types of liquids
or moisture can contain minerals that corrode electronic circuits. If
your device gets wet, allow the device to dry.
• Use the charging station for intended purposes only. Never use
a damaged charger.The charging station should only be used at
normal indoor conditions.
• Do not attempt to charge a device having a damaged, cracked or
open battery case or a device that is not compatible with Qi.
• Do not use the device in dusty or dirty areas. Moving parts and
electronic components can be damaged.
• Do not expose the device in high or low temperatures. The device
can be damaged.
• Do not attempt to open the device. Unauthorized modications may
damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break
internal circuit boards and mechanics.
• Only use a soft, clean, dry cloth to clean the surface of the device.
USER MANUAL miniBatt Fi60.indd 11 19/4/16 18:51

WARRANTY AND SUPPORT
INFORMATION
Please register online
www.miniBatt.com/register
USER MANUAL miniBatt Fi60.indd 12 19/4/16 18:51

Please register online: www.miniBatt.com/register
www.miniBatt.com/register
Please retain the receipt as proof of purchase and write down the
information below in case you need to obtain support information.
IMPORTANT!
miniBatt Product Model:
Name and surname:
Hardware Serial Number:
Date of Purchase:
Product Number:
Thank you for selecting miniBatt products.
USER MANUAL miniBatt Fi60.indd 13 19/4/16 18:51

PRODUCT WARRANTY
MINIBATT TECHNOLOGIES HK, LTD (“MINIBATT”) offers a limited
product warranty on hardware for two years from the date of
purchasing.
Products repaired or replaced under warranty shall be subject to
the product warranty remaining for the original products that are
repaired or replaced.
Defects in material or workmanship on a hardware product or
software, covered under warranty, will be repaired or replaced with
the same or functionally equivalent product by MINIBATT, at its
discretion, free of charge under these conditions:
(1) Obtain a return material authorization (RMA) number from MINIBATT.
(2) Return the failed product to a MINIBATT designated repair facility with
shipping charge prepaid, and
(3) Provide MINIBATT with written proof of the original date of purchase, such as
a dated purchase receipt.
Replacement products may be refurbished or contain refurbished
materials. If MINIBATT, by its sole determination, is unable to repair
or replace the defective product, it will refund the purchase price of
the product, less a reasonable usage charge.
This warranty does not apply if, in the sole judgment of MINIBATT,
the product fails due to damage from shipment, handling, storage,
accident, abuse or misuse, or if it has been installed, used or
maintained in a manner not conforming to product manual
instructions, has been modified in any way, or has had any serial
number removed or defaced. Repair by anyone other than
MINIBATT or an approved agent will void this warranty.
USER MANUAL miniBatt Fi60.indd 14 19/4/16 18:51

The maximum liability of MINIBATT under this warranty is limited
to the purchase price actually paid by the customer for the product
covered by the warranty, regardless of the amount of any other
direct or indirect damage suffered by the customer. MINIBATT
makes no warranty that the software will be error free or will
operate without interruption.
MINIBATT reserves the right to revise or update its products,
software or documentation without notice. MINIBATT also reserves
the right to change the terms of its limited product
warranty at any time. Except as specically provided above or as
required by law, the warranties and remedies stated above are
exclusive and in lieu of all others, oral or written, express or implied.
Any and all other warranties, including implied warranties of
merchantability and fitness for a particular purpose, and non-
infringement of third party rights are expressly excluded. MINIBATT
shall not under any circumstances be liable to any person for any
special, incidental, indirect or consequential damages, including
without limitation, damages resulting from use or malfunction of
the product, loss of profits or revenues or costs of replacement
goods, even if MINIBATT is informed in advance of the possibility
of such damages.The maximum liability of MINIBATT under this
warranty is limited to the purchase price actually paid by customer
for the product covered by the warranty. Customer’s purchase and
usage of this product is expressly contingent upon the acceptance
of the warranty terms above.
USER MANUAL miniBatt Fi60.indd 15 19/4/16 18:51

For more information, please visit the
miniBatt website: www.miniBatt.com
miniBatt Technologies (HK) Ltd.
6/F, Oriental Crystal Commercial Building
46, Lyndhurst Terrace, Hong Kong
All rights reserved miniBatt ®
Designed in Barcelona
Made in China
This device complies with CE regulations and meets the requirements of the
applicable European guidelines.
Electronic old device are valuable materials and do not belong in the domestic
waste.If the device has reached the end of its operational life, please dispose of it
in a accordance with the applicable regulatory requirements of the local collection
points. Disposal in general household waste is prohibited.
The device is compatible with the WPC Standard Spec. 1.1 “Qi”. Please only use the
device with the Qi compatible devices.
Use only in dry indoors locations.
Safety note:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Environmentally friendly disposal
Old electrical appliances must not be disposed of together with the residual waste,
but have to be disposed of separately .The disposal at the communal collection
point via private persons if for free.The owner of old appliances is responsible to
bring the appliances to these collection points or to similar collection points .With
this little personal effort, you contributed to recycle valuable raw materials and the
treatment of toxic substances.
USER MANUAL miniBatt Fi60.indd 16 19/4/16 18:51
