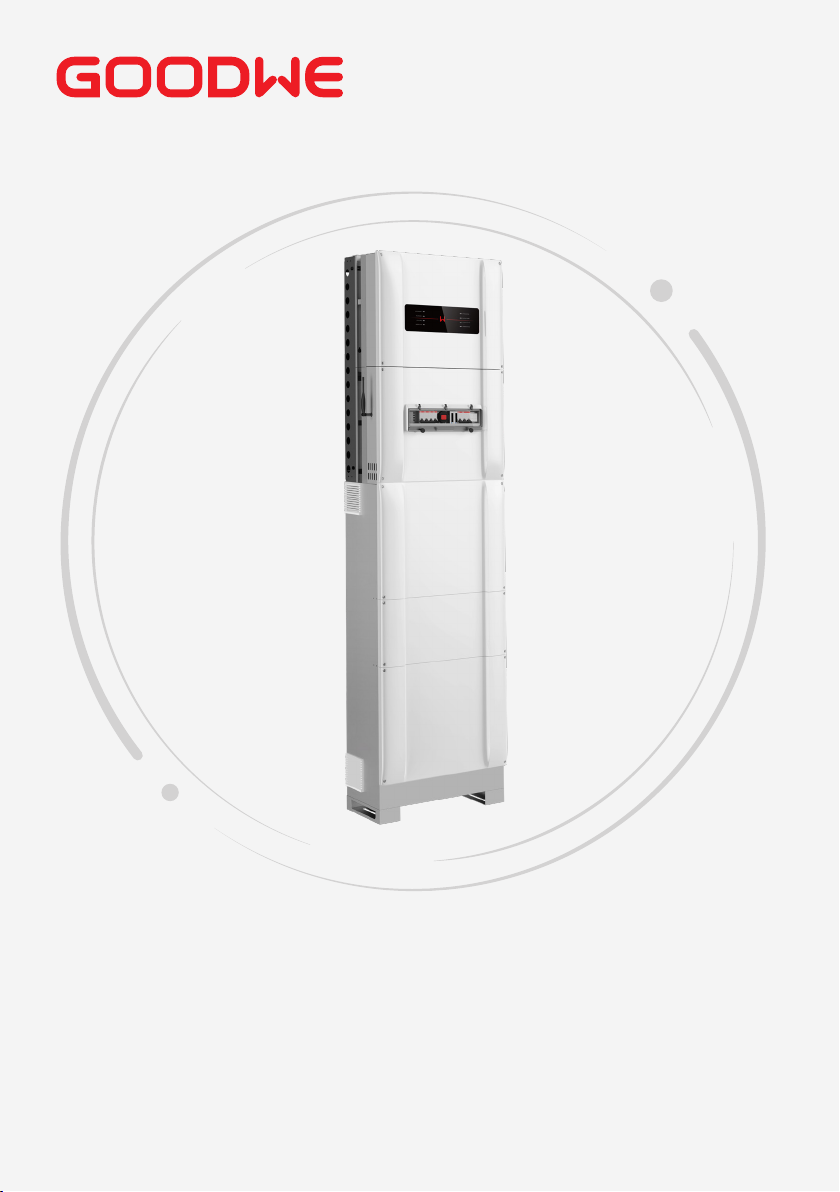

Goodwe GW5048-ESA User manual

User Manual
Hybrid Inverter
GW5048-ESA
V1.4-2022-06-30

Content
1
User Manual V1.4-2022-06-30
TABLE OF CONTENTS
01 Introduction ............................................................6
1.1 Functions ...................................................................................................6
1.2 Features .....................................................................................................6
1.3 Battery Selection.......................................................................................6
1.4 Dimensions................................................................................................7
02 Planning ..................................................................8
2.1 Backup AC Loads ......................................................................................8
2.2 Inverter Operating Modes.......................................................................8
2.2.1 General Mode....................................................................................................8
2.2.2 O Grid Mode..................................................................................................10
2.2.3 Standby Mode .................................................................................................10
2.2.4 Economic Mode...............................................................................................10
03 Installation ............................................................ 11
3.1 Parts List ..................................................................................................11
3.2 Location And Environmental Requirements .......................................11
3.3 Tools Required ........................................................................................12
3.4 Battery Enclosure Installation...............................................................13
3.5 Mounting Wall Plate...............................................................................13
3.6 Mounting the Balance of System (BoS) ...............................................13
3.7 Mounting the Inverter ...........................................................................14
04 Installation Planning .............................................. 15
4.1 Removing the BoS Covers .....................................................................15
4.2 BoS Wiring...............................................................................................16
4.2.1 System Wiring Diagram .................................................................................17
4.2.2 Protective Earth (PE) Wiring...........................................................................18
4.2.3 Solar Array Wiring...........................................................................................19
4.2.4 Battery Wiring .................................................................................................19
4.2.5 Battery Management Systems (BMS) Communications Connections .....20

Content
2
User Manual V1.4-2022-06-30
4.2.6 AC Wiring Connections And AC Circuit Breakers ........................................22
4.2.7 AC Utility Connections....................................................................................23
4.2.8 AC Backup Loads Connections......................................................................24
4.3 Energy Meter Connections....................................................................25
05 Operation .............................................................. 27
5.1 Circuit Breaker And Bypass Switch.......................................................27
5.2 Start up ....................................................................................................28
5.3 Shut down................................................................................................29
5.4 Inverter System LED Indicators ............................................................30
06 Internet Connection ............................................... 31
6.1 Wi-Fi Conguration.................................................................................31
6.2 PV Master ................................................................................................32
6.3 CEI Auto-test function............................................................................32
07 Troubleshooting .................................................... 33
08 Technical Parameters ............................................. 34
09 Certi󽗉cations, standards and approvals .................. 38

User Manual V1.4-2022-06-30 Copyright Statement
Privacy Notice
GoodWe will use the information provided only for warranty purposes. Without this information
we will not be able to process your warranty claim. If you require further information about our
privacy policy please visit www.goodwe.com.
Important safety instructions - please read
This document contains important safety instructions for products produced by GoodWe.
Please read all the instructions and cautionary markings on the product and on any accessories
or additional equipment included in the installation. Failure to follow these instructions could
result in severe shock or possible electrocution. Remember to use extreme caution at all times to
prevent accidents.
Audience
These instructions are for use by qualied personnel who meet all local and governmental code
requirements for licensing and training for the installation of electrical power systems with AC
and DC voltage up to 600 volts. Installation, maintenance and connection of inverters must be
performed by qualied personnel, in compliance with local electrical standards, wiring rules and
therequirements of local power authorities and/or companies (for example VDE-AR-N4105 in
Germany).
The GoodWe smart hybrid strictly conforms to all related safety rules in design and test.
Safety regulations relevant to the location should be followed during installation, operation and
maintenance. Improper operation may have a risk of electric shock or damage to equipment
and property.
The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions here are for guidance only.
and other GOODWE trademarks are trademarks of GoodWe Technologies
Co.,Ltd. All other trademarks or registered trademarks mentioned in this manual are owned by
GoodWe Technologies Co.,Ltd.
Trademarks
NOTICE

2
User Manual V1.4-2022-06-30
Safety Precautions
Symbol Denition
CAUTION! Hazard to equipment
This type of notation indicates that the hazard may cause damage to the equipment.
WARNING! Hazard to human life
This type of notation indicates that the hazard could be harmful to human life.
WARNING! Burn hazard
Danger of hot surface!
Components of this product can be recycled.
This side up. The package must always be transported, handled, and stored in such
a way that the arrows always point up.
No more than six (6) identical packages being stacked on each other.
Products shall not be disposed as household waste.
5min
Fragile - The package/product should be handled carefully and never be tipped over
or slung.
Keep dry! The package/product must be protected from excessive humidity and
must be stored under cover.
This symbol indicates that you should wait at least 5mins after disconnecting the
inverter from the utility grid and from the PV panel before touching any inner live parts.
CE mark.
IMPORTANT
This type of notation indicates that the information provided is important to the
installation, operation and/or maintenance of the equipment. Failure to follow the
recommendations in such a notation could result in annulment of the equipment
warranty.

3
User Manual V1.4-2022-06-30 Safety Precautions
Symbol Denition
IMPORTANT
Do not attempt to install this equipment if it appears to be damaged in any way.
See the Warranty section for instructions on returning the equipment.
WARNING: Limitations on use
This equipment is NOT intended for use with life support equipment or other
medical equipment or devices.
CAUTION: Equipment damage
Only use components or accessories recommended or sold by the manufacturer or
its authorised agents.
General Safety
Symbol Denition
WARNING: Personal injury
• Use safe lifting techniques when lifting this equipment as recommended by the
Occupational Safety and Health Association (OSHA) or other local codes.
• Use standard safety equipment when working on this equipment such as safety
glasses, ear protection, steel-toed safety boots, safety hard hats, etc.
• Use standard safety practices when working with electrical equipment. (Remove
all jewelry, use insulated tools, wear cotton clothing etc.).
• Never work alone when installing or servicing this equipment. Have someone
nearby that can assist if necessary.
• Do not touch the inverter during operation. The temperature of some parts of
the inverter may exceed 6o°C during operation. Let it cool for at least 5 minutes
after shutdown before touching it.
• Ensure that children, pets and other animals are kept away from the Inverter,
solar arrays, battery bank and utility grid components.
• If the equipment is used in a manner not specied by the manufacturer, the
protection provided by the equipment may be impaired.
Personal Safety
Symbol Denition
WARNING: Lethal voltage
• Review the system conguration to identify all possible sources of energy.
Ensure ALL sources of power are disconnected before performing any
installation or maintenance on this equipment. Conrm that the terminals are
de-energized using a validated voltmeter (rated for a minimum 10oo VAC and
1000 VDC) to verify the de-energized condition.
• Do not perform any servicing other than that specied in the installation
instructions unless qualied to do so, or have been instructed to do so by
GoodWe technical support personnel.
• Solar arrays can be energized with minimal ambient light available. To ensure
a safe disconnect from the system, install a high voltage DC rated disconnect,
breaker, or accessible fuse box (depending on local code requirements).
Equipment Safety

4
User Manual V1.4-2022-06-30
Safety Precautions
• To avoid electric shock, disconnect the DC input and AC input of the inverter at
least 5 minutes before performing any installation or maintenance.
• Completely disconnect all sources of power before proceeding with any
maintenance. Do not open the upper Inverter compartment of the system!
• Do not tighten the AC and DC terminals or pull on the AC and DC wiring when
the inverter is running.
CAUTION: Equipment damage
• When connecting cables from the inverter to the battery terminals, ensure the
proper polarity is observed. Connecting the cables incorrectly can damage or
destroy the equipment and void the product warranty.
• Thoroughly inspect the equipment prior to energizing. Verify that no tools or
equipment have been inadvertently left behind.
• Ensure clearance requirements are strictly enforced. Keep all vents clear of
obstructions that can prevent proper air ow around, or through, the unit.
• Sensitive electronics inside the equipment can be destroyed by static electricity.
Be sure to discharge any static electricity before touching the equipment and
wear appropriate protective gear.
CAUTION: Equipment damage
• Do not open the upper front cover of the inverter. Apart from performing work
at the wiring terminals (as instructed in this manual), touching or changing
components without authorization may cause injury to people, damage to the
inverter and annulment of the warranty.
• Static electricity may damage electronic components. Take appropriate steps to
prevent such damage to the inverter; otherwise the warranty may be annulled.
• Ensure the output voltage of the proposed solar array is lower than the
maximum rated input voltage of the inverter; otherwise the Inverter may be
damaged and the warranty annulled.
• Solar modules should have an IEC61730 Class A rating.
WARNING: Burn hazard
• External and internal parts can become hot during operation. Do not remove
the cover during operation or touch any internal parts. Be sure to allow
sucient time for internal parts to cool down before attempting to perform any
maintenance.
WARNING: Fire hazard
• Do not keep combustible or ammable materials in the same room as the
equipment. The GoodWe Smart Hybrid contains relays and switches which are
not ignition protected.
• Ensure AC, DC and ground cable sizes conform to local codes. See product
manuals for minimum size requirements. Ensure all conductors are in good
condition. Do not operate the unit with damaged or substandard cabling.

5
User Manual V1.4-2022-06-30 Safety Precautions
Symbol Denition
WARNING: Explosion, electrocution or re hazard.
• Ensure that all cables are properly sized.
• Ensure clearance requirements are strictly enforced around the batteries.
• Ensure the area around the batteries is well ventilated and clean of debris.
• Never smoke, or allow a spark or ame near the batteries.
• Always use insulated tools. Avoid dropping tools onto batteries or other
electrical parts.
• Never charge a frozen battery.
• If a battery must be removed, always remove the grounded terminal from the
battery rst. Make sure all devices are de-energized or disconnected to avoid
causing a spark.
Battery Safety
IMPORTANT
• Use the battery types recommended by GoodWe. Follow the battery
manufacturer's recommendations for installation and maintenance.
• Insulate batteries appropriately against freezing temperatures. A discharged
battery will freeze more easily than a charged one.
• If a remote or automatic generator control system is used, disable the
starting circuit and/or disconnect the generator from its starting battery while
performing maintenance to prevent accidental starting.

6
01 Introduction User Manual V1.4-2022-06-30
1.1 Functions
1.2 Features
1.3 Battery Selection
01 Introduction
The GoodWe Smart Hybrid Inverter enables the connection of two solar arrays, a battery bank,
and utility grid and provides backup power for AC loads. The energy produced by the solar
array is automatically directed to the battery, utility grid and/or the AC loads depending on
operating conditions for the highest performance and best economic return. The system’s goal
is to maximize the use of the solar energy generated while minimising the amount of energy
consumed from the utility. The back-up functionality enables users to have continued supply of
electricity in the event of a utility power outage. The GoodWe Smart Hybrid Inverter includes all
of the following functions, components and features in a single easy-to-install product.
• High eciency grid-tie utility interactive inverter
• Utility grid energy metering system
• Powerful backup inverter for AC loads
• Utility powered battery charger
• Dual Maximum Power Point Tracking (MPPT)
• Battery charge control
• Solar array ground fault and insulation monitoring protection
• Programmable GoodWe Smart Hybrid system controller
• Performance monitoring with WiFi and web interface
• Utility grid overcurrent protection and disconnect
• Battery overcurrent protection and disconnect
• AC backup loads overcurrent protection and disconnect
• AC backup loads manual bypass switch
• Weatherproof enclosure, can be installed outdoors (IP65)
Note: The GoodWe GW5048-ESA is a transformerless inverter, all other components of the solar system
must be compatible with this type of inverter architecture.
IMPORTANT
Battery charger settings need to be correct for the intended battery type.
Always follow relevant standards and battery manufacturer recommendations.
When planing a battery bank, consider the following:
• The GW5048-ESA is designed to work with lithium-ion batteries only.
• The GW5048-ESA is designed to work with a nominal 48-Volt battery bank. The actual voltage
of battery can vary during operation from 40 to 60 VDC depending on the battery type and
number of cells in series.
• A vented enclosure for the battery bank may be required by standards. This is recommended
in most cases for safety reasons and to prevent unauthorised access.
• The GW5048-ESA should be connected to a grid or microgrid when installed, and remain
on-grid at least 80% of its life and operation. Prolonged use of the GW5048-ESA o-grid may
result in decreased life of the batteries installed with the system.

7
User Manual V1.4-2022-06-30 01 Introduction
评审用
1.4 Dimensions

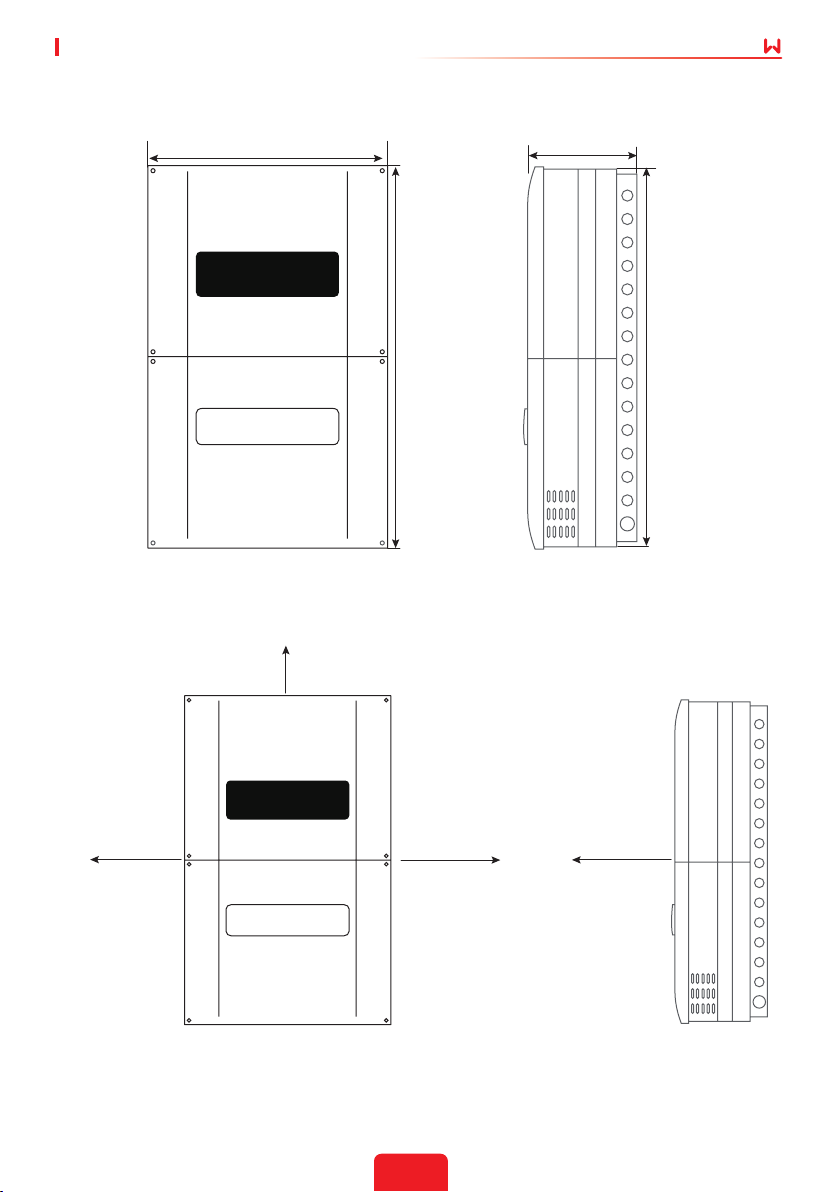

Figure 2: Minimum clearance requirements
Top clearance
300mm
Side clearance
500mm
Side clearance
500mm
Front clearance
1200mm
Figure 1: Dimensions
516mm 290mm
832mm 832mm

8
02 Planning User Manual V1.4-2022-06-30
2.1 Backup AC Loads
2.2 Inverter Operating Modes
02 Planning
The GoodWe Smart Hybrid Inverter can provide up to 5000 Watts of continuous AC power for
AC loads, which are connected to the backup loads. The system can provide a maximum of 6900
watts of AC power for up to 10 seconds to start loads, which require a higher amount of power
initially. The output of the inverter is reduced if the ambient temperature exceeds 45℃ and the
system will shut o if the ambient temperature exceeds 60℃.
Note: The backup circuit shares the neutral line with the grid and hence MEN integrity is maintained in
all modes of the inverter's operations.
Examples of ACCEPTABLE AC loads to connect to
the back-up AC load circuit:
• Small plug-in appliance such as cookers,
microwaves, TV, radios, computers
• Lighting (compact uorescent or LED
recommended)
• Refrigerators and freezers
Examples of UNACCEPTABLE AC loads not to
connect to the backup AC load Circuit:
• Water heaters
• Air-conditioners
• Electric cooktop ranges or ovens
• Spa/saunas
• Water pumps

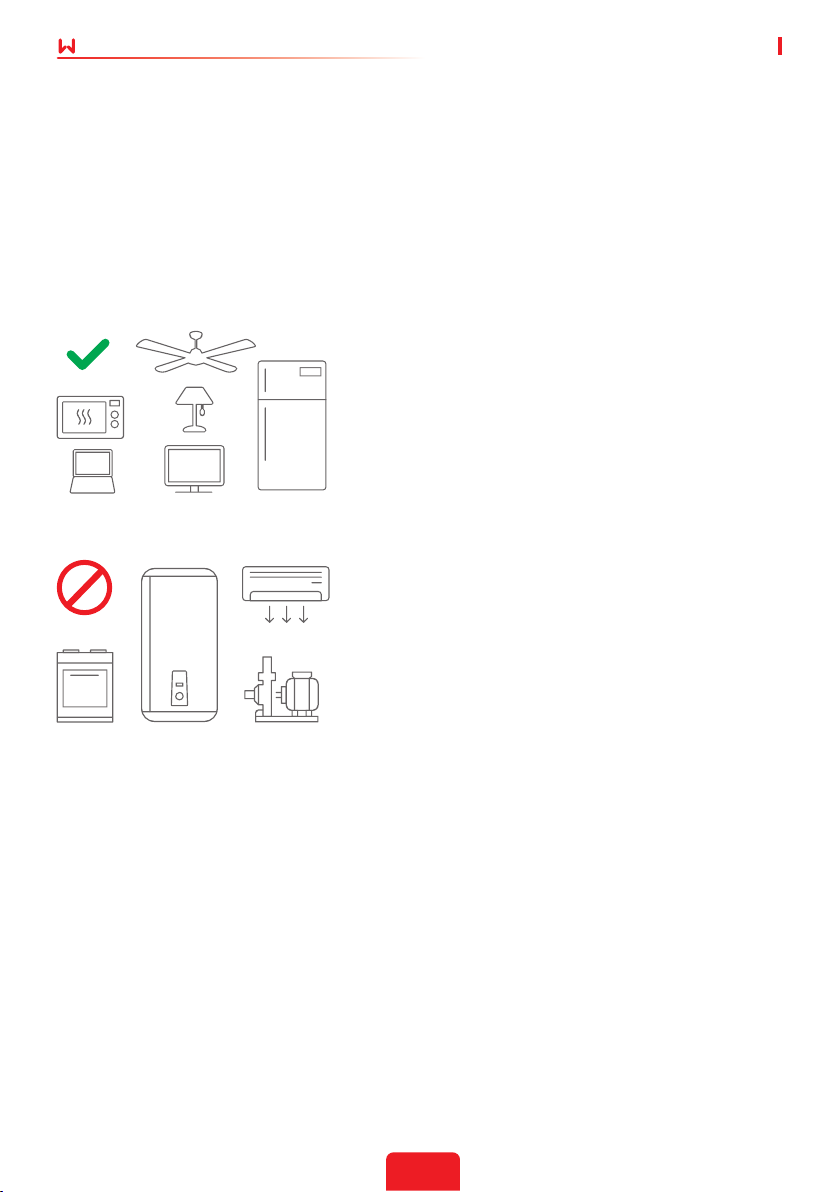

Figure 3: Examples of acceptable backup AC loads
Figure 4: Examples of unacceptable backup AC loads
Note: These examples of dierent operating modes are simplied and do not include the small amount
of losses involved in the energy conversion process. They should not be considered as representative of
real world system performance.
There are four working modes for the inverter: general mode (default), o-grid mode, standby
mode and economic mode, which can be set by the PV Master app or port.
2.2.1 General Mode
General mode: In this mode, the power generated by photovoltaic gives priority to the load
power supply, the remaining power charges the battery, if the power is still remaining, then
selectively grid-connected.

9
02 PlanningUser Manual V1.4-2022-06-30
If the power generated by photovoltaic is insucient to provide load power, the remaining
energy is provided by the battery, if it is still insucient, then the grid provided.
If there is no photovoltaic power generation, the load energy provided by the battery, when the
energy provided by the battery is insucient, then the grid provided.
If there is no grid power, it is priority that PV supplies power to the load, when the energy
provided by the PV is insucient, then the battery provided.
48V Battery
230V Utility Grid
AC Loads
1000W
3000W
2000W
Solar Array
48V Battery
230V Utility Grid
AC Loads
4000W
1000W
3000W
0W
Solar Array
48V Battery
230V Utility Grid
AC Loads
4000W
1000W
3000W
0W

10
02 Planning User Manual V1.4-2022-06-30
2.2.2 O Grid Mode
2.2.3 Standby Mode
2.2.4 Economic Mode
O grid mode: Photovoltaic and battery constitute a pure o-grid system, suitable for non-grid
areas.
Standby mode: Battery discharges only in abnormal condition of grid, similar to uninterrupted
power supply. When the grid is normal, the battery does not discharge, only charges until the
battery is full, when the grid is cut o, and the battery can supply power to the load.
Economic mode: charging at valley price, discharging at peak price, charging/discharging time
and power can be set by the PV Master app.
Solar Array
48V Battery
AC Loads
1000W
3000W
2000W

11
03 InstallationUser Manual V1.4-2022-06-30
03 Installation
The following equipment are supplied for installation of GoodWe GW5048-ESA;
• Wall mounting plate with mounting hardware kit.
• Balance of System (BoS).
• GoodWe Smart Hybrid Solar Inverter System.
• Battery Enclosure (supplied separately).
3.1 Parts List
3.2 Location And Environmental Requirements
The following parts are also supplied with the inverter.
• Energy meter with CT sensor for utility connection with communication cable with RJ45
connectors.
• Amphenol MC4 connectors for solar array connections: 2 positives, 2 negatives with 26 Amp
pins for 4mm wire.
• Installation and operator's manual.
• Inline fuse holder + glass fuse for connection of kWh meter.
1. Do not install the equipment in a place near ammable, explosive, or corrosive materials.
2. Install the equipment on a surface that is solid enough to bear the inverter weight.
3. Install the equipment in a well-ventilated place to ensure good dissipation. Also, the
installation space should be large enough for operations.
4. The equipment with a high ingress protection rating can be installed indoors or outdoors.
The temperature and humidity at the installation site should be within the appropriate range.
Note that the inverter's maximum wattage will derate in temperatures above 45°C.
5. Install the equipment in a sheltered place to avoid direct sunlight, rain, and snow. Build a
sunshade if it is needed.
6. Do not install the equipment in a place that is easy to touch, especially within children’s reach.
High temperature exists when the equipment is working. Do not touch the surface to avoid
burning.
7. Install the equipment at a height that is convenient for operation and maintenance, electrical
connections, and checking indicators and labels.
8. Install the inverter away from high magnetic eld to avoid electromagnetic interference.If
there is any radio or wireless communication equipment below 30MHz near the inverter, you
have to
• Install the inverter at least 30m far away from the wireless equipment.
• Add a low pass EMI lter or a multi winding ferrite core to the DC input cable or AC output
cable of the inverter.

12
03 Installation User Manual V1.4-2022-06-30

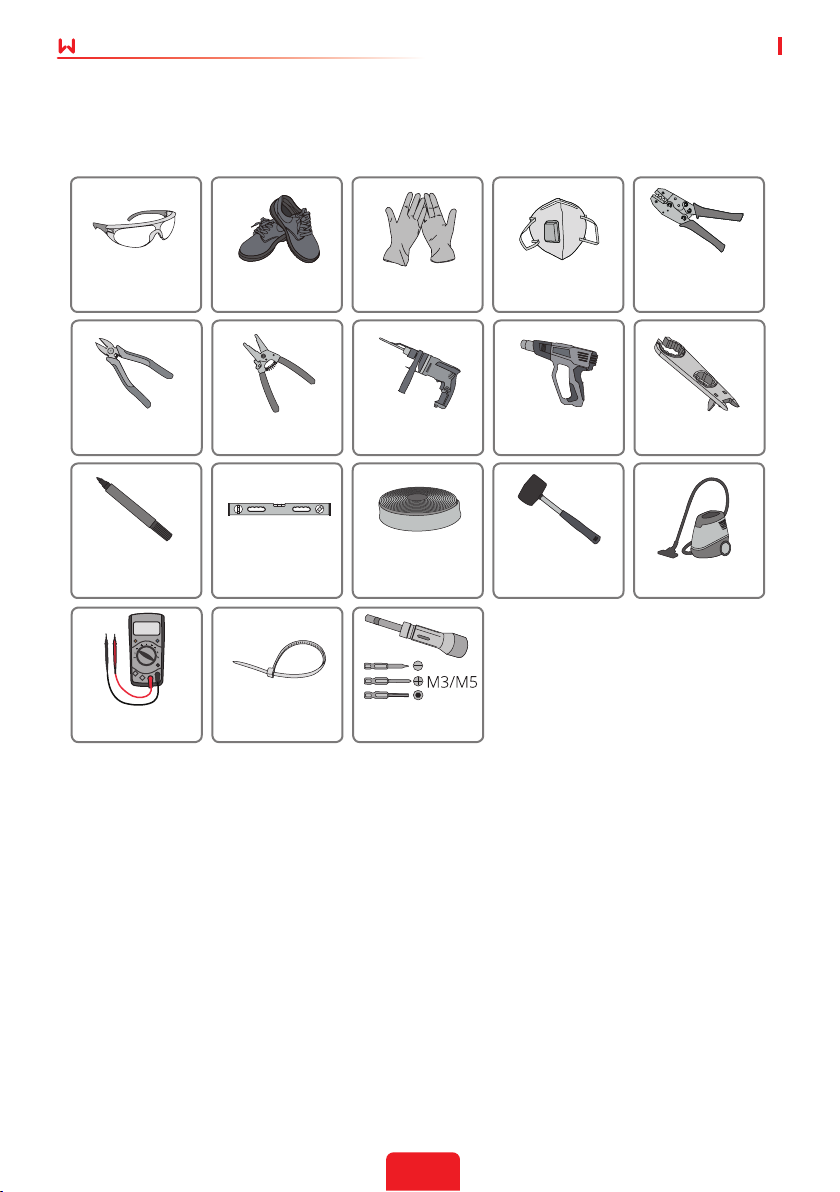

3.3 Tools Required
The following tools are recommended when installing the equipment. Use other auxiliary tools
on site if necessary.
Goggles Safety shoes Safety gloves Dust mask
Diagonal pliers
Marker Level Heat shrink
tube
Rubber
hammer
DC wiring
wrench
Vacuum
cleaner
Torque wrench
Cable tieMultimeter
Wire stripper Hammer drill Heat gun
DC terminal
crimping tool

13
03 InstallationUser Manual V1.4-2022-06-30
3.4 Battery Enclosure Installation
The battery enclosure should be installed rst if the battery enclosure is supplied in the package.
For more details on installation of the battery enclosure, please refer to the Battery Enclosure
BCL0096 Installation Manual.
3.5 Mounting Wall Plate
Use appropriate fasteners to secure the inverter mounting plate to the mounting surface.
GoodWe will not be responsible for damage to the product if it is attached with inadequate
fasteners.
• Mount and secure the mounting plate to a solid surface before attaching any wiring.
Note: if this inverter is being installed without a GoodWe Battery Enclosure, it is recommended that if
you wish to install the GoodWe Battery Enclosure ( BCL0096) in the future you should mount the inverter
1206mm from the oor.
• Ensure the surface can hold the weight of the entire system (50 kg). Hardware is provided but
some installations may require dierent hardware depending on the material used for the
mounting surface involved.
• The top of the mounting plate can be identied by the word 'Top' stamped into the frame.
510mm 120mm
834mm 834mm
Mouting holes x 8
For mounting the plate to
the mounting surface.
Mouting hooks x 2
For mounting the inverter
to the mounting plate.

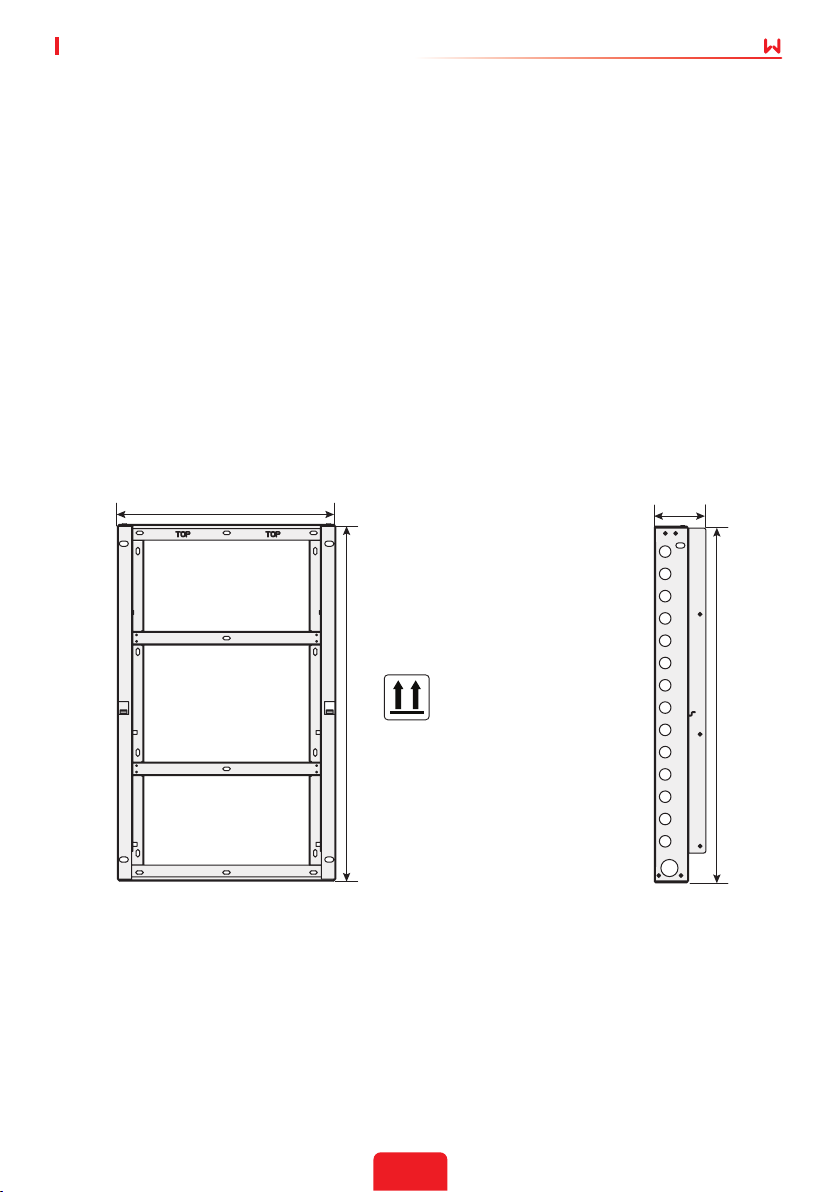

Figure 5: Mounting plate.
3.6 Mounting the Balance of System (BoS)
After attaching the mounting plate to the wall, lift the BoS and place it on the two mounting
hooks. Ensure that both hooks are engaged before releasing the BoS as shown in Figure 6.

14
03 Installation User Manual V1.4-2022-06-30
3.7 Mounting the Inverter
WARNING: Shock hazard
Do not place the inverter in a vertical position with the weight of the inverter on the
connectors at the bottom of the chassis. The connectors may be damaged and/or
foreign materials may enter them.
• After placing the BoS on the mounting plate, lift the inverter and place it on the BoS in a way
that the male and female connectors are engaged and locked as shown in Figure 6.
• Screw the top side of the inverter to the mounting plate with the screws provided, as shown
in Figure 8.
• Screw the antenna into the SMA connector on the left side of the inverter as shown in Figure
7.
• Inside the wiring compartment on the left side is a hole which will allow for the installation of
a padlock to secure the inverter to the mounting plate, to prevent unauthorized removal.

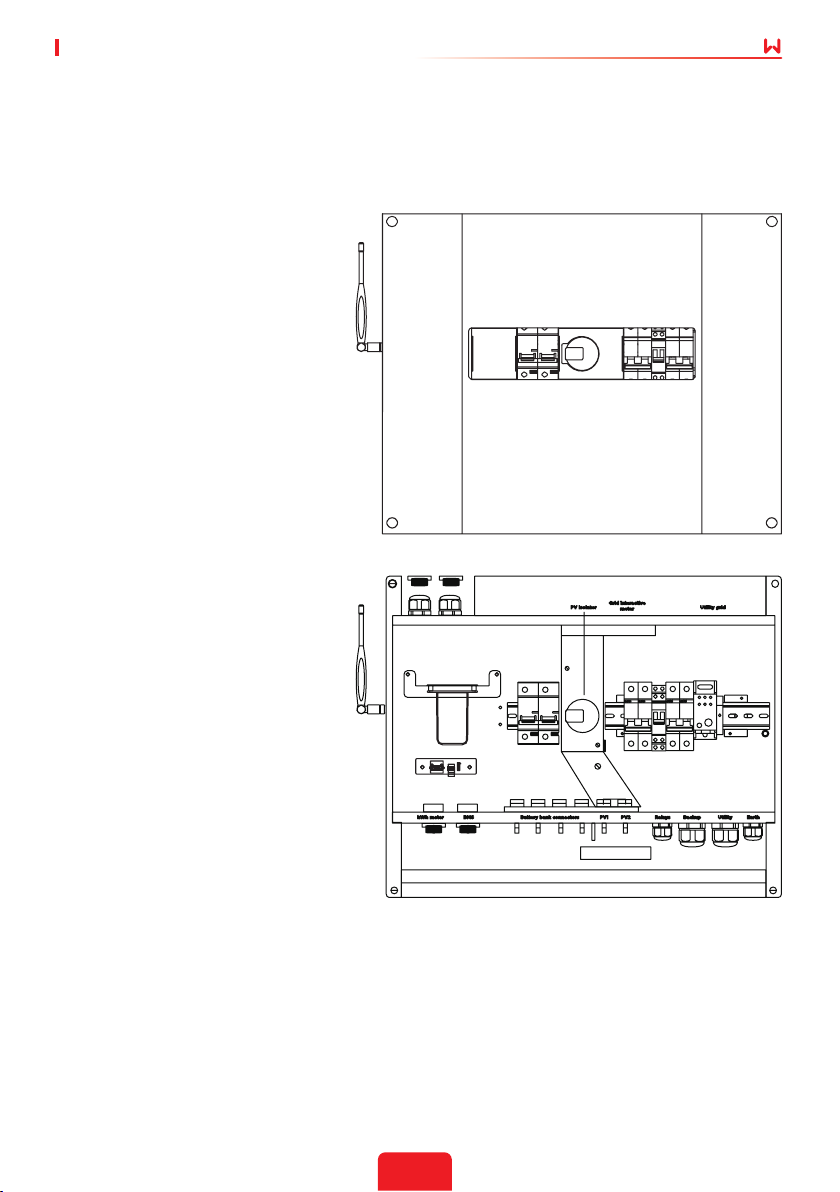

Figure 6: Mounting the BoS
Figure 8: Top View
Figure 7: Mounting the Inverter
ON
ON

04 Installation Planning
15
User Manual V1.4-2022-06-30
4.1 Removing the BoS Covers
04 Installation Planning
The installer should follow the following procedure to make the system ready for start up.
BoS wiring compartment cover(AC
and DC connections)
Remove this cover during installation.
The solar array and battery
connectors:
Flip-up weatherproof cover (circuit
breaker access).
This cover comes o with the
wiring compartment cover during
installation.
To remove the BoS compartment
cover:
Remove the hex bolts (4) from the
lower half of the inverter using a
4mm hex wrench.
Carefully pull the cover plate away
from the compartment.
Note: The PV isolator switch must be in
the o position (horizontal) in order to
remove the cover.
Figure 9: Removing the covers.
ON

04 Installation Planning
16
User Manual V1.4-2022-06-30
4.2 BoS Wiring
The section describes required wiring in BoS. The terminals and connectors inside BoS are
displayed in the following gure. The following notes must be considered when wiring the BoS:
• All system wiring must comply with national and local codes and regulations.
• When wiring, ensure the polarity of connections are correct to avoid any hazard or damage to
the equipment.
• The communication cables must be connected as instructed.
For more details, refer to section 4.2.5.
kWh meter
RS485 DRED
BACKUP
Battery bank
connectors Utility Earth
BMS
Amphenol MC4 solar
arrays connectors
two positive/two negatives
Figure 10: Terminals and connectors
Screw up
PV Isolator
Earth
Utility grid 40 amp
400Vac 2-pole
circuit breaker
Backup 25 amp
400Vac 2-pole
circuit breaker
Battery 125 amp per
pole 80/125 VDC 2-pole
circuit breaker
Earth terminals
Manual AC load
25 amp 250Vac
bypass switch
Switch board
WiFi
ON
Bottom view

04 Installation Planning
17
User Manual V1.4-2022-06-30
4.2.1 System Wiring Diagram
ON
PV isolator
Battery 125 amp
per pole80/125VDC
2-pole circuit breaker Backup 25 amp
400Vac 2-pole
circuit breaker
Manual AC load
25 amp 250Vac
bypass switch
Earth
Utility grid 40 amp
400Vac 2-pole
circuit breaker
230V
Utility grid
Energy meter
comms cable
Voltage
Sense
0.1 Amp
fuse
Backup AC
loads panel
AC loads
Solar array
up to two solar arrays
Up to four batteries
Approved battery
BMS comm
cable
Protective
earth
Protective
earth
Main panel
230 vac panel
CT sensor
WiFi
switch board
Figure 11: System wiring diagram.
