Huawei SUN2000 MB0 Series User manual

SUN2000-(12K-25K)-MB0 Series
User Manual
Issue 01
Date 2023-04-30
HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.

Copyright © Huawei Digital Power Technologies Co., Ltd. 2023. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Digital Power Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are the property of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei
Digital Power Technologies Co., Ltd. and the customer. All or part of the products, services and features
described in this document may not be within the purchase scope or the usage scope. Unless otherwise
specied in the contract, all statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Digital Power Technologies Co., Ltd.
Address: Huawei Digital Power Antuoshan Headquarters
Futian, Shenzhen 518043
People's Republic of China
Website: https://digitalpower.huawei.com
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. i

About This Document
Purpose
This document describes the following inverter models (also referred to as
SUN2000) in terms of the safety precautions, product introduction, installation,
electrical connections, power-on and commissioning, maintenance, and technical
specications. Read this document carefully before installing and operating the
SUN2000.
● SUN2000-12K-MB0
● SUN2000-15K-MB0
● SUN2000-17K-MB0
● SUN2000-20K-MB0
● SUN2000-25K-MB0
● SUN2000-15K-MB0-ZH
● SUN2000-17K-MB0-ZH
● SUN2000-20K-MB0-ZH
● SUN2000-25K-MB0-ZH
Intended Audience
This document is intended for:
● Installers
● Users
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Description
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
SUN2000-(12K-25K)-MB0 Series
User Manual About This Document
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. ii

Symbol Description
Indicates a hazard with a medium level of risk which, if not
avoided, could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to personal
injury.
Supplements the important information in the main text.
NOTE is used to address information not related to personal
injury, equipment damage, and environment deterioration.
Change History
Changes between document issues are cumulative. The latest document issue
contains all the changes made in earlier issues.
Issue 01 (2023-04-30)
This issue is used for rst oce application (FOA).
SUN2000-(12K-25K)-MB0 Series
User Manual About This Document
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. iii

Contents
About This Document................................................................................................................ ii
1 Safety Information.................................................................................................................. 1
1.1 Personal Safety.........................................................................................................................................................................2
1.2 Electrical Safety........................................................................................................................................................................4
1.3 Environment Requirements................................................................................................................................................. 6
1.4 Mechanical Safety................................................................................................................................................................... 8
2 Overview................................................................................................................................. 13
2.1 Model Number Description............................................................................................................................................... 13
2.2 Networking Application...................................................................................................................................................... 14
2.3 Appearance............................................................................................................................................................................. 17
2.4 Working Modes..................................................................................................................................................................... 19
2.5 Label Description.................................................................................................................................................................. 20
3 Storage Requirements..........................................................................................................23
4 Installation..............................................................................................................................24
4.1 Installation Scenarios.......................................................................................................................................................... 24
4.2 Determining the Installation Position............................................................................................................................24
4.2.1 Site Selection Requirements.......................................................................................................................................... 24
4.2.2 Space Requirements......................................................................................................................................................... 25
4.3 Tools.......................................................................................................................................................................................... 27
4.4 Checking Before Installation............................................................................................................................................. 29
4.5 Moving an Inverter............................................................................................................................................................... 30
4.6 Installing an Inverter (Wall Mounting)......................................................................................................................... 30
4.7 Installing an Inverter (Support Mounting).................................................................................................................. 32
5 Electrical Connections.......................................................................................................... 35
5.1 Preparing Cables................................................................................................................................................................... 36
5.2 Connecting a PE Cable........................................................................................................................................................ 39
5.3 Connecting an AC Output Power Cable........................................................................................................................41
5.4 Connecting DC Input Power Cables................................................................................................................................45
5.5 Connecting Signal Cables................................................................................................................................................... 49
5.5.1 Connecting the RS485 Communications Cable (Inverter Cascading)............................................................. 52
5.5.2 Connecting an RS485 Communications Cable (Power Meter)..........................................................................53
SUN2000-(12K-25K)-MB0 Series
User Manual Contents
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. iv

5.5.3 Connecting the Rapid shutdown signal cable......................................................................................................... 59
5.5.4 Connecting the Power Grid Scheduling Signal Cable........................................................................................... 60
5.5.5 Connecting the NS Protection Signal Cables........................................................................................................... 62
5.6 (Optional) Installing the Smart Dongle and Anti-theft Components................................................................ 64
6 Power-On and Commissioning...........................................................................................66
6.1 Powering On the Inverter.................................................................................................................................................. 67
6.2 Creating a Plant.....................................................................................................................................................................72
6.2.1 Downloading the FusionSolar App..............................................................................................................................72
6.2.2 (Optional) Registering an Installer Account............................................................................................................ 73
6.2.3 Creating a Plant and an Owner Account.................................................................................................................. 75
6.3 Setting Functions and Features Through Device Commissioning........................................................................76
6.3.1 Grid-tied Point Control.................................................................................................................................................... 77
6.3.2 (Optional) Setting the Physical Layout of the Smart PV Optimizers.............................................................. 82
6.3.3 AFCI........................................................................................................................................................................................ 83
6.4 Viewing the Plant Creation Status.................................................................................................................................. 84
7 System Maintenance............................................................................................................ 86
7.1 System Power-O.................................................................................................................................................................86
7.2 Routine Maintenance.......................................................................................................................................................... 87
7.3 Troubleshooting..................................................................................................................................................................... 88
7.4 Handling the Inverter.......................................................................................................................................................... 99
7.4.1 Removing the SUN2000............................................................................................................................................... 100
7.4.2 Packing the SUN2000.................................................................................................................................................... 100
7.4.3 Disposing of the SUN2000...........................................................................................................................................100
7.5 Replacing a Fan................................................................................................................................................................... 100
8 Technical Specications.....................................................................................................102
8.1 SUN2000-(15K-25K)-MB0-ZH Technical Specications........................................................................................ 102
8.2 SUN2000-(12K-25K)-MB0 Technical Specications............................................................................................... 111
A Grid Codes............................................................................................................................ 119
B Connecting to the Inverter............................................................................................... 124
C Resetting Password............................................................................................................ 126
D Locating Insulation Resistance Faults........................................................................... 127
E Rapid Shutdown.................................................................................................................. 131
F Acronym and Abbreviation............................................................................................... 133
SUN2000-(12K-25K)-MB0 Series
User Manual Contents
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. v

1 Safety Information
Statement
Before transporting, storing, installing, operating, using, and/or maintaining
the equipment, read this document, strictly follow the instructions provided
herein, and follow all the safety instructions on the equipment and in this
document. In this document, "equipment" refers to the products, software,
components, spare parts, and/or services related to this document; "the Company"
refers to the manufacturer (producer), seller, and/or service provider of the
equipment; "you" refers to the entity that transports, stores, installs, operates,
uses, and/or maintains the equipment.
The Danger, Warning, Caution, and Notice statements described in this
document do not cover all the safety precautions. You also need to comply with
relevant international, national, or regional standards and industry practices. The
Company shall not be liable for any consequences that may arise due to
violations of safety requirements or safety standards concerning the design,
production, and usage of the equipment.
The equipment should be used in an environment that meets the design
specications. Otherwise, the equipment may be faulty, malfunctioning, or
damaged, which is not covered under the warranty. The Company shall not be
liable for any property loss, personal injury, or even death caused thereby.
Comply with applicable laws, regulations, standards, and specications during
transportation, storage, installation, operation, use, and maintenance.
Do not perform reverse engineering, decompilation, disassembly, adaptation,
implantation, or other derivative operations on the equipment software. Do not
study the internal implementation logic of the equipment, obtain the source code
of the equipment software, violate intellectual property rights, or disclose any of
the performance test results of the equipment software.
The Company shall not be liable for any of the following circumstances or
their consequences:
● The equipment is damaged due to force majeure such as earthquakes, oods,
volcanic eruptions, debris ows, lightning strikes, res, wars, armed conicts,
typhoons, hurricanes, tornadoes, and other extreme weather conditions.
● The equipment is operated beyond the conditions specied in this document.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 1

● The equipment is installed or used in environments that do not comply with
international, national, or regional standards.
● The equipment is installed or used by unqualied personnel.
● You fail to follow the operation instructions and safety precautions on the
product and in the document.
● You remove or modify the product or modify the software code without
authorization.
● You or a third party authorized by you cause the equipment damage during
transportation.
● The equipment is damaged due to storage conditions that do not meet the
requirements specied in the product document.
● You fail to prepare materials and tools that comply with local laws,
regulations, and related standards.
● The equipment is damaged due to your or a third party's negligence,
intentional breach, gross negligence, or improper operations, or other reasons
not related to the Company.
1.1 Personal Safety
D ANGER
Ensure that power is o during installation. Do not install or remove a cable with
power on. Transient contact between the core of the cable and the conductor will
generate electric arcs or sparks, which may cause a re or personal injury.
D ANGER
Non-standard and improper operations on the energized equipment may cause
re, electric shocks, or explosion, resulting in property damage, personal injury, or
even death.
D ANGER
Before operations, remove conductive objects such as watches, bracelets, bangles,
rings, and necklaces to prevent electric shocks.
D ANGER
During operations, use dedicated insulated tools to prevent electric shocks or short
circuits. The dielectric withstanding voltage level must comply with local laws,
regulations, standards, and specications.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 2

WARNING
During operations, wear personal protective equipment such as protective
clothing, insulated shoes, goggles, safety helmets, and insulated gloves.
Figure 1-1 Personal protective equipment
General Requirements
● Do not stop protective devices. Pay attention to the warnings, cautions, and
related precautionary measures in this document and on the equipment.
● If there is a likelihood of personal injury or equipment damage during
operations, immediately stop, report the case to the supervisor, and take
feasible protective measures.
● Do not power on the equipment before it is installed or conrmed by
professionals.
● Do not touch the power supply equipment directly or with conductors such as
damp objects. Before touching any conductor surface or terminal, measure
the voltage at the contact point to ensure that there is no risk of electric
shock.
● Do not touch operating equipment because the enclosure is hot.
● Do not touch a running fan with your hands, components, screws, tools, or
boards. Otherwise, personal injury or equipment damage may occur.
● In the case of a re, immediately leave the building or the equipment area
and activate the re alarm or call emergency services. Do not enter the
aected building or equipment area under any circumstances.
Personnel Requirements
● Only professionals and trained personnel are allowed to operate the
equipment.
– Professionals: personnel who are familiar with the working principles and
structure of the equipment, trained or experienced in equipment
operations and are clear of the sources and degree of various potential
hazards in equipment installation, operation, maintenance
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 3

– Trained personnel: personnel who are trained in technology and safety,
have required experience, are aware of possible hazards on themselves in
certain operations, and are able to take protective measures to minimize
the hazards on themselves and other people
● Personnel who plan to install or maintain the equipment must receive
adequate training, be able to correctly perform all operations, and understand
all necessary safety precautions and local relevant standards.
● Only qualied professionals or trained personnel are allowed to install,
operate, and maintain the equipment.
● Only qualied professionals are allowed to remove safety facilities and inspect
the equipment.
● Personnel who will perform special tasks such as electrical operations,
working at heights, and operations of special equipment must possess the
required local qualications.
● Only authorized professionals are allowed to replace the equipment or
components (including software).
● Only personnel who need to work on the equipment are allowed to access
the equipment.
1.2 Electrical Safety
D ANGER
Before connecting cables, ensure that the equipment is intact. Otherwise, electric
shocks or re may occur.
D ANGER
Non-standard and improper operations may result in re or electric shocks.
D ANGER
Prevent foreign matter from entering the equipment during operations. Otherwise,
equipment damage, load power derating, power failure, or personal injury may
occur.
WARNING
For the equipment that needs to be grounded, install the ground cable rst when
installing the equipment and remove the ground cable last when removing the
equipment.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 4

CA UTION
Do not route cables near the air intake or exhaust vents of the equipment.
General Requirements
● Follow the procedures described in the document for installation, operation,
and maintenance. Do not reconstruct or alter the equipment, add
components, or change the installation sequence without permission.
● Obtain approval from the national or local electric utility company before
connecting the equipment to the grid.
● Observe the power plant safety regulations, such as the operation and work
ticket mechanisms.
● Install temporary fences or warning ropes and hang "No Entry" signs around
the operation area to keep unauthorized personnel away from the area.
● Before installing or removing power cables, turn o the switches of the
equipment and its upstream and downstream switches.
● Before performing operations on the equipment, check that all tools meet the
requirements and record the tools. After the operations are complete, collect
all of the tools to prevent them from being left inside the equipment.
● Before installing power cables, check that cable labels are correct and cable
terminals are insulated.
● When installing the equipment, use a torque tool of a proper measurement
range to tighten the screws. When using a wrench to tighten the screws,
ensure that the wrench does not tilt and the torque error does not exceed
10% of the specied value.

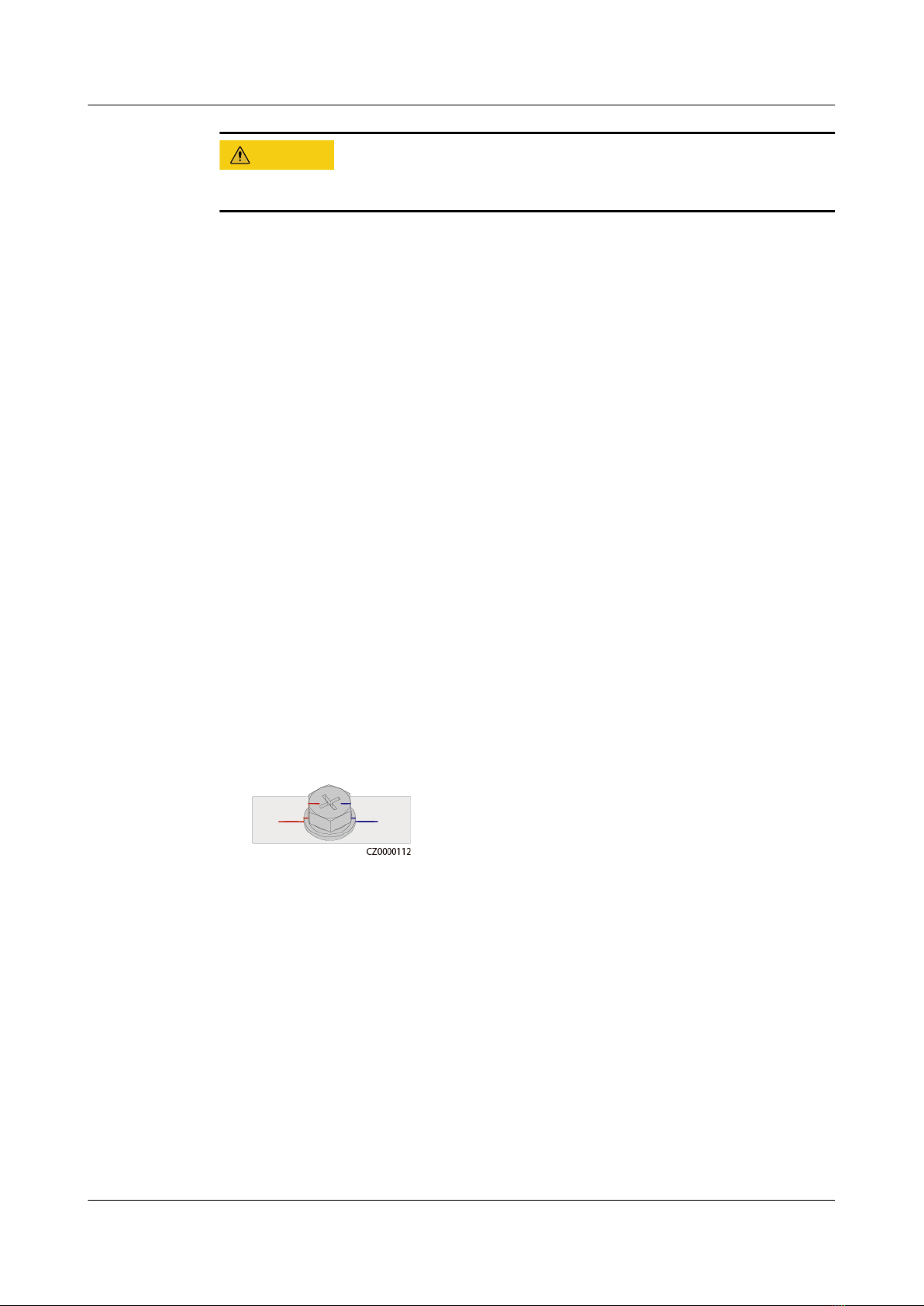

● Ensure that bolts are tightened with a torque tool and marked in red and blue
after double-check. Installation personnel mark tightened bolts in blue.
Quality inspection personnel conrm that the bolts are tightened and then
mark them in red. (The marks should cross the edges of the bolts.)
● If the equipment has multiple inputs, disconnect all the inputs before
operating the equipment.
● Before maintaining a downstream electrical or power distribution device, turn
o the output switch on the power supply equipment.
● During equipment maintenance, attach "Do not switch on" labels near the
upstream and downstream switches or circuit breakers as well as warning
signs to prevent accidental connection. The equipment can be powered on
only after troubleshooting is complete.
● Do not open equipment panels.
● Check equipment connections periodically, ensuring that all screws are
securely tightened.
● Only qualied professionals can replace a damaged cable.
● Do not scrawl, damage, or block any labels or nameplates on the equipment.
Promptly replace labels that have worn out.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 5

● Do not use solvents such as water, alcohol, or oil to clean electrical
components inside or outside of the equipment.
Grounding
● Ensure that the grounding impedance of the equipment complies with local
electrical standards.
● Ensure that the equipment is connected permanently to the protective
ground. Before operating the equipment, check its electrical connection to
ensure that it is reliably grounded.
● Do not work on the equipment in the absence of a properly installed ground
conductor.
● Do not damage the ground conductor.
Cabling Requirements
● When selecting, installing, and routing cables, follow local safety regulations
and rules.
● When routing power cables, ensure that there is no coiling or twisting. Do not
join or weld power cables. If necessary, use a longer cable.
● Ensure that all cables are properly connected and insulated, and meet
specications.
● Ensure that the slots and holes for routing cables are free from sharp edges,
and that the positions where cables are routed through pipes or cable holes
are equipped with cushion materials to prevent the cables from being
damaged by sharp edges or burrs.
● Ensure that cables of the same type are bound together neatly and straight
and that the cable sheath is intact. When routing cables of dierent types,
ensure that they are away from each other without entanglement and
overlapping.
● Secure buried cables using cable supports and cable clips. Ensure that the
cables in the backll area are in close contact with the ground to prevent
cable deformation or damage during backlling.
● If the external conditions (such as the cable layout or ambient temperature)
change, verify the cable usage in accordance with the IEC-60364-5-52 or local
laws and regulations. For example, check that the current-carrying capacity
meets requirements.
● When routing cables, reserve at least 30 mm clearance between the cables
and heat-generating components or areas. This prevents deterioration or
damage to the cable insulation layer.
1.3 Environment Requirements
D ANGER
Do not expose the equipment to ammable or explosive gas or smoke. Do not
perform any operation on the equipment in such environments.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 6

D ANGER
Do not store any ammable or explosive materials in the equipment area.
D ANGER
Do not place the equipment near heat sources or re sources, such as smoke,
candles, heaters, or other heating devices. Overheat may damage the equipment
or cause a re.
WARNING
Install the equipment in an area far away from liquids. Do not install it under
areas prone to condensation, such as under water pipes and air exhaust vents, or
areas prone to water leakage, such as air conditioner vents, ventilation vents, or
feeder windows of the equipment room. Ensure that no liquid enters the
equipment to prevent faults or short circuits.
WARNING
To prevent damage or re due to high temperature, ensure that the ventilation
vents or heat dissipation systems are not obstructed or covered by other objects
while the equipment is running.
General Requirements
● Ensure that the equipment is stored in a clean, dry, and well ventilated area
with proper temperature and humidity and is protected from dust and
condensation.
● Keep the installation and operating environments of the equipment within the
allowed ranges. Otherwise, its performance and safety will be compromised.
● Do not install, use, or operate outdoor equipment and cables (including but
not limited to moving equipment, operating equipment and cables, inserting
connectors to or removing connectors from signal ports connected to outdoor
facilities, working at heights, performing outdoor installation, and opening
doors) in harsh weather conditions such as lightning, rain, snow, and level 6
or stronger wind.
● Do not install the equipment in an environment with dust, smoke, volatile or
corrosive gases, infrared and other radiations, organic solvents, or salty air.
● Do not install the equipment in an environment with conductive metal or
magnetic dust.
● Do not install the equipment in an area conducive to the growth of
microorganisms such as fungus or mildew.
● Do not install the equipment in an area with strong vibration, noise, or
electromagnetic interference.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 7

● Ensure that the site complies with local laws, regulations, and related
standards.
● Ensure that the ground in the installation environment is solid, free from
spongy or soft soil, and not prone to subsidence. The site must not be located
in a low-lying land prone to water or snow accumulation, and the horizontal
level of the site must be above the highest water level of that area in history.
● Do not install the equipment in a position that may be submerged in water.
● If the equipment is installed in a place with abundant vegetation, in addition
to routine weeding, harden the ground underneath the equipment using
cement or gravel (recommended area: 3 m x 2.5 m).
● Do not install the equipment outdoors in salt-aected areas because it may
be corroded. A salt-aected area refers to the region within 500 m of the
coast or prone to sea breeze. Regions prone to sea breeze vary with weather
conditions (such as typhoons and monsoons) or terrains (such as dams and
hills).
● Before opening doors during the installation, operation, and maintenance of
the equipment, clean up any water, ice, snow, or other foreign objects on the
top of the equipment to prevent foreign objects from falling into the
equipment.
● When installing the equipment, ensure that the installation surface is solid
enough to bear the weight of the equipment.
● After installing the equipment, remove the packing materials such as cartons,
foam, plastics, and cable ties from the equipment area.
1.4 Mechanical Safety
WARNING
Ensure that all necessary tools are ready and inspected by a professional
organization. Do not use tools that have signs of scratches or fail to pass the
inspection or whose inspection validity period has expired. Ensure that the tools
are secure and not overloaded.
WARNING
Do not drill holes into the equipment. Doing so may aect the sealing
performance and electromagnetic containment of the equipment and damage
components or cables inside. Metal shavings from drilling may short-circuit boards
inside the equipment.
General Requirements
● Repaint any paint scratches caused during equipment transportation or
installation in a timely manner. Equipment with scratches cannot be exposed
for an extended period of time.
● Do not perform operations such as arc welding and cutting on the equipment
without evaluation by the Company.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 8

● Do not install other devices on the top of the equipment without evaluation
by the Company.
● When performing operations over the top of the equipment, take measures to
protect the equipment against damage.
● Use correct tools and operate them in the correct way.
Moving Heavy Objects
● Be cautious to prevent injury when moving heavy objects.
● If multiple persons need to move a heavy object together, determine the
manpower and work division with consideration of height and other
conditions to ensure that the weight is equally distributed.
● If two persons or more move a heavy object together, ensure that the object
is lifted and landed simultaneously and moved at a uniform pace under the
supervision of one person.
● Wear personal protective gears such as protective gloves and shoes when
manually moving the equipment.
● To move an object by hand, approach to the object, squat down, and then lift
the object gently and stably by the force of the legs instead of your back. Do
not lift it suddenly or turn your body around.
● Do not quickly lift a heavy object above your waist. Place the object on a
workbench that is half-waist high or any other appropriate place, adjust the
positions of your palms, and then lift it.
● Move a heavy object stably with balanced force at an even and low speed. Put
down the object stably and slowly to prevent any collision or drop from
scratching the surface of the equipment or damaging the components and
cables.
● When moving a heavy object, be aware of the workbench, slope, staircase,
and slippery places. When moving a heavy object through a door, ensure that
the door is wide enough to move the object and avoid bumping or injury.
● When transferring a heavy object, move your feet instead of turning your
waist around. When lifting and transferring a heavy object, ensure that your
feet point to the target direction of movement.
● When transporting the equipment using a pallet truck or forklift, ensure that
the tynes are properly positioned so that the equipment does not topple.
Before moving the equipment, secure it to the pallet truck or forklift using
ropes. When moving the equipment, assign dedicated personnel to take care
of it.
● Choose sea or roads in good conditions for transportation as transportation
by railway or air is not supported. Avoid tilt or jolt during transportation.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 9

Using Ladders
● Use wooden or insulated ladders when you need to perform live-line working
at heights.
● Platform ladders with protective rails are preferred. Single ladders are not
recommended.
● Before using a ladder, check that it is intact and conrm its load bearing
capacity. Do not overload it.
● Ensure that the ladder is securely positioned and held rm.
● When climbing up the ladder, keep your body stable and your center of
gravity between the side rails, and do not overreach to the sides.
● When a step ladder is used, ensure that the pull ropes are secured.

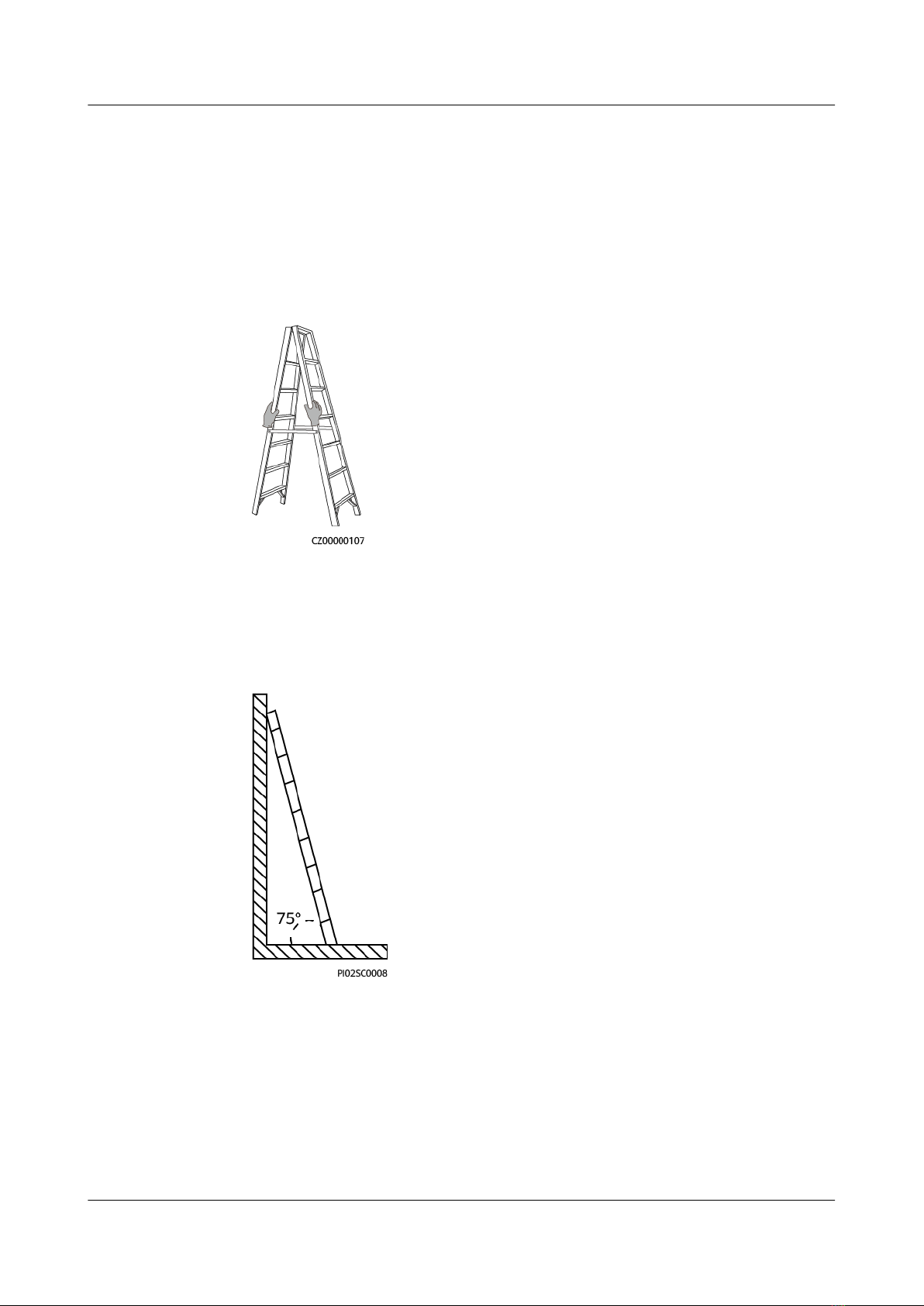

● If a single ladder is used, the recommended angle for the ladder against the
oor is 75 degrees, as shown in the following gure. A square can be used to
measure the angle.
● If a single ladder is used, ensure that the wider end of the ladder is at the
bottom, and take protective measures to prevent the ladder from sliding.
● If a single ladder is used, do not climb higher than the fourth rung of the
ladder from the top.
● If you use a single ladder to climb up to a platform, ensure that the ladder is
at least 1 m higher than the platform.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 10

Hoisting
● Only trained and qualied personnel are allowed to perform hoisting
operations.
● Install temporary warning signs or fences to isolate the hoisting area.
● Ensure that the foundation where hoisting is performed on meets the load-
bearing requirements.
● Before hoisting objects, ensure that hoisting tools are rmly secured onto a
xed object or wall that meets the load-bearing requirements.
● During hoisting, do not stand or walk under the crane or the hoisted objects.
● Do not drag steel ropes and hoisting tools or bump the hoisted objects
against hard objects during hoisting.
● Ensure that the angle between two hoisting ropes is no more than 90
degrees, as shown in the following gure.
Drilling Holes
● Obtain consent from the customer and contractor before drilling holes.
● Wear protective equipment such as safety goggles and protective gloves when
drilling holes.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 11

● To avoid short circuits or other risks, do not drill holes into buried pipes or
cables.
● When drilling holes, protect the equipment from shavings. After drilling, clean
up any shavings.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 12

2 Overview
The SUN2000 is a three-phase grid-tied PV string inverter that converts the DC
power generated by PV strings into AC power and feeds the power into the power
grid.
2.1 Model Number Description
This document involves the following product models:
● SUN2000-12K-MB0
● SUN2000-15K-MB0
● SUN2000-17K-MB0
● SUN2000-20K-MB0
● SUN2000-25K-MB0
● SUN2000-15K-MB0-ZH
● SUN2000-17K-MB0-ZH
● SUN2000-20K-MB0-ZH
● SUN2000-25K-MB0-ZH
Figure 2-1 Model number (using SUN2000-15K-MB0-ZH as an example)
Table 2-1 Model number description
No. Item Description
1 Series name SUN2000: three-phase grid-tied PV string
inverter
SUN2000-(12K-25K)-MB0 Series
User Manual 2 Overview
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 13

No. Item Description
2 Power ● 12K: The rated power is 12 kW.
● 15K: The rated power is 15 kW.
● 17K: The rated power is 17 kW.
● 20K: The rated power is 20 kW.
● 25K: The rated power is 25 kW.
3 Design code MB0: three-phase product series with the DC
input voltage level of 1000 V or 1100 V
4 Region ZH: China
2.2 Networking Application
Typical Networking
The SUN2000 applies to residential rooftop grid-tied systems and small-sized
ground grid-tied PV plants. The system consists of PV strings, grid-tied inverters,
AC switches, and power distribution units (PDUs).
SUN2000-(12K-25K)-MB0 Series
User Manual 2 Overview
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 14
