Goodwe BT Series Original operating instructions

340-00329-00
BT QUICK INSTALLATION INSTRUCTIONS
PART 1
QUICK
INSTALLATION
PART 2
BATTERY
CONNECTION
PART 3
Wi-Fi
CONFIGURATION
UPS
Wi-Fi
RESET
PV Master APP SEMS Portal APP SEMS Portal website
www.semsportal.com
LinkedIn Company's
offical website

Step 1. Instrucitons for quick installation
Installation space
Upward
Downward
Front
Left and right side
Wall bracket
Self-tapping Screws
Expansion Pipe
----------------------300mm
------------------500mm
-------------------------300mm
---------200mm
A
F
H
I
G
B
C
E
D
Dimensions for drilling holes
AC Calbe:6mm2 Copper Conductor Material
AC cable assembly and connection
DRED cable assembly
Dimensions for drilling holes
Fix the wall bracket Installation
Step1
Instructions for quick installation
Step2
SOP of battery connection
Step3
Wi-Fi configuration instruction
Step1
Instructions for quick installation
Step2
SOP of battery connection
Step3
Wi-Fi configuration instruction
UPS
UPS
UPS
UPS
Grade
A
B
C
Description
Outside diameter insulation
Conductor core section
Conductor core length
Value
5.5-8.0 mm
4-6 mm2
7 mm
C
OFF
Note: Make sure the cables (L/N/PE) are connected to right position
Remote Shutdown
NO
Function
5
REFGEN
6
COM / DRMO
NO
Function
1
DRM1/5
2
DRM2/6
3
DRM3/7
4
DRM4/8
5
REFGEN
6
COM / DRMO
Battery wiring assembly and connection
≥300mm
≥200mm ≥200mm ≥300mm
250mm
125mm
≥500mm
240mm
4-Φ10*80mm depth
Inverter could be locked for anti-theft,
if it is needed.
Prepare the terminals and AC cables according to the left table
DRED connection is only available for Australia
and New Zealand.
Remote Shutdown is only available for Europe.
Note: 1. To battery communication cable
(Battery fails to work while communication failure)
2. To Smart Meter communication cable.
(could be extendet to max 100m)
Ground cable is needed
connecting to ground
plate on grid side
Grade
A
B
C
D
Description
Outside diameter
Separated wire length
Conductor wire length
Conductor core section
Value
13-18 mm
20-25 mm
7-9 mm
4-6mm2
To lithium battery
Power Meter
Smart
Meter
“To Smart Meter”
Grid
CT A connect to L1
CT B connect to L2
CT C connect to L3
CT C
CT B
CT A
battery

WIRING SYSTEM FOR BT SERIES HYBRID INVERTER
OFF
ON
CT C CT B CT A
GW5K-BT
Please select Breaker according to the specification below
25A/400V AC breaker 25A/400V AC breaker 32A/400V AC breaker 32A/400V AC breaker
GW6K-BT GW8K-BT GW10K-BT
①
①
②
②
③
③
④
④
⑤
⑤
40A/600V DC
breaker
Depends on
household
loads
1. For batteries with attached breaker, the external DC breaker could be omitted. 2. Please use CT A for L1, CT B for L2 and CT C for L3. And follow “House(K) →Grid(L)”
direction to do the connection. Otherwise there will be an error reminded by APP.
For BYD Battery-Box H6.4 / 7.7 / 9.0 / 10.2 / 11.5 with BT inverter
Note: In the gridless area, battery does not support off-grid applications. (There will be no further notice if this entry is subject to change)
Battery
To Battery
AC Breaker
DC Breaker
AC Breaker
AC Breaker Loads
Grid
PE
N
L3
L2
L1
“To Smart Meter”
AC Breaker
SmartMeter
AC Breaker
1-phase
Loads
3-phase
Loads
Note: This diagram indicated wiring structure of BT series AC coupled
inverter, not the electric wiring standard.
Communication OK
EIA/TIA568B
J
A
Step 2. SOP of Battery connection with BT inverter
1. BYD
Step1
Instructions for quick installation
Step2
SOP of battery connection
Step3
Wi-Fi configuration instruction
Step1
Instructions for quick installation
Step2
SOP of battery connection
Step3
Wi-Fi configuration instruction
Note: This manual only tells connection methods between battery and GoodWe inverters. Other operations on battery, please refer to battery user
manual. (This Quick Reference only includes parts of batteries, if there is a subsequent increase in battery, there will be no further notice.)
Make sure that the inverter and battery pack is turned
off before connecting the battery pack to the inverter.
Connect the other end of the power cable to the terminal
block of the hybrid inverter.
The other end of “To Battery” cable should be connected to
CAN port of BYD BMU box. Before this, you should pick out
the blue-white life and the blue line. Then, connect the
blue-white line to the second hole site, and connect the blue line
to the third hole site.
BYD Battery Setting: You should
set “Series Battery Counts” and
“Invert” (GoodWe) correctly
through BYD WiFi of Ethernet.
(Refer to BYD QUICK
REFERENCE GUIDE to connect
WiFi or Ethernet)
On PV Master, you should choose
the right battery type used in your
system by “Battery Model” selection
or battery communication will fail.
After all connections and
settings are done, please
check if battery
communication is OK on
PV Master→Param →
BMS Status, which should
be “Communication OK”
The communication cable for battery is attached on the
inverter, Please use this cable as battery communication
cable.
To connect the cables coming from the inverter to the BYD battery pack,
take the following steps.
Connect the power cables to the terminal block of BYD battery
management unit (BMU).
Connect the negative cable to “P-” and the positive cable to “P+”.

A
C
Step 3. Wi-Fi conguration instruction

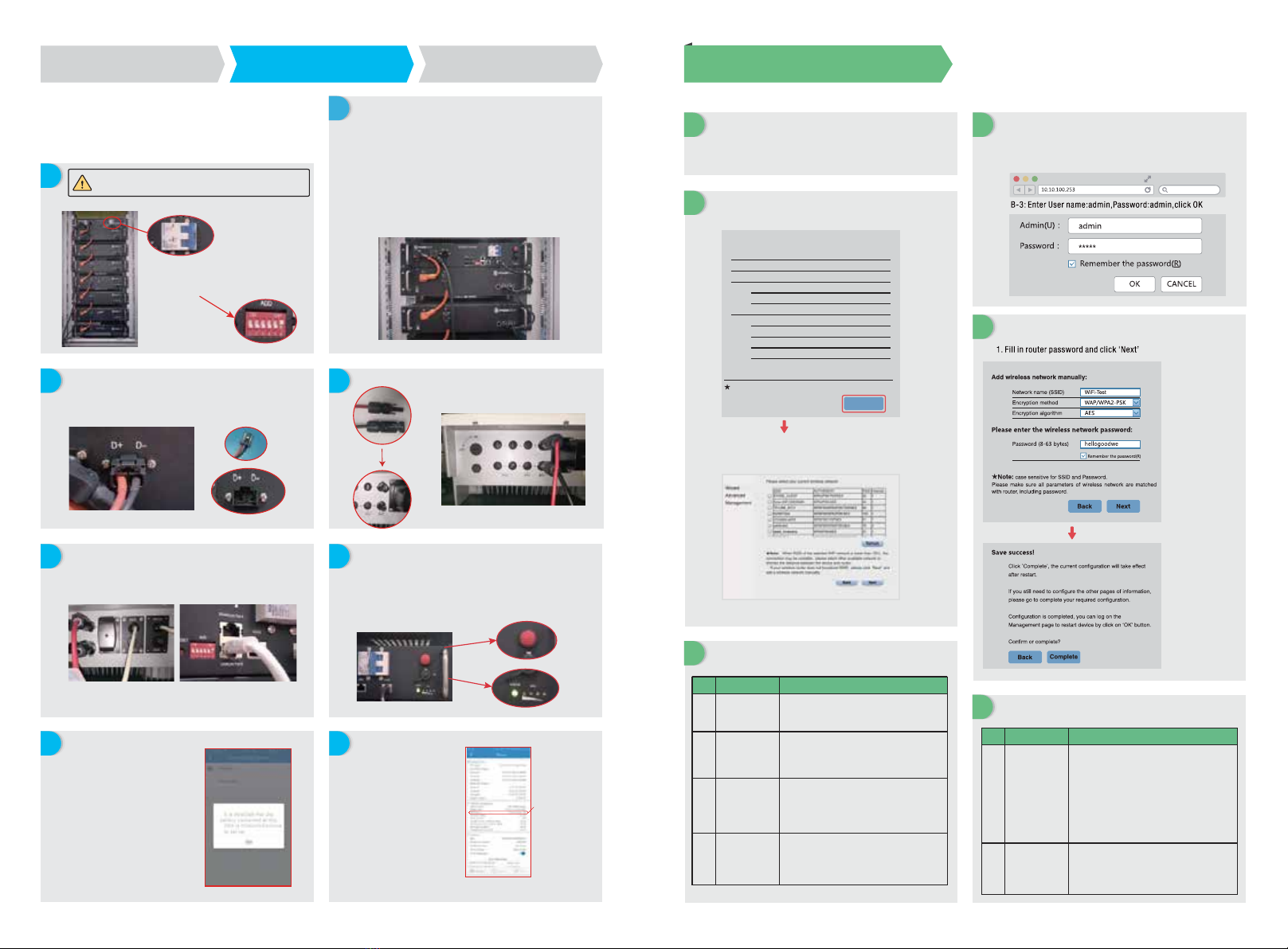

2. Pylon
Preparation
Preparation
Troubleshooting
B
AConnect to ‘Solar-WiFi’ B
C
E
D
Communication OK
For Pylon Power Cube-H1-48 192/240/288/336 with inverter.
Note: The SOC of battery can be charged up to 90%, but can’t be charged to 100%.
(There will be no further notice if this entry is subject to change.) 1. Power Wi-Fi inverter (or Power on inverter) on.
2. Power router on.
1. Wi-Fi name: solar-Wi-Fi or Solar-WiFi (means the last 8 characters of
inverter serial NO.) Password: 12345678
2. Browse website: 10.10.100.253.
To connect the cables coming from the inverter to the Pylon Battery pack,
take the following steps.
Connect the power cables to the terminal block of Pylon BMU.
Connect the positive calbe to “P+” and the negatiive to “P-”.
The communication cable for battery is attached in the inverter.
Please use the BMS cable as battery communication cable.
The other end of “To Battery” cable should be connected to CAN/Link
Port B of Pylon BMU.
Turn on the battery switch, then press the red button for 2 seconds, the
status light will turn green. Wait for about 30 seconds, if the BMS
communication is normal, the status light remains green, and battery works
soon later. Otherwise, the status light turns red, press the red button for 5
seconds. When the status light turns green again, the battery system is ready
to work.(Pic.6)
After all connections and settings
are done, please check if battery
communication is OK on PV
Master →Param →BMS status,
which should be
“Normal”.(Pic.8)
On PV Master,you should choose the
right battery type used in your system
by “Select Battery Model” selection or
battery communication will fail.
To connect the battery packs in serise, follow the instructions below.
(1)Connections of the power cable:
Connect “B+” of BMU(battery management unit) to “B+” of the first
battery pack, and connect “B-“ of BMU to “B-“of the last battery pack.
Connect “B+” with “B-” between adjacent battery packs. The orange
end corresponds to “B+”, the black end corresponds to “B-”.
(2) Connections of communication cable:
Connect “Link Port” of BMU to “Link Port0” of the first battery pack.
For the adjacent battery packs, connect “Link Port1” to the next battery
packs “Link Port0” in turn.
Make sure that the inverter and the battery pack is turned
off before connecting the battery pack to the inverter
Connetct th other end of the power cable to
the terminal block of the inverter.
Press “Start Setup” to enter the next step.
If the router is not in the site list, please refer to
No.4 in ‘Troubleshooting’.
Please make sure all
parameters of
wireless network
are matched with
the router’s,
including password.
Note:
The ‘Solar-WiFi’
signal will disappear
after inverter
connects to WiFi
router. Turn off
router or do Wi-Fi
reload operation via
button on inverter if
you need connect to
‘Solar-WiFi’ once
again.
Step1
Instructions for quick installation
Step2
SOP of battery connection
Step3
Wi-Fi configuration instruction
Note: Wi-Fi Configuration could also be done on PV Master APP, for details, please download “PV Master Operation Introduction” from www.en.goodwe.com
D
E F
G H
No.
1
2
3
4
Cannot Find
Solar-WiFi Signal
1. Make sure inverter is powered on;
2. Move your smart device closer to inverter;
3. Restart inverter;
4. Do ‘WiFi Reload’ operation refer to user manual.
Cannot connect to
Solar-WiFi Signal
Cannot login website
10.10.100.253
Cannot find router
SSID
Problem Checking items
1. Try password: 12345678;
2. Restart inverter;
3. Make sure there is no other device connected to
Solar-WiFi;
4. Do ‘WiFi Reload’ operation and try again.
1. Make sure user name and password you use are both
admin;
2. Do ‘WiFi Reload’ operation and try again;
3. Try another browser (suggest use Google, FireFox, IE,
Safari etc.);
4. Make sure website you log in is 10.10.100.253
1. Move router closer to inverter or use a Wi-Fi repeater
device;
2. Connect to router and login the setting page to check
the channel it uses. Please make sure the channel is not
bigger than 13. Otherwise, modify it.
E
1. Restart inverter.
2. Connect to Solar-WiFi and login again, check the ‘SSID’,
‘Security Mode’, ‘Encryption Type’ and ‘Pass Phrase’ is
matching with that of router or not;
3. Connect to router and login to check if the connection
reaches the maximum amount or not, and to check the
channel of it uses. Please majke sure the channel is not
bigger than 13. Otherwise, modify it;
4. Restart router;
5. Move router closer to inverter or use a Wi-Fi repeater
device.
No.
5
6
Cannot Find
Solar-WiFi Signal
After configuration,
WiFi Led on inverter
blink four times
repeatedly
Problem Checking items
1. Connect to the router and visit the portal
www.goodwepower.com.cn;
2. Restart router and inverter;
Device information
Cannot join the network, maybe caused by:
router doesn’t exist, or signal is too weak, or password is incorrect.
Help: Wizard will help you to complete setting within one minute.
Firmwave version
MAC address
Wireless AP mode
SSID
IP address
Wireless STA mode
Router SSID
Encryption algorithm
Router Password
Router Password
V1.0.4.0
98D8631AA878
Enable
Solar-WiFi
10.10.100.253
Disable
WiFi_Burn-in
WPA/WPA2-PSK
AES
WiFi_Burn-in
Start Setup
Note: The ADD must be set as
shown in the picture.
Troubleshooting
Connect to ‘Solar-WiFi’
