GSL TECHNOLOGY GSL5000U User manual

SHENZHEN GSL TECHNOLOGY COMPANY LTD
User Manual
GSL5000U (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh)
GSL7000U (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh)
GSL10000U (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh)
For On / Off Hy rid Solar Storage System

www.gsl-energy.com - 1 -
Version: 1.0
Contents
1. Safety Precautions ..................................................................................................................................................... - 2 -
1.1. Before Connecting ................................................................................................................................................ - 2 -
1.2. During operation ................................................................................................................................................... - 2 -
2. Battery Specifications ................................................................................................................................................. - 3 -
3. Introduction to the battery .......................................................................................................................................... - 5 -
3.1. Key Features ......................................................................................................................................................... - 5 -
3.2. Interface Introduction ........................................................................................................................................... - 5 -
3.3. SOC Indicator & Status Indicator uides............................................................................................................. - 6 -
3.4. Connectors ............................................................................................................................................................ - 7 -
3.5. Wake Up button ..................................................................................................................................................... - 7 -
3.6. Display function instruction ................................................................................................................................. - 7 -
3.6.1. Reference of real figure................................................................................................................................ - 7 -
3.6.2. Screen Display .............................................................................................................................................. - 8 -
3.6.3. Functional Specifications ............................................................................................................................. - 8 -
. Safe handling guide .................................................................................................................................................. - 10 -
4.1. System Diagram .................................................................................................................................................. - 10 -
4.2. Tools .................................................................................................................................................................... - 10 -
4.3. Safety ear .......................................................................................................................................................... - 11 -
5. Installation ................................................................................................................................................................. - 11 -
5.1. Inventory of items ............................................................................................................................................... - 11 -
5.2. Installation Location ........................................................................................................................................... - 11 -
5.2.1. Minimum clearances .................................................................................................................................. - 12 -
5.3. Installing the Battery Pack .................................................................................................................................. - 13 -
5.3.1. Mounting to a wall ....................................................................................................................................... - 13 -
5.4. Parallel use of battery ......................................................................................................................................... - 14 -
5.4.1. Parallel use of battery ( All off grid solar inverters )........................................................................................ - 14 -
5.4.2. Parallel use of SL battery on Canbus /RS485( All hybrid on-off grid solar inverters) ...................................... - 16 -
5.4.3. ADS guide Line ............................................................................................................................................... - 17 -
6. Product Warranty ...................................................................................................................................................... - 24 -
6.1. .............................................................................................................................................................................. - 24 -
6.2. .............................................................................................................................................................................. - 24 -
6.3. .............................................................................................................................................................................. - 24 -
6.4. Factory Warranty Scope ..................................................................................................................................... - 24 -
6.5. Warranty conditions............................................................................................................................................ - 24 -

www.gsl-energy.com - 2 -
1.Safety Precautions
It is very important and necessary to read the user manual carefully before installing or using the
battery. Failure to follow any of the instructions or warnings in this document can result in
electrical shock, serious injury, death, or may damage the battery and the whole system.
If the battery is stored for a prolonged time, it is requirement that they are charged every three to
six months, and the S C should be no less than 80%.
The battery needs to be recharged within 12 hours, after fully discharging.
Do not expose cable outside.
All battery terminals must be disconnected before maintenance.
Do not use cleaning solvents to clean the battery.
Do not expose the battery to flammable or harsh chemicals or vapors.
Do not paint any part of the battery, include any internal or external components.
Do not connect battery with PV solar wiring directly.
Any foreign object is prohibited to be inserted into any part of the battery.
Any warranty claims are excluded for direct or indirect damage due to items above.
1.1.Before Connecting
After unpacking, please check the battery and packing list first, if the battery is damaged or spare
parts are missing, Please contact the dealer.
Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off
mode;
Wiring must be correct, do not mix-connect the positive and negative cables, and ensure no short
circuit with the external device;
It is prohibited to connect the battery with AC power directly;
The embedded BMS in the battery is designed for 48VDC, please D N T connect battery in
series;
It is prohibited to connect the battery with different type of battery;
Please ensure the electrical parameters of battery system are compatible to inverter;
Keep the battery away from fire or water.
1.2.During operation
If the battery system needs to be moved or repaired, the power must be cut off first and the
battery is completely shutdown;
It is prohibited to connect the battery with different type of battery;
It is prohibited to put the batteries working with faulty or incompatible inverter;
In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are
prohibited;
Please do not open, repair or disassemble the battery. We do not undertake any consequences
or related responsibility due to violation of safety operation or violating of design, production and
equipment safety standards.

www.gsl-energy.com - 3 -
2.Battery Specifications
Battery Specifications
Model No SL-5000U/15S SL-7000U/15S SL-10000U/15S
Nominal Parameters
Voltage 48 V 48 V 48 V
Capacity 100Ah 150Ah 200Ah
Energy 4.8 KwH 7.2 KwH 9.6 KwH
Dimensions (L x W x H) 680 x480 x180(220)mm 680 x480 x180(220)mm 680x480x180(220)mm
Weight 58.5kg 75.0 kg 96.5kg
Basic Parameters
Life time(25°C) 20 years
Life cycles(80% DOD, 25°C) 6000 Cycles
Storage time / temperature 5 m nths @ 25°C; 3 m nths @ 35°C; 1 m nth @ 45°C
Operation temperature -20°C t 60°C @60+/-25% Relative Humidity
Storage temperature 0°C t 45°C @60+/-25% Relative Humidity
Lithium Battery Standard IEC62619,UN38.3,ROHS,CE-EMC,UL1642,MSDS
Enclosure protection rating IP21
Electrical Parameters
Operation voltage 48 Vdc 48 Vdc 48 Vdc
Max. charging voltage 54 Vdc 54 Vdc 54 Vdc
Cut-off Discharge Voltage 42 Vdc 42 Vdc 42 Vdc
Max. charging and discharging
current 100A(4800W) 120A(5760W) 120A(5760W)

www.gsl-energy.com - 4 -
Battery Specifications
Model No SL-5000U/16S SL-7000U/16S SL-10000U/16S
Nominal Parameters
Voltage 51.2V 51.2V 51.2V
Capacity 100Ah 150Ah 200Ah
Energy 5.12KwH 7.68KwH 10.24KwH
Dimensions (L x W x H) 680 x480 x180(220)mm 680 x480 x180(220)mm 680x480x180(220)mm
Weight 60.50kg 78.0 kg 105.5kg
Basic Parameters
Life time(25°C) 20 years
Life cycles(80% DOD, 25°C) 6000 Cycles
Storage time / temperature 5 m nths @ 25°C; 3 m nths @ 35°C; 1 m nth @ 45°C
Operation temperature -20°C t 60°C @60+/-25% Relative Humidity
Storage temperature 0°C t 45°C @60+/-25% Relative Humidity
Lithium Battery Standard IEC62619,UN38.3,ROHS,CE-EMC,UL1642,MSDS
Enclosure protection rating IP21
Electrical Parameters
Operation voltage 51.2 Vdc 51.2 Vdc 51.2 Vdc
Max. charging voltage 58 Vdc 58 Vdc 58 Vdc
Cut-off Discharge Voltage 44 Vdc 44 V dc 44 Vdc
Max. charging and discharging
current 100A(5120W) 120A(6144W) 120A(6144W)

www.gsl-energy.com - 5 -
3.Introduction to the battery
3.1.Key Features
LiFeP 4 composition – provides exceptional safety and longevity
High safety and reliability
6,000cycles/20 year service life
Consistent performance over wide temperature range
Wall-mounted, convenient installation
Integrated state-of-the-art BMS to manage and monitor battery information including voltage,
current and temperature as well as balance cell charging/discharging rates
5-10years warranty
3.2.Interface Introduction
This section details the interface functions of front and back panel..
Front interface:
No. Description Silk-screen Remark
1-2 UES0600 P+ P+ utput terminal
3-4 UES0600 P- P- utput terminal
5 Dial switch ADS Set the address

www.gsl-energy.com - 6 -
6 Canbus Canbus Canbus communication port
7 RS485 port RS485 RS485 communication port
8 port Reset button RST For reset the batter
9 Battery Switch n/ ff Turn n/ ff
10 LED CAPACITY Capacity indicator
11 LED ALM Alarm indicator
12 LED RUN peration indicator
13 LCD  
14 LCD Key  
15 Handle  
16 Bracket  
3.3.SOC Indicator & Status Indicator Guides
Chart 1: Battery Status
Status
Normal/
Warning/
Protection
RUN ALM Capacity LED
Description
Shut
Down Shut down FF FF FF FF FF
FF All FF
Stand y Normal Flash FF FF FF FF FF Standby
Charge
Normal N FF
Based on capacity Warning N Flash
Protection N N
Discharge
Normal N FF Based on capacity
Warning N Flash
Protection FF N FF FF FF FF UVP, CP
Fault Protection FF N FF FF FF FF
Stop charging
or discharging

www.gsl-energy.com - 7 -
Chart 2: Battery Capacity
Status Charging Discharging
Capacity LED Indicator L4 L3 L2 L1 L4 L3 L2 L1
Capacity
0～25% FF FF FF Flash FF FF FF N
25～50% FF FF Flash N FF FF N
N
50～75% FF Flash N N FF N
N N
75～100% Flash N N N N
N N N
RUN Status N Flash
3.4.Connectors
Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery
to the inverter via DC isolator.
Canbus/ RS485: Active communication portal between battery and inverter.
USB To RS232: to get dynamic monitoring data of the battery from upper computer.
Address: Reserved Address portal for multiple parallel connections.
3.5.Wake Up utton
Battery n: When battery is shut down, press this RST button for 3 seconds. It is activated
when the LED lights flicker from RUN light to the lowest capacity indicator.
Battery off: When battery is activated, press this button for 3 seconds. It will be shut down
when the LED lights flicker from lowest capacity indicator to RUN light.
3.6.Display function instruction
3.6.1.Reference of real figure

www.gsl-energy.com - 8 -
3.6.2.Screen Display
3.6.3.Functional Specifications
 Interface introduction
Main menu page
Electricity/dormancy activated, will show the welcome screen, press the MENU button to enter
the main menu page. As shown in the figure below ：
Battery parameters collection page
When the cursor“ 》 ”is point to “Battery Parameters Acquisition” ， press ENTER key will enter
into the page of“Battery Parameters Acquisition” ， As shown in the figure below ：

www.gsl-energy.com - 9 -
Battery status page
When the cursor “ 》 ”is point to “Battery Status” ， press ENTER key will enter into the page of
“Battery Status” ， As shown in the figure below ：
Parameter Settings
Screen can not set up parameters
System Settings Page
Baud Rate ： 9600 do not set

www.gsl-energy.com - 10 -
Key description
1) SW1----NEMU ， SW2----ENTER ， SW3----UP ， SW4----D WN ， SW5----ESC.
2) Each item is “ 》 ”or“--”as a beginning ， among them“ 》 ”shows the current cursor position ，
press UP or D WN key can move the cursor position ； with“ 》 ”end of the project ， the
content of the said project has not shown, press ENTER key can enter the corresponding
page.
3) Press ESC key can be returned at the next higher level directory ； In any position ， press
NEMU key can return to the main menu page.
4) In a dormant state, press any key, can activate the screen.
 Dormancy/shutdown
Under normal operation condition, with no keystrokes 1 minutes later, system will enter a
state of dormancy/shutdown.
Shutdown/dormancy state ， press any key ， screen can be activated.
4.Safe handli ng guide
4.1.System Diagram
4.2.Tools
The following tools are required to install the battery pack:
Wire cutter
Crimping Modular Plier
Screw Driver
NOTE
Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of the available
tools, except their tips, with electrical tape.

www.gsl-energy.com - 11 -
4.3.Safety Gear
It is recommended to wear the following safety gear when dealing with the battery pack:
Insulated gloves
Safety goggles
Safety shoes
5.Installation
5.1.Inventory of items
Thoroughly inspect the packaging upon receipt of goods. If there is any item missing or if there is any
damage to the external packaging or to the unit itself upon unpacking, please contact us immediately.
A B C D E
NO. Item Quantity Specification
A Battery Pack 1 4.8/7.2 / 9.6 KWh
B Mounting frame 1 SPCC
C Mounting frame screw 12 M8*60mm
D Power Cable( 1.0 M ) 2 25M2 Wire - M6 125A/1000V
E Instruction manual/Warranty Card 1 This document
Option Parallel Power ca le (1.0 M) 2 125A/1000V
Option Parallel com ca le (1.0 M ) 1 RJ45
5.2.Installation Location
Make sure that the installation location meets the following conditions:
The installation site must be suitable for the size and weight of the battery.
Must be installed on a firm surface to sustain the weight of battery.
The area is water proof.
There are no flammable or explosive materials in proximity
The ambient temperature is within the range from 0°C to 45°C.
The temperature and humidity is maintained at a constant level.
There is minimal dust and dirt in the area.
Installation must be vertical or tilted backwards by maximum 15° - avoid forward or sidewaystilt.
USER MANUA
WARRANTY
CARD

www.gsl-energy.com - 12 -
CAUTI N
If the ambient temperature is outside the operating range, the battery pack stops operating to protect
itself. The optimal temperature range for the battery pack to operate is 0°C to 45°C. Frequent exposure
to harsh temperatures may deteriorate the performance and life of the battery pack.

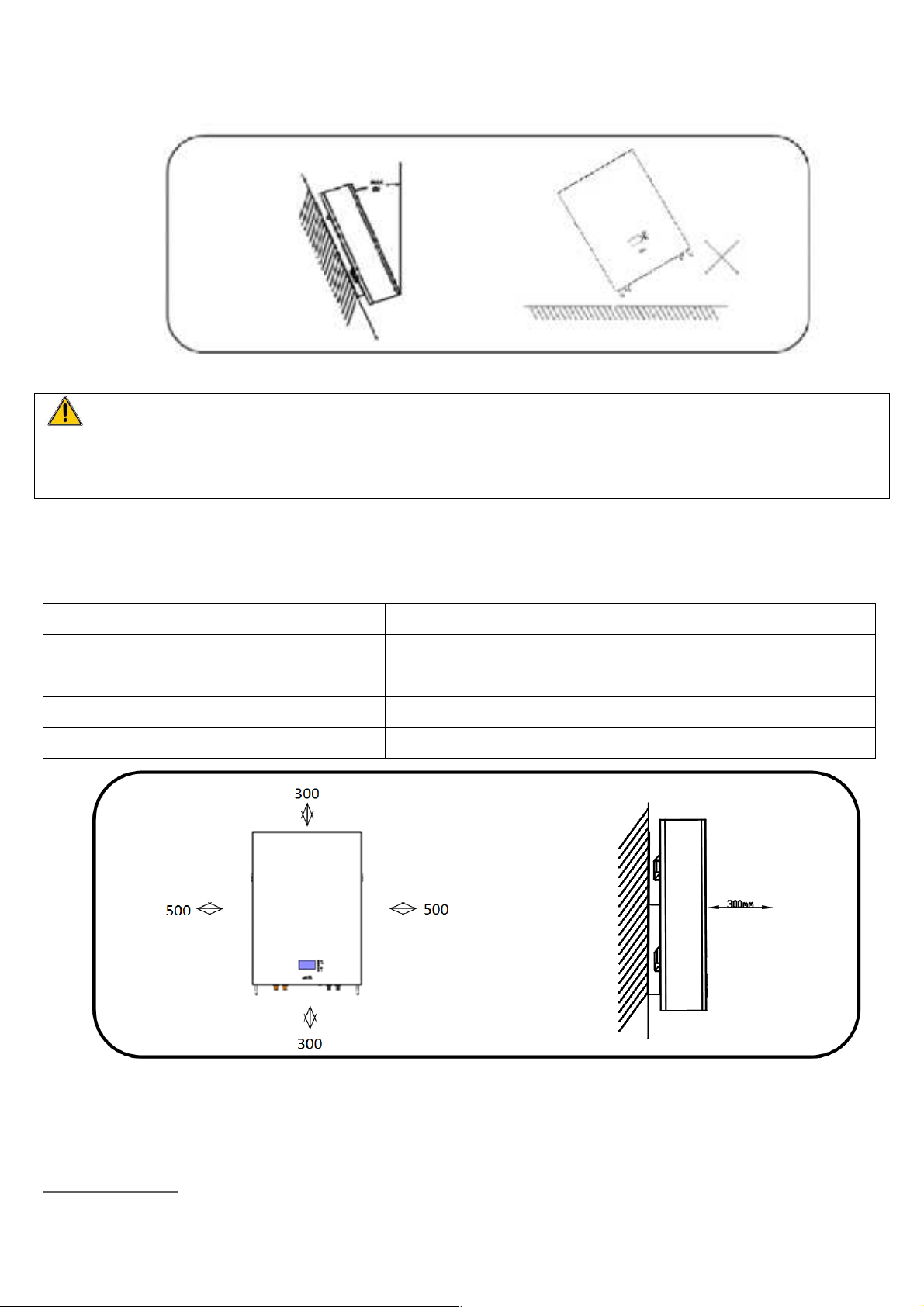

5.2.1.Minimum clearances
bserve the minimum clearances to walls, other batteries or objects as shown in the diagram and
picture below in order to guarantee sufficient heat dissipation
Direction Minimum clearance (mm)
Above 300
Below 300
Sides 500
Front 300

www.gsl-energy.com - 13 -
5.3.Installing the Battery Pack
5.3.1.Mounting to a wall
WARNING
In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations
before drilling holes.
The battery is heavy, please handle with care to avoid damage to the product or injury to the installer.

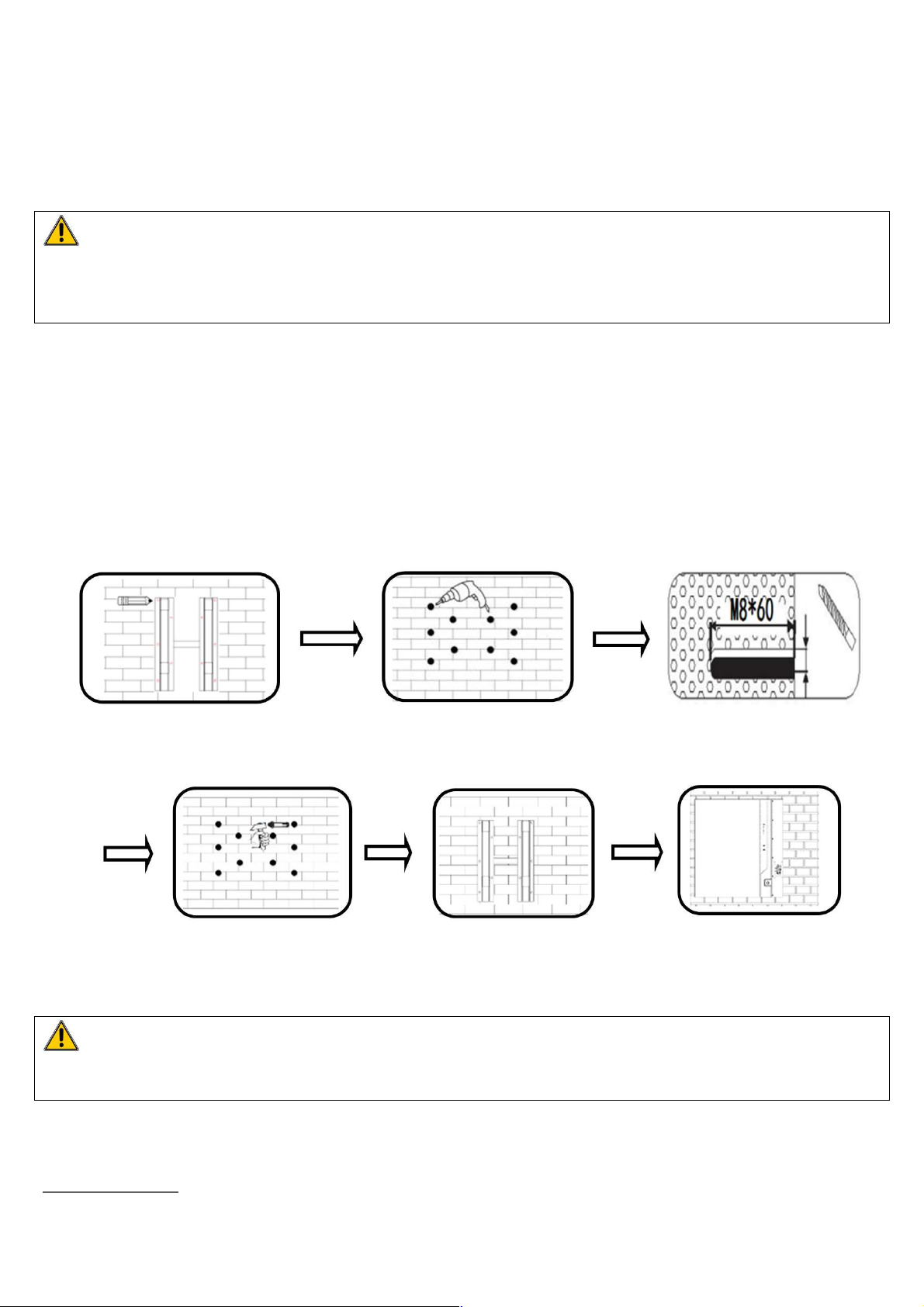

1.Choose suitable firm wall with thickness greater than 80mm.
2.Use the mounting frame as a template, mark the hole position.
3.Drill 8 holes according to the hole position, it is ø10 with depth 60mm.
4.Hammer the M8 screws to the above holes, and screw the nut. Note: Do not position screws
flush to the wall - leave 10 to 20 mm exposed.
5.Fix the mounting frame to the 8 screws.
6.Raise the battery a little higher than the mounting frame whilst maintaining the balance of the
battery. Hang the battery on the frame through the match hooks.
WARNING
Falling equipment can cause serious or even fatal injury: never mount the inverter on the bracket unless
you are sure that the mounting frame is firmly mounted on the wall after thorough checking.

www.gsl-energy.com - 14 -
5.4.Parallel use of attery
5.4.1.Parallel use of battery ( All off grid solar inverters )
GSL ENERGY powerwall battery is a smart battery to match all off grid solar inverter ( 48VDC) types.
When the battery needs to be used in parallel, the maximum connection is 14 units, but we recommend
2-4 units according to application. When connecting with off grid 48VDC solar inverters, it does not
need to add Canbus/RS485 communication cables with inverters, if inverter brand factory does not have
Canbus/RS485 port, just plug and play use.
NOTE: Parallel power ca le standard is 1 meter. This is not standard ca le in attery package.
For parallel ca le quantity needed, please consult with GSL ENERGY sales manager for proper
use and related quantity.
Two pcs connect diagram

www.gsl-energy.com - 15 -
Three pcs connect diagram
Four pcs connect diagram

www.gsl-energy.com - 16 -
Fourteen pcs connect diagram
5.4.2. Parallel use of GSL battery on Canbus / S485( All hybrid on-off
grid solar inverters)
When the battery needs to be used in parallel, the maximum connection is 15 units(Can us), 14units
( RS485 ) with GSL hy rid solar inverter, but we recommend to use 2-4 units according to application.
The application needs power and communication connections as below, choose suitable parallel power
cables and related connectors.
NOTE: Parallel power standard is 1 meter. This is not standard ca le in attery package.
For parallel ca le issue, please consult related factory sales manager for proper use and related
quantity.

www.gsl-energy.com - 17 -
Can us/RS485 Matched Hy rid Inverter rands
Brand Model No Com Port Ca le
Supply
Application Installation
DEYE Sun series
3.6K,5K,7.6K,8K
RS485 RJ45 On/off-Grid Wall-mounted
LUXPOWER XP3.6K/4.6K/5K Hybrid
XP 3600 ACS series
RS485 RJ45 On/off-Grid Wall-mounted
GROWATT SPF3000/SPA/SPH3000
3600/4000/4600/5000/6000
CAN RJ45 On/off-Grid Wall-mounted
SOFAR HYD3000-ES CAN RJ45 On/off-Grid Wall-mounted
GOODWE GW3648D-ES/GW5048D-
ES/BP/SBP/EM
CAN RJ45 On/off-Grid Wall-mounted
GMDE Powervortex4600/5200T CAN RJ45 On/off-Grid Wall-mounted
SOLIS RHI-3K/3.6K/5K-48ES CAN RJ45 On/off-Grid Wall-mounted
ICTRON Multiplus/Quattro 48 CAN RJ45 On/off-Grid Wall-mounted
IMEON IMEON3.6/9.12 CAN RJ45 On/off-Grid Wall-mounted
INFINI/ oltronic/Axpert
Infinisolar series
48V/Axpert series 48V
CAN RJ45 On/off-Grid Wall-mounted
SMA Sunny
Island4.4M/6.0H/8.0H
CAN RJ45 On/off-Grid Wall-mounted
SAJ ELECTRIC Sunfree 4K,5K series,
ACS3600
RS485 RJ45 On/off-Grid Wall-mounted
To be continued,,..
5.4.3. ADS guide Line
If you start to connect GSL hy rid inverter, make sure you should consult with GSL sales
manager efore connection. If the hy rid inverter is not from GSL factory rand, please specify
related hy rid on-off grid inverter rand with GSL sales managers.

www.gsl-energy.com - 18 -
Canbus ersion –Max 15 PCS
RS485 Version –Max 14 pcs

www.gsl-energy.com - 19 -
One pcs connect diagram
