GORBEL Adjustable Gantry Crane Instruction manual

IMPORTANT!
DO NOT DESTROY
Installation, Operation,
& Maintenance Manual
Month Year
Gorbel®Dealer
Date
Adjustable Height Steel
Gantry Cranes
Gorbel®Customer Order No. / Serial No.
®
Issued: 05/2013
Revised: 09/2019

This page intentionally left blank.

TABLE OF CONTENTS
Introduction..........................................................................................................1-2
Installation
Step 1 - Pre-assembly.........................................................................................................2
Step 2 - I-Beam to End Support Weldment Connections ...................................................3
Step 3 - Caster to Base Channel Connections ...................................................................4
Step 4 - Optional Endstop/Tagline Installation ....................................................................5
Step 5 - Final Steps.............................................................................................................5
General Layout Drawings...................................................................................... 6
Crane Operator Instructions.................................................................................. 7
General Safety Suggestions.................................................................................. 7
Limited Warranty ................................................................................................... 8
Inspection and Maintenance Schedule ................................................................. 9
Questions? Concerns? Comments? Please call [phone] (US and Canada) or [phone] (outside US).
9/19

INTRODUCTION
Thank you for choosing a Gorbel® Gantry Crane to solve your material handling needs. The
innovative design and heavy-duty construction of Gorbel® Adjustable Gantry Cranes will
provide a superior quality product. All Gorbel® cranes are pre-engineered for powered hoist
operation. The hoist weight allowance is 15% of the crane capacity (for example, a crane
rated for 1000 pounds, allows for a 1000-pound live load plus 150 pounds for the weight of the
hoist). There is also an allowance of 25% of the crane capacity for impact caused by hoist use.
Gorbel® Gantry Cranes will provide many years of dependable service by following the
installation and maintenance procedures described herein.
Dimensions contained in this installation manual are for reference only and may differ for
your particular application. Please refer to the enclosed General Arrangement Drawing for
actual dimensions.
Normal safety precautions: These include, but are not limited to:
• Checking for obstructions in crane travel
• Checking that all bolts are tight and have lockwashers
• Making sure that festooning cannot be snagged or pinched, whether it is electric or pneumatic
• Checking for any other unsafe conditions
• For additional safety precautions, see page 7
WARNING
Read all instructions in this manual before assembling or using this equipment.
WARNING
NEVER exceed the rated capacity of the crane.
WARNING
A load should be moved from one point to another by moving the trolley back and forth along the
Gantry I-beam, while the Gantry Crane itself is stationary. Use EXTREME CAUTION and
CENTER THE LOAD ON THE I-BEAM when attempting to horizontally move a load by moving
the entire Gantry Crane; this is NOT RECOMMENDED.
WARNING
NEVER leave a suspended load unattended or walk under a suspended load. The equipment
must be operated from a position that will not be hazardous to the operator.
19/19
WARNING
With ADJUSTABLE Gantry Cranes, raise or lower the I-beam prior to attaching a load. DO
NOT raise or lower the I-beam with a load attached. Ensure that the hitch pin assemblies are
installed immediately (including the clip-on safety hair pins) after raising or lowering the crane to
the desired height and before removing the overhead lifting device or lift truck.

INSTALLATION
STEP 1 - PRE-ASSEMBLY
1.1 Check packing list to make sure correct quantity of parts is included.
1.2 Tools and materials (by others) typically needed to assemble crane are as follows:
• Ladders/man lifts • Tape measure, combination wrenches, socket sets
• Large square • Lifting sling (rated for 4000 lbs. capacity minimum)
• Mallet • Leveling tools (transit, laser level, water level, etc.)
• Shop brush • Lifting device to lift heavy Gantry Crane components
• Torque wrench (200 ft.-lbs. • Safety equipment (hard hats, barricades, etc.)
capable)
WARNING
Equipment described herein is not designed for, and should not be used for, lifting, supporting or
transporting humans. Failure to comply with any one of the limitations noted herein can result in
serious bodily injury and/or property damage. Check State and Local regulations for any
additional requirements.
WARNING
Crane cannot be utilized as a ground: A separate ground wire is required. For example,
systems with 3-phase power require three conductors plus one ground wire.
WARNING
Reference the American Institute of Steel Construction (AISC) Manual of Steel Construction
(9th edition), Part 5, Specification for Structural Joints using ASTM A325 or A490 Bolts (section
8.d.2) for the proper procedures to follow when using any torque tightening method.
TIP: Packing list can be found in plastic pocket inside hardware box: General
Arrangement Drawing can be found inserted in this installation manual.
2
9/19
WARNING
Gantry Crane should not be moved when loaded.
WARNING
Gantry Crane should not be moved by pushing or pulling on load.
WARNING
Gantry Crane should be used on a level, flat, smooth surface which is free of defects and
obstructions.

STEP 2 - I-BEAM TO END SUPPORT WELDMENT CONNECTIONS
2.1 Assemble your Gantry Crane in a clear area free
of obstructions (refer to enclosed General
Arrangement Drawing for overall size and other
relevant dimensions).
2.2 Assemble the first end support assembly by fully
engaging the upper support weldment into the lower
support weldment such that the overall height is at
its minimum and the holes in both tubes are
correctly oriented relative to one another. Next,
slide assembly apart until the first hole in inner tube
is aligned with outer tube hole. Secure assembly
by inserting the hitch pin assembly through the
holes in both weldment tubes followed by
connecting the snap-on safety hair pin and small
cable (if provided by the manufacturer) to both
ends of the hitch pin. Ensure that the hitch pin
chains are located on the side of the end
support assembly that the eyebolt hole is on
(located on diagonal brace tube (as shown in
Diagram 2B). Insert eyebolt into threaded hole
and attach chain with open-end chain link.
Repeat with the other end support assembly.
2.3 While resting on the floor tilt the I-beam (by
means of rigging (straps/slings are preferred to
reduce paint damage) that is sized and oriented
correctly for raising the load and overhead lifting
device or lift truck) so that the I-beam flange with
the holes is aligned with the top plate holes of
the first end support assembly (as shown in
Diagram 2A).
2.4 Install the appropriate hardware (as shown in
Diagram 2C). Note: Bevel washers are used with “S”
beams only. Tighten bolts (refer to Chart 2A for proper
torque rating). There must be a minimum of two threads
showing at the end of each bolt.
2.5 Install hoist or hoist trolley (by others) onto I-beam per
manufacturers specifications.
2.6 Repeat steps 2.3 and 2.4 with the other end support assembly.
TIP: For easiest installation ensure that the end support
weldments are being supported while lying on their side
(as shown in Diagram 2A) prior to bolting the I-beam to
them.
TIP: Be sure that the top plate (located on top of vertical
tubes) length is oriented parallel to the I-beam length.
Diagram 2A. End Support Assembly.
Diagram 2B. Hitch Pin Assembly.
Diagram 2C. Beam to Top Plate Connection.
39/19
Chart 2A. Torque Chart.
Bolt Dia. Torque
1/2” 60 ft.-lbs.
5/8” 110 ft.-lbs.
3/4” 200 ft.-lbs.

STEP 3 - CASTER TO BASE CHANNEL CONNECTIONS
3.1 Assemble the appropriate hardware so that the heads of
the sixteen 1-1/2” long hex head bolts are located on the
top surface of the base channel (as shown in
Diagram 3A).
3.2 For 1, 2 and 5 Ton Gantry Cranes utilizing optional
4-Position Swivel Locks only: The optional 4-Position
Swivel Locks (4PSL) are installed via a bolted connection
(unlike the 3 Ton Gantry Cranes which accept a 4PSL
that is pre-welded to the caster). Ensure that the 4PSL’s
are installed on the under-side of the caster base plate.
To install the 4PSL’s align the two slotted holes in the swivel
lock with two slotted holes (either holes 1 & 2 only or holes
3 & 4 only) on the short side of the caster base plate (as
shown in Diagram 3B).
3.3 Tighten caster hardware (refer to Chart 2A, on page 3, for proper torque rating).
3.4 You are now ready to erect the assembled Gantry Crane into the upright position. Ensure
that the hitch pin assemblies are still properly engaged in upper and lower vertical tube
holes and that the safety hair pins are intact. Carefully and safely (by means of rigging
(straps/slings are preferred to reduce paint damage) that is sized and oriented correctly for
raising the load) lift and rotate the Gantry Crane onto its casters by means of an overhead
lifting device or lift truck. Use Gorbel® Blue touch-up paint (provided) to cover any
scratches and abrasions as needed.
3.5 If your Gantry Crane is equipped with the optional cam brakes (pre-installed prior to
receiving them) you may use your hand or foot to engage the brake for each caster by
pressing down on one of the cam brake foot pedals located on the sides of the casters.
Try moving the Gantry Crane after engaging the cam brakes to ensure that they are
properly engaged.
3.6 For Gantry Cranes utilizing optional Steel V-Groove Casters only: Install the
assembled Gantry Crane onto the V-Track per the manufacturer’s instructions.
TIP: To install casters, assemble while the Gantry Crane is
still lying on its side (as shown in Diagram 2A on pg. 3).
TIP: Choose the 2 outer-most slotted holes when
mounting the 4PSL. This will ensure that the 4PSL pull
ring will be accessible from the outside of the formed
base channel allowing you to engage or disengage the
spring loaded pin from the locking caster slots. If the
4PSL is pre-welded to the caster simply rotate the caster
assembly so that the 4PSL faces outward.

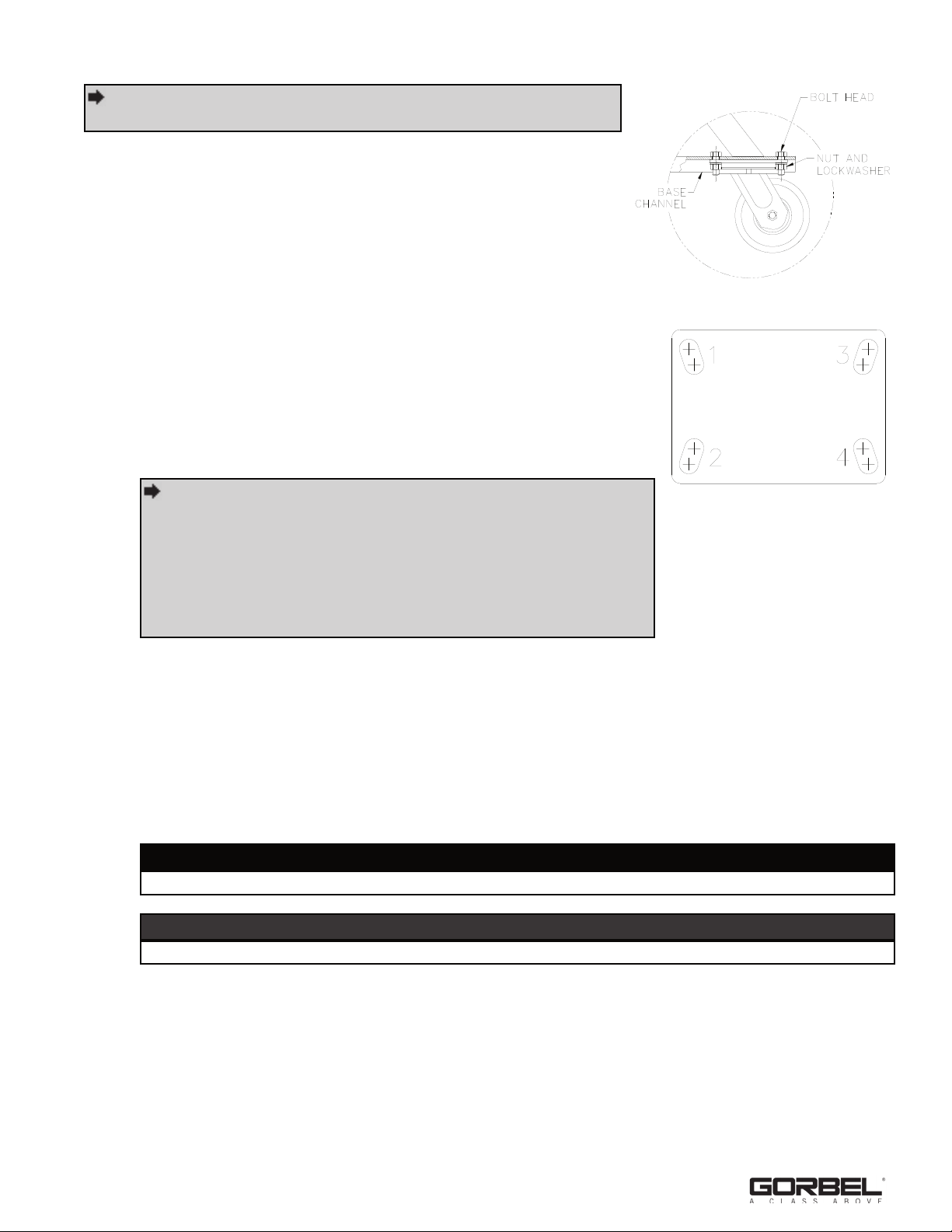

Diagram 3A. Caster Assembly.
Diagram 3B. Caster Base Plate.
WARNING
Ensure that NO ONE is standing near or in the vicinity of the crane while it is being erected.
WARNING
Ensure there are no other obstructions that might hinder the crane from being erected.
4
9/19

STEP 4 - OPTIONAL ENDSTOP/TAGLINE INSTALLATION
4.1 Optional Endstop Installation (without tagline)
only: Bolt the 4 endstops to I-beam (as shown in
Diagram 4A) using the holes located in I-beam
web. Tighten endstop hardware (refer to
Chart 2A, on page 3, for proper torque rating).
4.2 Optional Endstop Installation (with tagline):
Bolt the 2 tagline bracket assemblies and 2
endstops to I-beam (as shown in Diagram 4B)
using the holes located in I-beam web. Tighten
tagline hardware (refer to Chart 2A, on page 3,
for proper torque rating).
4.3 Bolt eyebolts to tagline
brackets using two hexnuts
and lockwashers per eyebolt.
4.4 Loop the wire rope through one
of the eyebolts and clamp the
loop using cable clamps.
Repeat this step at the other
eyebolt while removing any
slack from the wire rope.
4.5 Adjust the eyebolts to achieve
the desired cable tension and
lock the eyebolts in place by
tightening the hexnuts.
4.6 Run the festoon cable (by
others) through the S-hooks or
wire rope trolleys (squeeze
bottom of S-hooks to grip cable
or hose).
4.7 Wire the hoist (by others) per
manufacturing (SIC) instructions.
STEP 5 - FINAL STEPS
5.1 Check to make sure all bolts are tight and lockwashers are compressed.
5.2 If necessary, touch up Gantry Crane with paint provided.
5.3 Keep Packing List, Installation Manual, General Arrangement Drawing, and any other
inserts filed together in a safe place.

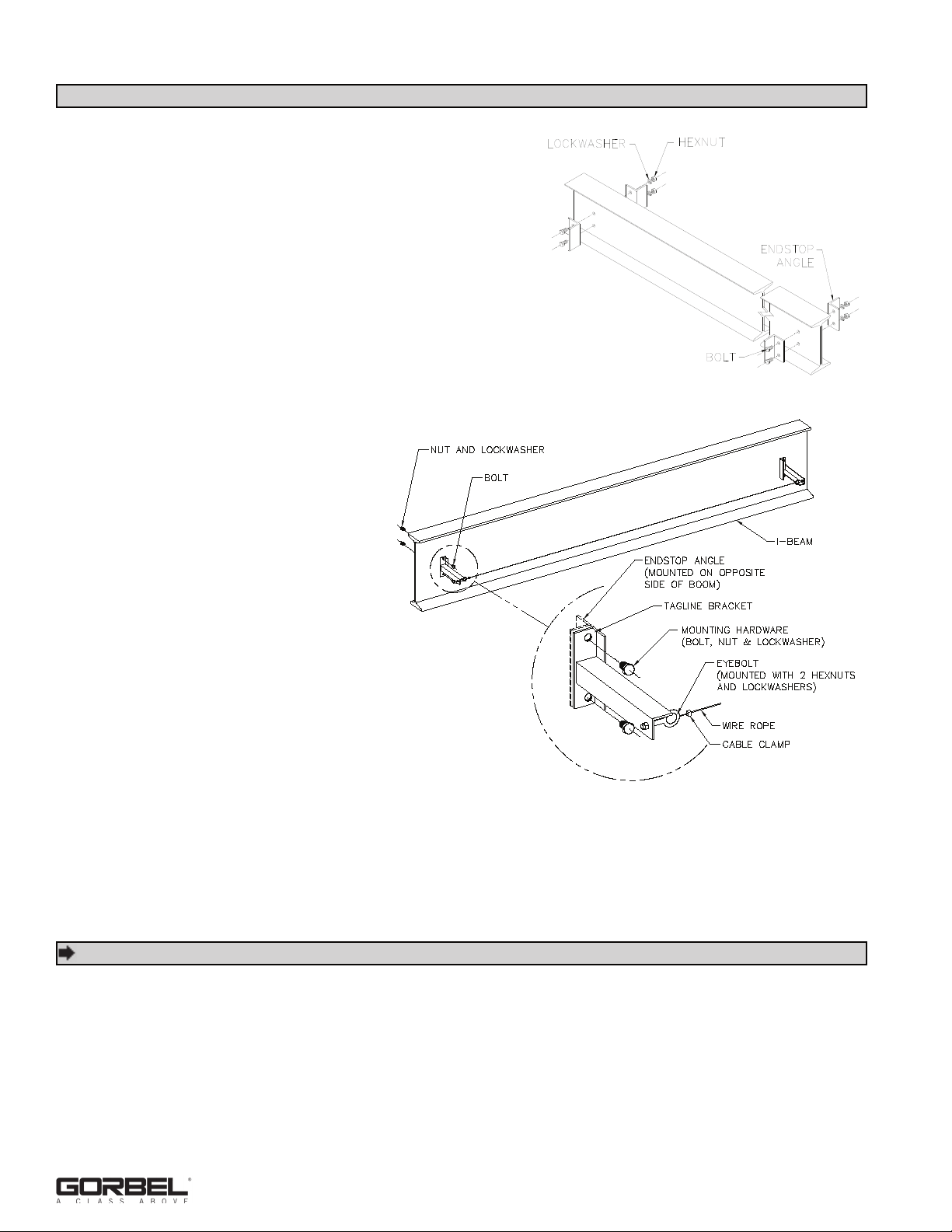

Diagram 4A. Endstop Installation.
Diagram 4B. Tagline Assembly.
59/19
TIP: Do not throw away this manual: the maintenance schedule is on the last page.

6
9/19
GENERAL LAYOUT DRAWINGS

CRANE OPERATOR INSTRUCTIONS
Overhead cranes and jib cranes generally handle materials over working areas where there are personnel. Therefore, it is important for the Crane Operator to be
instructed in the use of the crane and to understand the severe consequences of careless operation. It is not intended that these suggestions take precedence over
existing plant safety rules and regulations or OSHA regulations. However, a thorough study of the following information should provide a better understanding of safe
operation and afford a greater margin of safety for people and machinery on the plant floor. It must be recognized that these are suggestions for the Crane Operator’s
use. It is the responsibility of the owner to make personnel aware of all federal, state and local rules and codes, and to make certain operators are properly trained.
Qualifications
Crane operation, to be safe and efficient, requires skill: the exercise of extreme care and good judgment, alertness and concentration, and rigid adherence to proven
safety rules and practices as outlined in applicable and current ANSI and OSHA safety standards. In general, no person should be permitted to operate a crane:
• Who cannot speak the appropriate language or read and understand the printed instructions.
• Who is not of legal age to operate this type of equipment.
• Whose hearing or eyesight is impaired (unless suitably corrected with good depth perception).
• Who may be suffering from heart or other ailments which might interfere with the operator’s safe performance.
• Unless the operator has carefully read and studied this operation manual.
• Unless the operator has been properly instructed.
• Unless the operator has demonstrated his instructions through practical operation.
• Unless the operator is familiar with hitching equipment and safe hitching equipment practices.
Handling the Trolley Motion
Before a load is handled, the hoist should be positioned directly over the load that is to be handled. When the slack is taken out of the slings, if the hoist is not directly
over the load, bring it directly over the load before hoisting is continued. Failure to center the hoist over the load may cause the load to swing upon lifting. Always
start the trolley motion slowly and reduce the trolley speed gradually.
Handling the Hoist Motion
Refer to the lifting (hoist) equipment’s operating instructions.
GENERAL SUGGESTIONS
Know Your Crane
Crane operators should be familiar with the principal parts of a crane and have a thorough knowledge of crane control functions and movements. The crane operator
should be required to know the location and proper operation of the main conductor disconnecting means for all power to the attachments on the crane.
Responsibility
Each crane operator should be held directly responsible for the safe operation of the crane. Whenever there is any doubt as to SAFETY, the crane operator should
stop the crane and refuse to handle loads until: (1) safety has been assured or (2) the operator has been ordered to proceed by the supervisor, who then assumes all
responsibility for the SAFETY of the lift.
Do not permit ANYONE to ride on the hook or a load
Inspection
Test the crane movement and any attachments on the crane at the beginning of each shift. Whenever the operator finds anything wrong or apparently wrong, the
problem should be reported immediately to the proper supervisor and appropriate corrective action taken.
Operating Suggestions
One measure of a good crane operator is the smoothness of the crane operation. The good crane operator should know and follow these proven suggestions for
safe, efficient crane handling.
1. The crane should be moved smoothly and gradually to avoid abrupt, jerky movements of the load. Slack must be removed from the sling and hoisting ropes
before the load is lifted.
2. Center the crane over the load before starting the hoist to avoid swinging the load as the lift is started. Loads should not be swung by the crane to reach areas
not under the crane.
3. Crane-hoisting ropes should be kept vertical. Cranes shall not be used for side pulls.
4. Be sure everyone in the immediate area is clear of the load and aware that a load is being moved.
5. Do not make lifts beyond the rated load capacity of the crane, sling chains, rope slings, etc.
6. Make certain that before moving the load, load slings, load chains, or other lifting devices are fully seated in the saddle of the hook with hook latch closed (if
equipped with hook latch).
7. Check to be sure that the load and/or bottom block is lifted high enough to clear all obstructions when moving boom or trolley.
8. At no time should a load be left suspended from the crane unless the operator has the push button with the power on, and under this condition keep the load as
close as possible to the floor to minimize the possibility of an injury if the load should drop. When the crane is holding a load, the crane operator should remain
at the push button.
9. Do not lift loads with sling hooks hanging loose. If all sling hooks are not needed, they should be properly stored, or use a different sling.
10. All slings or cables should be removed from the crane hooks when not in use (dangling cables or hooks hung in sling rings can inadvertently snag other objects
when the crane is moving).
11. Operators shall not carry loads and/or empty bottom blocks over personnel. Particular additional caution should be practiced when using magnet or vacuum
devices. Loads, or parts of loads, held magnetically could drop. Failure of power to magnets or vacuum devices can result in dropping the load. Extra
precaution should be exercised when handling molten metal in the proximity of personnel.
12. Whenever the operator leaves the crane the following procedure should be followed:
• Raise all hooks to an intermediate position.
• Spot the crane at an approved designated location.
• Place all controls in the “off” position.
• Open the main switch to the “off” position.
• Make visual check before leaving the crane.
13. In case of emergency or during inspection, repairing, cleaning or lubrication, a warning sign or signal should be displayed and the main switch should be locked
in the “off” position. This should be done whether the work is being done by the crane operator or by others.
14. Contact with rotation stops or trolley end stops shall be made with extreme caution. The operator should do so with particular care for the safety of persons
below the crane, and only after making certain that any persons on the other cranes are aware of what is being done.
15. ANY SAFETY FEATURES AND MECHANISMS BUILT-IN OR OTHERWISE PROVIDED WITH THE CRANE BY GORBEL ARE REQUIRED FOR THE SAFE
OPERATION OF THE CRANE. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE OR OTHERWISE IMPAIR OR DISABLE THE PROPER FUNCTIONING
OF ANY CRANE SAFETY MECHANISMS OR FEATURES BUILT-IN OR OTHERWISE PROVIDED BY GORBEL FOR SAFE OPERATION OF THE CRANE.
ANY REMOVAL, IMPAIRMENT OR DISABLING OF ANY SUCH SAFETY MECHANISMS OR FEATURES OR OTHER USE OR OPERATION OF THE CRANE
WITHOUT THE COMPLETE AND PROPER FUNCTIONING OF ANY SUCH SAFETY MECHANISMS OR FEATURES AUTOMATICALLY AND IMMEDIATELY
VOIDS ANY AND ALL EXPRESS AND IMPLIED WARRANTIES OF ANY KIND OR NATURE.
79/19

LIMITED WARRANTY
It is agreed that the equipment purchased hereunder is subject to the following LIMITED warranty and no other. Gorbel Incorporated (“Gorbel”) warrants the manual
push-pull Work Station Cranes, Jib Crane, and Gantry Crane products to be free from defects in material or workmanship for a period of ten years or 20,000 hours
use from date of shipment. Gorbel warrants the Motorized Work Station Cranes and Jib Crane products to be free from defects in material or workmanship for a
period of two years or 4,000 hours use from the date of shipment. Gorbel warrants the G-Force® and Easy Arm™ products to be free from defects in material or
workmanship for a period of one year or 2,000 hours use from the date of shipment. This warranty does not cover Gantry Crane wheels.This warranty shall not cover
failure or defective operation caused by operation in excess of recommended capacities, misuses, negligence or accident, and alteration or repair not authorized by
Gorbel. No system shall be field modified after manufacture without the written authorization of Gorbel, Inc. Any field modification made to the system without the
written authorization of Gorbel, Inc. shall void Gorbel’s warranty obligation. OTHER THAN AS SET FORTH HEREIN, NO OTHER EXPRESS WARRANTIES,
AND NO IMPLIED WARRANTIES, ORAL OR WRITTEN, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE MADE BY GORBEL WITH RESPECT TO ITS PRODUCTS AND ALL SUCH WARRANTIES ARE HEREBY SPECIFICALLY
DISCLAIMED. GORBEL SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR ANY INCIDENTAL, SPECIAL AND/OR CONSEQUENTIAL DAMAGES
WHATSOEVER, WHETHER OR NOT FORESEEABLE, INCLUDING BUT NOT LIMITED TO DAMAGES FOR LOST PROFITS AND ALL SUCH INCIDENTAL,
SPECIAL AND/OR CONSEQUENTIAL DAMAGES ARE HEREBY ALSO SPECIFICALLY DISCLAIMED. Gorbel’s obligation and Purchaser’s or end user’s sole
remedy under this warranty is limited to the replacement or repair of Gorbel’s products at the factory, or at the discretion of Gorbel, at a location designated by Gorbel.
Purchaser or end user shall be solely responsible for all freight and transportation costs incurred in connection with any warranty work provided by Gorbel hereunder.
Gorbel will not be liable for any loss, injury or damage to persons or property, nor for damages of any kind resulting from failure or defective operation of any materials
or equipment furnished hereunder. Components and accessories not manufactured by Gorbel are not included in this warranty. Purchaser’s or end user’s remedy for
components and accessories not manufactured by Gorbel is limited to and determined by the terms and conditions of the warranty provided by the respective
manufacturers of such components and accessories.
A) DISCLAIMER OF IMPLIED WARRANTY OF MERCHANTABILITY
Gorbel and Purchaser agree that the implied warranty of merchantability is excluded from this transaction and shall not apply to the goods
involved in this transaction.
B) DISCLAIMER OF IMPLIED WARRANTY OF FITNESS FOR PARTICULAR PURPOSE
Gorbel and Purchaser agree that the implied warranty of fitness for particular purpose is excluded from this transaction and shall not apply to
the goods involved in this transaction.
C) DISCLAIMER OF EXPRESS WARRANTY
Gorbel’s agents, or dealer’s agents, or distributor’s agents may have made oral statements about the machinery and equipment described in
this transaction. Such statements do not constitute warranties, and Purchaser agrees not to rely on such statements. Purchaser also agrees
that such statements are not part of this transaction.
D) DISCLAIMER OF SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES
Gorbel and Purchaser agree that any claim made by Purchaser which is inconsistent with Gorbel’s obligations and the warranty remedies
provided with Gorbel’s products, and in particular, special, incidental and consequential damages, are expressly excluded.
E) DEALER OR DISTRIBUTOR NOT AN AGENT
Gorbel and Purchaser agree that Purchaser has been put on notice that dealer or distributor is not Gorbel’s agent in any respect for any
reason. Gorbel and Purchaser also agree that Purchaser has been put on notice that dealer or distributor is not authorized to incur any
obligations or to make any representations or warranties on Gorbel’s behalf other than those specifically set forth in Gorbel’s warranty provided
in connection with its product.
F) MERGER
This warranty agreement constitutes a final and complete written expression of all the terms and conditions of this warranty and is a complete
and exclusive statement of those terms.
G) PAINTING
Every crane (excluding components) receives a quality paint job before leaving the factory. Unfortunately, no paint will protect against the
abuses received during the transportation process via common carrier. We have included at least one (1) twelve ounce spray can for touchup
with each crane ordered (unless special paint was specified). If additional paint is required, contact a Gorbel® Customer Service
Representative at 1-800-821-0086 or 1-585-924-6262.
Title and Ownership:
Title to the machinery and equipment described in the foregoing proposal shall remain with Gorbel and shall not pass to the Purchaser until the full amount
herein agreed to be paid has been fully paid in cash.
Claims and Damages:
Unless expressly stated in writing, goods and equipment shall be at Purchaser’s risk on and after Seller’s delivery in good shipping order to the Carrier. Gorbel
shall in no event be held responsible for materials furnished or work performed by any person other than it or its authorized representative or agent.
Cancellations:
If it becomes necessary for the purchaser to cancel this order wholly or in part, he shall at once so advise Gorbel in writing. Upon receipt of such written notice
all work will stop immediately. If the order entails only stock items, a flat restocking charge of 15% of the purchase price will become due and payable by
Purchaser to Gorbel. Items purchased specifically for the canceled order shall be charged for in accordance with the cancellation charges of our supplier plus
15% for handling in our factory. The cost of material and/or labor expended in general fabrication for the order shall be charged for on the basis of total costs to
Gorbel up to the time of cancellation plus 15%.
Returns:
No equipment, materials or parts may be returned to Gorbel without express permission in writing to do so.
Extra Charge Delay: If Purchaser delays or interrupts progress of Seller’s performance, or causes changes to be made, Purchaser agrees to reimburse Gorbel
for expense, if any, incident to such delay.
Changes and Alterations:
Gorbel reserves the right to make changes in the details of construction of the equipment, as in its judgment, will be in the interest of the Purchaser; will make
any changes in or additions to the equipment which may be agreed upon in writing by the Purchaser; and Gorbel is not obligated to make such changes in
products previously sold any customer.
Third Party Action:
Should Gorbel have to resort to third party action to collect any amount due after thirty (30) days from date of invoice, the Purchaser agrees to pay collection
costs, reasonable attorney’s fees, court costs and legal interest.
OSHA Responsibilities:
Gorbel agrees to fully cooperate with Purchaser in the design, manufacture or procurement of safety features or devices that comply with OSHA regulations. In
the event additional equipment or labor shall be furnished by Gorbel, it will be at prices and standard rates then in effect, or as may be mutually agreed upon at
the time of the additional installation.
Equal Employment Opportunity:
Gorbel agrees to take affirmative action to ensure equal employment opportunity for all job applicants and employees without regard to race, color, age, religion,
sex, national origin, handicap, veteran, or marital status. Gorbel agrees to maintain non-segregated work facilities and comply with rules and regulations of the
Secretary of Labor or as otherwise provided by law or Executive Order.
8
9/19

INSPECTION AND MAINTENANCE
*Federal, state and local codes may require inspection and maintenance checks more
often. Please check the federal, state and local code manuals in your area.
600 Fishers Run, P.O. Box 593
Fishers, NY 14453-0593
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
http://www.gorbel.com
© 2019 Gorbel Inc.
All Rights Reserved
99/19
WARNING
Any changes in rolling effort or unusual noises must be immediately identified and corrected.
GORBEL® GANTRY CRANE INSPECTION AND MAINTENANCE SCHEDULE
ITEM COMPONENT MAINTENANCE FREQUENCY*
1Top Plate Hardware Check for full compression of lockwasher. Bolts should be
tightened to torque specifications (Chart 2A, page 3).
Every 1,000 hours
or 6 months
2Caster Hardware Check for full compression of lockwasher. Bolts should be
tightened to torque specifications (Chart 2A, page 3).
Every 1,000 hours
or 6 months
3Endstop/Tagline
Bracket Hardware
Check for full compression of lockwasher. Bolts should be
tightened to torque specifications (Chart 2A, page 3). Also
check that the 3/8” eyebolt nuts are secure and the wire rope
has adequate tension.
Every 1,000 hours
or 6 months
4 Casters
Check for cracks, pits, grooves or excessive wear: all of these
hinder the crane’s mobility. If any of these conditions exist,
wheels should be replaced. Also add an adequate amount of
grease through the zirk fittings. Each caster will have one or two
grease fittings (one on the fork weldment and one on the wheel
itself).
Every 1,000 hours
or 6 months
Facebook
Facebook.com/gorbelinc


linkedin.com/company/gorbel  gorbel.com/blog
WARNING
This produc
t can expose you to chemicals, including acrylonitrile
,
which are
known to the State of California to cause cancer. For
more inf
ormation go to:
www.P65Warnings.ca.gov
