Gorenje D724BL Operating and maintenance manual

EN
DETAILED
INSTRUCTIONS
HOW TO USE YOUR
DRYER
www.gorenje.com

We thank you for the
confidence you have shown us by
purchasing this dryer. Your new
dryer complies with the requirements
of modern laundry care; it will
dry your laundry quickly, leaving
it soft and smooth, while use of
special programs will not deform
it. SensoCare technology will allow
simple operation of the dryer with
very low power consumption.
This appliance is designed exclusively
for household use for clothes which
may be drying in a dryer.
It is essential to read these instructions.

3
TABLE OF CONTENTS
350077
DRYING
STEPS
CLEANING
AND
MAINTANCE
OF THE
APPLIANCE
INTRODUCTION
TROUBLE-
SHOOTING
GETTING
STARTED
OTHER
4 SAFETY PRECAUTIONS
10 APPLIANCE
11 Technical information
12 Control panel description
14 INSTALLATION AND CONNECTION
14 Selecting the room
17 Installation
18 Moist air evacuation
19 Condensate discharge
20 Electrical connections
21 Moving and transport
21 Subsequent transport
22 BEFORE THE FIRST USE
23 DRYING STEPS (1 - 6)
23 1. Step: Check the tags on your laundry
24 2. Step: Preparing the laundry
27 3. Step: Selecting a program
29 4. Step: Additional functions (extra)
31 5. Step: Program start-up
31 6. Step: End of drying cycle
32 CLEANING AND MAINTENANCE
33 Cleaning the net filter in the door
34 Cleaning of water condenser
36 Emptying the condensate tank
37 Cleaning of evacuation duct
37 Cleaning the dryer
38 INTERRUPTING AND CHANGING THE PROGRAM
39 What to do...?
41 TIPS AND RECOMMENDATIONS FOR DRYING AND ECONOMIC USE
OF YOUR DRYER
42 DISPOSAL
43 TYPICAL CONSUMPTION TABLE

4
SAFETY PRECAUTIONS
350077
Please don´t use the appliance unless you have
studied and understood the instruction manual.
Your dryer is intended solely for household use.
If the dryer is used for professional, for-profit purpose
or purpose exceeding normal use in a household, or if
the dryer is used by a person who is not a consumer,
the warranty period shall be equal to the shortest
warranty period required by relevant legislation.
Before connecting the dryer to the power mains,
please read carefully the instructions for use which
describe the dryer and its correct and safe use. The
instructions apply for several appliance types/models;
thus, settings or equipment may be described herein
which is not available in your dryer.
Failure to observe instructions or incorrect use of the
dryer, can lead to damage of laundry, dryer or the
user.
Store the instruction manual nearby the dryer.
Do not allow the children to play with the appliance.
Prevent your children and pets to enter the dryer drum.

5
350077
A damaged power cord may only be replaced by a
person authorized by the manufacturer.
Air in the dryer environment should not contain dust
particles.
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas
or other fuels.
The air where the dryer is installed, should be well
ventilated to prevent feedback of gases released from
the gas appliances with open fire (e.g. fireplace).
Clean the filters after each drying cycle. If you have
removed the filters, replace them before the next
drying cycle.
After each cleaning insert the condenser back into
the air duct (depending on model). Operation of
the appliance without condenser, or with damaged
condenser is extremely dangerous and may cause fire.
Always switch off the dryer after use (the program
selector switch should be in the "OFF" position) and
unplug the power cord from the wall outlet (to prevent
the hazard of lightning or voltage overload).

6
350077
Leave any repairs and similar tasks on the dryer to an
expert.
Unprofessional repair may result in an accident
or major malfunction. Call the authorized service
department (see list of service departments attached).
The warranty does not cover (consumables (light
bulbs), minor deviations in colour, increased noise
which is a consequence of the appliance age and
does not affect the functionality of the appliance, and
aesthetic defects on components that do not affect the
functionality and safety of the appliance.
The appliance is manufactured in compliance with all
effective safety standards.
Nevertheless, we recommend it is not used by
persons with impaired physical or mental abilities
and motor skills, or persons with deficient experience
or knowledge, without due supervision. The same
recommendation applies to the use of appliance by
minors.
The dryer back wall can be hot danger of burns.
Never stop the drying cycle before it is completed;
if you do interrupt the cycle for any reason, be careful
when removing the laundry from the drum as it is very
hot. Quickly remove the laundry from the drum and
spread it to allow it to cool down as quickly as possible.

7
350077
Final drying cycle includes cooling; be careful not to
extract excessively hot laundry from the drum.

8
350077
TO REDUCE FIRE HAZARD, PLEASE READ THE
FOLLOWING INSTRUCTIONS:
Do not dry in the dryer any laundry, that has
not been washed earlier.
Remove all objects such as lighters and
matches from the pockets.
Children under 3 years should be kept away from the
machine unless they are not constantly supervised at
all times.
The appliance is manufactured in compliance with all
relevant safety standards.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.

9
350077
Use the dryer only to dry laundry that
was washed with water. Do not dry any
laundry that was washed of cleaned with
inflammable cleaners or substances (such as
gasoline, trichloroethylene etc.) as this may
result in an explosion.
Laundry stained with oil, acetone, alcohol,
oil derivatives, stain removers, turpentine,
wax, and wax removers should be washed
in a washing machine with hot water and
detergent before it is dried in the dryer.
Clothing that includes latex, rubber parts,
shower and bathing caps, and laundry or
covers with rubber foam should not be dried
in the dryer.
Laundry conditioners or similar products
have to be used in compliance with
manufacturer's instructions.

10
APPLIANCE
(DRYER DESCRIPTION)
350077
FRONT
1 Program selector dial
2 Control panel
3 Condensate tank (certain
models only)
4 Door
5 Net filter
6 Condenser
(depending on the model)
7 Evacuation opening
(depending on the model)
8 Rating plate
BACK
1 Condensate discharge pipe
(depending on the model)
2 Evacuation opening
(depending on the model)
3 Power cord
4 Adjustable feet
1
2
5
8
6
4
7
3
7
4
4
4
4
1
3
2
2

11
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
TYPE: SP10/XXX
Art.No.: XXXXXX
AC 220-240V 50 Hz
Pmax.: XXXXW
10A
MADE IN SLOVENIA
MODEL: XXXXXX
Ser.No.: XXXXXX
X
kg
IPX4
350077
The rating plate with the basic information on the dryer is located under the door frame.
Width 600mm
Height 850mm
Depth 600mm
Depth with door
open
1100mm
Weight XX/YY kg
(depending on the
model)
Rated voltage See rating plate
Fuse See rating plate
Nominal power See rating plate
Maximum load See rating plate
The rating plate

12
CONTROL PANEL DESCRIPTION
FOR MODELS A) CONDENSATION AND
B) AIR VENTED
START|PAUSE
1
2a
2c
START|PAUSE
12h
4h
2h
1
2a 3a
2b 3b
2c 3c
350077
1START/ PAUSE key, use this key to start or
stop the program. When
selected, the signal light on
the key will flash. When the
program has started it will
be lit continuously.
2a , b , c : SIGNAL LIGHTS are on: when
it is necessary to clean the
filter, empty the condensate
tank (depending on the
model) or when the child
lock is on.
3LAMPS indicating delayed start of the
operation, or display of
drying, cooling, and end of
drying stages.
B) AIR VENTED
A) CONDENSATION

13
OFF
30
90 60
5
4a
4b
4c
350077
4a , b , c : ADDITIONAL FUNCTION keys, to
extend or adjust the basic
programs.
5ON/OFF and PROGRAM SELECTOR dial
MOST USED PROGRAMS

14
INSTALLATION AND
CONNECTION
SELECTING THE ROOM
10 cm
10 cm
5 cm
350077
Ventilation slots and the opening on the front and rear side should always be
kept free.

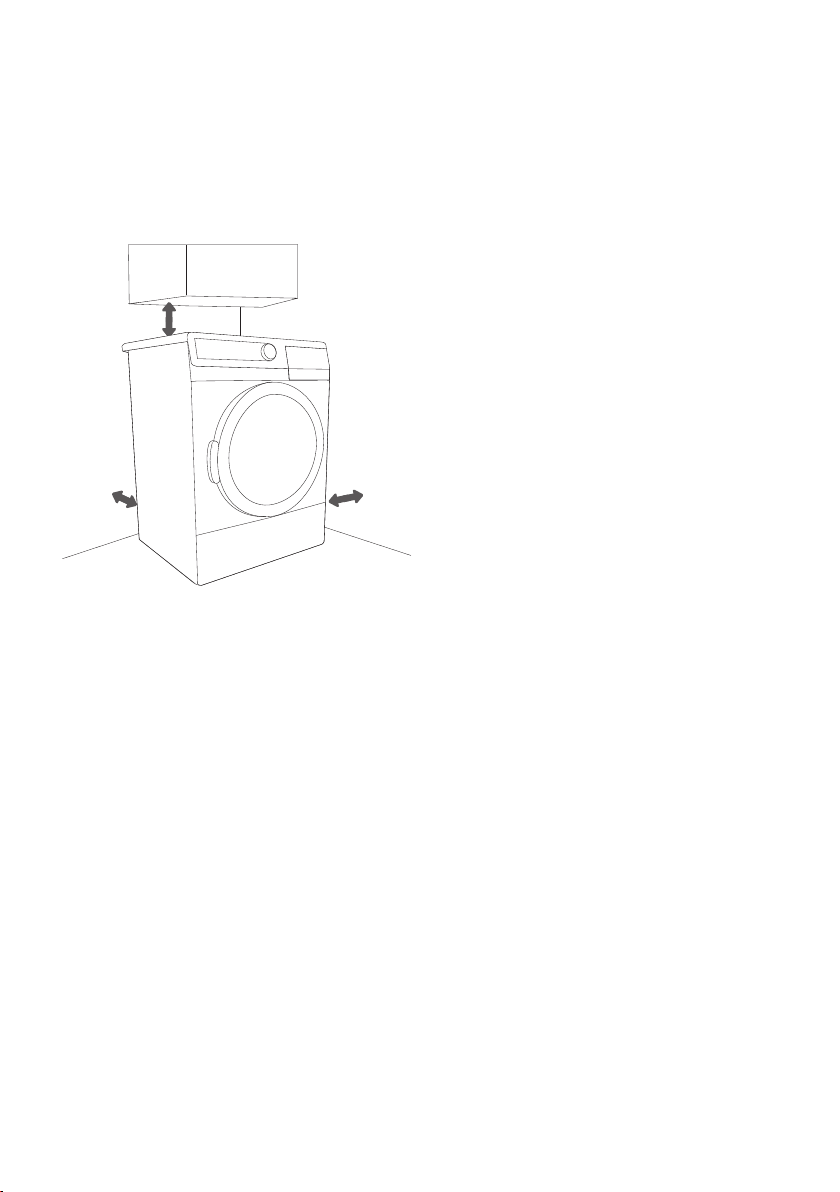

When installing the dryer in a room, note the required clearance as indicated
in the image. In case of failure to heed the required minimum clearance, the
dryer may overheat.
For condensation dryer
Do not install the appliance in a room where there is danger of frost.
The room in which the appliance is installed should be adequately ventilated,
with temperature between 10°C and 25°C. When the dryer is operated at a
lower ambient temperature, condensate can accumulate in the appliance
interior.Frozen water in the condensate tank or pump may damage the dryer.
For vented dryer
Place the appliance in well aerated room with a window or fitted with a fan.
Put the evacuation tube into the appropriate opening. Evacuation duct may
not be placed into the chimney or other type of air duct used for evacuation
of exhaust fumes and smoke of appliances using other combustible
substances.

15
POSITIONING THE APPLIANCE
4X
350077
Positioning the appliance on top of the washing machine by using the vacuum feets or
side by side.
Dryer can be stand freely on the floor or on a washing machine of the same dimensions
– minimum width 517 mm, minimum depth 476 mm. The surface on which the dryer is
placed should be clean and level.
Use the vacuum feet attached; they are designed to prevent the dryer from sliding.
(Vacuum feet are attached or can be purchased (depending on model)).
Washing machine on which you wish to install the dryer must be able to bear the weight
of the dryer (see washing machine's rating plate or technical information).

16
350077
Do not place the dryer behind lockable or sliding door or door
with a hinge opposite the dryer. Install the dryer in such way
that the door can always be freely opened.
Air ventilation duct must be kept unobstructed (see
"Description of the appliance").
Drying machine on top should be placed by at least two
persons.
Do not place the dryer on a carpet with long fibres as this may
impede air circulation.
The appliance may not be in contact with a wall or adjacent
furniture.

17
INSTALLATION
350077
Level the dryer in
longitudinal and
traverse direction
by rotating the
adjustable feet
which allow levelling
by +/- 1 cm. Use
key nr. 22 and spirit
level.
Floor on which the machine is placed must have a concrete
base. They must be clean and dry; otherwise, the machine may
slide. Also clean the adjustable feet.
The appliance must stand level and stable on a solid base.
Vibrations, moving of the appliance across the room, or loud
operation due to improperly adjusted feet are not covered by
the warranty.
Sometimes, unusual or loud noise may appear during
appliance operation; these are mostly the result of improper
installation.

18
MOIST AIR EVACUATION
(For vented dryer)
Distance between the drying machine and the evacuation
opening (vent duct, window) may not be more than 2 m,
otherwise you may expect concentration of moisture within
the exhaust tube.

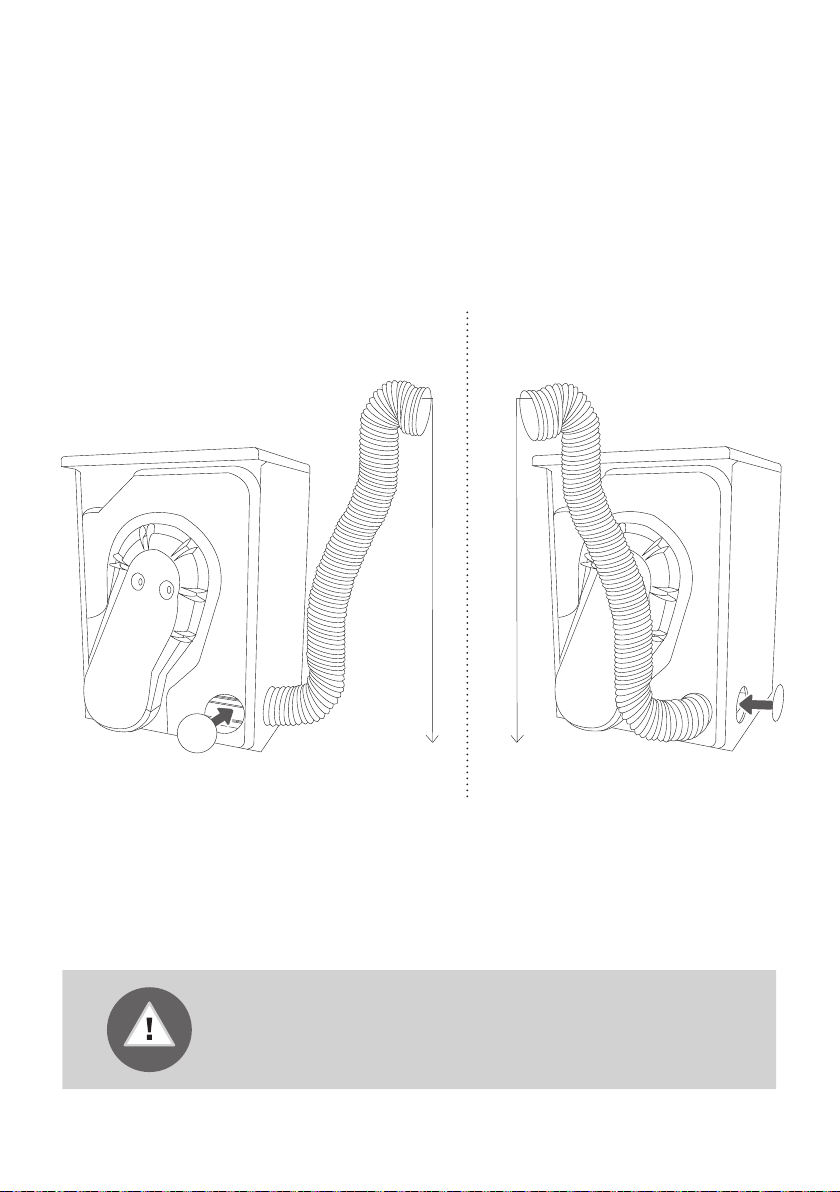

The appliance is fitted with two openings for moist air evacuation
(option a/b), of which one must be covered with the lid, and other
used to fix the exhaust tube.
ab
max 2 m
max 2 m
350077

19
CONDENSATE DISCHARGE
(For condensation dryer)
max 80 cm
350077
The moisture from the laundry is extracted in the condenser unit
and accumulated in the condensate tank.
During the drying process, a control light will warm you of a full
condensate tank which has to be emptied.
Interruption of the drying cycle due to full condensate tank can be
avoided by running the condensate discharge tube found at the
back of the appliance directly into a drain.
If the condensate discharge tube is run into a drain, make sure
the tube is firmly secured. This will prevent any water spillage
which could result in unexpected damage.
In this case, the steam generator tank will not be filled
automatically. It will always require manual filling (see section
Filling and replenishing the steam generator tank).

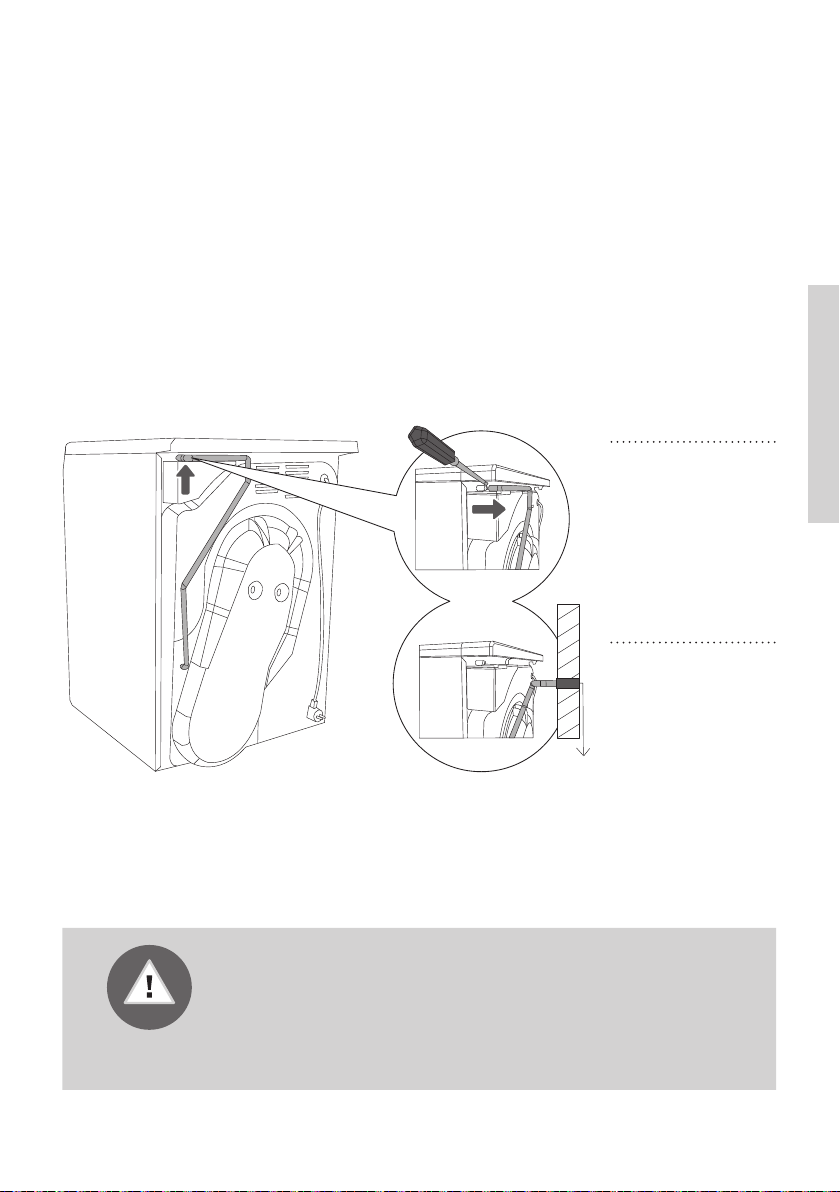

1Pull the tube to remove it with
flat screw-driver,
from the holder on
the appliance back
wall.(on the left
hand side under the
cover).
2Install tube into the drain, at
a height of 80 cm
from the ground.

20
ELECTRICAL CONNECTIONS
2h
350077

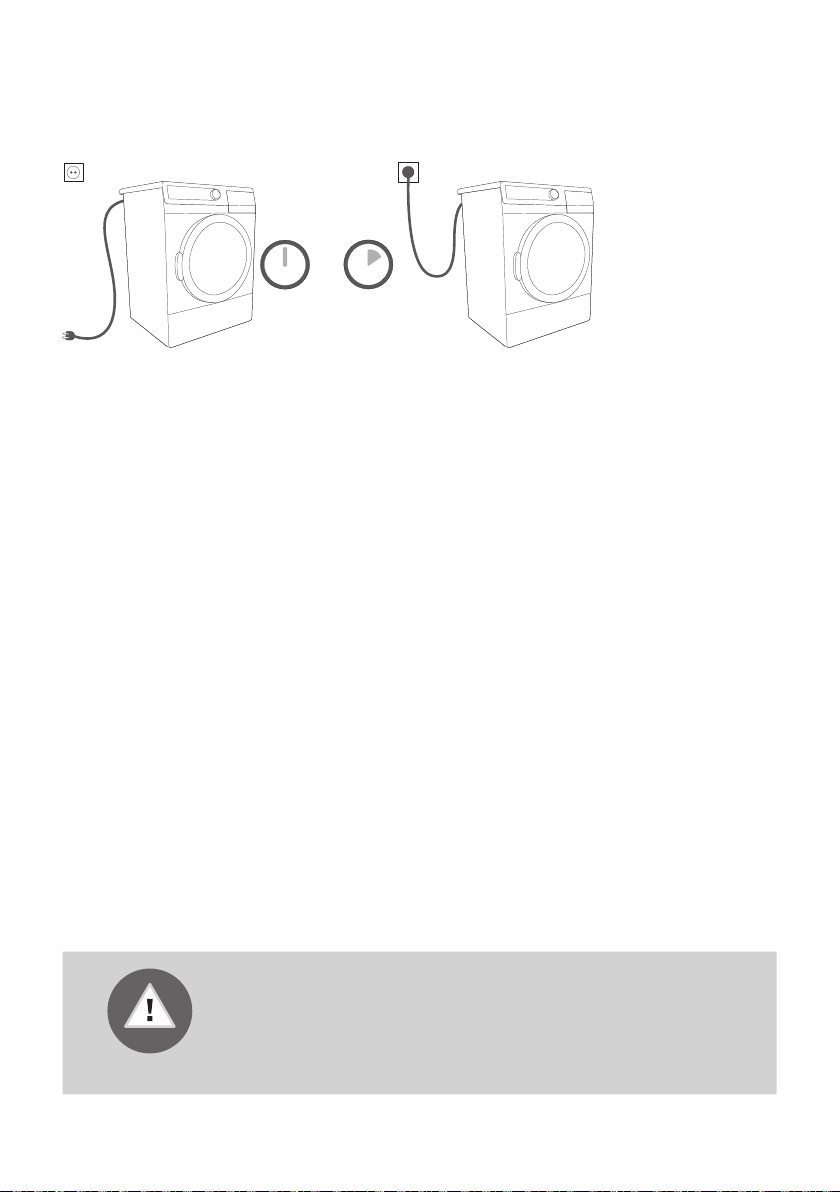

The dryer should be left to stand still for at least two hours
before it is connected to the power mains to allow the system to
stabilize.
Use the power cord to connect the dryer to the power mains
through a power outlet. The dryer may not be connected to the
power mains through an extension cable (danger of overheating
and fire). Nominal voltage and other information is given on the
rating plate located under the door frame.
To prevent from damage by excess voltage on the mains due
to lightning strike we recommend to use a class I over-voltage
protector between the machine and the mains.
After installation, the wall outlet should be freely accessible.
The outlet should be fitted with an earth contact (in
compliance with the relevant regulations).
A damaged power cord may only be replaced by a person
authorized by the manufacturer.
