Gorenje D9864E Operating and maintenance manual

EN
DETAILED
INSTRUCTIONS
HOW TO USE YOUR
DRYER
www.gorenje.com

We thank you for the
confidence you have shown us by
purchasing this dryer. Your new
dryer complies with the requirements
of modern laundry care; it will
dry your laundry quickly, leaving
it soft and smooth, while use of
special programs will not deform
it. SensoCare technology will allow
simple operation of the dryer with
very low power consumption.
This appliance is designed exclusively
for household use for clothes which
may be drying in a dryer.
It is essential to read these instructions.

3
TABLE OF CONTENTS
493185
DRYING
STEPS
CLEANING
AND
MAINTANCE
OF THE
APPLIANCE
INTRODUCTION
TROUBLE-
SHOOTING
GETTING
STARTED
OTHER
4 SAFETY PRECAUTIONS
10 APPLIANCE
11 Technical information
12 ControL panel description
14 INSTALLATION AND CONNECTION
14 Selecting the room
17 Installation
18 Condensate discharge
19 Electrical connections
20 Moving and transport
20 Subsequent transport
21 Emptying the steam generator tank
22 Ionizer system
22 Steam generator system
23 BEFORE THE FIRST USE
26 DRYING STEPS (1 - 7)
26 1. Step: Check the tags on your laundry
27 2. Step: Preparing the laundry
30 3. Step: Selecting a program
33 4. Step: Additional functions
34 5. Step: Style
36 6. Step: Program start-up
36 7. Step: End of drying cycle
37 CLEANING AND MAINTENANCE
38 Cleaning the net filter in the door
39 Cleaning the heat pump filter
40 Cleaning the steam generator tank filter
41 Emptying the condensate tank
42 Cleaning the dryer
43 INTERRUPTING AND CHANGING THE PROGRAM
44 What to do...?
46 TIPS AND RECOMMENDATIONS FOR DRYING AND ECONOMIC USE
OF YOUR DRYER
47 DISPOSAL

4
SAFETY PRECAUTIONS
493185
Please don´t use the appliance unless you have
studied and understood the instruction manual.
Your dryer is intended solely for household use.
If the dryer is used for professional, for-profit purpose
or purpose exceeding normal use in a household, or if
the dryer is used by a person who is not a consumer,
the warranty period shall be equal to the shortest
warranty period required by relevant legislation.
Before connecting the dryer to the power mains,
please read carefully the instructions for use which
describe the dryer and its correct and safe use. The
instructions apply for several appliance types/models;
thus, settings or equipment may be described herein
which is not available in your dryer.
Failure to observe instructions or incorrect use of the
dryer, can lead to damage of laundry, dryer or the
user.
Store the instruction manual nearby the dryer.
Do not allow the children to play with the appliance.
Prevent your children and pets to enter the dryer drum.

5
493185
A damaged power cord may only be replaced by a
person authorized by the manufacturer.
Air in the dryer environment should not contain dust
particles.
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas
or other fuels.
The air where the dryer is installed, should be well
ventilated to prevent feedback of gases released from
the gas appliances with open fire (e.g. fireplace).
The dryer back wall can be hot danger of burns.
Clean the filters after each drying cycle. If you have
removed the filters, replace them before the next
drying cycle.

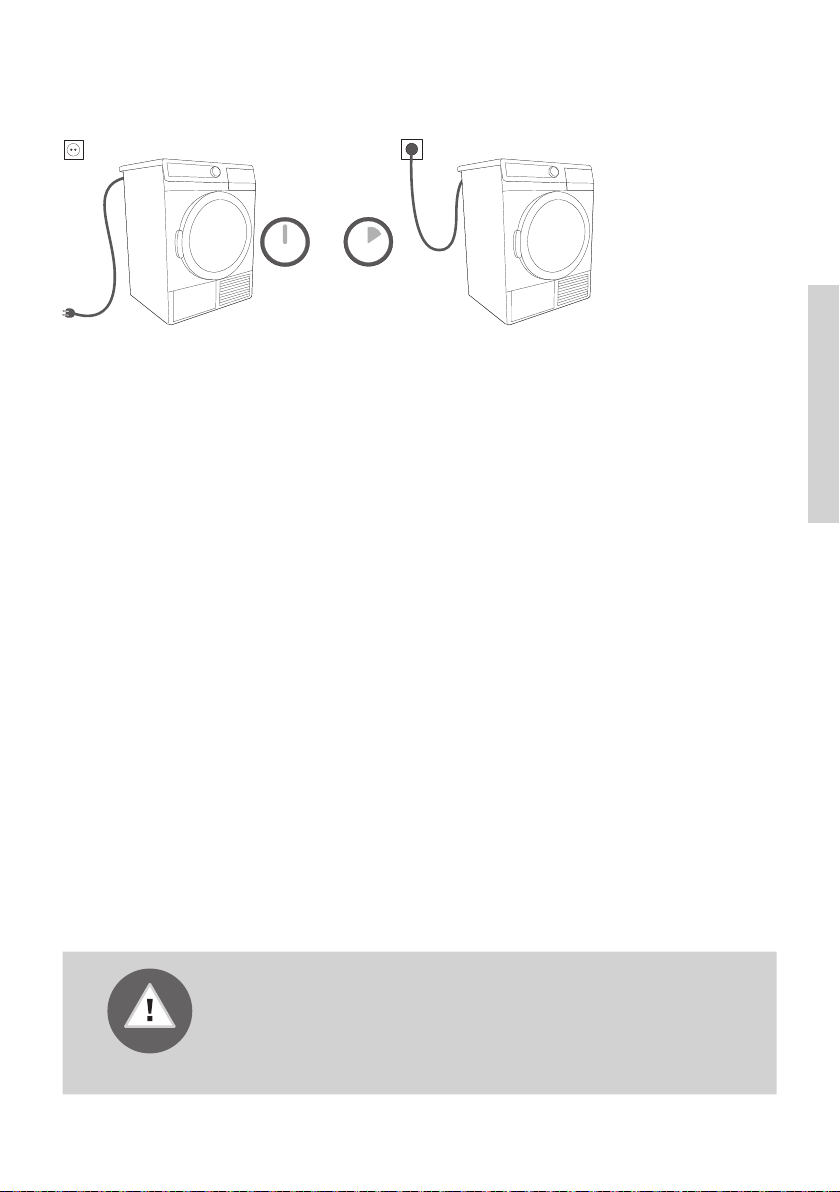

Always switch off the dryer after use (the program
selector switch should be in the "OFF" position) and
unplug the power cord from the wall outlet (to prevent
the hazard of lightning or voltage overload).
The dryer employs the heat pump system to heat the
air.

6
493185
The system consists of a compressor and heat
exchangers.
After running the dryer, compressor operation, or the
sound of flowing liquid, may be somewhat louder. This
is not a sign of malfunction and it will not affect useful
life of the appliance. In time, dryer operation and this
noise will become more quiet.
Leave any repairs and similar tasks on the dryer to an
expert.
Unprofessional repair may result in an accident or major
malfunction. Call the authorized service department (see
list of service departments attached).
The warranty does not cover (consumables (light bulbs),
minor deviations in colour, increased noise which is a
consequence of the appliance age and does not affect
the functionality of the appliance, and aesthetic defects
on components that do not affect the functionality and
safety of the appliance.
The appliance is manufactured in compliance with all
effective safety standards.
Nevertheless, we recommend it is not used by persons
with impaired physical or mental abilities and motor
skills, or persons with deficient experience or knowledge,
without due supervision. The same recommendation
applies to the use of appliance by minors.

7
493185
Never stop the drying cycle before it is completed;
if you do interrupt the cycle for any reason, be careful
when removing the laundry from the drum as it is very
hot. Quickly remove the laundry from the drum and
spread it to allow it to cool down as quickly as possible.
Children under 3 years should be kept away from the
machine unless they are not constantly supervised at
all times.
The appliance is manufactured in compliance with all
relevant safety standards.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.

8
493185
TO REDUCE FIRE HAZARD, PLEASE READ THE
FOLLOWING INSTRUCTIONS:
Do not dry in the dryer any laundry, that has
not been washed earlier.
Remove all objects such as lighters and
matches from the pockets.
Use the dryer only to dry laundry that
was washed with water. Do not dry any
laundry that was washed of cleaned with
inflammable cleaners or substances (such as
gasoline, trichloroethylene etc.) as this may
result in an explosion.
Laundry stained with oil, acetone, alcohol,
oil derivatives, stain removers, turpentine,
wax, and wax removers should be washed
in a washing machine with hot water and
detergent before it is dried in the dryer.

9
493185
Clothing that includes foam rubber, latex,
rubber parts, shower and bathing caps,
water proof textiles, and rubber backed
articles and clothes or pillows fitted with
foam rubber pads should not be dried in the
tumble dryer.
Laundry conditioners or similar products
have to be used in compliance with
manufacturer's instructions.

10
APPLIANCE
(DRYER DESCRIPTION)
1
2
3
5
6
7
8
4
1
2
3
3
3
3
493185
FRONT
1 Program selector dial
2 Control panel
3 Condensate tank
4 Door
5 Net filter
6 Heat pump filter
7 Air vent
8 Rating plate
BACK
1 Condensate discharge pipe
2 Power cord
3 Adjustable feet

11
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
TYPE: SP10/XXX
Art.No.: XXXXXX
AC 220-240V 50 Hz
Pmax.: XXXXW
10A
MADE IN SLOVENIA
MODEL: XXXXXX
Ser.No.: XXXXXX
RXXXX/420g
X
kg
IPX4
493185
The rating plate with the basic information on the dryer is located under the door frame.
Width 600mm
Height 850mm
Depth 600mm
Depth with door
open
1100mm
Weight XX/YY kg
(depending on the
model)
Rated voltage See rating plate
Fuse See rating plate
Nominal power See rating plate
Amount of
refrigerant
420g
Type of refrigerant R407C / R134a
(depending on the
model)
Maximum load See rating plate
The rating plate
This product contains fluorinated greenhouse gases.
Type of refrigerant: R134a
Quantity of refrigerant: 0.42 kg
Total GWP: 1430
CO2equivalent: 0.601 t
Hermetically sealed.

12

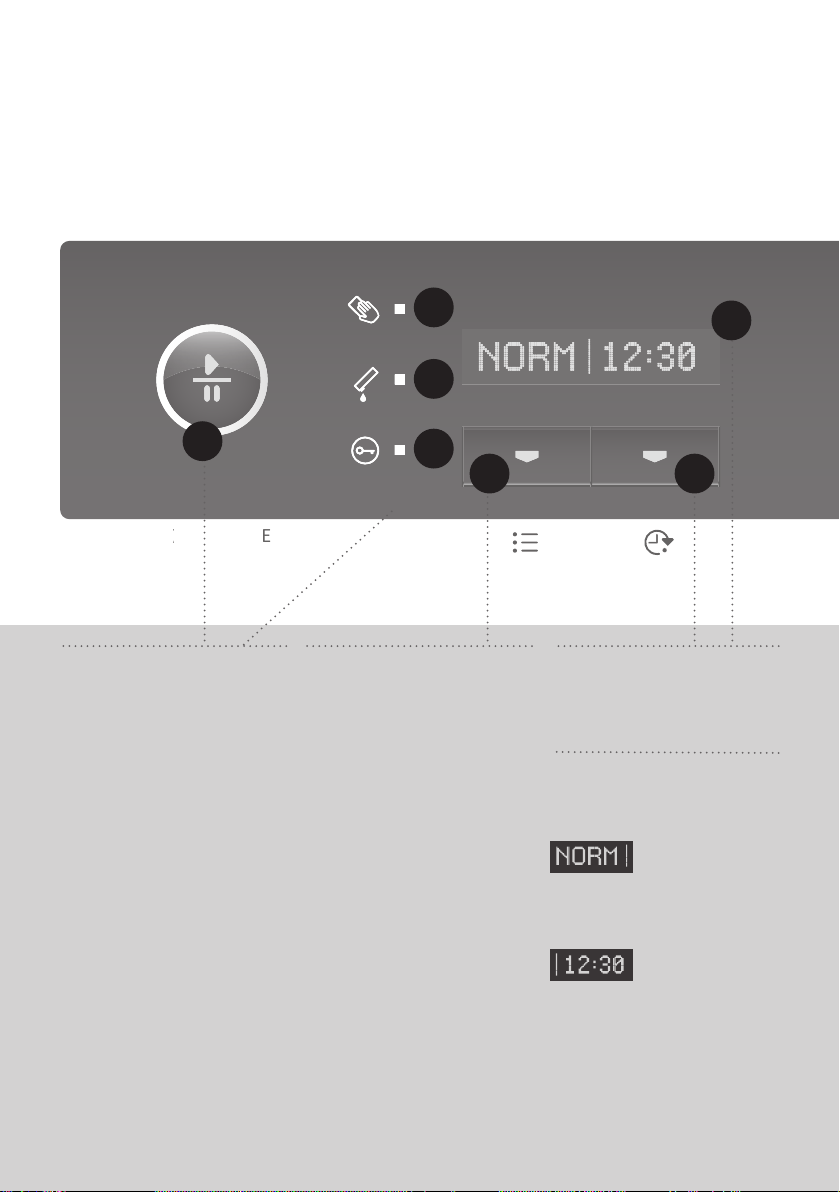

CONTROL PANEL DESCRIPTION
FOR MODELS: A) IONIZER + STEAM AND B) IONIZER
ST
ART|
TT
PA
US
E
1
43
5
2a
2b
2c
493185
1START/ PAUSE key, use this key to start or
stop the program. When
selected, the signal light on
the key will flash. When the
program has started it will
be lit continuously.
2a , b , c : SIGNAL LIGHTS are on: when
it is necessary to clean the
filter, empty the condensate
tank or when the child lock
is on.
3STYLE key NORMALcare
GENTLEcare (low
temperature)
4START DELAY key, to select the delayed
start of the drying program.
5DISPLAY showing theDRYING STYLEon
the left
and DELAYED START or
time to the end of the cycle
on the right

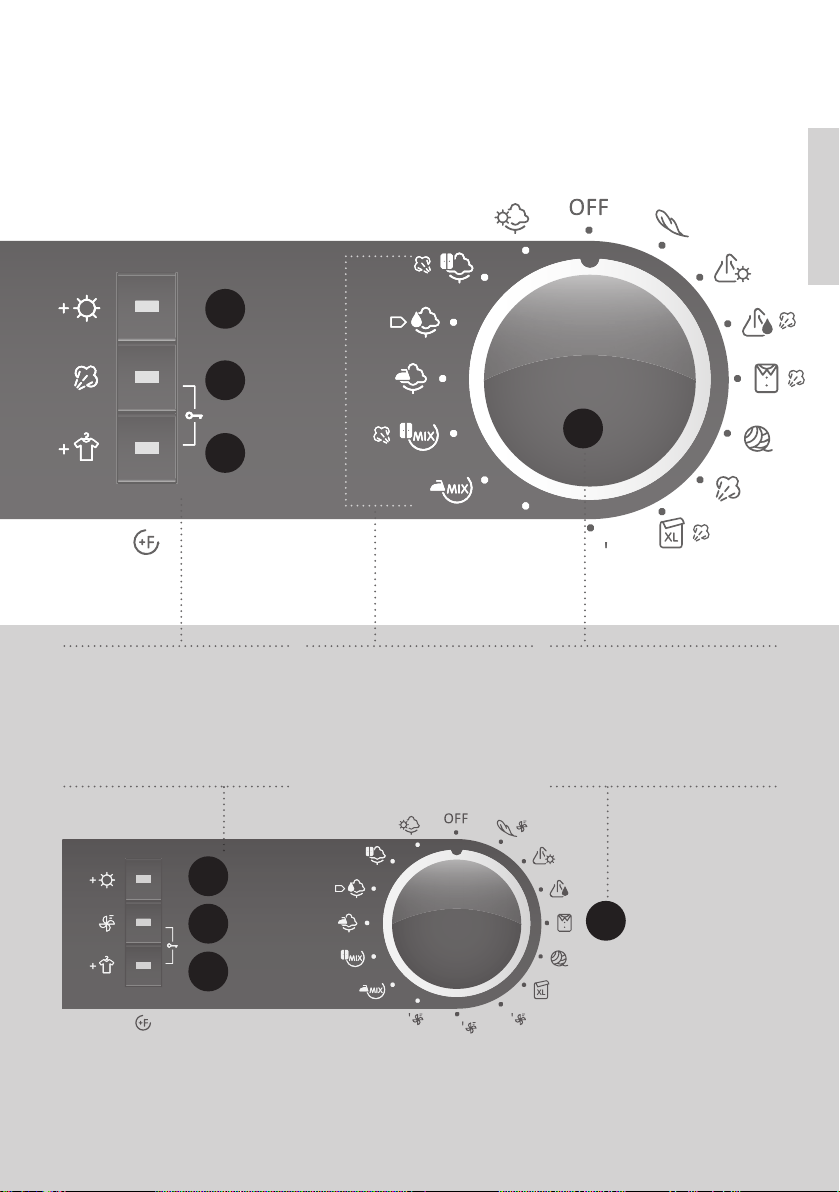

A) IONIZER + STEAM

13
90'
30
'
90
'
60
'
30
'
6c
7
6b
6a
6b
6a
6c
7
493185
6a , b , c : ADDITIONAL FUNCTION keys, to
extend or adjust the basic
programs.
7ON/OFF and PROGRAM SELECTOR dial
MOST USED PROGRAMS
B) IONIZER

14
INSTALLATION AND
CONNECTION
SELECTING THE ROOM
10 cm
10 cm
5 cm
493185
Ventilation slots and the opening on the front and rear side should always be kept free.
Do not install the appliance in a room where there is danger of frost.
The room in which the appliance is installed should be adequately ventilated, with
temperature between 10°C and 25°C. When the dryer is operated at a lower ambient
temperature, condensate can accumulate in the appliance interior. Frozen water in the
condensate tank or pump may damage the dryer.
The surrounding illumination in the installation room should be adequate to read the front
panel properly.
When installing the dryer in a room, note the required clearance as indicated in the image.
In case of failure to heed the required minimum clearance, the dryer may overheat.

15
POSITIONING THE APPLIANCE
4X
493185
Positioning the appliance on top of the washing machine by using the vacuum feets or
side by side.
Dryer can be stand freely on the floor or on a washing machine of the same dimensions
– minimum width 517 mm, minimum depth 476 mm. The surface on which the dryer is
placed should be clean and level.
Use the vacuum feet attached; they are designed to prevent the dryer from sliding.
(Vacuum feet are attached or can be purchased (depending on model)).
Washing machine on which you wish to install the dryer must be able to bear the weight
of the dryer (see washing machine's rating plate or technical information).

16
493185
Do not place the dryer behind lockable or sliding door or door
with a hinge opposite the dryer. Install the dryer in such way
that the door can always be freely opened.
Never block the cool air opening (see dryer description).
Drying machine on top should be placed by at least two
persons.
Do not place the dryer on a carpet with long fibres as this may
impede air circulation.
The appliance may not be in contact with a wall or adjacent
furniture.
Lint must not be allowed to accumulate around the tumble
dryer.

17
INSTALLATION
493185

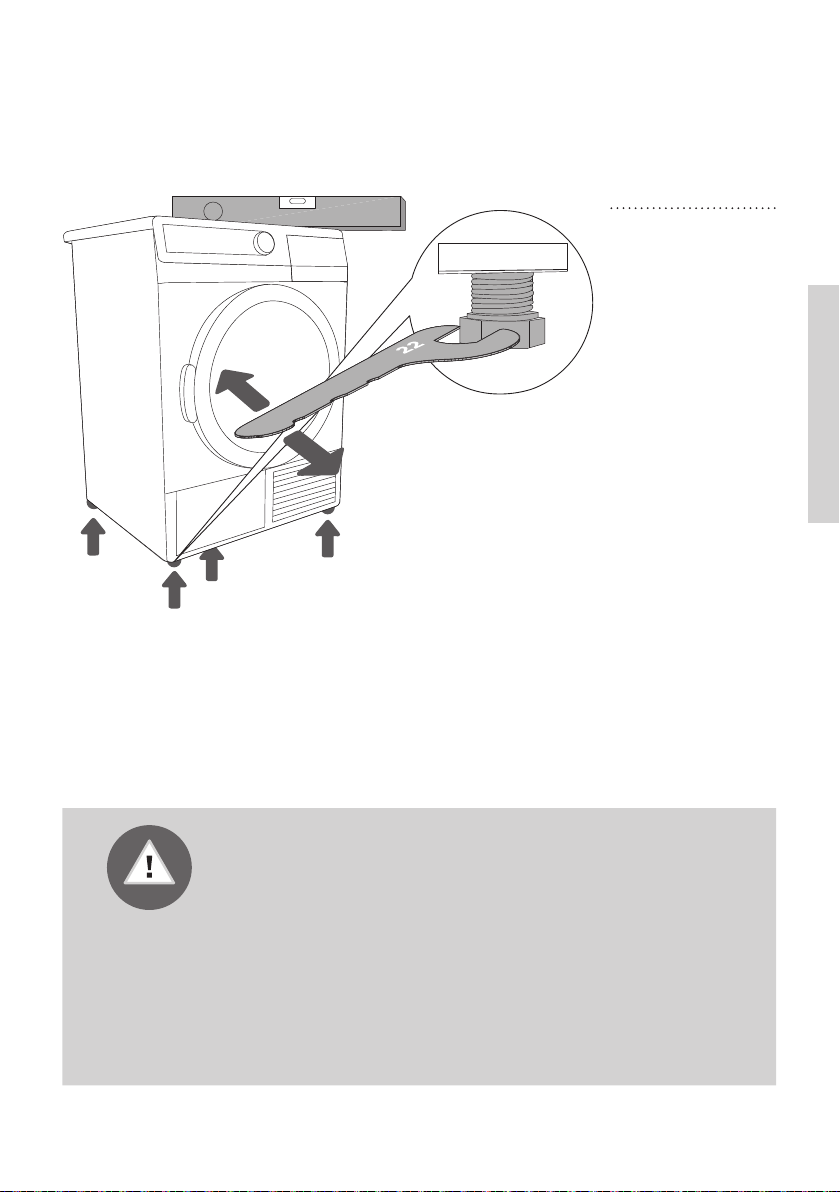

Level the dryer in
longitudinal and
traverse direction
by rotating the
adjustable feet
which allow levelling
by +/- 1 cm. Use
key nr. 22 and spirit
level.
Floor on which the machine is placed must have a concrete
base. They must be clean and dry; otherwise, the machine may
slide. Also clean the adjustable feet.
The appliance must stand level and stable on a solid base.
Vibrations, moving of the appliance across the room, or loud
operation due to improperly adjusted feet are not covered by
the warranty.
Sometimes, unusual or loud noise may appear during
appliance operation; these are mostly the result of improper
installation.

18
CONDENSATE DISCHARGE
max 80 cm
493185
The moisture from the laundry is extracted in the condenser unit
and accumulated in the condensate tank.
During the drying process, a control light will warm you of a full
condensate tank which has to be emptied.
Interruption of the drying cycle due to full condensate tank can be
avoided by running the condensate discharge tube found at the
back of the appliance directly into a drain.
If the condensate discharge tube is run into a drain, make sure
the tube is firmly secured. This will prevent any water spillage
which could result in unexpected damage.
In this case, the steam generator tank will not be filled
automatically. It will always require manual filling (see section
Filling and replenishing the steam generator tank).
1Pull the tube to remove it with
flat screw-driver,
from the holder on
the appliance back
wall (on the left
hand side under the
cover).
2Install tube into the drain, at
a height of 80 cm
from the ground.

19
ELECTRICAL CONNECTIONS
2h
493185
The dryer should be left to stand still for at least two hours
before it is connected to the power mains to allow the system to
stabilize.
Use the power cord to connect the dryer to the power mains
through a power outlet. The dryer may not be connected to the
power mains through an extension cable (danger of overheating
and fire). Nominal voltage and other information is given on the
rating plate located under the door frame.
To prevent from damage by excess voltage on the mains due
to lightning strike we recommend to use a class I over-voltage
protector between the machine and the mains.
After installation, the wall outlet should be freely accessible.
The outlet should be fitted with an earth contact (in
compliance with the relevant regulations).
A damaged power cord may only be replaced by a person
authorized by the manufacturer.

20
SUBSEQUENT TRANSPORT
MOVING AND TRANSPORT
493185
After each drying cycle, a small amount of condensed water
will remain in the pump section. Switch on the appliance and
choose one of the programs, then let the appliance operate for
approximately half a minute. This will pump out the remaining
water and prevent damage to the dryer during transport.
If the appliance was not transported in compliance with the
instructions, the dryer should be left to stand still at least two
hours before it is reconnected to the power mains. Failure
to do so may result in a heat pump failure which shall not be
covered by the warranty.
Be careful not to damage the cooling system.
If the dryer cannot be transported in the upright position, tilt it to the left side.
After transport, the dryer should be left to stand still for at
least two hours before it is connected to the power mains to
allow the system to stabilize. We recommend that installation
and connection should be done by a qualified person.
The belt can be replaced by a servising engineer only, who
incorporates an original spare part with the marking OPTIBELT
EPH 1906, code 104265, OPTIBELT 8 EPH 1941, code 160165
(depending on model).
Before connecting the appliance, read the instructions for
use. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
