YOUR INDUCTION HOB
Introduction
This hob has been designed for the real lover of cooking. Cooking on an induction hob has
a number of advantages. It is easy, because the hob reacts quickly and can also be set to a very
low power level. Because, moreover, it can also be set to a high power level, it can bring dishes to
the boil very quickly. The ample space between the cooking zones makes cooking comfortable.
Cooking on an induction hob is different from cooking on a traditional appliance. Induction
cooking makes use of a magnetic field to generate heat. This means that you cannot use just
any pan on it. The pans section gives more information about this.
For optimum safety the induction hob is equipped with several temperature protections and
a residual heat indicator, which shows which cooking zones are still hot.
This manual describes how you can make the best possible use of the induction hob. In addition
to information about operation, you will also find background information that can assist you in
using this product. You will also find cooking tables and maintenance tips.
Read the manual thorougly before using the appliance, and store these instructions in
a safe place for future reference.
The manual also serves as reference material for service technicians. Please, therefore,
stick the appliance identification card in the space provided, at the back of the manual.
The appliance identification card contains all the information that the service technician will
need in order to respond appropriately to your needs and questions.
Enjoy your cooking!

EN 5
VOTRE PLAQUE DE CUISSON À INDUCTION
Description
2 9
1 3
4
5 6 7 8
1. Cooking zone Ø 16 cm / 1.2 kW (boost 1.4 kW)
2. Cooking zone Ø 20 cm / 2.3 kW (boost 3.0 kW)
3. Controls for left cooking zones
4. Downdraft
5. Controls for downdraft
6. Downdraft flaps for air inlet
7. Controls for right cooking zones
8. Bridge cooking zone front right 19 x 21 cm 2.1 kW/boost 3.0 kW
(zone can be linked to zone rear right)
9. Bridge cooking zone rear right 19 x 21 cm 1.6 kW/boost 1.85 kW
(zone can be linked to zone front right)

EN 6
YOUR INDUCTION HOB
Control panel
3 7 10 14
1 2 4 5
6 8 9 11 12 13
1. Downdraft On/Off key
2. Downdraft extraction minus (-) key
3. Downdraft display
4. Downdraft extraction plus (+) key
5. Downdraft timer key
6. Cooking zone right front selection key
7. Display power level / residual heat
8. Lock key
9. Minus (-) key for power or time decrease
10. Timer display
11. Plus (+) key for power or time increase
12. On/Off key
13. Cooking zone right rear selection key
14. Display power level / residual heat

EN 7
SAFETY
Before use, read the separate safety instructions first!
Temperature safety
A sensor continuously measures the temperature of certain parts of the hob. Every cooking
zone is equipped with a sensor that measures the temperature of the bottom of the pan to
avoid any risk of overheating when a pan boils dry. In case of temperatures rising too high,
the power is reduced automatically or the hob switches off automatically.
Cooking-time limiter
The cooking-time limiter is a safety function of your cooking appliance. It will
operate if you forget to switch off your hob. Depending on the cooking level you
have chosen, the cooking time will be limited as follows:
Cooking level
Maximumoperatingtime(hours)
1
8
2
6
3
5
4
5
5
4
6
1,5
7
1,5
8
1,5
9
1,5
Healthy cooking
Burning point of different types of oil
To ensure your food is fried as healthily as possible, it’s recommended to choose the type of oil
according to the frying temperature. Each oil has a different burning point at which toxic gasses
are released. The below table shows the burning points for various types of oil.
Oil
Smoke point °C
Oil
Smoke point °C
Extra virgin olive oil
160 °C
Sunflower oil
227 °C
Butter / Coconut oil
177 °C
Corn oil / Peanut oil
232 °C
Canola oil
204 °C
Olive oil
242 °C
Virgin olive oil
216 °C
Rice oil
255 °C

USE
EN 8
Induction noises
A ticking sound
• This is caused by the capacity limiter on the left and right zones. Ticking can also occur at
lower cooking levels.
Pans are making noise
• Pans can make some noise during cooking. This is caused by the energy flowing from
the hob to the saucepan. At high levels, this is perfectly normal for some pans. It will not
damage either the pans or the hob.
The fan is making noise
• To enlarge the lifespan of the electronics, the appliance is equipped with a fan. If you use
the appliance intense, the fan is activated to cool down the appliance and you will hear
a buzzing sound. The fan runs on for several minutes after the hob has been switched off.
Pans
Always place a pan in the middle of a cooking zone. In linked mode always use a (fish) pan where
at least one of the centre/middle positions of the linked Bridge zones is covered.
Pans for induction cooking
Induction cooking requires a particular quality of pan.
Pans that have already been used for cooking on a gas hob are no
longer suitable
for use on an induction hob.
• Only use pans that are suitable for electric and induction cooking with:
ൗG A thick base (minimum 2.25 mm);
ൗG A flat base.
• The best are pans with the ‘Class Induction’ quality mark.
You can check for yourself whether your pans are suitable using a magnet. A pan is suitable
if the base of the pan is attracted by the magnet.
Suitable
Unsuitable
Special stainless steel pans
Earthenware
Class Induction
Stainless steel
Hard-wearing enamelled pans
Porcelain
Enamelled cast-iron pans
Copper /Aluminium
Plastic

USE
EN 9
Be careful with enamelled sheet-steel pans! The enamel may chip (the enamel comes
loose from the steel), if you switch the hob on at a high level when the pan is (too) dry;
the base of the pan may warp - due, for example, to overheating or to the use of too
high a power level.
• Never use pans with a misshapen base. A hollow or rounded base can interfere with
the operation of the overheating protection, so that the appliance becomes too hot.
This may lead to the glass top cracking and the pan base melting. Damage arising
from the use of unsuitable pans or from boiling dry is excluded from the guarantee.
Minimum pan diameter
• The diameter of the bottom of the pan must be at least 12 cm (11 cm for the ø 16 cm
cooking zone). You will achieve the best results by using a pan with the same diameter as
the zone. If a pan is too small, the zone will not work.
• The length of a fish-pan (oval pan), used on the Bridge zones, must be at least 20 cm.
Pressure cookers
• Induction cooking is very suitable for cooking in pressure cookers. The cooking zone reacts
very quickly, and so the pressure cooker is quickly up to pressure. As soon as you switch
a cooking zone off, the cooking process stops immediately.
Cooking power levels
The cooking zones have 9 levels, a keep warm level and a boost level (depending on the zone).
• Tap the plus (+) or minus (-) key of a cooking zone.
ൗG Tapping the plus (+) key starts the cooking at level ‘1’.
ൗG Tapping the minus (-) key starts the cooking at level ‘9’.
ൗG Tapping the minus (-) key and afterwards the plus (+) key starts the
cooking at Boost level.
• Use the plus (+) or the minus (-) key to choose the desired power level.
ൗG The cooking zone starts at the selected power level.
Keep-warm level
The keep-warm level is intended for keeping food warm that is already cooked.
• Touch the minus (-) or plus (+) key to select level 1
• Touch the minus (-) key to select the stay warm function. Symbol ‘u’ will appear in the
display.
Boost function
• You can use the ‘boost’ function to cook at the highest power level during a short period of
time (max.10 minutes). After the maximum boost time the power will be reduced to setting 9.
• Boost function is not available in Bridge zones linked mode!

USE
EN 10
Boost power management
• Due to the restricted power of the induction hob, the boost function can only be set on one
cooking zone simultaneously (for both left or right cooking zones). Both cooking zones can
be set to level 9. If one cooking zone is on the Boost level, the other cooking zone can be
set maximal to level 7/8.
ൗG The cooking zone, which is set to a lower power, will be flashing in the display.
Pan detection
If the hob does not detect a (ferrous) pan after the cooking level has been set, the pan detection
symbol flash in the display.
Cooking-timer/alarm
• A cooking-timer can be set for each cooking zone.
• The hob also has an alarm. Both the cooking-timer as well as the alarm can be set for a
maximum of 99 minutes.
• The alarm works in the same way as the cooking-timer, but is not linked to a cooking zone.
If the alarm has been set, it will continue counting down after the hob has been switched
off.
• The alarm can only be switched off when the hob is switched on.
Select the desired function:
1. Cooking-timer —the timer is linked to a cooking zone. After the set time has elapsed, the
cooking zone will switch off automatically.
2. Alarm —the alarm only beeps after the set time has elapsed.
Indications in the display
Cooking zone
display
Cooking zone status
<->
Power level cooking zone; 1 = low level / 9 = high level
Cooking zone boost level active.
No (suitable) pan on cooking zone (pan detection symbol).
Fault code; See
‘
Troubleshooting
table’.
Residual heat indicator; The hob has a residual heat indicator for each
cooking
zone to show those which are still hot. Although the hob is
switched
off, the indicator ‘H’ will remain on for as long as the cooking
zone
is hot!
A
void touching them when this indicator is lit. Danger! Risk of burns.

USE
EN 11
Fault code; See
‘
Troubleshooting
table’.
Lock function active.
Fault code; See
‘
Troubleshooting
table’.
Link function bridge zones active.
Keep-warm level active
Downdraft
display
Downdraft status
<->
Extraction level: 1 = low level / 4 = high boost level (flashing)
Grease filter cleaning indication.
Replace carbon filter indication.
Hob functions table
Function
Key(s) to use
Description
Link
Both bridge
cookin
g zone k
eys
simultaneously
The Bridge cooking zones can be linked to each other.
This c
reates one large zone that can be used for
example
for a large fish pan or one large cooking
pan.
ൗG If the zones are linked, they cannot be set to
boost.
ൗG Use a (fish) pan where at least one of the
c
re/
m
positions of the Bridge zones is cover
e
T
imer
The minus (-) and
plus (+) keys
simultaneously
The timer can be set separately for each cooking zone.
Cooking
times of up to 99 minutes can be
pr
ogrammed.
The
timer stops as soon as the pan is removed and
resumes
when the pan is put back. The timer alarm
beeps
after the set time has passed. The cooking
zone
automatically
switches off when the set time has
elapsed. When no cooking zone
is selected the timer works as a kitchen timer (no
Lock
Lock key 3
seconds
The cooking levels and settings are locked.
Downdraft
Downdraft
On/Off key
The worktop extractor can be set at 3 fan speeds and a
boost
(level 4). The timer allows you to let the fan stay
On
for 5, 10, 15 or 20 minutes. The extractor will
switch
O
ff automatically after the set time.

USE
EN 12
Cooking power levels
Because the settings depend on the quantity and composition of the contents of the pan,
the table below is intended as a guideline only.
Use setting ‘boost’ t
• bring the food or liquid to the boil quickly;
• ‘shrink’ greens;
• heat oil and fat;
• wok
Use setting 9 to:
• sear meats;
• cook fish;
• cook omelettes;
• fry boiled potatoes;
• deep fry foods.
Use setting 7 and 8 to:
• fry thick pancakes;
• fry thick slices of breaded meat;
• fry bacon (fat);
• cook raw potatoes;
• make French toast;
• fry breaded fish;
• cook through pasta;
• fry thin slices of (breaded) meat;
Use setting 4-6 to:
• complete the cooking of large quantities;
• defrost hard vegetables;
• fry thick slices of breaded meat.
Use settings 1-3 to:
•
smm 
bouillon;
•
s 
meats;
•
smm 
vegetables;
•
m
chocolate;
•
p
•
m
cheese.

EN 13
OPERATION

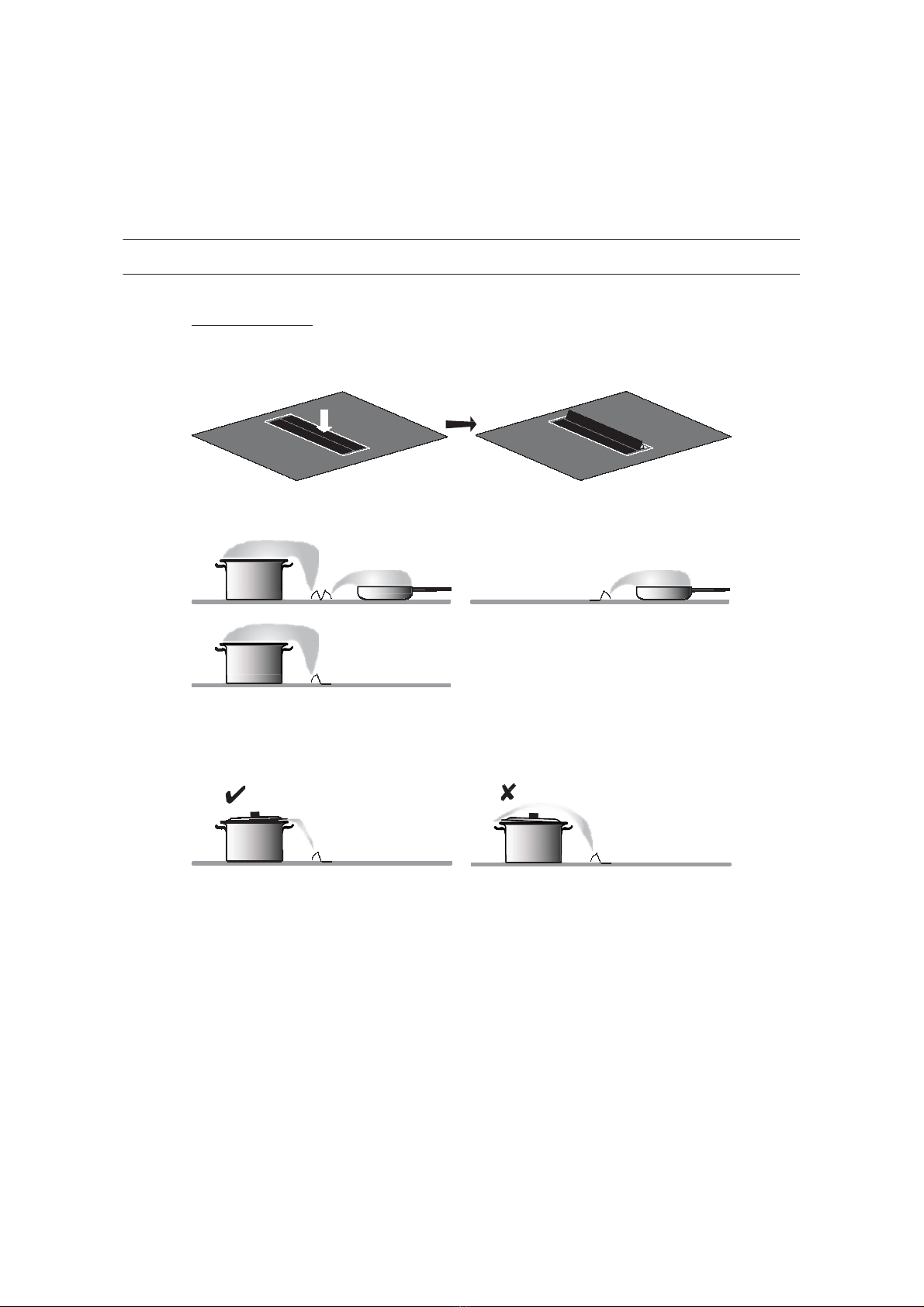

Use of the downdraft
1. Press the flap to open the extraction inlet..
ൗG Open one or both flaps depending on the needed extraction .
ൗG Place the lid at an angle on the pan with the opening to the extraction side. This
ensures maximum extraction.

EN 14
OPERATION
Operating the induction hob
Use of the touch keys
Put the tip of your finger flat on the touch key. Do not apply pressure. The touch keys
react to a light fingertip touch. Only operate the touch keys with your finger.
The touch key gives a short audio signal when it engages.
1. Touch and hold the On/Off key until you hear an audio signal.
ൗG The hob is in standby mode.
ൗG A flashing point and Zero (0) appear in the displays.
2. Touch a cooking zone key.
ൗG Zero (0) lights up in the cooking zone display.
3. Touch the minus (-) or plus (+) key to select a cooking power level.
If the hob is not used for 20 seconds, it will stop automatically.
Adjust the cooking power levels
1. Touch the cooking zone key.
ൗG The power level lights up.
2. Touch the minus (-) or plus (+) key to change the power level.

EN 15
OPERATION
Stop a cooking zone
A cooking zone operate.
1. Touch the cooking zone key.
2. Touch the minus (-) key to set the power level to zero (0).
ൗG The cooking zone stops.
ൗG The hob stops after 20 seconds when all cooking zones are set to Zero (0) and no other
functions are in use.
Stop all cooking zones at the same time
One or more cooking zones operate.
1. Touch and hold the On/Off key until you hear an audio signal.
ൗG All displays go Off and the hob stops.

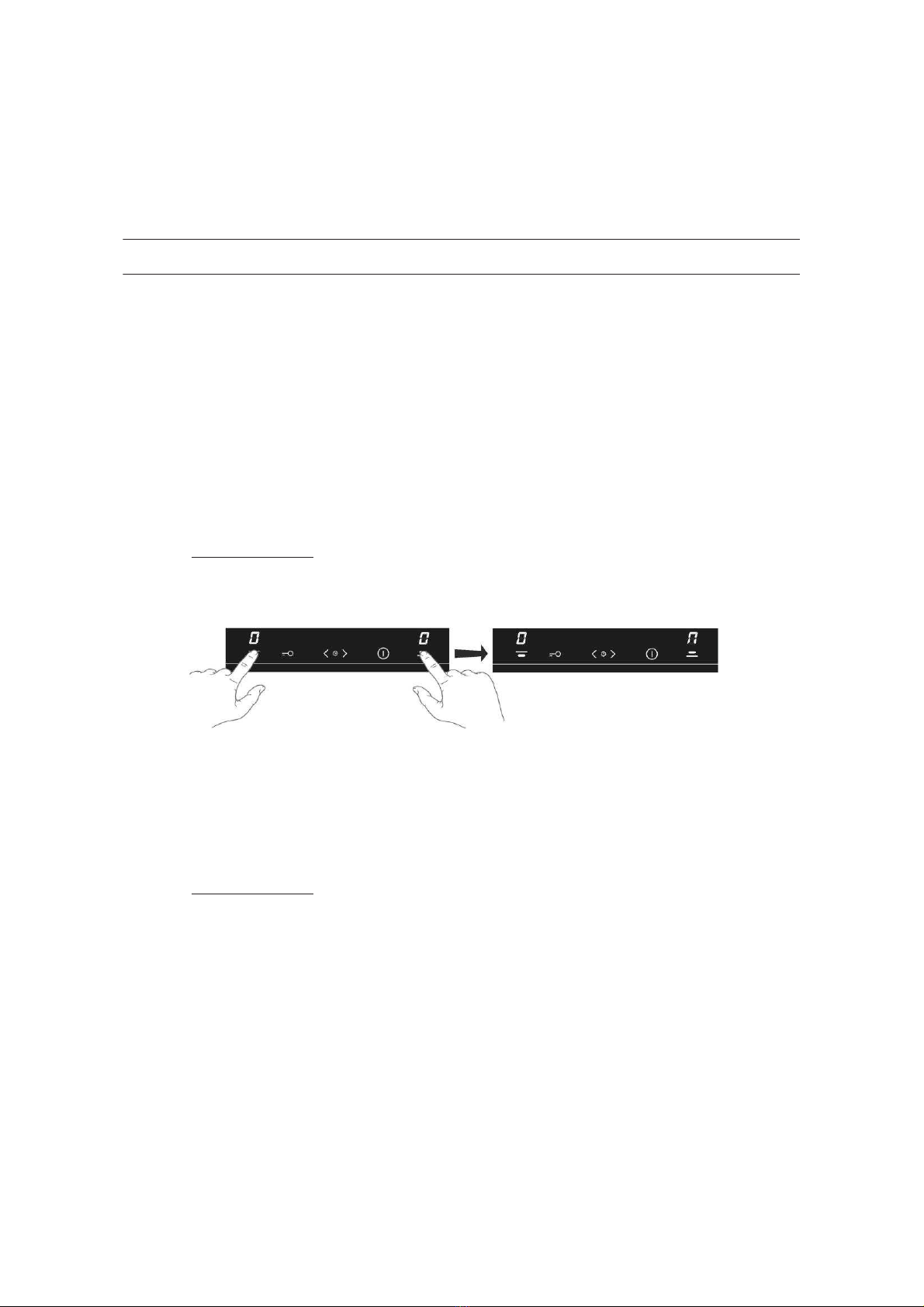

How to link Bridge induction zones
1. Put the hob in standby mode.
2. Touch both right cooking zone keys simultaneously to link the Bridge zones.
3. Touch the cooking zone key from the front Bridge zone.
4. Touch the minus (-) or plus (+) key from the front Bridge zone to set a power level (for both
linked zones).
Deactivating the link mode
1. Touch both Bridge cooking zone keys simultaneously to stop the link of the Bridge zones.
Setting the cooking timer/alarm
1. Start the hob.
ൗG For use as a cooking timer; select a cooking zone and power level.
ൗG For use as an alarm; do not select a cooking zone and power level.
ൗG See chapter: Cooking-timer/alarm
2. Touch the minus (-) and plus (+) key simultaneously to switch on the timer.
ൗG The timer’s display shows double zero (00).
ൗG A flashing point appears in the cooking zone display.

EN 16
OPERATION
.
3. Touch within 10 seconds the minus (-) or plus (+) key to select a cooking time.
4. The timer has been set.
ൗG The cooking zone will stop after the set time has passed.
ൗG You hear an audio signal.
ൗG Press the plus (+) or minus (-) key to stop the alarm.
Changing pre-set cooking time
Cooking time can be changed anytime during the operation.
1. Touch the cooking zone key to select the zone of which you want to adjust the timer.
ൗG A flashing point identifies the zone.
2. Touch the plus (+) or minus (-) key to change the time.
Checking remaining cooking time
The timer display shows all timer settings. The different timer settings are shown in the display in
turn.
1. Touch simultaneously plus (+) and minus (-) key to select the zone of which you want to
see the remaining time.
ൗG A flashing point identifies the zone.
ൗG The timer will display the remaining time of the selected cooking zone.
Turning timer off
If you want to switch off the timer prior the end of pre-set time:
1. Touch the cooking zone key to select the zone of which you want to stop the timer.
2. Touch the minus (-) and plus (+) key simultaneously.
3. Touch the minus (-) key to set the time to double zero (00).
ൗG The illuminated point adjacent to the display stops flashing.

EN 17
OPERATION

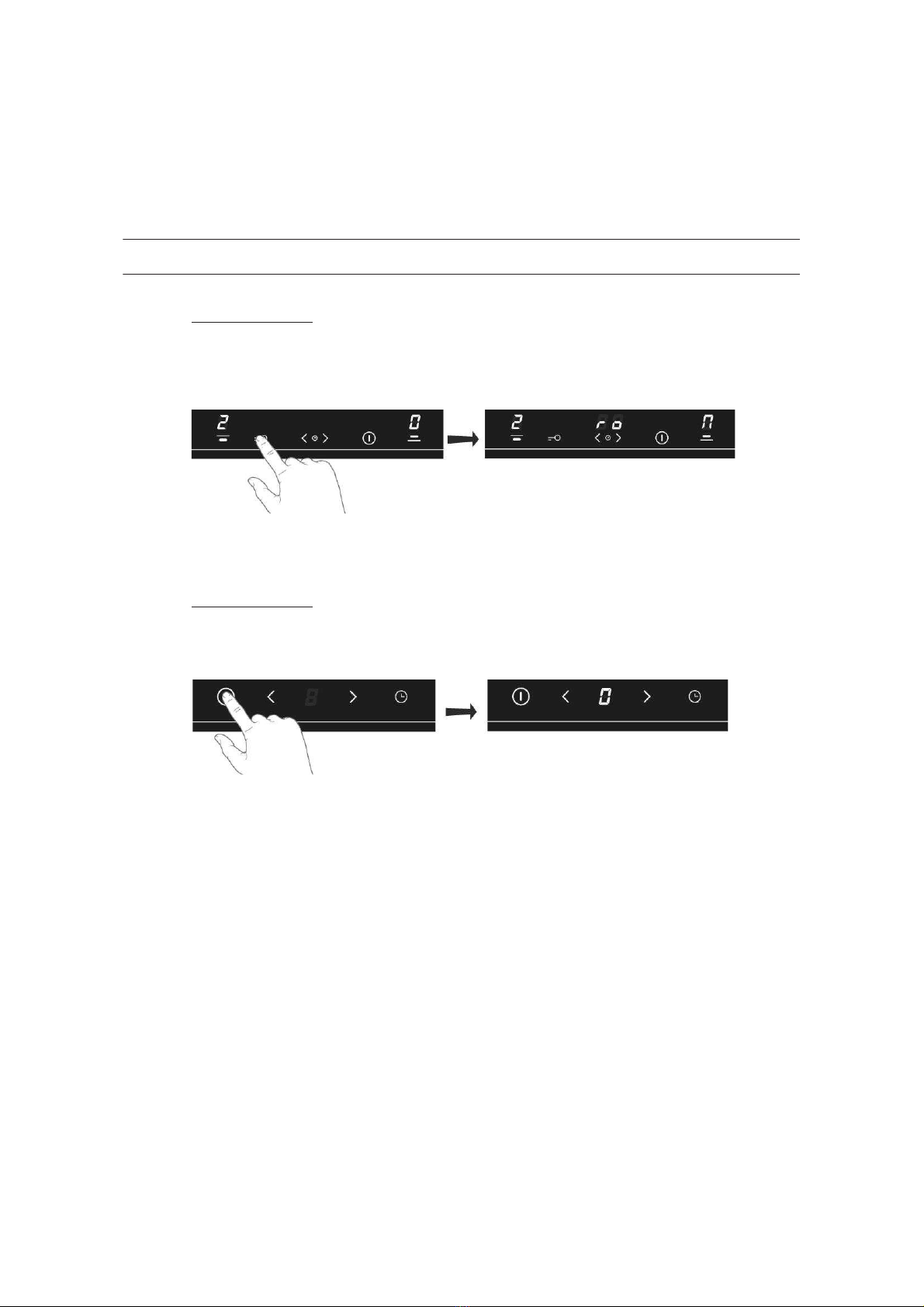

Using the (child) lock function
1. Switch on the hob and set a cooking level.
2. Touch the lock key for approximately 3 seconds.
ൗG The timer display shows ro .
ൗG The hob is now locked. The settings cannot be changed.
3. To unlock touch the lock key again for approximately 3 second.
ൗG The hob is unlocked. The settings can be changed.
Operating the downdraft
1. Press the flaps to open the extraction inlet (see chapter ‘Use of the downdraft’).
2. Touch the downdraft On/Off key to start the extraction.
3. Touch the plus (+) key to accelerate the speed (level 1 > 2 > 3 > 4).
4. Touch the min (-) key to lower the speed (level 4 > 3 > 2 > 1).
ൗG At level 4 (boost level) the downdraft works for 5 minutes at maximum speed.
Then the extraction speed turns down to level 3.
5. Touch the On/Off key to stop the downdraft extraction.
Delay time setting
With the timer key a time can be set after which the downdraft is stopped automatically.
There are 4 times to set (5, 10, 15 or 20 minutes).

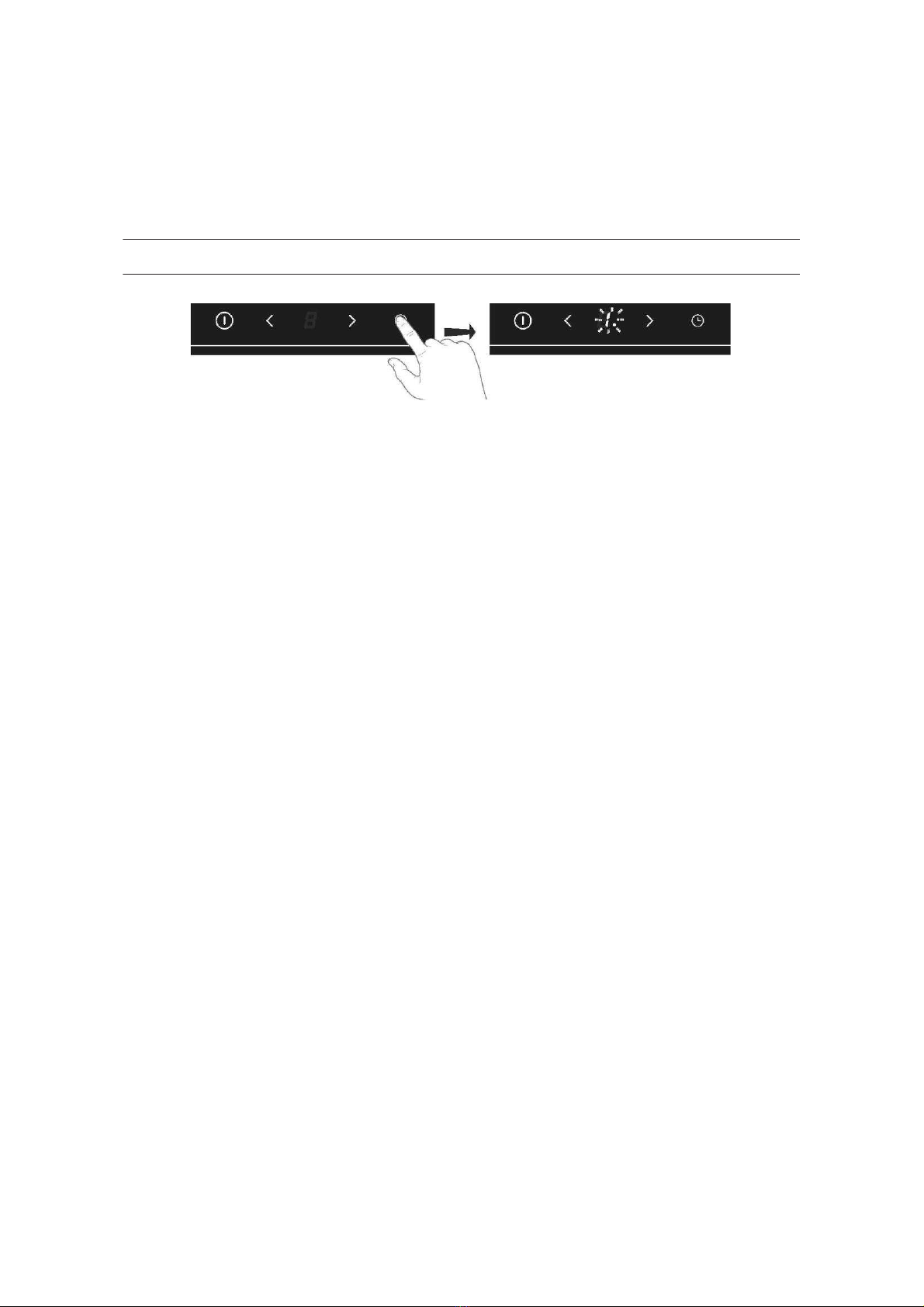

1. Start the downdraft and select a speed level.
2. Touch the timer key.
ൗG A flashing 1. appears in the downdraft display.

EN 18
OPERATION
3. Touch the minus (-) or plus (+) key to select a stop time.
• 1. = 5 minutes
• 2. = 10 minutes
• 3. = 15 minutes
• 4. = 20 minutes
4. Touch the timer key to confirm the chosen time.
ൗG The speed level and the stop time level flash in the display.
ൗG The downdraft extraction stops automatically when the time has passed.

EN 19
MAINTENANCE
Cleaning
Daily cleaning
• Although food spills cannot burn into the glass, we nevertheless recommend you to clean
the hob immediately after use.
• Best for daily cleaning is a damp cloth with a mild cleaning agent.
• Dry with kitchen paper or a dry teacloth.
Stubborn stains
• Stubborn stains can also be removed with a mild cleaning agent such as washing-up liquid.
• Remove watermarks and lime scale with vinegar.
• Metalmarks (caused by sliding pans) can be difficult to remove. Special agents are available.
• Use a glass scraper to remove food spills. Melted plastic and sugar is also best removed
with a glass scraper.
Never use abrasives. They leave scratches in which dirt and lime scale
can accumulate. Never use anything sharp such as steel wool or scourers.
Filter and collect tray
Grease filter indicator
In the display the grease filter indicator G will light up after 30 (downdraft) operating hours.
During use, the indicator flashes alternating with the chosen suction mode.
1. Touch either the plus (+) or minus (-) key to stop the flashing.
ൗG The suction mode is displayed. When the downdraft is switched off, the
grease filter indicator G is shown in the display again.
2. The grease filters should then be cleaned.
3. Reset the memory by touch and hold the worktop extractor plus (+) key 5 seconds until the
grease filter indicator G disappears from the display.

EN 20
MAINTENANCE
Cleaning the grease filter
1. Press the flap from the right extraction inlet.
2. Pull the grease filter out of the extraction inlet.
These must be cleaned once a month (or when the filter saturation indication system indicates
this necessity) using non-aggressive detergents, either by hand or in the dishwasher, which
must be set to a low temperature and a short cycle. The openings must be placed downwards
to let the water run out of the filters. The cleaning agents will make the aluminium filter turn dull,
this is normal.
Cleaning the fluid/food collect tray
1. Remove the grease filter.
2. Pull the collect tray out of the extraction inlet.
Clean the fluid/food collect tray as soon as a pan has boiled over or food has fallen in the
extraction opening. Clean the tray either by hand or in the dishwasher.
