GOWIN USB 2.0 SoftPHY IP User manual

Gowin USB 2.0 SoftPHY IP
User Guide
IPUG781-1.5.1E, 07/20/2022

Copyright © 2022 Guangdong Gowin Semiconductor Corporation. All Rights Reserved.
is a trademark of Guangdong Gowin Semiconductor Corporation and is
registered in China, the U.S. Patent and Trademark Office, and other countries. All other
words and logos identified as trademarks or service marks are the property of their
respective holders. No part of this document may be reproduced or transmitted in any form
or by any denotes, electronic, mechanical, photocopying, recording or otherwise, without the
prior written consent of GOWINSEMI.
Disclaimer
GOWINSEMI assumes no liability and provides no warranty (either expressed or implied)
and is not responsible for any damage incurred to your hardware, software, data, or property
resulting from usage of the materials or intellectual property except as outlined in the
GOWINSEMI Terms and Conditions of Sale. GOWINSEMI may make changes to this
document at any time without prior notice. Anyone relying on this documentation should
contact GOWINSEMI for the current documentation and errata.

Revision History
Date
Version
Description
07/23/2021
1.0E
Initial version published.
08/13/2021
1.1E
The property configuration of IO ports modified.
10/12/2021
1.2E
Chapter 2.3 "Using 5V Host Supply to Power USB Device Solution"
added.
12/23/2021
1.3E
The configuration method of peripheral circuit modified.
IO configuration constraints added.
03/29/2022
1.4E
The description of resource utilization added.
06/20/2022
1.5E
The speed grade modified.
The description of pin constraints updated.
07/20/2022
1.5.1E
A note added in Table 2-1.

Contents
IPUG781-1.5.1E
i
Contents
Contents............................................................................................................... i
List of Figures..................................................................................................... ii
List of Tables...................................................................................................... iii
1About This Guide ............................................................................................ 1
1.1 Purpose .............................................................................................................................. 1
1.2 Related Documents............................................................................................................ 1
1.3 Terminology and Abbreviations........................................................................................... 1
1.4 Support and Feedback ....................................................................................................... 2
2Introduction ..................................................................................................... 3
2.1 Overview............................................................................................................................. 3
2.2 Features.............................................................................................................................. 3
2.3 Using 5V Host Supply to Power USB Device Solution....................................................... 4
2.4 Resource Utilization............................................................................................................ 5
3Functional Description ................................................................................... 6
3.1 USB 2.0 SoftPHY Block Diagram....................................................................................... 6
3.2 USB 2.0 SoftPHY External Circuit Connection................................................................... 7
4Signal Description........................................................................................... 9
5Interface Configuration..................................................................................11

List of Figures
IPUG781-1.5.1E
ii
List of Figures
Figure 3-1 USB 2.0 SoftPHY Block Diagram..................................................................................... 6
Figure 3-2 USB Slave Device Interface Implementation ................................................................... 7

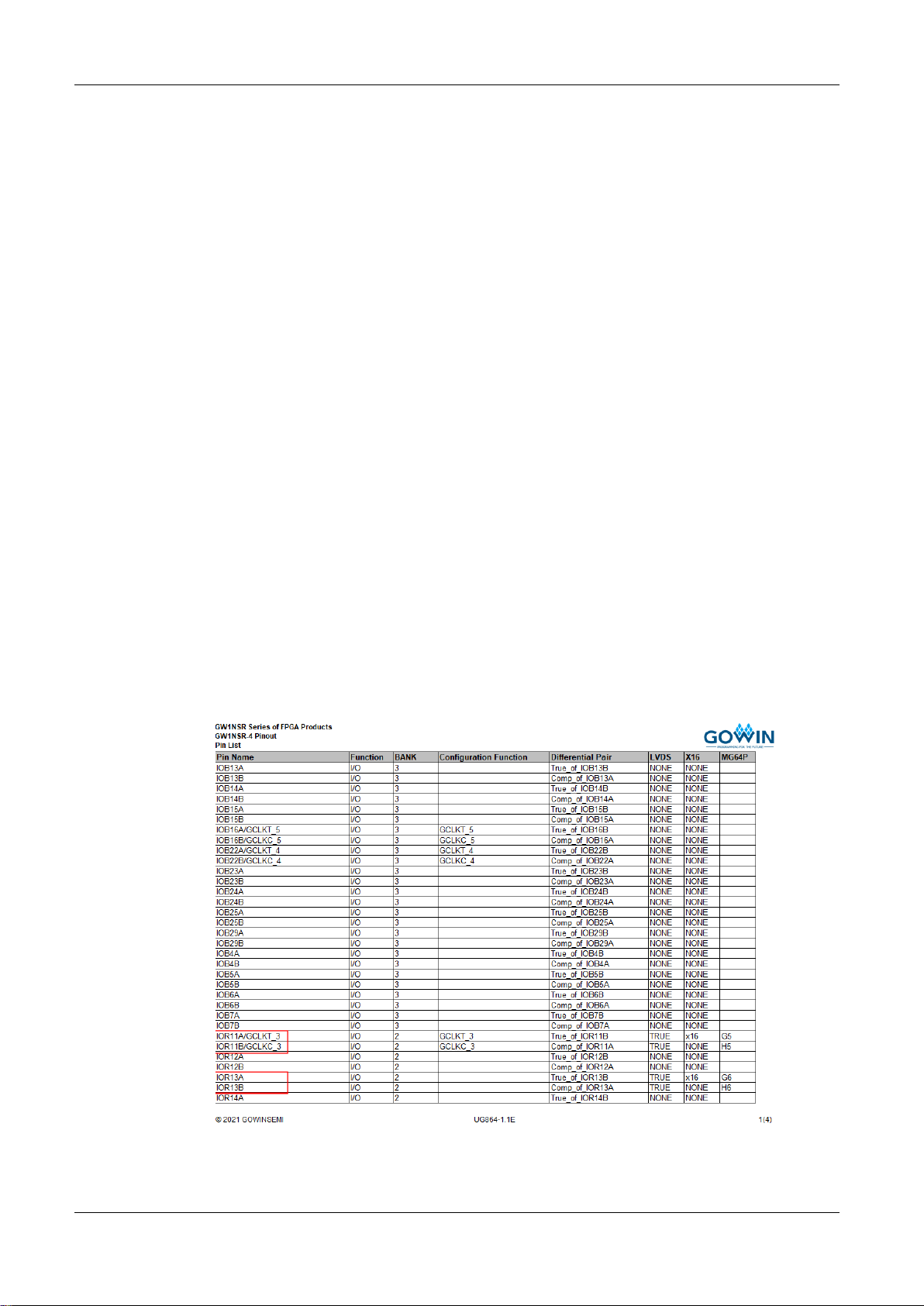

Figure 3-3 GW1NSR-4 Pinout ........................................................................................................... 8
Figure 5-1 IP Core Generator ............................................................................................................ 11
Figure 5-2 Open USB 2.0 SoftPHY IP Core ...................................................................................... 12
Figure 5-3 USB 2.0 SoftPHY IP Configuration Interface ................................................................... 12

List of Tables
IPUG781-1.5.1E
iii
List of Tables
Table 1-1 Terminology and Abbreviations.......................................................................................... 2
Table 2-1 Gowin USB 2.0 SoftPHY IP Overview ............................................................................... 3
Table 2-2 DC Electrical Characteristics ............................................................................................. 4
Table 2-3 Resource Utilization (І)....................................................................................................... 5
Table 2-4 Resource Utilization (Ⅱ).................................................................................................... 5
Table 4-1 Signal Description.............................................................................................................. 9

1 About This Guide
1.1 Purpose
IPUG781-1.5.1E
1(12)
1About This Guide
1.1 Purpose
The purpose of Gowin USB 2.0 SoftPHY IP User Guide is to help you
learn the features and usage of this IP by providing the descriptions of
functions, signals, and interface configuration.
1.2 Related Documents
The latest user guides are available on the GOWINSEMI Website. You
can find the related documents at: www.gowinsemi.com.
DS100, GW1N series of FPGA Products Data Sheet
DS117, GW1NR series of FPGA Products Data Sheet
DS821, GW1NS series of FPGAProducts Data Sheet
DS871, GW1NSE series of FPGA Products Data Sheet
DS861, GW1NSR series of FPGA Products Data Sheet
DS891, GW1NRF series of FPGA Products Data Sheet
DS881, GW1NSER series of Bluetooth FPGAProducts Data Sheet
DS102, GW2A series of FPGA Products Data Sheet
DS226, GW2AR series of FPGA Products Data Sheet
DS961, GW2ANR series of FPGA Products Data Sheet
DS976, GW2AN-55 Data Sheet
DS971, GW2AN-18X & 9X Data Sheet
SUG100, Gowin Software User Guide

1 About This Guide
1.3 Terminology and Abbreviations
IPUG781-1.5.1E
2(12)
1.3 Terminology and Abbreviations
The terminology and abbreviations used in this manual are as shown in
Table 1-1.
Table 1-1 Terminology and Abbreviations
Terminology and Abbreviations
Meaning
IP
Intellectual Property
USB
Universal Serial Bus
UTMI
USB 2.0 Transceiver Macrocell Interface
HS
High Speed
FS
Full Speed
LS
Low Speed
NRZI
Non Return Zero Inverted
1.4 Support and Feedback
Gowin Semiconductor provides customers with comprehensive
technical support. If you have any questions, comments, or suggestions,
please feel free to contact us directly by the following ways.
Website: www.gowinsemi.com
E-mail: [email protected]

2 Introduction
2.1 Overview
IPUG781-1.5.1E
3(12)
2Introduction
2.1 Overview
Gowin USB 2.0 SoftPHY IP is a USB physical layer transceiver that can
support data reception and transmission at high speed (480Mbps), full
speed (12Mbps), and low speed (1.5Mbps).
Table 2-1 Gowin USB 2.0 SoftPHY IP Overview
Gowin USB 2.0 SoftPHY IP
IP Core Application
Supported Devices[1]
Arora family
LittleBee family, excluding
GW1N-1/GW1N-1S/GW1NZ-1/GW1N-1P5
devices..
Logic Resource
Please refer to Table 2-3 and Table 2-4.
Delivered Doc.
Design Files
Verilog (encrypted)
Reference Design
Verilog
TestBench
Verilog
Test and Design Flow
Synthesis Software
GowinSynthesis
Application Software
Gowin Software (V1.9.8.05 and above)
Note!
[1] Only part number with speed grade C7 and above support USB 2.0 SoftPHY IP

2 Introduction
2.2 Features
IPUG781-1.5.1E
4(12)
2.2 Features
The features of GowinUSB 2.0 SoftPHY IP include:
Supports HS (480 Mbps), FS (12 Mbps), and LS (1.5 Mbps).
Supports data serial and parallel conversion.
Supports bit stuffer and unstuffer.
Supports NRZI encoder and decoder.
Supports UTMI interface.
2.3 Using 5V Host Supply to Power USB Device Solution
Many solutions may to provide power to a USB device using the 5V
provided over the cable from the Host without providing a separate power
supply. To support cable powered USB device use cases, designers must
be careful to ensure the total PCB BOM of the device does not exceed the
current limitations of the USB Host as well as voltage drops over the cable.
The USB v2.0 specification, sections 7.1.2 and 7.3.2 provides
information on current and voltage drop requirements expected to be
supplied by a USB Host. If the total PCB BOM cannot meet the current and
minimum voltage requirements of the specified host, the board can be
powered with a separate power supply.
Table 2-2 DC Electrical Characteristics
Parameter
Symbol
Condition
Min.
Max.
Unit
Supply voltage
High-power Port
VBUS
Note 2, Section
7.2.1
4.75
5.25
V
Low-power Port
VBUS
Note 2, Section
7.2.1
4.40
5.25
V
Supply Current
High-power Hub Port (out)
ICCPRT
Section 7.2.1
500
mA
Low-power Hub Port (out)
ICCUPT
Section 7.2.1
100
mA
High-Power Function (in)
ICCHPF
Section 7.2.1
500
mA
Low-power Function (in)
ICCLPF
Section 7.2.1
100
mA
Unconfigured
Function/Hub (in)
ICCINIT
Section 7.2.1.4
100
mA
Suspended High-power
ICCSH
Note 15, Section
2.5
mA

2 Introduction
2.4 Resource Utilization
IPUG781-1.5.1E
5(12)
Device
7.2.3
Suspended Low-power
Device
ICCSL
Section 7.2.3
500
µA
2.4 Resource Utilization
Gowin USB 2.0 SoftPHY IP can be implemented by Verilog. Its
resource utilization may vary when the design is employed in different
devices, or at different densities, speeds, or grades. Taking Gowin
GW1NSR-4 and GW2AR-18 series of FPGA ptoducts as an instance, the
resource utilization is as shown in Table 2-3 and Table 2-4.
Table 2-3 Resource Utilization (І)
Device
Speed Grade
Resource
Utilization
Notes
GW1NSR-4
C7/I6
LUT
384
-
REG
1109
ALU
13
BSRAM
1
SSRAM
0
IO
7
Table 2-4 Resource Utilization (Ⅱ)
Device
Speed Grade
Resource
Utilization
Notes
GW2AR-18
C7/I6
LUT
384
-
REG
1109
ALU
13
BSRAM
1
SSRAM
4
IO
7
Note!
GW2A series and GW1NSR-4 can choose the chip with speed grade C6/I5; for other part
numbers, please choose the chip with speed grade C7/I6.

3 Functional Description
3.1 USB 2.0 SoftPHY Block Diagram
IPUG781-1.5.1E
6(12)
3Functional Description
3.1 USB 2.0 SoftPHY Block Diagram
In the RX, after USB serial data goes through IDES8, NRZI decoder, bit
unstuffer, shift Reg modules in turn, USB RX data is received, and then the
data transmits to the upper module through UTMI interface. In the TX, after
receiving the data transmitted by UTMI and then going through shift Reg, bit
stuffer, NRZI encoder to generate the serial TX data stream, which then is
sent to the USB interface via OSER8.
Figure 3-1 USB 2.0 SoftPHY Block Diagram
IDES8
RX State Machine
TX StateMachine
NRZI
Decoder Bit Unstuffer Shift Reg
NRZI
Encoder Bit Stuffer Shift Reg
UTMI
Data+
Data-
TX
RX
OSER8

3 Functional Description
3.2 USB 2.0 SoftPHY External Circuit Connection
IPUG781-1.5.1E
7(12)
3.2 USB 2.0 SoftPHY External Circuit Connection
USB 2.0 SoftPHY supports high speed mode (480Mbps) . When the
USB 2.0 SoftPHY is used as a USB slave device, the external circuit
connection is as follows.
Figure 3-2 USB Slave Device Interface Implementation
Data+
Data-
Gowin
FPGA
USB Device
USB 2.0 SoftP HY
usb_dxp_io
usb_pullup_en_o
usb_term_dp_o
usb_term_dn_o
90ohm
trac e matching
As close to FPGA
as possible
R1
usb_rxdn_i
usb_rxdp_i
VCC3P3
R6
R7 C1
R1:1.5K ohm
R2:0 ohm
R3:0 ohm
R4:42 ohm
R5:42 ohm
R6:1.8K ohm
R7: 75 ohm(1N Series)，56 ohm(2A Series)
C1:1uF
R2 R3
R4
R5
Note!
1. You can see the followings for the IO port attribute constraints of GW2A series of
FPGA.
usb_dxp_io: IO_TYPE= LVCMOS33D PULL_MODE= NONE DRIVE=4;
usb_term_dn_o: IO_TYPE=LVCMOS33 PULL_MODE= NONE DRIVE=8;
usb_term_dp_o: IO_TYPE=LVCMOS33 PULL_MODE=NONE DRIVE=8;
usb_pullup_en_o: IO_TYPE=LVCMOS33 PULL_MODE=NONE DRIVE=8;
usb_rxdn_i: IO_TYPE=LVDS25 PULL_MODE=NONE;
usb_rxdp_i: IO_TYPE=LVDS25 PULL_MODE=NONE.

3 Functional Description
3.2 USB 2.0 SoftPHY External Circuit Connection
IPUG781-1.5.1E
8(12)
2. You can see the followings for the IO port attribute constraints of GW1N series of
FPGA.
usb_dxp_io: IO_TYPE= LVCMOS33D PULL_MODE= NONE DRIVE=8;
usb_term_dn_o: IO_TYPE=LVCMOS33 PULL_MODE= NONE DRIVE=16;
usb_term_dp_o: IO_TYPE=LVCMOS33 PULL_MODE= NONE DRIVE=16;
usb_pullup_en_o: IO_TYPE=LVCMOS33 PULL_MODE= NONE DRIVE=8;
usb_rxdn_i: IO_TYPE=LVDS25 PULL_MODE=NONE;
usb_rxdp_i: IO_TYPE=LVDS25 PULL_MODE=NONE.
3. All signals related to the USB interface on the FPGA are recommended to be placed in
one Bank, using adjacent assignment, and powering the I/O Bank at 3.3V
4. It is required that the adjacent differential pair pins in the same Bank where the
usb_dxp_io differential pair is located exist and are not used. Taking GW1NSR-4 as
an example, Figure 3-3 shows the GW1NSR-4 Pinout. If the usb_dxp_io differential
pair is located at G5, H5 (i.e. IOR11A/IOR11B) in the diagram, it will cause the
project to report an error when implementing synthesis and placement with Gowin
Software, as the adjacent differential pair pins IOR10A/IOR10B do not exist. If
usb_dxp_io differential pair is located at G6/H6 (i.e. IOR13A/IOR13B), the project
will synthesize and place successfully with Gowin Software, as the adjacent
differential pair pins IOR12A/IOR12B exists.
Figure 3-3 GW1NSR-4 Pinout

4 Signal Description
IPUG781-1.5.1E
9(12)
4Signal Description
Adescription of Gowin USB 2.0 SoftPHY IP signals is as shown in Table
4-1.
Table 4-1 Signal Description
No.
Signal Name
I/O
Data Width
Description
1
clk_i
I
1
Input clock signal (60MHz)
2
fclk_i
I
1
Input clock signal (480MHz)
3
rst_i
I
1
Asynchronous reset signal resets
the state machine inside of PHY.
4
pll_locked_i
I
1
pll lock signal generating fclk_i
5
utmi_data_out_i
I
8
Data input, 8-bit parallel data
transmit bus.
6
utmi_txvalid_i
I
1
Transmit data valid indicator,
active-high.
7
utmi_txready_o
O
1
Transmit data ready signal,
indicating that PHY can receive the
data to be transmitted from the
controller end.
8
utmi_data_in_o
O
8
Data output, 8-bit parallel data
receive bus.
9
utmi_rxactive_o
O
1
Rx data active, indicating that PHY
detects the SYNC signal and then
starts receiving data.
10
utmi_rxvalid_o
O
1
Rx data valid, active-high.
11
utmi_rxerror_o
O
1
Receive data error, active high
indicates receive error.

4 Signal Description
IPUG781-1.5.1E
10(12)
No.
Signal Name
I/O
Data Width
Description
12
utmi_linestate_o
O
2
Line status of receive end: DM DP
2’b00：SE0
2’b01："J"
2’b10："K"
2’b11：SE1
13
utmi_opmode_i
I
2
Operation mode selection signal:
2’b00: Normal
2’b01: No driver
2’b10: Disable bit stuffing and
NRZI encoding
2’B11: Reserved
14
utmi_xcvrselect_i
I
2
Transfer mode selection signal:
2’b00: HS Transfer
2’b01: FS Transfer
2’b10: LS Transfer
2’B11: Reserved
15
utmi_termselect_i
I
1
Termination Selection:
1’ b0: HS termination enable
1’ b1: FS / LS termination enable
16
usb_dxp_io
I/O
1
USB data signal Data+
17
usb_dxn_io
I/O
1
USB data signal Data-
18
usb_rxdp_i
I
1
USB data signal Data+ input
19
usb_rxdn_i
I
1
USB data signal Data- input
20
usb_pullup_en_o
O
1
1.5K resistor pull-up control on
USB data signal Data+
21
usb_term_dp_o
I/O
1
Termination resistor control of USB
data signal Data+
22
usb_term_dn_o
I/O
1
Termination resistor control of USB
data signal Data-

5 Interface Configuration
IPUG781-1.5.1E
11(12)
5Interface Configuration
Selecting "Tools > IP Core Generator" in Gowin Software, you call and
configure USB 2.0 SoftPHY.
1. Open IP Core Generator
After creating the project, you can click the "Tools" tab in the upper left,
select and open the IP Core Generator via the drop-down list, as shown in
Figure 5-1.
Figure 5-1 IP Core Generator
2. Open USB 2.0 SoftPHY IP Core
Select "Soft IP Core > Interface and Interconnect > USB 2.0 IP", as
shown in Figure 5-2. Double-click to open the configuration interface.

5 Interface Configuration
IPUG781-1.5.1E
12(12)
Figure 5-2 Open USB 2.0 SoftPHY IP Core
3. USB 2.0 SoftPHY IP Core Configuration Interface
Figure 5-3 shows the USB 2.0 SoftPHY IP core configuration interface.
The ports diagram is on the left of the configuration interface. Options are on
the right.
You can configure the file name in File Name.
You can configure the top module name in Module Name.
Figure 5-3 USB 2.0 SoftPHY IP Configuration Interface
