Gozney Dome User manual

Technical Manual

Wood-fired cooking made easy.

4
Introduction
WARNING
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
Shut gas off to the appliance.
Extinguish any open flame.
If odour continues, keep away from the
appliance and immediately call your fire
department.

5
Never operate this appliance in enclosed
areas. Failure to follow these instructions
could result in fire or explosion which
could cause property damage, personal
injury or death.
Never operate this appliance unat-
tended.
Never operate this appliance within 1.5m
of any structure, combustible material or
other gas cylinder.
Never operate this appliance within 7.5m
of any flammable liquid.
Do not fill the cooking vessel beyond the
limitation of the door dimensions.
Heated liquids remain at scalding tempe-
ratures long after cooking process.
Never touch cooking appliance until
liquids have cooled to 45C or less.
If a fire should occur, keep away from
the appliance and immediately call your
fire department. Do not attempt to extin-
guish an oil or a grease fire with water.
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and
instructions when using the appliance. Keep this manual
for future reference.

6
Flue Pipe
Flue Cap
Flue Top
Gas Hose & Regulator (Gas Only)
Gas Control Dial (Gas Only)
Storage

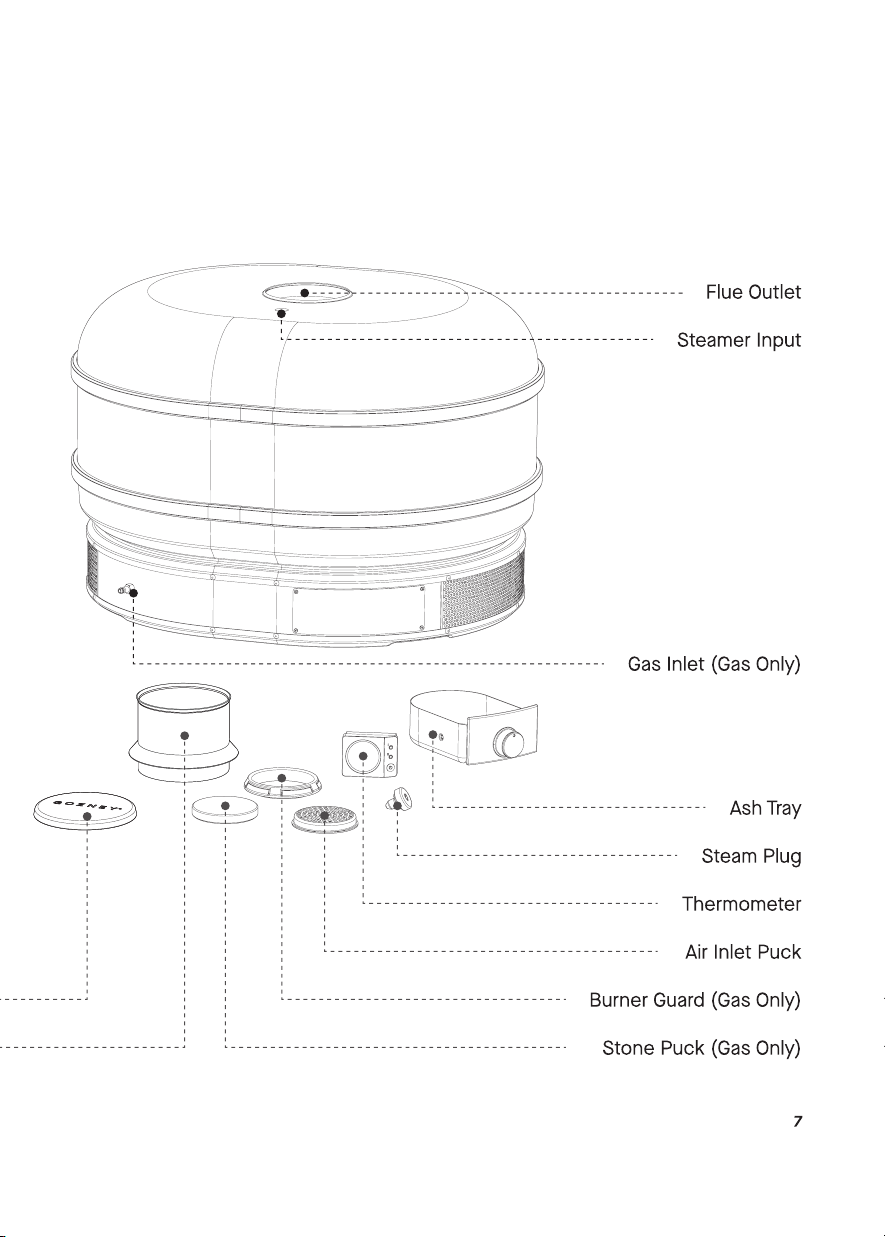

Product Overview - What's in the Box
Oven
Dock

8
Data Plate
Read the instructions before using the appliance.
WARNING: accessible parts may be very hot. Keep young children away.
WARNING! Do not use spirit or petrol for lighting or re-lighting! (for wood burner)
Pin Code: 0359CT3383
For use outdoors only.
Gozney Limited, Units 18 & 19, Radar Way, Christchurch, Dorset, BH23 4FL UK.
Appliance Name: Gozney Dome
Model/Type No.: 4555-V1-01
Trade name: Gozney Dome
Total nominal heat output
for the gas burner:
7.3 kW (452 g/h) for I3B/P (30,50) I3P(30,50)
7.3 kW (465 g/h) for I3+(28-30/37) I3B/P(37) I3P(37)
7.3 kW (432 g/h) for I2H I2E+ I2E I2EK

9
Injector Size 1.3mm 1.4mm 1.2mm 2.25mm
Gas Category I3B/P(37) I3P(37) I3+(28-30/37) I3P(30) I3B/P(30) I3P(50) I3B/P(50) I2H I2+ I2E I2EK
Gas Type Butane Propane Butane, Propane
or their mixtures
Butane, Propane
or their mixtures
Natural Gas
Gas Pressure 28-30
mbar
37 mbar 28-30
mbar
50 mbar 20 mbar
Destination
Countries
BE, CH, CY, CZ,
ES, FR, GB, GR,
HR, IE, IT, LV, LU,
PL, PT, SK, SI
AL, BE, BG, CY,
HR, DK, EE, FI,
FR, HU, IS, IT,
LT, LU, MT, MK,
NL, NO, RO, SK,
SI, SE, TR
AT, CH, DE,
LU, NL, SK
AT, AL, BE, BG,
CY, CZ, DE, DK,
EE, ES, FI, FR,
GB, GR, HR, HU,
IS, IE, IT, LV, LT,
LU, MT, MK, NL,
NO, PL, PT, RO,
SK, SI, SE, CH, TR

1
This section details the correct operation and install of a
Gozney Dome.

Cautions & Warnings

12
SAFETY CONSIDERATIONS
This appliance must be installed on a
secure level base prior to use.
WARNING: This appliance will become
very hot, do not move it during opera-
tion.
WARNING: Keep away from children
and pets.
The Dome unit and the burner must
always be well ventilated.
Do not use plastic or glass utensils
inside the Dome.
Do not move or leave the Dome unat-
tended whilst in use.
Do not operate Dome in strong winds.
Wind can extinguish flame.
Do not spill or pour water onto the
cooking floor. This is dangerous and
can crack the stone.
Do not wear flammable loose garments
or sleeves.
Do not cover oven mouth when there
is an active flame, this will cause
damage to the oven.
This oven is not intended to be
installed in or on recreational vehicles.
Product may contain sharp edges!
Please use caution.
WARNING: Contact your local munici-
pality for any building codes applicable
to the use, installation and operation of
outdoor barbecue appliances.
Outdoor installations must conform to
local codes or, in the absence of local
codes, with the following standards:
National Fuel Gas Code - ANSI Z223.1/
NFPA 54, or the Natural Gas and
Propane Installation Code - CSA B149.1,
or the Propane Storage and Handling
Code - CSA B149.2
Spanner tighten all gas fittings as
per instructions. Do not modify the
appliance. Parts sealed by the manu-
facturer or the company shall not be
manipulated.

13
CARBON MONOXIDE
Carbon Monoxide is a highly poison-
ous gas which can be produced when
the device isn’t receiving enough
ventilation.
We therefore recommend using the
gas and wood burners in a well venti-
lated area away from direct wind and
to never cover the oven mouth when
there is an open flame present.
It is difficult to know if your device is
producing Carbon Monoxide as it is an
odourless and colourless gas.
It can, however cause these symptoms
when you are exposed to it:
• Tightness across the forehead
• Headache
• Weakness
• Dizziness
• Nausea
• Vomiting
• Coma, intermittent convulsions
• Depressed heart action, slowed
respiration
If the exposure has been severe it may
cause death.
Please follow local regulations and
install a CO alarm if necessary.
FIRE
Most fires are caused by a build up of
grease, or (if using gas) an improper gas
connection. In the event of a fire ensure
all people and pets are kept as far away
as possible.
Use a fire extinguisher if possible, but
if water is the only fire retardant avail-
able, thoroughly soak the area around
the appliance. When spraying water on
the Dome itself, do not use a strong jet
of water, as this may cause splashing
of burning grease, resulting in a further
spreading of the fire.

2
This section details the set up of the oven and the acces-
sories included with your Dome.

Set Up & Accessories

17
Never attempt to move the oven on your
own. Two people should pick up the
oven lifting from under the rounded ends
of the oven, do not use the mouth of the
oven as a lifting point.
Remove anything loose on the oven
before moving.
Always plan the route you are going to
take, remove any obstacles on your path
and ensure the oven will fit through the
intended route.
Ensure the area you are moving the
oven to fits with the guidelines on the
following page.

18

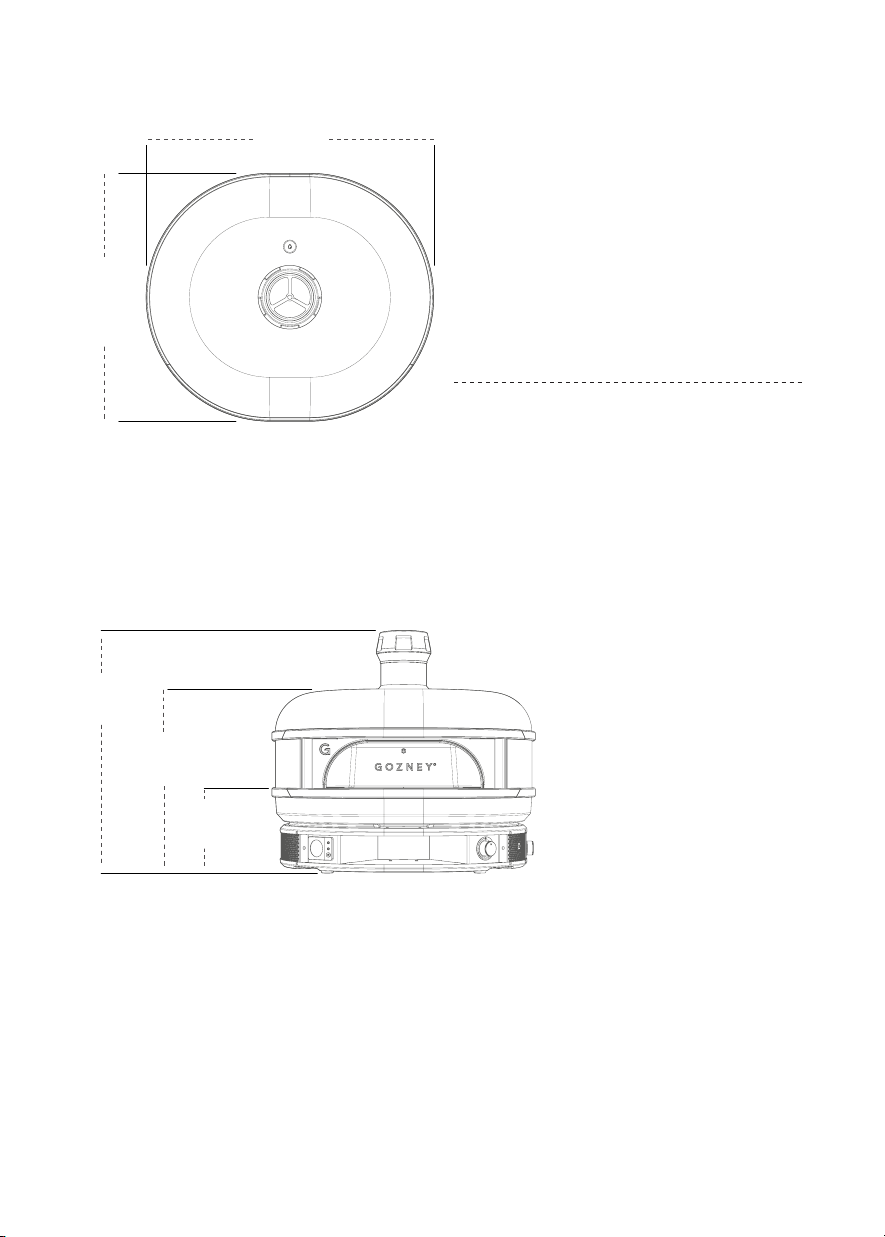

OVEN PLACEMENT
When deciding where to place the
Dome ensure the area is large enough to
accommodate the oven with 2” (50mm)
around the base of the dock for air intake
and at least 350mm clearance above the
oven. It is important nothing is blocking
the meshed panels as this will affect the
performance of the Dome.
Wind should be taken into consideration
when choosing a location. Ideally the
wind should be coming from behind the
oven. If the wind is hitting the front of the
oven the flame can be blown out. Never
operate the oven in high winds.
732mm
630mm
660mm
488mm
226mm

19
WARNING
When placing your oven it is import-
ant to maintain proper clearances from
combustible construction. Ensure the
Dome has 450mm clearance (back and
sides) and 1000mm clearance (front)
from any combustable construction.
Under no circumstances is the oven
to be placed under or on top of any
combustible structure.
Always keep the area around the oven
clear of any combustible materials, gaso-
line and other flammable vapours and
liquids.
We recommend the height of the floor
to be around the level of the bottom of
the users elbow (usually around 120cm
from the ground)
Ensure the surface the oven is being
placed on is completely level, stable and
capable of easily holding the weight of
the oven - 60kg.
1ft 6”
450mm
1ft 6”
450mm
3ft 4”
1000mm
1ft 6”
450mm
Floor
Height
450mm
450mm450mm
1000mm

20

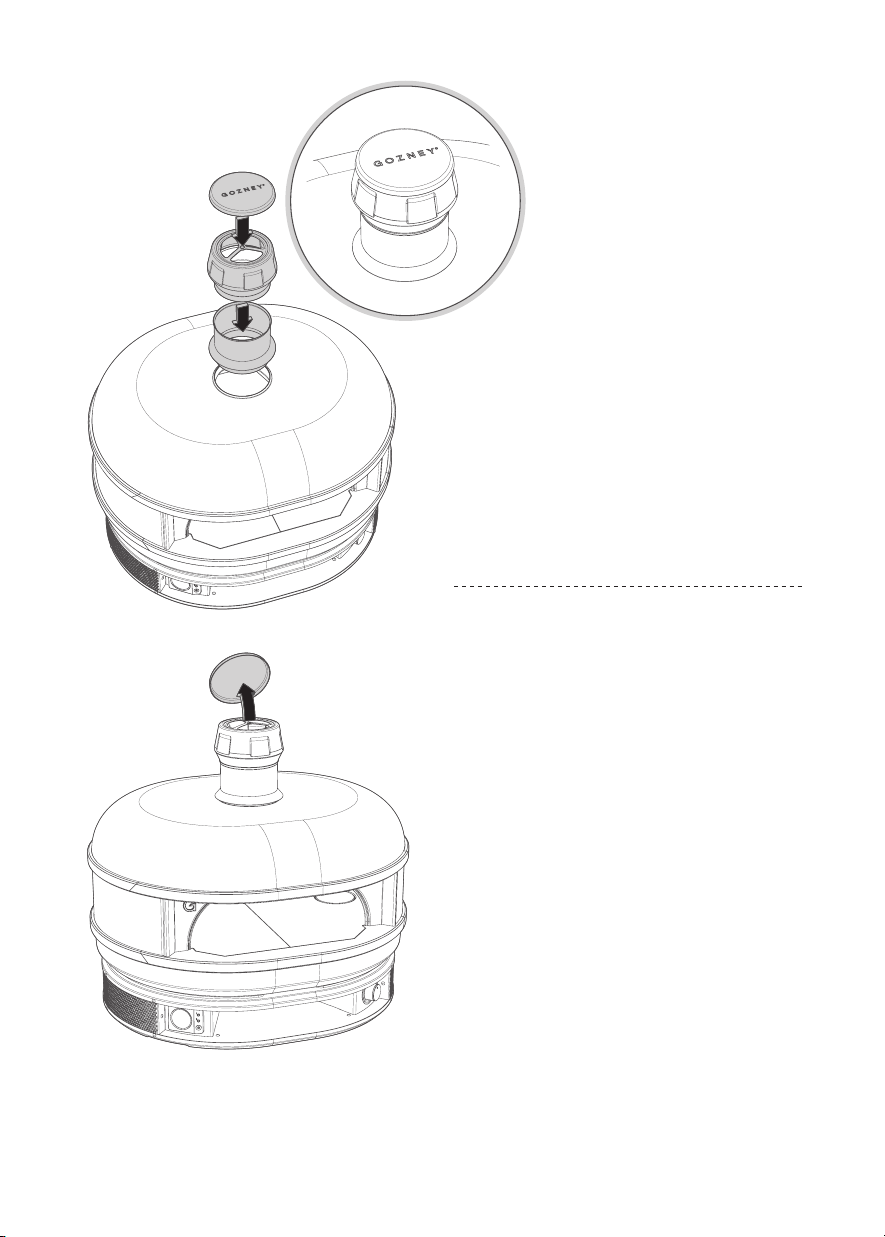

FLUE ASSEMBLY
The rain cap prevents moisture from
getting into the oven and should only
be used when the oven is cooled and
not in use.
