TREADMILL 304

OWNER’S MANUAL

- 1 -

INDEX

1. OVERVIEW DRAWING..............................................................................2

2. IMPORTANT SAFETY INSTRUCTIONS..................................................3

3. GROUNDING INSTRUCTIONS ................................................................4

4. PRE-ASSEMBLY CHECK LIST.................................................................5

5. ASSEMBLY STEPS................................................錯誤! 尚未定義書籤。

6. CAUTION ...............................................................錯誤! 尚未定義書籤。

7. MAINTENANCE....................................................錯誤! 尚未定義書籤。

8. COMPUTER OPERATION INSTRUCTIONS.......錯誤! 尚未定義書籤。

- 2 -

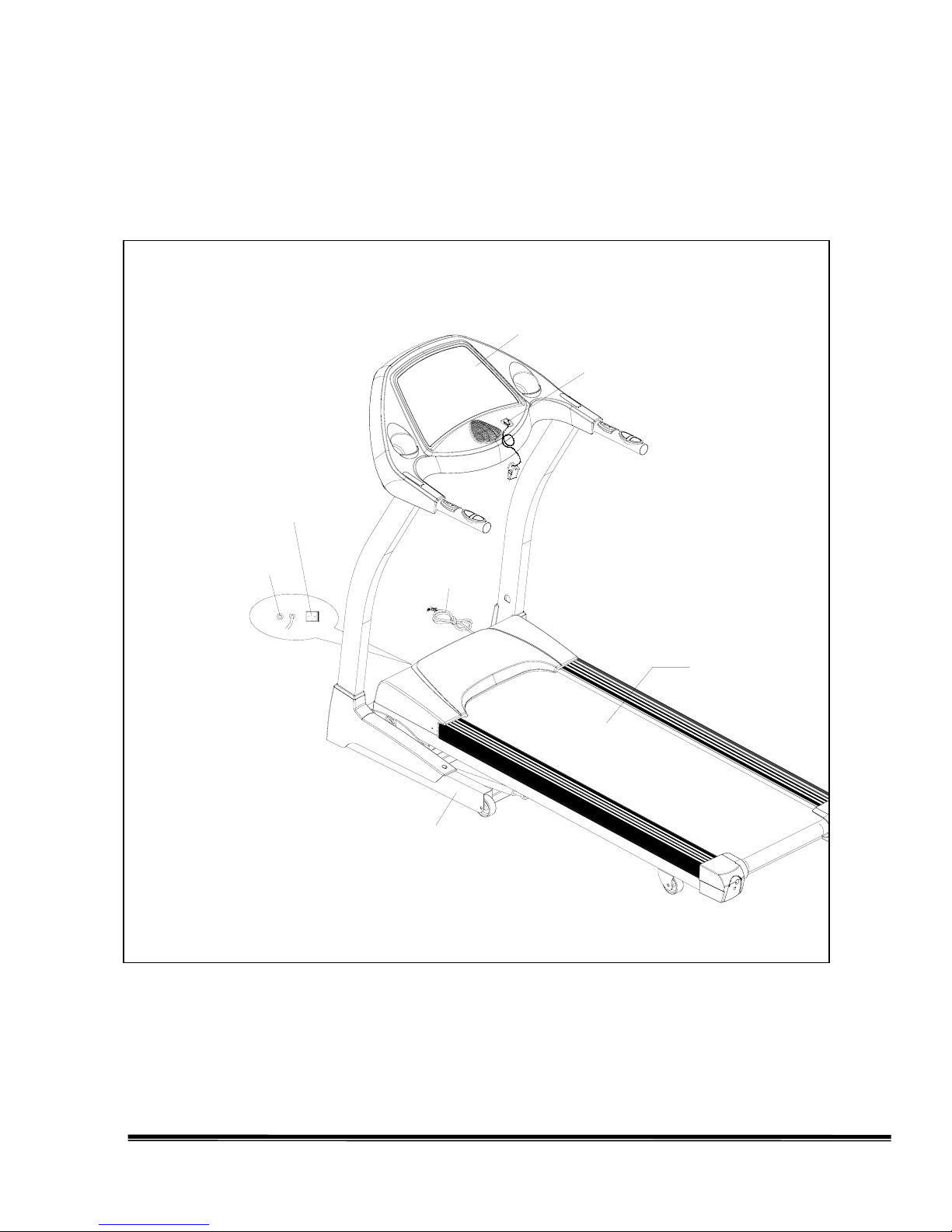

1. OVERVIEW DRAWING

過載保護開關

電源開關

電源線

底座

機台主架

安全插銷/夾子

電子錶

Computer

Safety Key/Clip

Frame

Base

Power Switch

Circuit Breaker Power

Cord

- 3 -

2. IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic precautions should always be followed, including the

following:

Please read the instruction carefully before starting to use this product.

Danger– To reduce the risk of electric shock:

1. Always unplug this product from the electrical outlet immediately after using and before

cleaning.

Warning – To reduce the risk of burns, fire, electric shock or physical injury：

1. The product should never be left unattended while plugged in. Unplug the product from the

outlet when not in use.

2. Close supervision is necessary when this product is used by or near children, invalids, or

disabled persons.

3. Be sure to use the product only for its intended use as described in this manual. Do not use any

attachment not recommended by the manufacturer in order to avoid any danger or accidents.

4. Never operate the product if it has a damaged cord or plug, if it is not working properly, if it

has been damaged, or dropped into water. Please return the product to the service center of

seller for examination and repair.

5. Do not carry this product by the supply cord or use the cord as a handle.

6. Keep the cord away from hot surfaces or ground.

7. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc.

8. Never drop or insert any objects into any openings.

9. Do not use or operate outdoors.

10. Do not operate where aerosol (spray) products are being used or where oxygen is thin.

11. Before turning the product power off, turn all controls to the off position then remove the plug

from the outlet.

12. Connect the product to a properly grounded outlet only.

13. If the power cord is damaged, be sure to ask the manufacturer for replacement to avoid

accidents .The seller and correlative qualified professionals are as well as eligible.

- 4 -

3. GROUNDING INSTRUCTIONS

The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a path

of least resistance for electric current to reduce the risk of electric shock.

The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Danger– Improper connection of the equipment-grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the products

are properly grounded. Do not modify the plug provided with the product – if it will not fit the outlet,

have a proper outlet install by a qualified electrician.

The products is for use on nominal 220-240 volt and has a grounding plug that looks like the plug

illustrated in the figure. Make sure that the product is connected to an outlet having the same

configuration as the plug.

There is no need to use any adapter for this product.

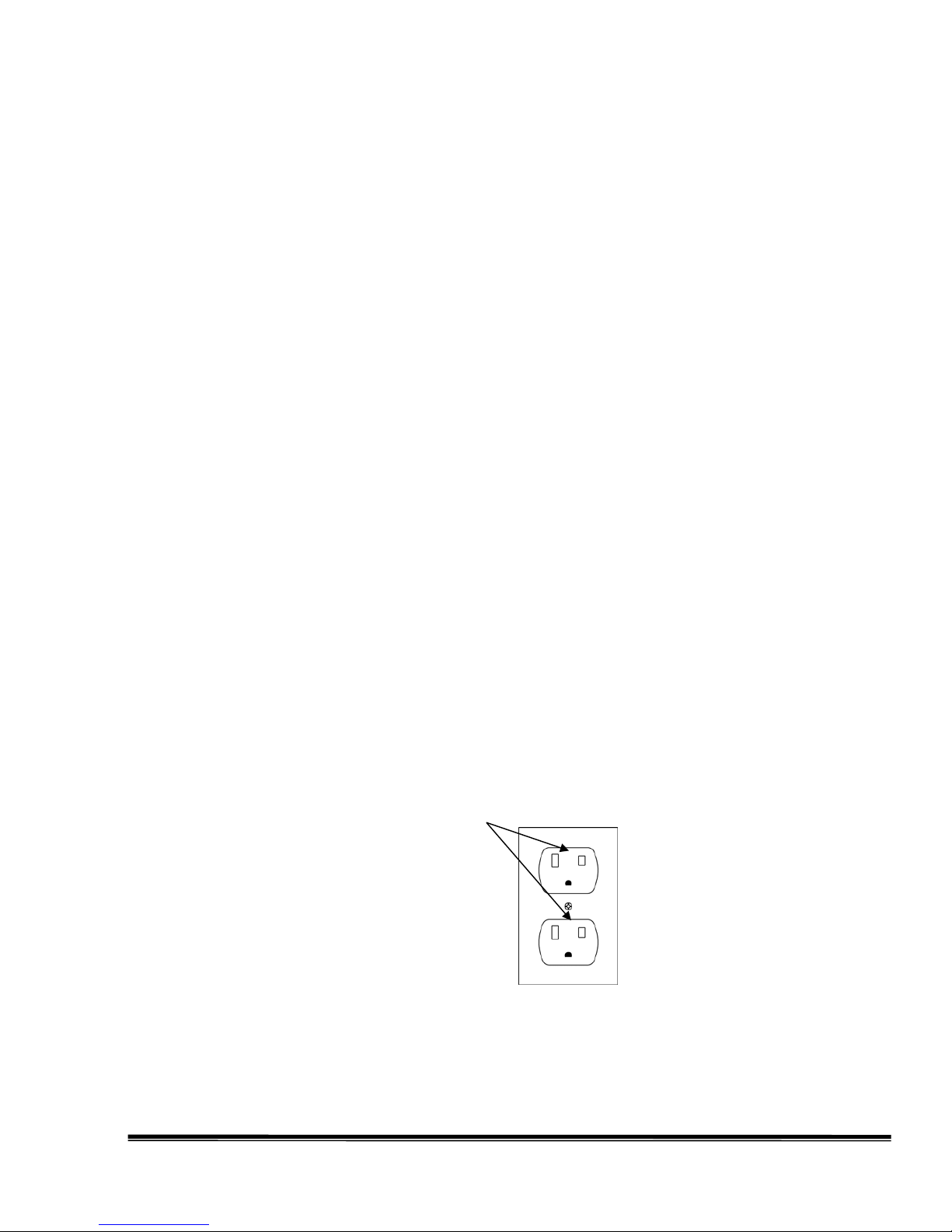

Figure

Grounding methods

GROUNDED

OUTLET

- 5 -

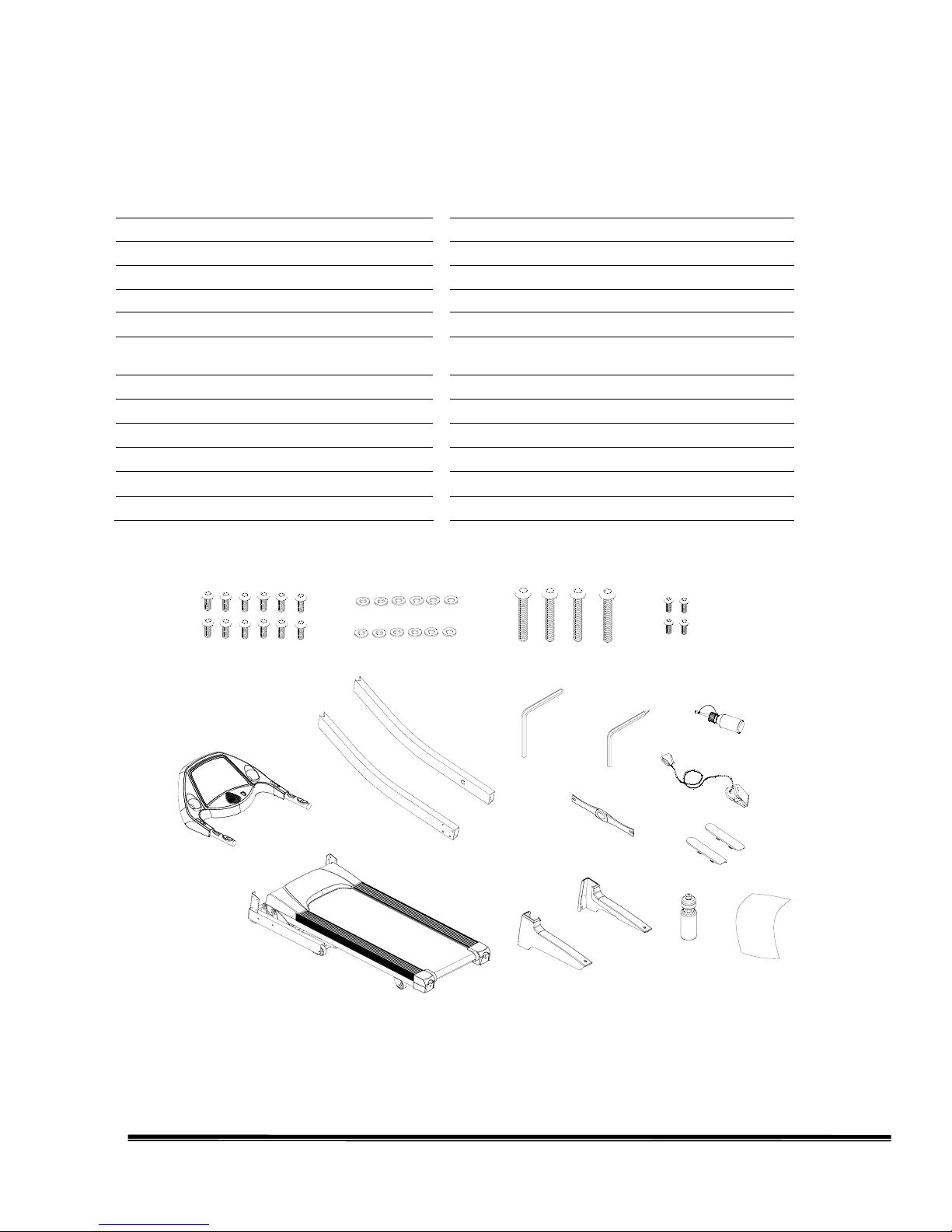

4. PRE-ASSEMBLY CHECK LIST

ITEM Description Qty ITEM Description Qty

A Computer Console 1 a Allen Bolt M8xP1.25x15 12

B Frame 1 b Washer Ø8xØ16x1.5t 12

C Upright (L) 1 c Allen Bolt M8xP1.25x60 4

D Upright (R) 1 d Screw M5xP0.8x18 4

E Cover 2 e SILICON 1

F Decorative Cover (L) 1 f Allen Wrench+ Screwdriver

5mm(70mmx70mm) 1

G Decorative Cover (R) 1 g Allen Wrench 6mm(80mmx80mm) 1

H Emitter 1 h Safety Key/Clip 1

i Bottle 1

j Towel 1

- 6 -

5. ASSEMBLY STEPS

Two persons are required to finish the assembly

steps.

(Caution!! Please follow the assembly

procedure below to avoid injury. )

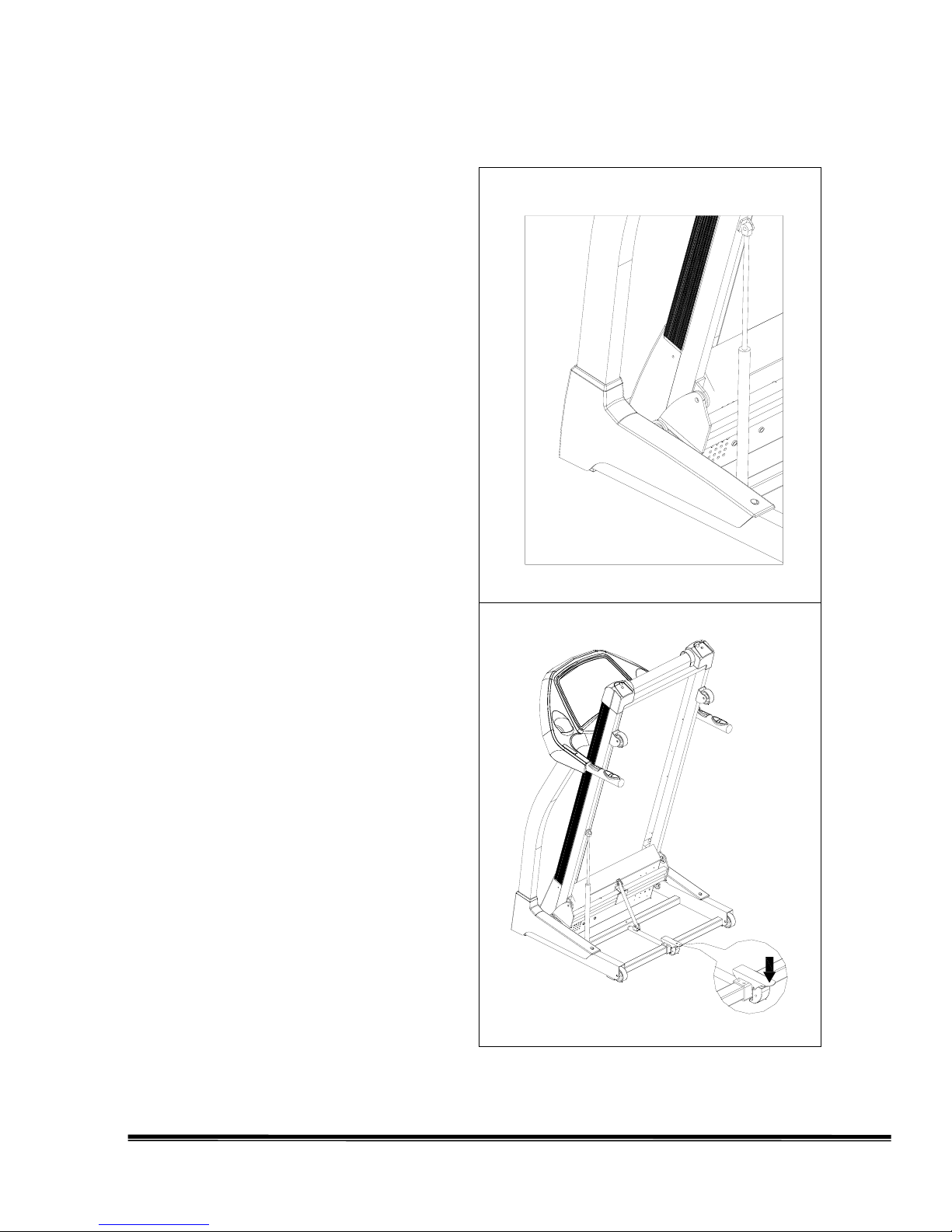

1. Attach the control wire-lower section from

the Frame (B) to the guide thread from the

right Upright (D), then pull the control

wire into the Upright , clip it with

protecting ring and fasten it inside of the

Upright. (As shown in the circle of the

picture.)

2. After finish above steps, put the right and

left Upright (C、D) on the Frame. Secure

with Allen Bolt (a) and Washer (h). (As

shown in the picture)

Ps.1. To avoid unexpected accidents, assemble

the treadmill with one or two assistants.

Ps.2 During assembling the support tubes, one

person is needed to hold the support tube to

avoid the falling of the support tube.

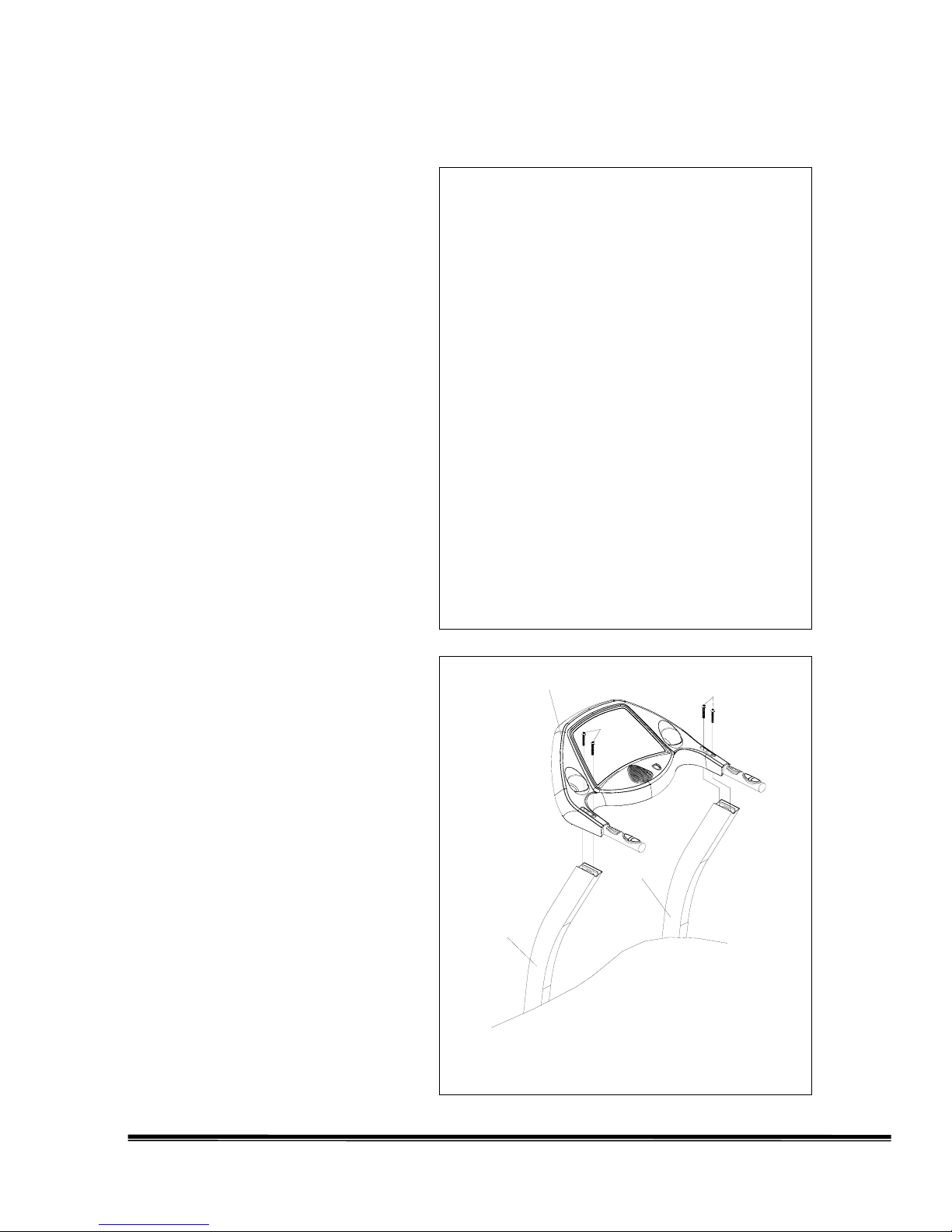

3. After the Uprights are tightened, pull out

the Control Wires which have been

threaded into the Upright to the month of

the Uprights. Then put Computer

Console on the Uprights and connect the

control wire of the Frame with the

control wire of Computer Console (A).

After connecting, tighten them with

Allen Bolt (c) shown in right drawing.

Ps.1. To avoid unexpected accident, always

assemble the treadmill with an assistant, do

not assemble by oneself.

Ps.2. When tighten the screws, make sure not to

damage the control wires in the tube.

- 7 -

4. After all the steps ahead, make sure that

the cover be set on the handrail as showed

on the right.

Then cap the Decorative Cover (L) and the

Decorative Cover (R) to the frame and then fix

with the screw according to right drawing.

- 8 -

6. CAUTION

Note 1: The Cylinder is made of high pressure, so be

extra careful not to make an impact on it with

other object that may cause deformation.

Note 2: The cylinder may be damaged and not be

smooth in use when it is hit. The damage may

also result in the fall of the treadmill when

folding.

Agreat space saving design is just simply to lift up the

running board and store to any place you want. Always check

the power is off and unplug the power plug from the outlet

when folding up. When folding up the running board, make

sure you hear a “click” sound to ensure the tread board is

fixed in the position. If you want to use the treadmill, step on

the tread board as the direction shown in the right drawing to

release the running board from the folding up position to

normal used position. The running board will automatically

and slowly drop down.

(Ps.1. To prevent from causing danger, be careful if the

kids are around. If you want to move the treadmill, fold the

treadmill at first, hold the rear adjust cap with your hands,

then lean the treadmill and do not move the treadmill until the

roller can be moved smoothly.)

(Ps.2. Do not move the treadmill on uneven ground.)

(Ps.3. To avoid the injury, do not stand under the frame when

the frame is descending.)

- 9 -

7. MAINTENANCE

1. When running belt is off the center, stop the treadmill

immediately, useAllen Wrench 6mm to adjust the hex head

screw. For example, the running belt is offset to the left it

should adjust 1/4 circle clockwise; if the running belt is

offset to the right, adjust 1/4 circle counterclockwise.After

adjustment, start the treadmill again, if the running belt still

off the center, repeat the adjusting procedure till the running

belt is in the center position.

(Ps.1. This action is very important, if a deviated belt is

found, be sure to follow above procedure.)

(Ps.2. Belt may move away from center status due to

user’s weight and running condition. The belt needs not to

be adjusted as long as it doesn’t rub against the parts

aside.)

2. It is strongly suggested to follow the below table to apply

lubrication on running board. Please use Allen Wrench

6mm to loosen bolts in rear adjusting boxes. Pull up the

running belt and apply lubrication evenly on the center of

the running board, then adjust the belt to the center of deck,

follow by tighten the screw to the original set up.

(Ps. When the belt is sliding, please follow the above

method to apply lubricant on the running board.)

KGS/LBS Speed Time

6KM/hr max 1 Year

6~12KM/hr 6 months

KGS 12KM/hr min 3 months

4mile/hr max 1 year

4~8mile/hr 6 months

LBS 8mile/hr min 3 months

Note: This maintenance is intended for

household use.

If used for business, suggest one

- 10 -

7. COMPUTER OPERATION INSTRUCTIONS

I. Start Display:

1. If the SAFETY KEY is taken off, the matrix window will display arrow adown. If the SAFETY KEY

is replaced，the matrix window will display KGS (mile) for avoirdupois unit. Weight window glitters

and displays the value set in advance. The value is 70KGS(150LBS) and range

23~180KG(50~400LBS). At this time Weight window displays , light is on. Finish setting or not

setting, press ENTER and the window will turn to display Start / Ready status. The matrix window

displays pulsatile heart-shaped picture. The aim of setting weight is to make a change of burning

CALORIES. This can be only done after starting. It does not need to set in PROGRAM. It means you

can use the value after starting. You must set newly after starting again.

2. When the SAFETY KEY is removed, the beeper will sound and then the treadmill will stop running.

At this time place the SAFETY KEY back and all the values will go back to the initial position.

3. Under the common Start / Ready status, if you don’t handle the heartbeat sensor, PULSE window

will display HP picture. When you handle it, you will see PULSE window start to display heartbeat

value.

II.Operation Instruction：

1. Under Start/Ready position, you can press Mode directly to enter the program edit.

2. Under Start/Ready position, press Start to enter directly by pressing Manu run.

3. If the machine has fan function, you can press to start or stop fan. Pressing once

means starting and pressing twice means stopping.

III. Operation Instruction：

1. Under Start/Ready position, you can press Mode directly to enter the program edit.

2. Under Start/Ready position, press Start to enter directly by pressing Manu run.

3. If the machine has fan function, you can press to start or stop fan. Pressing once

means starting and pressing twice means stopping.

- 11 -

**When the SAFETY KEY is taken off and then replaced, it will not make reposition action any where it is.

You need to press start key to perform the incline to reposit it.

When power on, it will not make reposition action any where it is. You need to press start key to perform the

incline to reposit it.

Under Start/Ready position, press stop key and keep it for 5 seconds, it will make reposition action

any where it is.

**During perform any program, if press stop key, the program will stop. If users want to continuously

perform the program, press start key or again press stop key to leave the program and back to start/ready

status.

IV.Edit Mode：

1. Under Start/Ready position, press Mode to choose Manual and Program mode by press +/- key.

2. Program Mode：Press +/- key to edit the Program (P1~P8) ,and the PROGRAM window will flash,

the LCD window will show P1~P8 to edit , you can press +/- key to edit. Press ENTER to enter the

TIME edit, the Program pre-set value is 30min, Range is 20~99min, STEP is 1.After edit, press

ENTER or START to start the machine. If you press START directly during edit, the rest un-edited

functions are pre-set. During edit, INCLINE and SPEED window will display first level value.

The matrix window will display the picture.

3. WARM UP and COOL DOWN function: During WARM UP or Program position, change speed or

inclination, the value will increase or decrease in the next level. COOL DOWN is not affected and

STOP is the only function which can be carried out.

4. PROGRAM has 30 levels in all. The three anterior are WARM UP, the three later

are COOL DOWN. Everyone is 3 minutes. The setting time except anterior and later

which mean 6 minutes will be execute averagely by surplus 24 levels.

5. 9 HOLES mode have not functions of WARM UP or COOL DOWN. When distance is equal to

3.5KM, the motor will stop, the INCLINE is 0 and displays” End”.

V. Program Operation and Instruction：

Manu Mode

1. When press START, it will begin to count down for 3 seconds, after that, the motor will start , the

speed will start at 0.8KPH（0.5MPH）. The matrix window goes contrarotate like along playground,

every circle is 0.4KM (0.25MIL).

2. Speed STEP is 0.1, you can press SPEED UP/DOWN key to select（the speed UP/DOWN step is

0.1）, or press speed instant key 1、2、4、6、8、10 to select .

3. Incline STEP is 1, you can press INCLINE UP/DOWN key to select（incline UP/DOWN step is 1）,

or press incline instant key 2、4、6、8、10、12 to select.

4. TIME set or not set:

(1) When TIME has bee set, the window will display a time value counting down from the target

value, when the time reaches 0:00, the treadmill will stop automatically.

(2) When TIME hasn’t been set, the window will display the exercise time, when the time reaches

99:00, the treadmill will stop automatically.

5. When you press Mode key, it will switch among SPEED, DISTANCE and CALORIES. No

switch among INCLINE, PULSE or WEIGHT and only displays INCLINE. When you receive

PULSE massage, the display will give priority to PULSE. When you receive heartbeat value, the

heartbeat window will display the value.

6. Press Stop when the motor is working, the motor will stop and the incline motor will stop, the

window will display Stop; If you press START key again, the motor will start after 3-seconds

countdown , the speed will be keep at the same before stop , and the incline will be increased to the

set height before stop .

- 12 -

7. When it is at stop position, hold the Stop key for 3seconds, and it will go back to the Start/Ready

position.

8. When it is at stop position, it will go back to the Start/Ready position directly after 5 minutes.

9. It will go back to the Start/Ready position after 30 seconds in the Run End position (or press Stop

key).

10.The time pre-set value is 0, range 20~99,when the time is edited at 20 minutes , you can press +- key

to increase or decrease, the increase step is 1, if decrease , it will go back to 0 directly. When

exercising, the matrix will go contrarotate like along playground.

VI.Program Mode

P1 Manu time：pre-set 0min；range 20~99min，step 1 min。

P2 9 hole LEVEL：pre-set 1，range 1~10，step1，3500 meter is based on distance.

P3 hill climb LEVEL：pre-set 1，range 1~10，step 1.

time：pre-set 30min；range 20~99min，step 1 min.

P4 hill run LEVEL：pre-set 1，range 1~10，step 1.

time：pre-set 30min，range 20~99min，step 1 min.

P5 interval LEVEL：pre-set 1，range 1~10，step 1.

time：pre-set 30min，range 20~99min，step 1 min.

P6 rolling LEVEL：pre-set 1，range 1~10，step1.

time：pre-set 30min，range 20~99min，step 1 min.

P7 Weight loss LEVEL：pre-set 1，range 1~10，step 1.

time：pre-set 30min，range 20~99min，step 1 min.

P8 Custom time：pre-set 30min，range 20~99min，step 1 min.

PROGRAM has 30 levels in all (SE01~SE30) and the pre-set values all are lowest value.

Setting：time，program execute value (setting time can execute in 30 level averagely）.

（1）After entering into the mode function, at this time, the LEVEL light is on, window flashes. This

function is to select acuteness level of movement (L1~L10). You can press or to

change the level you need and press ENTER to make sure.

（2）After finishing selecting level, then TIME window will star to flash.At this time press or

to set the sport time you need. Or press START key directly to start with no countback.

**range of time value：20~99 min，pre-set 30min，step 1 min.

** If the machine is equipped with HRC function, P8 Custom will be replaced by HRC

function. The operation is as below:

P8 HRC HRC function：(This function must be attached with heart beat to finish)

The program aims to exercise heartbeat. When operating, the heartbeat value is equal to the pre-set

value, the angle and speed will keep steady to maintain the heartbeat value in certain range to achieve

the exercising effect.

After you select this mode, it will order you to put in value according to operating style below：

1. LCD of AGE light flashes, you can press or to adjust age. After setting, press to

another position. Age pre-set：30；range of age: 13~80，Step 1.

2. At this time LCD of PULSE light flashes, the mode will request you to put in heartbeat value.

The value will change according to the age and please refer to the attached table in the rear of this

indication. Then select the suitable value in the table. You can press or to adjust heartbeat

value. If you don’t make any change, press and mode will start according to pre-set

value and turn to next position.

- 13 -

3. TIME window starts flashing, mode will request you to put in time value. You can

press or to set sport time you need. Or press directly to start move with

no count back.

（*Range of time value：20~99 min，pre-set 30min，step 1.）

** The chart below will show the relationship between different age and heart rate of this product of

HRC function：

Error Signal Display：

E1：The treadmill can’t read the speed value.

E6：In the range of ADC, incline motor doesn’t run.

E7：Incline is too height or too low(exceed the range).

** If it has any error signal, please connect with the sale agent.

BPM BPM BPM BPM

Age H Pre-set L Age H Pre-set L Age H Pre-set L Age H Pre-set L

13 197 124 124 31 180 113 113 49 162 103 103 67 145 92 92

14 196 124 124 32 179 113 113 50 162 102 102 68 144 91 91

15 195 123 123 33 178 112 112 51 161 101 101 69 143 91 91

16 194 122 122 34 177 112 112 52 160 101 101 70 143 90 90

17 193 122 122 35 176 111 111 53 159 100 100 71 142 90 89

18 192 121 121 36 175 110 110 54 158 100 100 72 141 90 89

19 191 121 121 37 174 110 110 55 157 99 99 73 140 90 88

20 190 120 120 38 173 109 109 56 156 98 98 74 139 90 88

21 189 119 119 39 172 109 109 57 155 98 98 75 138 90 87

22 188 119 119 40 171 108 108 58 154 97 97 76 137 90 86

23 187 118 118 41 170 107 107 59 153 97 97 77 136 90 86

24 186 118 118 42 169 107 107 60 152 96 96 78 135 90 85

25 185 117 117 43 168 106 106 61 151 95 95 79 134 90 85

26 184 116 116 44 167 106 106 62 150 95 95 80 133 90 84

27 183 116 116 45 166 105 105 63 149 94 94

28 182 115 115 46 165 104 104 64 148 94 94

29 181 115 115 47 164 104 104 65 147 93 93

30 181 114 114 48 163 103 103 66 146 92 92

- 14 -

Note：The machine has a function to switch between the metric system and the inch system , the switch operation method:

Hold the ENTER key for 10 seconds at the Start/Ready position after power on. At this time , the window will display: 0（the inch

system），

1（the metric system）

you can press ＋－ key to select. After select, press ENTER to confirm and then you can make the change.

SPEED AND ELEVATION CHANGES 變換速度及揚昇

9 HOLE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Level 1 揚昇 0.0 1.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0
