GPO GOLF FLAGMASTER 1800 User manual

Instruction for use / Guarantee
FLAGMASTER 1800
Rangefinder

EN
3
ABOUT GPO
GPO, German-Precision-Optics is an international
company that creates and sells premium outdoor
sporting optics to avid outdoor enthusiasts who seek
high-quality premium optics for their sport. GPO
GmbH, the global headquarters based in Munich,
Germany, and GPO USA, the American headquarters
based in Virginia, are geographically structured to
supply the global market with some of the best spor-
ting optics in the world. Together, GPO, GmbH and
GPO, USA design, engineer, produce, and distribute
optics that meet the highest specifications in all the
products’ price and class segments. GPO prides itself
in employing some of the most intelligent, talented,
and creative German engineers in the world who
possess the skills to ensure that all GPO optics have
premium quality and unique features.
THE GPO PLEDGE
We at GPO strive to bring you the best premium
product line at the absolute best quality and price
ratios in the industry. We will not invest in extreme
infrastructures and force consumers to pay for it. We
will not invest in making a product that gives you
unnoticeably better performance for a disproportional
increase in price. We will not drive up pricing to pay
for extravagant marketing campaigns. We are focused
on bringing quality features to our customers for
reasonable prices. We will not mislead our customers;
our reputation of a lifetime in the sports optics indus-
try ensures this. When it comes to your next optical
purchase, trust in GPO. You will not be disappointed.
Enjoy your PASSIONTM
About GPO

EN
3
Safety Instructions
Please read these safety instructions careful-
ly and follow these guidelines when using
the product.
Never look direcly into the sun, any bright
light sources or laser based light sources
through your optical product. This can
cause irreparable eye damage. Optics in
riflscopes function as a magnifying glass,
therefore dramatically increasing the
intensity of the light source.
Store the riflescope and accessories inclu-
ded with the FLAGMASTERTM out of reach of
children. Some of our products may contain
small parts which could create a choking
hazard for small children, or nylon straps
which could create a strangulation hazard.
Be cautious when touching metal parts
ENGLISH
when the product has been stationary and
extensively exposed to the sun or the free-
zing cold, as extremely hot or frozen metal
components may cause an injury to the skin.
Avoid improper shock, such as dropping
this porduct. It is an optical instrument and
damage may occur.

EN
5
Table of Contents
Safety Instructions...................................................
Contents...................................................................
Introduction.............................................................
Key Features.............................................................
Functionality.............................................................
Insert Battery............................................................
Setting Eyepiece.....................................................
Connection the Strap..............................................
Display Information.................................................
PinFinder...................................................................
Scan Mode...............................................................
Setup and Settings..................................................
LOS and SLOPE Mode Setting..............................
Setting SLOPE Indicator..........................................
Setup Meter and Yard.............................................
Specification.............................................................
Dimension................................................................
Care, cleaning and maintenance..........................
Storage and Spare Parts.........................................
Legal Information....................................................
Guarantee................................................................
Contact......................................................................
2
5
7
9
10
12
14
15
16
18
19
20
22
26
28
32
33
33
35
36
37
37

EN
7
Congratulations on the purchase of
your FlagmasterTM with PinFinderTM and
Slope Technology.
The new FLAGMASTER is a precision optical instru-
ment to accurately and quickly measure distances on
any golf course under any conditions This guide will
describe the functions of the rangefinder and explain
the use of the individual technologies to help improve
your golf game. Please review the instructions careful-
ly to get the most out of your new product.
INTRODUCTION
Your FLAGMASTER is designed to meet all your golf
laser rangefinding needs. In the development of
the FLAGMASTER, emphasis was placed on intuitive
user-friendliness. The integrated PinFinderTM and
SLOPE technology combined with one of the fastest
laser- rangefinding systems on the market and
excellent optical quality allows you to focus on the
essentials.
The FLAGMASTER is extremely compact and
designed for one-hand operation with a soft touch
finish for confident handling. The eyepiece has an
integral diopter adjustment to adapt to any user. The
FLAGMASTER has a 6x magnification and measures
distance from 6 - 1,800 yards, depending on the
environmental conditions, and features PinFinderTM
technology to confirm when exact distance to the flag.
CAUTION
Safety precautions and hazard warnings
Never operate the laser measurement (Range
Button) when people are in the direct field of view
of the laser.
Never operate the laser measurement (Range
Button) in the direction of your own eye or people
around you.
Never look with the FLAGMASTER into the sun or
other bright light sources.
Do not let the product get in the hands of children.
Never open the device.
Never modify the device electronics.
Do not use a battery other than the specified CR2
battery.

EN
9

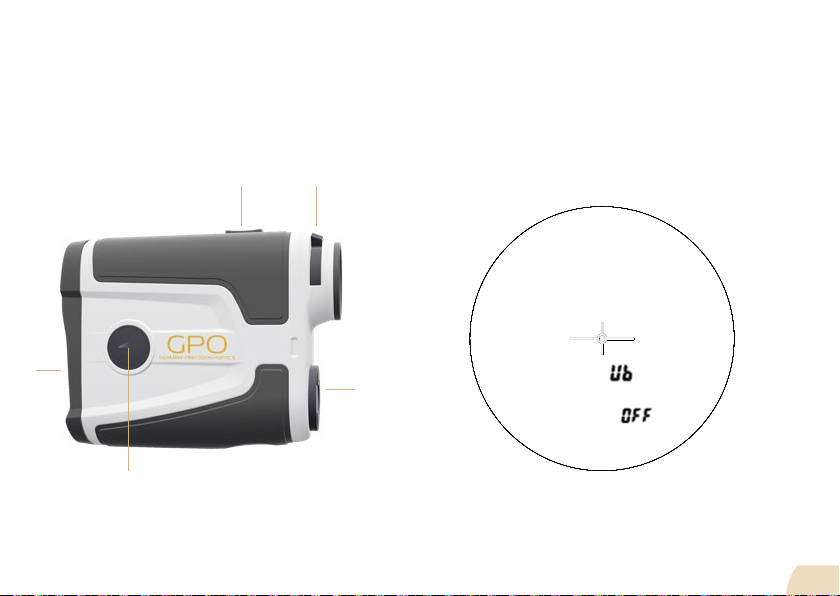

A
B
C
D
E
- Power/Range Button
- Diopter Adjustment
- Battery compartment
- Legal/illegal indicator
- Mode Button
A
E CD
B
KEY FEATURES
6x20 mm monocular laser range finder with
anti-reflective coating of optics for increased light
transmission
Innovative one-hand operation and SpeedFocusTM
eyepiece
PinFinderTM technology
SLOPE technology for determining the angle
modified distance when ranging targets at different
angles
One of the fastest laser rangefinding systems with a
scan rate of 3 measurements per second
Measuring units in meters and yards
High Transmission Display (HLCD) for maximum
light transmission in any environment
Compact and lightweight case with soft-touch
coating and rubber grips
Legal and illegal indicator for tournaments
(Illegal = red visible LED display)

EN
11
FUNCTIONALITY
The FLAGMASTER uses an infrared laser and detector
to accurately determine the range to a target. By
emitting a series of eye-safe laser pulses and then
determining the time it takes for those pulses to travel
to and return from the target, the FLAGMASTER can
calculate an exact distance. The rangefinder system
leverages advanced algorithms running within the
digital signal processor to improve range performan-
ce and extend the maximum range performance of
the device.
MEASURING ACCURACY
AND TARGET TEXT
Under normal conditions, the measurement accuracy
is +/-1 yards up to a distance of 1,000 yards. From a
distance of 1,000 yards to1,800 yards, the measu-
rement accuracy is +/-2 yards. The measurement
accuracy and distance depends largely on the reflec-
tivity of the target and the environmental conditions
at the time of the measurement. Depending on the
reflectivity of the target and environmental conditions,
the maximum distance and measurement accuracy
may vary. Color, surface texture, size, shape, fog, rain,
measurement angle and scattered light influence the
measurement positively or negatively.
Target color shiny surfaces = high reflection properties
Target color black = low reflection properties
Sunshine = shorter range
Covered sky = longer range
Distance Measurement and Performance
in Hyperscan Mode
Target Type
High-grade retro-reflectors and prisms
Grass and Trees
Flag
Measuring Distance
Up to 1,800 yards
Up to 700 yards
Up to 500 yards

EN
13
SET-UP AND INITIAL USE
Insert and replacing the battery
The package includes a CR2 battery. Remove the
battery from the packaging. Flip up one half of the
battery cover. With this lever you turn the battery
compartment counterclockwise to open the battery
compartment. Insert the CR2 3-Volt lithium battery
with the negative contact facing into the battery
compartment. Close the battery compartment with
the battery cover, turning clockwise. Hand-tighten
the battery cover and fold the clip back to its starting
position. Be careful not to over tighten because the
battery cap can break the flip lever. If the battery cap
is not installed properly the battery compartment may
not seal properly.
Please check the battery every 3 months to prevent
battery leakage.
Most CR-2 batteries will run for several years in your
rangefinder; however we recommend replacing the
battery every year. Please always dispose of the bat-
tery in designated containers or dispensing stations
(see details in chapter „Disposal of electrical and
electronic equipment“).

EN
15
SETTING THE EYEPIECE
The FLAGMASTER is equipped with a SpeedFocusTM
diopter adjustment. This is located near the eyepiece.
The eyepiece adjustment can be set between +/- 3
diopters. Look through the eyepiece and rotate the
SpeedFocusTM by turning the focus wheel in the + or -
direction, depending on your personal eye prescrip-
tion. Rotate the SpeedFocusTM for best focus of the
display in relation to the image so that you can clearly
resolve both objects at the same time.
CONNECTING THE STRAP
Your FLAGMASTER comes with a lanyard or retaining
strap. This strap ensures safe handling of the product.
Guide the thin end of the strap loop through the strap
connection on your FLAGMASTER. Slide the thicker
end through the loop of the thin end and tighten the
strap. With the slider button you can change the loop
size that fits in your wrist. Please do not pull the loop
too tightly to avoid injury.

EN
17
DISPLAY AND SYMBOLS
The HD display shows you the target point, the unit of
measurement in meters or yards, the SLOPE and the
current battery status.
After activation from sleep mode you will see all
available information on the display. To activate the
measurement simply press the Range button. The
FLAGMASTER measures the distance and displays this
for 10 seconds. To avoid confusion, you only see the
target point and the measured distance.
DIFFERENT SETTINGS (MODES)
Our goal was to provide you with the most intuitive
operation, but still to integrate all relevant modes. In
summary, you can set and select the following modes
for your FLAGMASTER:
Target point. This is the point at which the
object is targeted to determine the distance

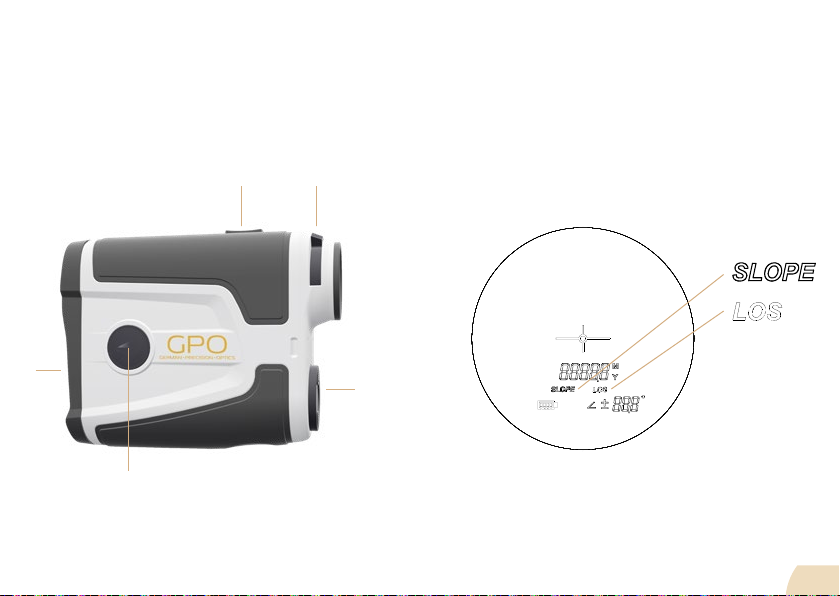

Distance Display
LOS or SLOPE Section and Selection
Battery Status Indicator
M or Y setting
PinFinder
Display Angle
1
2
3
4
5
6
7
-
-
-
-
-
-
-
1
2 5
6
7
3
4
Line of Sight or Slope mode. In Slope mode the
legal indicator will be turned on and should not be
used when prohibited in tournament play
Unit of measure in meters or yards
PinFinder vibration on or off

EN
19
PinFinder
Your FLAGMASTER has a PinFinder which allows you
to specifically range the flag. Some courses use a
retroreflector or prism mounted on the top of the pin.

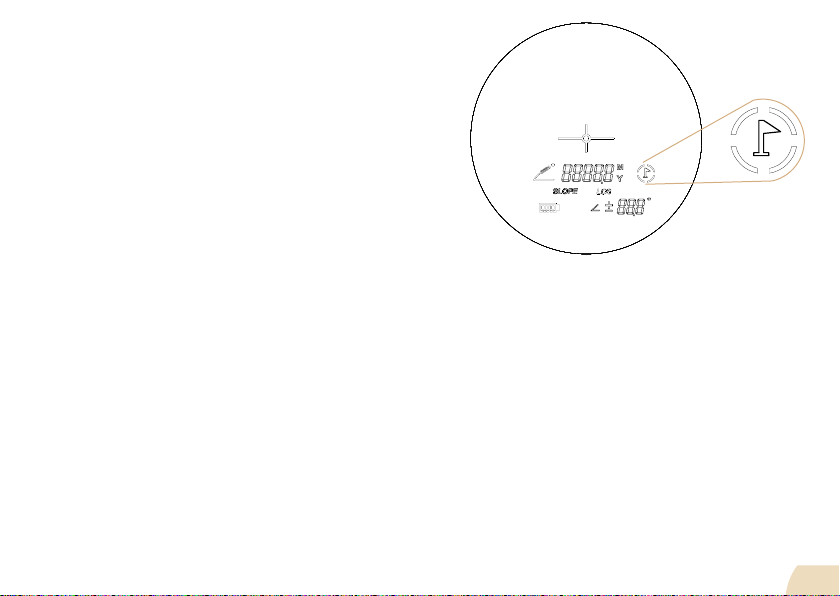

In PinFinder mode you will see the flag symbol on the
display. Move the target or aiming point of the display
towards the flag or top of the pin and you will feel a
vibration if the vibration is active.
Press and hold the Range button (A) (your FLAGMAS-
TERTM will automatically enter Scan mode). Carefully
move the aiming point over the flag or prism to while
the Range Button is held down. If you have locked in
on the flag or prism a circle will appear around the
flag icon and you will feel a vibration if the vibration
is active and in the display confirming you have a pin
lock. Upon release of the range button, the distance
will be displayed for 10 seconds.
SCAN MODE
Your FLAGMASTER gives you the option of single ran-
ge measurement or scan mode. For a single distance
measurement, aim the rangefinder at the intended
target then press and release the range button. For
scan mode, aim the rangefinder and press and hold
the range button – the device will scan for up to 20
seconds providing 3 updates per second. Scan mode
is useful for ranging distance targets or when the flag
is blowing in the wind. Upon release of the range
button the last, best range result will be displayed for
10 seconds.

EN
21
SETUP AND SETTINGS
1. Press and release RANGE button (A) to turn on LRF.
The default status is: LOS (3) mode is ON, yards unit
of measure (5), Angle (7), Pin and Battery indicator (4)
are shown for the first 2 seconds after wakeup and
then only range, unit of measure, angle and the pin
(battery indicator and LOS disappears).
Rangefinder display is on for 10 seconds, or until the
RANGE or MODE button is pressed. If not, button is
pressed the rangefinder times out after 10 seconds.
From the ON state (LRF is awake), press and hold
MODE (E) button for > 2 seconds to enter
Programming Mode.
A
E
D
4
C
7
6
5
3

EN
23
2. LOS AND SLOPE SETUP
LOS (6) is blinking. Press RANGE button (A) to toggle
between LOS and SLOPE mode. When your desired
mode is blinking, press and release MODE (E) button
to save and index to the next step.
A B
E
D
C

EN
25
Line of Sight (LOS) mode or SLOPE
setting
You can set the FLAGMASTER via a preset, step by
step menu.
Press the Range button to activate the FLAGMASTER.
Then press the Mode button for 2 seconds.
The display will show LOS = Line of Sight (flashing).
LOS is the currently set mode. To change this to SLO-
PE = press the Range button and you will see SLOPE
displayed. Press the Mode button again to save the
set value.
Your FLAGMASTER offers you 2 different ways of
determining distance. The first one is LOS (Line of
Sight). The LOS mode measures the direct distance to
a target without consideration of an angle. The SLOPE
tells you the equivalent horizontal distance (or angle
modified distance) with consideration of the angle.
INFORMATON ABOUT SLOPE
Your FLAGMASTER has a built-in tilt sensor that de-
termines the exact tilt angle up to ± 60 degrees. Your
FLAGMASTER automatically calculates the adjusted
distance based on the measured distance and angle.
When your FLAGMASTER is in the LOS (Line of Sight)
mode, you will be alternately shown a distance of 500
meters and the measured angle.
If the FLAGMASTER is in the SLOPE mode, the adjus-
ted distance of 433 meters is displayed, taking into
account a 30° angle.

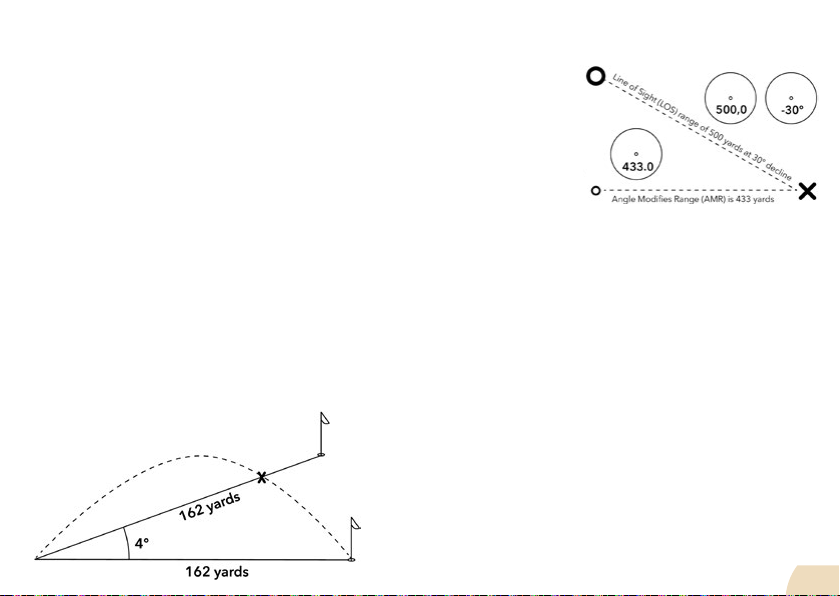

Example:
LOS Range of 500
yards. 30° decline
equals to an AMR of
433 yards

EN
27
Setting the SLOPE indicator
Some official tournaments do not allow the use of
the SLOPE mode. Your FLAGMASTER allows you to
disable this mode. After pressing the mode button
the setup menu is activated. There you can choose
between SLOPE ON or OFF. If SLOPE is enabled, you
will see the adjusted distance. If the SLOPE mode is
disabled, it will not be available. In addition, you and
the official in front of the FLAGMASTER will see two
red flashing triangles showing the activated SLOPE
mode. To turn on the SLOPE, repeat until SLOPE ON is
displayed. Confirm this with the Mode button.
In SLOPE mode, the red LEDs on the faceplate will
flash during ranging.

EN
29
A B
E
D
C
3. METER AND YARD SETUP
Y (5) is blinking. Press RANGE button (A) to toggle
between M and Y (5). When your desired unit of mea-
sure is blinking, press and release MODE button (E) to
save settings and jump into vibration settings.

EN
31
A B
E
D
C
4. VIBRATION SETUP
VB ON is blinking. Press RANGE button (A) to toggle
between Vibration ON and Vibration OFF. When your
desired unit of measure blinking, press and release
MODE button (E) to save settings and jump to the
next setting.

EN
33

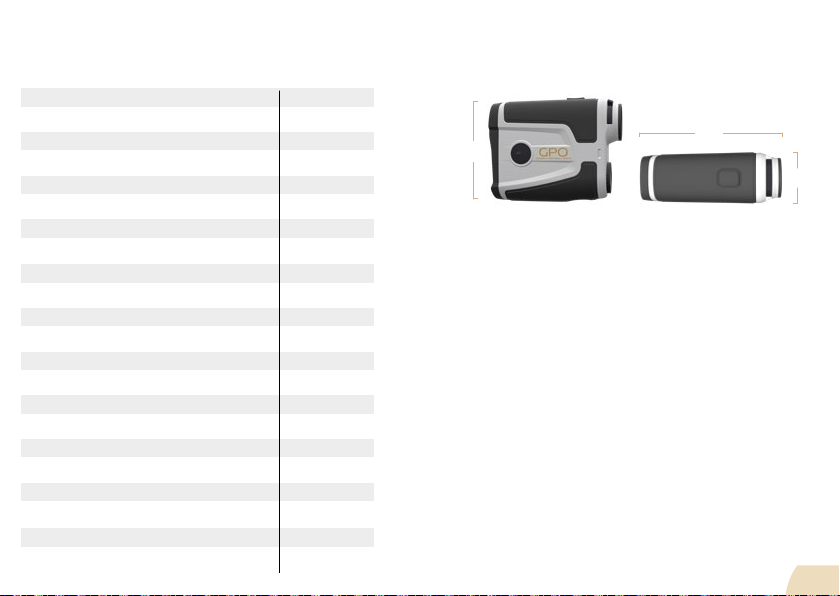

FLAGMASTER SPECIFICATION SHEET
DIMENSIONS
Magnification
Objective Diameter
Exit Pupil
Eye Relief
Diopter Correction
Field of View at 100 Yards
Laser Response Time
ScanMode
Length
Width
Height
Weight
Measurements per Battery CR2
Battery Type
Minimum Range
Maximum Range (Reflective Object)
Range Trees and Grass
Range Flag
6–1,000 yards Measurement Accuracy
1,000–1,800 yards Measurement Accuracy
Laser Class (Eye Safe)
Angle Sensor
6x
20 mm
3,33 mm
16 mm
+3
7,5°
0,33 Seconds
Yes
94 mm
33 mm
76 mm
148 g
4.000
CR2 Lithium
6 yards
1.800 yards
700 yards
500 yards
+1
+2
1M
+/- 60°
a
c
b
a - 75,7 mm | b - 94,0 mm | c - 33,8 mm
Care, cleaning and maintenance
The cleaning of the optics can be done by means of an
optical cleaning cloth. Always keep the optical surfaces
clean and remove and dirt, finger oils or water stains
immediately to ensure a lasting performance. For cle-
aning, breathe on the optical surfaces lightly and then
use the optical cleaning cloth around the contaminants
to clean the lens surfaces. Please note that coarse dirt
particles should be removed by either blowing them
away or with a clean hair brush; otherwise you may
scratch the surface of the lenses. All external mechani-
cal components as well as the rubber armoring may be
cleaned with a soft, clean and slightly moistened clea-
ning cloth. Please do not use the optical cleaning cloth
to clean the outer components and rubber armor.

EN
35
Storage
Keep your FLAGMASTER after use dry and in a
well-ventilated place. If you use your product in a high
humidity area, please store your product in an airtight
container with moisture absorbent to reduce potential
fungal contamination.
Spare parts supply
If you need spare parts or accessories for your FLAG-
MASTER, please contact a specialist dealer or
GPO GmbH & Co. KG.
GERMANY
WARNING
CLASS 1M LASER PRODUCT WITH INVISIBLE LASER
RADIATION - AVOID DIRECT EYE EXPOSURE
This product complies with IEC 60825-1: 2014-05
Ed 3.0 and complies with the FDA standard for laser
products, except as noted in Laser Note No. 50 of
June 24, 2007
P o < 10W, λ= 905 nm, t = 22 ns
This product has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. The device could interfere
with wireless communication. However, there is no
guarantee of interference. If this product causes radio
or television interference, the user may try to correct
the interference by one or more of the following
solutions:
To comply with the limits, use a shielded interference
cable with the equipment in accordance with Part
B of Part 15 of the FCC Rules. Specifications and
designs are subject to change without notice from the
manufacturer.
Reorient the receiving antenna
Increase the distance between this product and the
receiver
Connect the device to an alternative power outlet or
alternative receiver
Consult a technician.

EN
37
Update with warning sticker. Should show Class 1M
DISPOSAL OF ELECTRICAL AND ELEC-
TRONIC EQUIPMENT (Waste disposal)
This device contains electrical and / or electronic
components and must therefore not be disposed of in
normal household waste. Instead, it should be handed
in at the appropriate community recycling centers. This
does not cost you anything. If the equipment contains
replaceable (rechargeable) batteries, they must first be
taken out and, if necessary, disposed of in accordance
with applicable regulations (see also the notes in the
manual of this product).
More information on this topic can be obtained from
your local council, your local waste management
company or the shop where you purchased your
equipment.
GPO GmbH & Co. KG WEEE-Reg.-Nr.: DE 45735335
GUARANTEE
Your FLAGMASTER has a two-year warranty from the
date of purchase to be free from defects in material
and workmanship. If there is a defect in the warranty,
we will repair or replace the product at our discretion.
This warranty does not cover damage caused by
improper use, improper handling, or service perfor-
med by someone other than GPO GmbH & Co. KG
authorized after-sales service.
Any returns under this warranty must be accompanied
by the following items or information:
2. Name, address and daytime telephone number.
3. A description of the problem.
4. A copy of your proof of purchase with date.
Do not send any accessories (batteries, case, strap,
etc.), only the product to be repaired.
The product should be packaged well, in a durable
shipping box to avoid damage during transport and
shipped to the following address:
In the USA:
GPO USA
11303 Whistlewood Ct.
Midlothian, VA 23113
Toll Free: 844-MY-BINOS (692-4667)
804-495-8561 (T)
804-495-8560 (F)
[email protected]
In Europe and International:
GPO GmbH & Co. KG
Wildmoos 9
82266 Inning am Ammersee
Germany
[phone]
[email protected]
